ParaBody 220 User manual

1
220 GYM SYSTEM
CLASSH
PART # 7017301
REV. G Revision: 09/13/01
USER’S GUIDE
WARNING:
Read and follow all directions
for each step to insure proper
assembly of this product.
Version: 220101

THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK FOLLOW THESE RULES!
1. Before using, read all the warnings and instructions
on the use of this machine. Use only for intended
exercise. DO NOT modify the machine.
2. Obtain a medical exam before beginning any
exercise program.
3. Keep body and clothing free of all moving objects.
4. Inspect the machine before use. DO NOT use it if it
appears damaged. DO NOT attempt to fix a broken or
j
ammed machine. Notify your authorized ParaBody
dealer before use and have repairs made by an
authorized service technician.
5. Be certain that weight pin is completely inserted.
Use only the pin provided by the manufacturer. If
unsure, call your authorized ParaBody dealer.
6. Never pin the weights or prop plate into an elevated
position. DO NOT use the machine if found in this
condition. DO NOT attempt to fix. Notify your
authorized ParaBody dealer.
7. Inspect cables and their connections before using
machine. Pay particular attention to the cable ends.
DO NOT attempt to fix. Notify your authorized
ParaBody dealer before use and have repairs made by
an authorized service technician.
8. Make sure all spring loaded pull pins are fully
engaged in the adjustment position and fully tighten
thumbscrew before use.
9. Children must not be allowed near this machine.
Supervise teenagers.
.
IMPORTANT SAFETY INFORMATION
TABLE OF CONTENTS
Safety Statement.............2
General Notes..................3
Tools Required................3
Gym Layout.....................4
NOTE: In a continual effort to improve our products, specifications are subject to change
2001 Life Fitness, a division of Brunswick Corporation. All rights reserved.
ParaBody is a trademark of Brunswick Corporation
www.parabody.com
2
Parts list..........................5
Assembly Instructions.....6-21
General Maintenance.......22
Warranty Statement..........23
Product Services..............24
Insert-Registration Card
©

IMPORTANT NOTES
Please note:
Tools Required forAssembly
* Thank you for purchasing the ParaBody 220 Gym System. Please read these
instructions thoroughly and keep them for future reference.
* Rubber mallet or hammer
* 3/4” wrench
* 9/16” wrench
* Ratchet with 3/4” and 9/16” sockets
* 5/32” Allen wrench
* Adjustable wrench
* Tape measure
3

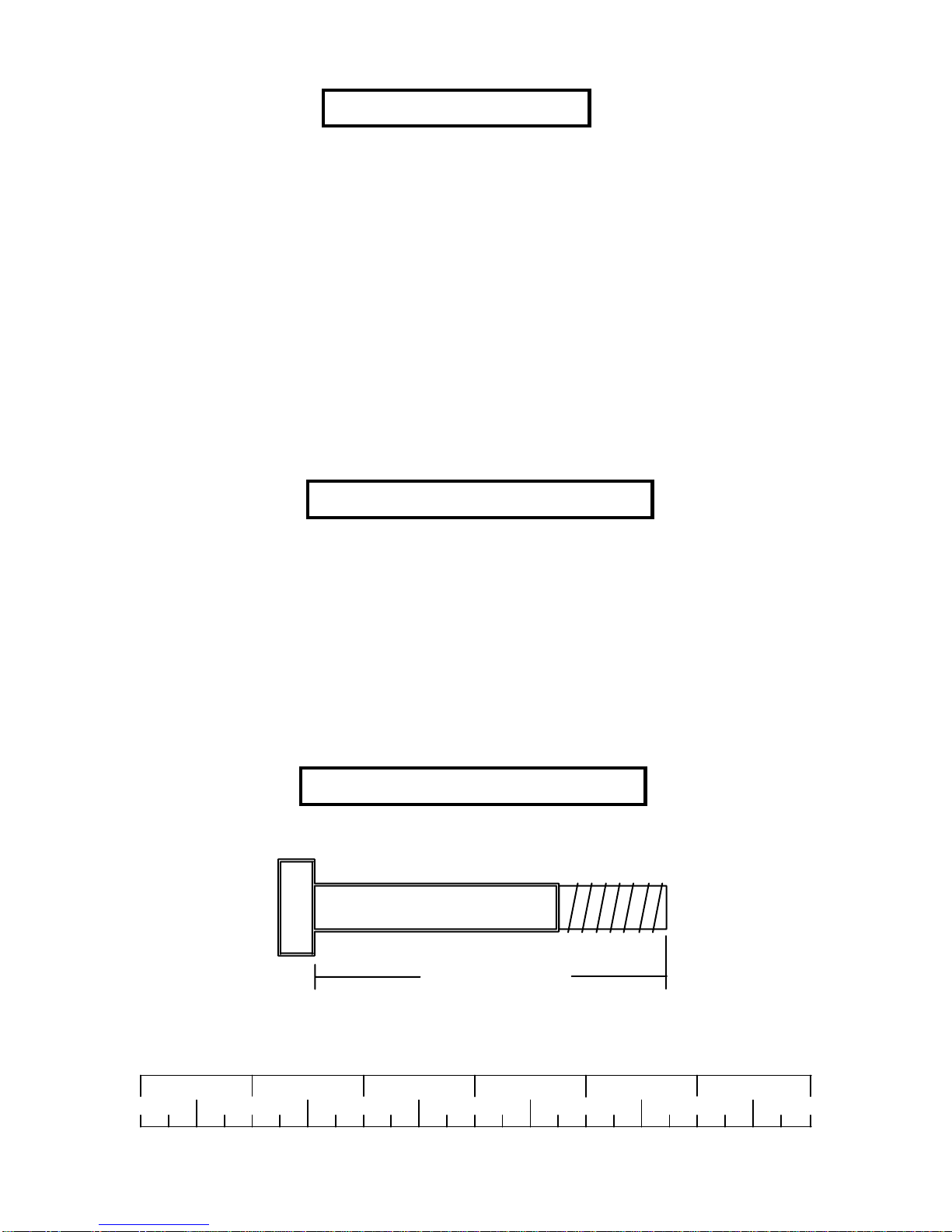

NOTE:BOLTLENGTH IS MEASURED FROMTHEUNDERSIDE OFTHEHEADOFTHEBOLT.
BOLT LENGTH RULER:
* This product must be assembled on a flat, level surface to assure its proper function. DO NOT
securely tighten any frame connections until the entire frame has been assembled, unless
otherwise stated.
Bolt Length Ruler
0123456
1/2 1/2 1/2 1/2 1/2 1/2
BOLT LENGTH

Minimum Required Usable Space
Length = 82 inches (208.5 cm) 6’ 10”
Width = 71 inches (180.5 cm) 5’11”
Height = 83 inches (211 cm) 6’ 11”
1 Square = 1’ X 1’
4
Length = 82 inches (208.5 cm) 6’ 10”
Width = 108 inches (180.5 cm) 9’ 0”
9’1’ 2’ 3’ 4’ 5’ 6’ 7’ 8’
1’
7’
6’
5’
4’
3’
2’
Dimensions Including Leg Press (optional)

5
PARTS LIST
0123456
1/2 1/2 1/2 1/2 1/2 1/2
PART #
7005008
7005708
6994608
7005308
7005208
7005408
7005508
6999708
7005108
7005808
7005608
6940808
6994721
6549301
6194601
6523401
7006202
7015701
6953702
7014101
7014201
6939202
6382301
3116201
6409101
6075906
3102924
3102922
3102904
3102905
KEY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
QTY
1
1
2
1
1
1
1
1
1
1
1
2
2
3
6
2
1
1
1
1
1
15
3
12
1
1
2
4
4
15
PART #
3223323
3102917
3202104
3102802
3102804
3102501
3102502
3102503
3108901
6020601
6480301
6480302
6122701
6122705
7012102
3108002
3110005
3103302
7193101
6412001
6972201
6145801
6595101
3105401
6866601
6866801
3103801
6416601
3221702
6978101
7071802
DESCRIPTION
3/8 X 8” BOLT
1/2 X 4” BOLT
1/2 X 8” BOLT
3/8” LOCK NUT
1/2” LOW HT LOCK NUT
3/8” FLAT WASHER
1/2” FLAT WASHER
3/4” FLAT WASHER
3/4” PLASTICWASHER
1/2” FLANGE BEARING
3/8 X 9/16” FLANGE SPACER
3/8 X 1-1/16” FLANGE SPACER
3/8 X 1” LG SPACER
3/8 X 1-3/16” LG SPACER
WEIGHT STACK SPACER
WEIGHT STACK CUSHION
5/16 X 2” ROLL PIN ASSEMBLY
SHAFTCOLLAR
3/8” LOCKING SPRING PIN
3/8” SPRING PIN
WEIGHT SELECTOR PIN
3-PRONG KNOB
ADJUSTABLE GLIDE
STARLOCK COLLAR
RH CAP
1/2” RHCAP HOLDER WASHER
SNAP LINK
PARAGLIDES (QTY8)
E - RING
WEIGHTSTACK LABEL
FOOTPLATE
QTY
2
1
1
25
2
17
2
2
2
6
2
8
6
4
2
2
2
2
2
1
1
1
1
6
2
2
2
1
1
1
1
DESCRIPTION
FRAME
BASE
BASEPLATE
BOOM PLATE LEFT
BOOM PLATE RIGHT
PRESS HANDLE RIGHT
PRESS HANDLE LEFT
PRESSARM
PRIMARYPIVOT
SEATADJUST
LEG PEDESTAL
PULLEYPLATE
SEATPAD
3/4 X 17” TUBE
4 X 7” ROLLER PAD
72-3/8” GUIDE ROD
ERGO BAR
WEIGHTSTACK SHAFT
HEADPLATE
LATCABLE
LOW CABLE
WEIGHTPLATE
WEIGHT PLATE BUSHING 10 CT
3-1/2” PULLEY
ANKLE STRAP
CHAIN
3/8 X 1-3/4” BOLT
3/8 X 2-3/4” BOLT
3/8 X 3” BOLT
3/8 X 3-3/4” BOLT
KEY
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
60
61
62

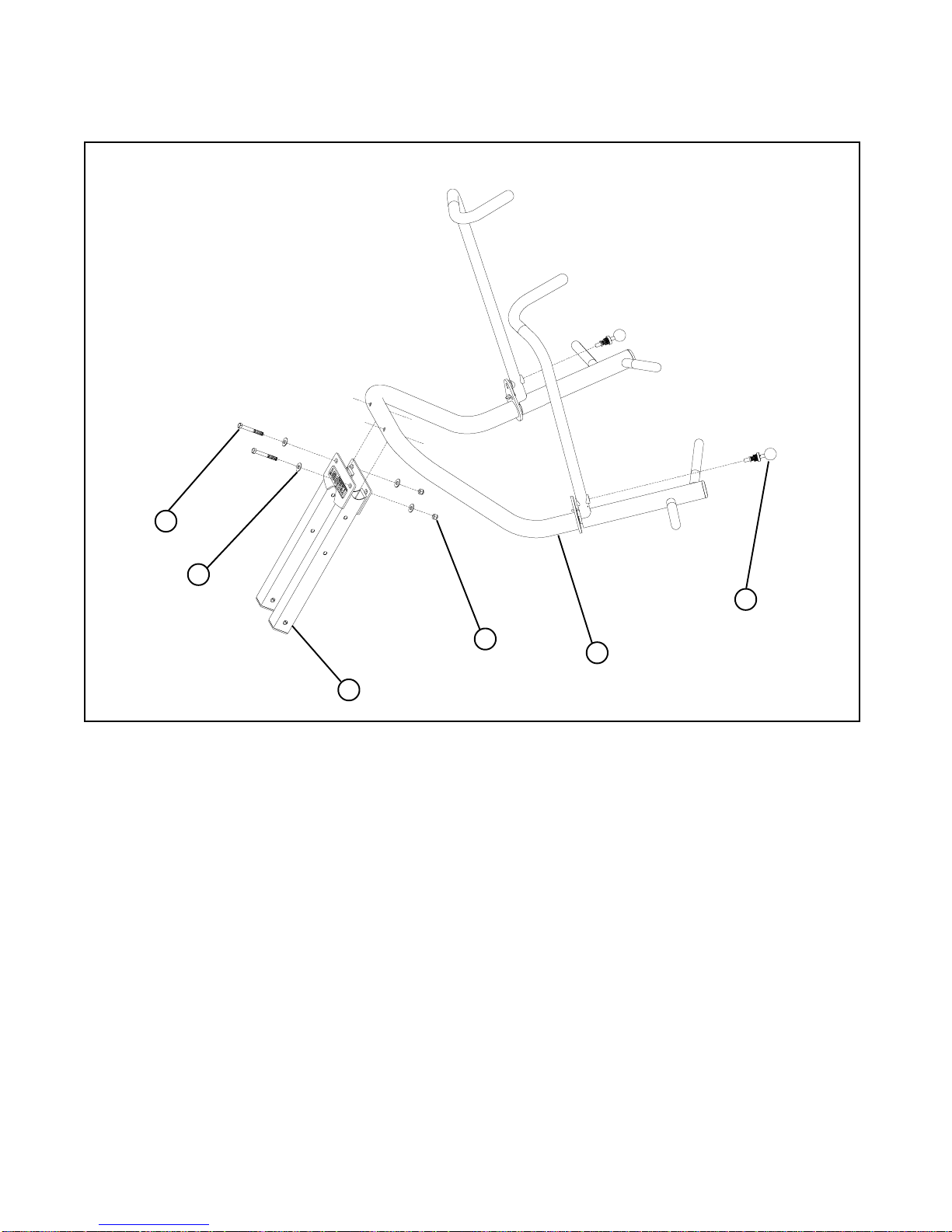

FIGURE 1
6
STEP 1:
• LOOSELY assemble the FOOTPLATE (62) to the lower holes in the FRAME (1) using one 3/8 x 3” BOLT (29) and one
3/8 LOCKNUT (34)
1
34
30
2
62
3/8 X 3-3/4
29 41
34
3
• LOOSELY assemble two BASE PLATES (3) to the FRAME (1) and BASE (2) using four 3/8 X 3-3/4” BOLTS (30)
and four 3/8” LOCK NUTS (34). See FIGURE 1.
• Insert two 3/8 x 9/16” FLANGE SPACERS (41) into the upper holes in the FRAME (1) as shown in figure 1

7
FIGURE 3
STEP 3:
FIGURE 2
• Insert two WEIGHT PLATE BUSHINGS (23) into each of the fifteen WEIGHT PLATES (22) as shown in FIGURE 2.
STEP 2:
• Slide the WEIGHT PLATE SHAFT (18) thru the hole in the HEAD PLATE (19), and lock in place using one E-RING (60) as shown
in FIGURE 3.
23
22
19
60
18

• Insert two GUIDE RODS (16) into the BASE (2) as
shown on FIGURE 4. (NOTE: If the 220 SHROUD
OPTION was purchased, place the GUIDE RODS
(16) through the BOTTOM SHROUD BRACKET
(FOUNDIN THE SHROUD KIT BOX)intotheBASE
(2), as shown in FIGURE 4.
• Using EXTREME CARE slide all fifteen
WEIGHT PLATES (22) down the GUIDE RODS (16)
onto the WEIGHTSTACK CUSHIONS (46). Make sure
that the keyholes of the WEIGHT PLATES (22) are all
facing the right way.
• Slide the head plate assembly down GUIDE RODS
(16) onto the weight stack.
• Slide one SHAFT COLLAR (48) down each
GUIDE ROD (16).
FIGURE 4 2
46
38
16
48
45
• Slide the following items in order down each GUIDE
ROD (16), one WEIGHT STACK SPACER (45), one
3/4” FLAT WASHER (38) and one WEIGHT STACK
CUSHION (46)
STEP 5:
• Carefully slide the RIGHT (5) and LEFT (4) BOOM PLATES onto the GUIDE RODS (16 )as shown in FIGURE 5 and loosely
assembly BOOM PLATES (5), (4) to frame (1) using two 3/8 x 3-3/4” BOLTS (30) and two 3/8” LOCK NUT (34)
[CAUTION MUST BETAKEN NOT TO PULLGUIDE RODS (16) OUT OFBASE (2)]
• Screw ADJUSTABLE GLIDE (53) approximately 1/2” into FRAME (1) and tighten jam nut securely as shown
FIGURE 5
STEP 4:
53
34
4
5
30
16
3/8 X 3-3/4
8
HEAD
PLATE
ASSY
• (NOTE: Lubricate GUIDE RODS (16) with silicon
or teflon spray available at most hardware stores.)
220 SHROUD
BRACKET
OPTIONONLY

9
STEP 7:
22
22
• Using hammer tap one 5/16 X 2” ROLL PIN (47)
thru LEFT PRESS HANDLE (7) until it is flush
with other side of HANDLE as shown in
FIGURE 6
8
6
40
7
FIGURE 6
STEP 6:
• Place LEFT PRESS HANDLE (7) onto PRESS
ARM (8). Make sure that the 5/16 X 2” ROLL
PIN (47) passes into the slot located in the plate
of the PRESS ARM (8)
FIGURE 7
7
36
34
47
6
• Once in place secure and tighten the LEFT
PRESS HANDLE (7) to PRESS ARM (8)
using one 3/8” WASHER (36) and one
3/8” LOCK NUT (34)
SLOT
0123456
1/2 1/2 1/2 1/2 1/2 1/2
NOTE:
Place PRESS ARM (8) upside down on floor as shown to complete this step
47
• Insert two 1/2” FLANGE BEARINGS (40) into
the LEFT PRESS HANDLE (7) as shown in
FIGURE 6
• Repeat STEP 6 for the RIGHT PRESS
ARM HANDLE (6)
• Repeat STEP 7 for the RIGHT PRESS
ARM HANDLE (6)
FLUSHSIDE
• IMPORTANT! Do not overtighten: PRESS
ARM should rotate freely

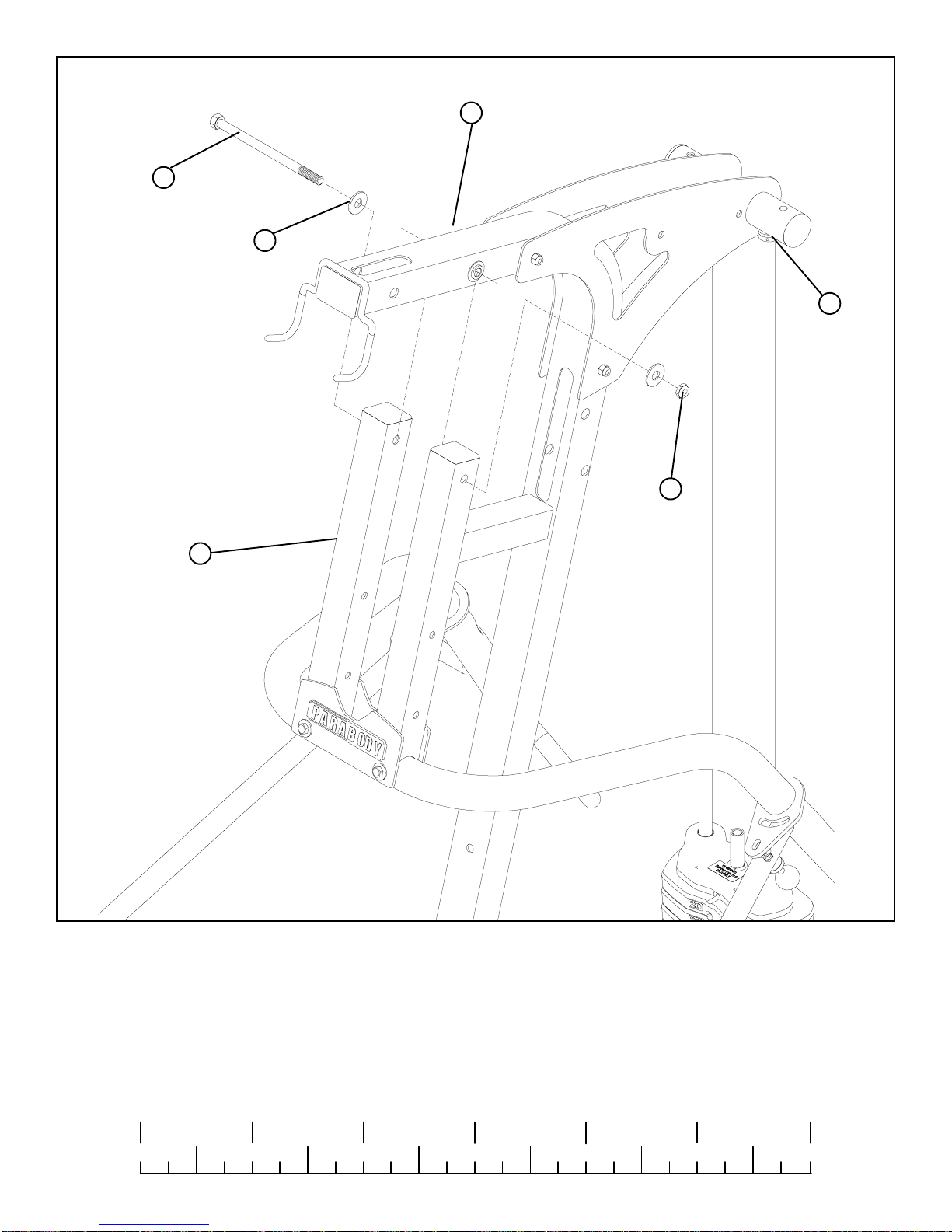

FIGURE 8
8
49
29
36
9
34
STEP 8:
• Place PRESS ARM (8) into PRIMARY PIVOT (9) and securely tighten using two 3/8 X 3” BOLTS (29), four 3/8” FLAT
WASHERS (36) two 3/8” LOCK NUTS (34)
• Insert and tighten two 3/8” LOCKING SPRING PINS (49) into PRESS HANDLES (6), (7).
3/8 X 3”
10
• Lock PRESS ARMS (6), (7) into place using 3/8” LOCKING SPRING PINS (49)
Locking
Spring Pin
• To disengage LOCKING SPRING PINS (49), pull out and twist 1/4 turn.

FIGURE 9
11
0123456
1/2 1/2 1/2 1/2 1/2 1/2
STEP 9
• Assemble the PRIMARY PIVOT (9) of the PRESS ARMASSEMBLY to the top of the FRAME (1) using 1/2 X 8” BOLT (33),
two 1/2” FLAT WASHERS (37) and 1/2” LOW HTLOCK NUT (35). IMPORTANT! DO NOTTIGHTENYET
• SECURELYTIGHTENALLFRAME CONNECTION BEFORE PROCEEDING TO NEXT STEP
33
37
35
48
9
1
1/2 X 8”
DONOT
TIGHTEN
SECURELY
TIGHTEN
• SECURELY TIGHTEN top of both SHAFT COLLARS (48) flush to bottom of both BOOM PLATES (4),(5)

12
STEP 10:
• Securely tighten the SPRING PIN (50) to the FRAME (1) and hand tighten the THREE PRONG KNOB (52)
• Apply four PARAGLIDES (58) to the INSIDE of the tube of FRAME (1) as shown. Apply the remaining four
PARAGLIDES (58) to the OUTSIDE and FLUSH TO BOTTOM of tube located on SEATADJUSTMENT (10)
• Securely assemble one SEAT PAD (13) to the SEAT ADJUSTMENT (10) using two 3/8 X 2-3/4” BOLTS (28) and two
3/8” WASHERS (36) as shown.
FIGURE 10
• Securely assemble one SEAT PAD (13) to the FRAME (1) using two 3/8 X 2-3/4” BOLTS (28) and two 3/8” WASHERS (36)
as shown.
• Gently insert SEATADJUSTMENT (10) into tube located on FRAME (1)
DO NOTFORCE THE SEATADJUSTMENTIN. THIS MAYCAUSE THE PARAGLIDES TOTEAR.
• Apply WEIGHT STACK LABELS (61) to WEIGHTS (22) and HEAD PLATE (19) as shown in FIGURE 10.
Begin with number one at the HEAD PLATE (19) with larger numbers in consecutive order towards bottom of weight stack.
1
28
36
13
52
50
10
58
3/8 X 2-3/4”
61
19
22

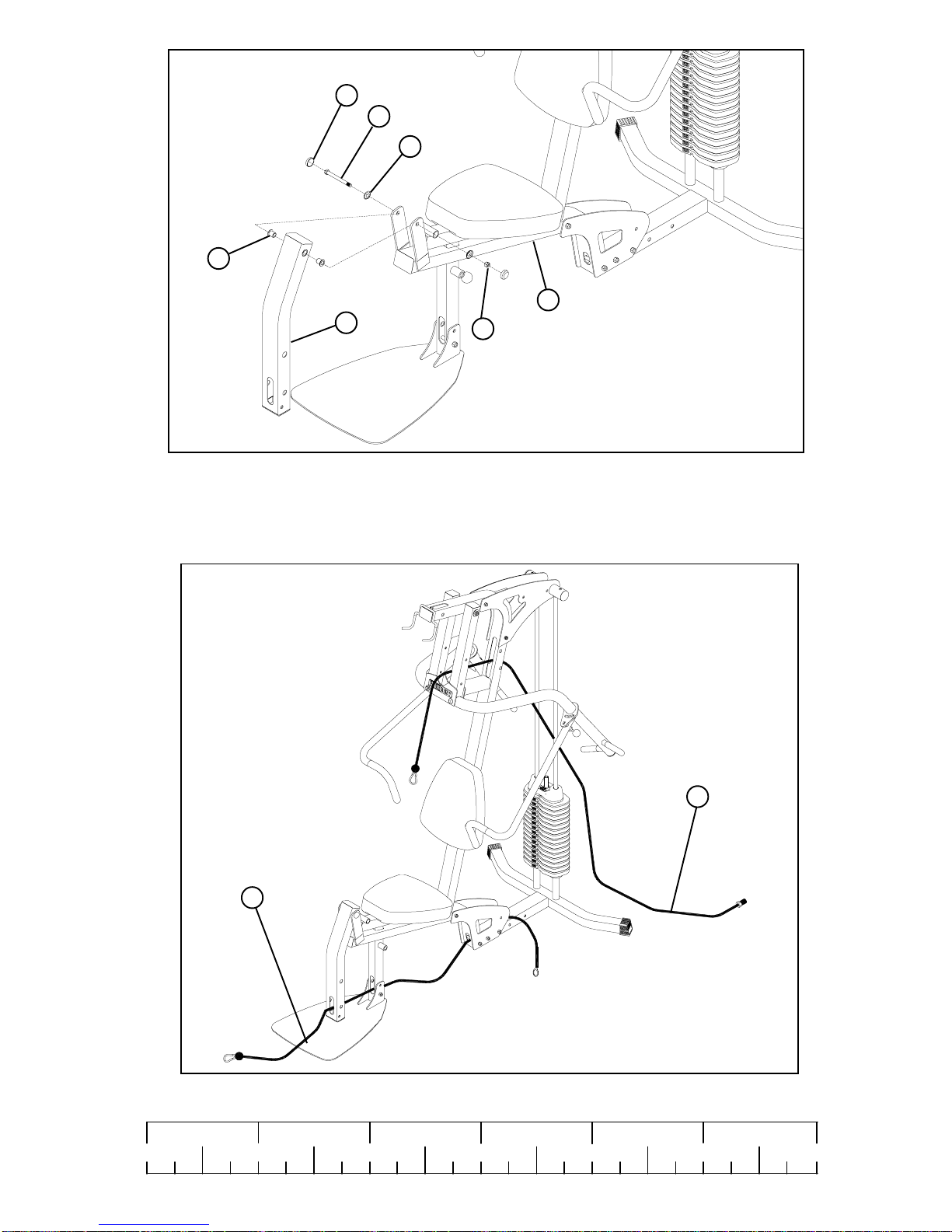

FIGURE 11
STEP 11:
• Insert two 1/2” FLANGE BEARINGS (40) into LEG PEDESTAL (11) as shown.
• Assemble the LEG PEDESTAL (11) to the FRAME (1) using one 1/2 X 4” BOLT (32), two RH WASHERS (56)
and one 1/2” LOW HT LOCK NUT (35)
• Assemble two RH CAPS (55) to the 1/2” RH WASHERS (56) as shown in FIGURE 11
• Route LAT CABLE (20) and LOW CABLE (21) as shown in FIGURE 12
40
32
20
55
STEP 12:
21
1
11
56
35
FIGURE 12
1/2 X 4”
0123456
1/2 1/2 1/2 1/2 1/2 1/2
13

ILLUSTRATION A
NOTE: IFYOU PURCHASEDALEG PRESS, PLEASE REFER TOTHE
CABLE ROUTING INSTRUCTIONS INCLUDED WITH THE LEG
PRESS KIT
14
• ILLUSTRATION “A” used as cable routing reference for steps 13-16

15
0123456
1/2 1/2 1/2 1/2 1/2 1/2

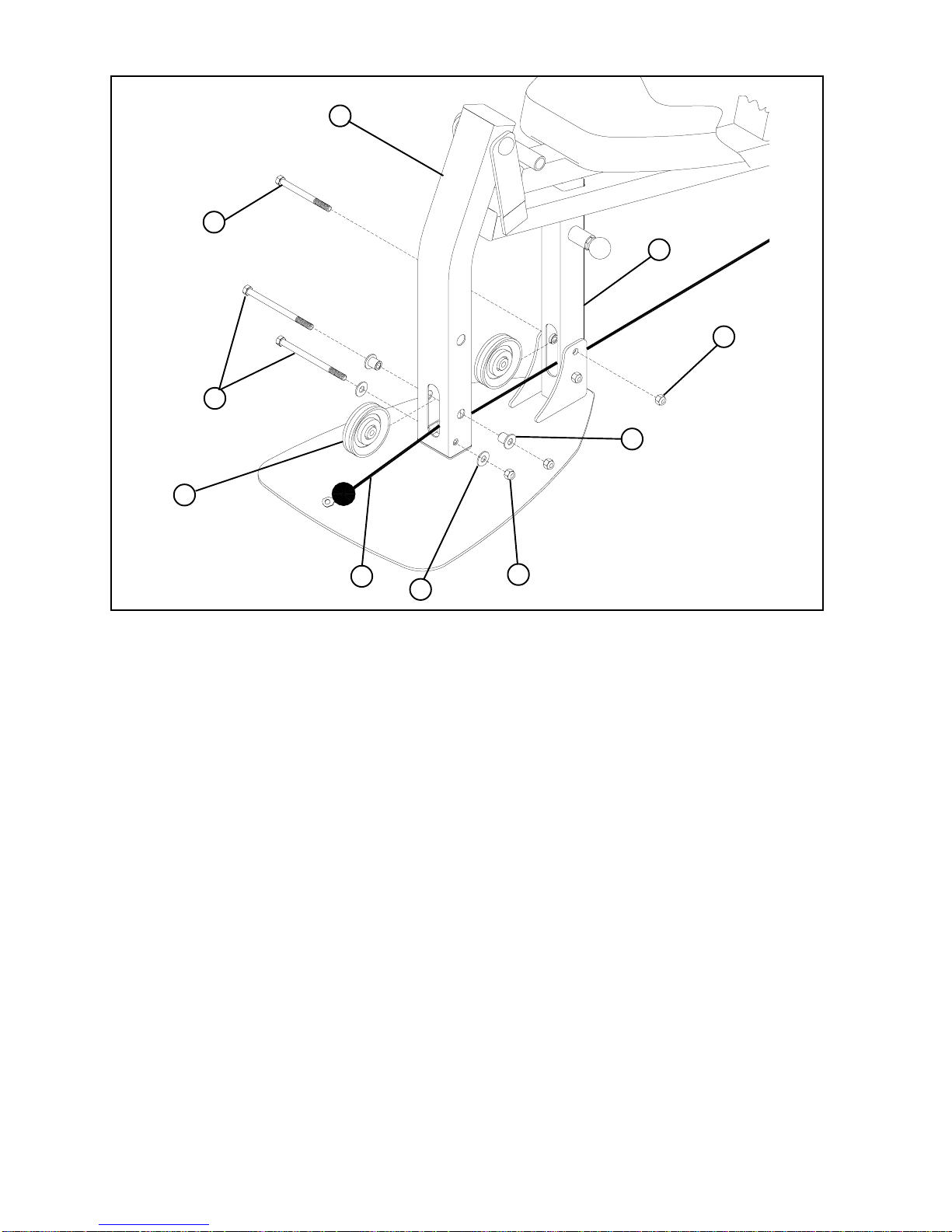

• Refer to cable ILLUSTRATION “A” on page 11 for cable routing while installing pulleys.
STEP 13:
FIGURE 13
• Assemble one 3-1/2” PULLEY (24) into PRIMARY PIVOT (9) upper hole using one 3/8 X 8” BOLT (31),
two 3/8” FLAT WASHERS (36), two 3/8 X 1-3/16” SPACERS (44) and one 3/8” LOCK NUT (34) and tighten securely
• Assemble two 3-1/2” PULLEYS (24) into FRAME (1) using two 3/8 X 3-3/4” BOLTS (30), four 3/8 X 1-1/16”
FLANGE SPACERS (42) and two 3/8” LOCK NUTS (34) and tighten securely.
9
34
36
24
42
44
31
30
1
3/8 X 3-3/4”
3/8 X 8”

16
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 14
• Refer to cable ILLUSTRATION “A” on page 11 for cable routing while installing pulleys.
STEP 14:
• Assemble one 3-1/2” PULLEY (24) to the FRAME (1) using one 3/8 X 3-3/4” BOLT (30), two 3/8 X 1-1/16”
FLANGE SPACERS (42), one 3/8” LOCK NUT (34) and tighten securely
• Assemble one 3-1/2” PULLEY (24) into the PRIMARY PIVOT (9) lower hole using one 3/8 X 8” BOLT (31),
two 3/8” FLAT WASHERS (36), two 3/8 X 1-3/16” SPACERS (44) and one 3/8” LOCK NUT (34) and tighten securely.
• Assemble two 3-1/2” PULLEYS (24) between the left and right BOOM PLATES (4) and (5) using two 3/8 X 3-3/4” BOLTS (30),
four 3/8 X 1” SPACERS (43) and two 3/8” LOCK NUTS (34)
• Loosely assemble one 3-1/2” PULLEY (24) between PULLEY PLATES (12) using one 3/8 X 1-3/4” BOLT (27) and
one 3/8” LOCK NUT (34).
30
31
43
42
44
36
27
12
9
1
34
24
3/8 X 8”
3/8 X 3-3/4”

17

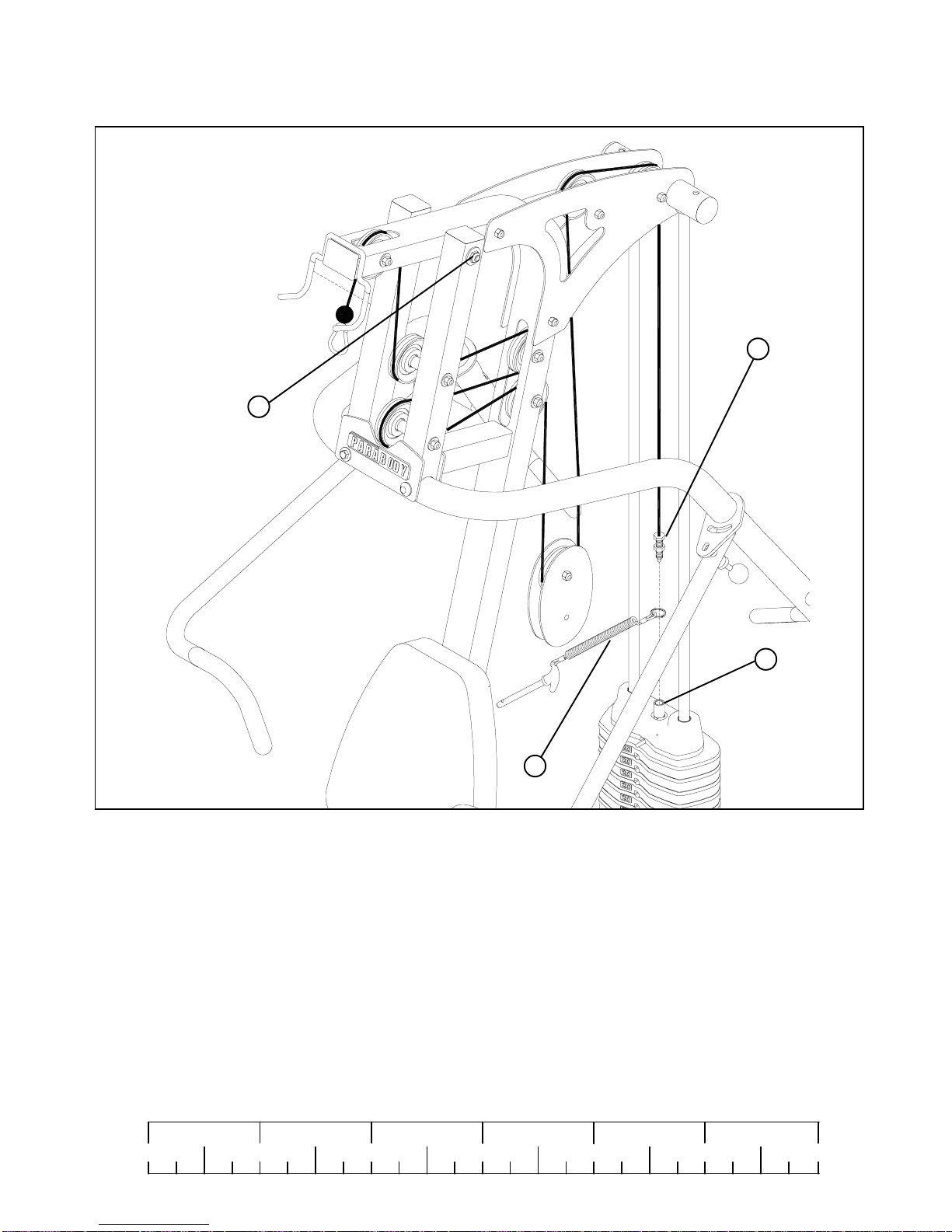

STEP 15
• Screw end of LAT CABLE (20) into top of PLATE SHAFT (18) and securely tighten JAM NUT as shown in FIGURE 15
0123456
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 15
20
• Slip ring of WEIGHT SELECTOR PIN (51) down WEIGHT STACK SHAFT (18) and insert pin into one of the weights
51
18
SECURELY
TIGHTEN
JAM NUT
DO NOT
OVERTIGHTEN
35
• Securely tighten 1/2” LOCK NUT (35) on PRIMARY PIVOT of PRESSARM (9).
IMPORTANT! DONOTOVERTIGHTEN:PRESSARMSHOULD ROTATE FREELY.

18
• Refer to cable ILLUSTRATION “A” on page 11 for cable routing while installing pulleys.
STEP 16:
• [CABLE MUST BE POSITIONED BETWEEN PULLEYAND LOWER BOLTASSEMBLYON
LEG PEDESTAL(11) AND FRAME (1)]
30
34
34
24
36
11
1
FIGURE 16
3/8 x 3-3/4”
3/8 x 3” 29
42
• Securely assemble the ball end of the LOW CABLE (21) and one 3-1/2” PULLEY (24) to the LEG PEDESTAL (11) using two
3/8 X 3-3/4” BOLTS (30), two 3/8” X 1-1/16” FLANGE SPACERS (42), two 3/8” WASHERS (36), and two 3/8” LOCKNUTS (34).
(NOTE: The LEG CABLE (21) should be routed over the retaining bolt as shown in FIGURE 16.)
• Securely assemble one 3-1/2” PULLEY (24) to the FRAME (1) using one 3/8 X 3” BOLTS (29), and one 3/8” LOCKNUT (34).
(NOTE: The LEG CABLE (21) should be routed over the retaining bolt as shown in FIGURE 16.)
21

• Refer to cable ILLUSTRATION “A” on page 11 for cable routing while installing pulleys.

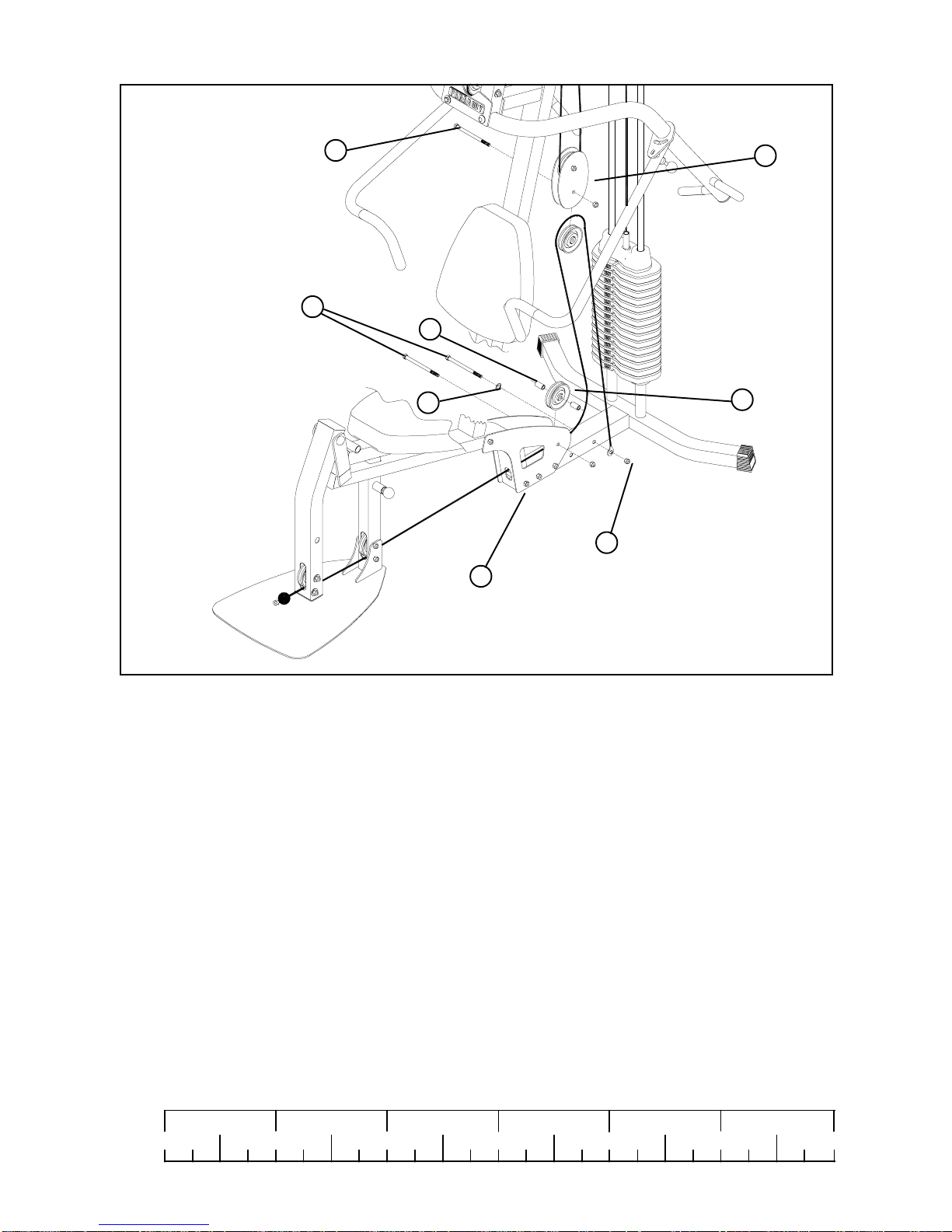

STEP 17:
• Secure end of LOW CABLE (21) using one 3/8 x 3-3/4 BOLT (30), one 3/8” FLAT WASHER (36) one 3/8” LOCK NUT (34)
as shown in FIGURE 17
• Loosely assemble one 3-1/2” PULLEY (24) between the PULLEY PLATES (12) using one 3/8 X 1-3/4” BOLT (27), and one
3/8” LOCK NUT (34).
• Assemble one 3-1/2” PULLEY (24) between BASE PLATES (3) using one 3/8 X 3-3/4” BOLT (30), two 3/8 X 1” SPACERS
(43), one 3/8” LOCK NUT (34) and tighten securely.
• Tighten both 3-1/2” PULLEYS (24) located on PULLEY PLATES (12)
34
24
30
27
43
3
12
FIGURE 17
3/8 X 3-3/4”
3/8 X 1 -3/4”
36
19
0123456
1/2 1/2 1/2 1/2 1/2 1/2

20
0123456
1/2 1/2 1/2 1/2 1/2 1/2

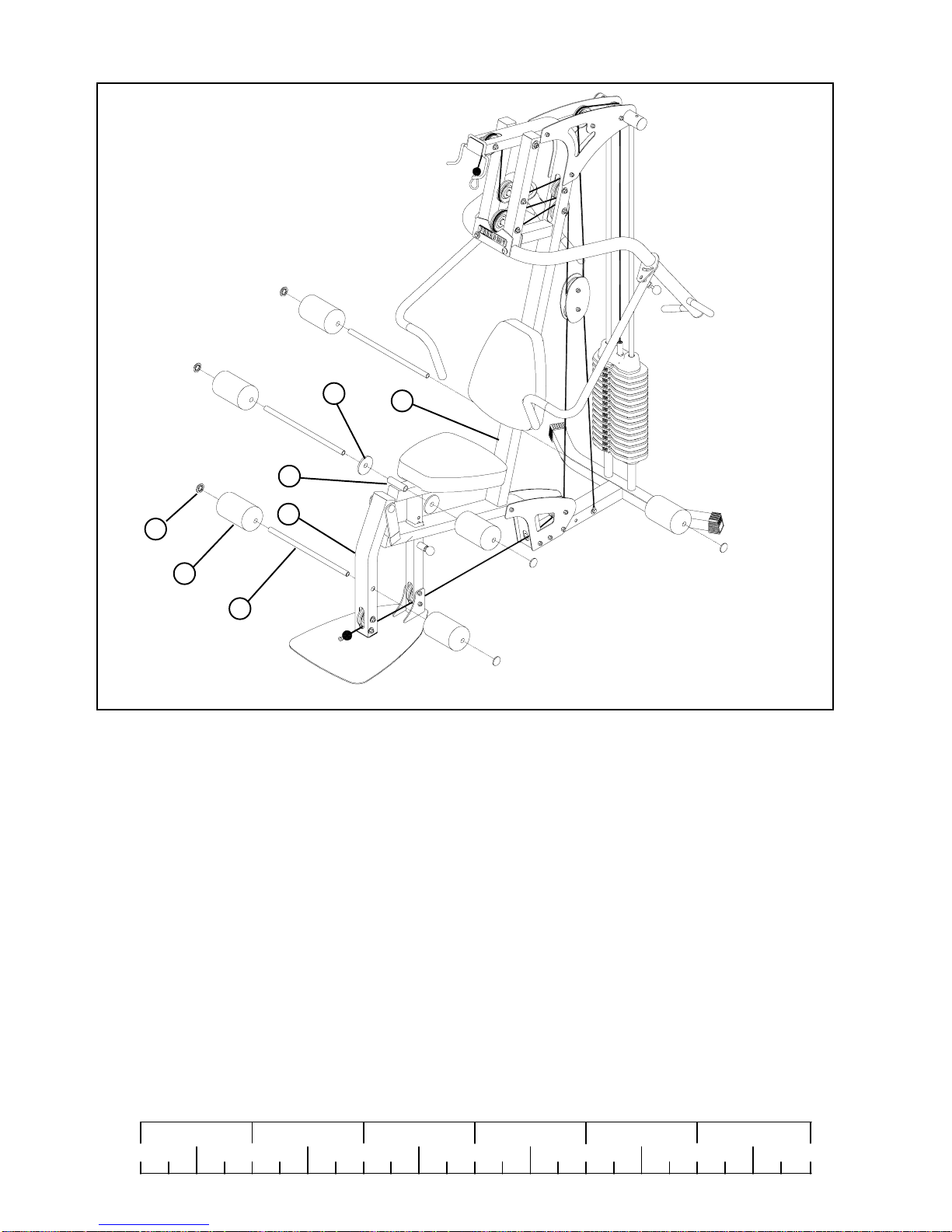

• Attach two 4 X 7” ROLLER PADS (15) to the LEG PEDESTAL (11) using one 3/4 X 17” TUBE (14) and two
3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
STEP 18:
• Attach two 4 X 7” ROLLER PADS (15) to the SEAT ADJUST (10) using one 3/4 X 1” TUBE (14), two PLASTIC
WASHERS (39) and two 3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
• Attach two 4 X 7” ROLLER PADS (15) to the FRAME (1) using one 3/4 X 17” TUBE (14) and two
3/4” STARLOCK COLLARS (54) as shown in FIGURE 18.
54
FIGURE 18
15
14
39
10
1
11
