TITGEMEYER Tb1524GB(1212)1
■ TIOS®ER15
Battery-Operated Blind Rivet Tool
Operating Instructions

3Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
Contents
Notes on operating instructions ..................................................................................................4
Warnings, guidelines and actions while operating tool...............................................................5
Identification of rivet tool parts....................................................................................................6
Safety notes.................................................................................................................................7
Basic requirements for handling the rivet tool.............................................................................9

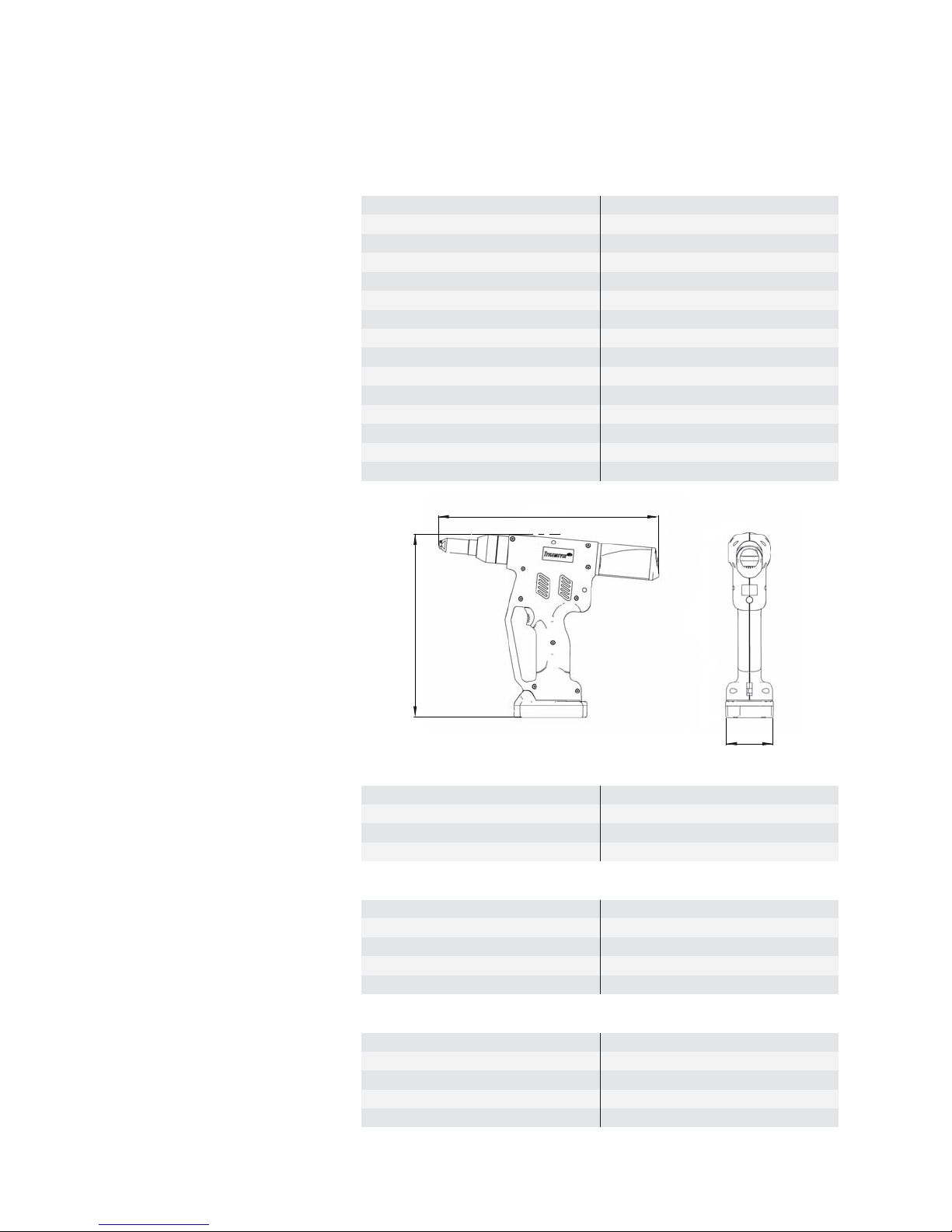

Technical specifications ............................................................................................................10

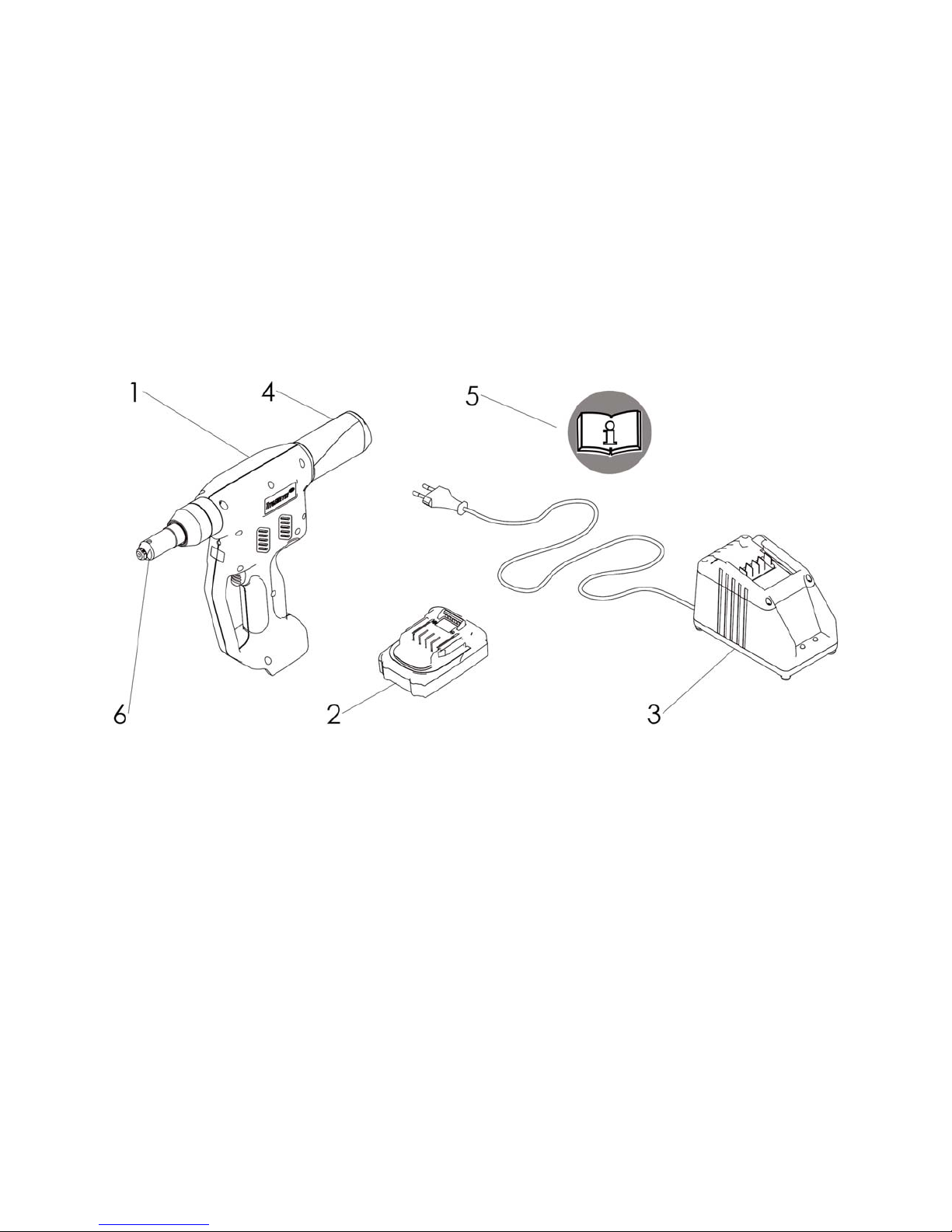

List of parts ...............................................................................................................................11

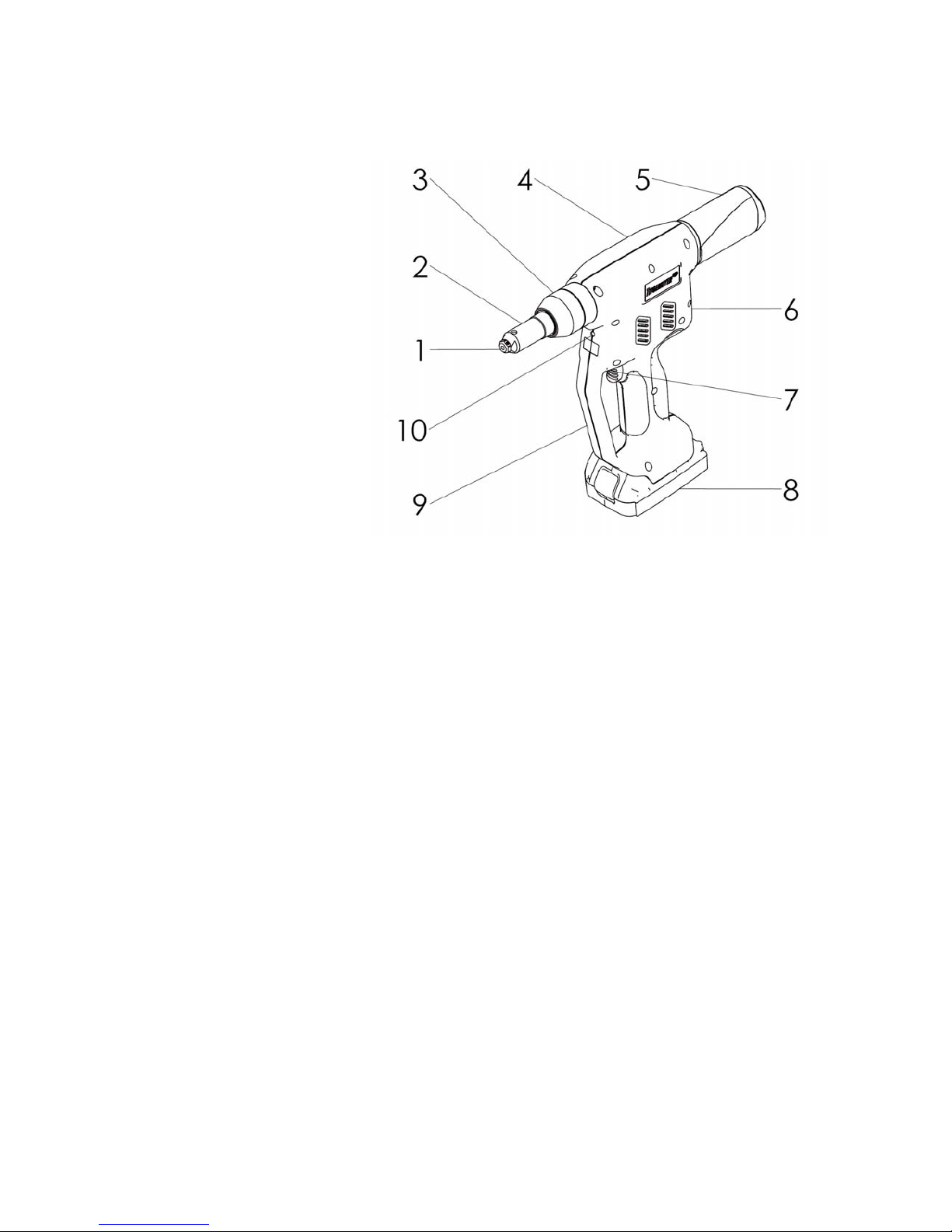

Description of rivet tool.............................................................................................................12
Storing / maintaining, cleaning and disposing of rivet tool.......................................................13
Preparing and fitting the rivet tool.............................................................................................14
Operating the rivet tool..............................................................................................................16

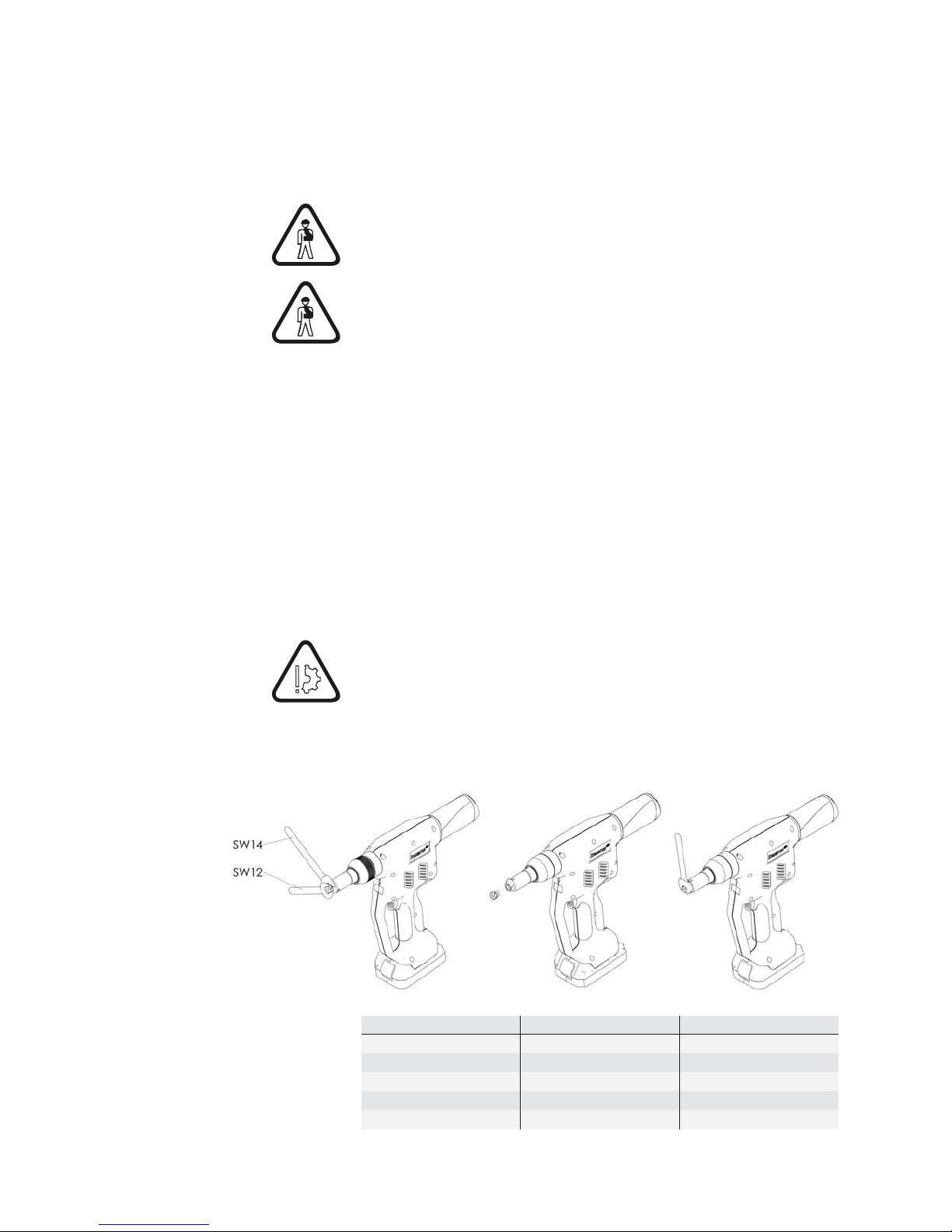

Selecting the nose piece............................................................................................................16

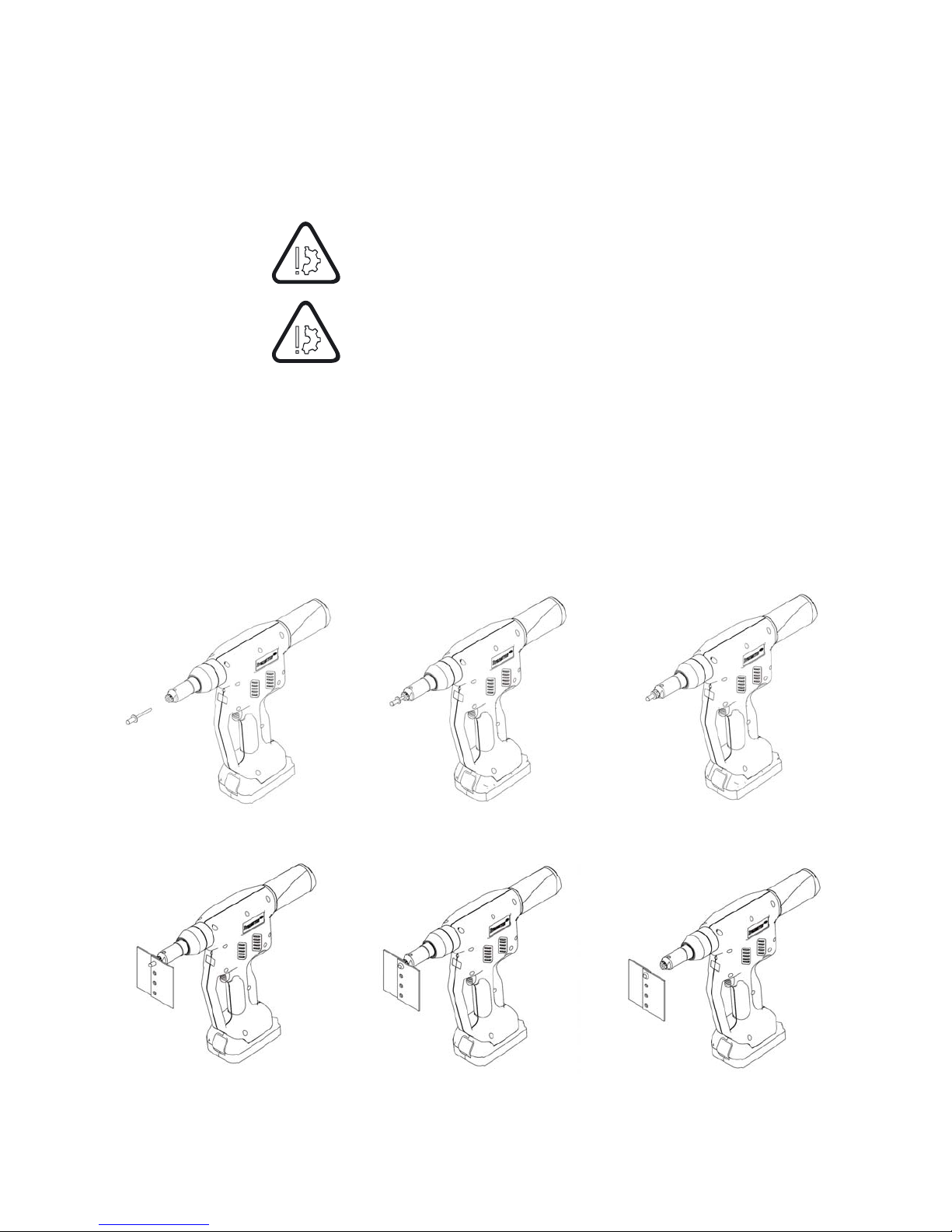

Installing the blind rivet.............................................................................................................17
LED display (operating modes) .................................................................................................18
Maintaining the rivet tool ..........................................................................................................19

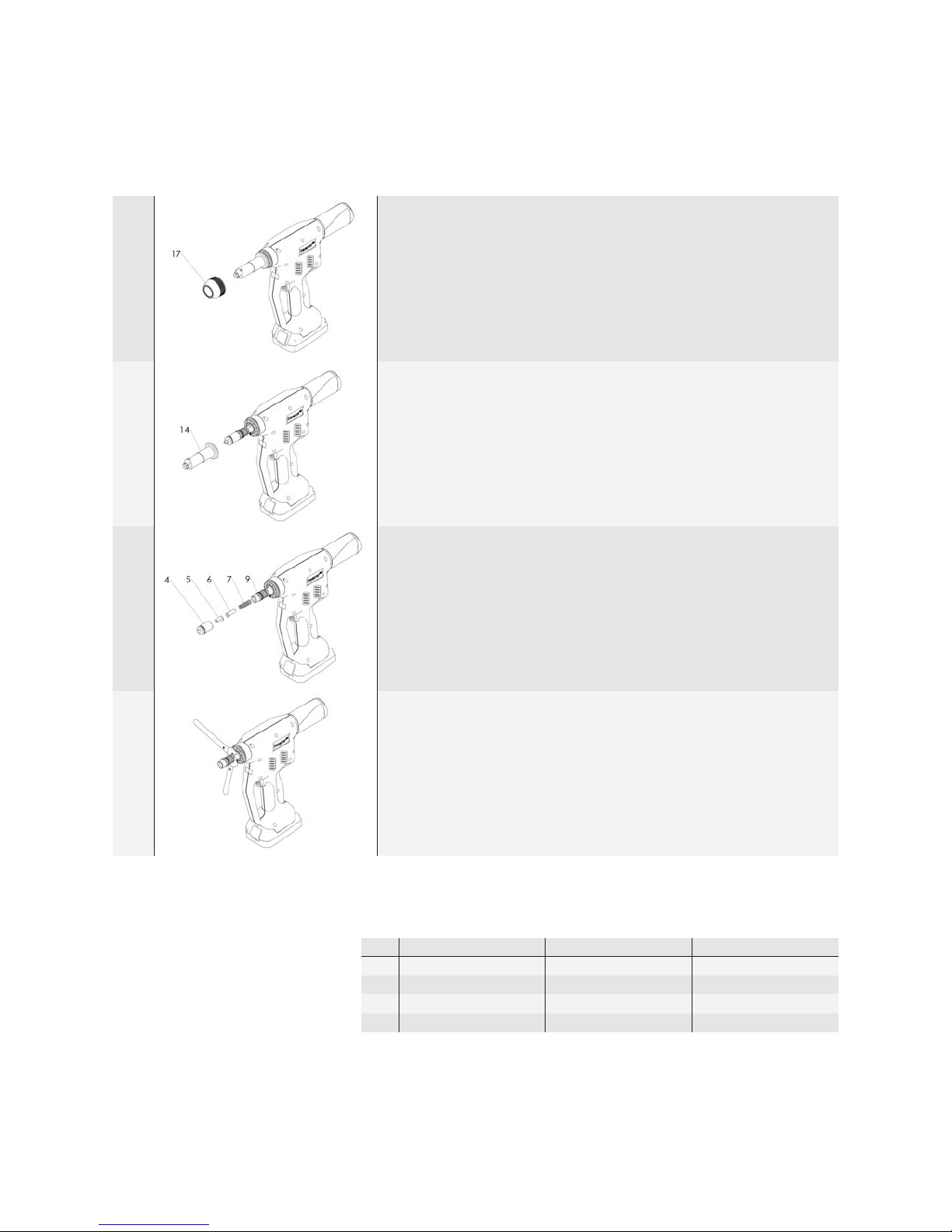

Cleaning the pulling unit...........................................................................................................19
Maintenance intervals................................................................................................................19

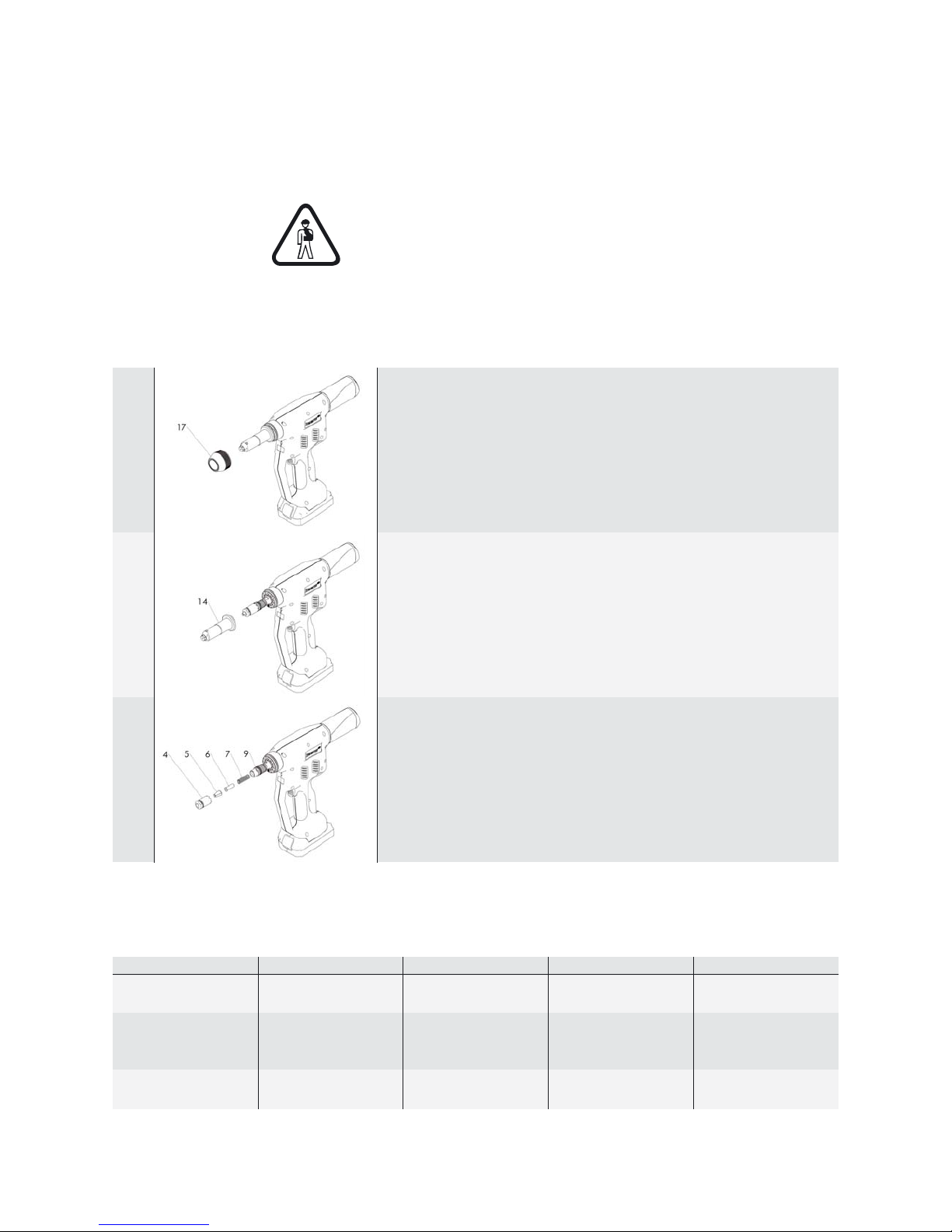

Replacing the pulling unit .........................................................................................................20
Troubleshooting ........................................................................................................................21
Warranty ...................................................................................................................................22
Spare parts list TIOS ER15 / Optional accessories ....................................................................23
Declaration of conformity ..........................................................................................................24
Service ......................................................................................................................................26

4Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Notes on operating instructions
Note
Perfected technology
Reading the operating instructions
Actions
Malfunctions
Illustrations and numbering of parts
Table for starting torques
Legislation dictates that the operator must be trained in using electric rivet tools. Upon
request, training courses are available through TITGEMEYER in Osnabrück (Germany).
This rivet tool represents the very latest in technology. To ensure the safe operation of this
professional tool please follow all the safety recommendations.
Please ensure that you read through the operating instructions carefully before operating the
rivet tool for the first time.
Do not carry out any actions or application procedures other than those described in this
operating instruction manual.
If a malfunction occurs, the operator should only try to rectify those sgnalled by the "0"
(operator). All other numeric signals must only be investigated by a certified repairs expert.
All descriptions and parts numbers found in the illustrations refer to the parts list on page 23.
For all thread sizes, a table of starting torques has been provided in the section entitled
“Maintaining the rivet tool”.

5Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Warnings, guidelines and action
to be taken by the operator
Always follow the guidelines and safety instructions. Icons have been used in certain sections
of these operating instructions for added emphasis. Please make a point of memorising the
icons and what they stand for:
Caution! Risk of injury! This icon warns of dangers.
Caution! Damage to materials! This icon warns of actions which could result in the rivet tool
or the blind rivets being damaged.
Note! This icon refers to useful information.
• This bullet (•) highlights each paragraph where you will be required to take action.
Caution! Environmental hazard! This icon warns of possible damage to the environment.
Environ-
mentally
hazardous
This pictograph indicates that you must first have read the operating instructions before
beginning to operate the rivet tool.

6Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Identification of rivet tool parts
AName plate
BSerial no.
(located underneath the housing -
remove battery!)
CCE mark
DName of supplier
ELED mode status
Recyclable
CE mark
Dispose of correctly
Keep away from fire
Dry environment
Indoor use only
Protection class II
Extra or double insulation
between electric circuit
and output voltage (with-
out equipment earthing
conductor)
Safety isolating
transformer
Short-circuit proof
Labels on the battery and/or
battery-operated tool

7Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Safety notes
Intended use
Foreseeable misuse
Safety notes
The TIOS®ER15 battery-operated blind rivet tool may only be used to install blind rivets, as
described in these operating instructions.
The TIOS®ER15 rivet tool is designed to install standard and cap (sealed end) blind rivets, as
well as high-strength blind rivets with a rivet shank ø of 3.0 – 6.5 mm made from any material
up to a max. installation force of 15 kN.
This rivet tool may only be used as a manually operated tool!
The customer is solely responsible for any modifications made to the rivet tool.
The safety notes contained in these operating instructions must be strictly observed at all times.
Never throw or drop the rivet tool!
This tool has been made to the very latest engineering standards and in keeping with the
approved safety guidelines. It can be operated safely provided that the safety notes and intend-
ed use are observed and that the appropriate personal protective equipment is worn.
• Danger, electrical tool:
Only allow trained electricians to carry out work on the rivet tool. Check the electrical equip-
ment at regular intervals. Repair any loose connections and damaged leads immediately.
• Observe the corresponding accident prevention regulations that apply in your
country.
• Never point the tool at anyone while it is in use.
• Keep your work area clean, tidy and well-lit. Bad housekeeping and poorly-lit work
areas increase the likelihood of accidents.
• Never use electrical tools in explosion-prone areas where combustible liquids,
gases or dust particles are found. Electrical tools generate sparks which can ignite dust or
vapours.
• Take environmental conditions into account. Never expose electrical tools to rain.
Never use electrical tools in humid or moist environments.
• Only use the rivet tool within its specified range of performance. Overloading it may result in
the tool being damaged or risks to your safety.
• Always wear protective glasses. It is recommended that you wear suitable personal
protective equipment, such as protective clothing, non-slip safety shoes, a hard hat and ear
protection, depending on what electrical equipment is being used.
• Remove the battery before changing the accessories or storing away the tool.
This precautionary measure will ensure that the electrical tool does not start running unin-
tentionally.
• Repairs must only be performed by trained personnel using original spare
parts which can be obtained from Gebr. Titgemeyer GmbH & Co. KG. This will
ensure that the tool remains to use and will extend the lifetime of the tool.
• Only use the designated batteries in the electrical tools.
The use of other batteries may result in injury or fire.
• Only charge the batteries in the chargers recommended by the manufacturer.
The battery may be destroyed if inserted into an unsuitable charger.
• Whenever possible, always charge the lithium-ion battery immediately after
using and never store it when empty. The battery will keep its capacity constant for a
longer time (max. loss per year: 5%) if stored separately from the tool and charger.

8Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Safety notes
(continued from Page 7)
• For safety reasons, the lithium-ion battery should not be left in an active
charger for longer than 36 hours. Whenever possible, remove the battery from the
charger as soon as it is fully charged.
• Whenever possible, always remove the battery from the device before trans-
porting. This will prevent you from unintentionally switching the device on and also pre-
vent the battery from running down very low.
• Never expose the lithium-ion battery to high temperatures (+ 50 °C) or direct
sunlight. If the battery becomes hotter than 50 °C while in operation (charging or dis-
charging), immediately remove it from the charger or rivet tool.
• Keep unused batteries away from paper clips, coins, keys, nails, screws and
any other small metal objects that might bridge/short-circuit the contacts.
Never open or short-circuit the battery. Short-circuiting the battery contacts may
result in burns, fire or explosions.
• Batteries may leak when subjected to extreme use or temperatures. Keep your
skin and eyes away from a leaking battery at all times. The liquid contained in a battery is
corrosive and may cause chemical burns in human tissue. Should the liquid come into
contact with the skin, immediately wash it off with soap and water and then with lemon juice
or vinegar. If the liquid comes into contact with the eyes, rinse with water for 10 minutes and
then seek the advice of a doctor immediately.
• Never charge the battery in temperatures BELOW 10 °C or ABOVE 40 °C.
• The charger must never be connected to a step-up transformer, generator or DC socket.
• Ensure that the ventilation slots on the charger are never covered or clogged.
• Never store the electrical tool or battery in areas where temperatures exceed 50 °C.
• Never store the battery in a box or enclosed container. The battery must be stored in a
well-ventilated area.
• No changes, modifications or alterations may be made to the tool without the manufacturer's
permission. No conversions may be performed without first being approved in writing by
Gebr. Titgemeyer GmbH & Co. KG. Any parts not in fully-working order must be replaced
without delay.

9Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
WARNING!
Risk of physical injury
CAUTION !
Risk of personal injury
or damage to the tool
Maintenance and care
Service instructions
Note
EU Declaration of Conformity
Warranty
• Attach the spent mandrel container before using the tool. Failure to do so will cause the
mandrels to shoot out on breaking which may result in injury.
• Check that no parts of the tool are damaged. All damaged parts must be repaired before
being used. Working with damaged tool parts increases the likelihood of injury.
• If working at elevated heights, always wear a safety harness. Avoid dropping rivets and
avoid dropping the tool at all costs. Failure to do so may result in injuries and significant
damage.
• First remove the battery before cleaning the tool or performing any general maintenance
work.
• Keep your face away from the ventilation slots at all times.
• Avoid substances such as lubricating oil and lubricating grease coming into contact with
the skin. These substances can cause inflammation of the skin. If they do come into contact
with the skin, carefully rinse the affected area to remove them.
• Avoid working in unsecured positions, as you could fall or injure yourself.
• Maintain the rivet tool with great care. Follow the operating instructions when performing
maintenance and cleaning work. Keep the handle free from dirt and grease.
• Use the tool with care and be sure to operate it correctly. Ensure that the surrounding
conditions are right when working with this tool. Always maintain full concentration during
your work.
• Only the blind rivets specified in these operating instructions may be used.
The operator may only perform the maintenance and repair work described in these operating
instructions.
Any maintenance and repair work not described in these operating instructions must be
performed by trained personnel who have undergone a corresponding training course with
TITGEMEYER. See the address on the last page for further information on training courses.
The manufacturer accepts no liability for damage resulting from improper repairs or the use
of non-original spare parts.
The TIOS®ER15 rivet tool has been manufactured and tested in accordance with the European
directives. The Declaration of Conformity can be found on the next to last page.
Any improper use of this rivet tool, which results in the rivet tool being damaged, will render
the warranty void.
Basic requirements for handling the rivet tool

10 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Technical specifications
TIOS®ER15 rivet tool
Rapid charger
TIOS®LIO2830 Single Charger
TIOS®LIO1816 battery
TIOS®LIO1833 battery
(not supplied)
Range of application
Installation force
Installation stroke
Installation speed
Weight
Height
Width
Nose cap ø
Nose cap length
Battery
Motor
Workspace light
Application-pressure control
Vibration DIN EN 60745-1
Noise emissions LPA
Blind rivet ø 3.0 mm to ø 6.5 mm, high-strength
15 kN
max. 25 mm
max. 22 mm/sec.
2.2 kg (1.9 kg without battery)
290 mm
348 mm
22.5 mm
58 mm
18 V lithium-ion
Brushless
LED
Yes
an < 2.5 m/s2
< 75 dB(A), short-term > 80 dB(A)
Input voltage
Output voltage
Charging time
Weight
230V / 50Hz
18V
approx. 60 min.
0.55 kg
Power supply
Capacity
Cell type
Number of cells
Weight
18 V Li-Ion
1.65 Ah
lithium-ion manganese
5
0.33 kg
Power supply
Capacity
Cell type
Number of cells
Weight
18 V Li-Ion
3.3 Ah
lithium-ion manganese
5
0.57 kg
348
290
74

11Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Scope of delivery 1. 1 battery powered tool for blind rivets TIOS®ER15
2. 1 battery TIOS®LIO1816
3. 1 TIOS®LIO2830 battery charger
4. 1 spent mandrel collector
5. Instruction manual
6. Nose piece ø 4,0 / ø 5,0 / ø 6,0 / ø 6,4 mm (nose piece ø 3,0 available as an optional extra)

12 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Required tools
1. Nose piece
2. Nose cap
3. Lock nut
4. Housing
5. Spent mandrel collector
6. Status LED
7. Trigger
8. TIOS®LIO1816 battery
9. Hand guard
10. LED light
You will need the following tools to perform all the adjustments, care and maintenance work.
Tools:
– Open-end spanners: SW12 and SW14
Description of rivet tool

13Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Storing the rivet tool
Until used for the first time
Longer storage after use
Disposing of the
rivet tool
Maintaining and cleaning
the rivet tool
Caution
Important
If you do not need to use the rivet tool immediately, please store it in its original packaging in
a dry, dust-free place.
Clean the rivet tool (see “Maintaining and cleaning the rivet tool”).
Remove the battery whenever the rivet tool is not in use.
If you do not intend to use the battery for a lengthy period of time, fully charge the battery
and then store in a dry, dust-free place.
Store the rivet tool in a dry, splash-proof place.
Store the rivet tool in a well-ventilated room that is well-protected from heavy dust.
Ensure that no aggressive chemicals or vapours are present in the storage area.
Never store the electrical tool or battery in areas where temperatures exceed 50 °C.
Dispose of the rivet tool components in the proper manner. Neither the rivet tool nor its
individual parts should be mixed with household waste. They should be disposed of at a
special collection centre for electronic waste.
Do not dispose of the battery as solid waste. It should be taken to a battery recycling plant
or returned to the manufacturer for disposal.
Risk of injury due to improper care! All maintenance, care and service work on rivet tools
must be conducted by suitably trained personnel. If the tool is used as intended, the operator
should be at no risk. The operator may only carry out the work described in these operating
instructions.
Risk of injury due to falling rivet tool!
Danger of material damage due to corrosion!
Do not use any aggressive cleaning agents or flammable liquids to clean the tool!
Do not spray any cleaning agents, solvents or readily flammable substances into the vents
or openings in the housing.
The following tasks are recommended:
Clean the rivet tool and check for any mechanical faults.
If the rivet tool is to be stored for a longer period, first clean the tool and then lightly grease
all the exposed metal components (see “Maintenance intervals”).
Environ-
mentally
hazardous

14 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Initial setup
Application-pressure
control
Mandrel container
Charging battery
Description of LED status
on the charger
1. Read the operating instructions and keep in a safe place.
2. Perform a visual inspection of the devices to check for defective or loose parts
(damage in transit).
3. Plug the charger to the mains.
4. Insert the battery into the charger (check the display!).
5. Charge the battery (approx. 60 min).
6. Attach the spent mandrel container. To do this, rotate the container about a quarter turn.
Empty the container and then reattach as and when required.
7. Insert the battery into the rivet tool until you hear an audible “click”. (To remove the battery,
press the catch downwards and pull the battery forwards).
8. Press the start trigger.
9. The rivet tool is now ready for use.
• Note:
The tool is operated by means of application-pressure control. Apply a little pressure to the
pulling unit until it moves slightly. Now press the start trigger.
• Note:
A magnetic contact switch is installed on the mandrel container. If the container has not
been fitted or if the contact is not closed, the tool will not operate.
Left LED
Preparing and fitting the rivet tool
Right LED
Battery charged
Defective battery
Battery too hot
or too cold
Charging battery
Mains
Defective
charger

15Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Inserting the battery
Emptying the
mandrel container
• Note:
An audible “click” will be heard if the battery is properly inserted.
• Note:
A magnetic contact switch is installed on the mandrel container.

16 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Operating the rivet tool
Caution
Caution
Selecting the nose piece
Note
Important
Risk of injury due to flying rivet heads! For this reason, no blind rivets should be loaded when
checking the rivet tool. Always wear protective glasses.
Risk of injury due to discharging mandrel! Only use this tool with an undamaged spent
mandrel container. And always ensure that the container is correctly in position.
To install different sizes of blind rivet (rivet shaft ø 4.0 – 6.5 mm) you can change the nose
piece on the rivet tool.
Use the SW12 and SW14 open-end spanners.
If the nose piece is firmly attached, try clamping the rivet tool in a vice and then loosening
the nose piece. Before clamping the rivet tool in a vice, remember to place a soft material
(aluminium/wood) around it first.
Only use the nose piece that matches the blind rivet you are going to use. Failure to do so may
damage the rivet tool. The nose piece should screw in by hand. Do not apply force as this may
damage the tool. Do not cross thread or use a nose piece with a damaged thread. You will
need to overcome the spring action on the jaws.
The max. mandrel length (after breakage) must not exceed 62 mm.
Required tools: SW12 and SW14 open-end spanners.
Description
TIOS® ER15 3.0
TIOS® ER15 4.0
TIOS® ER15 5.0
TIOS® ER15 6.0
TIOS® ER15 6.4
Rivet shaft ø mm
3.0 / 3.2
4.0
4.8 / 5.0
6.0 / 6.4
6.4 high-strength
Part No.
352 200 103 (optional)
352 200 104
352 200 105
352 200 106
352 200 107

17Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Installing the blind rivet
What to remember!
Important
Important
Note
Damage to materials! Always hold the rivet tool at right angles (90°) to the area where you
want to install the blind rivet nuts. If held at another angle, the rivet will not install correctly.
Damage to materials! Only use the nose piece that matches the blind rivet you are going to
use! Using an incorrect nose piece can damage both the jaws and the nose piece.
For details on hole diameters and clamping areas, please refer to the specifications in the rivet
manufacturer's catalogue.
1. Insert the wire rivet mandrel into the nose piece.
2. Insert the blind rivet into the pre-drilled hole.
3. Press the rivet tool firmly against the component (pressure-sensitive control).
4. Press the trigger to initiate and maintain the installation stroke.
5. Release the trigger.
6. Tilt the rivet tool so the spent mandrel falls in to the container.

18 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
LED display (operating modes)
The display is located at the back of the housing, below the spent mandrel container.
The following statuses can be displayed on the LED display when the tool is in operation:
Description of decal:
LED status for rivet tool Replace or charge battery
Malfunction: Defective charger
LED display
Lighting LED comes on briefly;
LED display briefly turns red then green
LED display turns green
LED display flashes green
LED display flashes orange
LED display remains orange
LED display flashes red
LED display remains red
Description of status
Function test after inserting the battery
and pressing the trigger.
Mandrel container not or not correctly
fitted, or pressure-sensitive switch not
pressed.
Pressure-sensitive switch must be
pressed before each installation.
Battery almost flat but still operable.
Battery flat, no longer operable.
Malfunction: Current overload due to
excessive break-load on the mandrel or
overheated tool (55 °C)
Mandrel container not or not correctly
fitted.
Malfunction: The rivet tool is out of
order and no longer works.
Action
Fit mandrel container correctly and
press the pressure-sensitive switch.
Release the pressure-sensitive switch.
Next rivet installation can begin.
Replace or charge battery.
Replace or charge battery.
Wrong blind rivet used, or pulling unit
is dirty or damaged. Service the pulling
unit or allow the tool to cool down.
Fit mandrel container correctly.
Contact your supplier.

19Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Maintaining the rivet tool
Caution Risk of injury due to improper care! All maintenance, care and service work on rivet tools
must be conducted by suitably trained personnel. If the tool is used as intended, the operator
should be at no risk. The operator may only carry out the work described in these operating
instructions.
1
2
3
Pull the nose cap (14) forwards and remove.
Remove the battery before beginning any work on the rivet tool.
Loosen the lock nut (17) and remove by pulling it forwards.
Pull the catch (9) backwards.
Remove the jaw case, jaws, ram and spring.
Clean all the parts thoroughly using a cleaning rag or compressed air.
Reassemble following the above steps in reverse order.
Before reassembly, lightly grease the jaws with an acid-free oil.
Maintenance intervals
Interval
Daily before each use
Daily before each use
Daily before each use
Activity
Check for cracks
Check nose piece for rivet dia-
meter as well as wear and tear
Check the jaws and jaw case
How?
Visual inspection
Visual inspection
Function check
Who?
Operator
Operator
Operator
Remarks
Replace nose piece if necessary
Clean or replace jaws if
necessary
Cleaning the pulling unit

20 Phone: [phone] Fax: [phone] E-mail: [email protected]LTb1524GB(1212)1
TIOS®ER15 Battery-Operated Blind Rivet Tool
Operating Instructions
Replacing the pulling unit
1
2
3
4
Pull the nose cap (14) forwards and remove.
Remove the battery before beginning any work on the rivet tool.
Loosen the lock nut (17) and remove by pulling it forwards.
Pull the catch (9) backwards.
Remove the jaw case, jaws, ram and spring.
Loosen the jaw case body using two SW14 open-end spanners.
Insert the new jaw case body and tighten using two SW14 open-end spanners.
Reassemble following the above steps in reverse order.
Before reassembly, lightly grease the jaws with an acid-free oil.
Description
Nose piece
Lock nut
Spacer
Spacer sleeve
Item
3
17
8
12
Thread
M10
M40
M11
M11
Torque MA in Nm
25 Nm
Hand-tight
30 Nm
30 Nm
Table for starting torques The table below shows the torque values that must be adhered to for the specified threads.
