TiVo Bolt User manual

START HERE
Installation Instructions

Simple Setup
AUDIO
L/R
REMOTE
FINDER
4
3
21

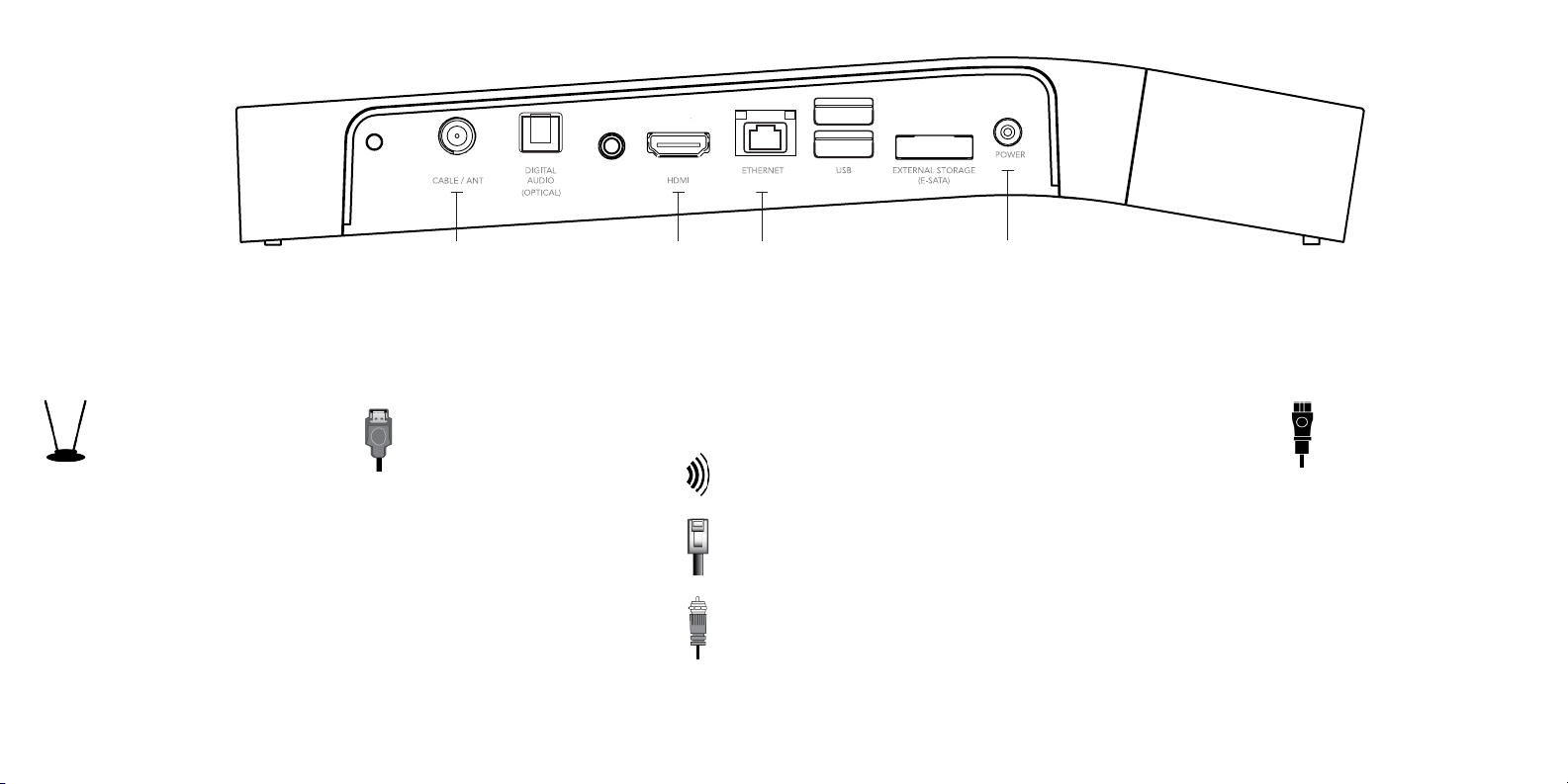

Connect your HD antenna
to the CABLE/ANT port of
the TiVo box.
Connect the included
HDMI cable from the
HDMI port on the TiVo
Bolt to the HDMI IN port
on your TV.
Wireless - Use your TiVo box’s built-in wireless connection.
You don’t need to connect any additional cables or adapters.
(Recommended for single TiVo box setup.)
Ethernet - Connect a Cat5e Ethernet cable from the TiVo Bolt’s
ETHERNET port to your router or to an Ethernet jack in your wall.
(Recommended for streaming to other TiVo boxes.)
MoCA®- If you have a MoCA network in your home, connect a
coax cable from the wall jack to the COAX IN port of a MoCA
adapter (available from the TiVo Store). Then connect an Ethernet
cable from the ETHERNET port of the TiVo Bolt to the ETHERNET
port of the adapter. For more detailed instructions, or f you don’t
yet have a MoCA network in your home, visit tivo.com/moca.
(Recommended for streaming to other TiVo boxes.)
1 Antenna 2 HDMI 3 Home network 4 Power
Plug in the power cord.
When you see the
Welcome screen, follow
the on-screen instructions
to complete Guided
Setup.
Connect to your home network. Need help choosing a
connection method? See the next page.
Note: To receive 4K
programming, use the
included HDMI cable. If
you need a longer cable,
be sure to use one that is
4K-ready.

Connection Options
The TiVo Bolt needs a high-speed Internet
connection to receive program listings,
TiVo® service updates, and streaming
content. The type of network connection
you choose will depend on what you want
to do with your TiVo box(es).
But don’t worry, no matter which one you
pick, you can always change your mind
later.
If you plan to stream shows from this
TiVo box to other TiVo boxes, you
must use a wired connection: Ethernet
(Option 2) or MoCA (Option 3).
Use this option if you don’t plan to stream shows
between TiVo boxes.
This option lets you:
• Transfer shows to/from other boxes.
• Stream/download shows to mobile devices
Note that this option uses the TiVo box’s built-in wireless
capabilities. You won’t need additional cables or
adapters.
Option 1: Wireless
Use this option if you have wired Ethernet connections
available to all TiVo boxes on your home network.
This option lets you:
• Stream shows to/from other boxes
• Transfer shows to/from other boxes
• Stream/download shows to mobile devices
To use Ethernet, connect a Cat5e Ethernet cable from
your router or wall jack to your TiVo box.
Option 2: Ethernet
Use this option if you have a MoCA home network.
This option lets you:
• Stream shows to/from other boxes
• Transfer shows to/from other boxes
• Stream/download shows to mobile devices
To add your TiVo Bold Aereo Edition your MoCA network,
you will need a MoCA adapter, available in the TiVo Store.
Option 3: MoCA
TiVo App
Get the same TiVo experience that you enjoy in your living room, in
every room! Mini lets you access all of your recordings plus
streaming content on additional TVs. And the TiVo app gives you
your shows to go.

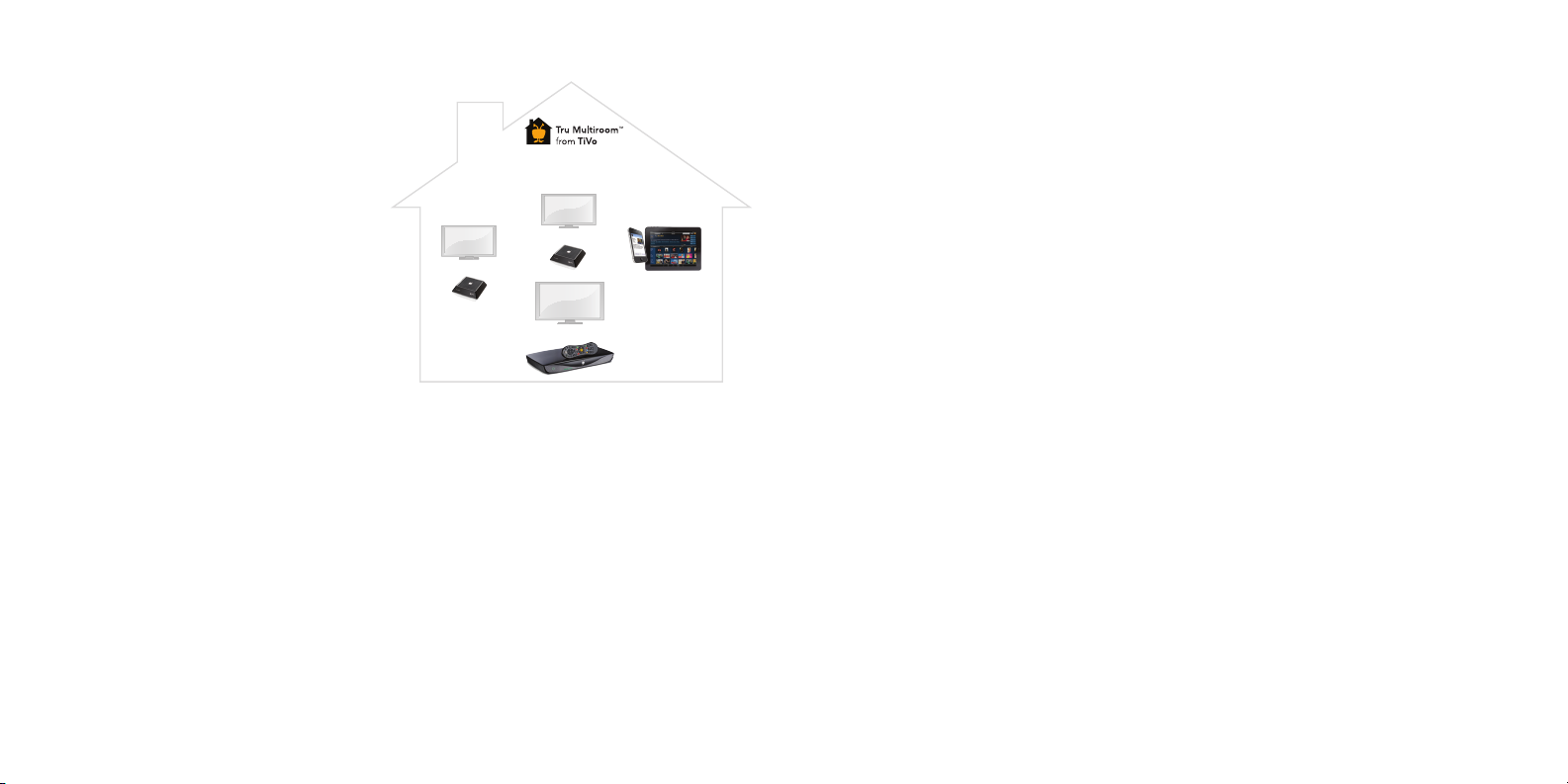

TiVo Bolt
TiVo Mini
Living Room
Bedroom #2
TiVo Mini
Bedroom #1

FCC InformationLegal Notices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow
the specic operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure
compliance requirements, please follow operation instructions as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
The availability of some specic channels and/or operational frequency bands are country dependent and are rmware
programmed at the factory to match the intended destination. The rmware setting is not accessible by the end user.
Compliance Information
Model numbers: : TCD849500 (500GB), TCD849000 (1TB), TCD849510 (Aereo Edition); RC30A00,
RC30B00 (Remote)
FCC IDs: TGN-TCD8495 (TiVo Bolt), TGN-RC30 (Remote), RAXWN8722BTAAC (Wi-Fi board)
Arcadyan <--MIKE
XXX
XXX
Tested to comply with
FCC Standards for Home
or Office use
© 2015 TiVo Inc. All rights reserved.
Your use of this product is subject to TiVo’s User Agreement and Privacy Policy, visit www.tivo.com/legal for the latest versions.
TiVo, TiVo Central, Tru Multiroom, and the TiVo logos are trademarks or registered trademarks of TiVo Inc. or its subsidiaries
worldwide.
Patented. U.S. patent numbers can be found at tivo.com/patents.
Most up-to-date safety and compliance information can be found at tivo.com/safety-compliance.
CableCARD is a trademark of Cable Television Laboratories, Inc.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and other countries.
MoCA is a registered trademark of Multimedia over Coax Alliance in the U.S. and other countries.
All other trademarks are the properties of their respective owners.
This product contains open source software. Notices and licenses are provided in a system information screen and at tivo.
com/linux, and are incorporated herein by reference. For open source software included in this product in executable form, if
required by the applicable open source license, you may obtain a copy of the corresponding source code at any time during
the period required by sending a money order or check for US$10 to: TiVo Inc., 2160 Gold Street, San Jose, CA 95002, attn:
Legal Department. TiVo also makes source code available at tivo.com/linux.
®

Save These Safety Instructions.
Before you begin
Make sure all your equipment is turned off and the TiVo box is unplugged.
Your TiVo box is only capable of supporting the weight of one or two common A/V components such as VCRs, DVD players, or
A/V receivers (provided they have four good, broad, padded feet that distribute of the weight near the corners of the TiVo box).
Also, avoid stacking your TiVo box on top of other electronic components — such as DVD players, A/V receivers — or the vents
of your TV.
This product is for use only with listed ITE (Information Technology Equipment).
Safety information
This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation
and operation precautions of which you should be particularly aware. Please read these instructions before operating the
equipment and save them for future reference.
1. Read Instructions — All the safety and operating instructions should be read and understood before the appliance is
operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the appliance and in the operating instructions should be followed.
4. Follow Instructions — All operating and use instructions should be followed.
5. Water and Moisture — The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, near a swimming pool, etc.
6. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.
7. Tilt/Stability — All televisions must comply with recommended international global safety standards for tilt and stability
properties of their cabinet design. Do not compromise these design standards by applying excessive pull force to the front,
or top, of the cabinet, which could ultimately overturn the product. Also, do not endanger yourself, or children, by placing
electronic equipment/toys on top of the cabinet. Such items could unexpectedly fall from the top of the set and cause product
damage and/or personal injury.
8. Ventilation — The appliance should be situated so that its location or position does not interfere with its proper ventilation.
For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the ow of air through the
ventilation openings. Do not block ventilation holes by placing items such as magazines, clothing, etc., on top of the unit.
9. Heat — The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other
appliances (including ampliers) that produce heat.
10. Power Cord Protection — Power supply cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point
where they exit from the appliance.
11. Object and Liquid Entry — Never push objects of any kind into this product through cabinet slots, as they may touch
dangerous voltage points or short the parts, resulting in the risk of re or electric shock. Never spill liquid of any kind on this
product.
12. Damage Requiring Service — The appliance should be serviced by qualied service personnel when:
A. the power supply cord or plug is damaged or frayed;
B. liquid has spilled into the product;
C. the product has been exposed to rain or water;
D. the product does not operate normally when you follow the operating instructions (adjust only those controls that are
discussed in this guide, as improper adjustment of other controls may result in damage, often requiring extensive work by a
qualied technician to restore the product to normal performance);
E. the product has been dropped or the cabinet damaged;
F. the product exhibits a distinct change in performance.
13. Servicing — The user should not attempt service to the appliance beyond that described in the Troubleshooting section of
this guide. All other servicing should be referred to qualied service personnel.
14. Cleaning — Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners; use a
damp cloth for cleaning. If the product comes in contact with any liquid, unplug the power cord and let the unit dry thoroughly
before plugging it back in.
15. Power Source — This product should be operated only from the type of power source indicated on the marking label or in
this guide. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
16. Overloaded Power Outlets — do not overload wall outlets and extension cords, as this can result in the risk of re or electric
shock.
17. Coaxial Cable Grounding — For this product, the coaxial cable shield/screen shall be grounded as close as practical to the
point of entry of the cable into the building. This is per Article 800-93 and Article 800-100 of the NEC, which provides guidelines
for proper grounding of the coaxial cable shield.
18. Electric Shock — To reduce the risk of electric shock, do not disassemble this product. Take it to a qualied service person
when service or repair work is required. Opening or removing covers may expose you to dangerous voltage or other risks.
Incorrect reassembly can cause electric shock when this product is subsequently used.
19. Moving — Avoid moving the unit while it is plugged in to avoid accumulative shock.
20. CAUTION — Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Safety Instructions

90 Days Labor | One Year Parts Exchange
WHO IS COVERED?
You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased
the product is considered proof of purchase.
WHAT IS COVERED?
Each TiVo box is manufactured from parts and components that are new or substantially equivalent to new in accordance with
industry-standard practices. TiVo warrants that the TiVo box will be free from defects in materials and workmanship during the
limited warranty period described herein. The limited warranty coverage begins the day you purchase the product, as further
described in the following text. For 90 days from the purchase date, the TiVo box will be replaced with a repaired, renewed or
comparable product (whichever is deemed necessary by TiVo) if it becomes defective or inoperative (subject to the exclusions
set forth below). This exchange is done without charge to you for parts and labor (except applicable taxes, if any). You will be
responsible for the cost of shipping. From 90 days to 1 year from the date of purchase, your TiVo box will be replaced with a
repaired, renewed, or comparable product (whichever is deemed necessary by TiVo) if it becomes defective or inoperative
(subject to the exclusions set forth below). You will be responsible for all labor and shipping costs. Contact Customer Support
at tivo.com/support or 877-367-8486 to obtain the labor costs for your exchange.
All products, including replacement products, are covered for solely the original warranty period. When the warranty on the
original product expires, the warranty on the replacement product also expires. After one year from the date of purchase, you
pay for the replacement of all parts, and for all labor and shipping charges.
WHAT IS EXCLUDED?
Your warranty does not cover:
• Labor charges for installation or setup of the product.
• Any taxes imposed on TiVo for units replaced or repaired under this warranty.
• Installation, performance, or repair of: audio/video cabling, telephone line, or accessory attachments used with the product.
• Product replacement because of damage due to misuse, your negligence or recklessness, accident, lightning, unauthorized
repair, or other cause not within the control of TiVo Inc. Please note that removing the cover of the TiVo box for any reason
voids the warranty.
• Reception transmission problems caused by signal conditions, telephone line, or cable or antenna systems outside the unit.
• Damages to, or viruses that may infect, your TiVo box or other devices arising from the use of unauthorized third party
devices in connection with your TiVo box.
• Incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not apply to you.)
• A product that has been modied or adapted to enable it to operate in any country other than the country for which it was
designed, and then damaged by or as a result of these modications.
• A product used for commercial or institutional purposes.
• Access connections (telephone or broadband), including charges from your communications provider.
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing proof of purchase. Attach it to this guide and keep both nearby.
Also keep the original box and packing materials in case you need to return your product.
BEFORE YOU REQUEST WARRANTY SERVICE
Please check the troubleshooting advice found at tivo.com/support before calling Customer Support. Following the
troubleshooting tips contained therein may save you a call to Customer Support.
TO GET WARRANTY SERVICE...
If you believe you need service for your TiVo box, contact Customer Support at tivo.com/support or 877-367-8486. A
representative will go through a diagnostic checklist with you. If it is determined that the product needs to be exchanged, you
will receive a return authorization number. The representative will give you complete shipping details.
TO GET OUT-OF-WARRANTY SERVICE...
Out-of-warranty service can be obtained at a nominal cost for replacement and handling. To obtain out-of-warranty service,
contact Customer Support at tivo.com/support or 877-367-8486 to obtain the cost of an out-of-warranty exchange for your
product.
REMEMBER...
Record the model and service numbers found on the product below:
MODEL # _____________________________________________
SERVICE # ____________________________________________
All implied warranties, including implied warranties of merchantability and tness for a particular purpose, are limited in
duration to the duration of this express warranty. Some states (or jurisdictions) do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. This warranty gives you specic legal rights. You may have other
rights which vary from state to state (or jurisdiction to jurisdiction). TIVO’S RESPONSIBILITY FOR MALFUNCTIONS AND
DEFECTS IN TIVO BOXES IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS LIMITED WARRANTY. ALL
EXPRESS AND IMPLIED WARRANTIES FOR THE TIVO BOX, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES
OF AND ALL CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE LIMITED WARRANTY PERIOD SET FORTH ABOVE, AND NO WARRANTIES, WHETHER EXPRESS OR
IMPLIED, WILL APPLY AFTER SUCH PERIOD. Some states (or jurisdictions) do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
TIVO DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS LIMITED WARRANTY OR LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT
BEING AVAILABLE FOR USE OR FOR LOST DATA. Some states (or jurisdictions) do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights which vary from state to state (or jurisdiction to jurisdiction).
Limited Warranty

SDOC-00161-000 A1
