INSTRUCTION MANUAL
DFTA60BR
Toll FreeWarranty and Service: 1800509 394
Gold TechnicalSupport Line: 1902 215259
(Charges will apply at$2.95 per minute forGold TechnicalSupport Only)
HIGH DEFINITION DIGITAL SET TOPBOX WITH
INTEGRATED BLU-RAY PLAYER

Safety Instructions
Always read the safety instructions carefully
Keep this Instruction Manual for future reference
Keep this device away from humidity
Lay this device on a reliable flat surface before setting it up
Do not stand it on soft furnishings
If any of the following situation arises, get the Set Top Box checked by a service
technician:
It has been exposed to moisture
It has been dropped and damaged
It has obvious sign of breakage
It has not been working well or you cannot get it to work according to the Instruction
Manual
Warning
Toprevent the risk of electric shock, do not open the cover or the back of the receiver.
Do not block the ventilation holes of the device. Leave appropriate gap
above and around it to allow for adequate ventilation.
Do not place the device in an unventilated cabinet or on top of a unit which emits heat.
Copyright Statement
No part of this publication may be reproduced in any form by any means without the
prior written permission. Other trademarks or brand names
mentioned herein are trademarks or registered trademarks of their respective companies.
This symbol indicatesthat this productincorporates double insulationbetween
hazardous mains voltageand user accessibleparts. When servicing use only
identical replacement parts.
WARNING: To reduce therisk of fireor electric shock,do not exposethis apparatus
to rain orcords.
This product incorporatescopyright protection technologythat is protected by U.S.
patents and otherintellectual property rights. Useof this copyrightprotection technology
must be authorizedby Rovi Corporation, and isintended for homeand other limitedviewing
uses only unlessotherwise authorized by Rovi Corporation. Reverse engineering or
disassembly is prohibited.

Thank you for buying this Bush product, which is designed to give you many years of trouble
-free service.
You may already be familiar with using a similar unit, but please take time to read these instructions.
They are designed to familiarise you with the unit s many features and to ensure you get the very
best from your purchase.
Safety is important
Your safety and the safety of others is important. Please therefore, ensure you read the
Safety Instructions before you operate this unit.
Warranty
In the unlikely event that your product fails to work normally,please call the below Bush warranty
number for support.
Australia
Bush Warranty: 1800 509 394
New Zealand
Bush Warranty: 0800 450 259
Introduction

This DVB-T TV Receiver allows you to access Free-to-Air Digital TV Channels and Radio
Broadcasts on your TV set. Its digital reception covers VHF & UHF band. Digital TV
eliminates noise and interference and offers high quality video and audio. It also can
support multi-format of BD and DVD disk play back.
An easy to use on-screen installation guide is provided. In addition, a fully featured Remote
Control is included that offers you access to every feature with a simple press of a button.
Main Features
Package Contents
Before installation, please check the items of the package.
The package should contain the following items:
~ Set Top Box x1 pc
~ Remote Control x1 pc
~ AAA Battery for the Remote Control x1 pair
~ Instruction Manual x1pc
~ Composite RCA Cable x1 pc
About the High Definition Digital Set Top Box with Integrated Blu-Ray Player
Compliant with AustralianDVB-T Standards
Bandwidth of 7/8MHzSupported
COFDM Demodulator
Receives All High Definition DigitalFree to Air Channels
Integrated Blu-Ray Player
Blu-Ray Player Supports Multi Format Playback(BD/DVD/DVD+/-R,
RW/MP3/ CD/CD-R/CD-RW/ VCD/DVD+/JPEG Formats)
USB Input Supports MP3, WMA and JPEGfiles
Easy Set UpOut of theBox with Autoand Manual ChannelScan
On Screen 7Day Program Guide with Nowand Next EventInfo
HDMI Output forPerfect Picture Quality
Composite Video Output
Digital Audio viaSPDIF Coaxial Outputfor Connection toa Surround
Sound Amplifier
Teletext(where applicable) withSubtitle Support for the Hard of Hearing
Parental Lock
Remote Control

Main Menu Introduction
Player Configuration via System Menu
Specifications 20
Overview 2
8
10
DVB-T Function 15
BD-Live Operation 17
--------------------------------------------------------------------------------------
-----------------------------------------------------
------------------------------------------------------------------------------
---------------------------------------------------------------------
----------------------------------------------------
------------------------------------------------------------------------------
--------------------------------------------------------------------------
Troubleshooting ----------------------------------------------------------------------------- 19
--------------------------------------------------------------------------------
Warranty-------------------------------------------------------------------------------------- 21
Front Panel and Rear Panel Illustration 3
Remote Control 6
- 1 -
Table of Contents

PLAYABLEDISK TYPES
Please see belowthe disk formattypes that areaccepted and canbe played byyour Bush DFTA60BR
player:
This High DefinitionDigital Set Top Box withIntegrated Blu-Ray Playerwill provide youwith high
definition, cinema-like picturesand multi-channel audio.
NOTES:
For recordable DVD & CD disks formats, only DVD-RW/-R & CD-R/-RW disks recordedwith UDF or
ISO9660 format can be played via this unit. The disks must be finalised via VR-mode.
If your disk format type is not specified above then it may not work with this unit or perform specific
operations.
REGION CODE
If the region number of a Blu-Ray or DVD disk does not correspond to the region number of this unit the
disk will not beavailable for playback. The region code is printed on the rear panel of this unit.
- 2 -
TM
Blu-Ray Disks
DVD Video Disks
(DVD-ROM)
DVD-RW
DVD-R
Audio CDs
(CDDA)
VCD MP3/WMA/JPEG
Data CD
DTS-CD
HDMI DVB-T
Format Logo Format Logo
OVERVIEW

DFTA60BR
HIGH DEFINITION DIGITAL SET TOP BOX WITH
INTEGRATED BLU-RAY PLAYER
POWER SUPPLY:
AC 230V~ 50Hz
MAX POWER CONSUMPTION: 20W
WARRANTY: 1800 509 394 AUSTRALIA
WARRANTY: 0800 450 259 NEW ZEALAND
WWW.Bush.NET.AU
N14119
MADE IN P.R.C. 2011/01
U.S. Patent Nos. 6,836,549; 6,381,747;
7,050,698; 6,516,132; and 5,583,936.
Manufactured under license under U.S.
Patent #s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks & the
DTS logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
B00057400001
Front Panel and Rear Panel Illustration
Front panel
Rear panel
1
4
COAIXAL: This socket connectsto a Coaxialcable on yoursurround sound system.
2
3
AUDIO L/R: This socket outputsAnalog Audio L/Rsignal.
HDMI: High definition audioand video outputused to connectto a HDMIdevice.
VIDEO:This socket outputscomposite video signal.
7 8
5
6LAN: The Lan Connectionallows you toconnect to theinternet and access anylinks on yourBlu-Ray disk.
The disk mustsupport BD live 2.0. Alternativelyit can beused for software upgrades.
USB Supports JPEG Files, Music Files,Video Files andSoftware Upgrade.
7
8RF IN:This socket connectsto your external Aerial.
R F LOOPTHROUGH: This socket willbypass the RFsignal to eitheryour TV oranother video system.
- 3 -
STANDBY BUTTON: Press the STANDBY Button toturn the unit onor off.
5
6USB Input: USB Input Supports JPEG Files,Music Files, VideoFiles and Software Upgrade.
1
2
3
4
LED Display: The LED Displaywill display thechannel you arewatching.
PLAY/PAUSEBUTTON Used to playbackor pause theprogram being viewed.
EJECT BUTTON Used to openor close thedisc tray.
Disc Tray:Once you pressthe Eject Buttonthe Disc Tray will openand you canload your DVD or Blu-Raydisk.

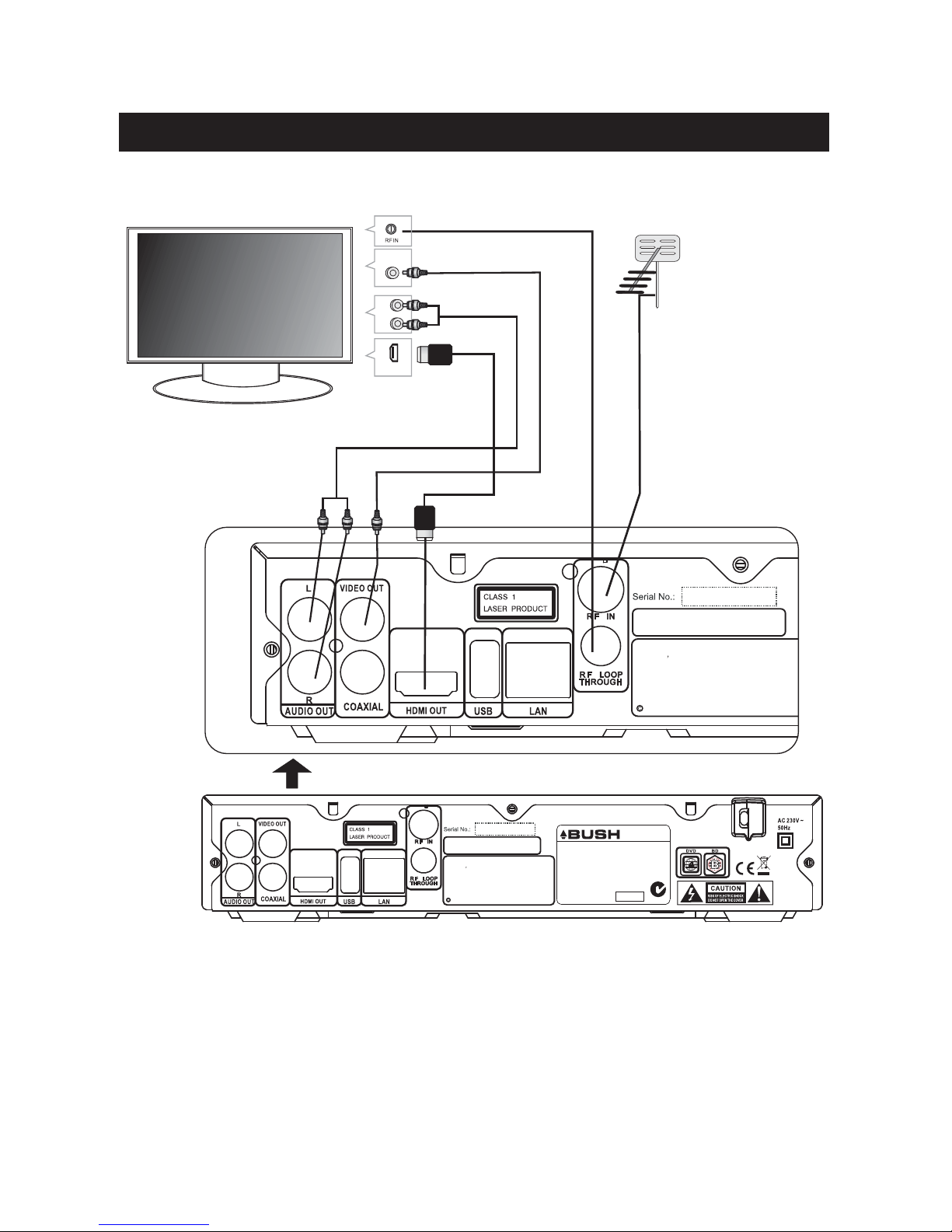

TV Set Connections
AUDIO IN
HDMI IN
VIDEO IN
VIDEO
R
L
HDMI
TV Aerial
- 4 -
U.S. Patent Nos. 6,836,549; 6,381,747;
7,050,698; 6,516,132; and 5,583,936.
Manufactured under license under U.S.
Patent # s: 5,451,942; 5,956,674; 5,974,380
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks & the
DTS logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
B00057400001
Front Panel and Rear Panel Illustration
CONNECTING THE BLU-RAY PLAYER TO YOUR TV SETVIA THE AV CONNECTION
Connect the unit'sL and Raudio output viathe composite cableprovided to thecorresponding audio
input on yourTV.
Then connect theunit's video outputvia the compositecable provided tothe corresponding video input
on your TV.
CONNECTING THE BLU-RAY PLAYER TO YOUR TV SETVIA THE HDMI CONNECTION
Use a HDMIcable (not supplied)to connect yourunit to yourTV via theHDMI Output.
It will supports videoresolution up to1080p 60Hz.
DFTA60BR
HIGH DEFINITION DIGITAL SET TOP BOX WITH
INTEGRATED BLU-RAY PLAYER
POWER SUPPLY:
AC 230V~ 50Hz
MAX POWER CONSUMPTION: 20W
WARRANTY: 1800 509 394 AUSTRALIA
WARRANTY: 0800 450 259 NEW ZEALAND
WWW.Bush.NET.AU
N14119
MADE IN P.R.C. 2011/01
U.S. Patent Nos. 6,836,549; 6,381,747;
7,050,698; 6,516,132; and 5,583,936.
Manufactured under license under U.S.
Patent #s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks & the
DTS logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
B00057400001

Connecting to an AV Amplifier with Digital Audio Input
Notes:
1. Connect the unit to your external sound system/amplifier via the coaxial output.
2. Make sure you set the digital amplifier to the AV input source.
Coaxial
Coaxial cable
Digital Amplifier
- 5 -
Front Panel and Rear Panel Illustration
DFTA60BR
HIGH DEFINITION DIGITAL SET TOP BOX WITH
INTEGRATED BLU-RAY PLAYER
POWER SUPPLY:
AC 230V~ 50Hz
MAX POWER CONSUMPTION: 20W
WARRANTY: 1800 509 394 AUSTRALIA
WARRANTY: 0800 450 259 NEW ZEALAND
WWW.Bush.NET.AU
N14119
MADE IN P.R.C. 2011/01
U.S. Patent Nos. 6,836,549; 6,381,747;
7,050,698; 6,516,132; and 5,583,936.
Manufactured under license under U.S.
Patent #s : 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS and
the Symbol are registered trademarks & the
DTS logos are trademarks of DTS, Inc.
DTS, Inc. All Rights Reserved.
B00057400001
