TJ Media TKR-304E User manual

TKR-304E manual
Karaoke machine
-Make sure to read warning and instruction for proper use.
-Read out the instruction for use carefully from first to last to use this unit properly.
-Keep this instruction in a convenient place for further reference.
-Music and videos in the accompaniment can be added, changed or deleted without notice for the quality improvement or by the
request of copyright holder.
-The secondary copyright in music and videos in the accompaniment belonging to TJ Media cannot be assigned, copied or dis-
tributed to the third party.
The AD in the accompaniment can be added, changed or deleted without notice.
This Unit, which is designed for Korea only, cannot be used in foreign countries.

Enjoy yourself
-Your own photo shown in background screen -
-Save and play your own music -
-Save song I sang -
High quality music like recent accompaniment for business use
- High definition sound source like that for business use.
-Microphone with rich echo and sound like that for business use.
-Contains over 30,000 songs including Korean popular song, pop song, Japanese songs, and Philippines songs.
High definition video like recent accompaniment for business use
-HD videos.
-1:1 matching video between accompaniment, lyrics and video.
What is 1:1 matching video?
Music video lyric and accompaniment are matched 1:1. When you sing a song, the singing and movement of the
singer in the screen is corresponded so that you may feel as if you are a singer.
Up to date accompaniment function -
HDD accompaniment for home use TKR-304E
TJM-E-201112-00

Easy update of new songs like accompaniment for business use
-Easy and convenient contents certification using smart card.
Smart card certification available as reader is included in the accompaniment .
-Ubiquitous update of new songs without visiting shops.
Download new contents (songs and videos) from web site in your USB to link to the accompaniment.
-Update new songs per every 3 months like accompaniment for business use.
Fun functions like accompaniment for business use
-Music score presentation.
Melody score for playing and singing practice.
-Saxophone mania.
Actual playing of popular session men and transposed score presentation.
-Reservation, cancelation, tune and tempo control, and microphone and accompaniment sound control.
Upgraded search function
You may search music easily by initial match function and help your choice using highly visible font.

Index 4
Instruction for safety 5-6
Instruction for grounding 7
Parts and separate sold items check 8
Name of each part (front) 9-10
Name of each part (rear) 11

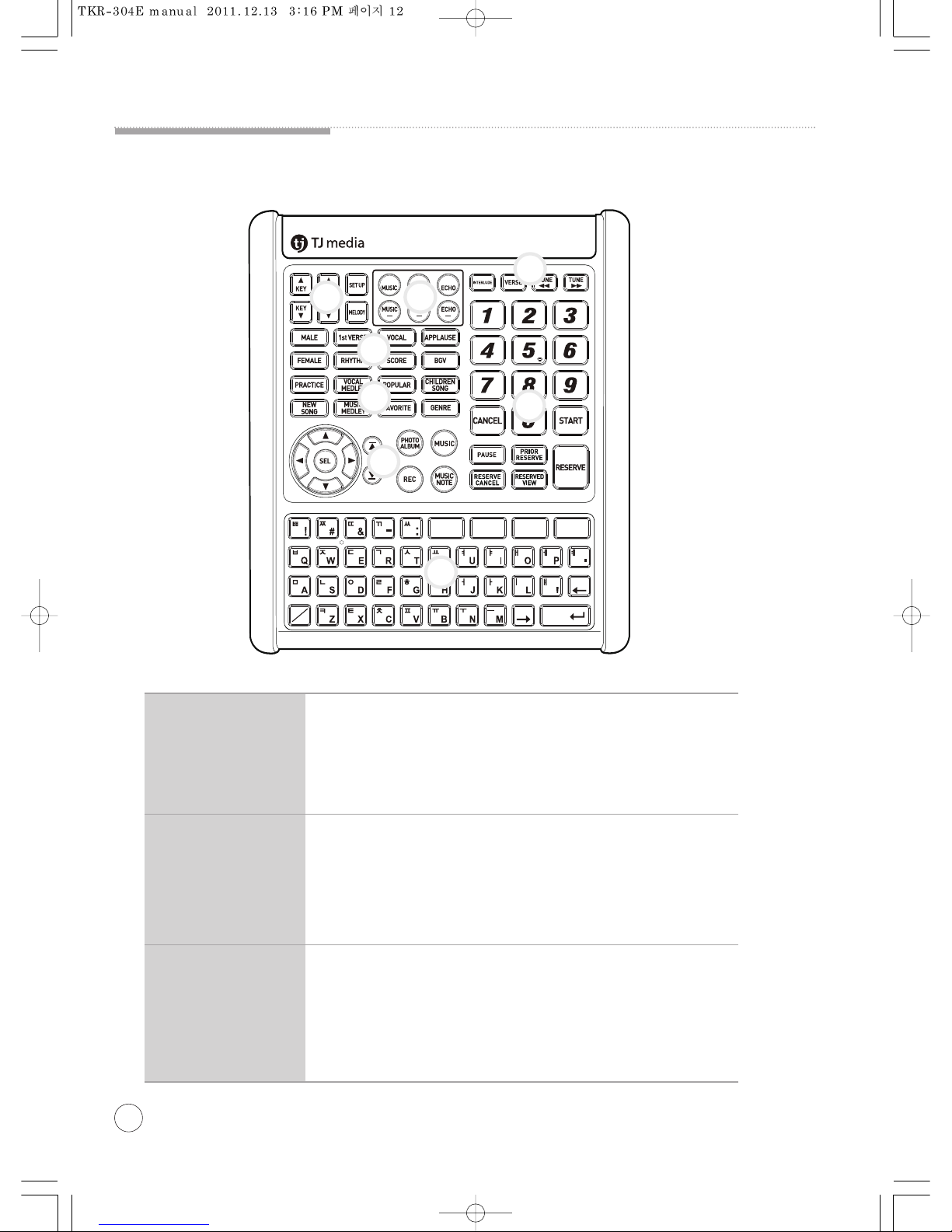

Function of remote control (TIR-304E) 12-13
Connection to amp/speaker and external device 14
Proper setting of 4.1 channel 14

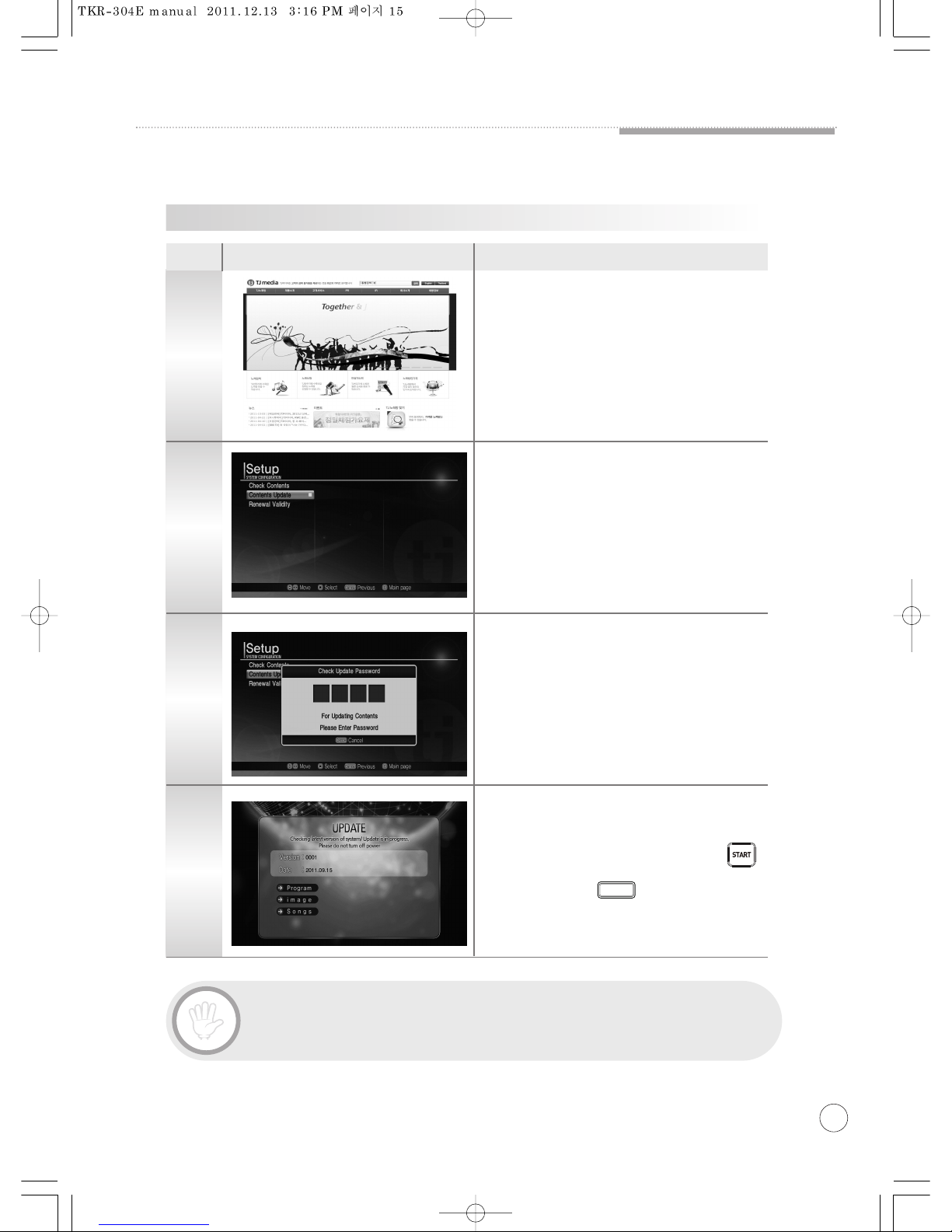

Input new contents 15
Certifcation 16-17

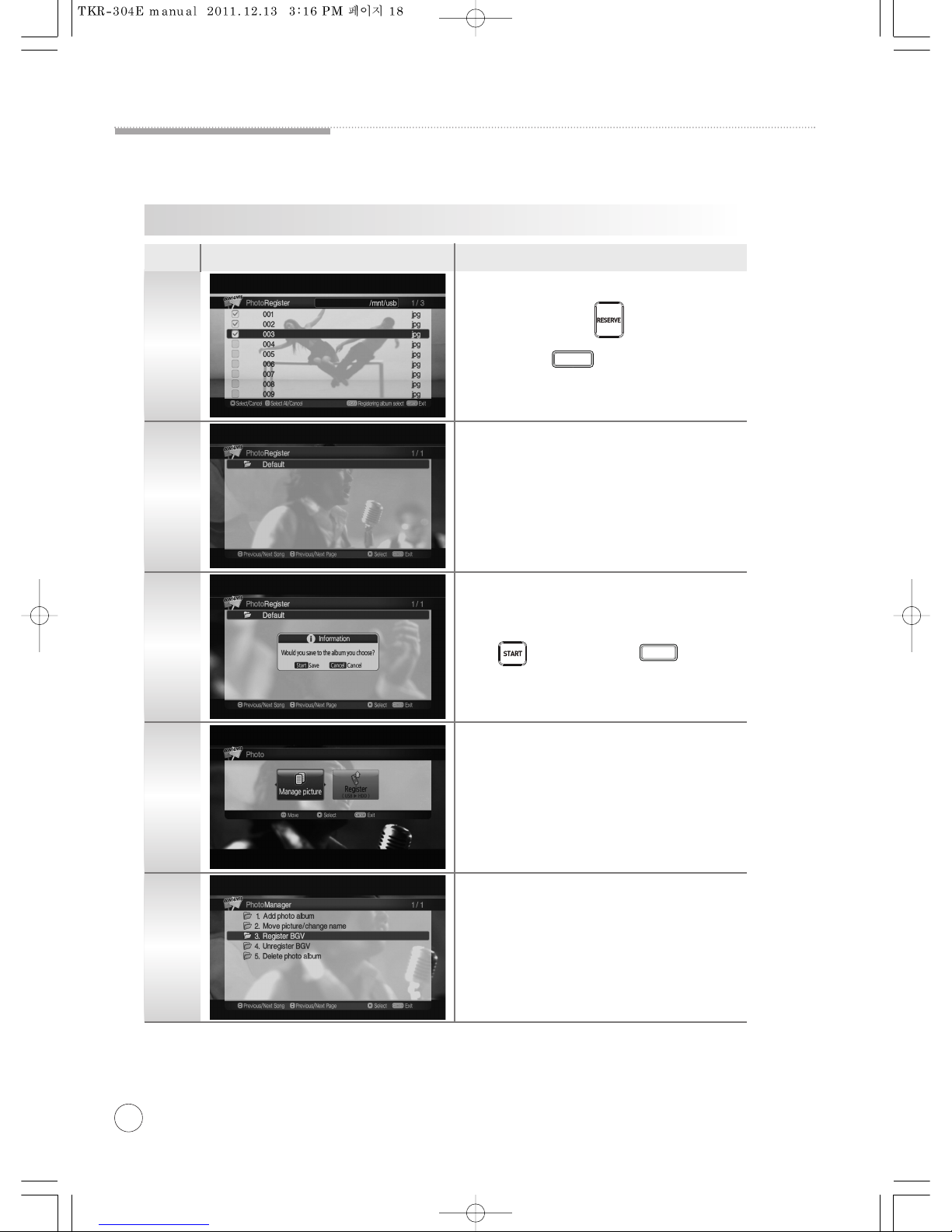

Photo album 17-19

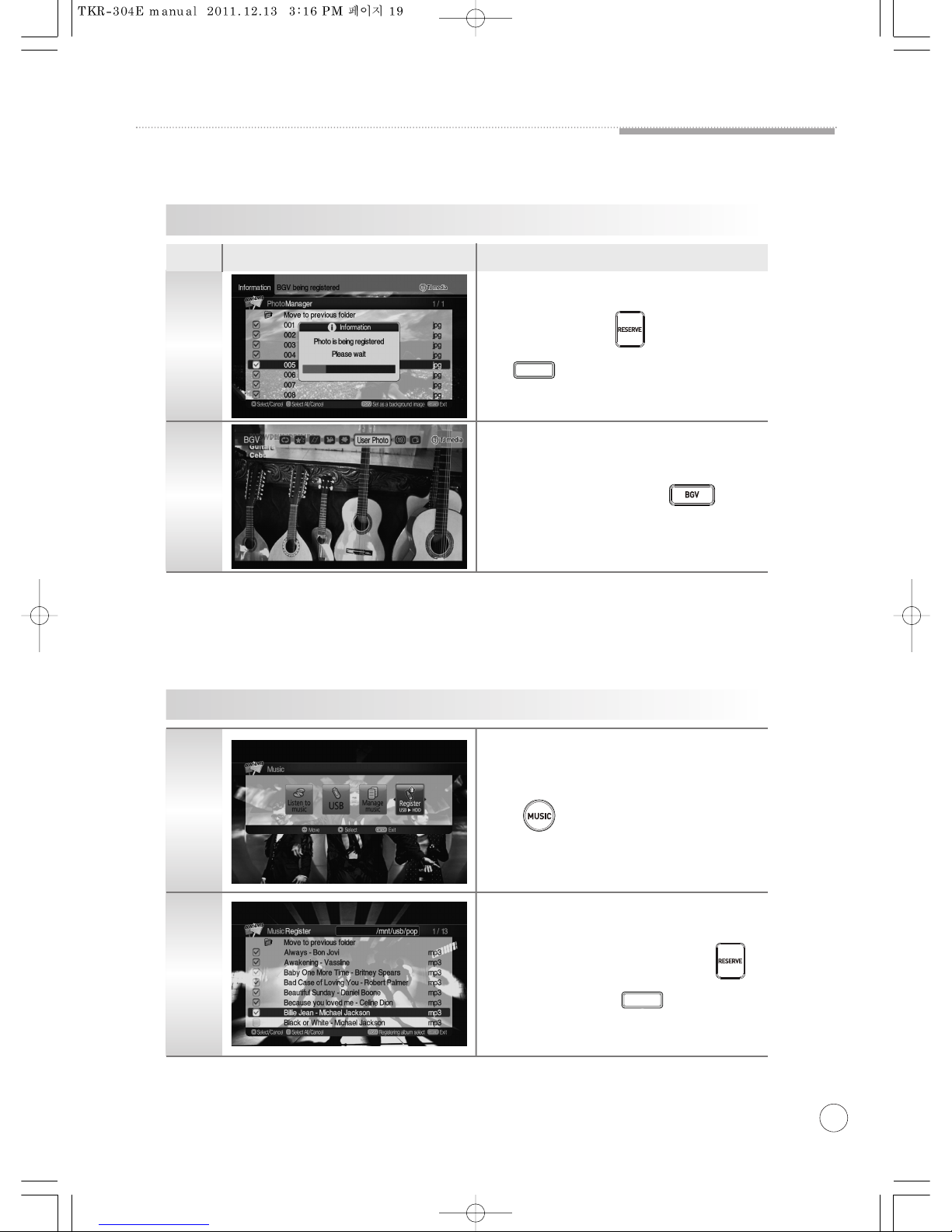

Music 19-20
Configuration 21
1. Accompaniment operation status 21-22
2. Sound configuration 22-25
3. Screen configuration 25
4. Additional function 26
5. Input contents and certification renewal 26-27
6. Rebooting 27
7. First certification 27
Trouble check and trouble shooting 28-29
On service and specification 30-31
Quality certificate and consumer compensation
Characteristics
4
Index
USER MANUAL
Table of contents
Safety
Others
Connection
New songs contents
User function
Configuration

Instruction for safety
USER MANUAL
5
This sign calls attention to dangerous matters and operations.
Warning : It may cause serious damage and death, if violated.
Caution : It may cause light damage if violated.
Danger for electric shock. Danger for fire.
Instruction for safety divides into "Warning" and "Caution".
Warning and Caution have following meanings.
Warning
▶Do not pull power supply code or remove sheath.
• It may cause fire or electronic shock.
▶Ask the shop to change damaged code (exposure or cut).
• When installing, consider ventilation to keep certain distance from wall.
• It may cause fire by internal temperature increase.
• Leave over 10cm from wall, 2 cm from upper side and 5cm from rear side.
▶Use assigned voltage.
• It may cause fire or electronic shock.
▶Do not use in the bath or external area where easy water infiltration is made.
• It may cause fire or electronic shock.
▶Do not connect DC supply in ship etc.
• It may cause malfunction or fire.
• If you change power supply for special place installation, it may cause fire or electronic shock.
▶Connect grounding into terminal.
• No attachment or unstable attachment may cause fire or electronic shock.
• It may cause electronic shock by other units. (monitor, amp and microphone)
▶Do not use it in the poor ventilation like on carpet or blanket.
• It may cause fire by internal temperature increase with duct blocking.
▶If any smell or smoke, pull off power supply and contact shop.
• It may cause fire, electronic shock and injury.
▶If any foreign substance in the unit, pull off power supply and contact shop.
• It may cause fire or electronic shock.
▶If heavy thunder, turn off switch and pull off plug.
• It may cause trouble, fire and electronic shock.
▶Do not disassemble or remove cover.
• It may cause electronic shock and injury.
▶Use 110V~220V only.
• It may cause fire or electronic shock.
▶Do not put clip or metallic object inside the unit.
• It may cause trouble, fire and electronic shock.
▶This unit is designed for use in Korea only.
• Do not connect DC supply in ship etc. It may cause malfunction or fire.
▶Do not open cabinet. Contact shop for maintenance, repair and other services.
• We are not responsible for any quality and performance if you open the cabinet.
▶Keep away from children.
• If a child swallows it, contact medical doctor.
▶Do not recharge battery.
• It may cause fire by leaking liquid.

6
Instruction for safety
USER MANUAL
▶Pull off plug to clean the unit for safety.
• It may cause accident or electronic shock.
▶Do not pull off forcefully, but pull off while gripping code.
• If line is cut, it may cause fire or electronic shock.
▶Connect power plug in a socket with grounding.
• It may cause fire or electronic shock.
▶Remove plug from socket if it is not used for long-term.
• Itmay cause accident.
▶In moving the unit, grip bottom firmly and keep horizontal.
• Itmay cause damage.
▶Do not touch plug or unit in a wet hand.
• It may cause electronic shock.
▶Use it in a well ventilated place.
• It may cause electronic shock.
▶Do not use in humid place.
• It may cause electronic shock.
▶Do not place it in a dust place.
• It may cause fire or electronic shock.
▶When connecting it to other devices (monitor, accompaniment, and microphone), remove plug from socket and connect.
• It may cause trouble or accident.
▶When moving it, remove all codes to prevent any damage.
• Code damage may cause fire or electronic shock.
▶Do not put things on the unit or seat on it.
• It may cause deform or trouble.
• It may cause injury, fire or electronic shock.
▶Do not install it near heating place like cooking counter or humidifier.
• It may cause fire or electronic shock.
▶Use designated code in case of connecting it to other device.
• Undesignated code or extended code may cause burn, fire or electronic shock.
▶Before connecting it to other devices (monitor, accompaniment, speaker & microphone), minimize master volume sound.
• It may cause hearing trouble by sudden high sound.
▶Do not use chemicals like wax, benzene, alcohol, thinner, repellent, air freshener, lubricant or detergent.
• It may cause peel of paint or deform.
• Do not put under direct light or spotlight or near heating devices.
• It may cause fire or electronic shock.
▶Be careful of packing handling in delivery, opening and disposal.
• It may cause injury or cut your hand.
▶Do not put liquid containers on the unit like pot, flower pot, cup, cosmetics and chemicals.
• It may cause fire or electronic shock.
Caution
·Do not use mobile or wireless device near to this unit to prevent any interfere by electronic wave.
·Remove foreign substance on the surface using cloth with neutral detergent, and wipe off with dried cloth.
·Do not lean or do not use reverse.
·Do not put liquid containers on the unit like pot, flower pot, cup, cosmetics and chemicals.
·Do not use the following conditions. [Temperature: 5~35°(In use) /Humidity:45~80%]
·In cold winter, it may not work due to inside freezing. Remove plug from socket and leaver 1-2 hours before use.
Increase room temperature gradually.
·It may freeze the unit if it is contacted air conditioner wind directly. Relocate and install it.

USER MANUAL
7
What is grounding?
It is basic safety device for electronic goods.
If it is improperly installed, it may cause electronic shock or malfunction of device. Therefore, keep perfect grounding.
Improper grounding may cause overload, and troubles to device.
Thus, it disables circuit breaker that may cause electronic shock accident by improper movement of breaker.
It is particularly dangerous in heavy humidity like rain.
If rapid voltage change (billions V) by lightening, it may cause fire, damage and life damage.
Connect ground wire to ground terminal.
Ifit is improperly installed, it may cause electronic shock or malfunction of device.
It is highly dangerous of electronic shock by other devices (monitor, accompaniment and microphone)
This product is AC 110V~220V free voltage.
Do not open cover. Otherwise, it may cause electronic shock or fire.
Use proper voltage and proper fuse. Otherwise, it may cause fire.
Use remote control to the recipient part firmly.
Remote control can be used within 7m with 30°.
Beyond this scope, it may not work.
Caution to use remote control
Do not drop off. It may cause damage or deform.
Be careful not to contact heat or water. It may cause damage or deform.
Caution to use battery
1.Insert "AA"battery with proper electrode.
2. Remove battery from remote control if it is not use for a long time.
Leaking liquid may cause corrode circuit.
3. If remote control is not properly operated, change two new batteries.
CAUTION
Instruction for grounding

1Video cable
INDEX
8
Connection
USER MANUAL

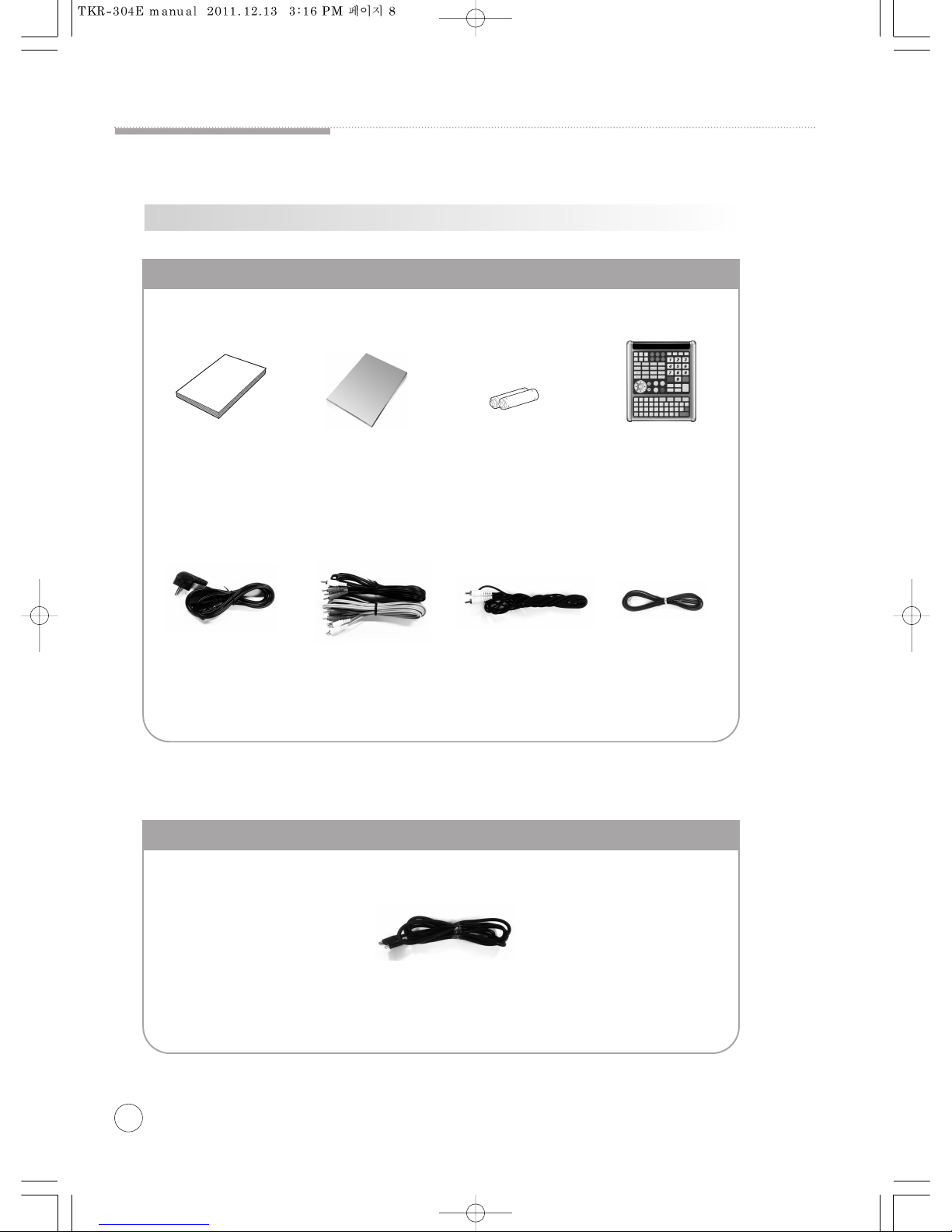

Parts and separately sold items check
Contact customer center or shop to buy parts or separately sold items.
Parts
Separately sold item
Remote controlMANUAL 2Batteries
(For Remote control)
2sound cable
(RCA to RCA)
1Power supply code
HDMI cable
1grounding cable

Connection
USER MANUAL
9
Name of each part (front)
❶Display monitor
❷POWER
Show selected and playing sing number.
Switch to supply or cut off power to the unit.
❹MUSIC volume Control volume of music.
(It is defaulted between 0-64 based on "Standard 45" in release)
❸USB 2.0 terminal Enable to save and play music using USB stick.
❺Smart card Insert smart card in new song certification.
❻Tune control/
Tempo control Tune control : Control tune from -6 to +6 levels.
Tempo control : Control tempo from -6 to +6 levels.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9

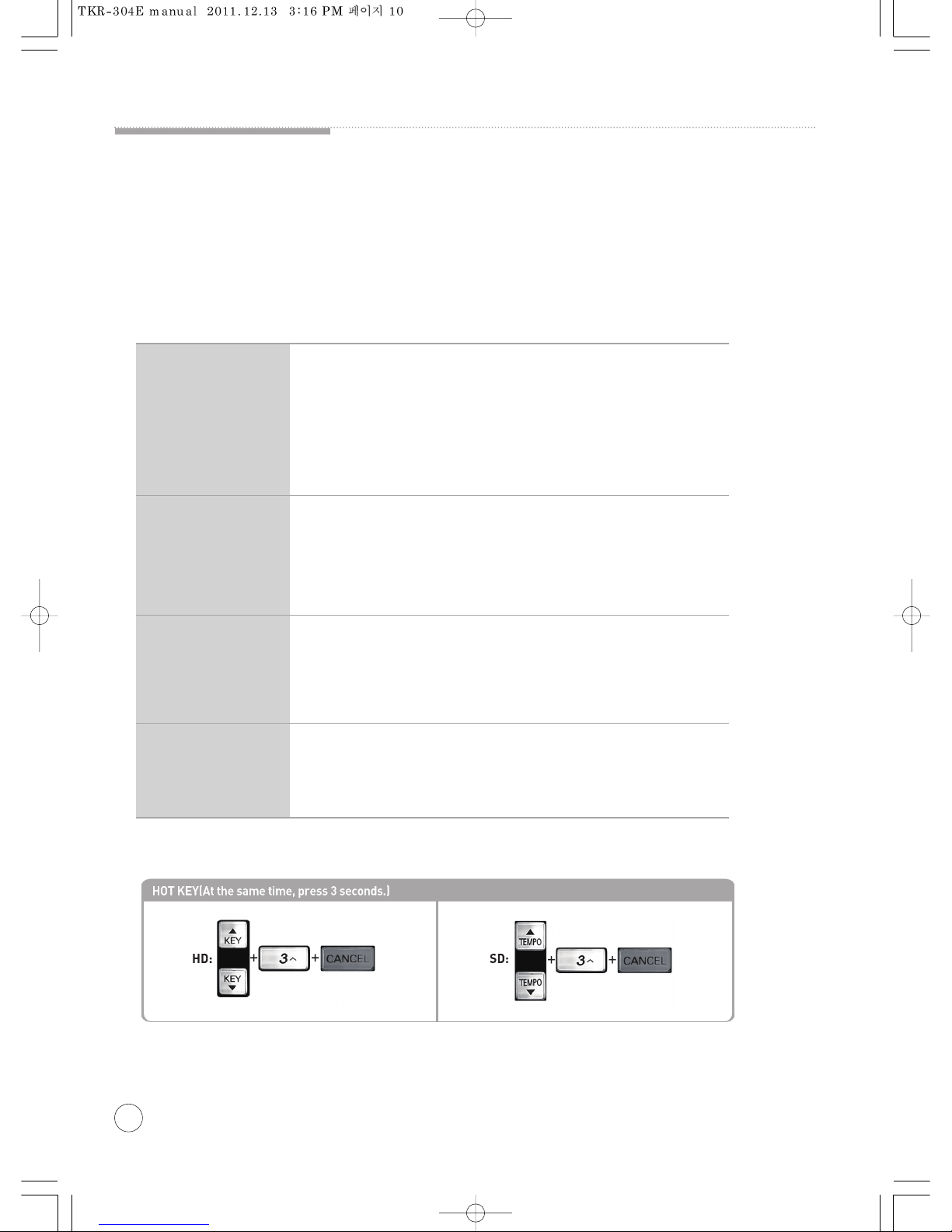

10
Connection
USER MANUAL
❼Input selection
number,
Start and Cancel
Selection number : Select by direct press.
Use 3▲, 7◀, 9▶, 8▼key to move page.
It can be used direction key in configuration.
START : Play the selected song.
CANCEL : Stop or cancel songs.
❽RESERVE,
RSRV CANCEL
RESERVE : Reserve songs to play.
RSRV CANCEL : Cancel songs reserved.
(Cancel after selecting in the list or cancel direct input song number)
❾MIC volume Control microphone volume.
(It is defaulted between 0-110 based on "Standard 100" in release)
❿1-MIC - 2 Connect microphone.

Connection
USER MANUAL
11

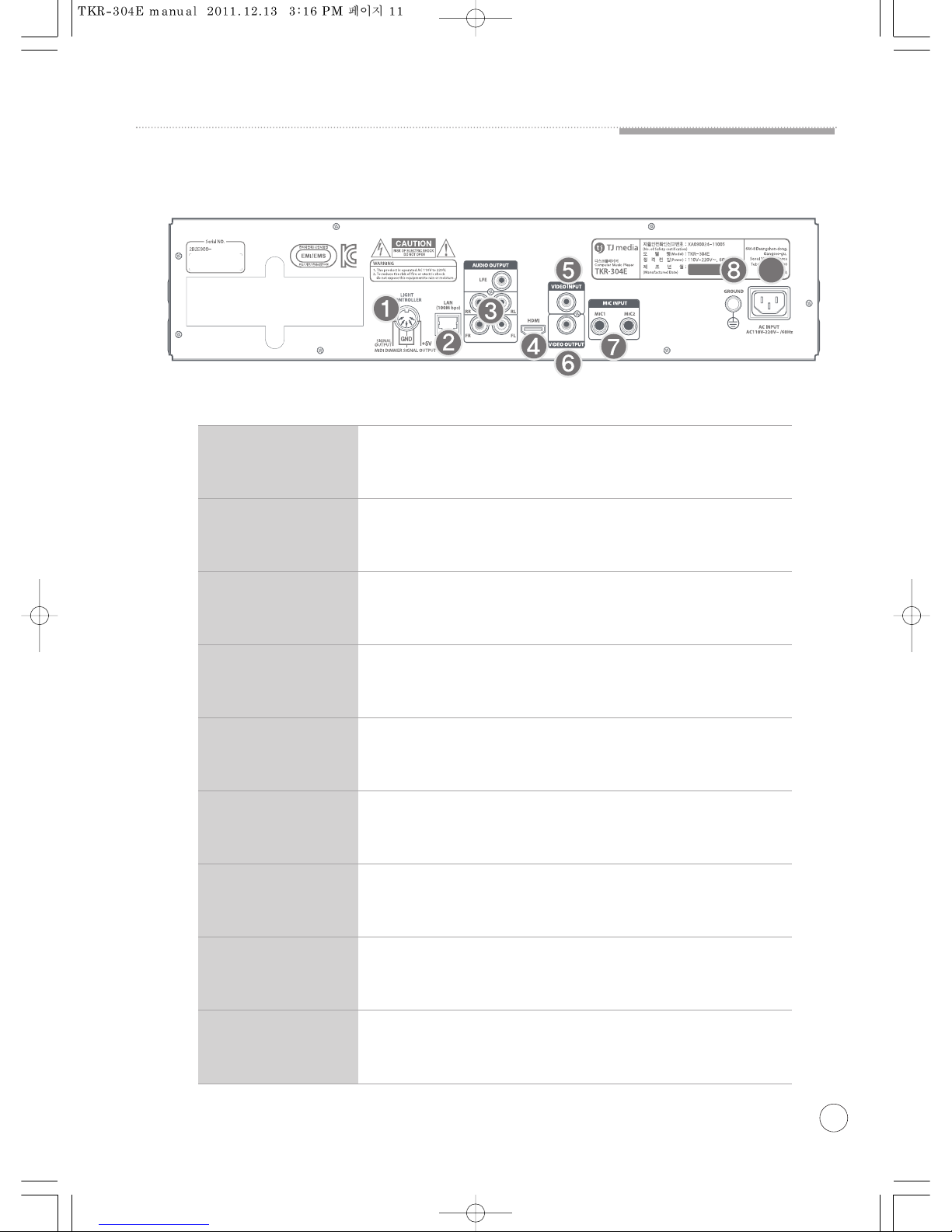

Name of each part (rear)
❷LAN 100BASE-T A/S terminal.
❶Light control Midi dimmer, light device connection control terminal.
❺Video input Terminal to input separate video play device. (DVDP, LDP, VCDP and VTR)
❸Sound output
(Front, Rear, LFE output)
Terminal to connect analog amp, connecting front left/right, rear left/right and
LFE. (if necessary)
❹Video output (HDMI) HD video digital output terminal.
(Excellent HD play available with differentiated to user composite)
❻Video output Video output terminal.
❼MIC input Microphone input terminal.
❽Grounding
❾AC input
(AC 110-220v/ 60Hz)
Power supply grounding and amp grounding terminal.
(In case of noise in amp or wireless MIC, make sure to connect)
Power supply terminal by connecting power supply code.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
9

12
Connection
USER MANUAL
Function of remote control (TIR-304E)
TIR-304E
PAGE
+ + +
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
❶Key, Tempo, Melody,
configuration
Key control : Control tune from -6 to +6 levels.
Tempo control : Control tempo from -6 to +6 level.
Melody : Control melody "high, standard, low, no" .
Configuration : Enter configuration.
❷Music, MIC, Echo
Music : Control volume directly.
MIC : Control MIC volume directly.
Echo : Control echo volume directly.
❸Interlude, Verse,
Tune
◀◀ , ▶▶
Interlude : Skip whole intro or bridge.
Verse : Skip to next phrase.
Tune
◀◀ :Skip bar reversely.
Tune
▶▶ : Skip bar.

Connection
USER MANUAL
13
❻Move direction/selec-
tion/ Page move,
Photo album, Music,
Rec, Music note
Move direction/selection : Move page in the list.
Photo album : Use your photo as background image.
Music : Save MP3 music and play.
Rec : Record my singing save it in USB.
Music note : Show music note by selecting it.
❼Number, Start/Cancel,
Pause,
Prior reserve,
Reserve cancel,
Reserve view,
Reserve
Number : Insert number to play.
Start : Play the song.
Cancel : Cancel the song.
Pause : Users can pause a song.
Prior reserve : Reserve a song to play prior to other reserved ones.
Reserve cancel : Cancel a reserved song.
Reserve view : Display a list of reserved songs.
(Users can select and cancel a reserved song from the list of reserved
songs or cancel the song after inputing song numbers)
Reserve : Reserve a song to play.
❽Search songs Korean/English search and you can find songs by title, singer, lyric, and country.
❹Convenient additional
functions
Male and female tune : Select standard tune.
1st verse : Set if you want to sing only 1st and it keeps same.
Vocal : Remove singer's voice when chorus and practice.
Applause : Save applause to enhance feeling.
Rhythm : Disco 1, disco 2, samba, techno, hip hop, Jirubak, Cha-cha-cha.
Score : Do not make score after finishing the music.
BGV : Auto- Star live, Music video 3D dance, natural – photo album, adult clip and
external video.
❺Convenient additional
functions
Practice : You can exercise new song by listening and repeating.
(new song practice, favorite song practice, saxophone practice)
Voice medley : Disco, club dance, Samtaegy, singer, folk song.
Popular : Korean popular music, pop, Japanese, drama, movie OST.
Children song : Cartoon song, children's song, character song.
New song : Select new song via new song list.
Music medley : Disco, dance, contest blues.
Favorite : Top 100 songs, songs by period.
Genre : Consecutive play by selecting songs in genre.

14
Connection
USER MANUAL
Connection to amp/speaker and external device
AC INPUT
AC110V-220V~ /60Hz
GROUND
HDMI
LFE
RR
FR
RL
FL
LAN
(100M bps)
AUDIOOUTPUT
VIDEO OUTPUT
VIDEO INPUT
MIC1 MIC2
MIC INPUT
Connect to midi dimmer,
midi input terminal or
lighting device
A/S
AMPLIFIER
R-FRONT-L R-REAR-L LFE
AC power
input
100~240V
MIC 1
MIC 2
Monitor(SD)
Monitor
HDMI(HD)
Video output
equipment Grounding
Proper setting of 4.1 channel
Hearing position
Rear Left
(RL)
Rear Right
(RR)
LFE SPEAKER
Set as follows to create sound as if you are in a concert.
• Front L, R speaker :
Setting with 60°from the listening location.
• Rear L, R speaker :
Setting with 120°from the listening location.
• LFE speaker :
Setting under FR speaker.
In installing LFE speaker in the central front, base
effect may disappear by compromising LFE speaker
sound with reflecting sound from wall.
Thus, do not set as such.
모니터
HDMI(HD) 모니터(SD)
A/S용
마이크 1,
마이크 2
앰프단자:
음성입력
(INPUT)
Front Right
(FR)
Front Left
(FL)

1.
New song
download
Download new songs from website and save in USB.
http://newsong.tjmedia.co.kr
2.
Enter
Contents
Update
Enter 'contents update' in the setup, and start input of
new songs by selecting 'contents update'.
3.
Enter
Contents
Upgrade
Input 4 digit password for entering contents upgrade.
(Initial password: 0000)
4.
Carry on
contents
upgrade
Connect USB memory into USB port, and press
in remote control or in the unit to upgrade.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
New songs contents
USER MANUAL
15
Input new contents
Update new songs per every 3 months like accompaniment for business use.
Item Screen Contents
Upgrade while booting
Automatic upgrade of new contents is made while USB memory with new songs is connected to USB port
when turning on the power.
-For a normal play, take certification process with smart card after new song update.

16
New songs contents
USER MANUAL
Connect smart card to the slot.
Press in remote control or in the unit.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
1.
Renewal
Validity
Enter [Setup] and select [Renewal validity].
2.
Renewal
of Validity
3.
Input
Smart card
Password
Input 8 digit password.
4.
Certification
volume
selection
Select non-certified volume list, and select volume to certify.
Then, press in remote control or in the unit.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
Certifcation
1. Updated songs can be played after certification.
2. You can take this process using smart card.
Item Screen Contents

New songs contents
USER MANUAL
17
5.
Confirm of
Validity
Confirm the certification volume. Then, press in
remote control or in the unit to authenticate.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+ + +
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
6.
Renewal of
Validity
Success
After completing certification renewal, and press
in remote control or in the unit.
Then it returns to certification renewal selection
menu screen.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
Certifcation
Item Screen Contents
1.
album
Insert USB with photo, and press button to
select photo registration.
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
Photo album
Your own photo shown in background screen.

18
User function
USER MANUAL
2.
Select
Select photo, and press in remote control
or in the unit.
-Recommended size: 1280X720.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
3.
Select
album
Select photo album to save photo.
4.
Confirm
save
Confirmation message appears.
Press in remote control or in the unit
to save.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
5.
Manage
After completing photo save, press Exit button to
select [manage photo] menu.
6.
Register
BGV
Select [Register BGV] in photo manager.
Photo album
Your own photo shown in background screen.
Item Screen Contents

7.
Select
photo for
BGV
Select photo, and press in remote control or
in the unit to register background.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
8.
Select
BGV
After completing photo save, press button.
Then, registered photo appears as background video.
TIR-304E
PAGE
+ + +
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
User function
USER MANUAL
19
Photo album
Your own photo shown in background screen.
Item Screen Contents
1.
Music Press in the remote control to register music.
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
2.
Select
music
Select file to register in the unit. Then, press
in remote control or in the unit.
TKR-304ETKR-304E
KEYKEY
STARTSTART RESERVERESERVE
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
POWER
MIC
USB
POWER
SMART CARD
❿
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
Music
You may save and play MP3 music in the unit.

20
User function
USER MANUAL
3.
Select
folder
Select folder to save MP3 file.
4.
Confirm
save
Save confirm message appears. Press in
remote control or in the unit to save.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
5.
Listening
Select listening in the music menu, and press
in remote control or in the unit.
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
9
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
6.
Select
[music lis-
tening]
folder
Select folder of the music.
7.
Play music
Select music in the list and press in remote
control or in the unit.
If you press , whole music can be played.
TKR-304ETKR-304E
KEYKEY
STARTSTART RESERVERESERVE
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
USB
POWER
MIC
USB
POWER
SMART CARD
❿
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
TKR-304ETKR-304E
KEYKEY
KEYKEY
STARTSTART
CANCELCANCEL
RESERVERESERVE
RSRV CANCELRSRV CANCEL
TEMPOTEMPO
TEMPOTEMPO
MIC
USB
POWER
SMART CARD
MIC
USB
POWER
SMART CARD
❿
TIR-304E
PAGE
+++
TITLE SINGER LYRIC COUNTRY
BACK
SPACE
ENTER
ENG
KOR
❶
❹
❷❸
❺
❻
❼
❽
Music
You may save and play MP3 music in the unit.
Item Screen Contents
