Introduction
How to use the keys
How to takecare of yourGRAND VIDEOKE
Package Contents
Product Overview

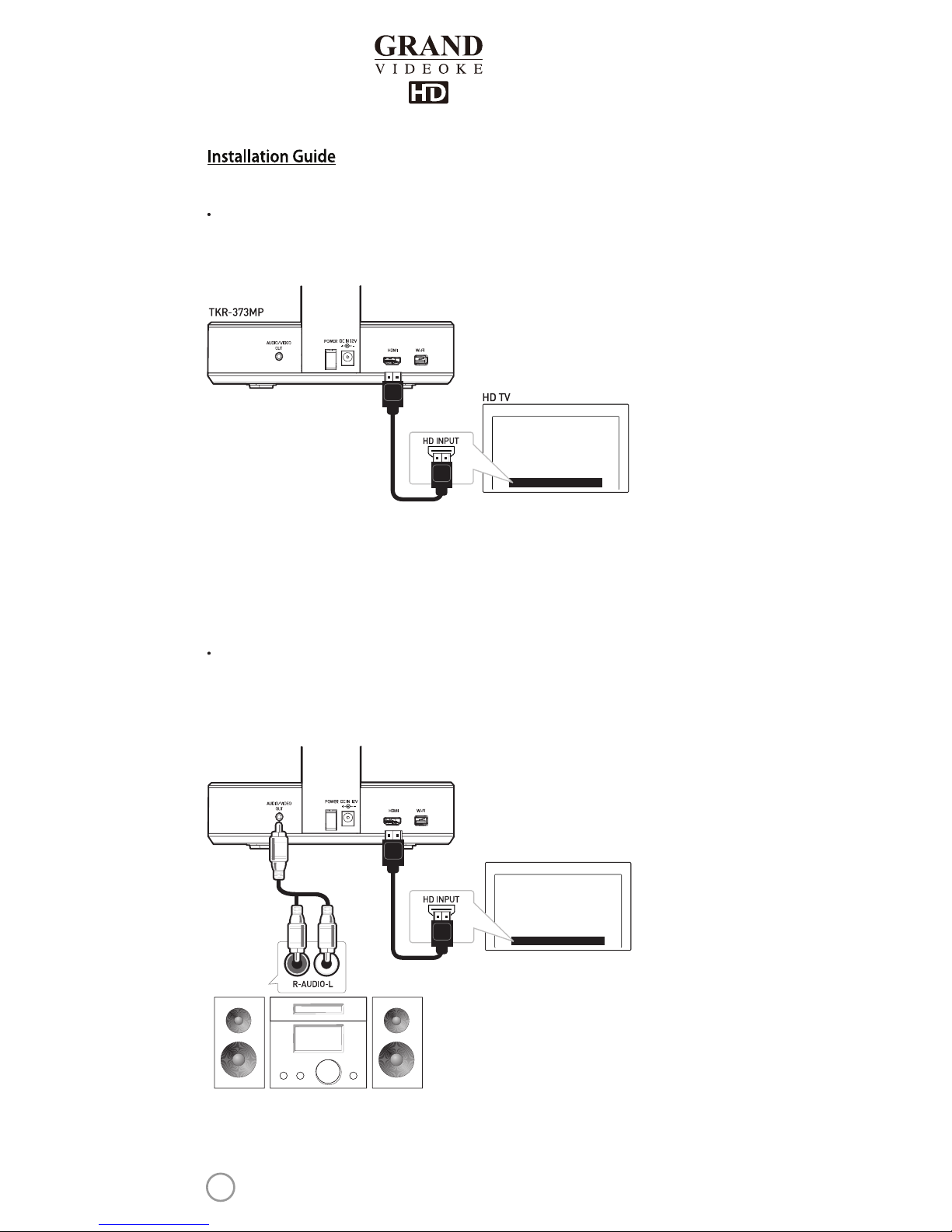

Installation Guide
How to operate the GRAND VIDEOKE
Additional menu function & conguration settings
Troubleshooting guide
Q&A - other
Product Specication
-Search Menu
-Favorite Menu
-Record Menu
-Repeat Menu
-PERFECT PITCH
-MTV/ Multiplex/ RealSound/ Chorus/Duet Menu
-Conguration Menu
-How to use your photos or videos saved in a USB storage/memory deviceasbackground
-Howto use your photos which is saved in your player as background
- BasicFunctions, Secondary Functions,Channel Settings
-Main player
-Remote control
-Microphone
-Power on/o
- Search andreserve songs by remote control and microphone control buttons
-Play, Pause, Stop, Music Volume, Mic volume, Echo, Melody,
Tempoadjustment, Keyadjustment, Skip
-Main Unit to HDTV Connection
-Main Unit to Standard TV Connection
3
www.grandvideoke.com

Trade Name : TJ media
Model : TKR-373MU
Address : 23, Hwagok-ro 64-gil, Gangseo-gu, Seoul, Korea
Telephone : [phone]
IMPORTANT NOTE : To comply with the FCC RF
exposure compliance requirements, no change to the antenna
or the device is permitted. Any change to the antenna or the
device could result in the device exceeding the RF exposure
requirements and void user’s authority to operate this device.
For customers in the USA FCC Notice
Warning:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution:
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority to
operate this equipment.
Note:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
4
www.grandvideoke.com

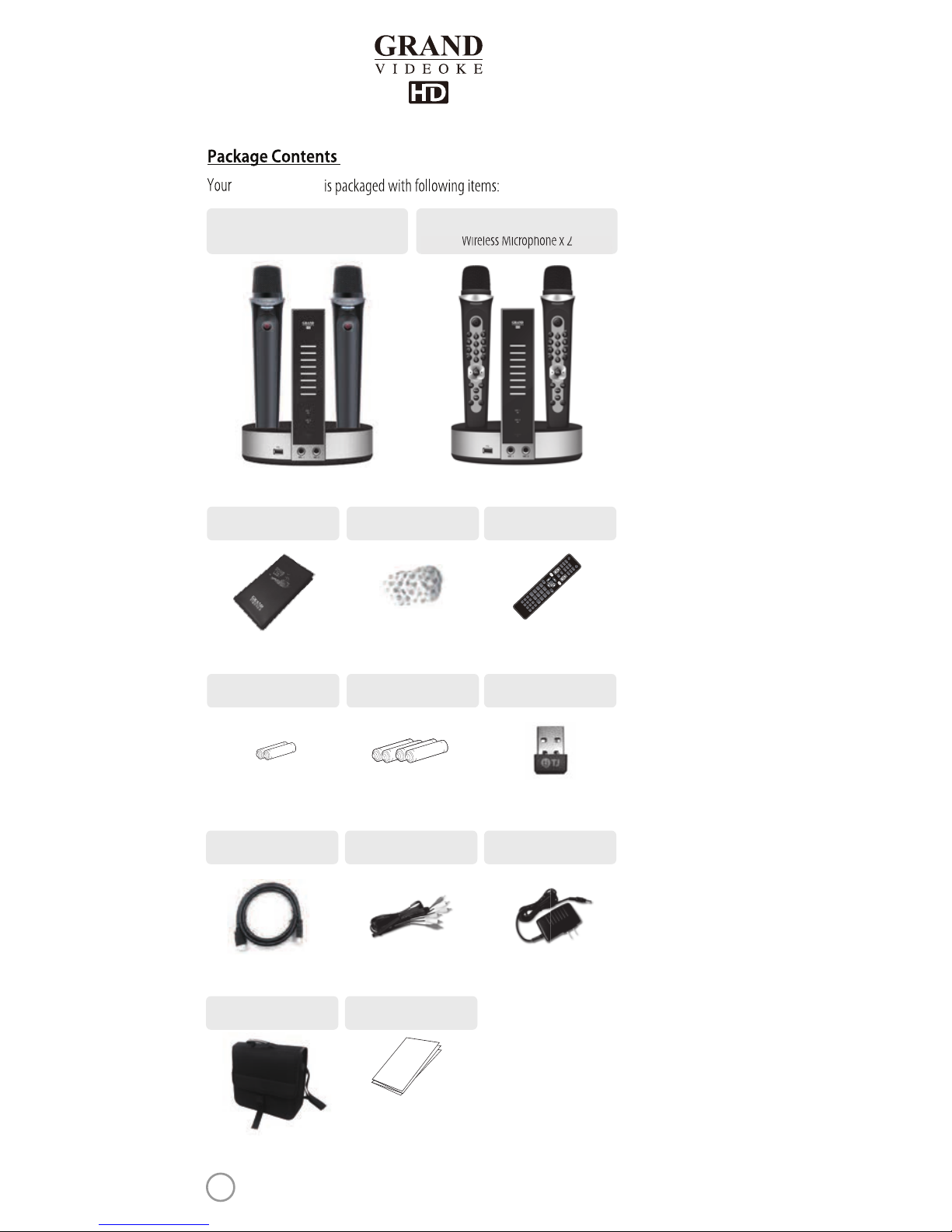

PACKING GUIDE
1. Main Unit(Player)
2.Wireless Microphone x 2
3. Remote Control
4. Song List, Manual & Quick Guide
5. Auto-Volt Power Adapter
6. Audio/Video Cable(RCA cable)
7. HD Output Cable
8. 4 x AA Batteries forWireless Microphones
9.2xAAA Batteries for Remote Control
10. MIC Cover
11. Carrying Bag
12. USBWi-Fi Adapter
Top View
5

BASIC FUNCTIONS BAS
METHOD1. By entering song number directly.
- Key in the song number using the alphanumeric keypad,
then press .
SONG SELECTION & PLAYBACK
METHOD2. By searching the song.
(1) ToOpentheSong List :Press .
(2) Input the Title or Artist by typing onthealphanumeric
keypad.
(3) To Sort by Title, Artist : Press .
(4) To Select:Press the Arrow keys, then press .
To stop a song while playing, press .
STOP
1. To pause a song while playing,press .
2. To continue, press .
PAUSE
Select asong, then press .
RESERVATION
Press Reserved song number, then press .
CANCEL THE RESERVED SONG
Y
6

BASIC FUNCTIONS SECON
SECONDARY FUNCTIONS
M1. Volume : Press .
2. Type selection(MUSIC, MIC, ECHO) : .
3. Adjustment : , .
VOLUME(MUSIC, MIC, ECHO)
1. Adjustment : Press .
2. Type selection(KEY, TEMPO, MELODY, BGV, VOCAL) : .
* VOCAL :Multiplex Only
3. Adjustment : , .
KEY, TEMPO, MELODY, BGV, VOCAL
METHOD1. Prelude/Interlude skip.
Press (While playing), .
METHOD2. Rewind a tune, Forward a tune.
Press (While playing), , .
METHOD3. Verse skip.
Press (While playing), .
SKIP
1. To Add: Selectasong, press .
2. To Remove: Select a songthat has been added, press .
3. To Search: Press ,then select“FAVORITE”.
FAVORITE SONGS
R
7

SECONDARY FUNCTIONS
S
You can record asong in 5ways :
METHOD 1. , Select “REC”, Select“Recording Song”,
Selectasong, press .
METHOD2. , Select“Recording Song”, Select asong, press .
METHOD3. Open the Song List, Select asong, press .
METHOD4. While playing music, press . :
Record the playing song.
METHOD5. Key in the songnumberusing the alphanumeric keypad,
then press .
1
RECORDING
You can record asong in 2ways :
METHOD1. , Select “REC”, Select“Listen/Download”.
METHOD2. , Select “Listen/Download”.
SEARCHING RECORDED SONGS
Press ,Select“REPEAT”.
SONG REPEAT
METHOD1. Press .
METHOD2. Press , Select "PERFECTPITCH".
PERFECT PITCH FUNCTION
8

CHANNEL SETTINGS CH

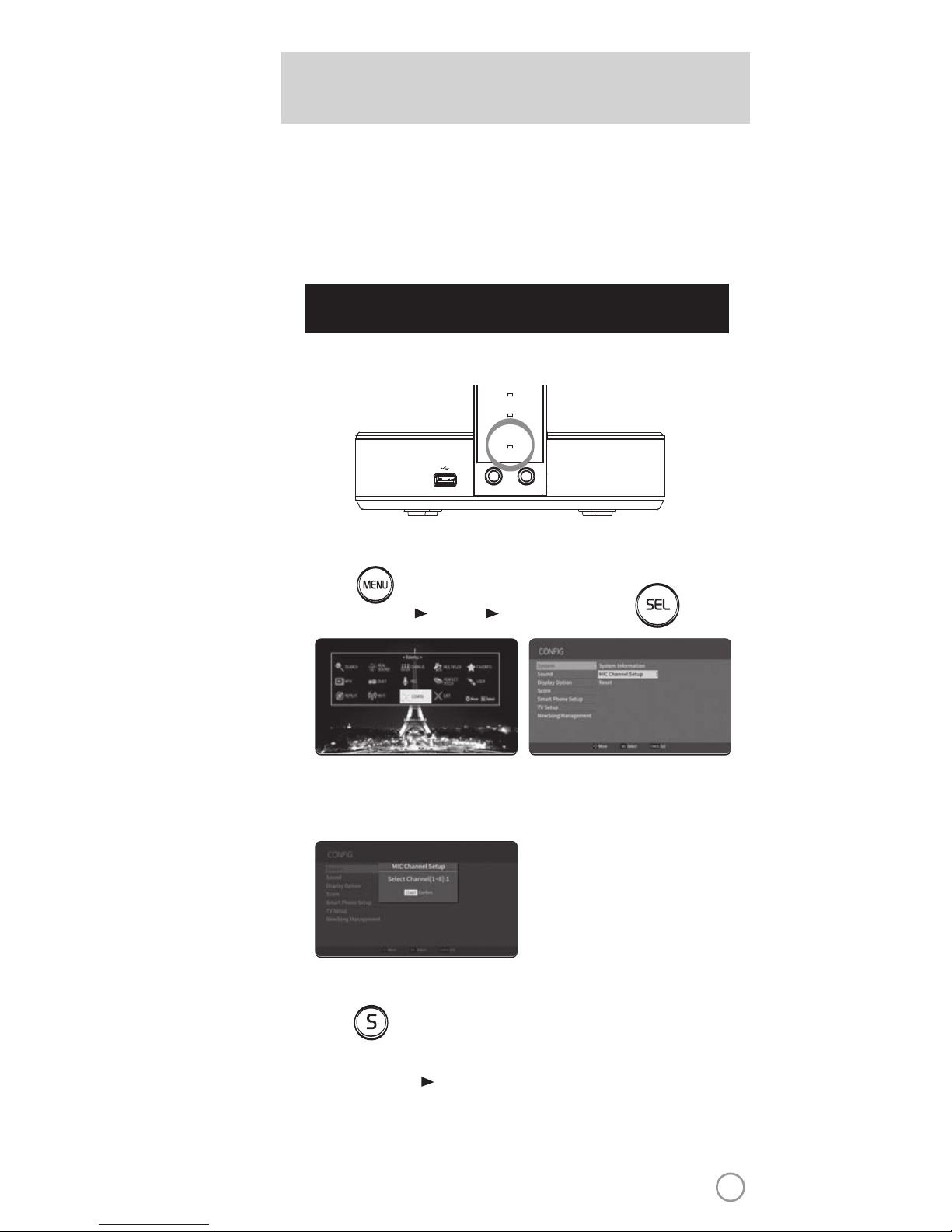

Step1]Change the channel onthe main unit by usingthe
remote control.
3) Select one channel number from 1 to 8 and press that specific number
on the remote.
2) Go to channelselect menu:
Press button +
choose “Config” ”System””MIC ChannelSetup”+ button.
TKR-373MP has sixteen(16) avaitable channels.
(MIC1 Ch 1~Ch 8, MIC2 Ch 1~Ch8)
Please take note that microphones andmain player should be on the
same channel.
In case of channel interference (either one or two of the microphones
cannotbe detected by the main player),
Please follow the step by stepinstruction below for re-channeling.
1) Turn on the main unit. Make sure no song is playing.
4) Press button.
5) Press [Power off] [Power on] to save.
F
MIC 1
MIC 2
POWER
MIC 1 MIC 2
9
www.grandvideoke.com

CHANNEL SETTINGS
Step2] Setthe channel of the twomicrophones using the
microphone's keypad.
S
For the first(1st) microphone:
1) Turnonthe microphone by pressing the button.
2) Separate the battery cover fromamicrophone.
(Refer to “How to change batteries” in the manual)
4) Press [RES] button on the remote control.
The microphone LED will beturned on and off twice.
5) Press the same channel number thatyou set in the main player.
The microphone LED will beturned on and off twice.
6) Press [REC], Microphone LED will be turned on and off twice.
7) Press [MENU]button to save.
Microphone LED will be turned on andoff 6 times.
8) If a wireless microphone is successfullyconnected to the main unit,
LED of MIC1 on the main unit will will be on.
For the second (2nd) microphone:
1) Turnonthe microphone by pressing the button.
2) Separate the battery cover fromamicrophone.
3) Prepare a remote control and set asabove picture and follow thebelow
steps from4) to 7).
4) Press [RES] button on the remote control.
The microphone LED will beturned on and off twice.
5) Press the same channel number thatyou set in the main player.
The microphone LED will beturned on and off twice.
6) Press [APPLAUSE], Microphone LEDwill be turned on and off twice.
7) Press [MENU]button to save.
Microphone LED will be turned on andoff 6 times.
8) If a wireless microphone is successfullyconnected to the main unit,
LED of MIC2 on the main unit will will be on.
3) Preparearemotecontrol and set as shown
on the left and follow the below steps from
4) to 7).
M
10
www.grandvideoke.com

Thankyou for purchasing the GRANDVIDEOKE SYMPHONY 3PRO (TKR-373MP).
The GRANDVIDEOKE SYMPHONY 3 PRO is therst portablevideoke system
equipped with the highly-advanced Perfect Pitch scoring system. Experience
professional-grade scoring in real-timewhile singing, ratingyour key/rhythm,
vibrato, upband, and downband.
The GRANDVIDEOKE features asmartphone/tablet companion app calledthe
GV Smart App for Android and iPhone/iPad.Theapp features special functions
such as Direct SongDownload, GV™ Smart Card Authentication System, One-
TouchPairing,Voice Command+, Remote Control, ScreenshotsSharing, and Live
Messaging.
The GRANDVIDEOKE is pre-loaded with various kinds ofFull HD 1080p
Background Videos(BGVs) includingWOW Philippines,WorldTour, 3D Anime
Dance, Motion, K-Pop M/V, K-Drama, and OPM MTVs.
The GRANDVIDEOKE is equipped with a built-in 32GBash internal storagefor
storing Direct Song Download (song pack) volumes purchased via theGV™
Smart App. Add thousandsof songs to your main unit without thehassle of
purchasing and using physical song packs.The internal storage canalso be used
to store photos and music les for viewing and playback.
The GRANDVIDEOKE features HD+ Sound powered by Dream® SoundModule.
With 414 instruments, 16-bit PCM, and 48 kHz sampling rate, experience audio
performance that is better than CD-quality.
The GRANDVIDEOKE can play ve (5) types of music content - all of which
were remastered for evenbetter sound quality compared to previous Grand
Videoke models.
-3D RealSound is the enhanced version ofTJ Media’s exclusiveMP3-based
format forkaraoke use with orchestral accompaniment, real instruments,
and backup singers.
-MIDI (Musical Instrument Digital Interface) is music produced through a
synthesizer to generate all the soundsof all instruments for a specic song.
-Multiplex is music with full-length backup vocals than can be turned onor o.
-Chorus is music with backup vocals overlayed on MIDI music.
-MTV is original music videowith original singer’s voice and music.
The GRANDVIDEOKE features multimedia playback capability that supports
most popularmedia formatsincluding advanced HD formats suchas H.265.
Media lessuchas movies, music, and photos can be played back from USB
ash drives and hard drivesofup to 1TB (full compatibility may depend on
storage mediabrand and model).
11
www.grandvideoke.com

: When reserved song is repeated, the icon is indicated in the screen.
: When all songs are repeated, the icon is indicated in the screen.
: When mic is on, the battery power is indicated in the screen.
: When multiplex is played, the vocal status is indicated in the screen.
Icon the song list, the icon indicates as following.
Realsound song : Song with orchestral accompaniment,
real instruments and back-up vocals.
MTV song : Original music videos.
Chorus song : Song with back-up singers.
Multiplex song : Song with full-length vocals.
Duet song : Song for two singers.
Favorite song : User-selected song tagged as favorite.
: Realsound + Duet.
: MTV + Duet.
: Chorus + Duet.
: Multiplex + Duet.
The inthe GRANDVIDEOKE Microphoneis used to poweron the Microphone,
whilethe
on the GRANDVIDEOKE isused to turn theGRANDVIDEOKE on and o.
The keypad of the GRANDVIDEOKE is an alphanumeric keypad similar to a cell phone.
You can key-in letters into the screen when searching for songs.
Button/Key Play Standby
Skip “0” “SPACE”→“0”
Move to Music, MIC,
EchoVolume
Move to Music,
MICVolume Sort(Title, Artist)
Record the playing song Record Menu Record the song
Run Perfect Pitch Run Perfect Pitch
MenuMenu
Adds the highlighted song to favorites list
Move to Key, Tempo,
Melody Levels,
BGV, VOCALON/OFF
(Only for Multiplex)
BGV
Search Mode
12
www.grandvideoke.com

GRAND VIDEOKE
1. Do not attempt to open the GRANDVIDEOKE.This will void thewarranty.
2. Use only the power adapter included with your GRANDVIDEOKE.
Using other power adapters could cause serious damage to the product and
there by void its warranty.
3. Do not cover the productor any of its accessories while theGRANDVIDEOKE
is turned on. Always allow air to move freely around theGRANDVIDEOKE and
the microphones in order to prevent overheating.
cables
the product
and
GRANDVIDEOKE
and forrepair, if necessary.
power adapter
from the wall socket.
power adapter.
power adapter and all cables.
power adapter
the product
GRANDVIDEOKE.
GRAND VIDEOKE
13
www.grandvideoke.com

Main Unit(Player) &
Wireless Microphone x 2
Carry Bag
Song List&Manual MIC Cover Remote Control
2xAAA Batteries 4xAA Batteries USB Adapter
RCACable Auto-Volt Power Adaptor
Quick Guide
GRANDVIDEOKE
Main Unit(Player) &
Wireless Microphone x 2
TKR-373MU
HD Output Cable
14
www.grandvideoke.com

MIC 1
MIC 2
POWER
MIC 1 MIC 2
POWER DC IN 12 V
AUDIO/VIDEO
OUT HD OUT
DEF
MNO
WXYZ
START
GHI
PQRS
CANCEL
SEL
45
123
6
789
C S
0
ABC
JKL
TUV
SKIP
VOL
MENU
RES
ADJ
REC
PERFECT
PITCH
DEF
MNO
WXYZ
START
GHI
PQRS
CANCEL
SEL
45
123
6
789
C S
0
ABC
JKL
TUV
SKIP
VOL
MENU
RES
ADJ
REC
PERFECT
PITCH
PERFECT PITCH
HD output
for USB Wi-Fi adapter)
Microphone Power
(on/o switch)
(for wired dynamic
microphone)
Power adapter input
Audio/ Video output
Product Overview (Main Unit &Microphone)
15
www.grandvideoke.com

3
6
8
9
21
4
7
12
11
15
17
19
14
16
18
10
5
13

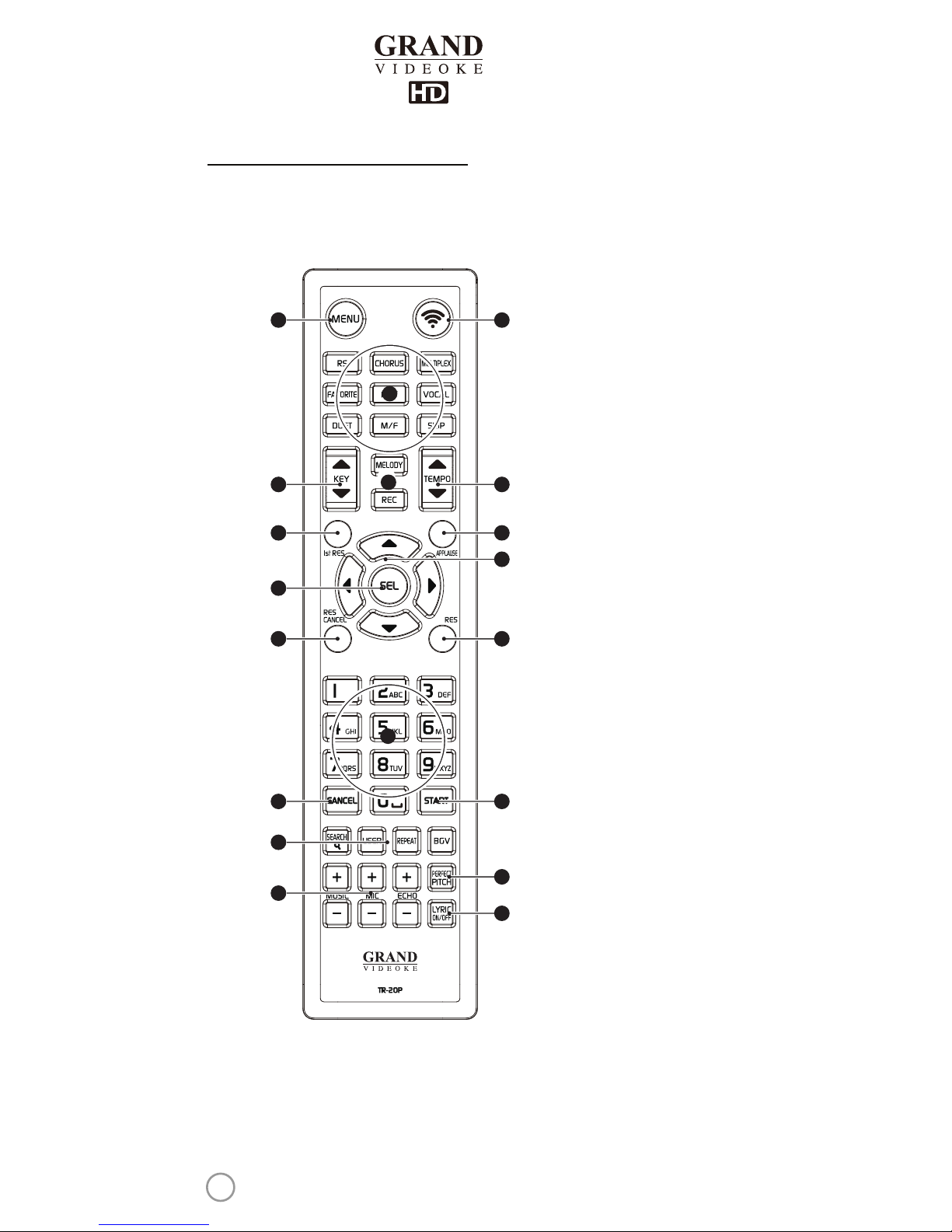

Product Overview (Remote Control)
16
www.grandvideoke.com

Product Overview (Remote Control)
NO
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
FUNCTION
MENU
RS
CHORUS
MULTIPLEX
FAVORITE
MTV
VOCAL
DUET
M/F
SKIP
KEY ▲,▼
MELODY
REC
TEMPO ▲,▼
1st RES
APPLAUSE
▲,▼,◀,▶
SEL
RES CANCEL
RES
0~9/A~Z
CANCEL
START
SEARCH
USER
REPEAT
BGV
PERFECT PITCH
MUSIC/MIC/ECHO
LYRICON/OFF
SUBSTANCES
Display menu window.
OpenWi-Fi networkset-up menu.
Display the list of RealSound songs.
Display the list of Chorus songs.
Display the list of Multiplexsongs.
Display the list of Favorite songs.
Display the list of MTV songs.
Vocal assist AUTO/ON/OFF for Multiplex songs.
Display the list of Duet songs.
Change song keyto maleor femalevoice.
Jump to a prelude/interlude, atune, oraverse of aplaying song.
Stepped song keycontrol between male and female voices.
Display recorded song list; start recordingsong.
Control the speed of playing song.
Activate rst reservation.
Activate applause sound eect.
Move up, down, left, right in the list or display function.
Cancel reserved song.
Reserve a song onsong list window; Display Reserved Song List.
Number/Text.
Cancel.
Play, Pause.
Song search byTitleor Artist.
Open user videos, music and photo les (multimedia player mode).
Normal →Continuous →All song repeat.
Select background video type.
Run PERFECTPITCH.
Control the volume of music, echo and microphone.
Turn lyrics display on or o.
Select the volume of melody on the playing song.
(None - Low - Middle - High)
Select.
View lyrics(onsong listwindow).
17
www.grandvideoke.com

Product Overview (Remote Control)

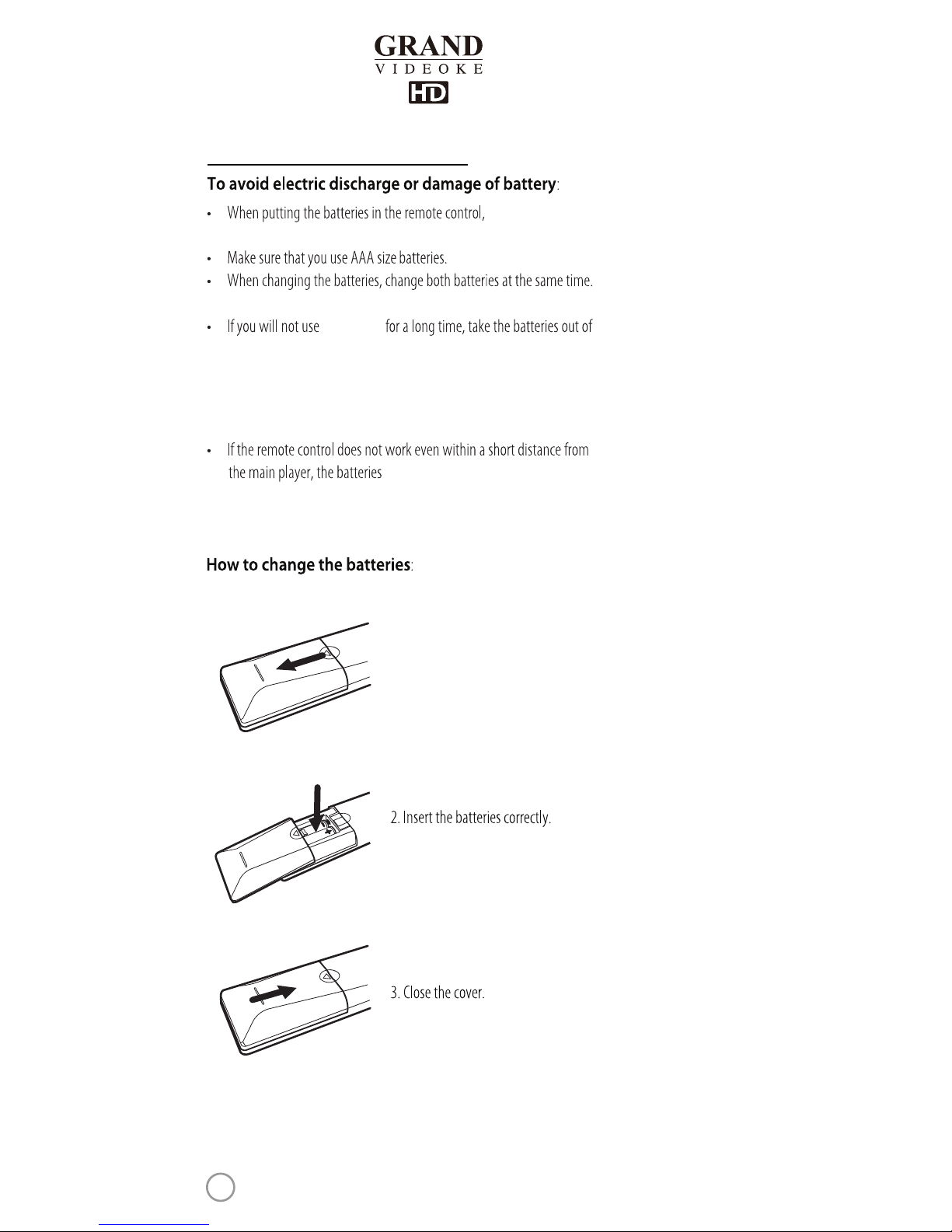

When to change the batteries(2 x AAA Batteries)
1. Push and slide the battery cover tab to open the
battery compartment.
check if thepolarities are
correct (+/-).
Do not mix old and new batteries.
theremote control.
must be changed.
the product
18
www.grandvideoke.com

Product Overview (Microphone)
microphone, check if the polarities are correct (+/-).
the microphone.
the product
microphone
1. Push and slide the battery cover tab to
open the battery compartment.
must be changed.
19
www.grandvideoke.com

Pleaseconnect the main unitto the HDTV using an HD Output cableas shown in the
image below.
Main Unit to HDTV Connection
Ifaspeaker system isavailable:
Pleaseconnect the audio output ofthe main unit to the audioinput of the
speaker system as shownintheimage below.
HD TV
TKR-373MP
AUDIO
20
www.grandvideoke.com
