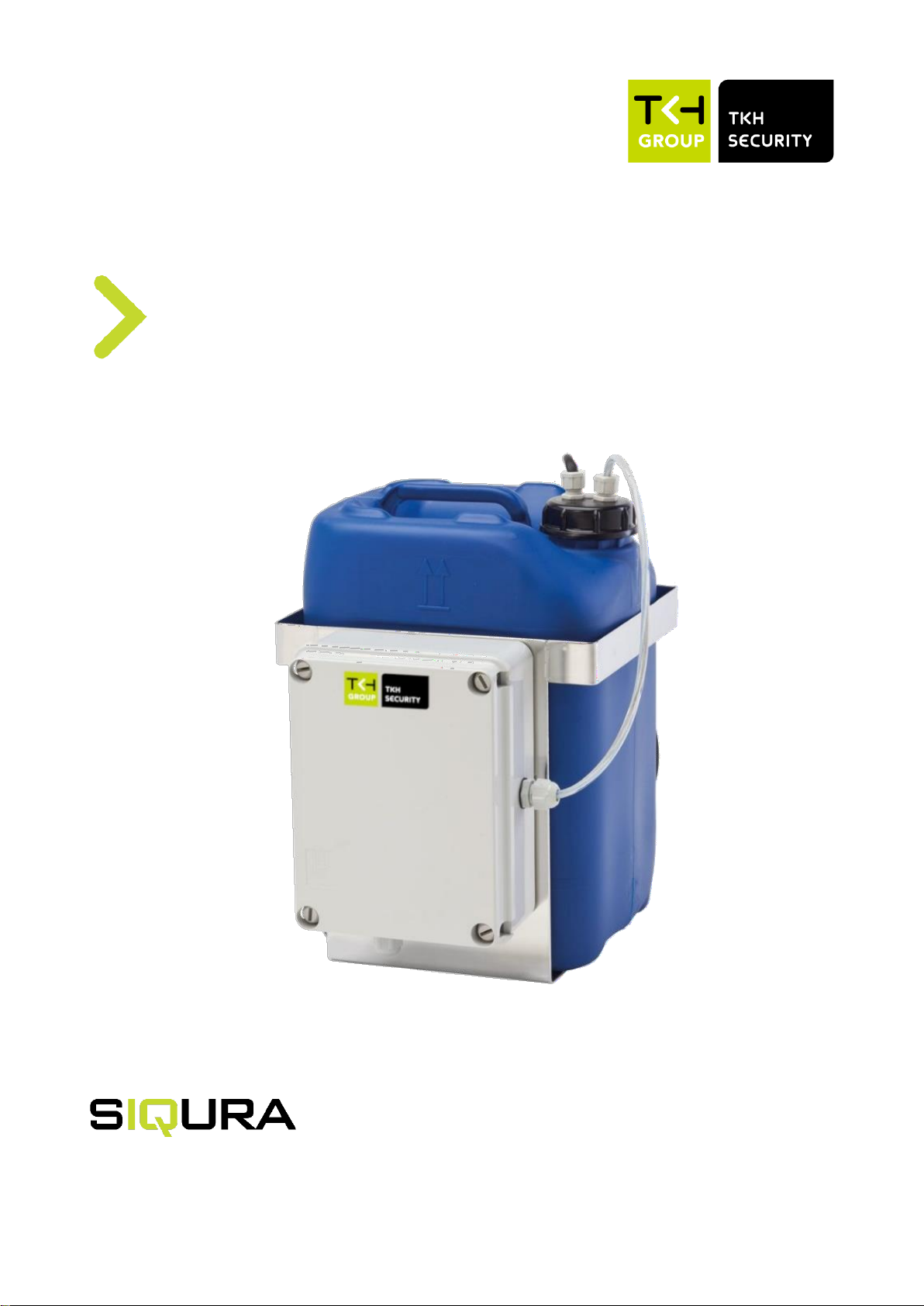

TKH security Siqura WP10 User manual

TKH
TKH Security | Siqura EX-PD24 | Installation manual 1
WP10
Installation manual
Copyright © 2021 TKH Security B.V.. Version 2.0.

TKH Security Proposal | RFP Name | RFP Number
TKH Security | Siqura WP10 | Installation manual v2.0
2
Preserve this manual as a reference for future needs.
Nothing from this publication may be copied, translated, reproduced, and/or published by
means of printing, photocopying, or by any other means without the prior written
permission of TKH Security.
TKH Security reserves the right to modify specifications stated in this manual.
Brand names
Any brand names mentioned in this manual are registered trademarks of their respective
owners.
Liability
TKH Security accepts no liability for claims from third parties arising from improper use
other than that stated in this manual.
Although considerable care has been taken to ensure a correct and suitably
comprehensive description of all relevant product components, this manual may
nonetheless contain errors and inaccuracies. We invite you to offer your suggestions and
comments by email via [e-mail] Your feedback will help us to further improve
our documentation.
How to contact us
If you have any comments or queries concerning any aspect related to the product, do not
hesitate to contact:
TKH Security B.V.
Meridiaan 32
2801 DA Gouda
Used electrical, electronic and stainless steel products should not be mixed with
general waste. For proper treatment, recovery and recycling of old products, take
them to applicable collection points, in accordance with your national legislation
and the Directives 2011/65/EU and 2012/19/EU.
By disposing of these products correctly, you help to save valuable resources and
prevent any potential negative effects on human health and the environment which
could otherwise arise from inappropriate waste handling. For more information
about collection and recycling of old products, contact your local municipality or
your waste disposal service. Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
3
Contents
Contents .............................................................................................................................3
Description..........................................................................................................................4
Before you continue............................................................................................................5
Install the unit......................................................................................................................6
Open the plastic box ....................................................................................................6
Connecting the UPxx series................................................................................................8
Connecting the HSG04 .......................................................................................................9
Connecting the SA camera series.....................................................................................10
Connecting a WP10 to a SA-PTZ...............................................................................10
Connecting a WP10 to a SA-FIX W............................................................................10
Dimensions.......................................................................................................................11

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
4
Description
The WP10 series has been designed to operate on camera housings with wash wiper
system, such as the SA industrial/marine camera series, the UP traffic PTZ series and the
HSG04 outdoor housing.
The WP10 is powered by 24 Vac and 100 Vac ~ 240 Vac 50/60Hz supply voltage.
The units can be controlled using a 24 Vac control signal or a dry contact / open collector
signal.
The WP10 is fitted with a float switch that prevents the pump from running dry and
indicates an “empty tank” by an contact-closure output.

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
5
Before you continue
Prior to installation and operation, carefully read all instructions in this manual and
heed all warnings.
Unpack this equipment and handle it carefully. If the package appears to be
damaged, notify the shipper immediately.
Use the original packaging to transport the unit. Disconnect power supply before
moving it. In case of returning the equipment, the original packaging must be
used.
Any change performed on the unit that is not previously approved by the
manufacturer will void both the EU Declaration of Conformity and its warranty.
This equipment has been designed to fit in harsh environments requiring little or
no maintenance. Suggested inspection interval is 6 months, but extremely harsh
environments may require more frequent inspection and maintenance checks. On
each inspection check cables, electrical connections and mounting hardware for
integrity and tightness. Replace or tighten any damaged/loose part, when
necessary.
Make sure that the installation surface can support at least four times the weight of
a fully filled unit. In case of excessive external stress (e.g. vibration, strong winds
or impact), the equipment may need additional means of protection.
Proper stainless steel hardware should be carefully chosen to mount the unit.
Clean the surface of product with a damp cotton cloth.
To maintain the IP rating of the unit, adequate cable glands must be used. The
unit must be tightly closed when operating.
Open only the covers pointed out in this installation manual.
The internal pump must not run dry to prevent failure. A float switch with an
“empty tank alarm”is available to prevent such damages.
The unit is intended to be used with water or with water/ethanol solutions. Other
mixtures could obstruct the nozzle. If the solution used has residual, it must be
filtered before use. Keep the unit empty until the end of the installation.
Before performing any operation, turn off the power. The installation of the unit
can be performed only by qualified personnel in accordance with the relevant local
and national standards including but not limited to the use of special pipes, tapes,
sealants, cables and glands.
An all-pole mains switch with an opening distance between the contacts at least 3
mm in each pole must be incorporated in the electrical installation. The switch
must be equipped with protection against the fault current towards the ground
(differential) and the overcurrent (magnetothermal, maximum 15A). It must be very
quickly recognizable and readily accessible. A suitable blow fuse must also be
installed for protection.
For connection to the mains, use a multipolar cable having minimum 3x1,5 mm2
(15 AWG). The main cable must be at least protected by an ordinary PVC sheath.
Ensure that the unit case is properly earthed, connecting all the earth ground
studs. Earth cable should be about 10mm longer than the other cables on the
connector, in such way that it won't be accidentally disconnected if the cable is
stretched or pulled.
Ensure that the unit case is properly earthed, connecting all the earth ground
studs.

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
6
Install the unit
Open the plastic box
Remove the cover of the plastic box by loosening the
four screws
Lead the power supply cable and control cable through
the cable glands into the plastic box.
Tighten the cable glands (with an 3 Nm torque). Do not
remove caps from unused cable glands.
Connect the power cable and control cable according
the instructions below.
Close the plastic box tightly
Connect the water hose to the nozzle
M7: Pump control input
(Contact driven)
J1: Empty tank alarm
setting. Sets M3 to
Normally Closed (NC)
or Normally Open (NO)
M4: Float switch (pre-
connected)
M5: Pump control input
(24Vac/dc driven, SA
cams)
S1: Activates water
pump test
M1: Mains power
connection: 100 Vac
to 240 Vac
M6: Water
pump (pre-
connected)
M2: Low voltage
power connection
24 Vac or 24 Vdc
M3: Empty tank
alarm. Can be set to
NC or NO via J1

TKH Security Proposal | RFP Name | RFP Number
TKH Security | Siqura WP10 | Installation manual v2.0
7

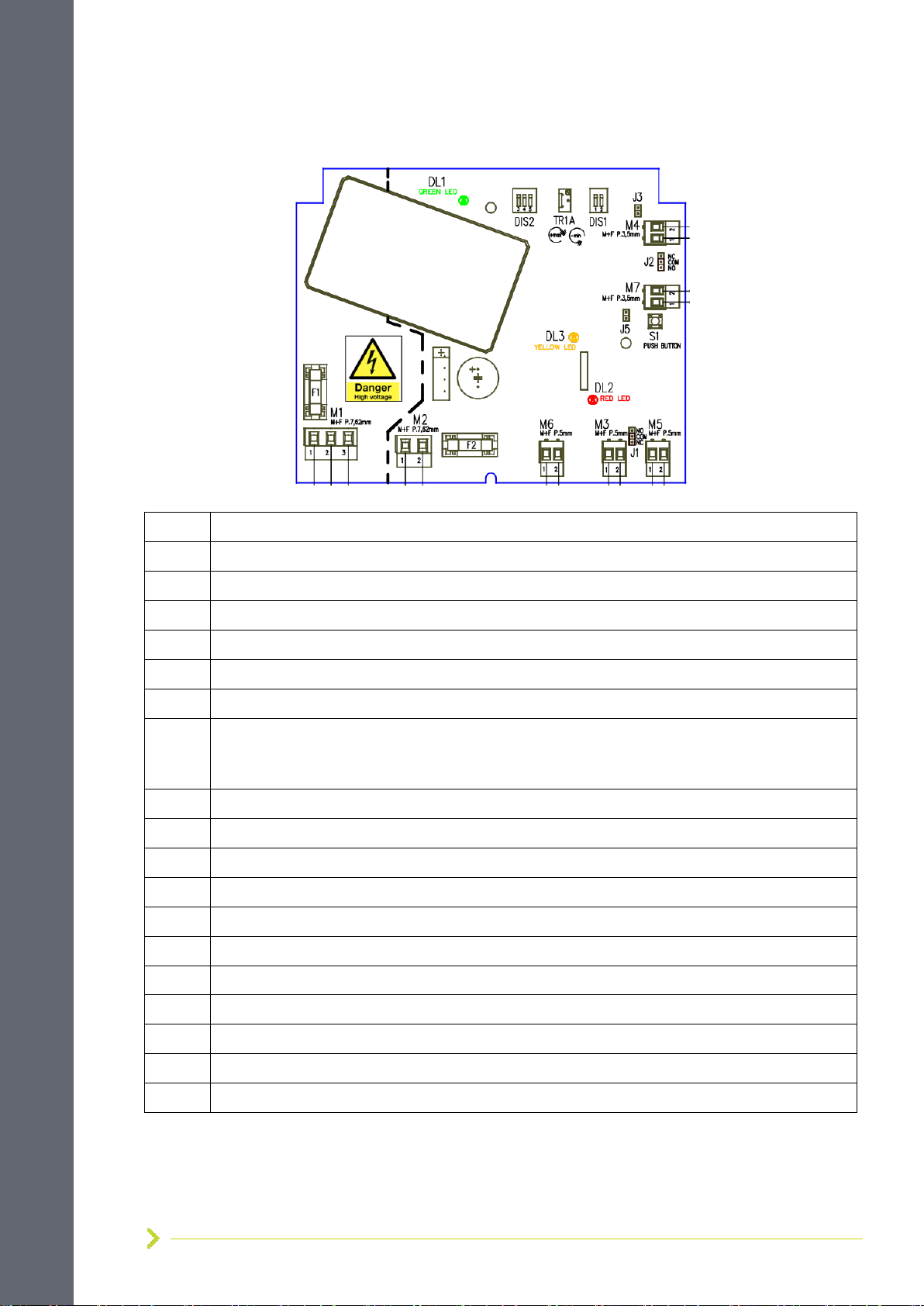

Control boardsettings
M1
WARNING HIGH VOLTAGE Power Supply input 100÷240VAC (+/- 10%) 60W max
M2
Low Voltage Power Supply Input 24VAC/DC (+/- 10%) 60W max
M3
Level Alarm Output: when the tank is empty, normally open or closed based on J1
M4
Level Sensor Input, connected to a Float Switch, configurable normally open or closed by J2
M5
Voltage Enable Input, activates the Pump Motor when 24VAC/DC (+/- 10%) is applied
M6
Pump Motor Output, connected to the Water Pump
M7
Digital Enable Input, activates the Water Pump when the input is closed
DIS1-1
Power Supply Input Configuration:
100~240Vac or 24Vdc: SW1= OFF (0)
24Vac (by default) SW1= ON (1)
DIS1-2
Pump Motor Output Level Configuration: SW2 shall always be OFF (0)
J1
Level Alarm Output configuration (NC or NO)
J2
Reserved
J3
reserved
J5
Pump motor Output Enabler, turns the Water Pump always ON
S1
Pump Motor Output Test Button, when pressed enables the Water Pump
F1
HIGH VOLTAGE Power Supply Fuse: T 4A (250VAC)
F2
Low Voltage Power Supply Fuse: T 6,3A (250VAC)
DL1
Power Supply GREEN LED turns ON when a power supply is provided
DL2
Water Level Alarm RED LED, turns ON when empty tank is detected
DL3
Pump Motor Output YELLOW LED, turns ON when the Water Pump is enabled

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
8
Connecting the UPxx series
The washer control is connected by the ALARM-out wires of the UPxx camera.
Cable Label
Cable colour
Remarks
ALARM IN
Black
Not used
GND
Brown
ALARM OUT NO
Red
Normally open (Washer)
ALARM OUT NC
Orange
Normally closed
ALARM OUT COM
Yellow
Common (Washer)
UP33/UP36
WP10 Washer tank
WP10
Mains
power
24Vac
power

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
9

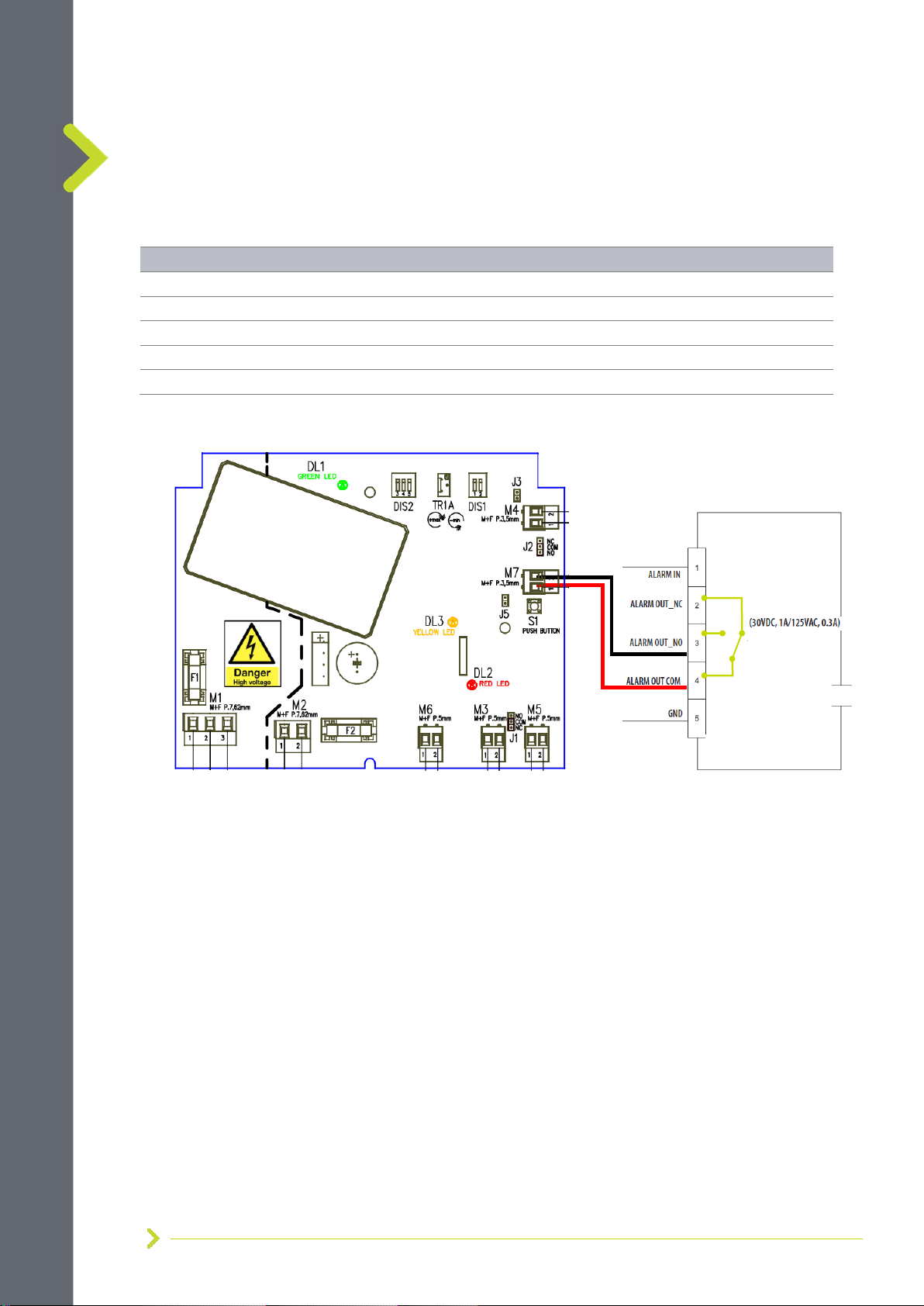

Connecting the HSG04
The washer is controlled by alarm output (DO2) from HSG04. The movement will be
maintained by camera installed in HSG04. Detailed configuration please refer to HSG04
quick start guide.
WP10:
To M7
Pin 1 & 2

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
10
Connecting the SA camera series
Connecting a WP10 to a SA-PTZ
Connecting a WP10 to a SA-FIX W
WP10 Washer tank
Mains
power
24Vac
power
WP10 Washer tank
Mains
power
24Vac
power

TKH
TKH Security | Siqura WP10 | Installation manual v2.0
11
Dimensions
Dimensions in mm
