i-team i-wash Basic User manual

i-team Professional b.v.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
Telephone: [phone]
Email: [email protected]
Internet: www.i-teamglobal.com
i-wash®Basic/Pro Reach
One pole to rule them all
User manual

2
Original user manual, written in the English Language
Future Cleaning Technologies B.V.
Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands
Telephone: [phone]
Email: [email protected]
Internet: www.i-teamglobal.com
Model:
Date: 22/09/2020
Product code:
Version: v.2.0

3
Preface
Thank you for purchasing the i-wash® Basic or Pro Reach. With the i-wash Basic or Pro Reach you can
keep your feet on the ground and work at heights up to 9,5 meters using just one telescopic pole set
and even up to 18 meters with 3 extra modular poles (only in combination with the Pro version). Use
the i-wash Basic or Pro Reach in combination with the Power wash®high pressure power handle to
create a power washer that can handle up to 200 bar and 16 liters of water per minute.
Please read this manual carefully for important information and operating instructions before using
the i-wash Basic or Pro Reach. Save this manual for future reference. The i-wash Basic or Pro Reach
will provide excellent performance. The best results will be obtained when the i-wash Basic or Pro
Reach is:
•regularly maintained per the i-wash Basic/Pro Reach preventive maintenance instructions in this
manual;
•operated with reasonable care and caution;
•maintained with manufacturer-supplied parts.
When this manual refers to “the manufacturer” this means: Future Cleaning Technologies B.V., an
affiliate company of i-team in Eindhoven, the Netherlands. When this manual mentions
“the partner”, your local i-team resell and support service partner is referred to.
Purpose of the user manual
The purpose of the user manual is to provide the user with information in such a way that during the
life of the i-wash Basic or Pro Reach, these are used correctly, efficiently and safely, even in the event
of reasonably foreseeable misuse, as described in section 1.2 of this manual.
The user manual contains instructions regarding:
•personal operator safety;
•intended and non-intended use of the i-wash Basic or Pro Reach;
•instructions for daily use;
•maintenance instructions;
•storage conditions;
•disposal of the i-wash Basic or Pro Reach.
These instructions must be considered to avoid risks that could lead to physical and/or material
damage.
Target audience
This user manual is intended for operators of the i-wash Basic or Pro Reach and their supervisors, as
well as partners and importers.
Operators of the Power wash
The i-wash Basic and Pro Reach may only be operated by a person who has correctly read and
understood the instructions in this manual or is trained by an experienced operator who has read
and understood the instructions in this manual.

4
Reading guide
The following symbols and terms are used throughout this manual to alert the reader to
safety issues and important information:
Symbol
Term
Explanation
WARNING
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to injuries of the
operator or bystanders, light and/or moderate damage
to the product or the environment.
CAUTION
Indicates a hazardous situation which, if the safety
instructions are not followed, can lead to light and/or
moderate damage to the product or the environment.
ATTENTION
Indicates a liability situation, where the manufacturer
or its partners and affiliates cannot be held accountable
for damages caused by non-compliance.

5
Content
Preface .................................................................................................................................................................... 3
Purpose of the user manual.................................................................................................................................... 3
Target audience ...................................................................................................................................................... 3
Operators of the Power wash ................................................................................................................................. 3
Reading guide.......................................................................................................................................................... 4
Content ................................................................................................................................................................... 5
1Introduction.................................................................................................................................................... 7
1.1 Intended use of the product.................................................................................................................. 7
1.2 Non-intended use of the product.......................................................................................................... 8
1.3 Lifespan.................................................................................................................................................. 8
1.4 Modifications......................................................................................................................................... 8
1.5 Specifications......................................................................................................................................... 8
1.5.1 i-wash® Basic Reach .......................................................................................................................... 8
1.5.2 i-wash® Pro Reach ............................................................................................................................. 9
1.5.3 Extensions (option) ........................................................................................................................... 9
1.6 Warranty................................................................................................................................................ 9
2Description ................................................................................................................................................... 10
2.1 Extensions tubes for the i-wash Pro Reach ......................................................................................... 10
3Safety............................................................................................................................................................ 11
3.1 Risks during operation......................................................................................................................... 11
4Transport and storage.................................................................................................................................. 12
5Assembly and installation............................................................................................................................. 13
5.1 Unboxing.............................................................................................................................................. 13
5.2 Assembly.............................................................................................................................................. 13
5.2.1 Assembling the Power Wash®......................................................................................................... 13
6Operation ..................................................................................................................................................... 14
6.1 Before you start................................................................................................................................... 14
6.1.1 Changing the brush or pad.............................................................................................................. 14
6.1.2 Changing the gooseneck ................................................................................................................. 15
6.2 Operation procedure........................................................................................................................... 16
6.2.1 Adjusting the length of the tubes.................................................................................................... 16
6.2.2 Adding extension parts.................................................................................................................... 17
6.2.3 Adjusting the working angle of the gooseneck ............................................................................... 17
6.3 Operation with the high pressure power handle ................................................................................ 17
6.4 Cleaning and storage ........................................................................................................................... 18

6
7Maintenance ................................................................................................................................................ 19
7.1 Adjusting the yellow clamps................................................................................................................ 19
8Troubleshooting ........................................................................................................................................... 20
9Decommissioning and disposal .................................................................................................................... 21

7
1Introduction
This manual describes both the i-wash® Basic and Pro Reach as these two tools are almost identical.
The differences is that the i-wash Pro Reach is made of 100% carbon fiber and can be combined with
extension poles. The i-wash Basic and Pro Reach are easy and safe tools to use, this manual helps you
get started and explains the operation and maintenance procedure.
This manual is intended for those who work with the i-wash Basic or Pro Reach and perform daily
maintenance. The manual must be read in full before the first actions. This manual describes the
correct method of use, safety measures, maintenance and transport.
i-team Global continuously improves all their products based on user experience and feedback. Any
deviations between the texts and/or images from the manual and your i-wash Basic or Pro Reach can
therefore arise from the difference in model or from possible changes due to continuous
development and innovation.
1.1 Intended use of the product
The i-wash Basic and Pro Reach are specialized tools. The tools are used for outdoor cleaning. The
brush (Figure 1, pos 1) is used for glass surfaces (Figure 1, pos 2) and the pad (Figure 1, pos 4) is used
for painted or coated surfaces (Figure 1, pos 3).
Water on the surface can cause the surface to become slippery; it is advised to mark the floor of the
job site with a wet floor sign to warn people. (Please note: the wet floor sign is not part of the i-wash
Basic or Pro Reach delivery).
Figure 1

8
1.2 Non-intended use of the product
WARNING
Non-intended use can have consequences for the safety of operators and bystanders
and will void the warranty on the product.
The i-wash® Basic and Pro Reach are not intended to clean anywhere else than outdoors.
DO NOT use anything other than demineralized or deionized water.
1.3 Lifespan
For a long lifespan of the i-wash Basic or Pro Reach, clean it and check it on damage after each use.
1.4 Modifications
It is not permitted to make modifications to the design of the i-wash Basic or Pro Reach without
consultation and permission from the manufacturer. This affects the warranty, refer to section 1.6 of
this manual.
1.5 Specifications
1.5.1 i-wash® Basic Reach
Retracted length:
1570 mm
Extended length:
8100 mm
Work reach:
9500 mm
Handle diameter:
37 mm
Weight:
1.8 kg
Material tubes:
65% carbon fiber and 35% glass fiber
Extension:
Not available
Figure 2

9
1.5.2 i-wash® Pro Reach
Figure 3
Retracted length:
1570 mm
Extended length:
8100 mm
Work reach:
9500 mm
Handle diameter:
37 mm
Weight:
1.69 kg
Material:
100% carbon fiber
1.5.3 Extensions (option)
1 (3 pieces):
Pole length retracted 1690 mm, extended
4100 mm, working height up to 18000 mm.
2 (single piece):
Pole length 1800 mm, working height up to
13500 mm.
1.6 Warranty
The i-wash® Basic or Pro Reach should only be operated with the materials supplied. Only use
demineralized or deionized water. Using other products will void the manufacturer’s warranty. Using
alternative supplies may cause damage to the i-wash Basic or Pro Reach and may cause a risk to the
operator. The use of alternative supplies voids manufacturer's warranty.
Figure 4

10
2Description

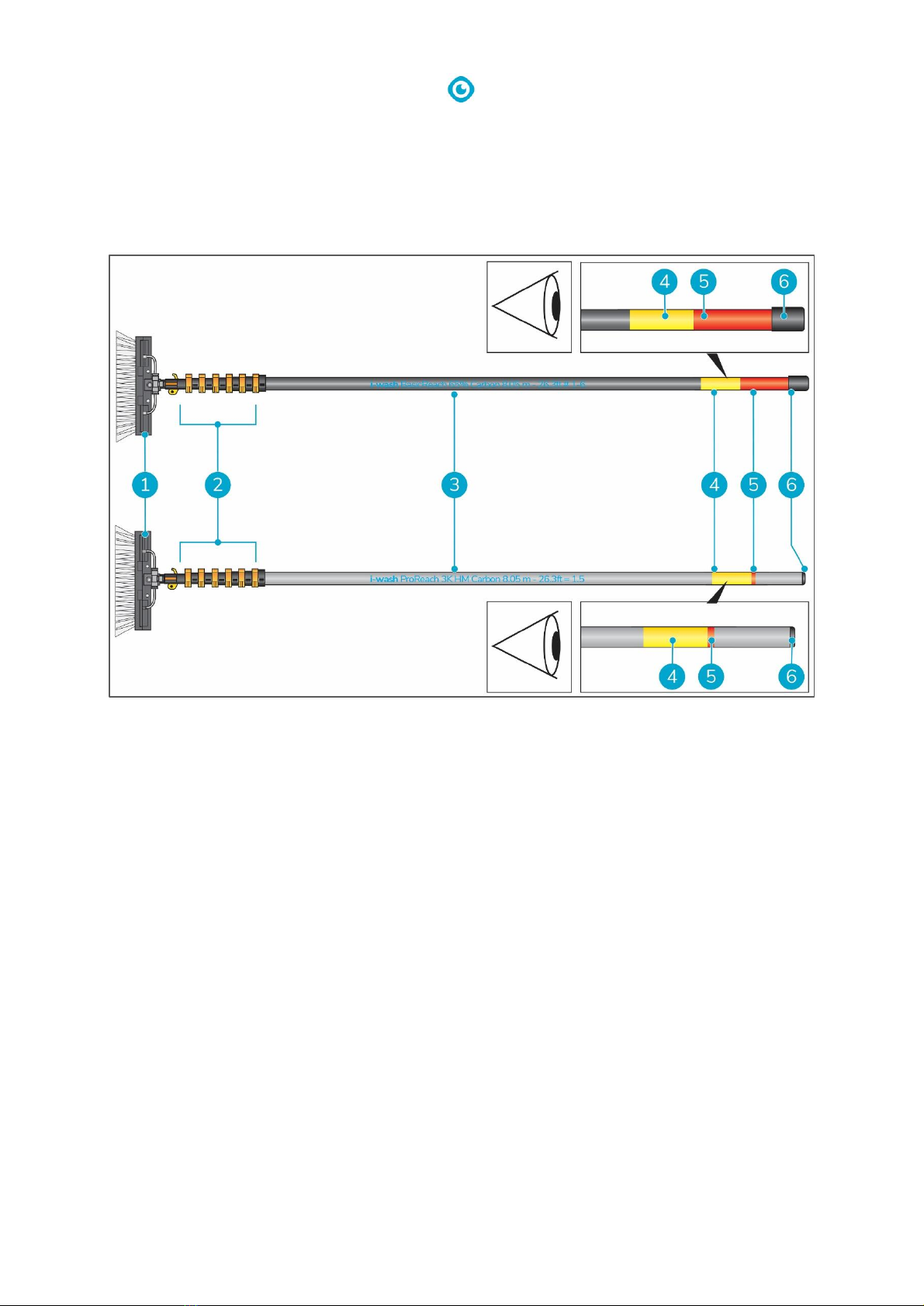

The i-wash® Basic and Pro Reach consist of 6 tubes and a brush or pad. The tubes have a yellow
marking to warn that you are almost at the end of the tube. The red marking indicates the end of the
tube. At the bottom end of the tubes a protection cover protects the carbon fiber of the tube.
See Figure 5.
Legend
1.
A brush.
4.
A yellow marking.
2.
A smart clamp (6x).
5.
A red marking.
3.
A tube (six for each type).
6.
A protection cover.
2.1 Extensions tubes for the i-wash Pro Reach
For the i-wash Pro Reach you can buy an 1 piece and a 3 piece extension unit, see section 1.5.3. With
these, the working height is extended to 13.5 m (single piece) or 18 m (3 pieces).
Figure 5

11
3Safety
Safety comes first. Therefore, please take your time to read and understand these safety
instructions. Improper use can cause harm or void the manufacturer’s warranty.
3.1 Risks during operation
WARNING
Carbon conducts electricity:
•DO NOT use in thunderstorms, this may result in electrocution, injury, or even death;
•beware of overhead powerlines. Contacting these lines may result in electrocution,
injury, or even death.
WARNING
When operating the i-wash® Basic or Pro reach, always stand on a solid stable surface.
DO NOT not stand on ladders, chairs and so on.

12
4Transport and storage
•clean the i-wash® Basic or Pro Reach with a damp cloth before you store it;
•secure the i-wash Basic or Pro Reach during transport.

13
5Assembly and installation
5.1 Unboxing
In this section the unboxing of the i-wash® Basic Reach (Figure 6, pos 4) is described. The contents of
the box for the i-wash® Pro Reach are identical to that of the i-wash Basic Reach.
1.
1x 26 cm medium soft brush
4.
1x i-wash Basic Reach
2.
1x “all season” pole hose (20 m)
5.
1x quick-lock gooseneck
3.
1x hose with push fit connector for gooseneck
6.
1x this manual
5.2 Assembly
The i-wash Basic reach and the i-wash Pro Reach come completely assembled in one box, no
assembly is required.
5.2.1 Assembling the Power Wash®
In order to assemble the Power wash, you also need to purchase the high pressure power handle. It
will be delivered in a separate box. For unboxing of the high pressure power handle, please refer to
the user manual of the Power Wash.
Figure 6

14
6Operation
6.1 Before you start
ATTENTION
Make sure that all connections are secure.
6.1.1 Changing the brush or pad
CAUTION
Before installing the brush, always turn off the water supply.
Specific glass cleaning jobs require specific
brushes. In the text below you can read how to
change the brush.

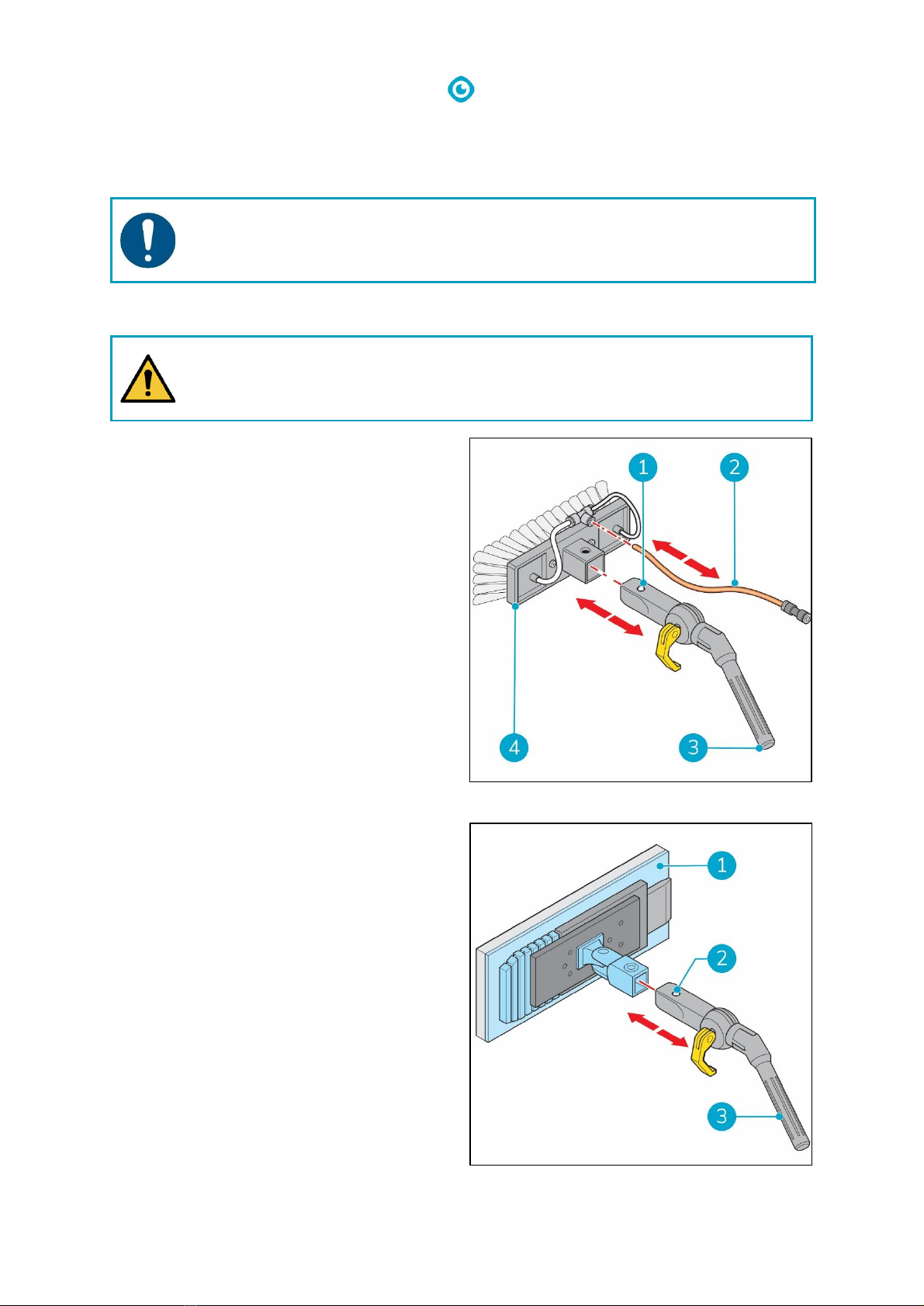

1. Remove the water tube from the water
connector of the brush (Figure 7, pos 2).
2. Push the ball button (Figure 7, pos 1) to
release the brush from the gooseneck.
3. Remove the brush (Figure 7, pos 4) from the
gooseneck (Figure 7, pos 3).
4. Chose the correct brush for the job.
5. Place the new brush on the gooseneck.
6. Reconnect the water tube.
For cleaning smooth painted or coated surfaces
it is advised to use a pad. In the text below you
can read how to change the pad.
1. Push the ball button (Figure 8, pos 2) to
release the pad from the gooseneck.
2. Remove the pad (Figure 8, pos 1) from the
gooseneck (Figure 8, pos 3).
3. Chose the correct pad for the job.
4. Place the new pad on the gooseneck.
Figure 7
Figure 8

15
6.1.2 Changing the gooseneck
CAUTION
Before installing or changing the gooseneck, always turn off the water supply.
In order to reach difficult spots to clean, different
or multiple goosenecks can be used. In the text
below you can read how to change the
gooseneck.
1. Remove the brush or pad, perform step 1 to
3 from section 6.1.1.
2. Unlock the yellow clamp of the top tube
(Figure 9, pos 2).
3. Pull the gooseneck (Figure 9, pos 1) out of
the top tube.
4. Choose the desired gooseneck for the job.
5. Place the new gooseneck in the tube.
6. Lock the yellow clamp (Figure 9, pos 2).
7. Place the brush or pad back.
Figure 9

16
6.2 Operation procedure
WARNING
DO NOT fully extend the telescopic tubes. A minimum of 10 cm (3,9 inches) must
remain inside each section of the tube for stability, this is the red marked part.
ATTENTION
•wear safety glasses when operating the i-wash® Basic or Pro Reach;
•wear footwear with an anti-slip sole as a wet floor can get slippery.
1. Connect the pole hose (Figure 10, pos 2) with
the water supply hose
(Figure 10, pos 1). The soft ball
(Figure 10, pos 3) prevents the connection
from being damaged.
2. Place the i-wash Basic or Pro Reach against
the object that you want to clean.
3. Start the water supply.
4. Start cleaning.
When you are finished with cleaning:
5. Stop de water supply by disconnecting the
pole hose from the water supply hose.
6. Stop the water supply.
6.2.1 Adjusting the length of the tubes
1. Unlock the yellow clip (Figure 11, pos 1) and
then pull the tube out (Figure 11, pos 2).
2. Lock the yellow clip to fixate the tube
(Figure 11, pos 1), check that the tube
cannot move anymore.
3. Repeat this for the amount of tubes to reach
the desired working length.
Figure 11
Figure 10

17
6.2.2 Adding extension parts
If you need extra length you can add tube
extension parts 1 and 2, see section 1.5.3.
1. Disconnect the water supply hose
(Figure 12, pos 3).
2. Remove the soft ball (Figure 12, pos 2) from
the tube hose.
3. Remove the protection cover
(Figure 12, pos 1).
4. Feed the pole hose through the extension
parts (Figure 12, pos 5).
5. Add the extension parts (Figure 12, pos 4).
6. Place the soft ball back on the end of the
tube hose.
7. Reconnect the pole hose to the water hose.
6.2.3 Adjusting the working angle of the gooseneck
1. Unlock the yellow clip (Figure 13, pos 1).
2. Adjust the working angle of the gooseneck
(Figure 13, pos 2).
3. Lock the yellow clip (Figure 13, pos 1) to
fixate the gooseneck. Check that the
gooseneck cannot move anymore.
6.3 Operation with the high pressure power handle
If you combine the i-wash® Basic or Pro Reach with the high pressure power handle you get the
Power wash®, which can be used in combination with a pressure washer. It is used for outdoors high
and low pressure cleaning. Please refer to the User Manual of the Power wash for instructions on
operation.
Figure 13
Figure 12

18
6.4 Cleaning and storage
•before storing the i-wash® Basic or Pro reach, close the water supply;
•drain the i-wash Basic or Pro reach;
•disconnect any accessory;
•clean the i-wash Basic or Pro reach;
•store the i-wash Basic or Pro reach in a cool, dark area.

19
7Maintenance
CAUTION
Always close the water supply before starting with maintenance.
7.1 Adjusting the yellow clamps
Approximately once per month, depending from the work intensity, you need to adjust the tension
of the yellow clamps. This is to keep the correct tension, so the tubes stay fixated when you lock the
clamp.
1. Unlock the yellow clamp (Figure 14, pos 2).
2. Turn the yellow knob at the side of the clamp
(Figure 14, pos 1) clockwise to strengthen, or
anti-clockwise to loosen the tightness of the
clamp.
3. Lock the yellow clamp.
ATTENTION
All other maintenance and service activities must be done exclusively by skilled workers
using only i-team Global spare parts. The manufacturer is not responsible or liable for
any loss or damage arising from improper service or service done by unskilled workers.
Figure 14

20
8Troubleshooting
Problem
Cause
Solution
Connection leaks
Loose connection
Tighten connection.
i-wash® Basic or Pro Reach does
not spray
No water supply
Check that the water supply
connection is correctly
connected.
i-wash Basic or Pro Reach is
clogged
Flush the hoses with water
and check the pencil jet or fan
sprayers of the brush for dirt.
Carbon from the tubes wears out
Intensive use
Stick electrical tape on worn
out spots.
Yellow clamp breaks
Intensive use
Glue with two-component
adhesive.
Replace the yellow clamp.
Carbon tube gets stuck
Dirt or loose carbon fibers
Spray WD-40 between the
tubes, after the tubes get
unstuck, carefully clean them.
Tube breaks
Tube has been extended too
far out or working angle too big
Replace the tube.
