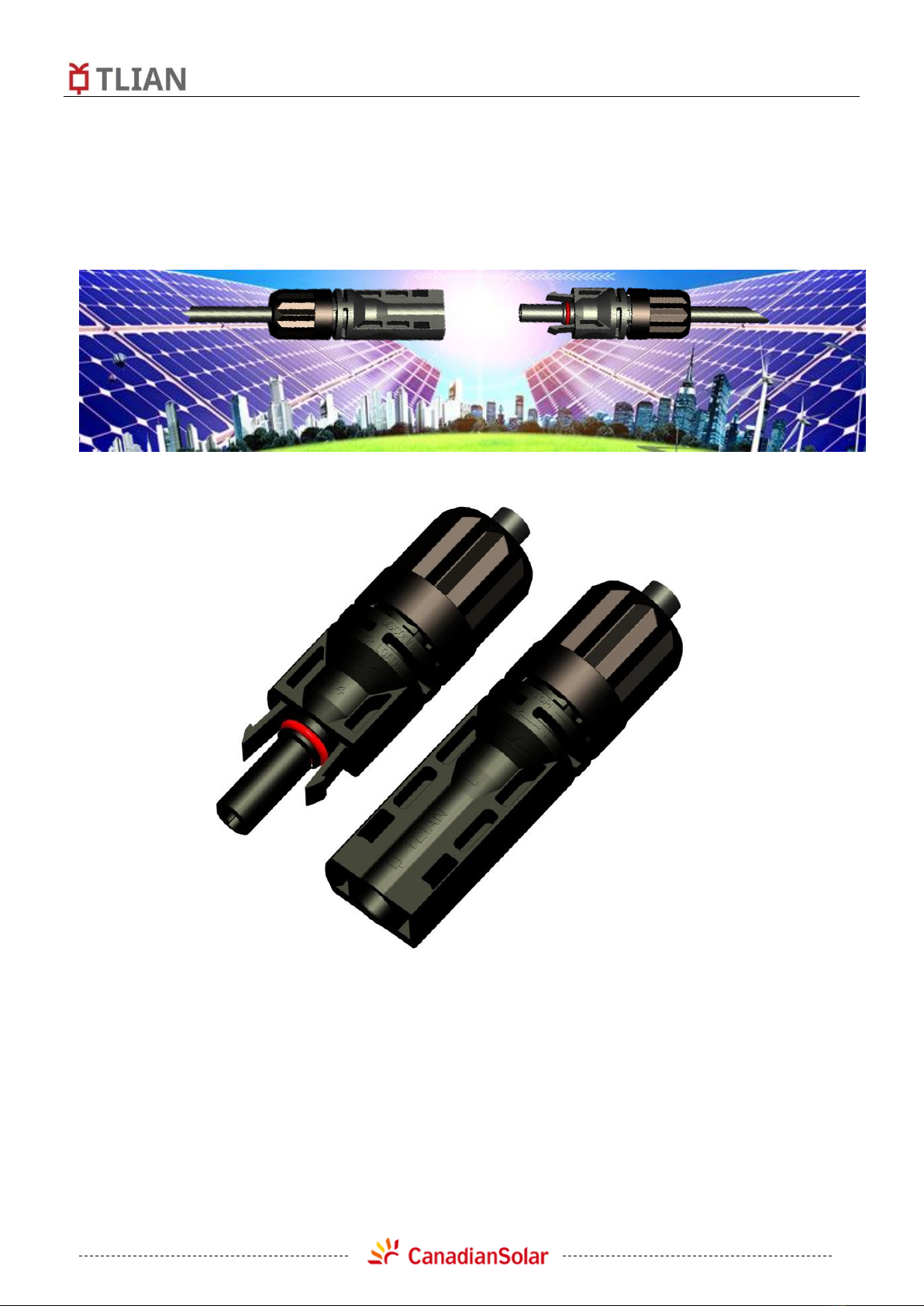

Tlian T4 User manual

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
T4 PV Connector
INSTALLATION MANUAL

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar

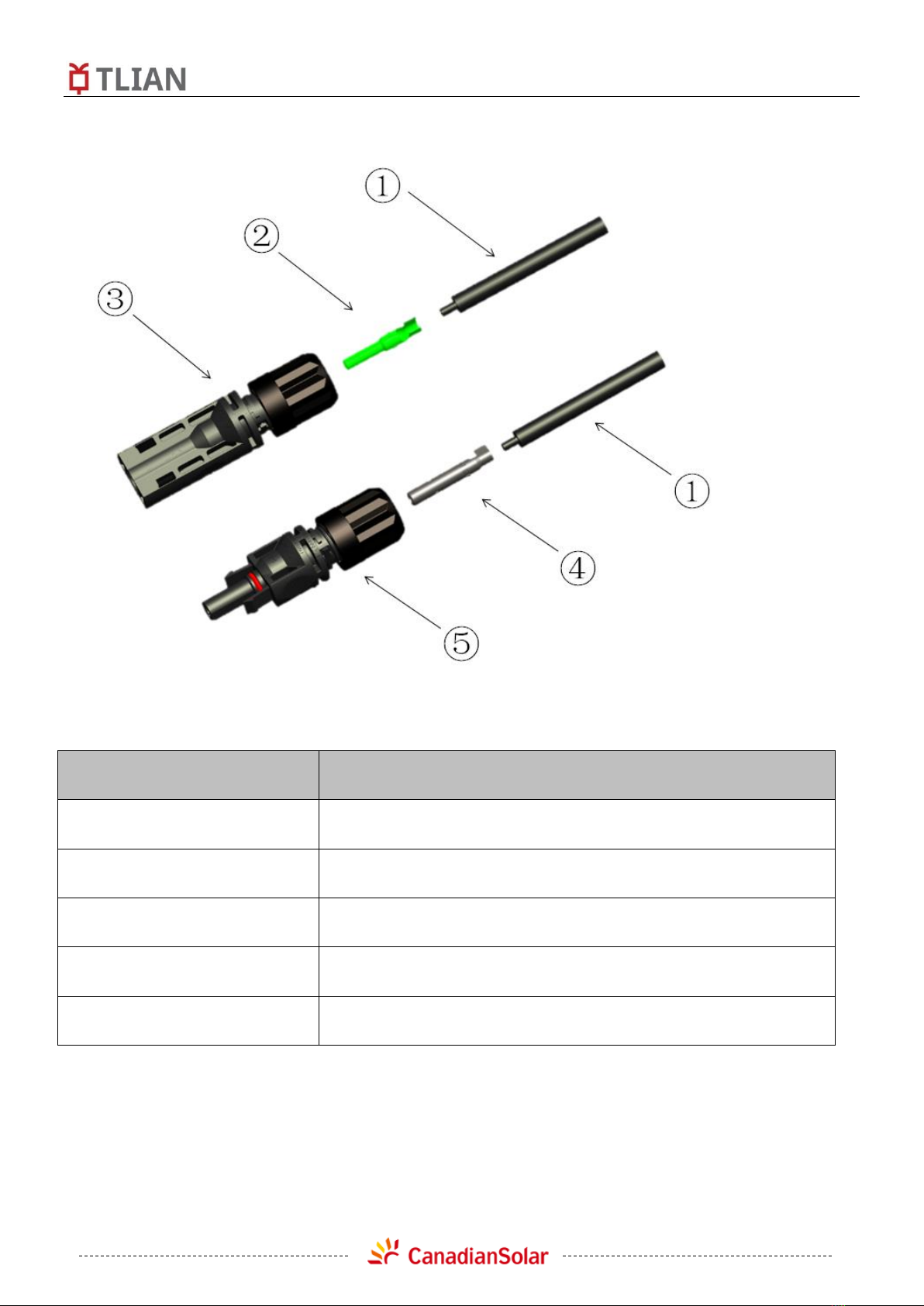

Component Assembly:
ITEM
Part Name
①
Wire
②
Negative Contact
③
Negative Connector
④
Positive Contact
⑤
Positive Connector

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
T4 Product Specifications:
PV-Negative cable connector
PV-Positive cable connector
Technical data
T4-PCXX
Rated voltage
IEC 1000V DC & UL 1500V DC
Rated current
32A for 4 mm²
Cable OD Range
4mm²/12AWG OD:Φ5.8mm ~Φ6.9mm
Connector system
Φ4.0mm
Pollution degree
Class II
Protection Class
Class II
Contact material
Copper, Tin plated
Contact resistance
≤ 0.5mΩ
Type of termination
Crimping
Locking system( UL)
NEC compliant locking type
Water rating
IP68
Temperature Range
—40 °C～+90 °C
Fire Resistance
UL94-V0
T4 Type
Article
Cable Outside
Diameter (OD)
Required Torque to
Lock
Reference gap
Negative
Connector
5.8mm≤OD≤6.9mm
3.0N·m～4N·m
0＜gap≤1.0mm
Positive
Connector
5.8mm≤OD≤6.9mm
3.0N·m～4N·m
0＜gap≤1.0mm
Negative
Contact
——
——
——
Positive
Contact
——
——
——
1
1
A A
2 3 4 5 6 7 8
2 3 4 5 6 7 8
B
C
D
E
F
B
C
D
E
F
D E S I G N d e s ig n _ b y
d a te
( 3 )
D R A W N d r a w n _ b y
d a te
U N IT mm
C H E C K E D c h e c k e d _ b y
d a te
S C A L E d r a w in g _ s c a le
A P P R O V E D a p p r o v e d _ b y
d a te
P A G E 1 / 1
1A S IS S U E D
VER D E S C R I P T IO N D A T E
T O L E R A N C E S Ò » ° ã ¹« ²î
0.00~30.00
0 .2 0
30.01~50.00
0 .2 5
50.01~100.00
0 .3 5
100.01~150.00
0 .4 0
150.01~180.00
0 .4 5
180.01~210.00
0 .5 0
210.01~250.00
0 .5 5
½ Ç ¶ È ¹ « ² î
2
VER D E S C R I P T IO N D A T E
M O D E L N O .
model_num
P A R T N A M E
part_name
D R A W I N G N O .
T L - T 4 - F J 1 - 1 0 1 - T U V 1
1
1
A A
2 3 4 5 6 7 8
2 3 4 5 6 7 8
B
C
D
E
F
B
C
D
E
F
D E S IG N d e s ig n _ b y
d a te
( 3 )
D R A W N d r a w n _ b y
d a te
U N IT mm
C H E C K E D c h e c k e d _ b y
d a te
S C A L E d r a w in g _ s c a le
A P P R O V E D a p p r o v e d _ b y
d a te
P A G E 1 / 1
1A S IS S U E D
VER D E S C R I P T IO N D A T E
T O L E R A N C E S Ò » ° ã ¹« ²î
0.00~30.00
0 .2 0
30.01~50.00
0 .2 5
50.01~100.00
0 .3 5
100.01~150.00
0 .4 0
150.01~180.00
0 .4 5
180.01~210.00
0 .5 0
210.01~250.00
0 .5 5
½ Ç ¶ È ¹ « ² î
2
VER D E S C R I P T IO N D A T E
M O D E L N O .
model_num
P A R T N A M E
part_nam e
D R A W I N G N O .
T L - T 4 - Z J 1 - 1 0 1 - T U V 1

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
Safety Precautions:
Products must be assembled and installed by qualified personal, insuring all safety regulations
are followed. For protection against electric shock, please insure the system is not energized
during installation. Do not disconnect under load. Insure that the AC and the DC sides are both
disconnected and the system is not energized before disconnecting.
Use only the tools and components listed in this installation man_ual. Follow the directions as
stated in this manual. Do not alter or willingly damage the product in any way.
Sealing cap must be used on disconnected connectors to prevent dust and water ingress.
Units are rated for IP68 water protection when mated.
Do no place connector directly on roof surface.
Do not allow direct contact with hydrocarbon, phenol, ketone ammonia or other plastic
corrosive environments or materials. Do not grease or lubricate the connector during
installation.
All Required tools are included in the T4 toolkit:

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
Wire stripper tool
Type
Crimping Range
2.5/14
2.5mm2
14AWG
4.0/12
4.0mm2
12AWG
6.0/10
6.0mm2
10AWG
Wire Crimping tool
Mark
Riveting Range
2.5/14
2.5mm2
14AWG
4.0/12
4.0mm2
12AWG
6.0/10
6.0mm2
10AWG
Disconnect Tools
1 set=2 pieces
Connector assembly steps:

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
1. Positive connector appearance check
a. Seal ring should fit cleanly in the slot, not warped
or distorted.
b. The two plastic clasps should be intact.
c. Positive and negative connectors should not be
obstructed by foreign objects or water.
d. Plastic components should not be cracked.
e. Wire must not appear damaged.
2. Negative connector appearance check
a. Negative connector should not be obstructed by
foreign objects or water.
b. Plastic components should not be cracked.
c. Wire must not appear damaged.
3. Connection
To connect, attach the positive and negative
connectors to each other, until you hear a “click.”
Once connected, gently pull on them to insure a
secure connection.
4. Check connection
To check the connection, insure that you cannot
see the seal ring. The gap between the connectors
should be less than 0.5mm.
Wire Assembly steps:

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar

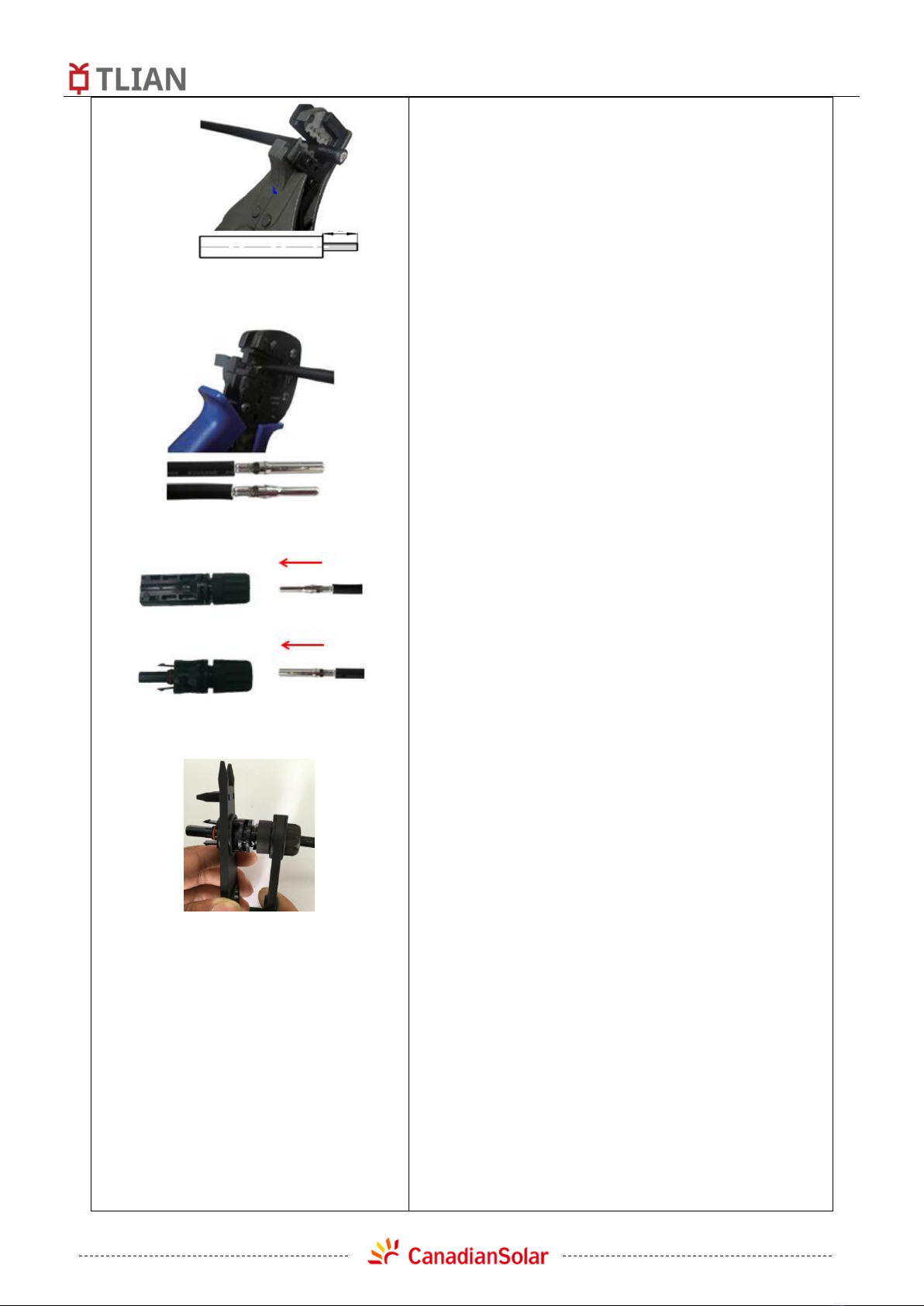

5. Strip the insulation off the cable
Using the wire stripping tool, remove the
insulation from the cable. Insure that 7.5mm of
cable are exposed, and that the wire strands are
not damaged during the process of stripping the
insulation.
6. Crimp the contact
Place the connector pin around the bare section
of the stripped wire. Crimp the connector pin
using the wire crimping tool. The crimped
connector should withstand pull forces ≥310N.
7. Insert the connector pin
Push the crimped connector pin into the
connector back until you hear a click. Pull lightly
on the wire to insure the metal components of the
connector are engaged.
8. Tighten the cable gland
First, finger tighten the gland, then use the
disconnect tools to tighten the gland to the
connector until it clicks, insuring that it is locked.

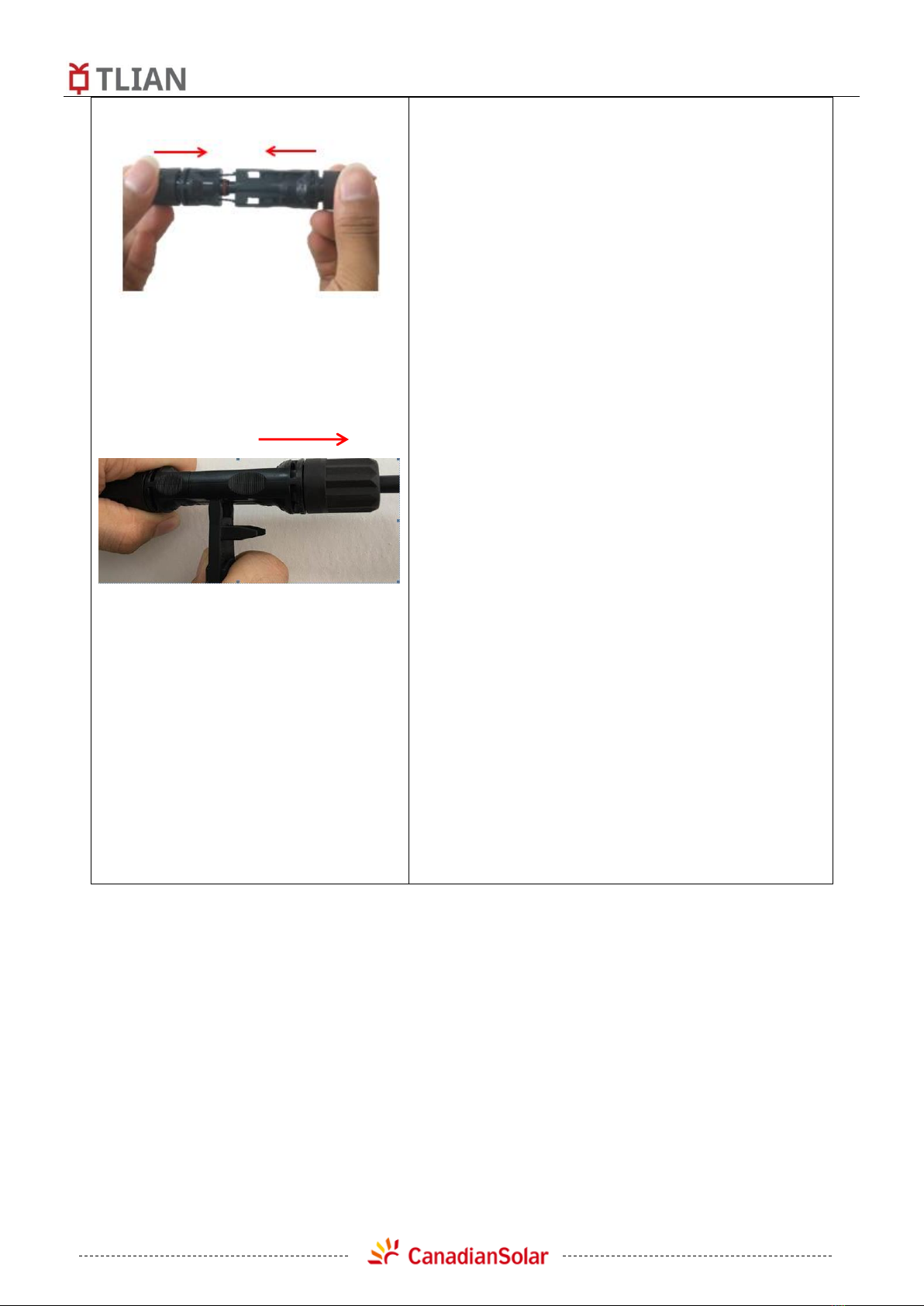

9. Make connection

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
Check the appearance of the connectors before
attaching them to one another. The seal ring
should be in the slot with no warping or
distortion. The plastic clasps should not be
damaged or broken. The connectors should be
free of moisture or foreign objects. Plastic parts
should not be cracked. Wire should not be frayed
or damaged. When attaching, insert the
connectors into each other until you hear a “click.”
Once attached, gently pull on the connectors to
insure they are firmly connected and cannot be
easily disconnected by hand.
10. Disconnect
The attachment can only be disconnected by
using the disconnect tools.

INSTALLATION MANUAL TLIAN is a subsidiary of Canadian Solar
The latest version of the manual can be downloaded from Canadiansolar.com
The technical descriptions herein are for reference only when using this product.
