TMC Pro Clear Advantage User manual

Instructions for
Installation and Use
This Pro Clear Advantage unit is supplied with two universal hosetails for
connecting the clarifier to your water supply, two blanking caps for blocking the
unused inlet/outlet, two brackets for mounting the unit and electrical
connections which are similar to those found in a domestic plug. Installation is
explained below, but please read the following safety information first.
Important Safety Information
- Please Read Carefully
- Never look directly at an illuminated UV lamp.
- Do not run this unit dry. Do not cover this unit.
- Always isolate the unit from mains electricity and turn off the water supply
before carrying out any maintenance.
- Always disconnect all pond appliances from the mains supply
before putting your hands into the water.
- Use in the area of the garden pond only if the installation complies
with the relevant wiring regulations.
- Power must be supplied through a Residual Current Device (RCD) with a
rated residual operating current not exceeding 30mA.
- This unit must be earthed. Never use a fuse larger than 3 amps.
- Rating: 220-240V, 50Hz. UV30, 35-43 watt. UV55, 50-62 watt.
Class 1. IP44.
- The unit must not be submerged in water.
- If the quartz sleeve is cracked, replace it immediately.
- The unit must be either fully frost protected or taken inside during
the winter months.
- Young children should always be supervised near water.
Product Information
- This unit is manufactured and conforms to BS EN 60335-1 and
BS EN 60335-2-55.
- This unit conforms to the low voltage directive (safety) CEE 73 23.
- This unit conforms to the EMC directive CEE 89 336.
- This unit is CE approved.
POSITIONING THE PRO CLEAR ADVANTAGE
UNIT
Pro Clear Advantage units are weatherproof but not waterproof. The unit can
be positioned either on its base on a flat surface, or attached horizontally to a
vertical surface using the brackets provided. It must not be submerged in water
or placed in a position where water may collect around the unit.
If installing the unit prior to or without a filter, it is important that a pre-filter is
used on the water pump to prevent excess solids from being pumped into the
unit. The unit may be connected to the water supply using one of the options
below:
MOUNTING ON A HORIZONTAL SURFACE
Caution: To prevent this unit falling into water, do not install it above or
alongside your pond. Do not make the electrical connection to your unit until it
has been plumbed in and fixed securely.
If the unit is to be mounted on a flat surface the supplied blanking caps should
be screwed into the two lower inlets/outlets as shown in the diagram on the next
page.

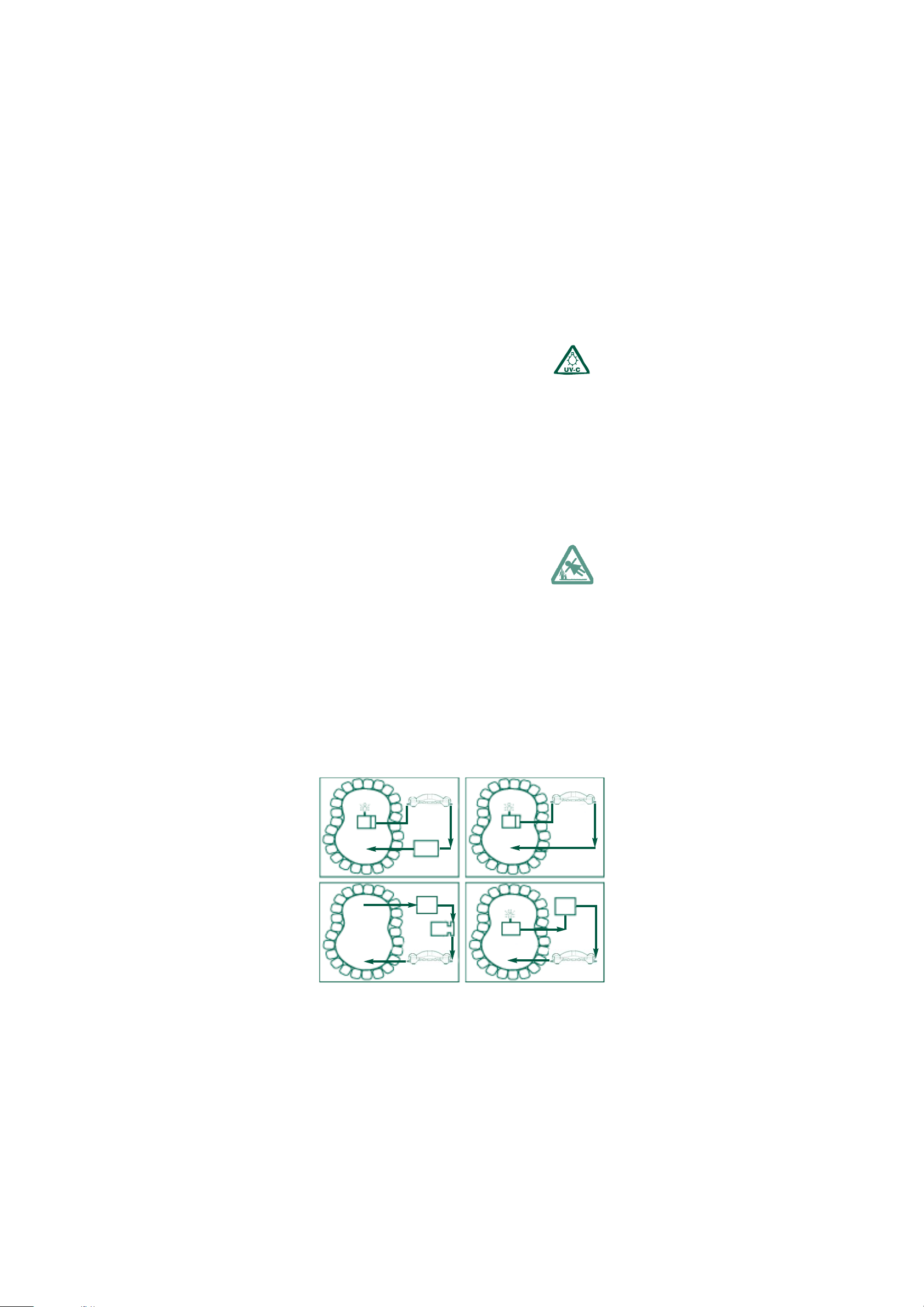

FILTER
PUMP WITH
STRAINER
GRAVITY
FEED
PUMP WITH
STRAINER
FILTER
PRESSURIZED
FILTER
PUMP
PUMP
1
DANGER
PRO CLEAR
UV UNIT
PRO CLEAR
UV UNIT
PRO CLEAR
UV UNIT PRO CLEAR
UV UNIT

The two universal hosetails should then be screwed into the other inlet/outlet at
either end of the unit. Hosetails should be tightened using hand pressure only.
The blanking caps should be inserted and also only tightened by hand. Ensure
that the “O” rings are in position before assembling. Do not use jointing
compound or PTFE tape. Please note that there is no correct flow direction
through the unit. Either end of the unit may be used as the inlet or outlet.
However, the flow must be from one end of the unit to the other to ensure
correct operation.
To prevent the unit inadvertently being dropped into the pond, we strongly
recommend that it is securely positioned at least 2 metres from the edge of the
pond. Any flexible cabling used between the unit and the permanent wiring
should also be kept to a minimum length. We recommend a maximum length
of 1.5 metres.
MOUNTING ON A VERTICAL WALL
Caution: To prevent this unit falling into water, do not install it above or
alongside your pond.
The unit may be mounted horizontally onto a vertical wall using the mounting
brackets included (see diagram below). The 8 screws provided are suitable for
fixing the brackets to a wooden surface. You should ensure that the unit is the
correct way round with the wall spacers positioned at the back of the unit so
that the unit sits securely. The water connections may be made in either of the
inlets/outlets on the bottom of the unit, the ends of the unit, or a combination of
both (see diagram below). Please note that there is no correct flow direction
through the unit. Either end of the unit may be used as the inlet or outlet.
However, the flow must be from one end of the unit to the other to ensure
correct operation and the two blanking caps should be fitted to the inlet and
outlet not being used. Hosetails should be tightened using hand pressure only.
The blanking caps should be inserted and also only tightened by hand. Ensure
that the “O” rings are in position before assembling. Do not use jointing
compound or PTFE tape.
CONNECTION TO THE WATER SUPPLY
Connection with flexible hose
The Pro Clear Advantage unit is supplied with two universal hosetails to take
1”, 11⁄4”, and 11⁄2” diameter flexible hose. If you are using one of the two larger
sizes, the smaller sections of the hosetails must be cut off to ensure sufficient
water flow and prevent possible damage to the pump. We recommend that you
use the largest diameter hose available. The hosetails should be trimmed away
from the unit as shown in the diagram below. Using a hacksaw, carefully cut
off the excess hosetail, ensuring that the sections are cut off at the second ridge
and that the cut follows the line of the ridge.
Once the hosetails have been trimmed, attach them to the unit as described
above. Secure the hosepipe to the hosetail with a stainless steel hose clip.
The hosetails supplied are made from a translucent material which will glow
when the unit is operating correctly.
Connection using rigid pipe
The unit may also be rigid plumbed by the use of an adaptor (not supplied).
The inlets and outlets of the unit are 11⁄2” BSP thread and an adaptor or union
(11⁄2” male thread to female plain) to suit your pipework should be obtained from
your nearest supplier of plumbing fittings.
CUT LINE
1 Mark the wall through the
brackets then fix with (8) 1”
No.8 screws
2 Vertical wooden wall or
fence.
CUT LINE
1
1
22
2

FLOW RATES
Both of our Pro Clear Advantage units have a maximum flow rate as listed
below. Please note that for optimum performance we recommend that you pass
the entire volume of your pond through the UV unit approximately once every
two hours. Please also note that we recommend a minimum flow rate
equivalent to passing the entire pond volume through the unit once every three
hours.
Unit Maximum Flow Rate
Pro Clear Advantage UV30 3,000 Imp. gallons/13,500 litres per hour.
Pro Clear Advantage UV55 4,000 Imp. gallons/18,000 litres per hour.
SYSTEM PRESSURE
The unit has been designed for use with all types of domestic garden pump
(working pressure not to exceed 0.7 bar). Advice should be sought from your
dealer if the unit is to be subjected to abnormal conditions.
CONNECTION TO THE ELECTRICITY SUPPLY
If in doubt consult a qualified electrician.
Caution: Use in the area of the garden pond only
if the installation complies with the relevant wiring
regulations. Please consult a qualified electrician.
Caution: Always disconnect all pond appliances
from the mains supply before putting your hands
into the water.
Caution: Power must be supplied through a
Residual Current Device (RCD) with a rated
residual operating current not exceeding 30mA.
All electrical installations and wiring must be
adequately protected to prevent any damage.
Mains electrical cable is not supplied with the unit. This unit must be connected
to permanent wiring. A switch with 3mm contact separation must be provided in
the fixed wiring to provide disconnection from the electricity supply.
Remove the lid by unscrewing the four screws on either side of the Pro Clear
Advantage unit. Feed one end of the cable through the cable clamp and connect
to the junction block as shown above. Before replacing the cover, feed the
cable out of the unit via the cable channel in the main body. Replace the lid and
fasten the screws.
INTERNAL FUSE REPLACEMENT
Always isolate the unit from the mains supply before undertaking any
maintenance. All units use a 3 amp fuse. Never use a larger rated fuse.
ROUTINE MAINTENANCE
The UV lamp inside the Pro Clear Advantage unit has a usable life of
approximately 7000 hours. As green water is only usually a problem during
spring and summer, the lamp only needs to be replaced once a year in the spring
(see below).
As already mentioned it is essential that the unit is protected from frost during
the winter months, or disconnected from water and electricity supplies and
stored indoors. During the spring and summer season, the quartz sleeve, which
separates the UV lamp from the water passing through the unit, will need to be
cleaned two or three times (see below). This is essential, as dirt building up on
the quartz sleeve will inhibit the penetration of the ultraviolet light into the
water and affect the efficient working of the unit.
IMPORTANT
The black plastic body and any hosetails supplied with this unit are
manufactured from polymers that have been specifically stabilised, to protect
them from the effects of UVC light wavelength emitted from the lamp. Despite
this UV protection the plastic body and hosetails will be eroded by the UVC
and the water flow. As a matter of course they should be inspected whenever a
lamp change is carried out, to ensure that they are not showing excessive wear
and tear. Low cost replacements are available from your local aquatic supplier.
LAMP REPLACEMENT AND QUARTZ CLEANING
Always isolate the unit from the electricity and water supplies before carrying
out any maintenance on the unit.

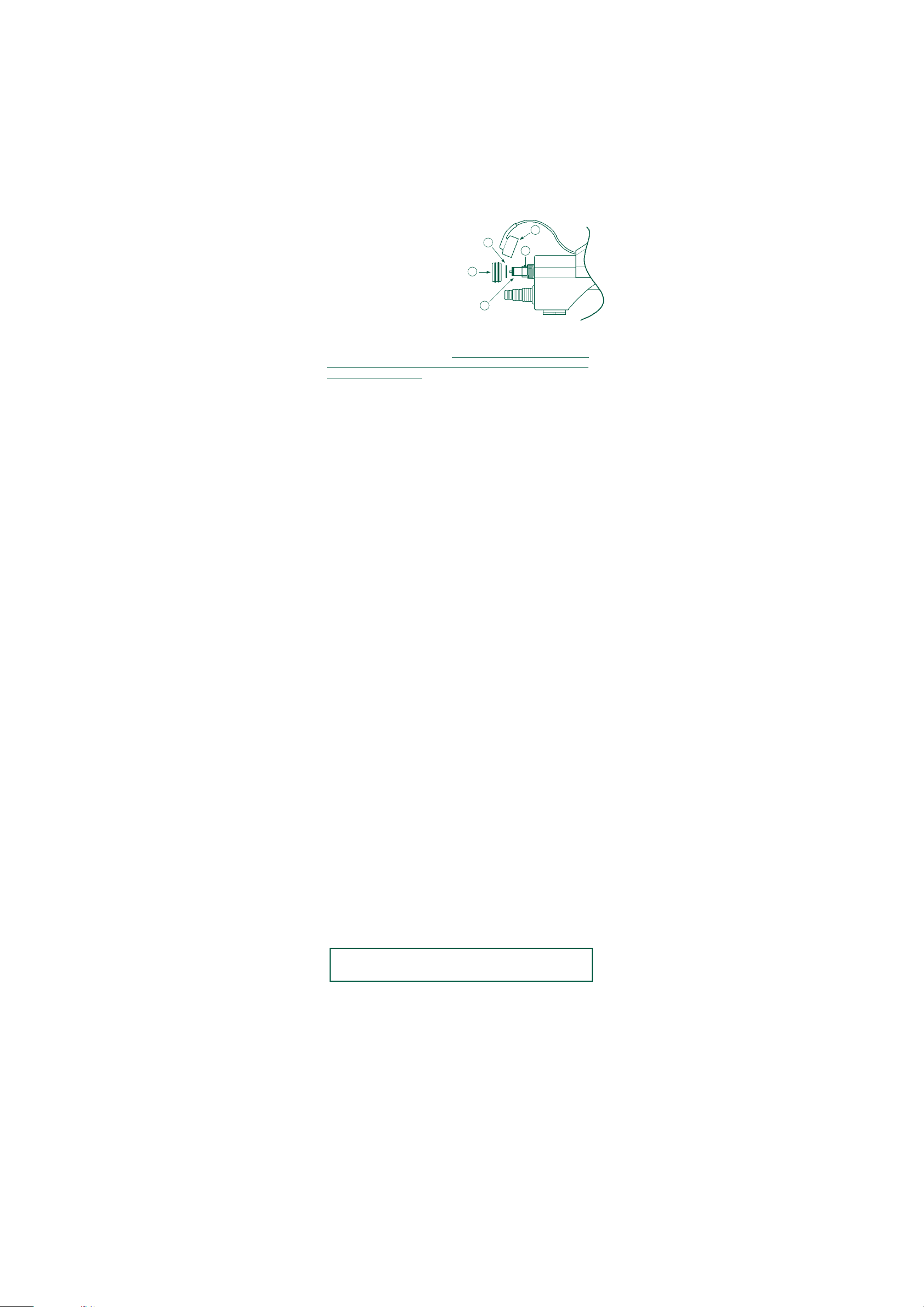

Peel back the rubber end caps from either end of the unit and carefully pull off
the white plastic electrical end caps. Carefully slide the lamp out of the unit.
Next, unscrew the two compression fittings located at either end of the main
body (see diagram) and slide off the two “O” rings from either end of the quartz
sleeve. Carefuly slide out the quartz sleeve. Clean the sleeve and polish with a
soft cloth or paper towel. If you live in a hard water area there may be some
limescale on the quartz sleeve; this can be easily removed by soaking the sleeve
in a proprietary plastic kettle descaling solution. Failure to remove the
limescale will limit the effectiveness of the UV lamp.
NEUTRAL
(Blue)
EARTH (Yellow)
LIVE
(Brown)
FUSE
3

ASSEMBLY PROCESS
Slide the quartz sleeve into the unit. Ensure that you locate the two “O” rings
carefully on the ends of the quartz sleeve. Failure to do so will result in leaks
when the water is turned on. If you are carrying out the annual lamp change,
use new “O” rings. Firmly hand tighten the compression fittings. Replace the
lamp or fit a new one. Relocate the white electrical end caps onto the pins of
the lamp and slide the rubber endcaps over the compression fittings. Reconnect
and turn on the water supply, carefully checking for any leaks before switching
on the electricity supply.
TROUBLE SHOOTING
Some Common Questions:
How can I tell if the unit is working?
The translucent hosetails will glow when the unit is operating correctly. In
strong sunlight this may not be apparent, but at night and at low light levels the
glow is easily detectable.
How long after I install the unit will my pond become clear?
There are many factors which control this, including the levels of nutrients
available to the algae, the water temperature and the level of sunlight.
Assuming that the correct size unit has been properly installed most ponds
should clear within 3-14 days. However, please allow a full six week period for
the unit to take effect.
The lamp is not working. Even at night the hosetails are not glowing.
What is wrong?
First check the power supply and the fuse. Check that the white electrical end
caps are correctly located on the lamp pins. If it still doesn’t work, remove the
lamp (as detailed on the previous page). Check that the lamp and the quartz
sleeve are not broken. Remember to switch off the electricity and water
supplies before carrying out any maintenance on the unit.
The unit worked well when I first installed it but recently my pond has
gradually gone green again – what is wrong?
This usually indicates that the quartz sleeve has become dirty and requires
cleaning (read maintenance instructions). Also make sure you have the right
model for your pond size by checking the table on the front inside cover of this
leaflet.
Does a Pro Clear Advantage unit put anything into the water, and will it
harm anything living in the pond like frogs, newts, plants or fish?
Ultraviolet lamps leave no residues, and only affect the water pumped through
the unit. Unlike many chemical treatments, your Pro Clear Advantage unit will
not harm the plants and animals living in the water.
How long can I leave the unit running?
Pro Clear Advantage units should be run 24 hours a day, every day, from mid
March to early October, depending on the weather conditions. If the unit is
frost protected it may be left running throughout the winter. Otherwise, the unit
should be removed, drained and stored safely for the winter.
Can I use my Pro Clear Advantage unit if I am using any treatments for my
fish?
From our own experience of using a wide range of treatments and medications,
we have found no harmful effect from running Pro Clear Advantage units at the
same time as treating a pond, although some medications may be broken down
a little quicker than normal. Always check the manufacturer’s instructions
before using any water treatment.
Can I bury the unit underground?
Do not bury the unit. It could become waterlogged at a later date, which would
be dangerous.
4
1 Rubber end cap covering white
electrical end cap.
2 Compression fitting.
3 ‘O’ ring.
4 UV lamp.
5 Quartz sleeve.
1
2
5
4
3
General Note: Large fish such as Koi can cause murky water by
stirring up the bottom of the pond. This murky water should not
be confused with suspended algae.

GUARANTEE
PLEASE NOTE that the 12 month guarantee
cover for the unit does not include serviceable
parts, ie. lamp and the quartz sleeve.
GARANTIE
VEUILLEZ NOTER que la Garantie de 12 mois de l’unité
ne couvre pas les pièces remplaçables,
c’est-à-dire la lampe et le manchon en quartz.
GARANTIE
ES IST ZU BEACHTEN, daß sich die
12-Monats-Garantie für das Gerät nicht auf
die wartbaren Teile, wie die Lampe und
die Quarzhülse, erstreckt.
GARANTIE
N.B.: In de garantie van 12 maanden voor het apparaat
zijn niet opgenomen de onderdelen
die onderhouden kunnen worden, zoals de
lamp en de kwartsmof.
GARANZIA
NOTARE che la garanzia di 12 mesi per
l’apparecchiatura non comprende i componenti
soggetti a normale usura, quali la lampara e il
manicotto di quarzo.
GARANTÍA
Recuerde por favor que la garantía de 12 meses
de la unidad no incluye piezas que entran en el servicio
rutinario de mantenimiento, por ej.
lámpara y mango de cuarzo.
Tropical Marine Centre Ltd., Solesbridge Lane, Chorleywood,
Hertfordshire, WD3 5SX.
Technical Information Lines
Tel: [phone] Fax: [phone]
Open between
9am - 5pm Monday to Thursday/9am - 12pm Friday.
www.tmc-ltd.co.uk email:[email protected]
