Maytronics Classic 4-UNI User manual

Robotic Pool Cleaner Basic 4-UNI
8151625
by
Basic 4-UNI
EN
User Instructions......................p. 1-9
FR
Mode d’emploi........................p. 10-18
IT
Istruzioni per l’uso ...................p. 19-27
ES
Instrucciones de Uso ...............p. 28-36
DE
Gebrauchsanweisung ..............s. 37-45
PT
Manual de Instruções ..............p. 46-54

1
Contents
1. INTRODUCTION ..........................................................................2
2. SPECIFICATIONS .........................................................................2
3. WARNINGS AND CAUTIONS ......................................................2
3.1. Warnings .............................................................................2
3.2. Cautions..............................................................................2
4. POOL CLEANER PARTS ...............................................................3
5. USING THE POOL CLEANER.......................................................4
5.1. Setup...................................................................................4
5.2. Putting the Pool Cleaner into the pool...............................5
5.3. Removing the Pool Cleaner from the pool .........................5
6. CLEANING THE FILTER BAG OR CARTRIDGES ..........................6
6.1. Removing and cleaning the filter bag.................................6
6.2. Replacing the filter bag.......................................................7
6.3. Cleaning the filter cartridges ..............................................8
6.4. Cleaning the impeller .........................................................9
7. OFFSEASON STORAGE...............................................................9
8. STAND ASSEMBLY .......................................................................55
Robotic Pool Cleaner Basic 4-UNI
User Instructions
EN

2Robotic Pool Cleaner Basic 4-UNI |User Instructions
Robotic Pool Cleaner Basic 4-UNI
User Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost
effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing
brush enhance maximum pool hygiene.
Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and
easy maintenance. You and your family will be free to enjoy your swim with the full confidence that it is
completely clean.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 0.80m/2.6ft
Maximum depth: 5m/16.4ft
3. WARNINGS AND CAUTIONS
3.1. Warnings
•Use the originally supplied power supply only
•Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
•Keep the power supply out of standing water
•Position the power supply at least 3m/10ft away from the edge of the pool
•Do not enter the pool while the Pool Cleaner is working
•Unplug the power supply before servicing
3.2. Cautions
When not in use store the Pool Cleaner on the stand in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6°-34°C/43°-93°F
NaCl Maximum=5000 ppm
CAUTION

Robotic Pool Cleaner Basic 4-UNI |User Instructions 3
4. POOL CLEANER PARTS
Power Supply Stand
Brushes
There are three types of optional brushes, each designed to provide optimal traction on different
pool surfaces. Only one type set is provided with your robot Pool Cleaner.
Wonder (foam) Brush
For smooth ceramic tiles
Combined Brush
All surface climbing brush
ideal for most pool surfaces
PVC Brush
For concrete, PVC,
fiberglass and liner
Robotic Pool Cleaner Basic 4-UNI
Filtration
Cartridge with net filters (x4) or ultra-fine filter (x4)
There are two options of filtration system: filter bag or cartridge.
Only one system type is provided with your robot pool cleaner.
Bottom lid and filter Bag

4Robotic Pool Cleaner Basic 4-UNI |User Instructions
5. USING THE POOL CLEANER
The Pool Cleaner is very easy to use. Just follow the simple steps to get started, and your Pool Cleaner
is ready to go.

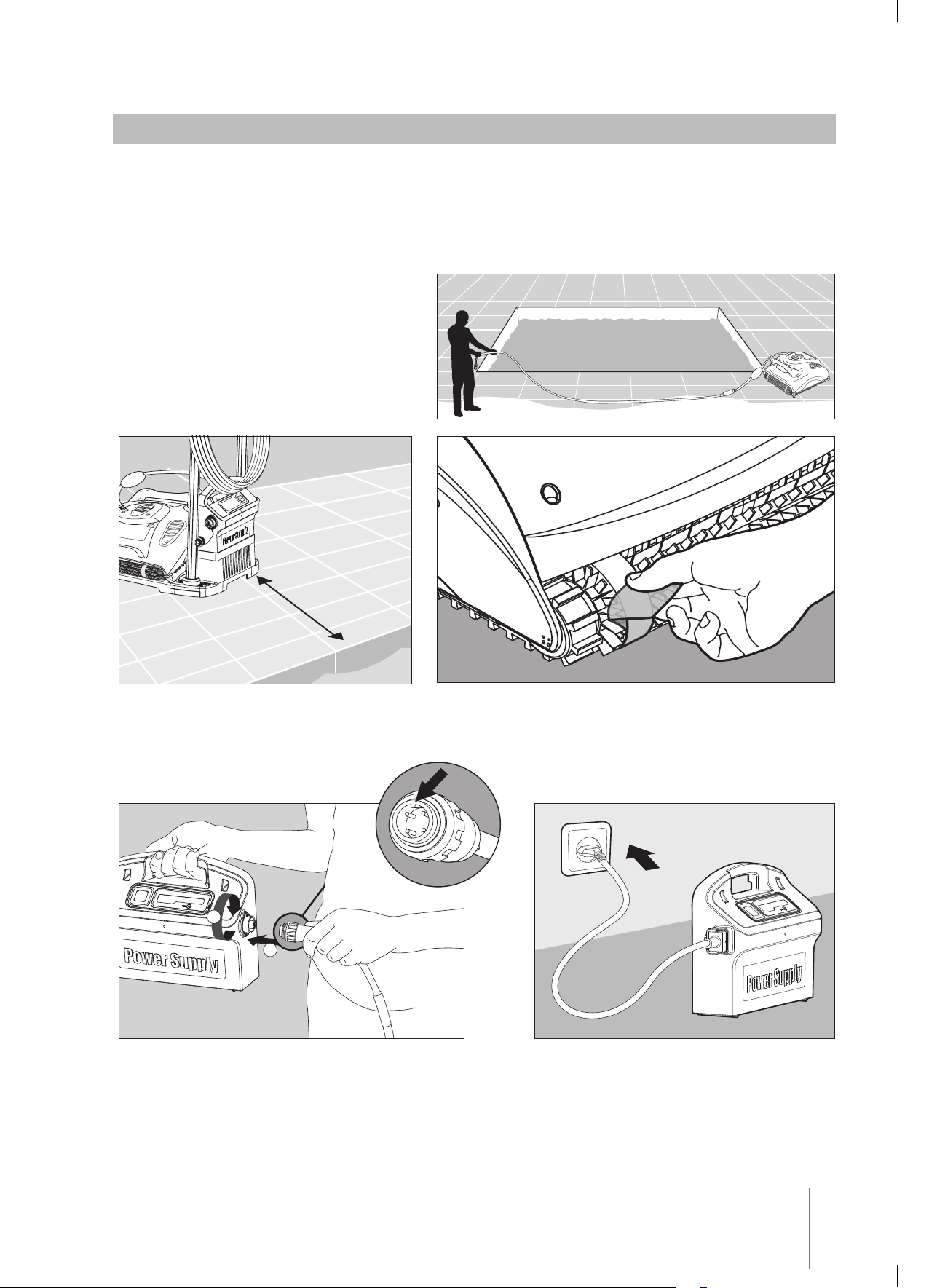

5.1. Setup
Some models arrive with plastic coverings on the brushes.
Remove them before use.
Position the stand so that it is
approximately in the middle of the
long side of the pool at a distance
of 3m/10ft.
Plug in the power supply and leave it in the
OFF position.
Unwind the cable and stretch it out
completely so that it has no kinks.
Attach the floating cable to the power supply
by inserting it with the notch on the connector (1)
lined up with the groove in the socket on the
power supply and turning clockwise (2).
1
2
3m/10ft
Before using the Pool Cleaner for the first time perform the following steps:

Robotic Pool Cleaner Basic 4-UNI |User Instructions 5
5.2. Putting the Pool Cleaner into the pool
If your Pool Cleaner is equipped with brushes that
contain sponges, dip the brushes in the water and
squeeze them so that they will absorb water the first time
you use the Pool Cleaner, or if the brushes have dried out
between uses.
Holding the Pool Cleaner upside down in the water,
gently rock it back and forth with your fingers holding
the plastic doors on the bottom lid open to release
trapped air. Continue until no more bubbles are released.
Release the Pool Cleaner and let it sink to the floor
of the pool.
Make sure that the floating cable is free of any
obstructions.
To avoid kinks in the floating cable, place approximately
enough cable in the water for the Pool Cleaner to reach
the farthest corner of the pool.
Turn the power supply ON.
The Pool Cleaner will now operate until it has
reached the end of the cleaning cycle.
5.3. Removing the Pool Cleaner from the pool
ON
OFF
CAUTION
Turn OFF and unplug the power supply.

6Robotic Pool Cleaner Basic 4-UNI |User Instructions
6. CLEANING THE FILTER BAG OR CARTRIDGES
Depending on the model, your Pool Cleaner may be equipped with a filter bag or cartridge.
It is recommended to clean the filter bag or cartridge after each cleaning cycle.

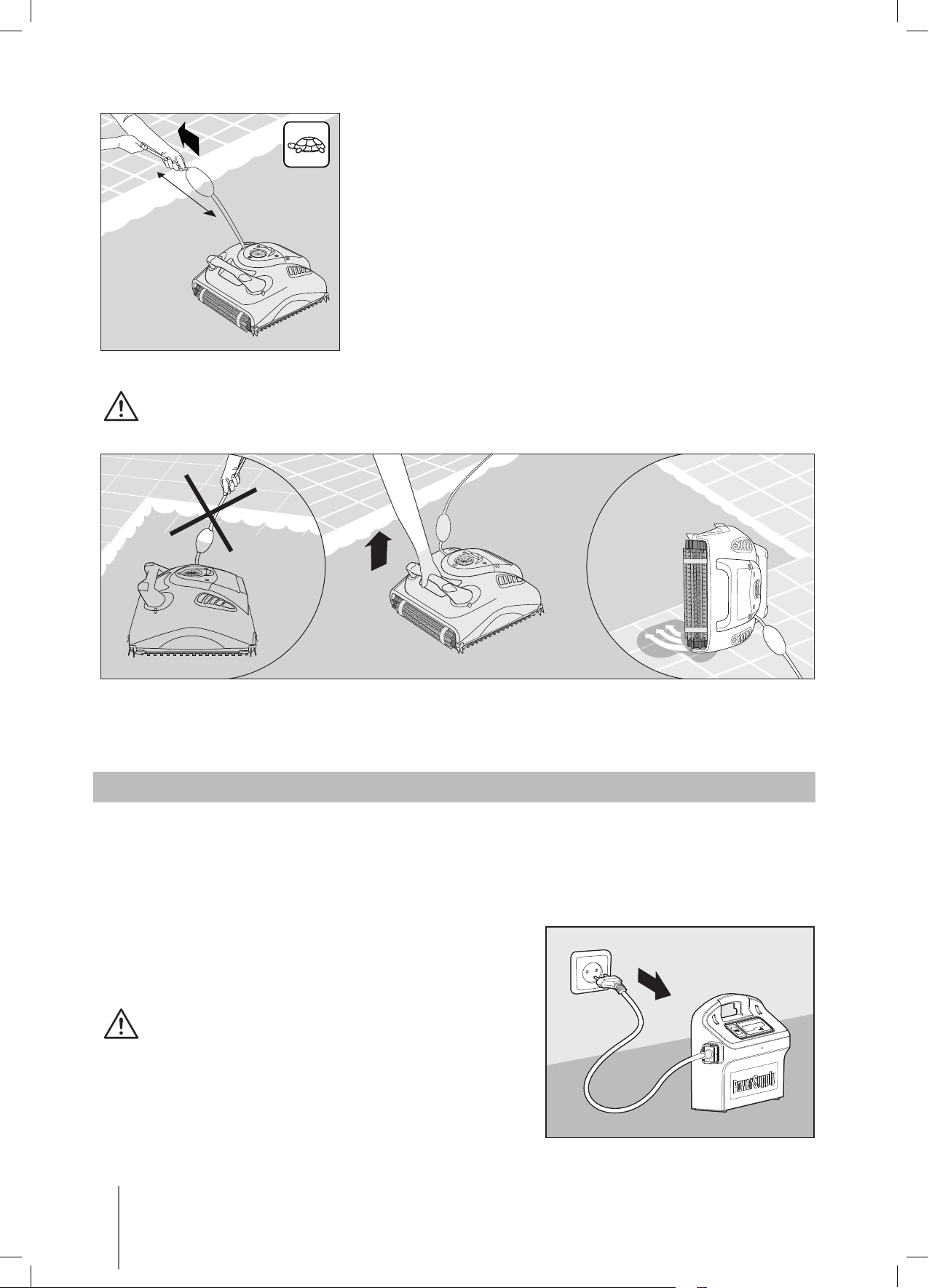

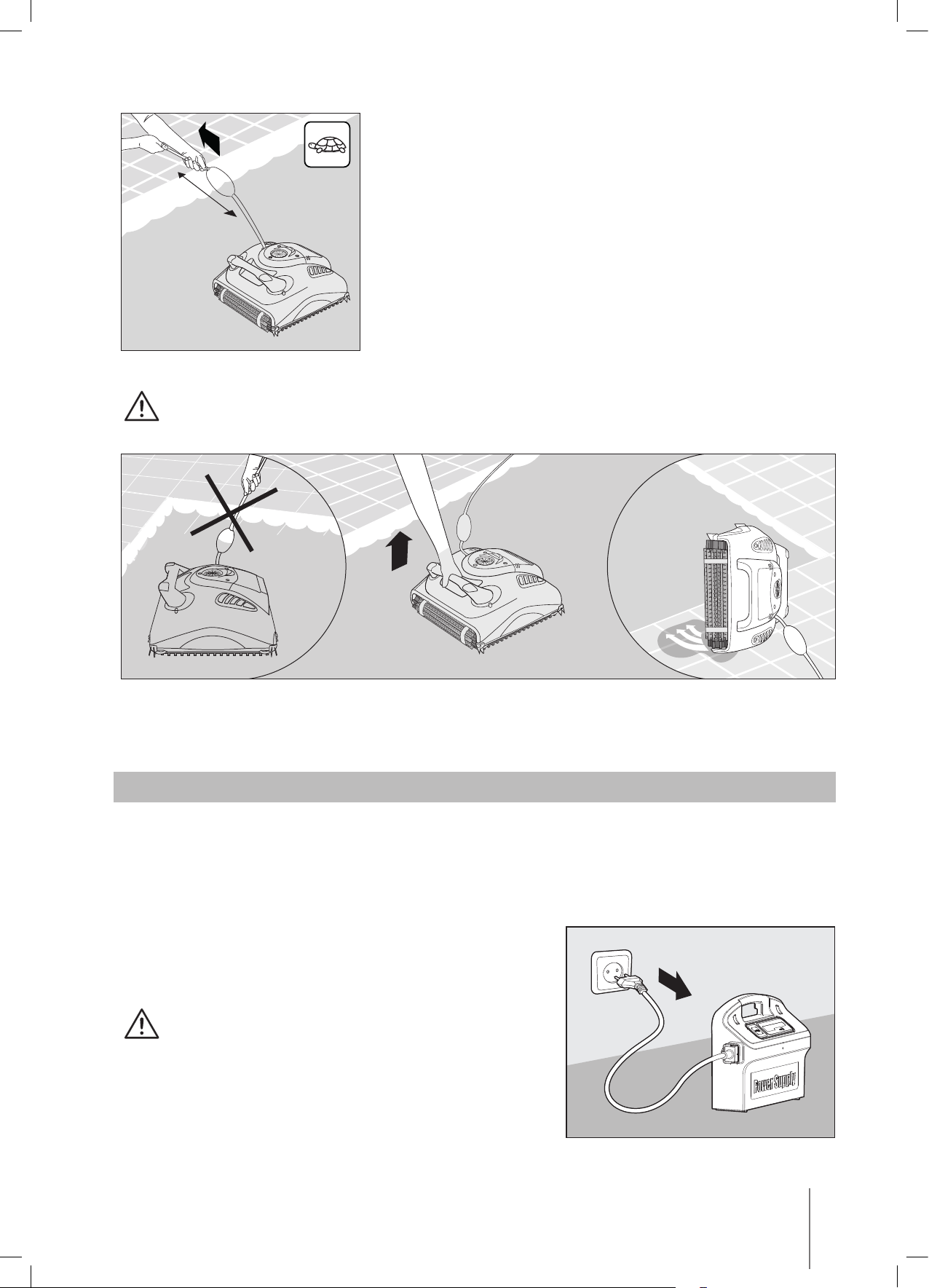

6.1. Removing and cleaning the filter bag
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Using the handle, remove the Pool Cleaner from the pool.
Place the Pool Cleaner on the edge of the pool and let the water drain out.
A
CAUTION
Unplug the power supply.
10cm/ 4inch

Robotic Pool Cleaner Basic 4-UNI |User Instructions 7

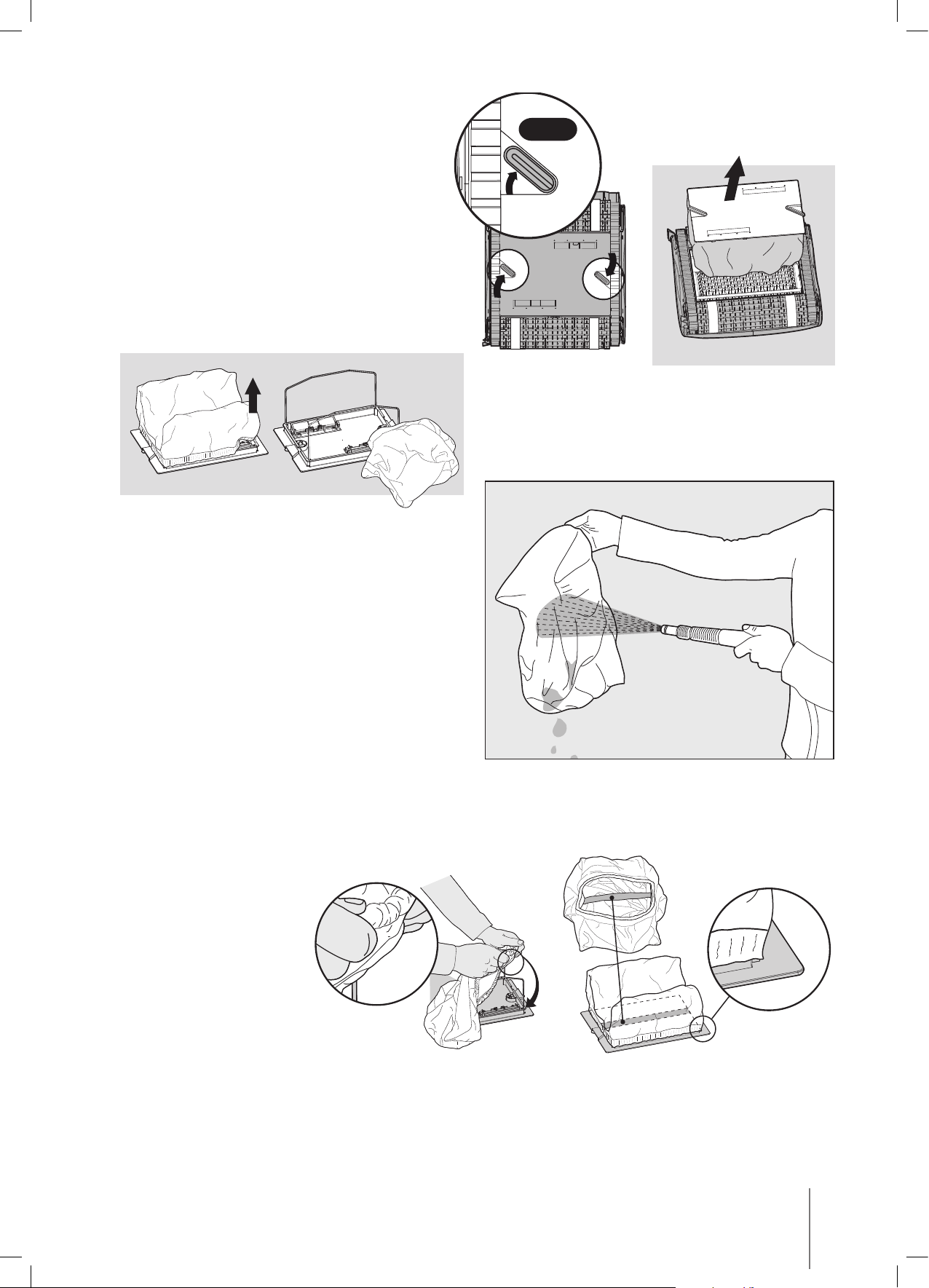

Turn the Pool Cleaner upside-down.
Open the bottom lid.
Remove the filter bag.
Clean the filter bag with a hose.
We recommend that you periodically wash the
filter bag in a washing machine using the gentle
cycle program.
Periodically clean the brushes with a hose.
Click
6.2. Replacing the filter bag
Put the filter bag over
the frame so that the
strap is in the middle
of the shortest side.
Make sure that filter bag
is positioned properly
on the frame.

8Robotic Pool Cleaner Basic 4-UNI |User Instructions

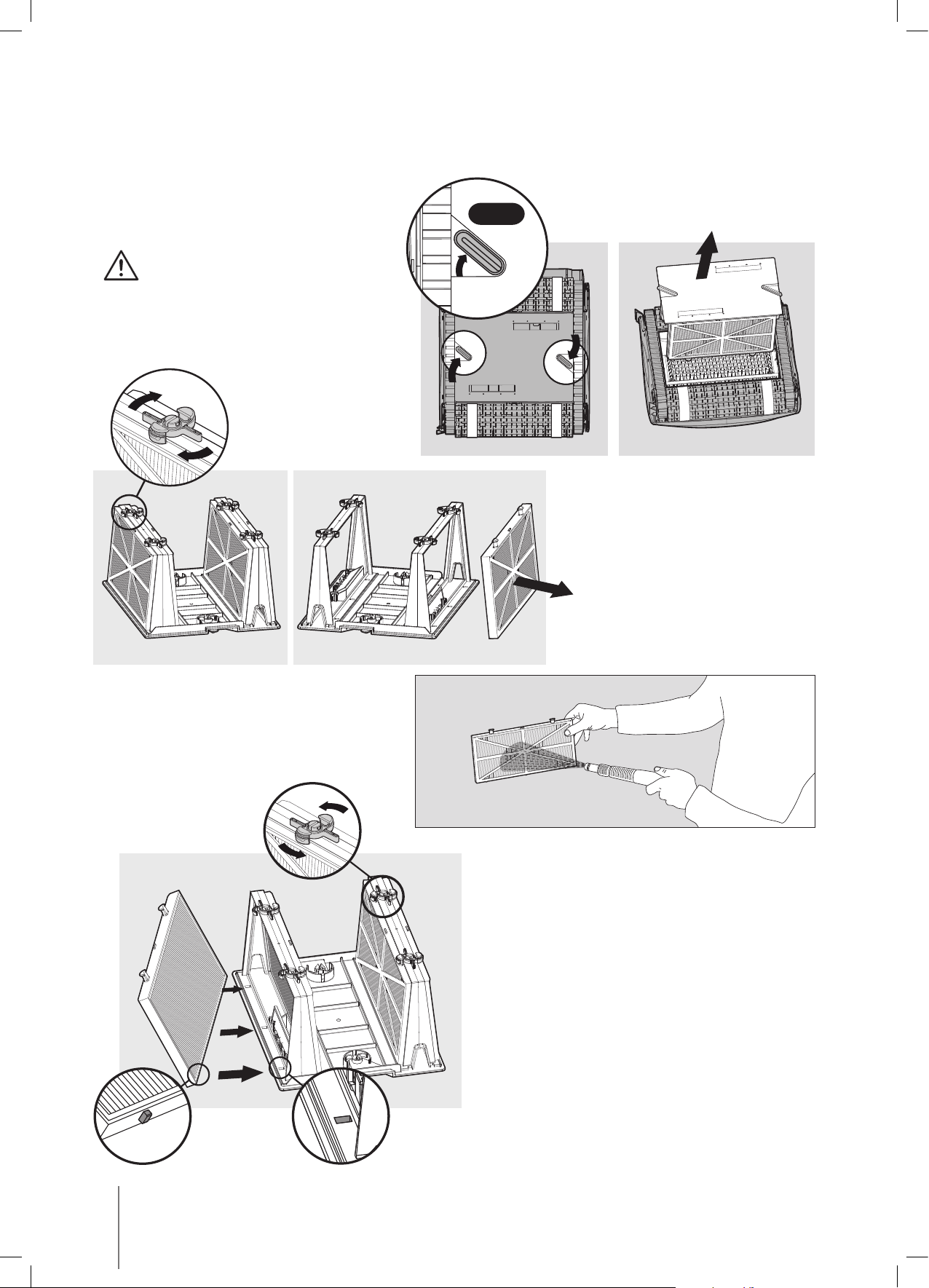

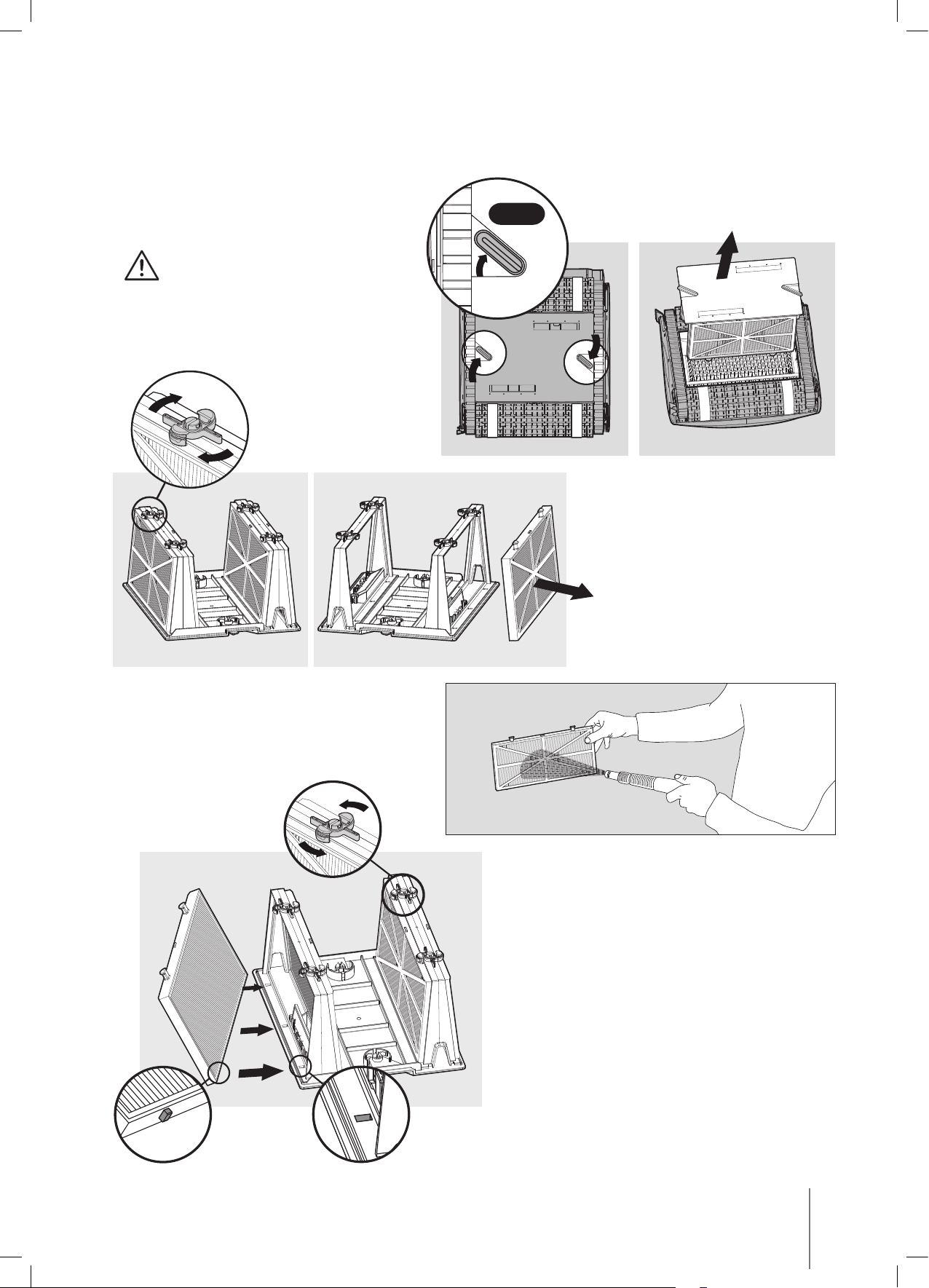

6.3. Cleaning the filter cartridges
With the Pool Cleaner upside down
open the bottom lid and pull it out.
Open the clips and remove
the filter.
Insert the filters with the plastic backing facing out.
Insert the cartridge unit.
Clean the filters with a hose.
Note: Don’t let the filter cartridges dry out before cleaning.
CAUTION
Unplug the power supply.
Click
