IMPORTANT SAFETY INSTRUCTIONS......................................................................................2
SAFETY PRECAUTIONS.............................................................................................................3
NAME AND FUNCTION OF EACH COMPONENT........................................................................ 5
External Structure................................................................................................................. 5
Internal Structure ..................................................................................................................5
Power Box..............................................................................................................................6
Controller ..............................................................................................................................7
Controller Instructions ..........................................................................................................8
Display Screen Instructions..................................................................................................10
PRELIMINARY CHECKS.............................................................................................................15
Position & Placement for Installation....................................................................................15
Floor Protection.................................................................................................................... 16
Surrounding Environment..................................................................................................... 16
Grounding.............................................................................................................................16
Installation Method ..............................................................................................................16
Moving the Massage Chair ...................................................................................................18
Connecting to Power ............................................................................................................18
Commissioning .....................................................................................................................19
Before Sitting in the Chair......................................................................................................19
After Use ...............................................................................................................................19
CARE AND MAINTENANCE ..................................................................................................20
TROUBLESHOOTING ...........................................................................................................22
TECHNICAL SPECIFICATIONS..............................................................................................22
CONTENTS

www.tmgindustrial.com 2/22 Toll Free:1-877-761-2819
Read all instructions before using (this appliance).
DANGER - To reduce the risk of electric shock:
1) Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, fire, electric shock, or injury to persons:
1) An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting
on or taking off parts.
2) Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
3) Close supervision is necessary when this appliance is used by, on, or near children, invalids, or disabled persons.
4) Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by
the manufacturer.
5) Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the appliance to a service center for examination and repair.
6) Do not carry this appliance by supply cord or use cord as a handle.
7) Keep the cord away from heated surfaces.
8) Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
9) Never drop or insert any object into any opening.
10) Do not use outdoors.
11) Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
12) To disconnect, turn all controls to the off position, then remove plug from outlet.
13) Do not use massager in close proximity to loose clothing or jewelry.
14) Keep long hair away from massager while in use.
15) Use heated surfaces carefully. May cause serious burns, Do not use over insensitive skin areas or in the presence of
poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous..
SAVE THESE INSTRUCTIONS
For use household only
IMPORTANT SAFETY INSTRUCTIONS

www.tmgindustrial.com 3/22 Toll Free:1-877-761-2819
SAFETY PRECAUTIONS
Before using, please read the SAFETY PRECAUTIONS carefully to ensure correct operation of this appliance.Precau-
tions and warnings listed below will help to ensure proper operation of this appliance.
The classes of accidents caused by incorrect use are classified into WARNING and CAUTION. Read all
WARNINGS AND CAUTIONS BELOW AND FOLLOW ALL INSTRUCTIONS WITHIN THIS MANUAL.
WARNING
Improper operation may cause injury to users.
CAUTION
Improper operation may cause injury to users or damage to product.
NOT SUITABLE FOR BELOW PERSONS
We recommend that those with any of the following conditions should consult yourphysician before using.
WARNING
Those with pacemaker or electronic devices implanted in the body.
Those undergoing treatment, especially those who are not feeling well.
Those with malignant tumors, acute disease, heart disease or severe hypertension.
Need to be supervised.
Women who are pregnant or menstruating.
Those with osteoporosis, distorted joints, dysfunction or recent fracture.
Those with serious or injured skin conditions.
Those with high fever.
The appliance has a heated surface. Persons insensitive to heat must be careful when using the
appliance.（Need to be supervised）
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved.
CONTROLLER PRECAUTIONS
CAUTION
Do not operate the controller with wet hands or pull the controller wire by force.
Do not spill water or other liquid into the controller to avoid fault.
Do not lay heavy items on the controller.
CAUTIONS REGARDING THE POWER CONNECTORS AND POWER CORD
CAUTION
The appliance is only to be used with the power supply unit provided with the appliance.
It must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
Do not use a wet hand to unplug the AC cord to avoid electric shock.
Do not pull on the power cord, reach to the front end to unplug it.
Do not squeeze the power cord by heavy objects.
Do not damage, over bend, pull hard or twist the power cord.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
Prohibited
NO Disassemble
SAFETY PRECAUTIONS

www.tmgindustrial.com 4/22 Toll Free:1-877-761-2819
BEST CIRCUMSTANCES
CAUTION
Do not use this appliance where temperature is over 40℃.
Do not use this appliance in moist or dusty environment.
Unplug from outlet during thunder or lightening storms.
Do not use outdoors.
Please place the product on the flat level floor.
Do not store near heat or open flame.
BEST PRACTICES FOR SAFE USER
CAUTION
Only for users weighs below 120kg.
Do not use other therapeutic device together with this product.
Use this product only for its intended use as described in this manual.
Appliance should only be used by one person, do not use by two or more persons at the same time to
avoid damage to the products.
Do not use the product right after meal, it may cause discomfort.
Remove the accessories from the arms and empty the pockets while use the massage services.
Check the upholstery under the cushions and other spots, if any damages are present, do not use it
and refer to a qualified service professional for servicing.
If you feel any abnormal discomfort during the operation of this product, turn off the power
immediately and do not use the product.
Use the appliance for 20 minutes each time is highly recommended.
Make sure there is no obstacles behind the chair and there is enough clearance before adjusting the
backrest or footrest angle
Make sure no other excessive load pressed on the backrest or footrest, keep children, pets or any
other barrier away from the unit reclining backrest/extending footrest to prevent any accidental injury.
Please be seated properly while using the appliance to avoid injury to the user or damage to the
appliance.
Do not drag or push the chair or roll on its casters on wood floor or carpet to avoid damage
PROHIBITED
Never operate this product if it has damaged /exposed parts or power leakage. Do not stand on or
stack heavy objects on the footrest.
Children should be supervised to ensure that they do not play with the massage chair. Do not fall into
sleep while the product is operating.
Avoid using the product under the influence of alcohol.
Do not put hands or foreign objects in the openings of the appliance to avoid injury to the user or
damage to the appliance.
If there is any smoke or unusual smell during operation, stop using immediately.
NO
DISASSEMBLE
Do not disassemble this product to avoid failure.
Do not attempt to repair or dismantle the appliance without permission.
Please contact authorized dealer or service agent.
UNPLUG
POWER CORD
Pull out the power cord from the power strips before maintenance.
Never plug in or pull out power cord with wet hand to avoid shock or injury. Pull out the power cord
from the power strips after use.
Unplug from outlet when the power supply is cut.
SAFETY PRECAUTIONS

www.tmgindustrial.com 5/22 Toll Free:1-877-761-2819
EXTERNAL STRUCTURE
INTERNAL STRUCTURE
NAME AND FUNCTION OF EACH COMPONENT
Speaker
Head pillow
Back cushion
Massage mechanism
Legrest unit
Seat cushion
Headpiece
Armrest
Power box
Caster
Shoulder massage airbags
Arm massage airbags
Leg heat
Leg massage airbags
Foot massage airbags
Foot roller
Waist heat
Controller plug connector

www.tmgindustrial.com 6/22 Toll Free:1-877-761-2819
POWER BOX
NAME AND FUNCTION OF EACH COMPONENT
Children should be supervised to ensure that they do not play with the chair or touch the power box.
Always unplug the massage chair from the electrical outlet immediately after use.
Unplug from outlet during thunder or lightening storms.
Turn off the power switch and unplug the massage chair from the electrical outlet while not in use to
avoid children power on the massage chair accidentally.
When not in use for a long period of time, we recommend that the chair be covered, the power cord
be coiled and that the unit be placed in an environment free of dust and moisture.
Power switch
Fuse
Wall outlet
CAUTION

www.tmgindustrial.com 7/22 Toll Free:1-877-761-2819
CONTROLLER
NAME AND FUNCTION OF EACH COMPONENT
Display screen
Power on/off
Menu
Up
Left
Confirm
Back up
Heat On
Heat off
Back down
Zero Gravity position 2
Zero Gravity position 1
Down
Right
Auto programs
Manual programs
Shoulder position
adjustment

www.tmgindustrial.com 8/22 Toll Free:1-877-761-2819
CONTROLLER INSTRUCTIONS

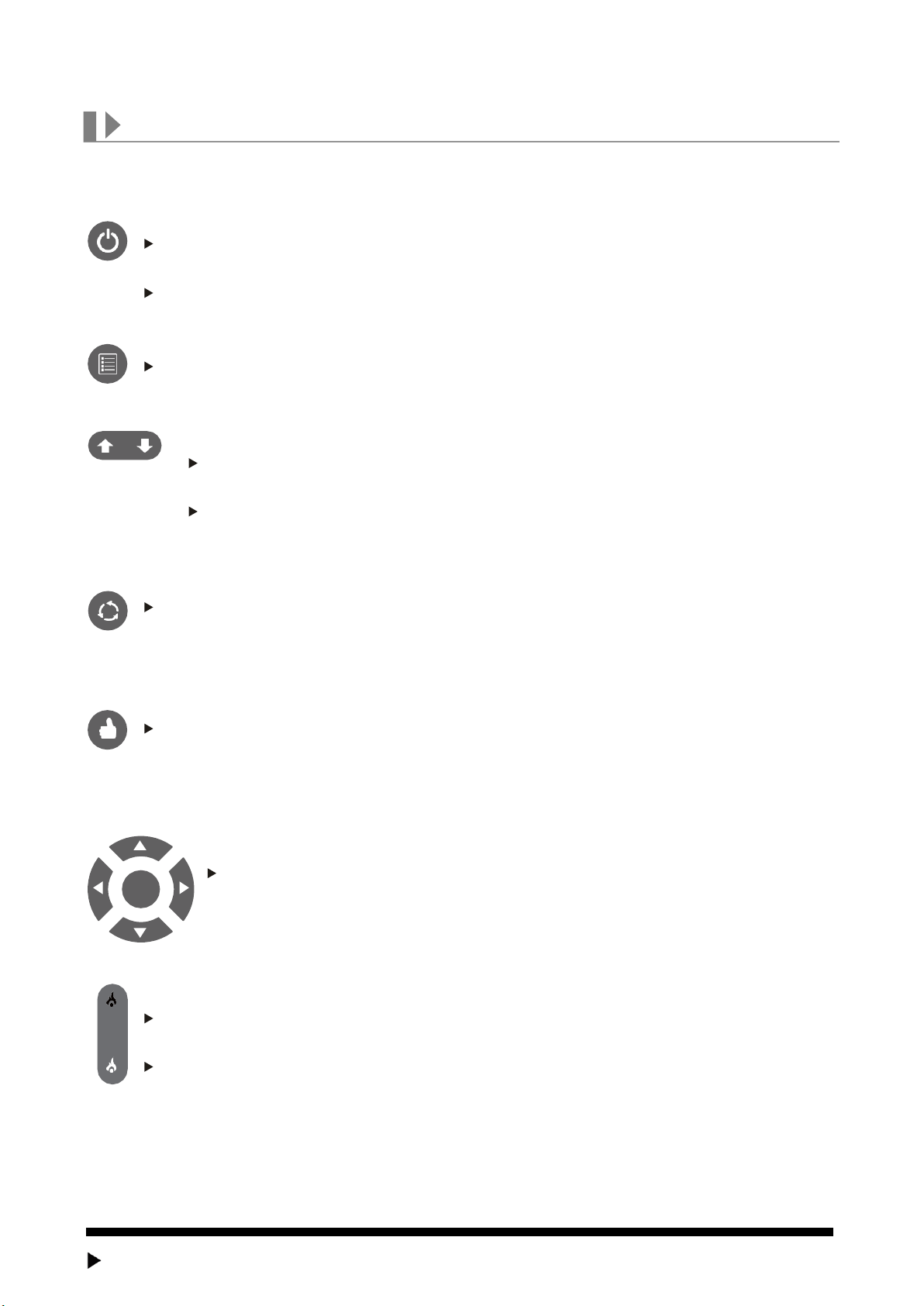

POWER ON/OFF PRESS THIS BUTTON TO POWER ON/OFF THE CONTROLLER.
Press this button while connected to power to show the menu display, the LCDScreen is lit, use the
UP/DOWN/LEFT/RIGHT buttons to navigate the screen, press OK to select.
Press this button again to turn off the product.
MENU

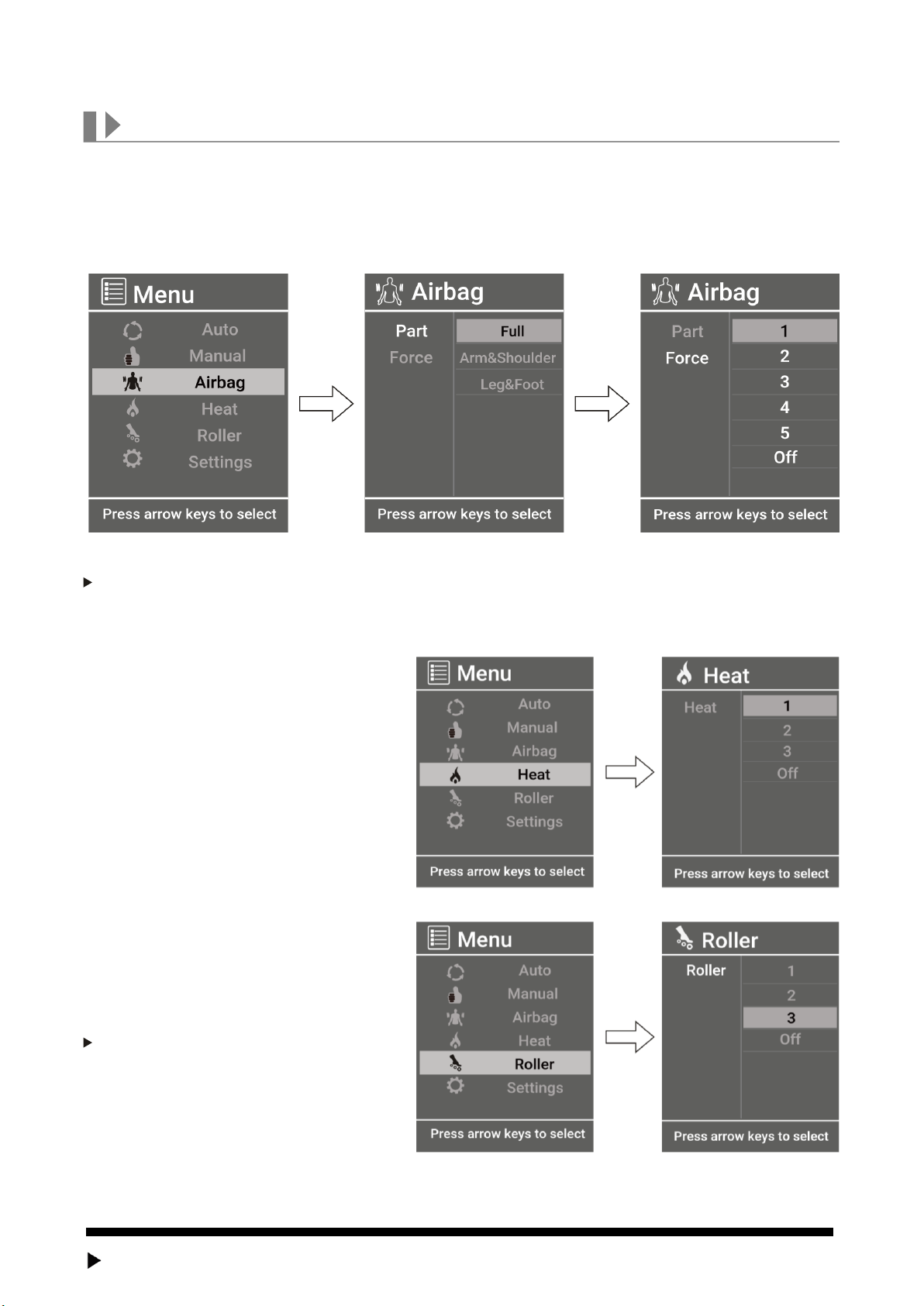

Display the Auto Program, Manual Program, Airbag, Heat, Roller and Settings function.
(Check the Display Menu for detailed information)
SHOULDER POSITION ADJUSTMENT BUTTON(MOVES MECHANISM UP AND DOWN)
Press and hold Position UP/DOWN ADJUST button to adjust the rollers to the desired position while
in Manual-Point massage mode.
While body scanning is working, use these two buttons to slightly adjust mechanism up/down
the shoulder.
AUTO PROGRAM BUTTON

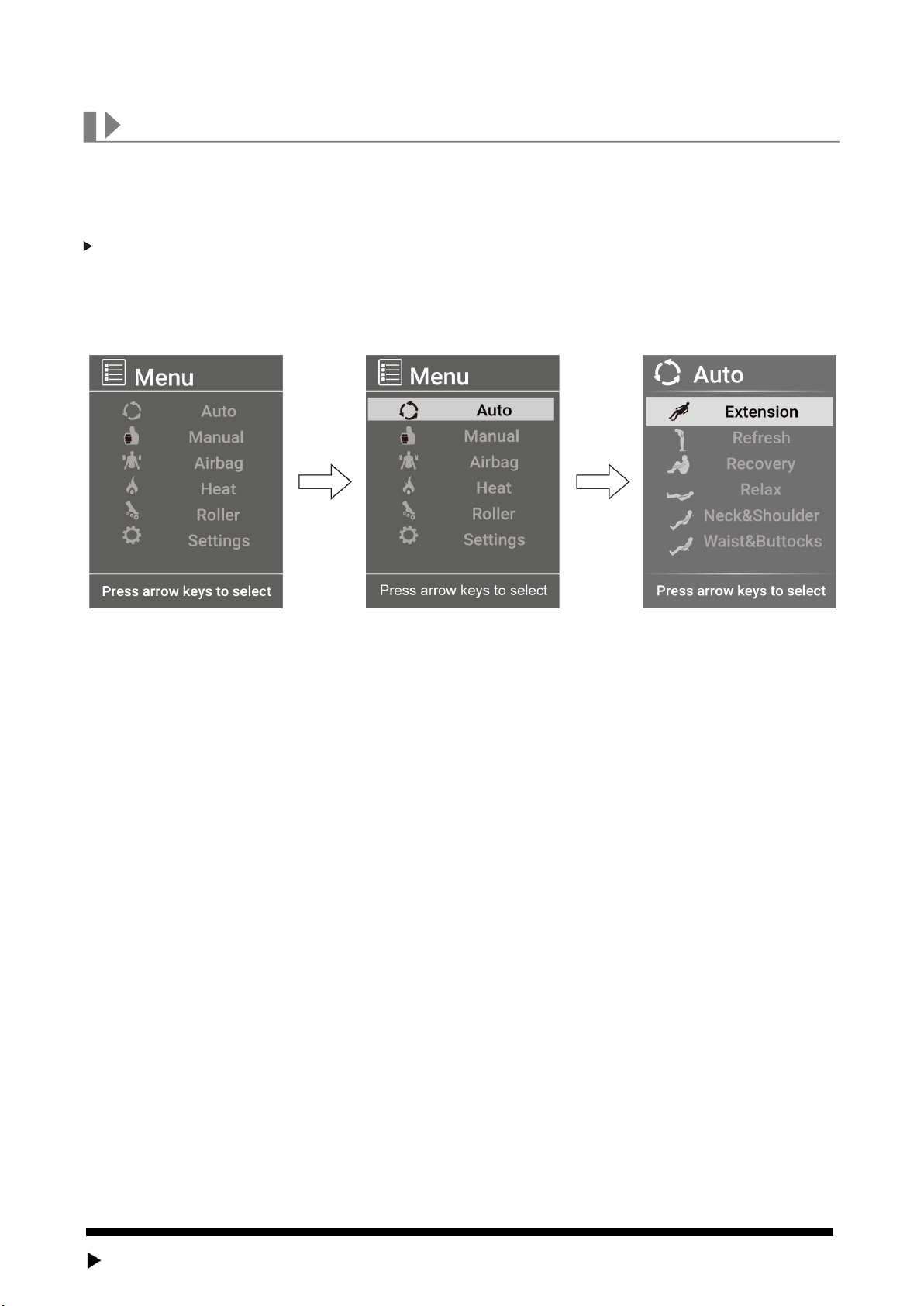

Press to start the pre-set auto massage programs. You can choose Extension, Re-fresh, Recovery, Relax,
Neck&Shoulder, Waist&Buttocks massage programs according to your liking.
(Check the Display Menu for detailed information).
MANUAL PROGRAM BUTTON
Display the manual mode menu, press UP or DOWN button to navigate among: Kneading, Knocking,
Tapping, Shiatsu and Sync massage techniques.
(Check the Display Menu for detailed information)
NAVIGATION BUTTON
Use the UP/DOWN/LEFT/RIGHT arrow buttons to navigate the screen,
press OK to select.
HEAT ON
Press to turn on heat, the heat icon will be lit on display screen;
Press again to turn off heat, the heat icon will go dark on display screen;
NAME AND FUNCTION OF EACH COMPONENT
OK

www.tmgindustrial.com 9/22 Toll Free:1-877-761-2819
BACK UP
Press and hold to raise the backrest, release the button to stop.
BACK DOWN
Press and hold to lower the backrest, release the button to stop.
ZERO GRAVITY POSITION 1
Press Zero Gravity Position 1 to put the chair in Zero Gravity Position
1. press again to close the Zero Gravity Position 1; The Zero 1 icon will be lit on display screen accordingly.
ZERO GRAVITY POSITION 2
Press Zero Gravity Position 2 to put the chair in Zero Gravity Position
2. press again to close the Zero Gravity Position 2; The Zero 2 icon will be lit on display screen accordingly.
NAME AND FUNCTION OF EACH COMPONENT

www.tmgindustrial.com 10/22 Toll Free:1-877-761-2819
DISPLAY SCREEN INSTRUCTIONS
AUTO MASSAGE PROGRAM
Press to display the Auto Program menu, press this button to toggle among 6 Auto Programs:
EXTENSION,REFRESH,RECOVERY,RELAX,NECK & SHOULDER and WAIST & BUTTOCKS. The active program displays
at the top of the statusscreen.(Check below Menu display photo for reference)
EXTENSION
Designed for people who experience body stiffness and muscle tension. It helps to relieve the body stiffness and
improve your body flexibility.
REFRESH
Focusing on tight and sore muscles, it helps to relieve waist, back and neck pain.
RECOVERY
Recovery: Designed for after work recovery, it helps to release the fatigue and speed recovery.
RELAX
This massage program is designed for morning or midday relaxing, it helps to de-stress, clear mind and increase
productivity.
NECK & SHOULDER
Designed to help to ease the pain and stiffness in neck and shoulders, combined with curvature design of the backrest,
this program targets the rollers at the deep tissue of neck and shoulders.
WAIST & BUTTOCKS
To relieve the pain of the lower back, this massage mainly focuses on the lumbar vertebra and the rollers will conduct
targeted massage to relieve tension in this area.
NAME AND FUNCTION OF EACH COMPONENT

www.tmgindustrial.com 11/22 Toll Free:1-877-761-2819

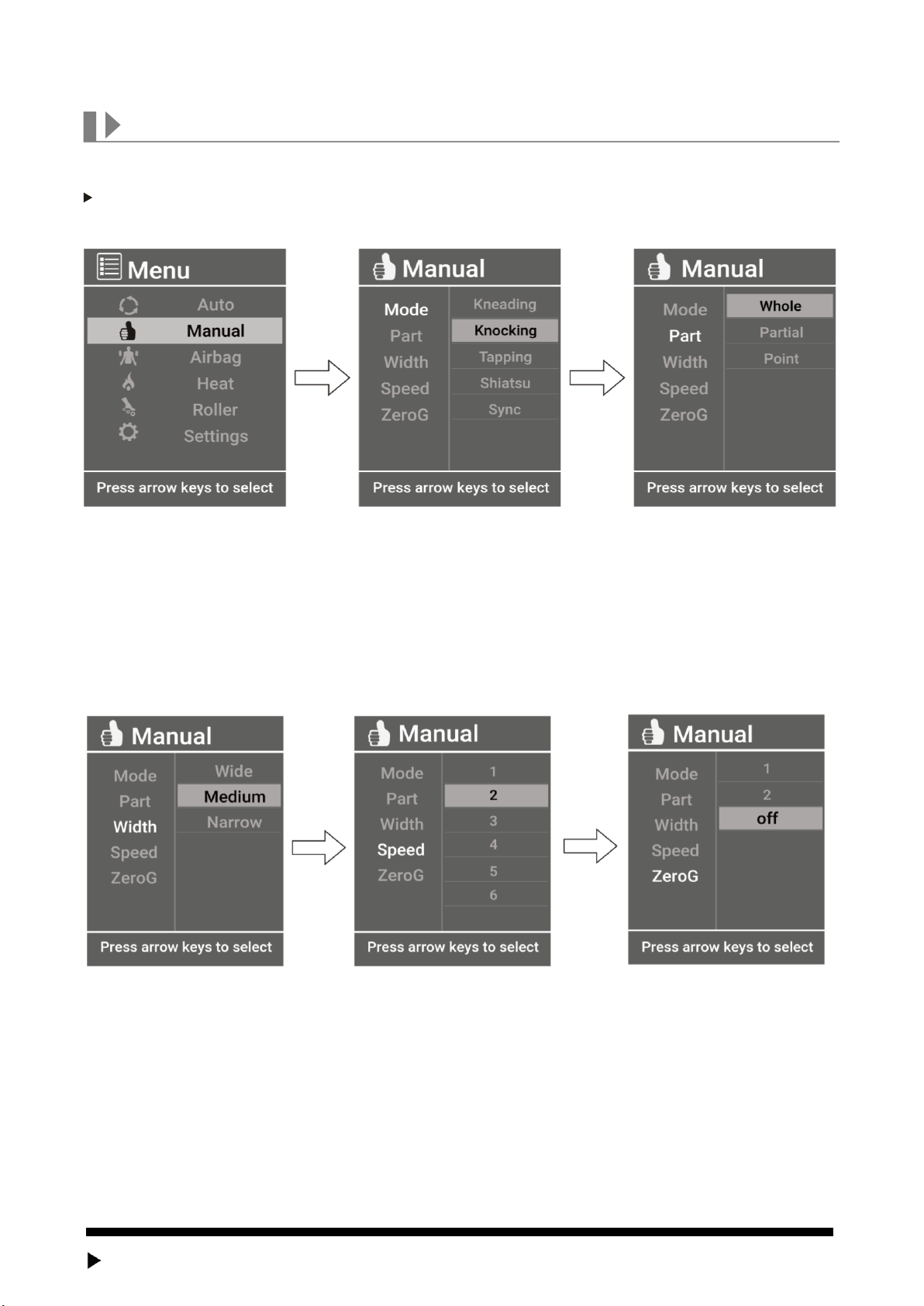

MANUAL PROGRAM
Press MANUAL from MENU display, press UP or DOWN button to navigate among:-MODE,PART,WIDTH,SPEED
and ZERO GRAVITY.
MASSAGE MODE:
Press MODE from MANUAL display, press RIGHT button then press UP or DOWN button to navigate among: Kneading,
Knocking, Tapping, Shiatsu and Sync massage techniques. Press OK button to enter the setting you desire. Selected
mode will show on the home screen.
Back Mechanism Massage Part: Press PART from MANUAL display, press Right button then press Up or Down button
to navigate among: Whole, Partial and Point massage regions. Press OK button to enter the setting you desire.
BACK MECHANISM MASSAGE WIDTH:
Press WIDTH from MANUAL display, press RIGHT button then press UP or DOWNbutton to navigate among: Wide,
Medium and Narrow mechanism roller width. Press OK button to enter the setting you desire. Selected width will show on
the home screen.(Not adjustable in manual mode-kneading/sync)
MECHANISM MASSAGE SPEED:
Press SPEED from MANUAL display, press RIGHT button then press UP or DOWNbutton to navigate among: level 1,2,3,
4,5,6 Mechanism massage speed. Press OK button to enter the speed levelyou desire.(Not adjustable in Shiatsu mode)
NAME AND FUNCTION OF EACH COMPONENT

www.tmgindustrial.com 12/22 Toll Free:1-877-761-2819
ZERO GRAVITY POSITION
Press ZERO GRAVITY from MANUAL display, press RIGHT button then press UP or DOWN button to navigate among
position1,2 or OFF (deactivate Zero Gravity).
Press OK button to enter the setting you desire.
AIRBAGS
Airbag: Press AIRBAG from MENU display to show the Airbag display, press RIRHT button then press UP or DOWN
button to navigate between: Part-Air pressure region and Force-Air pressure intensity, Press OK button to enter
the setting you desire.
PART-AIR PRESSURE REGION
Press PART from AIRBAG display, press
RIGHT button then press UP or DOWN button
to navigate among: Full, Arm & Shoulder,
Leg & Foot positions. Press OK button to enter
the airbag position you desire.
FORCE-AIR PRESSURE INTENSITY
Press FORCE from AIRBAG display, press
RIGHT button then press UP or DOWN button
to navigate among:1,2,3,4,5 air pressure intensity,
or Off (deactivate the airbag function).press OK
button to enter the airbag setting you desire.
HEAT
Press HEAT from MENU display, press
RIGHT thenpress UP or DOWN button to navigate
among: heat level 1,2,3 or OFF(turn off heat ).
Press OK button to enter the heat setting you
desire.
NAME AND FUNCTION OF EACH COMPONENT

www.tmgindustrial.com 13/22 Toll Free:1-877-761-2819
FOOT ROLLER
Press ROLLER from MENU display, press RIGHT button then press UP or DOWN button to navigate among: foot roller
speed：level 1,2,3 or OFF (deactivate foot roller) .
Press OK button to enter the speed level you desire.
SETTINGS
Press SETTINGS from MENU display, then press UP or DOWN button to navigate
among: TIME, LANGUAGE, BLUETOOTH and POWER SAVE.
TIME
Press TIME from SETTINGS to show available timer: 10mins,20mins,30mins.press
RIGHT button then press UP or DOWN button to navigate, press OK button to enter
the timer you desire.
LANGUAGE
Press LANGUAGE from SETTINGS to show available language: 中文, EN.
press RIGHT button then press UP or DOWN button to navigate, press OK button to
enter the language you desire.
BLUETOOTH
Press BLUETOOTH from SETTINGS display, press RIGHT then press UP or DOWN
button to turn On/Off Bluetooth,-Press OK button to enter the setting you desire.
POWER SAVE
Press POWER SAVE from SETTINGS display, press RIGHT then press UP or DOWN
button to turn On/Off Power Save mode, Press OK button to enter the setting you
desire.(In Power Save/Off mode, Bluetooth function is not available)
Please deactivate Power Save mode to turn on Bluetooth.
NAME AND FUNCTION OF EACH COMPONENT

www.tmgindustrial.com 14/22 Toll Free:1-877-761-2819
TIPS:
In the process of Auto or Manual Setting, LCD screen will auto revert back to the homescreen after 10 seconds if there is
no operation entered into the controller.
NAME AND FUNCTION OF EACH COMPONENT
Homescreen display with the
Manual program running
Homescreen display with the
Auto program running
TIPS
While appliance is running, press twice MENU button to revert to homescreen.
At the homescreen display, press LEFT or RIGHT button to adjust the airbag intensity(works in the process
of both Auto and Manual program);press UP or DOWN button to adjust the massage intensity(only works
in the process of Manual program)
Press Auto button to select auto massage programs.
Do not disassemble this product yourself to avoid product damage. Make sure no water or other liquid
enters into the controller to avoid fault.
Do not pinch or squeeze the controller or power cord.
CAUTION

www.tmgindustrial.com 15/22 Toll Free:1-877-761-2819
POSITION & PLACEMENT FOR INSTALLATION

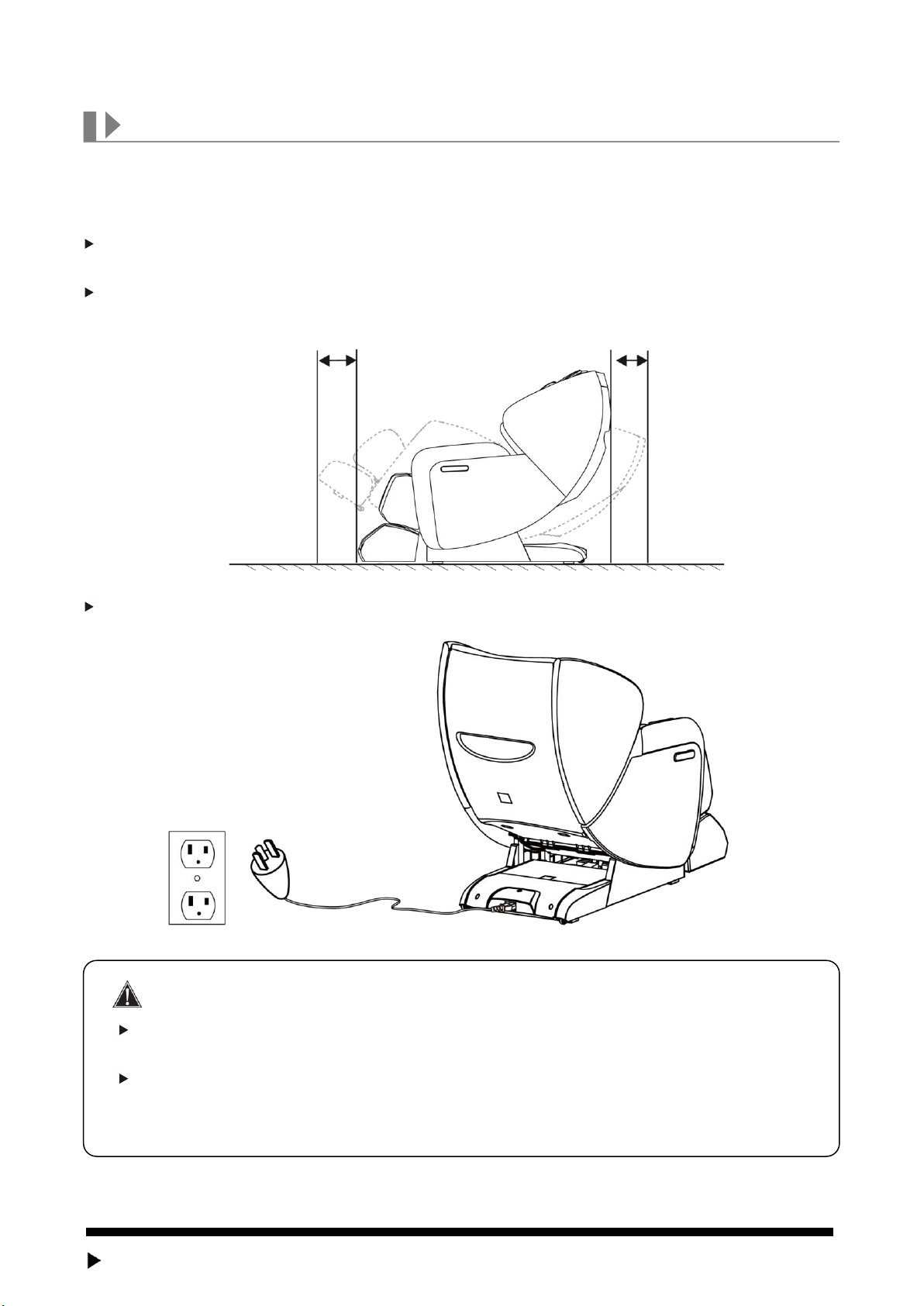

CLEARANCE SPACE FOR THE MASSAGE CHAIR:
Ensure there is an adequate clearance for the installation: It needs 15 cm clearance for the reclining of the backrest;
It needs 20 cm clearance space for the extension of footrest and sliding forward of the chair.
Keep it 1 meter away from the TV, radio or other audio/video appliance to avoid signal interference.
Keep the distance between the power socket and power switch within 1.5 meter.
PRELIMINARY CHECKS
20cm
15cm
Keep the distance between the power socket and power switch within 1.5 meter to avoid damage of power
cord while massage chair sliding forward.
Straighten the power cord while in use to avoid tangle or damage.
When the massage chair sliding forwards or back, please check to make sure there are no children, pets
or other obstacles around to avoid accident.
CAUTION

www.tmgindustrial.com 16/22 Toll Free:1-877-761-2819
FLOOR PROTECTION
We recommend to place a piece of carpet or soft mat underneath it to avoid damaging the floor.
SURROUNDING ENVIRONMENT
Do not use the massage chair in high moisture environment such as near swimming pool or bathroom to prevent electric
shock accident.
Please keep the massage chair away from heated surfaces to prevent fire hazard or damage to the product.
GROUNDING
This product must be grounded, the plug must be plugged into an appropriate 3-wire grounded outlet that is properly
installed and grounded in accordance with all local codes and ordinances to reduce risk of electrical shock.
PRELIMINARY CHECKS
INSTALLATION METHOD
STEP 1, TAKE ALL MASSAGE CHAIR UNITS OUT OF THE CARTONS
Unpack the cartons and take out all sewing and other accessories out of the cartons. Before beginning installation,
please verify that all components are included(check with the packing list carefully)
PRELIMINARY CHECKS
Massage Chair
Floor
Carpet

www.tmgindustrial.com 17/22 Toll Free:1-877-761-2819
Controller
STEP 2, INSTALL THE CONTROLLER
Connect the controller cable to the massage chair’s plug connector (line up the pins with the port before connection).
Connect the power cable to the product power connector port.
PRELIMINARY CHECKS

www.tmgindustrial.com 18/22 Toll Free:1-877-761-2819

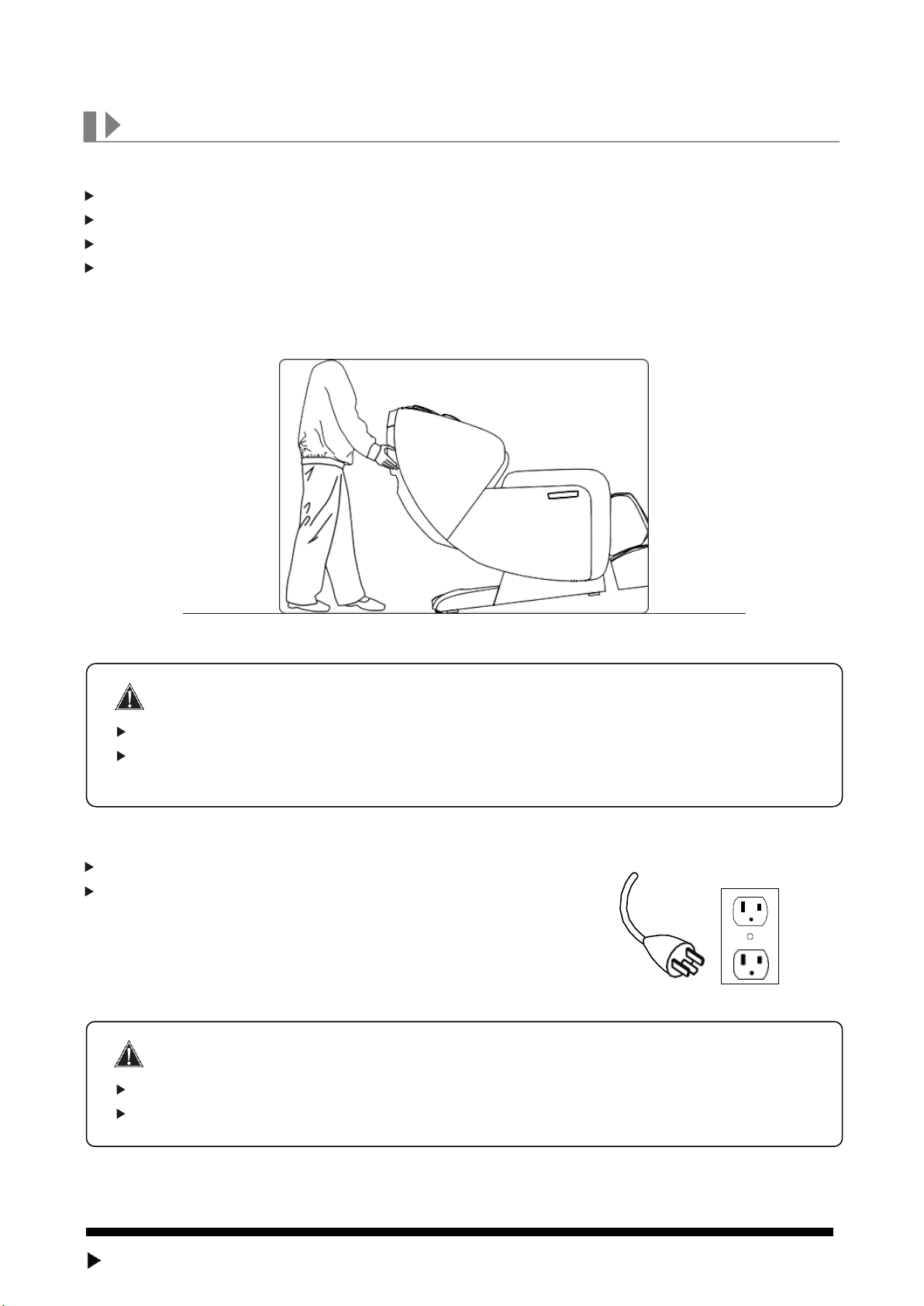

MOVING THE MASSAGE CHAIR
Roll the chair on its casters to the desired location.
Incline the backrest to upright position.
Turn off the power switch and unplug the appliance from the electrical outlet.
Using two people, push down on the backrest and lift up on the front side by grabbing
the moving Holder located to the front bottom of the armrest),roll the chair on its
casters to the desired location(check the sketch for reference).
CONNECTING TO POWER
Connect this appliance to a 3-wire properly grounded outlet.
Turn on the main power switch by the right hand side of the massage chair.
PRELIMINARY CHECKS
Do not move the chair when there is user inside.
To carry this product, do not lift by the footrest or armrest, hold the chassis and steady the backrest(have 4
or more people to carry the product).
CAUTION
Please verify that there is no damage to the supply cord before switching on the massage chair.
Please verify that the main power switch is turned off before connecting to power.
CAUTION

www.tmgindustrial.com 19/22 Toll Free:1-877-761-2819
COMMISSIONING

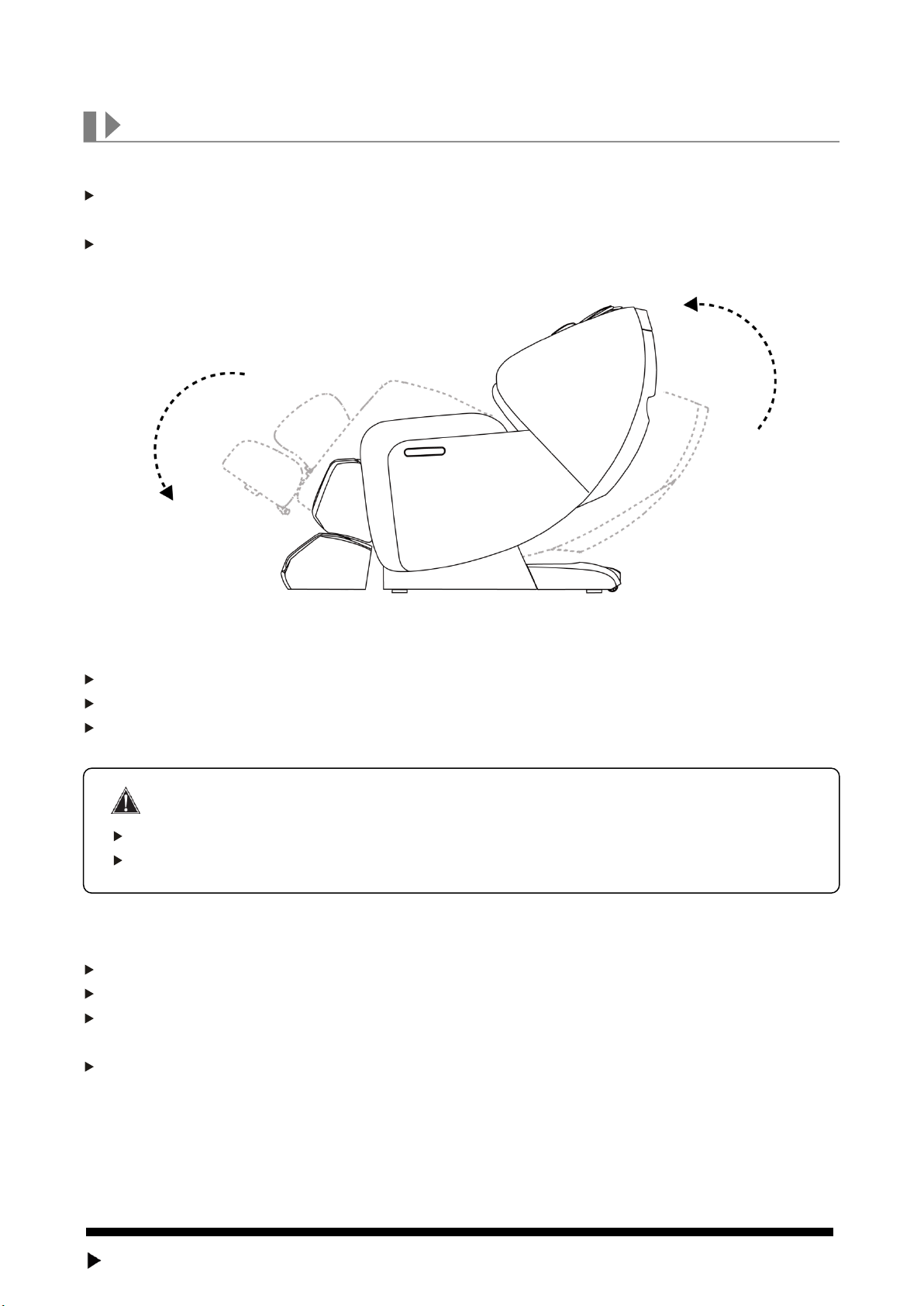

Use the controller to recline the backrest to its lowest position, raise and extend the footrest to its top position,
make sure there is enough clearance before commissioning.
Return the backrest and footrest back to its default position after commissioning and turn off the power switch.
To choose the massage program, please check the Instructions of Control Panel and Instructions of Touchscreen
Controller for reference.
BEFORE SITTING IN THE CHAIR
Ensure the footrest is well assembled before sitting on the massage chair.
Ensure the massage chair is returned to its original position before sitting on it.
If there is any part not in default position, please turn off the massage chair to allow it to restore.
AFTER USE
Always unplug the massage chair from the electrical outlet immediately after use.
Put the Touchscreen Controller onto the holder.
Turn off the power switch and unplug the massage chair from the electrical outlet while not in use to avoid
children power on the massage chair accidentally.
When not in use for a long period of time, we recommend that the chair be covered, the power cord be coiled and
that the unit be placed in an environment free of dust and moisture.
PRELIMINARY CHECKS
Do not take seat while the legrest is lifted.
Do not put excessive load on the legrest to avoid damage.
CAUTION
