Toa TTT-710 User manual

Please keep this instruction manual close at hand of the persons who are in charge of
the operation of this product.
Before operating this product, please read this instruction manual carefully for its
correct handling.
TURN TABLE
MODEL TTT-710
No. TTT-LB16403E

Model: TTT-710 Introduction
- 1 -
Introduction
(a)Thank you for your purchase of our product. The Model TTT-710 TURN TABLE (hereinafter
called the instrument or the product) is the product used in combination with our desktop analytical
instruments to perform continuous automatic multi-specimen measurements.
(b)This product can be used by combining it with the following DKK-TOA analytical instruments:
•pH meter························ Model HM-30R, Model HM-50G, Model HM-60G, Model HM-42X
•Conductivity meter············Model CM-30R, Model CM-40G, Model CM-60G, Model CM-42X
•Multi water quality meter ····Model MM-60R, Model MM-43X
•Automatic titrator ············· Model AUT-701, Model AUT-501
•Acidity titrator ················· Model TA-70
•Salt titrator ····················· Model TS-70
•Potentiometric titrator ········ Model TP-70
•Automatic burette ············· Model ABT-511
(c)Since important items are described in “Safety Information”, read the contents carefully. In
addition, this instruction manual will be needed in case of trouble or if users have questions in the
future. After reading this manual, store it carefully.

Model: TTT-710 Safety Information
- 2 -
Safety Information
(1) Meaning of markings
The signal terminology and symbols related to warnings in the instruction manual are defined
below. The alert symbol mark ( : General caution mark) indicates the possibility of hazard or
damage and also means “Refer to the instruction manual.”
:
Indicates the degree of hazard which can lead to death or serious injury if you fail to operate the
product properly.
Serious injury means an injury such as loss of sight, burns (high temperature or low temperature),
electric shock, bone fracture and poisoning, and the aftereffects of the injury remains or the injury
requires hospitalization or long periods of outpatient treatment.
:
Indicates the degree of hazard/loss which can result in injury or property damage if you fail to operate
the product properly.
Injury means an injury not requiring hospitalization or long periods of outpatient treatment and refers
to burns or electric shock. Property damage refers to widespread damage to the home, household
goods and livestock, pets, equipment, materials, etc. (damage to other than the product itself).
【IMPORTANT】Indicates important matters other than and . They are the
matters such as preventing damage to the product main body, preventing data
destruction, preventing wasting time, maintaining performance, and observing
regulations.
〔NOTE〕 Indicates comments, reasons, background information, a case example and other
items to help the reader understand the meaning.
＞＞ Indicates reference items.
①, ②, ③Indicates item numbers such as the ones used in operations.
(2) Safety compliance items
Explosion and fire
Do not install, use, or store the product in an area where explosive gas or flammable
gas exists or where it may be exposed to water and chemicals. They may enter the
product and cause an explosion or fire.
Do not place the product in a fire or burn it. Doing so may cause an explosion or fire
inside the product.
Do not place containers containing fluid in the empty space for installation. The fluid
may enter the product and cause an explosion or fire.

Model: TTT-710 Safety Information
- 3 -
Electric Shock
Always verify that the power is off before connecting or disconnecting the power cord
plug and external connection connectors. In addition, do not connect or disconnect
them with wet hands. Water or reagent entering the product may short the circuits
and cause electric shock or fire.
Do not operate the product with wet hands. It may cause electric shock or fire.
The product main body must be grounded. If a problem occurs in the power supply
system, an electric shock may result.
Hazardous substances
When using the liquid chemical pump to clean the electrodes by chemical, procure
the Safety Data Sheet (SDS) for the reagent to be handled from the vendor and
handle the reagents safely in accordance with the description.
Injury
Do not touch the arm section during measurement. During the cleaning operation,
the arm moves and there is the danger of pinching your fingers or getting injured.
Disassembly and Modification
Do not disassemble or modify the sections of the product that are not described in
the instruction manual. The product can be damaged.
Caution Label Lost
If any caution label affixed to this product becomes too difficult to read or lost, please
order a new one through your local sales agent or our sales office and affix it to its
original position.
(3) Notes on use of the instruction manual
Important items such as “Safety compliance items” are described in this manual. Handle the manual
as follows:
(a)The instruction manual is required not only at the start of operation but also required when
maintenance is performed or in case a failure occurs. Please keep the manual at hand all the time so
that the operator who actually operates the product can read the manual at any time.
(b)If the manual is lost or too smeared to read, please order a new copy through your local sales agent
or directly from our sales office.
(c)Some of the diagrams used in the manual or on product labels may be modified with part of their
shapes or displays omitted or they may be described in abstract form. In addition, numbers etc.
shown on the screen example are just examples for such cases.
(d)The contents of the manual may be changed without prior notice for reasons such as to improve
performance.
(e)Intellectual property right of the manual belongs to DKK-TOA. All or part of the manual must not
be reproduced without permission.

Model: TTT-710 Warranty
- 4 -
Warranty
(1) Warranty Coverage
DKK-TOA Corporation (DKK-TOA) warrants its products against defective material or workmanship for the
warranty period.
(a) The warranty period is one year from the date of delivery to the original user.
(b) Specific written agreements with DKK-TOA, if any, shall take precedence over this warranty.
(c) The limitation of warranty described herein may not apply where applicable laws do not allow such limitation.
(2) Limited Warranty
This warranty does not cover the cases listed below.
(a) Direct or indirect failure or damage caused by the use of the product for a purpose or in a manner not prescribed by
the specifications or the instruction manual for the product.
(b) Direct or indirect failure or damage caused by force majeure, including but not limited to an act of God, natural
disaster such as earthquake, storm and flood damage, and lightning, fire, accident, abnormal voltage, salt damage,
gas damage, labor unrest, acts of war (declared or undeclared), terrorism, .civil strife, or acts of any governmental
jurisdiction.
(c) Failure or damage caused by any repair or modification not authorized by DKK-TOA.
(d) Failure or damage caused by the transport, moving, or dropping of the product after the purchase that is not
attributable to DKK-TOA.
(e) Electrodes and consumables (The warranty period for each part has priority when the period is shorter than that for
the main unit of the product. If the customer requires any part after more than six months from the date of
manufacture, consult DKK-TOA or its distributor.)
(f) Failure or damage caused by the use of consumables, parts, or software not supplied by DKK-TOA.
(g) Malfunctions or damage caused by the use of connecting equipment not supplied by DKK-TOA.
(h) Loss of data, settings, programs, or software stored on the product not attributable to DKK-TOA.
(i) Any product other than DKK-TOA’s, if specified by the purchaser or user, that incorporates, or is incorporated into
or combined with DKK-TOA’s products (*1). In such cases, this warranty covers DKK-TOA’s products only.
(j) Any product not under proper maintenance in accordance with the instruction manual furnished by DKK-TOA.
(k) Products without a nameplate (excluding products proved to have been delivered by DKK-TOA).
EXCEPT AS EXPRESSLY SET FORTH IN THE PRECEDING SENTENCES, DKK-TOA MAKES NO
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO ANY PRODUCT. DKK-TOA EXPRESSLY
DISCLAIMS ANY WARANTY IMPLIED BY LAW, INCLUDING BUT NOT LIMITED TO ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF REMEDIES: In the event that a defect is discovered within the warranty period, DKK-TOA or its
authorized distributor will, at its option, repair or replace the defective product or its part, or will refund the purchase
price of the product. THIS IS THE EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
LIMITATION OF DAMAGES: IN NO EVENT SHALL DKK-TOA BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND FOR BREACH OF ANY WARRANTY, NEGLIGENCE, ON
THE BASIS OF STRICT LIABILITY, OR OTHERWISE.
(3) Others
(a) Product parts for maintenance (*2) will normally be supplied for five years (*3) from the date manufacturing and
sales are discontinued.
(b) The cause of any malfunction or damage shall be determined by a DKK-TOA technician.
(c) For repairs, contact a local distributor in your country or state.
*1: Warranties for products from other companies must be maintained by the user.
*2: Maintenance parts refers to parts that are required to maintain operation of the product.
*3: This five-year period is subject to availability of parts or their replacement.
P30 <1>

Model: TTT-710 Reading Guide
- 5 -
Reading Guide
Refer to the necessary sections of this instruction manual depending on your purposes such as
understanding the outline of this product or starting the product as shown below. The numbers in
circles indicate sections to be referred to in sequential order.
8. Maintenance and Inspection
9. Troubleshooting
10. Transport, Storage, Disposal
11. Parts and Option List
Purpose
Section
Start
(start-up)
Understand
the outline of
this product
Perform
respective
operations
●Introduction
●Safety information

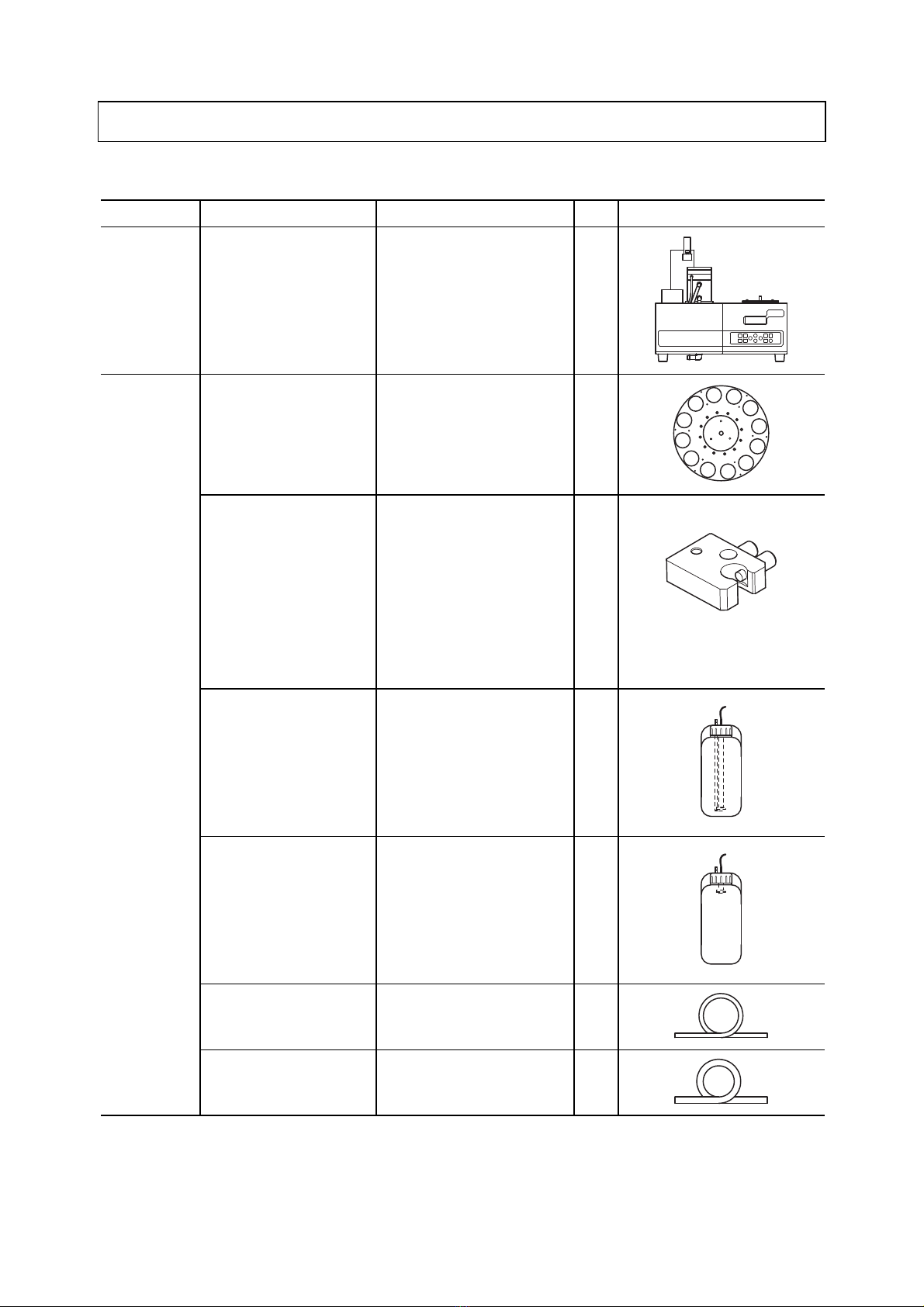

1. Content of Package
2. Specifications and Functions
3. Name and Function of Each Part
4. Preparations
5. Basic Operation
6. How to Use the Various Functions
7. RS-232C Interface

Model: TTT-710 Table of Contents
- 6 -
Table of Contents
●Introduction······················································································· 1
●Safety Information ········································································· 2
(1) Meaning of markings ⋅⋅⋅⋅ 2
(2) Safety compliance items ⋅⋅⋅⋅ 2
(3) Notes on use of the instruction manual ⋅⋅⋅⋅ 3
●Warranty ···························································································· 4
●Reading Guide ················································································ 5
1. Content of Package ··································································· 9
2. Specifications and Functions ················································ 11
(1) Specifications ⋅⋅⋅⋅ 11
(2) Functions ⋅⋅⋅⋅ 13
3. Name and Function of Each Part········································14
(1) Name of main parts ⋅⋅⋅⋅ 14
(2) Key types and functions of operation panel ⋅⋅⋅⋅ 15
4. Preparations·················································································16
4.1 Installation Preparations·····································································16
4.2 Wiring ····························································································18
(1) Power cable and ground connections ⋅⋅⋅⋅ 18
(2) Connection to analytical instruments ⋅⋅⋅⋅ 19
4.3 Piping ····························································································25
(1) Piping diagram ⋅⋅⋅⋅ 25
(2) Pure water tank connection ⋅⋅⋅⋅ 26
(3) Waste solution tank connection ⋅⋅⋅⋅ 27
4.4 Table Plate Mounting·········································································30
4.5 Mounting the electrode cartridge, electrode, and titration nozzle··················31
4.6 Optional Parts Connection ··································································35
(1) Air pump box connection ⋅⋅⋅⋅ 35
(2) Waste water valve connection ⋅⋅⋅⋅ 37
(3) Propeller stirring unit connection ⋅⋅⋅⋅ 39
(4) Reagent washing kit connection ⋅⋅⋅⋅ 40
5. Basic Operation··········································································46
5.1 Operation Screens Map ·····································································46
5.2 Basic Operation ···············································································49

Model: TTT-710 Table of Contents
- 7 -
(1) Use by connecting an automatic titrator or X Series or R Series analytical
instruments (RS-232C) ⋅⋅⋅⋅ 49
(2) Use by connecting R Series analytical instruments (OPTION2) ⋅⋅⋅⋅ 51
(3) Use by connecting acidity titrator (TA-70), salt titrator (TS-70),
or potentiometric titrator (TP-70) ⋅⋅⋅⋅ 52
(4) Use by connecting automatic burette (ABT-511) ⋅⋅⋅⋅ 54
(5) Power off ⋅⋅⋅⋅ 55
6. How to Use the Various Functions ·····································56
6.1 Manual Operation ·············································································56
(1) Arm movement and stirring operation ⋅⋅⋅⋅ 56
(2) Table plate rotation and stirring operation ⋅⋅⋅⋅ 57
(3) Stirring operation and speed adjustment ⋅⋅⋅⋅ 59
(4) Pumps and waste water valve operation and tank liquid level judgment ⋅⋅⋅⋅ 60
(5) Electrode manual washing ⋅⋅⋅⋅ 63
6.2 Various Conditions Setting··································································65
(1) Number of table specimens setting ⋅⋅⋅⋅ 65
(2) Measurement conditions setting ⋅⋅⋅⋅ 66
(3) RS-232C communication conditions setting ⋅⋅⋅⋅ 67
(4) Liquid level sensor alarm setting ⋅⋅⋅⋅ 68
(5) Display contrast setting ⋅⋅⋅⋅ 69
(6) Next specimen preparatory stirring function setting ⋅⋅⋅⋅ 69
(7) Electrode washing conditions setting ⋅⋅⋅⋅ 70
7. RS-232C Interface ····································································74
7.1 Interface Specifications ······································································74
(1) Communication conditions ⋅⋅⋅⋅ 74
(2) Connector and pin arrangement ⋅⋅⋅⋅ 74
7.2 Message Format ··············································································75
(1) Receive format (PC →Turntable) ⋅⋅⋅⋅ 75
(2) Send format (Turntable →PC) ⋅⋅⋅⋅ 83
8. Maintenance and Inspection·················································87
8.1 Product Main Body Maintenance ··························································87
8.2 Maintenance List ··············································································88
8.3 Washing Water Flow Passage Maintenance and Inspection························90
(1) Washing water flow passage inspection ⋅⋅⋅⋅ 90
(2) Washing water tube replacement ⋅⋅⋅⋅ 91
(3) Pure water pump replacement ⋅⋅⋅⋅ 92
8.4 Waste Solution Flow Passage Maintenance and Inspection························94
(1) Waste solution flow passage inspection ⋅⋅⋅⋅ 94
(2) Waste solution hose replacement ⋅⋅⋅⋅ 95
8.5 Electrode Storage Beaker Water Level Inspection ····································96
8.6 Electrode Arm Maintenance and Inspection ············································96
(1) Electrode arm up and down operation inspection ⋅⋅⋅⋅ 96

Model: TTT-710 Table of Contents
- 8 -
(2) Electrode arm position inspection and adjustment ⋅⋅⋅⋅ 96
8.7 Liquid Level Sensor Replacement ························································98
(1) Pure water tank liquid level sensor replacement ⋅⋅⋅⋅ 98
(2) Waste solution tank liquid level sensor replacement ⋅⋅⋅⋅ 99
9. Troubleshooting········································································ 101
9.1 Safety precautions when an abnormality occurred·································· 101
9.2 Abnormality by Error Display and Countermeasures ······························· 102
9.3 Other Troubles and Countermeasures ················································· 104
9.4 System Reset Method······································································ 107
10. Transport, Storage, Disposal ·············································· 108
10.1 Transport ······················································································ 108
10.2 Storage ························································································ 109
10.3 Disposal ······················································································· 110
11. Parts and Option List······························································ 111
(Last page ⋅⋅⋅⋅ 113)

Model: TTT-710 1. Content of Package
- 9 -
1. Content of Package
Packing List (Standard Accessories)
Classification Description Model Q’ty Appearance
Main Body Turntable TTT-710 1
Accessories Table plate*1 For 12 specimens 7401540U
For 18 specimens 7401550U
For 36 specimens 7401560U
For 60 specimens 7401570U
１
Electrode cartridge*2 7505010K(1CH cartridge 1(X))
7505020K(1CH cartridge 2(X))
7506840K(1CH cartridge 3(X))
6597970K (2CH cartridge 1)
7505030K(2CH cartridge 2(X))
6597940K (2CH cartridge 3)
6597980K (Multi cartridge)
6597990K (Sample suction
cartridge)
１
7505010K
(1CH cartridge 1(X))
Pure water tank (10L)
(with liquid level sensor)
−１
Waste solution tank (10L)
(with liquid level sensor)
−１
Washing water tube (3m) −１
Waste solution hose
(1.5m)
−１
(To be continued)

Model: TTT-710 1. Content of Package
- 10 -
(Continued from previous page)
Classification Description Model Q’ty Appearance
Accessories End detection pin 7401630U 1
O-ring 115A006 1
Small Hoffman pinch cock 126C049 1
Power cable −1
3P-2P adapter*3 −1
Disposable beaker
(200mL)
136C179 1
Instruction manual −
〔NOTE〕*1: When the product is purchased, any one kind of specified number of specimens table is
supplied
*2: When the product is purchased, any one kind of specified electrode cartridge is
supplied
*3: 3P-2P adapter may not be provided depending on the type of power cable.

Model: TTT-710 2. Specifications and Functions
- 11 -
2. Specifications and Functions
(1) Specifications
Product name Turntable
Model TTT-710
Display 20 digits x 4 lines, character LCD display
Number of table specimens 12, 18, 36, 60, 100 specimens (100 specimens table is optional)
Usage beaker size 12 specimens 200mL beaker, 300mL tall beaker
(Our recommended product: AGC TECHNO GLASS or HARIO glass beaker)
18 specimens 100mL tall beaker
(Our recommended product: AGC TECHNO GLASS or HARIO glass beaker)
36 specimens 30mL beaker, 50mL tall beaker
(Our recommended product: AGC TECHNO GLASS glass beaker)
60 specimens 20mL dedicated beaker (NICHIDENRIKA GLASS Model H-20)
100 specimens 20mL dedicated beaker (NICHIDENRIKA GLASS Model H-20)
Stirring method Standard: Magnetic stirrer method
When options connected: Propeller stirring method
External control input/output
RS-232C (control for Automatic titrator AUT-701/AUT-501, X Series
HM-42X/CM-42X/MM-43X, R Series HM-30R/CM-30R/MM-60R,
dedicated titrator TA-70/TS-70/TP-70)
OPTION 2 (R Series, G Series) control input/output
Automatic burette (ABT-511) / Flow analysis reference unit (FAR-201A)
control input/output
External control box control input/output
Air pump box control output
Liquid level sensor signal input (washing water 1, waste solution)
Power output for propeller stirring unit
Washing method
Standard: Pure water shower washing
When options attached: Pure water bubbling washing (air pump box (with
bubbling) when waste water valve attached)
Liquid chemical shower washing (when external
signal box, reagent pump, reagent washing reservoir
attached)
Liquid chemical bubbling washing (when external
signal box, reagent pump, reagent washing reservoir,
air pump box (with bubbling), waste water valve
attached)
Pure water soak washing (when waste water valve
attached)
Liquid chemical soak washing (when external signal
box, reagent pump, reagent washing reservoir, waste
water valve attached)
Air blow (when air pump box attached)
Washing sequences 8 kinds and user washing
Washing time 0 to 9999 seconds for all washing modes
Number of air blows 1 to 9 times
Number of repetitive measurements 1 to 9 times
Measurement end detection Detected by end detection pin or end table No. setting

Model: TTT-710 2. Specifications and Functions
- 12 -
Tank liquid level alarm
Washing water 1 (pure water) empty
Waste solution full
Washing water 2 (reagent) empty (when optional liquid level sensor
connected)
Power source 100 to 240VAC 50/60Hz
Fuse F4AH 250V (1 pc)
Power
consumption
Standard Max Approx. 60VA (when 100VAC used)
Max Approx. 90VA (when 240VAC used)
When options
connected
Max Approx. 100VA (when 100VAC used)
Max Approx. 130VA (when 240VAC used)
Main body
dimensions
Dimensions when
table plate not
mounted
Approx. 440 (W) ×409 (H) × 391(D) mm
Dimensions when
table plate mounted
Approx. 566 (W) ×409 (H) × 507(D) mm
Max dimensions
when operating
Approx. 566 (W) ×534 (H) × 507(D) mm
Main body weight Approx. 16kg (when table plate not mounted)
Approx. 18kg (when table plate mounted)
Performance guaranteed temperature
& humidity range
5 to 40 ºC 20 to 85%RH (No condensation)

Model: TTT-710 2. Specifications and Functions
- 13 -
(2) Functions
Manual operation •Arm movement (up/down and left/right)
•Table rotation (movement to next specimen No., movement to specified No.
movement to home position)
•Stirring operation (ON/OFF and speed adjustment)
•Pump (pure water pump, air pump, reagent pump) and waste water valve
open/close operation
•Tank liquid level judgment (pure water tank, reagent tank, waste solution
tank)
•Washing sequence (pure water shower, pure water bubbling, reagent shower,
reagent bubbling, pure water soak, reagent soak, air blow)
•Electrode washing by washing mode
Conditions setting •Measurement start table No. (1 to number of specimens of each table plate)
•Measurement end table No. (1 to number of specimens of each table plate
and endless)
•Number of repetitive measurement (1 to 9 times)
•Stirring time before measurement (0 to 9999 seconds)
•Wait time before measurement (0 to 9999 seconds)
•End buzzer time (0 to 9999 seconds)
RS-232C interface Standard equipment
Communication conditions
Baud rate (Selected from among 300, 600, 1200, 2400, 4800, and 9600bps)
Data length (Selected from 7 and 8Bit)
Parity (Selected from NONE, ODD, EVEN)
Stop bit (Selected from 1 and 2Bit)
Liquid level sensor Enable/disable settable
Display Adjustable contrast
Next specimen preparatory stirring Enable/disable settable (Enable for only next specimen stirring specifications)

Model: TTT-710 3. Name and Function of Each Part
- 14 -
3. Name and Function of Each Part
(1) Name of main parts
Electrode cartridge
Pure water pump
Waste solution outlet 2
Electrode storage beaker
Washing reservoir
Operation panel
<Front side>
Display
Piping cover
Overflow port
Pure water supply port
Waste solution outlet 1
Waste water valve attaching port
Washing water tube
(for washing reservoir)
Washing water tube (for pump)
Waste solution hose
(for outlet 2)
Waste solution hose
(for overflow port)
Waste solution hose (for outlet 1)
<Left side>
Power switch
(｜: power ON ○: power OFF)
Electrode arm
<Top side>
Table plate
End detection pin
<Back side>
RS-232C connection connector
(RS-232C) Air pump box connection connector
(TO AIR PUMP)
Liquid level sensor connection connector
(for pure water)
(LEVEL ALARM RINSE 1)
Power inlet (with fuse)
(～100-240V 130VA FUSE F4AH250V)
Liquid level sensor connection connector
(for waste solution)
(LEVEL ALARM DRAIN)
R/G Series connection connector
(EXT. SIG. OPTION2)
External signal box connection
connector
(EXT. SIG. BOX)
ABT/FAR connection connector
(EXT. SIG. FAR-201A/ABT-511)
Upper stirring unit connection connector
(TO STIRR.)
Name of Main Parts

Model: TTT-710 3. Name and Function of Each Part
- 15 -
(2) Key types and functions of operation panel
Operation Panel
Key Types and Functions of Operation Panel
No. Type of key
(Notation in text) Functions
①START/STOP key
( START/STOP )
•Performs continuous measurement start or force-quit during
measurement.
(Other than RS-232C communication)
②ARM key
( ARM ）
•Switches to the arm manual operation screen.
③TABLE key
( TABLE )
•Switches to the table manual operation screen.
④WA S H k e y
( WASH )
•Switches to the washing conditions setup and manual washing
operation screen.
⑤SIGNAL key
( SIGNAL )
•Switches to each operation signal confirmation screen.
⑥STIRRER key
( STIRRER )
•Starts or ends manual stirring operation.
⑦SET key
( SET )
•Switches to the setup screen of each measurement condition.
⑧ENTER key
( ENTER )
•Enters each condition set value.
•Performs manual washing or each operation signal confirmation.
⑨Up and down keys
( )
•Changes values (increment/decrement) and switches the setting item
selection.
•Performs arm up/down operation during manual operation.
⑩Left and right keys
( )
•Switches the setting item selection.
•Performs arm left and right operation during manual operation, table
rotation operation, and stirring speed adjustment.

Model: TTT-710 4.1 Installation Preparations
- 16 -
4. Preparations
4.1 Installation Preparations
Install the product main body at a flat place.
Provide an empty space of the following dimensions as installation space for the product main body
and the analytical instruments to be connected.
•When using with X Series analytical instruments ⋅⋅⋅⋅ 896 (W) × 584 (H) × 557 (D) mm
•When using with R Series analytical instruments ⋅⋅⋅⋅ 918 (W) × 584 (H) × 557 (D) mm
•When using with G Series analytical instruments ⋅⋅⋅⋅ 948 (W) × 584 (H) × 557 (D) mm
•When using with Automatic Titrator AUT-701 (including Titration Burette ABT-7 1 unit)
⋅⋅⋅⋅ 1076 (W) × 584 (H) × 557 (D) mm
•When using with Automatic Titrator AUT-501 (including Titration Burette ABT-511 1 unit)
⋅⋅⋅⋅ 1126 (W) × 584 (H) × 557 (D) mm
•When using with dedicated Titrator TA-70, TS-70, or TP-70
⋅⋅⋅⋅ 876 (W) × 584 (H) × 557 (D) mm
•When using with Automatic Burette ABT-511 ⋅⋅⋅⋅ 886 (W) × 584 (H) × 557 (D) mm
Also provide an empty space of 100mm (10cm) or more between the product main body left side and
the analytical instrument or a wall to turn on or off the power easily.

Model: TTT-710 4.1 Installation Preparations
- 17 -
918
Provide an empty space of 100mm or more.
Example of Installation Combined with R Series Analytical Instruments

Model: TTT-710 4.2 Wiring
- 18 -
4.2 Wiring
(1) Power cable and ground connections
Never use a power cable and 3P-2P adapter other than the accessories.
(a)Confirm that the power switch on the left-hand side of the product main body is off (OFF) and
connect the product side plug of the accessory power cable to the power inlet on the back side of
the main body. Connect the plug at the other end of the power cable to an AC power outlet.
Power Cable and Ground Connections
(b)When the power plug cannot be connected to 3-pin outlet, connect the accessory 3P-2P adapter to
the power cable and connect it to an AC power outlet. Also connect the 3P-2P adapter ground wire
to a ground line. (When accessory 3P-2P adapter is provided)
AC power
outlet
3P-2P adapter
Power cable
Product side plug
<Back side>
Product
main body
Power inlet
Ground wire Ground line
Power Cable and Ground Connections
(When power plug cannot be connected to 3-pin outlet)

Model: TTT-710 4.2 Wiring
- 19 -
(2) Connection to analytical instruments
The analytical instruments that can be used with the product main body are listed in the table below.
Refer to (a) to (i) and connect the cable corresponding to the analytical instruments to be used.
Connectable Analytical Instruments and Cable Connection Method
Connectable analytical instruments,
etc. Cable connection method (reference item)
X Series analytical instruments
(HM-42X, CM-42X, MM-43X)
＞＞ 4.2(2) (a) “Connection to X Series analytical instruments
(HM-42X, others)”
R Series analytical instruments
(HM-30R, CM-30R, MM-60R)
＞＞ 4.2(2) (b) “Connection to R Series analytical instruments
(HM-30R, others) (RS-232C connection)”
＞＞ 4.2(2) (c) “Connection to R Series analytical instruments
(HM-30R, others) (OPTION2 connection)”
G Series analytical instruments
(HM-50G, HM-60G, CM-40G, CM-60G,
IM-55G, WM-50EG)
＞＞ 4.2(2) (d) “Connection to G Series analytical instruments
(HM-50G, others)”
Automatic titrator (AUT-701) ＞＞ 4.2(2) (e) “Connection to automatic titrator (AUT-701)”
Automatic titrator (AUT-501) ＞＞ 4.2(2) (f) “Connection to automatic titrator (AUT-501)”
Acidity titrator (TA-70) ＞＞ 4.2(2) (g) “Connection to dedicated titrator (TA-70, others)”
Salt titrator (TS-70)
Potentiometric titrator (TP-70)
Automatic burette (ABT-511) ＞＞ 4.2(2) (h) “Connection to automatic burette (ABT-511)”
Flow analysis reference unit
(FAR-201A)
＞＞ 4.2(2) (i) “Connection to flow analysis reference unit
(FAR-201A)”
Personal computer (PC) ＞＞ 4.2(2) (j) “Connection to personal computer (PC)”
(a) Connection to X Series analytical instruments (HM-42X, others)
Connect the RS-232C connection connector of product main body and the RS-232C connection
connector of X Series analytical instruments (HM-42X, others) using the turntable connection
RS-232C cable (optional).
RS-232C connection connector
(RS-232C) X Series analytical instruments
(HM-42X, CM-42X, MM-43X)
<Left side>
<Back side>
Product main body
Turntable connection RS232C cable
(Part code No.: 7433040K)
RS-232C connection
connector
(EXT.I/O)
Connecting to X Series Analytical Instruments (HM-42X, others)
