Toastmaster TECC 4224 Owner's manual

Toastmaster ®PAGE 13
ELECTRIC COUNTERTOP CHARBROILER
Middleby Philippines Corporation
113 Technology Ave., Laguna Technopark Inc., Binan, Laguna, Philippines 4024
Phone [phone] - Fax [phone] - www.middleby.com
~

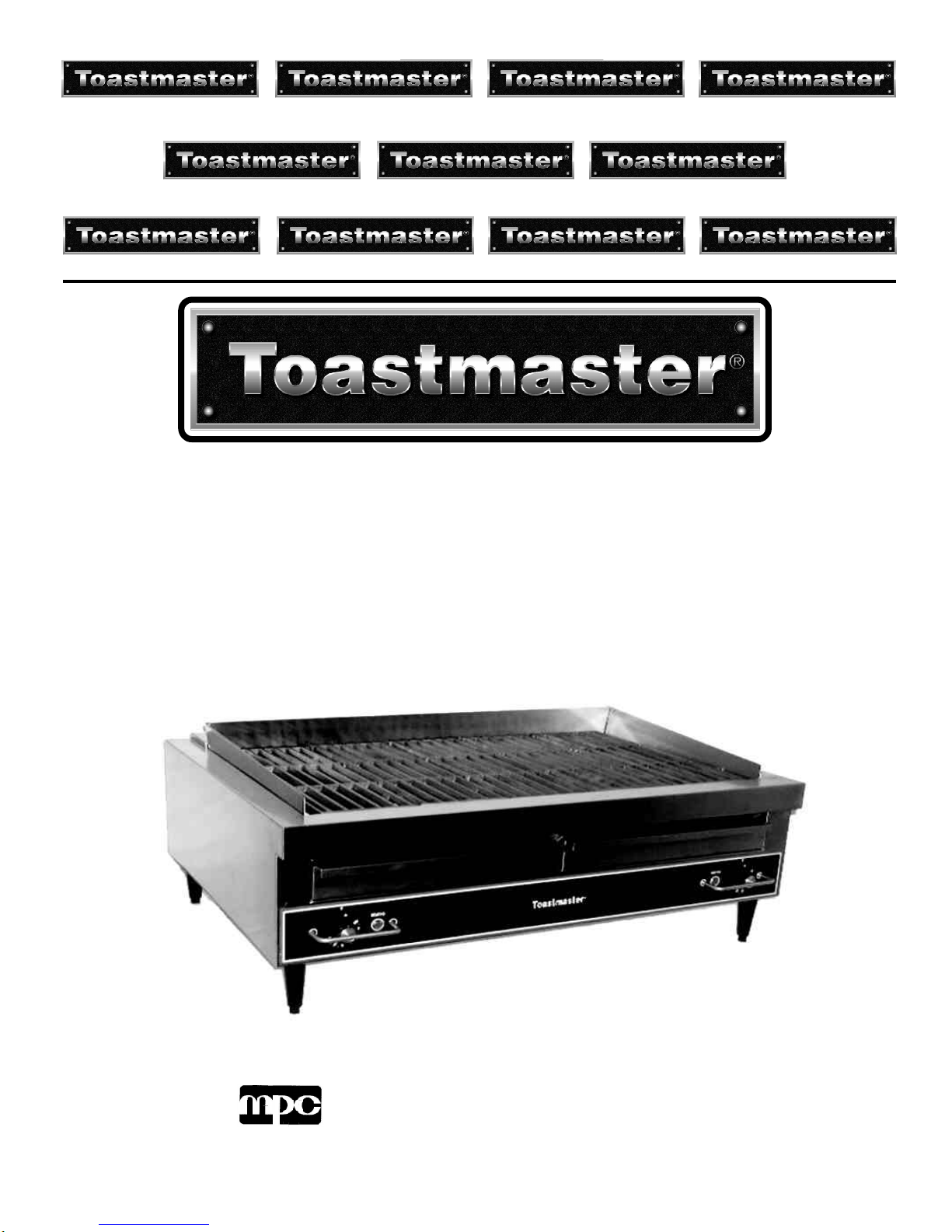

ELECTRIC COUNTERTOP
CHARBROILERS
TECC 4224 / TECC 4236
Free-Standing, Floor Model
INSTALLATION - OPERATION - MAINTENANCE
MANUAL TECC105-TECC4224-4236
MODEL TECC4236

Toastmaster ®PAGE 11
ELECTRIC COUNTERTOP CHARBROILER
SAFETY PRECAUTIONS
Before installing and operating this equipment, be sure everyone involved in its operation is fully trained
and aware of precautions. Accidents and problems can be caused by failure to follow fundamental
rules and precautions.
The following symbols, found throughout this manual, alert you to potentially dangerous conditions to
the operator, service personnel, or to the equipment.
This symbol warns of immediate hazards that will result in serve injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in
injury or death.
This symbol refers to a potential hazard or unsafe practice that could result in
injury, product damage, or property damage.
This symbol refers to information that needs special attention or must be fully
understood, even though not dangerous.
DANGER
WARNING
CAUTION
NOTICE
WARNING
FIRE HAZARD
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
Keep area around appliances free and clear of combustibles.
Purchaser of equipment must post in a prominent location, detailed instructions to be followed in
the event the operator smells gas. Obtain the instructions from the local gas supplier.
WARNING
Asphyxiation can result from improper ventilation. Do not obstruct the flow of combustion and
ventilation air to and from your cooking equipment.
NOTICE
Be sure this Operator’s Manual and important papers are given to the proper authority to retain
for future reference.

Toastmaster ®PAGE 1
ELECTRIC COUNTERTOP CHARBROILER
Congratulations! You have purchased one of the finest pieces of commercial cooking equipment on the
market.
You will find that your new equipment, like all Toastmaster equipment, has been designed and manufactured to
meet the toughest standards in the industry. Each piece of toastmaster equipment is carefully engineered and
designs are verified through laboratory tests and field installations. With proper care and field maintenance you
will experience years of reliable, trouble-free operation. For best results, read this manual carefully.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Read these instructions carefully before attempting installation. Installation and initial startup should be per-
formed by a qualified installer. Unless the installation instructions for this product are followed by a qualified
service technician (a person experienced in and knowledgeable with the installation of commercial gas an/or
electric cooking equipment) then the terms and conditions on the Manufacturer’s Limited Warranty will be ren-
dered void and no warranty of any kind shall apply.
In the event you have questions concerning the installation, use, care, or service of the product, write to:
MIDDLEBY COOKING SYSTEM
113 TechnologyAve., Laguna Technopark, Binan
Laguna, Philippines, 4024 * Tel. Nos. [phone] to 79 Fax No.: [phone]
~
Table of Contents
Installation ................................................................................................................................. 2
Operation.................................................................................................................................. 3-5
Service....................................................................................................................................... 6-7
Parts...........................................................................................................................................8-9
Drawings.................................................................................................................................... 10

Toastmaster ®
PAGE 2
ELECTRIC COUNTERTOP CHARBROILER
Installation
INSTALLATION
T-Line Char-Broilers are built in both 24" and 36" widths. These units should require limited servicing
if properly maintained by the customer.
The T-Line equipment is designed for installation as individual units, or can be installed in any number
and combination to give a customer designed appearance.
A. INSTALLATION INSTRUCTIONS
1. Models 4224 and 4236
Use the following procedure for permanent installation of the units:

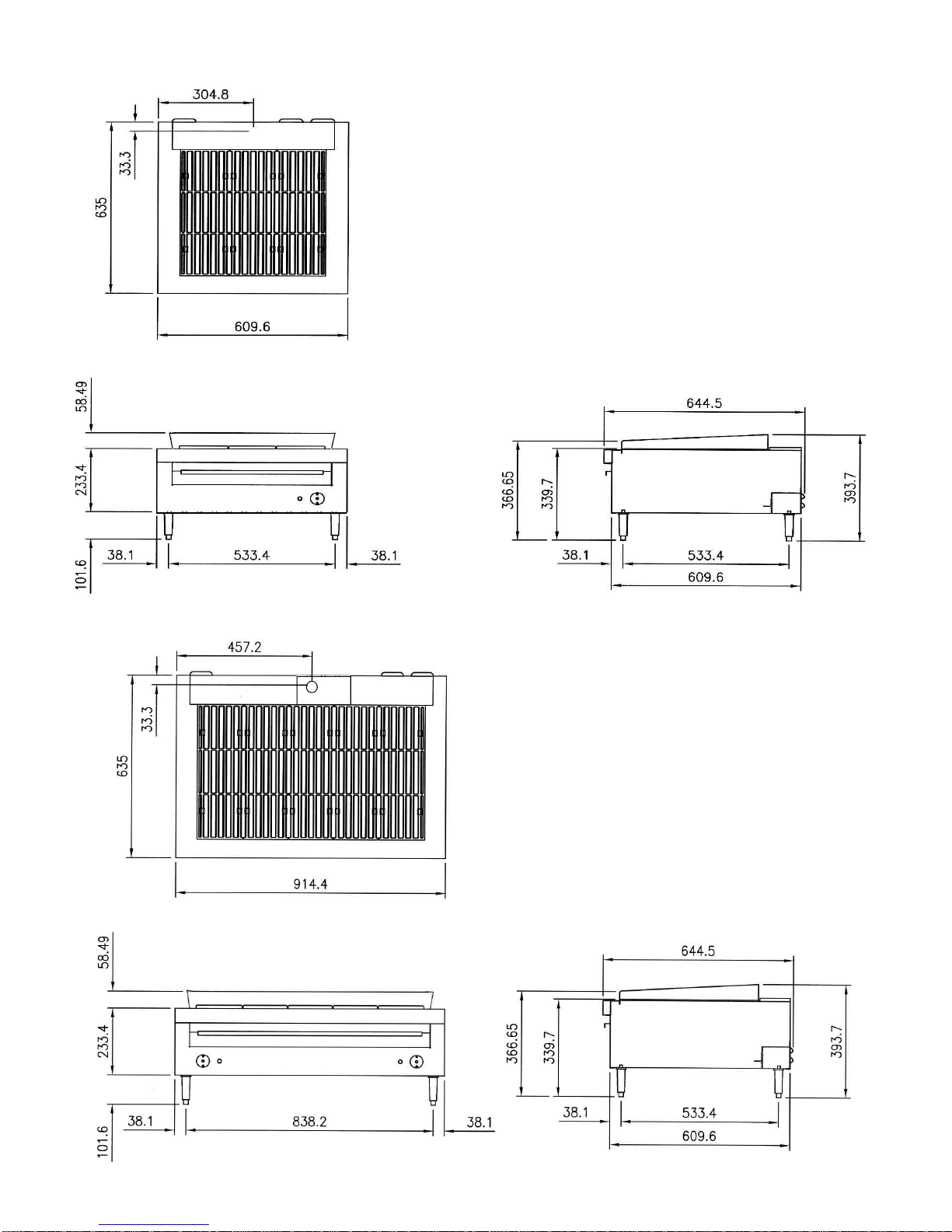

a. Refer to dimensional drawings for position of knockout (s). Refer to wiring diagram
for connecting unit to power supply.
b. This unit is not fused internally and consequently must be connected to a fused
Equipped to a suitable disconnect as may be required by the local electrical
code. Ground the unit body to a good electric ground such as water pipe or
grounded supply conduit.
c. Extend conduit (flexible or rigid) and supply lines to knockout(s) provided at the
rear of the unit. Be sure to use wire capable of carrying voltage and connected load
shown on the serial plate of the unit.
d. Connect power supply wires to terminal block provided. See dimensional drawings
for knockout locations.
e. Be sure disconnect switch is in OFF position before connecting load wires to the
fused switch box.
f. Test all connections for tightness before replacing access cover and closing the
switch box
g. Check that all thermostats are at the OFF position.
h. Place disconnect switch in ON position, energizing the unit. Set thermostats to 300 F
Let a few drops of water fall on each section to
assure it’s operating.
i. The unit is now ready for operation.

Toastmaster ®PAGE 3
ELECTRIC COUNTERTOP CHARBROILER OPERATION
OPERATION
B. OPERATION INFORMATION
Although specifications, engineering planning and manufacturing facilities have provided for safety and trouble-
freeoperation,onlyproperoperationandmaintenance will assure personnelsafetyand long life oftheequipment.
1. The following is a list of precautions for operators of this equipment:
a. Keep the exterior body and area around the equipment clean of splashed grease and other foreign
matter.
b. Turn all controls to the OFF position when equipment is not in use.
c. DO NOT leave equipment in operation without an attendant.
d. Schedule periodic inspection of the electrical system.
e. THIS IS HIGH VOLTAGE EQUIPMENT, DO NOT ATTEMPT TO SERVICE ELECTRICAL DEVICES
BEFORE OPENING THE MAIN DISCONNECT SWITCH.
f. Empty and clean the grease pan (s) frequently. Always maintain at least a ¼” water level in the grease
pan (s) during operation.
g. Do not raise temperature settings while food is being cooked. If a higher setting is required, wait until
food is removed and preheat to a higher temperature before reloading the broiler.
h. Do not operate the broiler at any time with parts missing. Always have the complete assembly properly
clean and in place before using.
2. The following list explains areas controlled by a thermostat.
a. Model 4224 has one thermostat, it regulates the temperature of the entire meat rack surface.
b. Model 4236 have two thermostats. The left thermostat controls the left 18" of the grid width, the right
thermostat controls the right 12" of the grid width.
c. Adjacent to each thermostat is an amber signal light indicating when the heating elements are nergized.
The signal will glow on the off during operation, indicating the desired temperature is being maintained.

Toastmaster ®
PAGE 4
ELECTRIC COUNTERTOP CHARBROILER
OPERATION
C. OPERATING INSTRUCTIONS
1. Seasoning
2. Preheating
3. Cleaning
Before using broiler for the first time, remove the rust preventive compound that
was applied at the factory on the grids by washing with hot water and soap, rinse
with clear water and wipe dry.
Locate clean grids properly on the broiler and preheat to 400 F, or medium
setting, spread a light film of unsalted cooking oil or fat over the cooking surface
with a cloth. Allow the broiler to stand this way for two minutes, wipe surface
clean, apply another film of light oil or fat and wipe off.
NOTE: Unless the product being cooked contains sufficient fat, such as bacon
or sausage, the grids must be greased before each cooking operation. Grids must
also be seasoned after each thorough cleaning.
To preheat the broiler, turn controls to maximum setting and allow to operate for 15
minutes or until signal light goes off, whichever is first. Set controls to desired
cooking temperature and proceed with broiling far to suggested cooking guide for
control setting and cooking time.
To use the accessory griddle on the broiler, following the preheating instructions above except
allow 15 additional minutes for the griddle to saturate with heat after the controls have been
reduced to griddling temperature.
It’s very important that all operating parts are kept clean for best cooking results and also for
long life of the equipment. Clean grids, drip pans and accessory griddle with hot water and
soap, rinse and wipe dry. Replace grid on broiler and re-season before storing when not used.
Clean the exterior of the broiler with hot water and soap, rinse with clear water, dry
and polish with a soft cloth. Avoid using abrasives to prevent scratching of finish. If
abrasives are necessary to remove baked on food particles, rub in the direction of
the grain to avoid scratching.

Toastmaster ®PAGE 5
ELECTRIC COUNTERTOP CHARBROILER OPERATION
FOOD
CanadianBacon
Hamburger &
Cheeseburger
Corned Beef
Patties
Sausage Patties
Sausage Links
Minute Steaks
Club Steaks
Ham Steaks
Beef Tenderloin
Boiled Ham
New York Strip
Steaks
CONTROL SETTING
400°F
550°F
550°F
550°F
550°F
550°F
700°F
600°F
600°F
550°F
700°F
TIME IN
MINUTES
2 TO 3
2 TO 4
2 TO 4
3 TO 4
3
2 TO 3
4 TO 7
6 TO 7
5 TO 7
2
5 TO 10
ADVANCE PREPARATIONS
Slice (not too far in advance as
meat will darken) Split edges to
prevent curling.
Prepare recipe, from patties
seperate w/waxed paper.
Remove from can and cut into
3/8” slices.
From patties, seperate with waxed
paper & refrigerate.
Refrigerate for best results.
COOKING GUIDE FOR TOASTMASTER CHARBROILERS

Toastmaster ®
PAGE 6
ELECTRIC COUNTERTOP CHARBROILER
SERVICE
D. SERVICE INSTRUCTIONS MODELS 4224 & 4236
1. Thermostat Calibration
Before attempting calibration of the thermostat, make sure customer hasn’t allowed a build-up of material or
carbonizationon the grids and elements. Thisfailureon the customer’s part will causeimproperheat transfer,
making it seem as though a thermostat failure exists.
In order to perform a thermostat calibration proceed as follow:
a. Place pyrometer thermocouple on cast iron grid.
b. Mold a piece of wet asbestos over thermocouple.
c. Hold thermocouple and asbestos in place with a weight.
d. Turn thermostat to 450°F.
e. Let thermocouple cycle at least twice so that temperature will stabilize.
f. Calibration thermostat, If necessary by:
1. Remove control knob.
2. Insert small thin edge screwdriver into thermostat shaft and engage the calibration screw.
3. To decrease temperature, turn screw clockwise; to increase temperature, turn screw
counterclockwise.
4. Repeat calibration procedure until a 450°F 10°F reading is obtained
5. If necessary, instruct customer in the proper care of the meat rack and element cleaning to
assure proper heat transfer.
2. Thermostat Replacement
a. Disconnect power supply.
b. Remove grease drawer.
c. Remove control knob.
d. Gain access to bottom of unit.
e. Remove bottom cover of case.
f. Mark and disconnect wire leads to thermostat.
g. Remove two screws holding thermostat to mounting cup.
h. Reverse procedure to install new thermostat.
i. Check for shorts before re-energizing unit.

Toastmaster ®PAGE 7
ELECTRIC COUNTERTOP CHARBROILER SERVICE
2. Element Replacement
a. Disconnect power supply.
b. Remove top cover from back of unit.
c. Remove thermostat bulb from support assembly and place to the side.
d. Remove thermostat bulb support assembly.
e. Remove upper back case place.
f. Mark and disconnect wires leading to elements
g. Remove insulation from around element terminals.
h. Remove nut tube adaptor assembly.
i. Remove heating unit and support frame assembly from unit by removing the screws holding
same to element support bracket assemblies.
j. Remove element retainers holding elements to support frame.
k. Remove heating unit (element).
l. Reverse procedure to reinstall new element.
m. Check for shorts before re-energizing unit.
4. Signals Light Replacement
a. Disconnect power supply.
b. Remove grease drawer.
c. Gain access to bottom of unit, and remove the bottom case cover.
d. Mark and disconnect wire leads to signal light.
e. Push signal light out through the front of the unit by depressing retain clips holding signals light
to case.
f. Reverse procedure to install new signal light.
g. Check for shorts before re-energizing unit.
5. Contactor Servicing
a. Disconnect power supply.
b. Remove grease drawer.
c. Gain access to bottom of unit.
d. Remove bottom cover of case.
e. Check contactor, if necessary, to replace Proceed as follows:
1. Mark and disconnect wire leads to contactor.
2. Remove contactor.
3. Reverse procedure to reinstall new contactor.
4. Check for short before re-energizing unit.

Toastmaster ®
PAGE 8

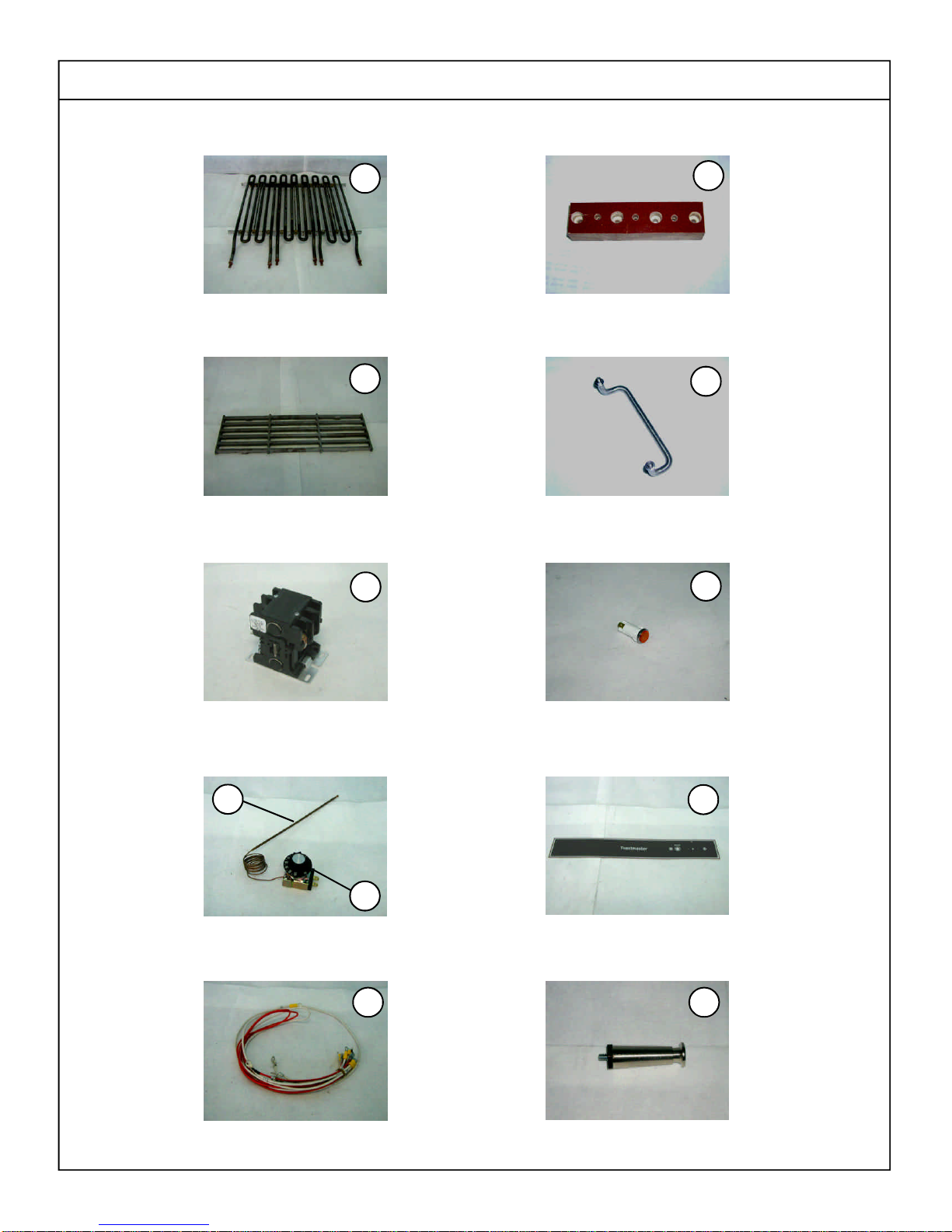

ELECTRIC COUNTERTOP CHARBROILER
PARTS LIST TECC4224 / TECC 4236
1
2
3
5
4
6
7
8
9
10
11

Toastmaster ®PAGE 9
ELECTRIC COUNTERTOP CHARBROILER
Key Part Number 24 36 Description
1T4224B8705 3 5 TUBULAR HEATER 240V 2700W
21952232 3 5 MEAT RACK C'BRLER ELECT.
3T3024A8706 1 2 CONTACTOR 3P 30A 208/240
4T3004257 1 2 THERM GRIDDLE 150-450F
5TA710E8745 1 2 KNOB TSTAT 300F/700F
61000719 1WIRE SET CB 24
1000690 1WIRE SET CB 36
71000705 1 1 BLOCK,TERM BLK-RAW
81850152 1 2 KNOB GUARD 130X68X8DIA
91000106 1 2 LIGHT PILOT 1/3 250 AMBER
10 1800196 1POLYPANEL CB 24
1800197 1POLYPANEL CB 36
11 S1172857 1 1 LEGS SET OF 4/CMS,2001
QUANTITY
PARTS LIST TECC4224 / TECC 4236

Toastmaster ®
PAGE 10
ELECTRIC COUNTERTOP CHARBROILER
MODEL TECC 4236
MODEL TECC 4224

Toastmaster ®
PAGE 12
ELECTRIC COUNTERTOP CHARBROILER
ELECTRIC COUNTERTOP CHARBROILER
MODEL TECC 4224 / TECC 4236
AproductwiththeToastmaster name incorporates the best in durability and low maintenance. We
all recognize, however, that replacement parts and occasional professional service may be neces-
sary to extend the useful life of this unit. When service is needed, contact a Toastmaster Autho-
rizedServiceAgency,or your dealer. To avoid confusion, always refer to the model number. Serial
number, and type of your unit.
113 TechnologyAve., Laguna Technopark, Binan
Laguna, Philippines, 4024 * Tel. Nos. [phone] to 79 Fax No.: [phone]
~
MANUAL TECC105-TECC4224-4236
