Application
The Toastmaster Electric
Countertop Fryers is the most
economical and flexible Electric
Countertop Fryer in the food service
industry. It offers unsurpassed
performance, combining proven
control system with Toastmaster
quality and durability. They are
designed to efficiently fry variety of
products by immersion into heated
liquefied shortening. Available in
two different sizes, 15 lbs. and 30
lbs. (twin 15 lbs.) shortening
capacity.
Standard Features
•The exterior case is made of
stainless steel, welded and
reinforced at front, sides and
top. The rear is made of
aluminized steel.
•The fryers are equipped with
immersion type stainless steel
tubular heating elements which
swing up and burn clean
pyrolytically in the raised
position.
•The elements configuration
surrounds the sides, front, back
and bottom of the shortening
container. A handle is provided
for raising and lowering the
heating elements.
•A cold zone is provided beneath
heating elements to collect
loose food particles.
•The cooking temperature is
controlled by a adjustable
thermostat from 250oF to 400oF
with a positive “OFF” setting. A
signal light cycles with the
heaters.
•The fryer includes a
temperature limiting thermostat
which functions if an
overheated condition exist. A
signal light denotes
“overheated” when the
Countertop Electric Fryer
Models TECF1427, 1439

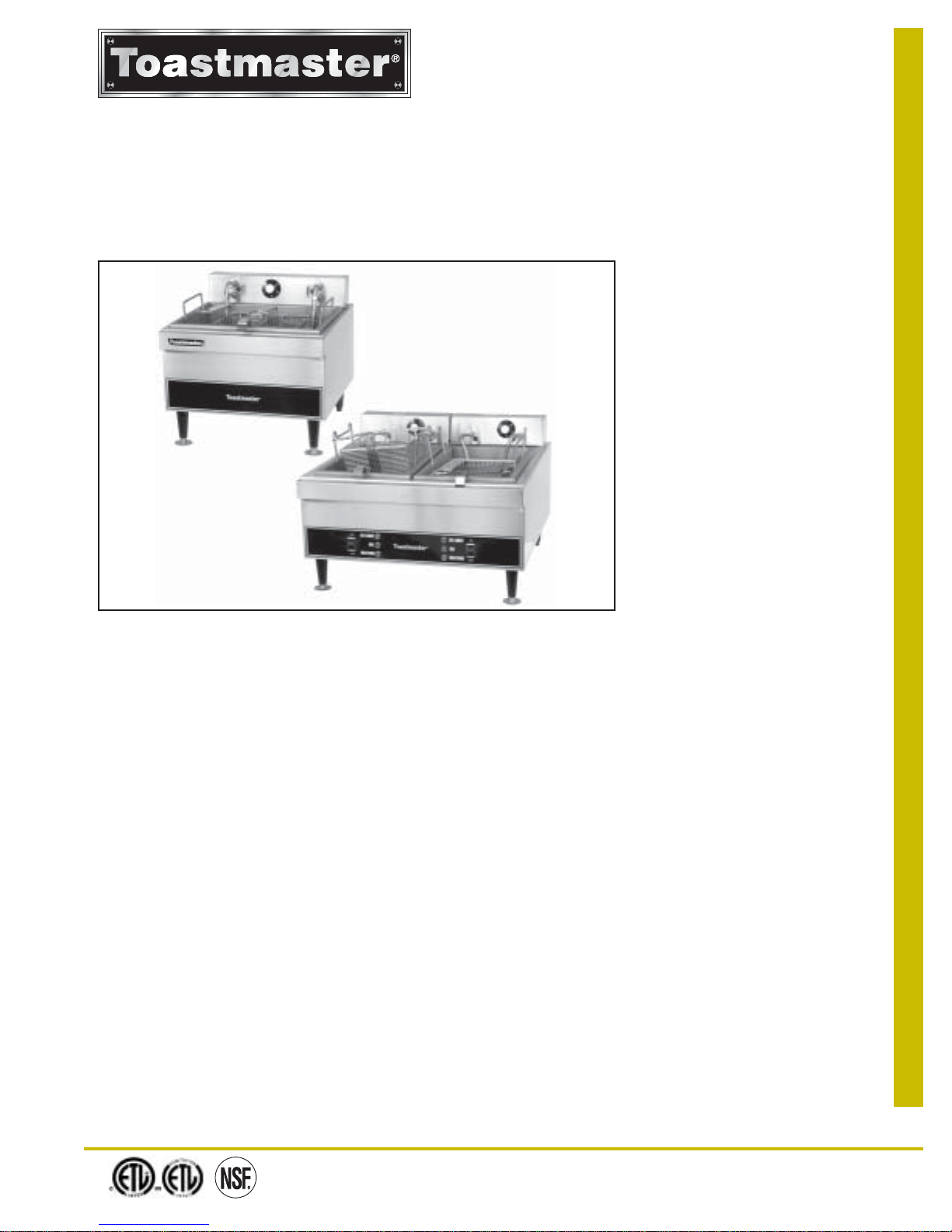

COUNTERTOP ELECTRIC FRYER - MODELS TECF1427, 1439
TECF1439
temperature limiting thermostat
has sensed an overheated
condition.
•The temperature limiting
thermostat require manual
resetting when tripped and
reset after pyrolytic cleaning.
Electrical
The 1427 has a rated input of 6 KW
at 240 volts and 4.5KW at 208V.
TECF 1439 has a rated input of
11.4 KW, 5.7 KW for each fry pot.
Available in 208/240V AC 1-phase
or 480V AC 3 phase
Heating
The fryers are equipped with
immersion type stainless steel
tubular heating elements which
swing up and burn clean
pyrolytically in the raised position.
The elements configuration
surrounds the sides, front, back and
bottom of the shortening container.
A handle is provided for raising and
lowering the heating elements.
Controls
Shortening temperature is
controlled by a thermostat from
250oF to 400oF with positive “OFF”
position.
Warranty
Product warranty includes one year
parts and labor. (USA only)
Approximate Weights
TECF1427 - 40 lbs. shipping.
TECF1439 - 95 lbs. shipping.
Cleanability
!Swing up heating element.
!Removable stainless steel tank.
TECF1427
