Tobbi TH17W0622 User manual

User Manual
www.tobbi.com

Body Seat
Stickers
Remote control
Key
Package of screws
Motor
Back empennage
1 8
9
10
11
12
13
14
2
3
4
5
6
7
MP3 line
Windshield
Steering wheel
Wheel
Wheel cap
Rear view mirrors
13
14
13

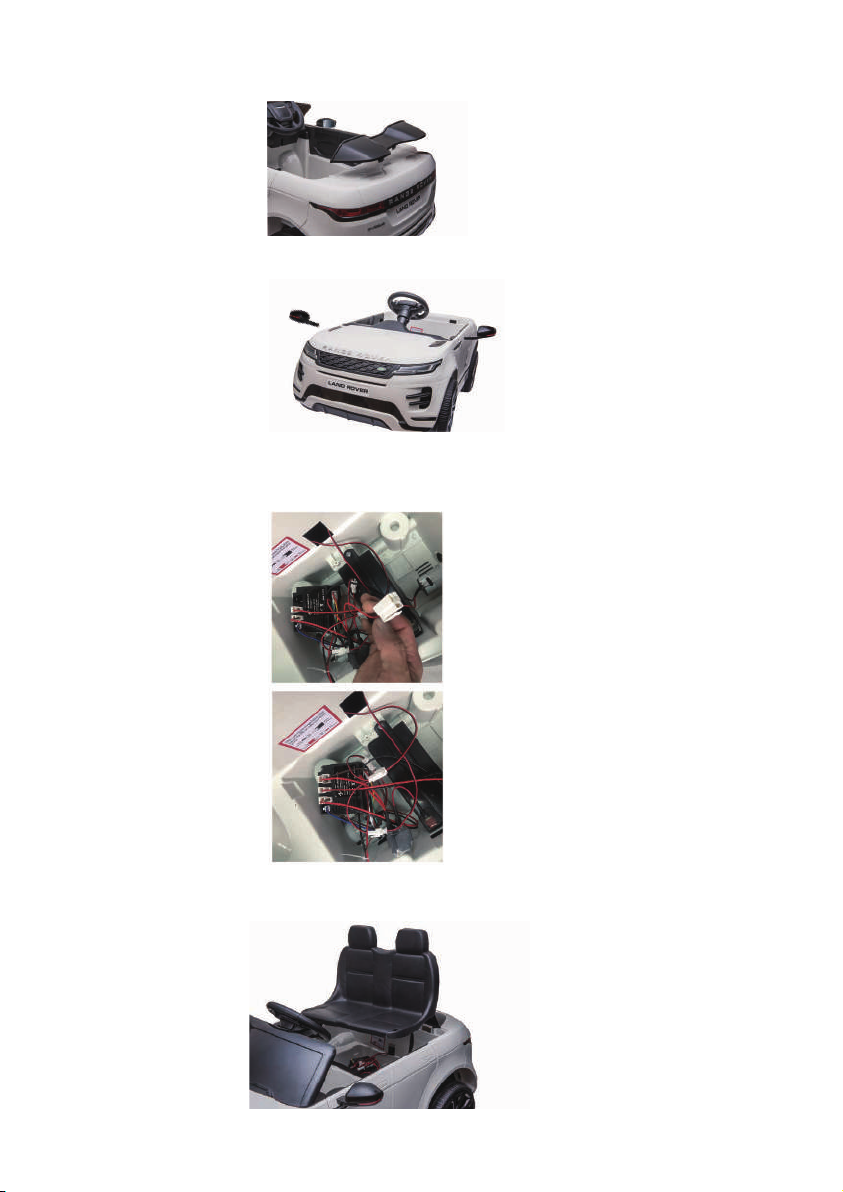

1.Install motors
2.Install wheels
3.Install steering wheel
4.Install window shield.
Please find driving motors first and disconnect them. Insert motors
into back axle, making the connection lines insert into the hole and
connect with power lines correctly. (Please refer to the photo).
Under the situation of 25W(390) motors, the installation sequence is:
gasket, back wheel, gasket, screw, wheel cap.
Under the situation of 35W(550) motors, the installation sequence is:
back wheel, gasket, screw, wheel cap.
Connect power line first, and then install steering wheel.
(Please refer to the photo).

5.Install back empennage With Screws
6.Install rear view mirrors
7.Install power lines
8.Install the seat with screws
Please pay attention of left and right and insert into the hole beside
the window correctly. (Please refer to the photo).
Install the seat in the car. (Please refer to the photo).
↓
↓ ↓
↓

12V4.5/12V7/12V10
25W/35W
Item
Battery
Motor
Size
Speed
Charger
Charging Time
Remote Control Batteries
Available Ages Children from 37-96 month
30KGS
108*67*52cm
3-5km/h
8-12hours
2PCS of AAA Batteries
Input:220V/110V
Output:DC12v1000MA
Maximum Weight
Specifications
●Press the power switch to OFF position to turn the power off.
●Open the seat,connect the battery plug,red to red.
●Never drain battery completely or to a crawling speed,recharge
the battery when a decrease in speed and power is noticed.
Warrantywill be voided if misuse has occurred.
●Battery charging must be done by adults only.Never allow
children to charge the battery.A child could be injured by the
electricity involved in charging the battery.
●Please don’t connect the wires to a short circuit.The charger
and the battery are not a toy.Do not allow children to play with
the charger and the battery.Only operate the battery and
charger specified according to the manual instructions.
●Please do not open the battery and the charger.
●To maintain safety of vehicle, always secure the battery with
the bracket.
●The battery must be handled and operated by adults only: the
battery is heavy and contains sulfuric acid(electrolyte).
Dropping the battery could result in serious injury
●Before charging the battery check for wear or damage to the
battery,charger , the connectors and other parts .If any damage
found , the charger should be repaired or replaced
immediately .Do not use a damaged charger.
●It is normal for the adaptor to feel warm during charging,
but if the charger feels too hot, stop charging immediately
and check the battery and adaptor. When charging please
turn off the power switch. Subsequent charges should be
8-12 hours but not exceeding 12 hours. If do not use the car
for a long time, please charge at least once a month to keep
the battery cells active.
1.Plug the charger into the charging socket.
2.Plug the other end of the charger into your wall socket.
Batteries are perishable items that are subject to under and
over charging. Please observe the charging time.
Battery polarity cannot be reversed, please ensure the red wire
is connected to the red battery terminal and the black wire is
connected to the black battery terminal

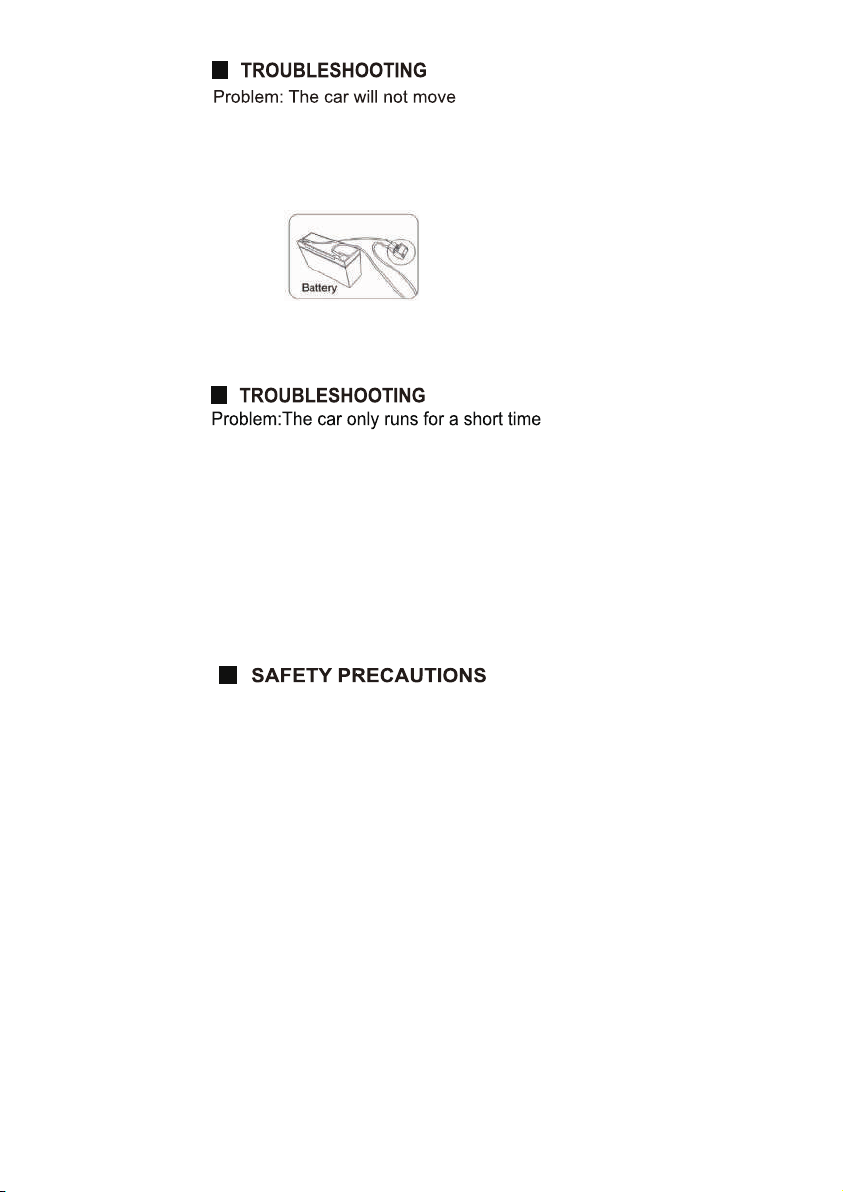

Answer 1: The battery is low, please charge for 8-12 hours
but not exceeding 12 hours.
Charge at least once a month to keep the battery cells active.
Answer 2: The battery is low. Please charge the battery for 8-12
hours but not exceeding 12 hours.
Charge at least once a month to keep battery cells active.
Answer 1: The battery is low, please charge for 8-12 hours
but not exceeding 12 hours.
Charge at least once a month to keep the battery cells active.
Answer 2: The battery may need to be replaced depending on
its charging history and age.
Problem: The sound does not work.
01. While driving , adult supervision is required all the time
02. Always wear a helmet when driving
03. Please don’t drive near road or on the footpath.
04. It is not recommended to drive the vehicle on wet surface or
on slope greater than 15-degree.
05. It is recommended to drive this vehicle on smooth surface only.
06. Please don’t drive this vehicle outdoors when it is raining.
07. Make sure that the vehicle stop completely before changing
direction from forward to reverse
08. Please don’t allow children to operate the charger or
play with the battery
09. Clean the vehicle with a dry cloth only.
10. Please follow the correct weight and age limits allowed to
drive this vehicle.
11. It is prohibited to change the circuit or add other electric ▼▼parts.
12. Adults must teach their children about safe driving procedures.
13. Please turn the power off when not in use.
14. Check the seat to ensure it has been fitted and secured
with a bolt before driving.
15. Inspect all wires and connection of the vehicle periodically.
16. Charging the battery should only be done by adults.
17. Charging plug is located underneath the seat.
18. In order to avoid accidents, please ensure the vehicle is
safe before driving.
19. Please don’t let children touch the wheels or be near
them when the car is moving.
20. Please mind fingers when opening and closing doors.
To avoid short fuse or power cut off:
1. Do not overload the product. Max load is 30Kg.
2. Do not drag any item behind this product.
3. Do not allow water or any liquid into electric parts.
4. Do not change wire system without a professional.
Please ensure the volume is turned up and the MP3 line is not
connected. Sounds from steering wheel will not work when MP3
is plugged in.
Problem: Charger overheating
It is normal for battery and charger to be slightly warm during charging.
If the charger feel excessively hot, please check for a current overload
or battery short circuit.

Horn＆Music Button
(1)
(2)
(3)
(4)
(5) (6)(7) (8)
1：MP3
2：display
3:TF socket
4:USB socket
5:Education(Pressing for a longer time and it will lower the volume)
6:Music(Pressing for a longer time and it will Higher the volume)
7:Story(Play/Pause)
8:Model choose(Radio,Bluetooth,SD Card,USB Connector)
1. Imitation of air conditioner
2. Imitation of instrument board
3. Music board
4. Key switch
5. two motors/four motors switch
(No this switch whder two motors version)
5
2.Plug in your MP3 device to play your own music through the car.
Please note the steering wheel sounds will not work when the
MP3 device is connected.
1.Press the music button on the steering wheel for horn or music.
2.4G Remote Control Instructions
Step 1: The Remote Controller is loaded with two AAA batteries.
Step 2: Turn off the power switch on the vehicle.
Step 3: Hold down “▲ ” & “ ▼” keys for 3 seconds start match
code, The first LED flicker,Now turn on the vehicle power switch
The red indicator lights stop flashing, and the code is successful.
“ ▲” Forward，“▼ ” Back，“◄ ” Left，“►” Right, Press “ P ”
key hold the brake, All LED flicker

For safety reasons,
*please use this vehicle under adult guidance and
supervision.
*do not use this product on main roads, slopes,
highways or other dangerous places.
*children must wear shoes and protective gears
when operating the vehicle.
*children should be seated with the seat belt
fasten when driving.
*only load a maximum of 30Kg on the vehicle.
*only children aged 37 - 96 months should be
allowed on this vehicle.
*use this toy strictly according to safety manual.
*please check the tires, breaks, steering wheels,
seats and seat belts before operating vehicle.
*this toy vehicle should be used with caution and
requires skill to avoid fall or collision with third
parties.
WARNING!
Not for children under 3 years. Small parts. Choking hazard
-Load two AAA ( 1.5V ) batteries according to the diagram.
-Non-rechargeable batteries are not to be recharged.
-Different types of batteries or new and used batteries are not to
be mixed.
-Batteries are to be inserted with the correct polarity.
-Exhausted batteries are to be removed from the toy.
-The supply terminals are not to be short-circuited.
-The packaging must be retained since it contains important
information.
Load two AAA(1.5V) batteries
