Tobbi SX2219 User manual

Model:SX2219 (12V)
TH17Y1074
TH17A1075
Executive standard：
EN71-1
EN71-2
EN71-3
EN62115
ASTM F963
The assembly manual of
the battery-operated car
Please read the manual before using the product. The manual and
carton contain important information, please keep them properly
for future reference. If failure to follow the instructions in the
manual, it might be dangerous for your child.
In order to improve the product and quality, we may change some
parts of the structure, appearance, packing method, assembly
method and function of the product without any notice. When there
is any difference between the manual and the product, please
subject to the actual product. We are sorry for any inconvenience.
Products should be assembled by an adult. Protective equipment
should be worn. Not to be used in traffic. Not suitable for children
under 3 years. Choking hazard- small parts. In unassembled
state, contains potentially hazardous small parts. Please keep it
out of the reach of small children. Pay attention to the potential
hazards of using the toy outside of private areas.

1
Steering wheel
Rear training wheel
Manual
Flag
Car body
Charger
Front wheel
Front training wheel

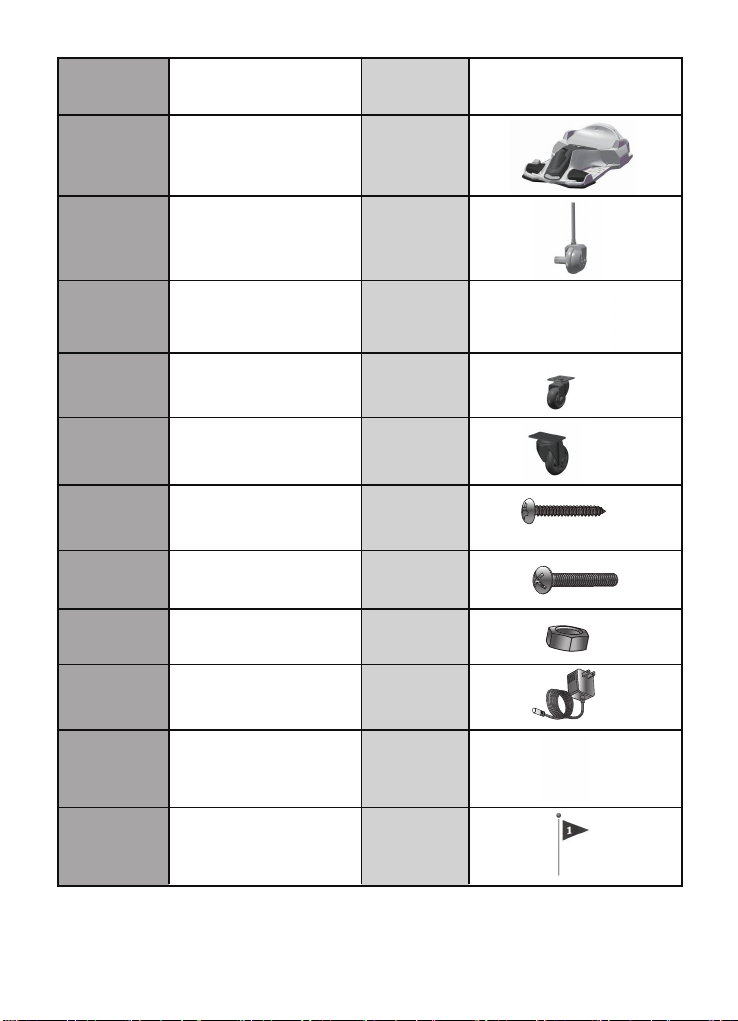

No. Parts Name QTY(pcs) Remark
1
1
1
1
1
1
1
2
2
1
8
5mm*25mm
screw bolt
5mm locking nut
4mm*16mm flat
head screw












2
5
4
4
6
6
7
3
11
1
2
8
5
【A】
【A】
(13MM）
6 7
10
98

PP
12V7AH
35.4 x 20.9 x 15.2 inches
110 lbs
8-12 years old
Disclaimer:
The pictures in the instructions are for assembly reference only.
Please refer to the actual product.
Warning:
This product is not the vehicle for transportation, it should be used
under adult guidance. Parents should ensure that children have
taken the safety measures before use.
The toy should be used with caution since skill is required to avoid
falls or collisions causing injury to the user or third parties.
Weight limit
PRODUCT SPECIFICATIONS
Battery
Main material
Suitable age
Product size
Speed
Runtime
Charger
Fuse
Low speed: 1-3 km/h ; Fast speed: 3-8 km/h
Auto-reset fuse
Input AC 100-240V Output DC 12V-1000mA
1-2 hours after charging 8-12 hours, based on riding conditions
3

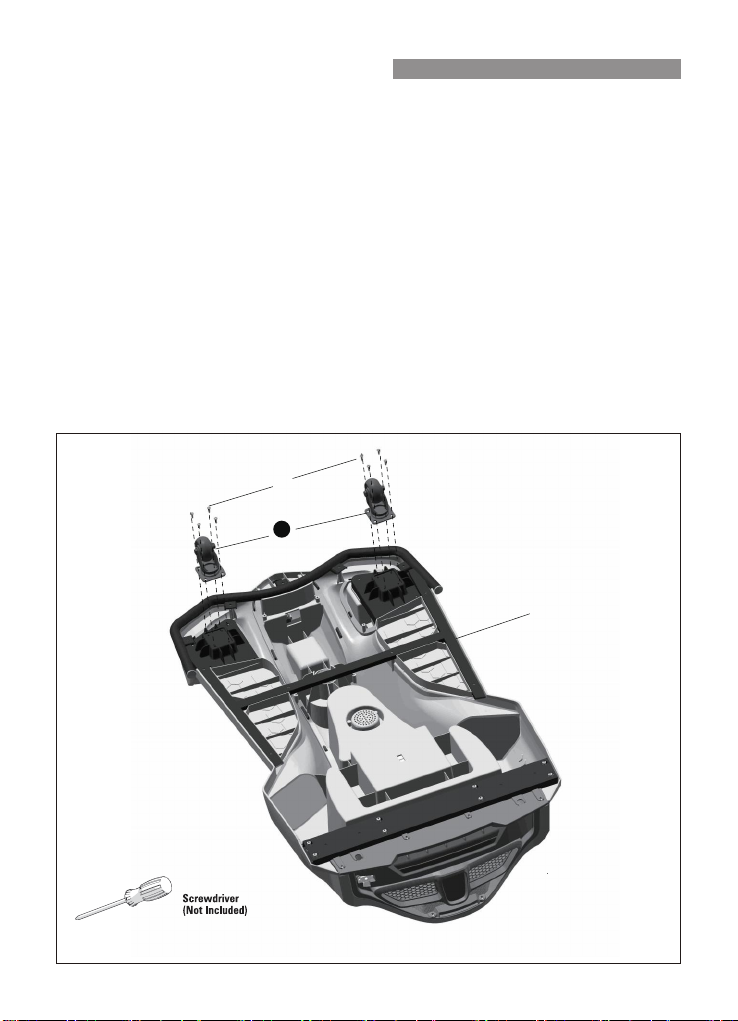

1.Front training wheel assembly


ASSEMBLY INSTRUCTIONS







4
4




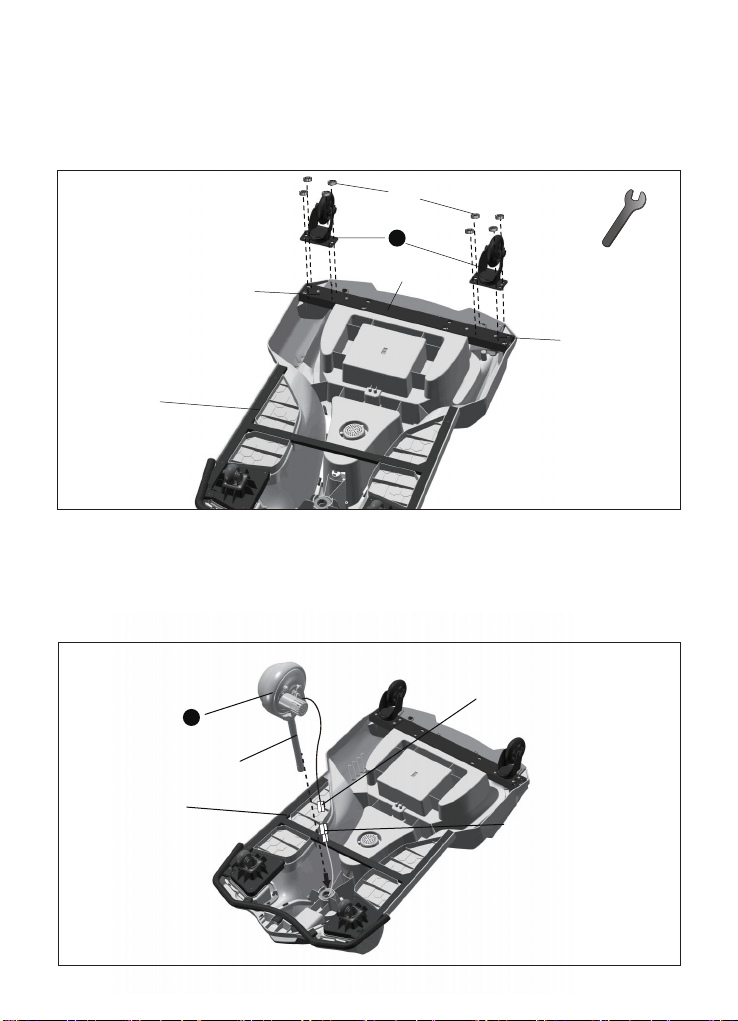

2.Rear wheel assembly
There are 8 nuts【A】【B】 
【A】 
   【B】    【A】  
.

【C】
【D】        【E】

【】
5
2
5


square pipe
【A】
【C】
【D】
【E】
【B】
【B】


Ensure both plugs【】




4.Steering wheel assembly

【C】
【C】

6
3
98
【C】
【E】【D】

5.Battery connection

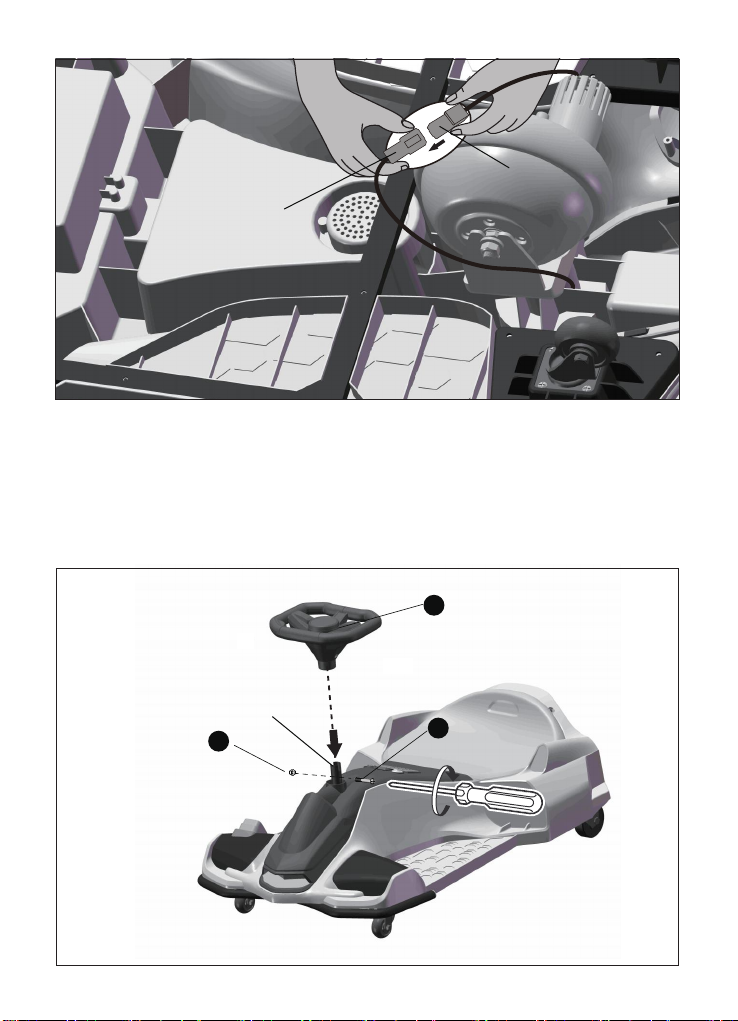

Remove two screws on the seat. There are two red plugs【F】
under the seat, match them to connect the power.
6. Flag assembly
Remove the paper from adhesive tape on the flag, paste the flag on
flagpole as shown in picture, insert the small ball on the top of the
flagpole, insert the flagpole to the hole on the car body and push it
into place.
7
11


【F】

SECURITY WARNING
1.The installation and charging of the vehicle should always be
carried out under adult supervision.
2.This product is limited to the children from 8-12 years old, 110
lbs weight limit.
3.This product is ideal for driving on a hard flat surface.
4.It is strictly prohibited on streets or roads, pot holes, and slopes.
5.Avoid driving on the sand or grass or uneven ground.
6.Children should be given full instructions on operation of the
car. Improper operation can cause damage or accidents.
7.While children are driving, it is parents' duty to supervise at all
time to avoid accidents.
8.Avoid driving in rains or flooded pathways. By doing so it can
damage the motor, circuit and other electrical equipments.
9.Battery charger should be regularly inspected by parents to
insure that the wires, plugs, crusts and other components are not
damaged. Please stop using if any damage is found, until it is
completely restored.
10.In order to ensure the product's service life and safety, avoid
damage to the charger, battery or electric circuit. The car must
use the dedicated charger and power supply with the default
configuration.
11.When not using the product, please cut off the power supply,
and keep all the switch to "stop" or "off" position.
12.The charger provided is not a toy. It is to be kept away from
children.
13.Strictly prohibit using non-manufacturer provided parts.
14.This product is made of PP material mainly, and has a safe
service life of two years.
8

FUSE
This car has a auto-reset fuse, if the car stops suddenly during driving,
it is mainly caused by instantaneous current exceeds ,which makes the
fuse to trip. Then just stop operating for about 8 seconds, and this fuse
can be reset. Then turn on the power switch again.In order to avoid the
fuse tripping and cutting off power supply, please pay attention to the
following matters.
This product can't be overloaded, the maximum load is 110 lbs.
Don’t drag anything behind the product.
Don’t let water or other liquid into the batteries and other electrical
components.
Don’t change the circuit system and structure of the product.
USAGE DIRECTION
1. Before using it, make sure that all the following works are done.
●Complete the installation of the car according to the instructions.
The battery plug-in has been connected, the power supply has
been switched on.
●Make sure that all the positions which need the screws are fixed
tightly.
●Parents or guardian should ensure that children have taken the
safety measures before using.
To reduce the risk during using, pay attention to the followings:
When driving the car, the child should sit on the car seat.
When children are driving, adults or parents should take care of
and guide them more, and cannot leave.
Pay attention to the driving environment and drive on hard and flat
surfaces, not the unsafe environment.
For example:
a.The trenches, the riverside, slope or uneven ground;
b.Roads or other places for driving and walking;
c.The obstruction which is easily hitting and causing injury;
d.Other unsafe zones.
To avoid accident, please use only in the daytime or in a bright
place, avoid using under low visibility.
9

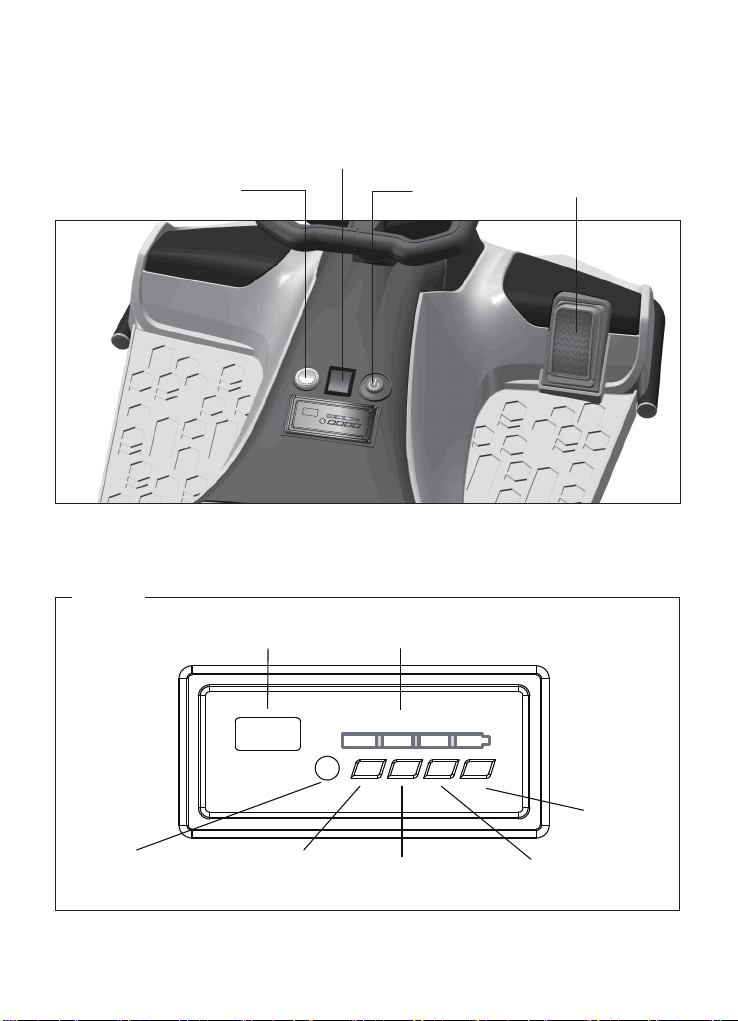

Power switch
High / Low speed switch
Light switch Pedal
Early education/
Volume down Story / Pause / Play Music / Volume up
Electric capacity display
MP3 socket
Mode
Big memory
MP3
2. Operating (function reference diagram)
10

CHARGING WAY
●For Safety purpose ,the charging must be done by adults.
●The first time you use it, please remove the seat, connect two plugs
of red wires, use it only after charging 8-12 hours.
●Charging socket is locate on the rear of the car body, please follow
the instructions to charge the battery.
●If the car has slowed down, it needs to be charged by 8-12 hours,
maximum 20 hours.
1.First insert the plug of the charger into the charging port. (The car
can not be started while charging.)
2.Then insert the charger to the power socket.
WARNING:
1 The toy is to be assembled by an adult. In unassembled state, it
contains potentially hazardous sharp points & small parts, so please
keep it of baby's reach.
2 Choking hazards – Small parts.
3 Not for children under 3 yrs.
4 Always wear shoes.
5 RISK OF FIRE. Do not bypass. Replace only with circuit protection
device.
6 Protective equipment should be worn. Not to be used in traffic.
11

Attention:
·Can only use the charger and battery according to manufacturer's
regulations.
·Do not mix old and new or different types of batteries.
·The battery terminal should not be short circuit.
·Do not open the battery or charger.
·Do not reverse the battery.
·Before charging, please check whether the charger, battery and
plug are ok, if you find any broken parts, you must stop using it
immediately. And do not use it until it is fully repaired.
·The battery will be little warm when being charged, it is normal. If
not, it may be caused from the short circuit of charger or circuit
board.
·Must use the pressing plate to fix the battery.
·Run out of battery must be handled by adults. Remove the battery
which has run out from toys to recycle properly and shall not be
arbitrarily discard.
·If the product is going to be stored for a long time without use, it
must be fully charged, and charge it once every 3 months, so as to
make sure the battery life.
·Charger and Battery are not toys. Keep them away from children.
12

MAINTENANCE AND SERVICE
1. Before use, parents should check whether all parts like batteries, the
charger, wires, the plug, the outer body and other parts are in good
condition, check whether the screws are loose and whether there are
potential safety hazards. Any damaged parts founded should be
repaired before using.
2. After using the product for a period of time, use a small amount of
lubricating oil to the moving parts to prevent wear and tear of rust.
3. Keep the car away from fire and direct sunlight. Place it stably, not
upside down. The car shall be stored indoors or outdoors under cover.
4. The car should be kept away from hot items, such as stoves or
heaters, or the plastic parts will melt. When charging, the car should be
kept away from inflammable materials to prevent it from catching fire.
5. Charge in time after use. Charging should be done by adults. If the
product is going to be unused for a long time, it must be fully charged.
Charge it every month so as to extend the battery lifespan.
6. A soft cloth must be used to clean the car. Do not use chemical
solvents to clean the plastic parts. Do not use soap or water to clean the
car. Driving in rainy or snowy weather, water can damage the motor,
battery and circuit system.
7. When stopping or storing the car, please cut off the power and make
sure all switches are in the ‘STOP’ or ‘OFF’ position.
8. Do not use fuses differed from the specifications of this product.
9. Do not change the product structure and circuit system. Maintenance
and repair work must be done under the guidance of the professional or
technical personnel in place.
10. Do not use the product for other purposes. Put the battery in the
right polarity.
11.Battery negative short circuit is prohibited. Non-rechargeable
batteries cannot be charged.
12. Rechargeable batteries can only be charged under the supervision
of the adult.
13. Do not mix old and new batteries or different types of batteries.
14. The battery running out of power should be removed from the car
properly and not allowed to be played by children.
15. Disconnect the batteries completely when not in use and do not
allow children to play with them.
13

TROUBLESHOOTING
If the battery is not fully charged. Need to be charged in time
If there is an issue with the wheels
If the wheels stuck and cannot move
If the pedal switch is not functioning properly
If “power” switch is in OFF position
If the fuse is not functioning properly
If the battery is not connected, check the red and black wires.
If the charger is plugged in, car will not power on. Unplug charger.
If rider weight exceeds specifications
If the charger is malfunctioning
If the battery loses its capacity
If the charger and battery are connected and charged
Battery does
not charge
Car moves
slowly
Car does not
move or
power on
14

WARNING:
This toy contains batteries that are non-replaceable.
It is recommended that adults supervise young children.
WARNING:
To reduce risk of injury, adult supervision is required.
Never use in roadways, near motor vehicles, on or near steep
inclines of steps, swimming pools or other bodies of water, always
wear shoes, and never allow more than 1 rider.
Only use the battery specified by the manufacturer.
Only use the charger specified by the manufacturer.
- This toy contains batteries that are non-replaceable.
- Rechargeable batteries are only to be charged by adults.
- Instructions to be given to the child in the proper use of the toy, particularly in
the use of any braking system
- A reminder that the toy should be used with caution since skill is required
to avoid falls or collisions causing injury to the user or third parties.
- Battery is only to be charged by person of at least 8 years old.
- Exhausted batteries are to be removed from the toy.
Assembly by an adult
Maximum capacity: 50kgs (110lbs)
WARNING:
