TOLSEN TOOLS FORCE XPRESS 79576 User manual

79576
PETROL PRESSURE WASHER
INSTRUCTION MANUAL 5250W
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
7.0Hp
SUPERIOR PERFORMANCE
INDUSTRIAL
79576

2
Congratulations on the purchase of your new
appliance . You have chosen a high-quality product .
The operating instructions are a part of this product .
They contain important information about safety,
usage and disposal .
Before using the product, please familiarise yourself
with all operating and safety instructions . Use the
product only as described and for the range of
applications specified . Please also pass these
operating instructions on to any future owner .
Intended use
This appliance is designed for cleaning:
machines, vehicles, buildings, tools, façades,
terraces, garden equipment, etc .
· for low-pressure cleaning with a cleaning agent (e
.g . cleaning machines, vehicles, buildings, tools),
· for high-pressure cleaning without a cleaning
agent (e .g . cleaning façades, terraces, garden
equipment) .
Self-priming when using alternative water sources
This appliance is self-priming and allows the suction
of water from containers and natural sources . It is
IMPORTANT that the filter on the water inlet is
cleaned and in place, and that only clean water is
sucked in .
Any other use that is not expressly permitted in
these operating instructions may damage the
appliance and represents a serious risk for the user .
Please make sure that you pay attention to the
restrictions in the safety instructions . Pay attention
to the national regulations which may restrict the use
of the machine .
Any other uses of or modifications to the machine
are deemed to be improper usage and may result in
serious physical injury .
Not intended for commercial use .
DANGER!
Risk of injury! When using at petrol filling stations or
other danger areas, comply with all corresponding
safety regulations .
NOTE
Waster water that is contaminated with oil should
not be released into the soil, open water or down
drains . Therefore, only wash engines and vehicle
underbodies at suitable sites that have oil
separators
CAUTION! Water quality requirements:
Only clean water may be used as a high-pressure
medium . Contam- ination can lead to premature
wear or residues in the appliance . If re- cycling
water is used, the following thresholds may not be
exceeded .
Residual risks
CAUTION!
· Even if used correctly, it is not possible to exclude
non-apparent residual risks entirely .
· Injuries due to slipping on waste water .
Injuries or property damage due to the
high-pressure water jet .
INTRODUCTION

1. High-pressure hose
2. Quick connector
3. Hose holder
4. Nozzles (red, yellow, green, white, black)
5. Air filter
6. Filler cap
7. Fuel tank
8. Tubular frame
9. Filler cap for cleaning agent tank
10. Cleaning agent tank
11. Cleaning agent hose
12. Rubber feet
13. Lower spray gun holder
14. Tyres
15. Oil drain screw
16. Jet pipe
17. Pull starter
18. Hand spray gun
19. Upper spray gun holder
20. Trigger
21. Trigger lock
22. Exhaust silencer
23. Wing nut
24. Choke
25. Fuel tap
26. Spark plug/Spark plug connector
27. Carburettor
28. Float chamber
29. Oil plug
30. Transport oil plug
31. Intake filter
32. Hose connection adapter (pre-assembled)
33. Water suction hose
34. Oil inlet/dipstick
35. Automatic oil switch-off
36. On/Off switch
37. Water outlet
38. Water inlet
39. High-pressure pump
40. Temperature relief valve
41. Spark plug spanner
42. 2x axles
43. Funnel
44. 2x R-clips
45. 2x screws (M6 x 55) (upper spray gun holder)
46. 2x screws (M8 x 50)
47. 2x screws (M6 x 12) (lower spray gun holder)
48. 2x washers (Ø 24 x Ø 6 .3)
49. 1x screws (M6 x 45)
50. 1x screws (M6 x 45)
51. 2x nuts (M8)
52. 2x washers (Ø 19 x Ø 8 .3)
53. 4x washers (Ø 20 x Ø 12)
54. 4x nuts (M6)
55. Open end wrench (SW 10/12)
56. Nozzle cleaner needle (can be found in the
operating instructions)
57. Allen key (M5/M6) A Curved handle
3
Features

5.25/7
Package contents
1 engine unit
2 x wheels, Ø 300 mm x 80 mm
1 x high-pressure hose 8 m, max . pressure 25 MPa
(250 Bar), max . 60°C, flexible
1 x self-primer hose, Ø 18 mm (external) /
Ø 13 mm (1/2" internal) x 3 m, with filter
1 x hand spray gun, max . pressure 28 MPa (280 Bar),
max . 60°C 1 x lance pipe
4 x high-pressure nozzle, (red, yellow, green, white) 1
x low-pressure nozzle / cleaning nozzle (black) 2 x
rubber feet
1 x spark plug spanner
1 x open end wrench (SW 10/12) 2 x Allen keys
(M5/M6)
2 x spray gun holder 1 x funnel
1 x nozzle cleaner needle (can be found in the
operating instructions) 1 x assembly material
1 operating manual
4
Engine
Type 1 cylinder
4-stroke air-cooled, pull starter
Displacement
cm
3
208
Nominal output
at 3600 rpm
kW (HP)
Normal operating
speed
rpm 3600
Fuel tank
l
3 . 6
Fuel
*suitable for
E10 fuel
Petrol, unleaded
Fuel consumption
at full load
l/h 2 . 0
Oil volume- engine
l
0 . 6
Oil type – engine
15 W 40
Cut-out function at low oil level
Spark plug
LD F7RTC
Water connection
Supply temperat-
ure max .
°C 40
Supply pressure
max .
MPa (bar) 0 . 6 (6)
Pump (self-priming)
Working pressure
MPa (bar)
18 (180)
Max . working
pressure
MPa (bar) 22 (220)
Flow rate
l/min
8 . 3
Max . flow rate
l/min
10
Opening tem-
perature thermal
valve
°C >45
Inlet connection
G3/4"
Outlet connection
M22 x 1 . 5
Suction height
m
1
Self-pumping
start time
min 1
Dimensions and weight
Length x width x
height
mm
695 mm×
445 mm×
485 mm
Typical operating
weight
kg approx . 30
Technical data

5
Warning! Read the operating instructions before use!
Warning! Poisonous CO (carbon monoxide) vapours!
Do not use the appliance in confined spaces!
Attention! Hot surfaces! Risk of burns!
Keep a safe distance away!
Do not refuel during operation!
Add oil before first use!
Wear protective gloves!
Wear safety shoes!
Wear hearing protection!
Wear safety goggles!
Read the operating instructions!
Attention! Hot surfaces! Risk of burns!
Warning! The machine is not suitable for
connection to drinking-water supply .
Sound power level LWA data in dB .
Warning! Do not inhale exhaust fumes!
Fire, naked flames and smoking are prohibited!
High-pressure jets can be dangerous if misused .
Do not aim at people, animals, active electrical
equipment or at the appliance itself .
CHOKE: OPEN/CLOSE PETROL: ON/OFF
Add oil / Check oil level
Do not use the appliance if there is no oil
visible in the oil tank .
START CLOSE
OFF ON
CHOKE
FUEL
Explanation of the symbols on the appliance!

SAFETY INSTRUCTIONS FOR HIGH-PRESSURE CLEANERS
Important! Ready the safety instructions
carefully before using the appliance for the first
time and adhere to it at all times . Store these
safety instructions carefully for later use or to
pass on to the next owner .
· Before using the appliance for the first time, read
the operating instructions and pay close attention to
the safety instructions .
· The warning and safety signs on the appliance
provide important information for safe operation .
· In addition to the notices in these operating in-
structions, all general safety and accident preven-
tion legislation must also be complied with .
· Keep plastic wrapping away from children . There
is a risk of suffocation!
· Comply with the relevant national legislation for
the use of liquid jet sprayers .
· Comply with the relevant national legislation for
the prevention of accidents .
Liquid jet sprayers must be inspected regularly and
the result of the inspection noted in writing .
Hazard levels
DANGER!
Indicates an imminently dangerous situation which
will result in serious bodily injury or death.
WARNING!
Indicates a potentially dangerous situation which
could result in serious bodily injury or death .
ATTENTION!
Indicates a potentially dangerous situation that can
result in minor injury .
CAUTION!
Indicates a potentially dangerous situation that can
result in property damage
Water connection
DANGER!
The high-pressure hose may not used if dam- aged .
A damaged high-pressure hose must be replaced
immediately . Only hoses and connec- tors
recommended and approved by the manu- facturer
may be used . Order No . see operating manual .
The screw connections of all connection hoses must
be leak-tight .
WARNING!
Observe the regulations of your water supply
company .
6

7
DANGER!
· Inspect the appliance and the working equip-
ment before use for operational safety and for
proper condition . Do not use the appliance if a
connecting pipe or important parts of the appliance
are damage, e .g . safety devices, high-pressure
hoses, hand spray guns .
· Never prime with liquids containing solvents or
undiluted acids and solvents! These include
petrol, paint thinners or heating oil . The spray mist is
highly flammable, explosive and poisonous . Do not
use acetone, undiluted acids or solvents as they can
damage the materials used in the appliance .
· When using the appliance in hazardous areas (e .g
. petrol filling stations) comply with the rel- evant
safety regulations . Operation in explosive
atmospheres is prohibited .
· The appliance must be set up on a firm, flat surface .
· All live components in the working area must be
protected from spray water .
· The trigger of the hand spray gun must not be
jammed during use .
· High-pressure jets can be dangerous if misused .
Do not aim at people, animals, active electrical
equipment or at the appliance itself .
DANGER!
· Vehicle tyres/tyre valves may only be cleaned at a
minimum spray distance of 30 cm . Other- wise the
vehicle tyres/tyre valves could be damaged by the
high-pressure jet . The first sign of damage is a
discolouration of the tyre .
Damaged vehicle tyres are a source of danger .
· When using cleaning agents, comply with the
safety data sheet of the cleaning agent manu-
facturer, especially the information on personal
safety equipment .
DANGER!
· Only cleaning agents that have been approved by
the appliance manufacturer may be used . This
appliance was designed to be used with the
cleaning products that were supplied or delivered
by the manufacturer . The use of other cleaning
agents or chemicals can impair the safety of the
appliance .
· Keep cleaning agents out of reach of children!
· Do not open the cover while the engine is running .
· During longer working breaks, switch off the
appliance at the main switch/appliance switch .
WARNING!
· Do not aim the jet at others or yourself to clean
clothing or footwear .
· Materials containing asbestos or other sub-
stances that are harmful to health may not be
sprayed .
· Before cleaning, carry out a risk assessment of the
surface to be cleaned to ascertain the safety and
health safety requirements . Take all necessary
protective measures .
· With short jet pipes there is a risk of injury as a
hand could accidentally come into contact with the
high-pressure jet . If the jet pipe being used is
shorter than 75 cm, a needle jet nozzle or rotor
nozzle may not be used.

CAUTION!
· If a sound pressure level over 80 dB(A) is specified
in the appliance operating instructions (technical
specifications), wear hearing protec- tion .
· Wear suitable protective clothing and safety
glasses to protect yourself from water splashes and
dirt .
· The recommended cleaning agent may not be
used undiluted . The products are operationally safe
as they contain no environmentally harmful
substances . If the cleaning agent gets into your
eyes, rinse immediately with plenty of water and
consult a doctor at the earliest opportunity if you
swallow any .
· Aer hot water operation, allow the hoses to cool
down or operate the appliance for a short while
using cold water .
For appliances with a hand-arm
vibration value > 2 .5 m/s2 (see
technical data)
DANGER!
· Using the appliance for a long time can lead to
vibration-related circulation disorders of the hands .
It is not possible to determine a generally applicable
time limit for use as this is affected by a number of
variables:
· Personal predisposition to poor circulation
(frequently cold fingers, tingling in the fingers) .
· Low ambient temperature . Wearing warm gloves
protects the hands .
· A very tight grip impairs the circulation .
· Uninterrupted operation is not ideal: take regular
breaks .
· In the event of regular, prolonged use of the ap-
pliance coupled with the repeated occurrence of
certain symptoms (e .g . tingling in the fingers, cold
fingers), we recommend consulting a doctor .
Use
WARNING!
· High-pressure hoses, fittings and couplings are
important for machine safety . Use only the
high-pressure hoses, fittings and couplings
recommended by the manufacturer .
· Water that has flowed through the non-return
valve is not drinkable .
· Machines driven by a combustion engine may not
be used in interior rooms unless an ad- equate
ventilation system that is approved by the
responsible national occupational health and safety
authorities has been installed .
· With gas or oil-fired machines it is important that
sufficient ventilation is provided and that the
exhaust gases are properly extracted .
8

DANGER!
· The operator must use the appliance properly .
They must take local conditions into account and
pay attention to others, especially children, when
working with the appliance .
· This appliance may never be le unattended while
it is in operation .
· The appliance may only be used by people who
have been instructed in its use or whose ability to
operate it has been demonstrated and who are
expressly tasked with its use . This appliance may
not be used by minors .
· This machine may be used by persons with limited
physical, sensory or mental capabilities or lack of
experience and knowledge, provided that they are
under supervision or have been told how to use the
machine safely and are aware of the potential risks .
· This appliance may not be used by children or
people who are untrained in its use .
· Do not use the appliance if other people are in
range unless they are wearing personal protective
clothing .
· Children should be supervised to ensure that they
do not play with the appliance .
· Always use suitable gloves when working on the
appliance .
· The water jet being ejected from the jet pipe
creates a recoil force . The angled jet pipe causes the
force to be exerted upwards . Hold the gun and the
jet pipe firmly .
· Using angled spray equipment can help to reduce
recoil and twisting forces .
WARNING!
· The use of high-pressure cleaners can lead to the
formation of aerosols . Inhalation of aerosols can be
hazardous to health . Grade FFP2 filter masks (or
higher) are suitable for protection from water-based
aerosols .
Transport
DANGER!
· When transporting the machine, make sure that
the engine is switched off and the appliance is
firmly secured .
Maintenance
DANGER!
· Switch off the appliance before carrying out any
cleaning or maintenance work or when exchanging
components .
· Before all work on the appliance and accessor- ies,
depressurise the high-pressure system .
· Corrective maintenance may only be carried out
by approved customer service centres or specialists
in this area who are familiar with all the relevant
safety regulations .
Accessories and spare parts
DANGER!
· To prevent hazards, repairs and the installation of
replacement parts may only be carried out by
authorised customer service centres .
· Use only spare parts that have been approved by
the manufacturer . Original spare parts and
accessories offer a better guarantee that the
appliance can be operated safely and reliably .
9

springs, controller rods or other parts that could
increase the engine speed .
· Risk of burns! Do not touch the hot exhaust
silencer, cylinder or cooling fins .
· Keep your hands and feet away from all moving or
rotating parts .
· Risk of poisoning! Do not operate the appliance in
confined spaces .
· Do not use any unsuitable fuels as these can be
dangerous .
Safety devices
The safety devices are designed to protect the user
and may not be de- activated or repurposed .
Relief valve
· If the hand spray gun is closed, the relief valve
opens and the high-pres- sure pump routes the
water back to the pump suction side . This prevents
the permissible working pressure from being
exceeded .
· he relief valve is set and sealed at the factory . It
may only be adjusted by the customer service .
Safety valve
The safety valve opens if the permissible maximum
allowable working pressure is exceeded (see
technical specifications); the water flows out .
The safety valve is set and sealed at the factory . It
may only be adjusted by the customer service .
Thermal valve
The thermal valve protects the high-pressure pump
from impermissible warming in circulation
operation if the hand spray gun is closed .
The thermal valve opens if the maximum permissi-
ble temperature of 68°C is exceeded and drains the
hot water .
High-temperature water and petrol
engine appliances
DANGER!
· Use only the fuel specified in the operating
instructions . The use of non-approved fuels
increases the risk of explosion .
· When refuelling petrol engine devices, take care
not to get any fuel on the hot surfaces .
· Always observe the special safety instructions for
petrol engine appliances contained in the operating
instructions!
· When operating the appliance in interior rooms,
sufficient ventilation and exhaust gas extraction
must be ensured (risk of poisoning) .
· The exhaust opening must not be blocked .
· Ensure that no exhaust gas emissions occur in the
immediate vicinity of the air inlets .
WARNING!
· Do not bend over or touch the exhaust outlet .
During burner operation do not touch the boiler .
(Risk of burns) .
Safety instructions
DANGER!
· Do not operate the high-pressure cleaner if fuel has
been spilt . Move the appliance to another location
and avoid all spark generation .
· Do not store, spill or use fuel in the vicinity of open
flames or appliances such as ovens, boilers, water
heaters, etc . that have a pilot flame or could
generate sparks .
· Keep easily inflammable objects and substances
away from the exhaust silencer (at least 2 m) .
· Do not operate the engine without the exhaust
silencer and check and clean this regularly (replace if
necessary) .
· Do not use the engine in wooded, bushy or grassy
terrain unless the exhaust pipe is fitted with a spark
arrestor .
· Except during adjustment work, do not run the
engine without an attached air filter or without the
cover over the intake manifold .
· Do not make any adjustments to the regulator
10

BEFORE USE
washer 53 onto the axle 42 and secure it in place
with the R-clip 44 .
· Repeat the process on the opposite side .
Fitting the rubber feet
· Attach the rubber feet 12 with the screw 46 ,
washer 52 and nuts 51 onto the tubular frame 8.
Use the supplied open end wrench 55 and allen
key 57 for assistance .
Fitting the hand spray gun, the jet
pipe and the nozzle
DANGER!
Risk of injury! Appliance, supply pipes, high-pres-
sure hose and connections must be in perfect
working order . If the equipment is not in perfect
working order, the appliance may no longer be
used .
· Connect the jet pipe 16 to the hand spray gun .
· Tighten the screws of the jet pipe 16 by hand .
· Fit the nozzle 4onto the jet pipe 16 . Ensure that
it clicks into place correctly .
· Fit the high-pressure hose 1 onto the hand spray
gun 18 .
NOTE
· Exercise caution when unpacking, transporting
and storing due to the high weight of the machine .
· These activities should be carried out by two
people .
· Make sure that the appliance is standing on a level
and flat surface while unpacking, and during
assembly, storage as well as during operation,
inspection, maintenance and when at a standstill .
Fitting the handle
· Insert the handle A on the base frame of the device .
Press the two pushbuttons on the base frame and
push the handle A completely until it clicks into
place .
Fitting the hose holder
· Fit the hose holder 3onto the handle A by aligning
the holes in the two components .
· Fix the hose holder 3in place on the handle A with
two screws 49 50 and two nuts 54 (on the right
side, see fold-out page) .
Fitting the upper spray gun holder on
the handle
· Use two screws 45 , two washers 48 and two nuts
54 to fit the upper spray gun holder 15 onto the
handle A .
Fitting the lower spray gun holder on
the tubular frame
· Use two screws 47 attach the lower spray gun
holder 13 onto the tubular frame 8

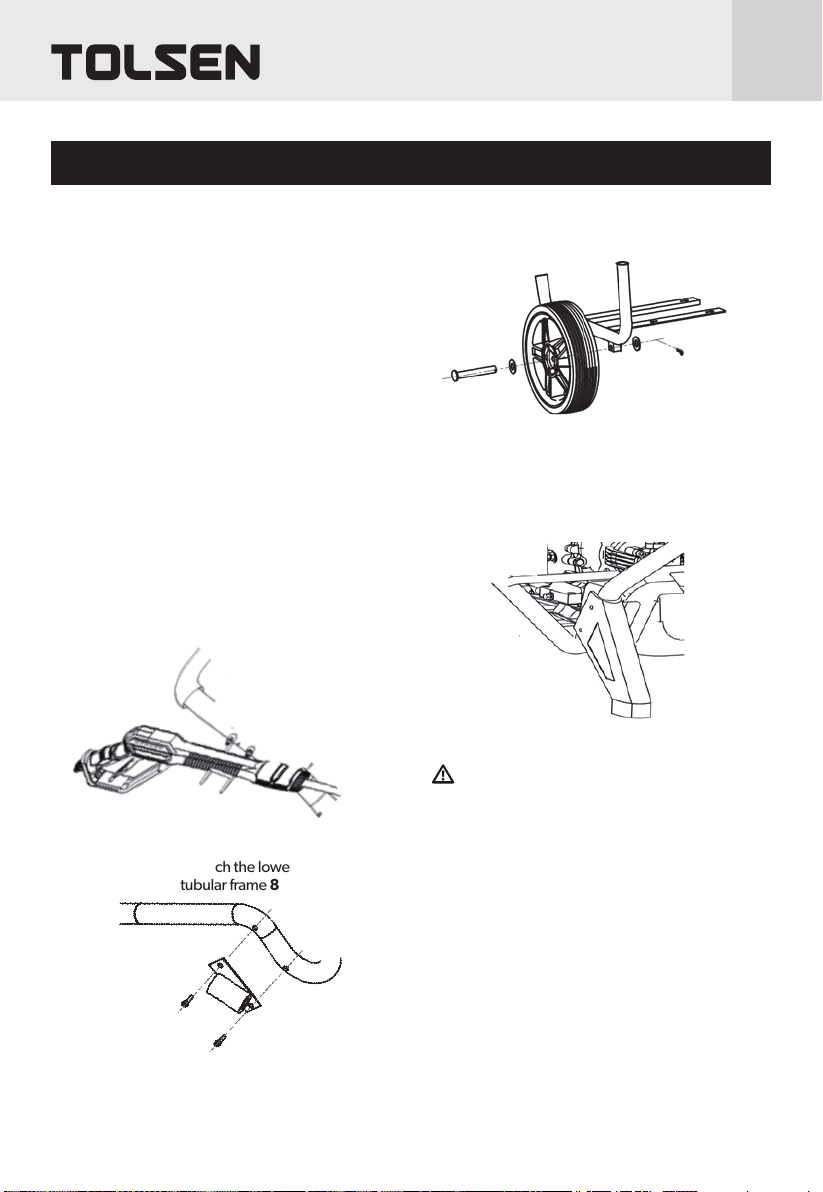

Fitting the wheels
· Push a washer 53 onto the axle 42 .
· Push the axle 42 from outside through the wheel
14 and place another washer 53 on the axle 42 .
· Now guide the axle with the wheel from the
outside into the tubular frame 8. Place another
11

CAUTION!
Do not overfill the oil . A too high oil level can cause
engine damage . The maximum fill level for the tank
is 0 .6 litres .
NOTE
The engine is equipped with an oil level sensor .
The oil level sensor switches the engine off if the oil
level is too low and prevents a restart . If the engine
cuts out although the oil level is correct, check
whether the petrol-powered high-pressure cleaner
is standing straight

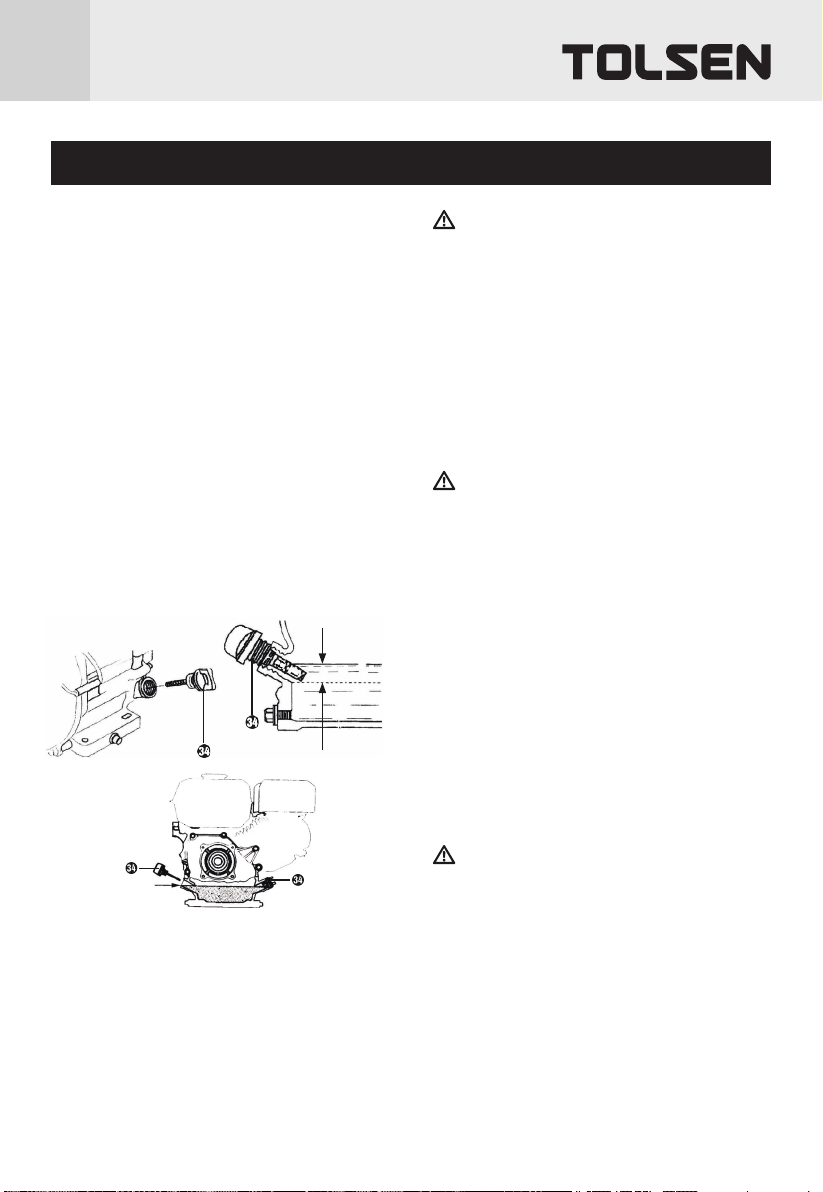

Bleeding the oil tank
CAUTION!
Before first use, the bleed valve on the oil tank
needs to be replaced . On delivery, a black
transport oil plug 30 is screwed in which has to be
replaced by the supplied red oil plug 29.
Engine
Observe the section "Safety instructions"!
· Before use, read the manufacturer's operating
instructions and pay close attention to the safety
instructions .
· Checking the oil level of the engine .
Do not use the appliance if the oil level has fallen
below "MIN" .
· Add oil as required .
· Fill the fuel tank 7with unleaded petrol . Do not
use a 2-stroke mixture .
Adding fuel
DANGER! RISK OF FIRE AND EXPLOSION!
· Never refuel in confined spaces or when the
engine is running or still hot .
· Do not smoke while refuelling .
· Do not use any 2-stroke mixture .
· Do not refuel in the vicinity of open flames or
sparks .
· Do not spill fuel – use a funnel .
· Wipe up any spilt fuel .
· Aer refuelling, close the fuel canister and the
tank properly .
· Fill the fuel tank 7with unleaded petrol .
· Add fuel up to the red mark .
Checking the oil level of the engine
· Check the oil level before each use .
· Do not use the appliance if there is no oil visible on
the dipstick 34 .
· Add oil as required . Use only engine oil (15W40) .
· Place the appliance on a flat, level surface and
remove all dirt from around the oil inlet/dipstick 34 .
· Use the dipstick 34 to measure the oil level .
Unscrew the dipstick 34 and wipe it clean with a
cloth .
Put the dipstick 34 back into the oil inlet without
screwing it in . Pull the dipstick 34 back out and
check the oil level .
· Check that the oil level is somewhere between the
minimum and max- imum levels (marked as L for low
and H for high on the dipstick 34 ) .
· To fill up the oil, take the supplied funnel and pour
the oil slowly into the oil inlet . Do not overfill!
· Wait a minute until the oil has settled before
measuring the oil level again as described above .
· Screw the dipstick back into the oil inlet .
OPERATION
MAX .
MIN .
12

Water connection
See technical specifications for the connection data .
· Connect the supply hose (minimum length 7 .5 m,
minimum diameter 3/4") to the water connection
on the appliance and to the water supply (e .g . tap) .
· Turn on the water supply .
NOTE
The water supply hose is not included in the delivery
Drawing water out of a container
DANGER!
Never draw water from a drinking water container .
Never prime with liquids containing solvents such as
paint thinners, petrol or oil . Atomised spray from
solvent is highly flammable, explosive and toxic .
· Connect the suction hose (diameter at least 3/4")
with the filter (accessories) to the water connection .
Self-priming from open tanks/contain-
ers and natural water sources
Use the self-priming equipment supplied .
· Intake filter 31
· 3 m reinforced suction hose 33
With this accessory the appliance can draw water to
max . 1 m above the water surface . This can take up
to 1 minute .
· Immerse the 3 m suction hose 33 completely
underwater to get the air out .
· Connect the suction hose to the appliance and
ensure that the intake filter 31 remains underwater .
· Run the appliance without the hand spray gun 18
attached until water flows evenly out of the
high-pressure hose 1.
If no water flows out aer 1 minute, switch the
appliance off and check the appliance . Once the
water flows, switch off the appliance and attach the
hand spray gun 18 and the jet pipe 16 so you can
work .
· It is important that the hose and coupling are of a
good quality, tightly
fitted and that the seals are undamaged and inserted
straight . Leaky connections can impair the suction .
Bleeding the appliance
· Remove the nozzle 4 .
· Start the engine (see "Starting the engine") .
· Pull the trigger 20 on the hand spray gun 18
several times .
· Allow the appliance to run until the water comes
out of the jet pipe 16 without any air bubbles .
· Switch off the appliance and screw the nozzle 4
back on .
13

WARNING!
Switch off the appliance before making any
adjustments or carrying out maintenance work .
DANGER! RISK OF EXPLOSION! DO NOT SPRAY
FLAMMABLE LIQUIDS!
· Place the appliance on a firm surface .
· The high-pressure cleaner may not be operated by
children . (Risk of accidents due to improper use of
the appliance) .
· The appliance generates a lot of noise .
Risk of hearing damage . Always wear suitable
hearing protect when working with the appliance .
· The water jet coming out of the high-pressure
nozzle exerts recoil force on the gun . An angled jet
pipe can also cause torque . Therefore, hold the jet
pipe and gun firmly in your hands .
· Never aim the water jet at people, animals, the
appliance itself or electrical components .
· Vehicle tyres/tyre valves may only be cleaned at a
minimum spray distance of 30 cm . Otherwise the
vehicle tyres/tyre valves could be damaged by the
high-pressure jet . The first sign of damage is a
discolouration of the tyre . Damaged vehicle tyres are
a source of danger .
· Materials containing asbestos or other substances
that are harmful to health may not be sprayed .
· To protect the operator from water spray, wear
suitable protective clothing .
· Always ensure that all hose connection are screwed
tight .
· The trigger of the hand spray gun must not be
jammed during use .
Filling oil/petrol
· When you use the appliance for the first time,
unscrew the red oil inlet screw 34 and add approx .
0 .6 l engine oil (15W40) . Use the funnel 43 to do
this .
· Unscrew the filler cap 6 and add standard
commercial lead-free petrol to the fuel tank . The 7
tank has a maximum capacity of 3 .6 l . Add fuel up to
the red mark .
Starting the engine
CAUTION!
Before first use, add engine oil (15W40, approx . 0
.6 l) and fuel (regular unleaded petrol) .
· Check the fuel and oil levels; top up as necessary .
· Provide adequate ventilation for the appliance .
· Ensure that the spark plug/spark plug connector
26 are firmly fitted .
CAUTION!
When starting using the pull starter 17 there can be
a kickback that can cause injuries to your hand .
· Wear protective gloves when starting .
· Open the fuel tap 25 ; to do this, move the fuel tap
25 to the "ON" position .
· Move the On/Off switch 36 to the "ON" position .
· Set the choke 24 to position I \ I (in the le
position) .
· Start the engine with the pull starter 17 ; pull firmly
on the handle to do this . If the engine does not start,
pull the starter again .
· Aer starting, push the choke 24 back in (in the
right position)
NOTE
The procedure described in this section is suitable
for both a cold start and a warm start .
Turning the engine off
· Run the appliance for a short while without load
before you switch it off so that the appliance can
"aercool" .
· Move the On/Off switch 36 to the "OFF" position .
· Close the fuel tap 25
Starting the appliance
· Switch on the water supply .
· Start the engine with the trigger 20 open .
NOTE
You can remove the jet pipe or the nozzle to make
starting easier .
· Run the engine for 1 minute to warm it up .
Setting operating pressure and flow
rate
· The pressure and flow rate are fixed on this
appliance and cannot be changed .
Changing the nozzle
USE
14

Changing the nozzle
DANGER!
Before changing the nozzle, switch off the appliance
and pull the trigger 20 to depressurise the appliance
· Remove the nozzle 4.
· Fit the new nozzle 4.
Use with a cleaning agent
WARNING!
Switch off the appliance before making any
adjustments or carrying out maintenance work .
WARNING!
· Unsuitable cleaning agents can damage the
appliance and the object to be cleaned .
Use only recommended cleaning agents that are
suitable for high-pressure cleaners .
This appliance is suitable for operation with the
cleaning agents recommended by the manufacturer .
The use of other cleaning agents or chemicals can
have a negative effect on the safety of the machine .
· The recommended cleaning agents are primarily
those that are suit- able for use with high-pressure
cleaners . These are available in DIY and car
accessory stores .
· Hang the cleaning agent hose 11 in a container with
cleaning agent .
· Replace the high-pressure nozzle with low-pressure
nozzle (black) .
– 0° nozzle – red:
Extremely strong, precise jet . Cleans only a small
area . Do not use for cleaning wood!
– 15° nozzle – yellow:
Strong 15° jet for intensive cleaning of small surfaces .
Use only on surfaces and materials that can withstand
high pressures .
– 25° nozzle – green:
25° jet for intensive cleaning of larger surfaces .
– 40° nozzle – white:
40° jet for cleaning large surfaces .
– Chemicals nozzle – black:
Low-pressure nozzle for the application of cleaning
agents .
Recommended cleaning methods
– Dissolving dirt:
Spray the cleaning agent sparingly and leave to
work for 1–5 minutes but do not let it dry .
– Removing dirt:
Rinse off the dissolved dirt using a high-pressure jet .
Aer using with a cleaning agent
· Leave the appliance engine running and pull the
trigger 20 for at least 1 minute to rinse itself .
Interrupting operation
· Release the trigger 20 on the hand spray gun 18 .
NOTE
When you let go of the trigger 20 of the hand spray
gun 18, the engine continues idling .
· For longer interruptions (several minutes), switch
off the engine .
· Pull the trigger 20 until the appliance is
depressurised .
· Secure the hand spray gun 18 against accidental
activation using the trigger lock 21 .
Turning off the appliance
Aer use with salt water (brine) run tap water
through the opened hand spray gun for at least 2–3
minutes to rinse the appliance .
· Release the trigger 20 on the hand spray gun 18 .
· Move the On/Off switch 36 to the "OFF" position .
· Close the fuel tap 25 .
· Switch off the water supply .
· Pull the trigger 20 until the appliance is depres-
surised .
· Secure the hand spray gun 18 against accidental
activation using the trigger lock 21 .
· Unscrew the water supply hose from the
appliance .
15

CAUTION! RISK OF INJURY AND DAMAGE!
Take the weight of the appliance into account during transport .
· Wind up the high-pressure hose 1 and place it in the hose holder 3 .
· Place the jet pipe 16 into the lower spray gun holder 13 . Hang the hand spray gun 18 in the upper spray gun
holder 19 .
· Push the appliance by the handle A .
· When transporting the appliance in vehicles, secure the appliance against rolling away, slipping or tipping in
accordance with the applicable guidelines .
CAUTION! RISK OF INJURY AND DAMAGE!
Take the weight of the appliance into account when storing .
The appliance may only be stored indoors .
Frost protection
CAUTION! RISK OF DAMAGE!
Freezing water in the appliance can destroy parts of the appliance .
Preferably store the appliance in a heated room in winter .
When storing in an unheated room, comply with the following instruc- tions:
Drain the water
· Unscrew the water supply hose and the high-pressure hose 1.
· Run the appliance for max . 1 minute until the pump and the lines run dry .
· Unscrew the water filter and empty it .
Flush the appliance with antifreeze
NOTE
Follow the handling instructions of the antifreeze manufacturer .
Pump a standard commercial antifreeze through the appliance .
This will provide a certain level of corrosion protection .
TRANSPORT
STORAGE
16

NOTE
The maintenance schedule below lists only
maintenance work on the high-pressure pump . In
addition, maintenance work on the engine must also
be taken into consideration .
DANGER! RISK OF INJURY DUE TO ACCIDEN-
TAL STARTING OF THE APPLIANCE .
· Before working on the appliance, turn the engine
switch to "0/OFF" and pull off the spark plug
connector .
· RISK OF BURNS! Do not touch the hot exhaust
silencer, cylinder or cooling fins .
Maintenance intervals
Before use
· Check the oil level using the dipstick 34 .
If the oil appears milky (water in the oil) contact
customer service immediately .
· Check the high-pressure hose for damage (risk of
bursting) .
Replace a damaged high-pressure hose
immediately .
Every 25 operating hours
· Check the oil level using the dipstick .
If the oil appears milky (water in the oil) contact
customer service immediately .
Every 50 operating hours
· Check the oil level using the dipstick .
If the oil appears milky (water in the oil) contact
customer service immediately .
· Clean the water filter .
· Clean the intake filter .
· Check the fastenings between the engine and the
frame for cracks and have any cracked fastenings
replaced by customer service .
Maintenance work
Changing the engine oil
· Prepare an approx . 1 litre container to collect
the oil .
· Unscrew the oil drain screw 15 .
· Allow the oil to drain out into the container .
NOTE
Old oil must be disposed of in an environmentally
friendly manner or handed in to an authorised
collection point .
· Screw the oil drain screw 15 back in .
· Pour new oil slowly into the opening on the oil
inlet 34 .
Fill the oil slowly so that air bubbles can escape .
See technical specifications for oil type and fill
quantity.
Engine
DANGER!
Switch off the appliance immediately and contact
customer service:
– If you notice unusual vibrations or noises .
– If the engine seems overloaded or misfires .
· Keep all protective equipment, air vents and the
engine housing as free of dust and dirt as possible .
Wipe the appliance with a clean cloth or blow it out
with low-pressure compressed air .
· We recommend cleaning the appliance aer every
use .
· Clean the appliance regularly with a damp cloth
and a little so soap .
Do not use any cleaning agents or solvents as these
can damage the plastic surfaces of the appliance .
Make sure that no water can penetrate into the
interior of the appliance .
Air filter
· Clean the air filter 5regularly; replace if necessary .
· To do this, open the air filter 5by removing the
wing nut 23 and then pulling out the air filter 5.
· Remove the filter elements .
· Do not use any aggressive cleaning agents or
petrol to clean these elements .
· Clean the elements by knocking them out on a flat
surface . In the event of severe soiling, wash with a
soap solution and then rinse in clear water and allow
to dry .
· Assembly is done in the reverse order .
Spark plug
Check the spark plug/spark plug connector for the
first time aer
20 operating hours for contamination and clean if
necessary with a wire brush . Aerwards, service the
spark plug aer every 50 hours of opera- tion .
· Pull of the spark plug connector 26 with a twisting
motion .
· Remove the spark plug 26 with the supplied spark
plug spanner .
· Assembly is done in the reverse order .
CLEANING AND MAINTENANCE
17

Oil change
The engine oil should be changed with the engine at
operating temperature .
· Use only engine oil (15W40) .
· Place the appliance on a suitable underlay tilted
slightly towards the oil drain screw .
· Open the oil inlet screw 34 .
· Open the oil drain screw 15 and let the warm oil run
out into a container .
· Aer draining the waste oil, close the oil drain screw
15 and set the appliance level again .
· Fill up with engine oil to the upper marking on the
dipstick 34 (approx .0 .6 l) .
CAUTION!
Do not screw in the dipstick 34 (oil inlet screw) to
check the oil level . Insert it only as far as the thread .
Waste oil must be disposed of properly .
Automatic oil switch-off
The automatic oil switch-off 35 activates if there is
too little engine oil and switches the engine off . If this
happens, the engine cannot be restarted or switches
off again aer a short while . A restart is only possible
aer the oil has been topped up (see section "Oil
change, checking the oil level (before each use)") .
Preparation for storage
· Empty the fuel tank using a petrol suction pump .
· Start the engine and leave it running until the
remaining petrol has been used up .
· Change the oil aer every season . To do this, drain
the old engine oil from the warm engine and refill
with new oil .
· Remove the spark plug 26 . Use an oil can to fill
approx . 20 ml oil in the cylinder . Pull the pull starter
17 slowly so that the oil coats the inside of the
cylinder . Screw the spark plug 26 back in .
· Store the appliance in a well-ventilated location .
Preparation for transport
· Empty the fuel tank 7into a suitable container
using a petrol suction pump .
· If still operational, leave the engine running until
the remaining petrol has been used up .
· Remove the engine oil from the warm engine (as
described) .
· Remove the spark plug connector 26 from the
spark plug 26 .
· Secure the appliance against slipping using
securing straps .
18

TROUBLESHOOTING
DANGER! RISK OF INJURY DUE TO ACCIDENTAL STARTING OF THE APPLIANCE .
Before working on the appliance, turn the On/Off switch36 to "OFF" and pull off the spark plug connector 26 .
RISK OF BURNS! Do not touch the hot exhaust silencer, cylinder or cooling fins
Engine will not start
Appliance does not generate sufficient pressure
Fault Cause Remedy
Engine cannot be started
Automatic oil switch-off 35 activated .
Check oil level, add engine oil .
Soot deposit on spark plug 26 .
Clean or replace spark plug 26 .
Spar k plug gap 0 . 7–0 . 9 mm
No fuel .
Add fuel .
Fault
Remedy
Running speed of the engine too low .
Check running speed of the engine
(see technical specifications) .
Low-pressure nozzle (
4
) is fitted .
Fit high-pressure nozzle (
4
) .
Nozzle
4
blocked/eroded .
Clean/replace nozzle
4
.
Intake filter
31
contaminated .
Clean intake filter
31
.
Air in the system .
Bleed the appliance (see "Use") .
Water supply quantity too low .
Check water supply (see technical
specifications) .
Supply lines to high-pressure pump leaking or blocked .
Check all supply lines to high-pressure
pump
39
.
Appliance is leaking, water dripping from under appliance
The high-pressure pump 39 is leaking .
NOTE
Max . permissible is 3drops per minute . For more serious leaks, have the appliance
checked by customer service
Cleaning agent is not drawn in
NOTE
If the fault cannot be remedied, the appliance must be checked by customer service.
Fault
Remedy
High-pressure nozzle (
4
) is fitted .
Fit low-pressure nozzle (
4
) .
Cleaning agent hose
11
leaking or blocked .
Inspect/clean cleaning agent hose
11
.
19

11
21
31
41
51
61
71
82
92
1 0 2
1 2 1
1 1 6
1 3 4
1 4 4
1 5 8
1 6 1
1 7 1
1 8 2
1 9 1
2 0
2 1
1
2 2
1
2 3
6
2 4
6
No No
Part name Part name
Qty Qty
Engine assy
Pump assy
Frame assy
Water hose holder
Handle
Water hose
Spray gun
Solid wheel
Axles
R-clips
M8 screw
Engine base holder
M8x35 screw
Anti-vibration feet
M6x40 screw
Detergent tank
Soap tank cap
Spray gun holder(i)
Spray gun holder(ii)
M6 gasket
Nozzles
5
Anti-vibration feet
Pressure hose holder
M6x35 screw
2 5 1
Suction hose assy
2 6 1
Soap tank hose
20
