Tone TOUCH 03 Guide

INSTALLATION AND USER INSTRUCTIONS
OCTOBER 2022
VERSION 1.4
DIGITAL MANUAL
Please get in touch
with your dealer for any
information about the software
or first instructions.
IN
INSTA

DISCLAIMER
Congratulations on purchasing your new TONE product. The information in this
document affects your safety and your legal rights and responsibilities. Read this
entire document carefully to ensure proper configuration before use. Failure to read
and follow instructions and warnings in this document may result in serious injury to
yourself or others, damage to your TONE product, or damage to other objects in the
vicinity. This document and all other collateral documents are subject to change at the
sole discretion of TONE. For up-to-date product information, visit http://www.tone-
swiss.com and click on the product page for this product.
By using this product, you hereby signify that you have read this disclaimer and warning
carefully and that you understand and agree to abide by the terms and conditions
herein. You agree that you are solely responsible for your own conduct while using
this product, and for any consequences thereof. You agree to use this product only
for purposes that are proper and in accordance with all applicable laws, rules, and
regulations, and all terms, precautions, practices, policies and guidelines TONE has
made and may make available.
TONE accepts no liability for damage, injury or any legal responsibility incurred directly
or indirectly from the use of this product. The user shall observe safe and lawful
practices including, but not limited to, those set forth in this document.
Copyright © 2021 by TONE Kaffeemaschinen AG
All rights reserved. No part of this publication may be reproduced, distributed, or
transmitted in any form or by any means, including photocopying, recording, or other
electronic or mechanical methods, without the prior written permission of the publisher.
For permission requests, write to the publisher, addressed at the address below.
TONE Kaffeemaschinen AG
Kasernenstrasse 5
3600 Thun
Switzerland
[phone]
[e-mail]
www.tone-swiss.com
TRADEMARKS
TONE is a trademark of TONE Kaffeemaschinen AG (abbreviated as „TONE“) and its
affiliated companies. Names of products, brands, etc.. appearing in this manual are
trademarks or registered trademarks of their respective owner companies.
Manufacturer:
Thuner Kaffeemaschinenfabrik AG
Kasernenstrasse 5
3600 Thun / Switzerland

1. PROPER USE
2. DESCRIPTION OF THE PRODUCT
3. INITIAL USE
4. PROCESS/WORKFLOW
5. MAINTENANCE
6. FAULT RECTIFICATION
7. TECHNICAL DATA
8. RECYLING AND DISPOSAL
9. WARRANTY
10. WIRING DIAGRAM
11. WATER SPECIFICATION
OPTIONAL FILTER STAND
DECLARATION OF CONFORMITY
1.1 For your safety
1.2 Explanation of safety warnings
2.1 Purpose of the Product
2.2 Contents
2.3 Appliance overview
2.4 Dimensions
3.1 Place of use
3.2 Pumbing Connection
3.3 Electrical Connection
3.4 Initial set-up
4.1 Brewing
4.2 Button Function
4.3 Connection
4.4 Edit recipes
4.4.1 Proven mode
4.4.2 Create set
4.4.3 Advanced mode
4.4.4 Freestyle mode
4.5 Import /Export recipes
4.6 Service
5.1 Cleaning
5.2 Daily Cleaning
5.3 Descaling
5.4 TOUCH 03 Equipment
6
6
6
8
10
10
10
10
11
11
11
12
14
16
17
17
18
19
19
19
19
20
22
23
23
24
25
26
28
11
8
8
TABLE OF CONTENS
9
8
20
15
16

06
1. PROPER USE
This machine is only intended for the use for
which it was basically developed. Any oth-
er use shall be considered ill-suited and im-
proper. The manufacturer shall not be con-
sidered responsible for any damages caused
by improper use. The electric safety to the
machine is achieved only when the machine
is correctly connected to a grounded elec-
tric system.
This fundamental requirement shall be as-
sessed by qualified personnel. Manufacturer
and installer shall not be held responsible for
any damages caused by the lack or ineffi-
ciency of system grounding.
1.1 FOR YOUR SAFETY
Read and follow the instructions in these
operating instructions in order to operate
this machine safely. Do not carry out any in-
dependent modifications or repairs on the
device.
The following warning symbols are used in
these operating instructions.
1.2 EXPLANATION OF SAFETY
WARNINGS
DANGER!
Failure to observe the warn-
ing can result in danger to
life and limb.
WARNING!
Failure to observe the warn-
ing can result in material
damage.
CAUTION!
Matters which should be tak-
en into account when using
the appliance.
INFORMATION FOR COR-
RECT DISPOSAL OF THE
PRODUCT IN ACCORD-
ANCE WITH EC DIRECTIVE
2012/19/EU
This product must not be disposed of
as urban waste at the end of its work-
ing life. It must be taken to a special
waste collection centre licensed by
local authorities or to a dealer provid-
ing this service. Separate disposal of the product will avoid
possible negative consequences for the environment and for
health resulting from inappropriate disposal, and will enable
the constituent materials to be recovered, with significant
savings in energy and resources.
OBSERVE THE FOLLOWING SAFETY
INSTRUCTIONS AT ALL TIMES:
▪ The appliance is only to be installed in
locations where ist use and maintenance is
restricted to trained personal.
DANGERS TO CHILDREN
AND OTHER PERSONS!
Children should be super-
vised in order to ensure
that they do not play with the appliance.
▪ This appliance is not intended for use
by persons (including children) with re-
duced physical and mental cababilities, or
lack of experience and knowledge, unless
they have been given supervision or in-
struction concerning use of the appliance
by a person responsible for their safety.
DANGER DUE TO FAULTY
OPERATION!
Improper use of the appliance
can result in damage or injury.
▪ Do not use the appliance barefoot or when
hands / feet are wet.
▪ Unplug the appliance from the electric
system and turn of water supply before car-
rying out any cleaning and ordinary main-
tenance.
▪ Do not put the appliance under a jet of
water, nor plunge it into water to clean it.
▪ Do not leave the appliance turned-on and
unattended for long periods (e.g. 1 day)
PROPER USE

07
▪ In order to ensure the eciency and correct
functioning of the appliance, it is necessary
to follow the instructions provided by the
manufacturer and to carry out its ordinary
maintenance.
▪ The appliance shall be installed so that the
highest surface is at least 1 metre high.
▪ The appliance shall be placed on a level
horizontal surface to ensure a safe use.
▪ The temperature range of the environment
surrounding the appliance shall be included
between 5°C and 30°C. In case the appli-
ance is temporarily placed in an environ-
ment where the temperature is below 0°C,
contact a local Technical Service authorized
by the manufacturer.
▪ The machine shall be placed on a surface
guaranteeing secure support.
▪ Ideally the appliance is bolted onto the
working surface using a pair of slotted coun-
tersunk screws (M8, stainless).
▪ The machine must be connected exclu-
sively to an appropriate cold drinking water
source, in compliance with national norms
and rules. The pressure of the incoming wa-
ter must be between 0.15-0.3 MPa. If this
does not met, install a pressure reducer /
regulator according to the requirements.
▪ A shut-on tap must be installed between
machine water hose and water system to
block water flow in case of necessity.
▪ When installing the appliance, use exclu-
sively the current hose-set provided with
the appliance itself.
▪ In case of appliance breakdown and/or
malfunctioning, turn the main switch OFF
and refrain from trying to repair it. Then con-
tact a local Technical Service that has been
authorized by the manufacturer.
WARNING DUE TO
UNAUTHORISED REPAIR!
Faulty repairs can result in
damage to the appliance.
▪ Repairs should be carried out only by au-
thorised customer service centres.
▪ If you cannot correct a fault with the aid
of the steps described in these operating
instructions, please refer to your authorised
dealer.
▪ The electric safety of the machine is
achieved only when the machine is correctly
connected to a grounded electric system.
▪ The user shall arrange electric, water and
draining systems in a suitable position to al-
low correct machine installation.
WARNING BEFORE
SERVICING OR OPENING
this device make sure the
brewer is disconnected from
power by pulling its plug. The
service technician has to see
the pulled plug during the whole service
operation.
▪ The installer cannot modify the existing
system built by the user.
▪ If the electric supply plug is damaged, it
must be replaced by another plug provided
by the manufacturer or by its Technical Ser-
vice.
▪ For good machine functioning and main-
tenance, it might be necessary to install a
water softener in order to avoid scale forma-
tion. This must be evaluated by the installer
and the user shall leave a space for the cor-
rect installation of a water softener, follow-
ing the instructions contained in its manual.
Do not use water jet devices
in the area where TOUCH 03
is installed!
Do NOT tilt TOUCH 03 during
operation! Max. tilt angle < 5°.
Only to be operated by
trained personnel!
If the above-mentioned instructions are not followed, the safety and wear of the appliance can be jeopardized and its
guarantee is no longer valid.

08
2. DESCRIPTION OF THE PRODUCT
2.1 Purpose of the Product
This machine shall be destined exclusively to
the use it has been expressly designed for.
Any other use shall be considered illsuited
and improper.
2.2 Contents
1x TOUCH 03 Machine
1x Manual Touch 03
1x Grey magnet
1x Second shower screen
DISCRIPTION OF THE PRODUCT
2.3 APPLIANCE OVERVIEW
01 Power switch (on back side)
02 Four programmable buttons
03 Spray head
1
2
3
4
5
04 stand for smaller brewing vessels (optional)
05 Drip tray
06 Brew basket holder (Image missing)

09
Cold Water | Softener
CAUTION
Power to brewer
must be OFF before
proceeding with
plumbing
installation.
Ethernet connection cable
CAUTION
Improper electrical
installation will
damage electronic
components.
Damage caused by
incorrect electrical
connections in not
covered by warranty.
DIMENSIONS
Powercord
P | N | GR
DasUrheberrechtandiesenZeichnungenundallenBeilagen,diedemEmpfänger
persönlichanvertrautsind,verbleibtjederzeitunsererFirma.Ohneschriftliche
Genehmigungdürfensienichtkopiertvervielfältigt,auchniemalsdrittenPersonen
mitgeteiltoderzugänglichgemachtwerden.
Freigegeben:06.01.2015BM
KantenohneAngaben0,2-0,3mmbrechen,Gewinde6H/6g
AlleMassangabenmasshaltignachOberflächenbehandlung
AlleverwendetenMaterialienRoHskonform
Oberflächenbeschaffenheit:
AllgemeineFlächenmaxRa3.2
BeiToleranzbreite≤0.1maxRa1.6
BeiToleranzbreite≤0.05maxRa0.8 bis30mmbis120mm
über30mmüber120mm
bis315mm
über315mm
bis1000mm
±0.3mm±0.5mm
über1000mm
bis2000mm
±0.2mm
±0.15mm
±0.1mm
AbweichungenfürMasseohneToleranzangabennachISO2768-fH:
A3
Blatt:
1 /1
200434 Grundgestell_B
Datum / Name
21.04.2021
Massstab:
Version a
Werkstoff:
Oberfläche:
Behandlung:
Halbzeug:
Gezeichnet
Freigegeben
aktuelle Vers ion
Modifikationen
b)
d)
c)
g)
f)
e)
h)
i)
k)
l)
m)
n)
o)
p)
q)
r)
Datum / NameDatum / Name
Vorlage LRP_2020.idw
200
140
148
92 56
92
Ø9
Ø9
Ø9
Ø9

10
3. INITIAL USE
Before using your TONE Touch 03
3.1 PLACE OF USE
Brewer should be installed only inside and
in a dry environment. Brewer should be
installed on a secure, level, surface capable
of fully supporting the weight of the brewer,
including the water retained in the brewer,
and any fully loaded dispenser(s) that may
be placed on the brewer.
▪ A potable water line (cold water) capable
of consistently supplying the required
minimum flow rate within the noted pressure
range is required at the install location.
▪ A grounded electrical connection
to a circuit that meets the electrical
specifications of the brewer and is protected
by the appropriate size and type of breaker is
required. See the supply cable specification
in chapter 3.3.
CAUTION
Power to brewer must be
off before proceeding with
plumbing installation.
CAUTION
Improper electrical
installation will damage
electronic components.
Damage caused by incorrect
electrical connections in not
covered by warranty.
3.2 PLUMBING CONNECTION
▪ The brewer must be rinsed after being
connected to the water supply line.
Remaining air in the system will be removed.
Otherwise it may lead to malfunctions and
noise in the housing. Follow instructions in
section Button functions.
▪ The pressure of the water line must be
within 1.5 bar – 3 bar.
▪ The installation of a water softening filter
system is mandatory for the use of TONE
equipment. Any violation of this regulation
will lead to a complete loss of any warranty
on the complete system.
▪ The brewer has a descaling tracking
function available. Follow the instrcutions
on page 19.
3.3 ELECTRICAL CONNECTION
WARNING
The brewer must be
disconnected from the
power source until specified
in INITIAL SET-UP.
CAUTION
Improper electrical
installation will damage
electronic components.
Damage caused by incorrect
electrical connections is not
covered by warranty.
▪ An electrician must provide electrical
service as specified in conformance with all
local, state and federal electrical codes.
▪ Recommended backup fuse: 16A
▪ Recommended electrical supply cable:
3x2.50 mm2 or 3x13 AWG, according to local
regulations
▪ The electrical ratings can be found on the
type plate which you will find on the device.
▪ Use a voltmeter to check the voltage
and color coding of each conductor at the
electrical source.
▪ Ensure power switch on rear of brewer
is in the off position. Connect brewer to
power source and verify voltage at terminal
block. Replace rear panel and top cover. If
plumbing has been hooked up, brewer is
ready for Initial Set-Up. If not, disconnect
brewer from power source.
INITIAL SET-UP

11
BREWING
WARNING
Electrical connections must
be made as specified above.
Failure to follow these
instructions can result in
personal injury, property or
equipment damage.
WARNING
Before servicing or opening
this device make sure the
brewer is disconnected from
power by pulling its plug.
The service technician has
to see the pulled plug during the whole
service operation.
This device must be connected to a line
system impedance Zsys ≤ 0.082 + j0.051 Ω
Symbol explanation:
I = ON
O = OFF
Consult the supply authority before
connecting.
3.4 INITIAL SET-UP
▪ Remove the grey cover from the housing.
▪ Connect the blue water house with the
Touch 03 and your water supply. (Note: The
TONE Touch 03 needs to be run with filtered
water)
▪ The water pressure should be between
0.15 and maximum 0.3 MPa (the flow of the
machine is calibrated at the factory with
0.23 MPa). A pressure reducer is supplied
with the machine to ensure that no more
than 0.3 MPa of water pressure enters the
machine.
▪ To prevent the water from flowing back
into the drinking water system, a check valve
is supplied with the Touch 03. This must be
installed in the blue water hose. (check the
correct flow direction)
▪ The delivered connection adapter from
TONE has a 3/8 inch thread.
▪ Plug the machine into the 230 V socket.
▪ Build up a connection with a laptop or
tablet to your Touch 03. Connection by
ethernet cable to your laptop or connection
by ethernet cable to a lan switch or
connection over wifi with the IO-GEAR
device. Check chapter 4.3 Connecting.
▪ Install the TONE beverage manager on
your device (IOs, Mac, Windows 10 or
Android).
▪ Rinse the machine by pushing the buttons
1 & 2 and the main switch (the two buttons
will shine up blue and cold water will rinse
through the machine until you switch off the
machine). This will help to get rid of the air
inside of the brewer system.
▪ Calibrate the flow of the machine to its
new home. See section 4.6
4. PROCESS/WORKFLOW
4.1 BREWING
Equip a brewing vessel of your choice with
a filter and fill in an appropriate amount of
brewing ingredients.
Place the brewing vessel with loaded filter
underneath ingredients. Decide whether
you need the optional stand or brew basket
holder and select the desired recipe by
pushing the corresponding button. As soon
as the program is running the button starts
to blink. Be aware that the water flow may
be interrupted during the brewing process
once or several times. Wait until the recipe
is processed completely (button stops to
blink).
Remove the brewing vessel from the
appliance and the TONE Touch 03 is ready
for use again immediately. The program can
be aborted by pushing the chosen button
again during process.
There are four factory standard recipes
installed on every Touch 03 (from left to
right):
1 Volume: 300ml Taste: mild
2 Volume: 300ml Taste: medium
3 Volume: 300ml Taste: bold
4 Volume: 300ml Taste: xbold

12
The recipes can be exchanged or modified
by connecting your pc or tablet to the
Touch 03. See chapter 4.4 to learn how to
create a recipe.
4.2 BUTTON FUNCTION
Recipe selection:
Button 1 – 4 (from left to right)
Descaling:
Push and hold Button 1 while switching the
main switch ON
Rinsing:
Push and hold button 1 & 2 while switching
the main switch ON. Stop the rinsing by
switching the main switch OFF
▪ Rinse the device after a long-lasting down
time or when there may be air inside the
system.
▪ Before air transport or exposure to
temperatures below 4°C all remaining
water inside the brewer has to be removed.
Disconnect the water supply and start the
rinsing procedure.
IT IS NOT ALLOWED TO
BLOW OUT THE MACHINE
IN ANY WAY!
No blowing out with the
mouth, no compressed air,
no blowing out with the
syringe, etc. This will destroy the sensitive
flow meter!
Buttons 1 & 4 light up blue
1. Check if the NTC sensorcable (white)
is disconnected.
2. Please, contact your dealer.
Button 1 & 3 & 4 light up blue
▪ E-fast disconnected (violet cable)
▪ Both solid state relay
dis con n ected ( m iss ing s igna l )
▪ Heating fuse defective
▪ Cables on top of the heater are
disconnected
1. If you have the firmware 2.6.0 or 2.6.1 on
your Touch 03 please do a downgrade to
2.5.0
2. Check if all cables on top of the heating
element are connected properly
3. Check the cable connections on the solid
state relays
4. Check the fuse of the heating element
5. Please, contact your dealer.
Buttons 3 & 4 light up blue
No flow / water supply interrupted
1. Check your water supply / open the main
valve
2. Rinse the machine with approx. 1L by
pushing button 1/2 + main switch
3. If no water comes out, build out and
clean the proportional valve according
the video on www.tone-swiss.com
4. Descale the machine (check manual)
CONNECTING

13
CONNECTING
5. Exchange the flowmeter
6. Please, contact your dealer.
Buttons 2 & 4 light up blue
▪ Proportional valve is leaking
1. Rinse the machine with approx. 1L by
pushing button 1/2 + main switch
2. Please, contact your dealer.
Buttons 2 & 3 & 4 light up blue
▪ Brewer overheated / error on heating
element / defective thermostat / Flow
problem not resolved / missing signal from
solid state relay.
1. Switch the brewer OFF and let it cool
down.
2. Rinse the machine with approx. 1L by
pushing button 1/2 main switch together
3. Check if during the run of a recipe both
LED on the solid state relays are blinking
4. Replace the NTC temperature sensor on
the heating element
5. Please, contact your dealer.
For more precise informations go to page
20. Otherwise please contact your dealer.
Trouble shooting
If vibrating noises are heard from the
machine housing, there could be air in the
system. This can be the case in particular if
the water supply line has been interrupted.
In order to remedy the fault, the device must
be rinsed. Follow the instructions in the
section Button Functions.
In case of any other issues, please contact
your dealer.
4.3 CONNECTING

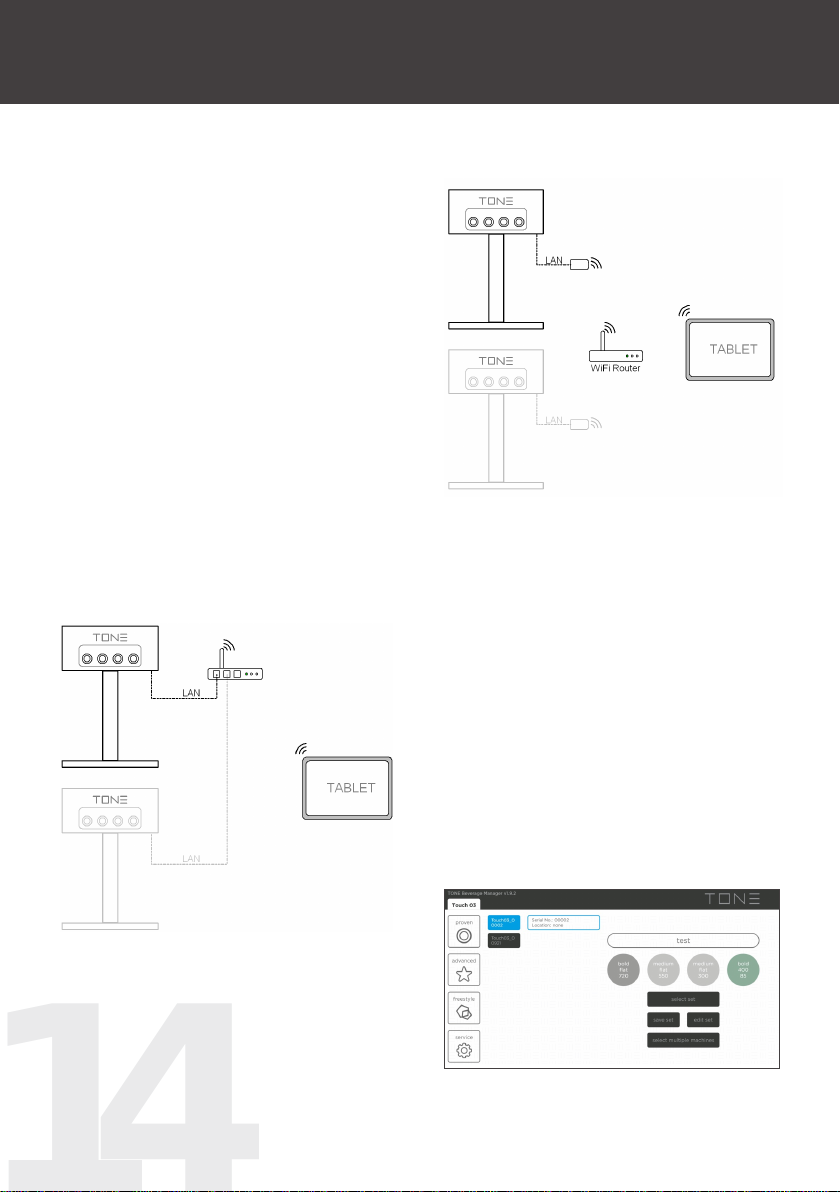

OPTION 1 A
Direct Connection
(direct or via a LAN-2-USB Converter)
▪ connect the TONE to the tablet / pc
or
▪ connect the TONE via the LAN-2-USB
converter to your tablet / pc
▪ only one TONE can be connected to the
tablet / pc
OPTION 1B

14
LAN-Switch / LAN-router
▪ connect the TONE to the LAN switch
▪ connect the LAN switch to the tablet / pc
(direct or via LAN-2-USB converter)
▪ you can connect one or more TONE to the
tablet / pc
NOTE:
The ethernet port configuration on your
tablet / pc should be as follow:
1. connect the cable direct to your device or
via the LAN-2-USB converter
2. Open the ethernet properties
Settings - Network and Internet - Ethernet
- properties
3. Select automatic mode (dhcp) at the ip-
assignment
OPTION 2A
Wifi-Router
▪ connect the TONE to the wifi router
▪ connect the tablet / pc to the wifi router
▪ you can connect one or more TONE to the
tablet / pc
OPTION 2B
Ethernet-2-Wifi-Converter (IO-GEAR)
For each TONE you need an Ethernet-2-
Wifi-Converter
▪ Consider the specific manual / video for
the set-up on www.tone-swiss.com
4.4 EDIT RECIPES
Connect your TONE Touch03 brewer with
the TONE tablet computer as described in
the previous section. Once the installation
is complete, switch your TONE Touch 03
ON and it will appear in the list of available
TONE equipment as soon you select the
tab Touch 03. The factory pre-set name will
be ToneTouch03_XXXXX (XXXXX=serial
number). This can be customised later (s.
Service tab).
Click on your device in the list and the
standard configuration of the recipe
EDIT RECIPES

15
EDIT RECIPES
selection buttons will be displayed. You can
either change this configuration by clicking
each button individually and chose recipes
from the list which will be explained later. Or
you can choose a whole set of recipes that
you can put together (check page No. 16)
Please remark that your adaptions are
made directly on the device. There is no
need for a transfer command or a click on a
confirmation checkbox here.
4.4.1 PROVEN MODE
The proven tab provides a tool for a quick
and successful recipe creation. There are
four pre-set options for coffee and three
for tea, which will result in different flavour
intensities of the beverage.
For the coffee recipes, the brewing
temperature and the pulsation of the water
flow is pre-defined, based on the experience
of TONE coffee experts. You can simply
adjust the amount of water (Insert the
desired value using the keyboard or the
arrow keys.) and choose between cone and
flat filters. Make sure you have installed the
correct shower screen insert for each filter
type. For the cones you need to install the
screen with 5 holes, for the flat filter the
screen with 18 holes.
Enter the desired recipe name and click the
save button. Your recipe will appear on the
recipe list.
If you do not enter a specific name, the
program will give you a name for the recipe,
which includes the strength of the coffee,
the amount of water, and the type of filter
used.
The settings of the tea recipes are slightly
different. Choose the water temperature
considering the type of tea which shall be
prepared. The different tea options differ
regarding the number of pulses and their
characteristics.
The name of a tea recipe will tell you the
strength of the flavour, the amount of water
and the brewing temperature.
If a recipe is no longer needed, you can

16
delete it in this window by clicking on the
trash bin and selecting the recipe(s) you no
longer need.
4.4.2 CREATING SETS
You can compose a set of recipes by clicking
on each button of the four square buttons
and choosing a recipe from the list.
Once you have made your selection
of recipes, press “save set”, choose a
meaningful name and select the desired
category. Press then save again.
Then press “select set” and select the
desired set in the corresponding category.
If you press “edit set” you can change one
specific set or delete it if no more needed.
4.4.3 ADVANCED
The Advanced tab provides you a very
intuitive and comprehensive tool for the
creation of new recipes. You can set the
temperature of each extraction phase
(bloom, turbulence, development) and
define the characteristics of the water pulses
(quantity, flow ratio, duration, interval).
First of all, you should set the water target
which you would like to produce. This
value will not be exceeded. Varying the
bloom or the turbulence phase will adapt
the development phase automatically. The
development phase itself is self-adjusting
between duration and flow ratio of its pulses.
Second, you can define how much coffee
you need for your recipe by specifying the
brew ratio. The amount of coffee is indicated
in small letters below. In the same place, you
will also see a recommendation of how much
water is needed for the blooming phase (this
can be transferred to the blooming column
if required).
EDIT RECIPES

17
ADVANCE
When you have finished your recipe, you
can save it by giving the recipe the name
you want, selecting the right category and
clicking “save recipe”. It will then appear in
the selection lists when you press the desired
key on your selected machine (Touch03)
and select it from the advanced chapter.
There is also the possibility to change
existing advanced recipes by clicking “edit
recipe”.
A new category can be done by pressing
the + button in the advanced recipe list.
4.4.4 FREESTYLE
The freestyle chapter provides a way to
create a recipe entirely without restrictions
or frameworks.
As a first step, you can define the number of
pulses (maximum 20) using the + and - keys.
Further you can define the parameters per
pulse individually. In the upper part you can
see the total amount of water and the total
time of the recipe.
After assigning a specific name and
selecting Coffee or Tea, you can save the
recipe with the „save recipe“ key. Again, it is
also possible to modify existing recipes with
the „edit recipe“ key.
4.5 IMPORT / EXPORT FUNCTION
If you want to use an existing recipe or
send a recipe you have created to someone,
you can use the import / export function.
Open the desired tab (proven, advanced or
freestyle). Press the edit recipe button. Now
you can decide whether you want to import
a new recipe or export an existing one.
Import
Select the button if you want to import a
new recipe (sent to you from somewhere
else) and retrieve the file from where you
saved it on your device.
Export
Select the button if you want to export a

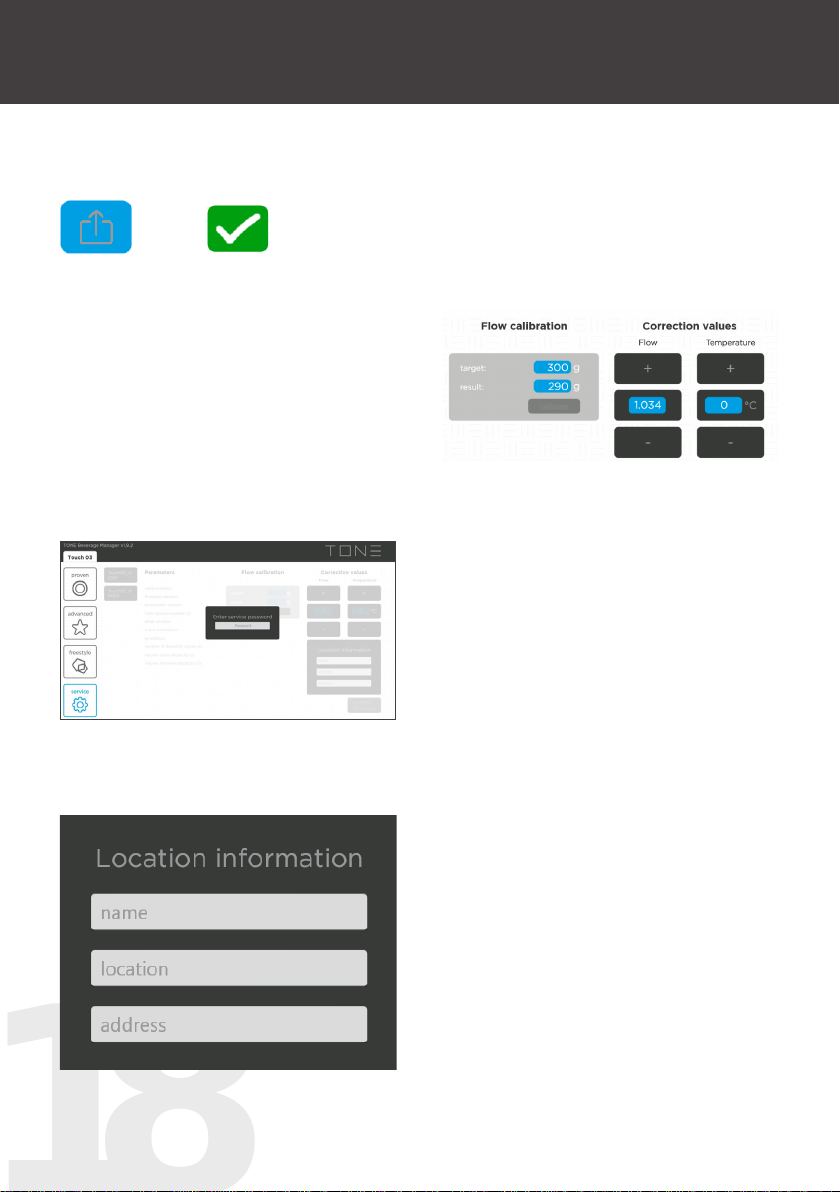

created recipe. The button will turn blue (see
pic. 1) and you can now select all the recipes
you want to export. Once you have done
this, press the button again (the button will

18
now have a green checkmark, see pic. 2) and
select your desired memory location.
Pic 1 Pic 2
4.6 SERVICE
The Service tab provides possibilities to
customise the brewer identification and
the calibration. And you can also check
all important parameters. Clicking on the
service tab will automatically open a login
pop-up window. Entering the password
“TONEservice” enables all available options.
Select one of the brewers listed in the left
column.
In the field “Location information” you can
enter a meaningful description of your
brewer and its location.
In case your brewer should extract more or
less water than intended you can tweak the
flow rate by setting a value below 1 in case
you want to reduce the amount of water or
a value above 1 if you want to increase the
amount of water. This is a very sensitive tool
an can only be adjusted in permille steps.
For the exact calculation of the flow
correction you can use the calculator.
Enter the desired quantity (target) and the
previously measured quantity in the “result”
field. Then press the “calibrate” button to
transfer the calculated correction to the
“Flow” field. This correction is always added
to or subtracted from the existing correction.
In case your extraction temperature doesn’t
fit to the set values of the recipes (e.g.
when there is very cold water supply) you
can adjust the temperature by clicking “+”
or “-“. The maximum values are +5/-5°C.
Keep in mind that the maximum possible
temperature of a recipe is limited at 97°C.
Theoretically you could then achieve a
temperature of 102°C. The heating system
will then produce steam instead of water,
which needs to be prevented in order to
achieve good brewing results.
Please also remark that the boiling point
of water drops with increasing altitude (≈
-1°C/300m).
With the “firmware update” button you can
easily update the machine. Press the button,
select the appropriate “file” on your device
and upload it. (If necessary, check with your
authorized dealer if a new file is available).
SERVICE

19
DAILY CLEANING
5. MAINTENANCE
5.1 CLEANING
DANGER due to improper
cleaning!
Improper cleaning can result
in damage to the appliance
or personal injury.
▪ To guarantee proper functionality of TONE
equipment it is necessary to clean the device
on each day.
▪ To clean the surface of TONE equipment,
it is recommended to use a damp cloth
soaked in a 1% soda solution (Na2CO3).
▪ Never immerse the appliance itself, the
power supply cable or plug in water.
▪ Never pull the plug out of the socket by
the cable, always grasp the plug.
▪ Never attempt to touch or pick up and
electrical appliance if it has fallen into water.
In this case, disconnect the plug from the
socket immediately.
▪ Check the appliance and cable regularly
for damage.
DANGER due to
unauthorised repair!
Repairs should be carried out
only by authorised customer
service centres.
▪ If you cannot correct a fault with the aid
of the steps described in these operating
instructions, please refer to your authorised
dealer.
5.2 DAILY CLEANING
▪ Do not use water jet device to clean the
TONE equipment.
▪ Do not use abrasive means to clean the
TONE equipment.
▪ Check and clean the showerhead daily. All
holes of the spray head must always remain
open
NOTE - Any remains on the showerhead may
influence the water flow and impact your
coffee brewing.
5.3 DESCALING
To guarantee proper functionality of TONE
equipment, it is necessary to descale the
device. The descaling of the TONE Touch 03
brewing system is mandatory as soon the
chasing light is appearing or at least once
a month. Any violation of this regulation
will lead to a loss of any warranty on the
complete system.
The demand of a descaling process is
indicated on the recipe buttons by a blue
chasing light: -> <- ->.
Blue chasing light (Button 1-4) after
switching the brewer ON and after finish-
ing a recipe
▪ Descaling necessary
This signal is shown after switching the
machine ON and at the end of every
extraction.

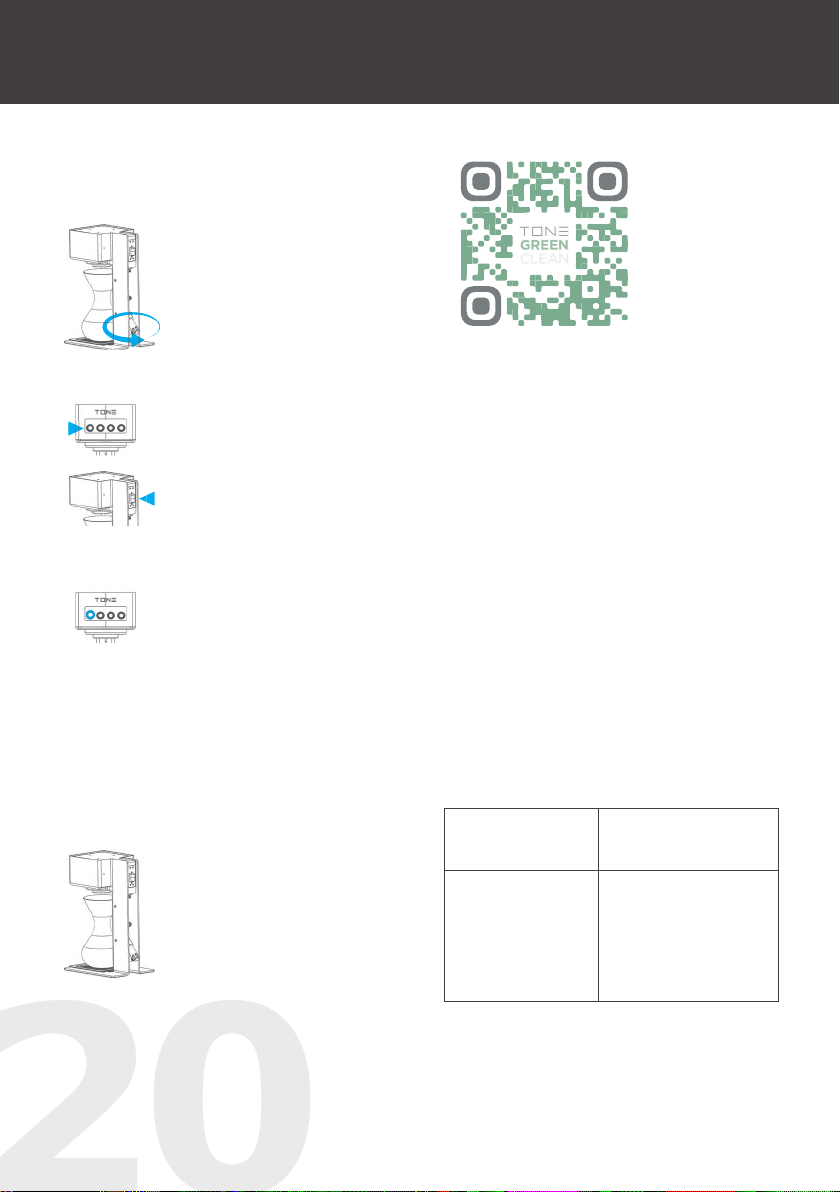

STEP 1
Remove the cover from the
TONE Touch 03.
STEP 2
Before the descaling process
is started, a vessel with a
minimum volume of one liter
must be placed underneath
the shower.

20
STEP 3
Remove the lid from the descaling agent
container.
STEP 4
Screw the descaling agent
container into the descaling
valve.
STEP 5
Push and hold button one
while switching the machine
ON again.
STEP 6
Allow the decalcification
recipe (duration approx.
12 min) to run through
completely. As soon as the
descaling is completed, button
one shines constantly blue.
STEP 7
Remove the descaling agent
container and restart the
machine.
STEP 8
Flush the whole system by
extracting at least 300 gramm
of hot water.
STEP 9
The TONE Touch 03 is then
ready again fore brewing
excellent coffee.
Scan the QR Code and take a look at the
How-to Video.
5.4 TOUCH 03 EQUIPMENT
▪ stand for smaller brewing vessels (see
picture on page No. 08)
▪ filter stand for variable brew distances (see
picture on page No. 8 or the instructions on
PAGE NO. 24)
▪ TONE Green Clean (descaling liquid): one
design carton includes 12 green clean bottles
x 29 ml - suitable for one year cleaning
6. FAULT RECTIFICATION
TOUCH 03 EQUIPMENT
PROBLEM SOLUTION
Overheating
(Buttons 1 & 4 light
up blue)
1. Check if the NTC
sensorcable (white)
is disconnected.
2. Please, contact your
dealer.
