Topcom BUTLER 565 User manual

49
CONTENTS
1 Handset and Basestation 50
2 Display 50
3 Operating Instructions 51
3.1 Installation 51
3.2 Basic Functions 52
3.2.1 Incoming Calls 52
3.2.2 Outgoing Calls 52
3.2.3 Paging from Base to Handset (up to 6 handsets) 53
3.2.4 Internal Call to another Handset 53
3.2.5 Internal Call from another Handset 54
3.2.6 Internal Call during an external Call 54
3.2.7 Incoming external Call during internal Call 55
3.2.8 Making a Phone Call 56
3.2.8.1 Normal Dialling 56
3.2.8.2 Last Number Redial 56
3.2.8.3 Memory Numbers 56
3.2.9 Prenumeration 57
3.2.9.1 Normal numeration 57
3.2.9.2 Redialling (4 last numbers) 57
3.2.9.3 Memory numbers 57
3.2.10 Microphone Mute 58
3.2.11 Dialling Mode 58
3.2.12 Flash (R) 58
3.2.13 Call Duration Time 59
3.2.14 Caller-ID Information 59
3.2.15 Temporary Keypad Lock 59
3.3 Programming the System Parameters 60
3.3.1 Ring Volume and Ring Melody of the Base Station 60
3.3.2 Pause Time Programming 60
3.3.3 PSIC/EIC Code Programming 61
3.3.4 Emergency Numbers 61
3.3.5 Call Barring 62
3.4 Programming the Handset Parameters 63
3.4.1 Base Number Display on/off 63
3.4.2 Handset Number Display on/off 63
3.4.3 Key Tone on/off 63
3.4.4 Ring Volume and Melody of the Handset 64
3.4.5 Speaker Volume Programming 64
3.4.6 Notebook Function 64
3.4.7 Programming Memory Numbers 65
3.4.8 Transfer Redial Memory Numbers to Memory Locations 65
3.4.9 Clear the Dial Memory 66
3.4.10 Babycall 66
3.5 Programming the PIN code (Personal Identification Number) 67
3.5.1 Programming the Handset PIN code 67
3.5.2 Programming the Base PIN code 67
3.6 Registration and Deregistration 68
3.6.1 Registration 68
3.6.2 Deregistration 68
3.7 Select the Base Station 69
3.8 Default Settings 69
3.8.1 Default Settings of the Handset 69
3.8.2 Default Setting of the Base Station 70
4Technical Data 70
5Troubleshooting 71
6Warranty 72

50

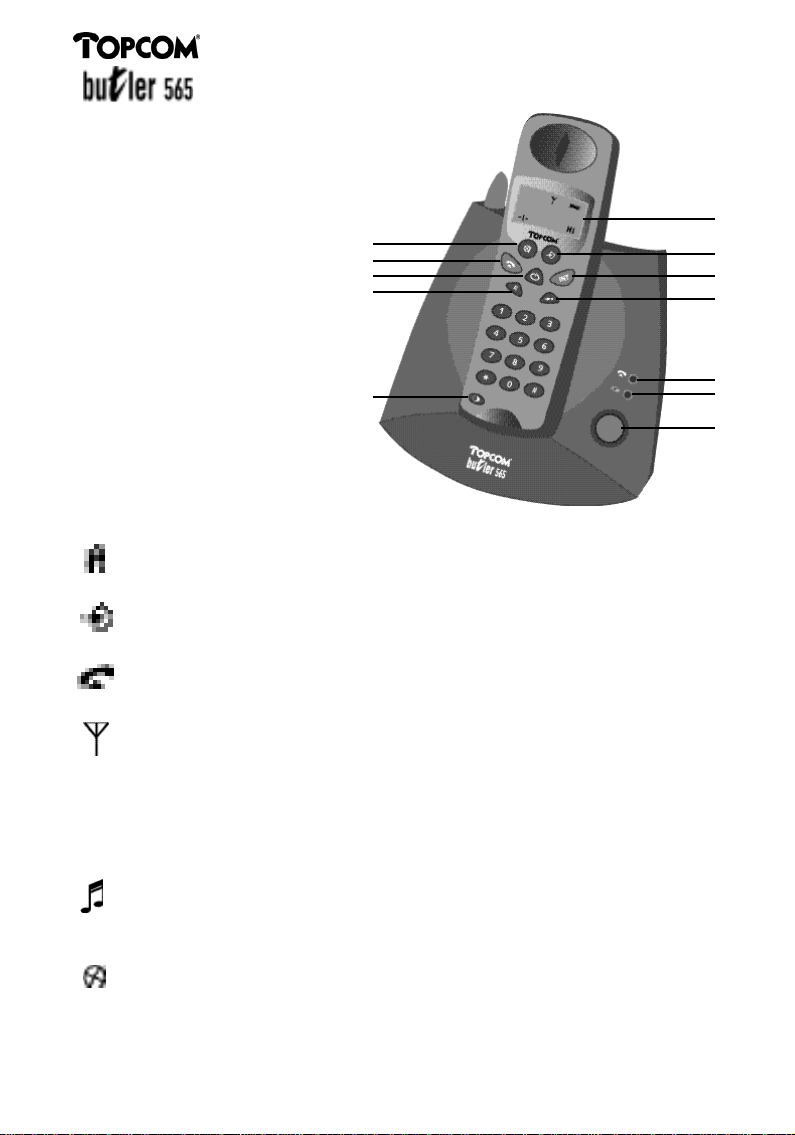

1 Handset and Basestation
1 Display
2 Set button
3 Intercom button
4 Memory button
5 Mute button
6 On/Off button
7 Line button
8 Flash button
9 Redial button
10 Battery indicator
11 Line indicator
12 Paging button
2 Display
LOCK indicator
The handset is locked
PROGRAM indicator
You are in the menu
PHONE indicator
You are in communication
SCAN indicator
The handset is active
INTERCOM indicator
An intercom call or a base
programming mode with
PROGRAM indicator
DTMF indicator
The dialling mode is DTMF
MUTE indicator
The microphone is temporarily
deactivated
INT
1
2
5
7
6
8
9
3
4
11
10
12

51
BATTERY indicator
Indicator rechargeable battery. The indicator blinks when the battery is low.
Battery capacity 25%
Battery capacity 50%
Battery capacity 75%
Battery capacity 100%
3 Operating Instructions
3.1 Installation
•Connect the phone lines to the base unit
and put the batteries into the battery
compartment.
•When the handset is placed on the charger unit, the handset batteries are
being charged. If the battery has been completely discharged, it requires 7 hours
to fully recharge.
Power off
• Press and hold the ‘ ’ button for about 1 second when the handset is in
standby mode.
Activate handset
• Press the ‘ ’ button briefly when the handset is deactivated.
The handset is searching the base
BASE NO HANDSET NO
During base searching, the base number appears on the display. It indicates the
base that the handset is currently searching for.
• ‘-0-’ means that all bases, to which this handset is registered, are being
searched. (Automatic Searching)
• ‘-1-’, ‘-2-’, ‘-3-’, ‘-4-’ displays the number of the base station to which the
handset is registered.
REMARKS
You can program the base number you want to make a connection with. If you do not want the
base and handset number to be shown on the display, you can deactivate this function.
-1- H1

52
The handset has found the base
BASE NO HANDSET NO
3.2 Basic Functions
REMARKS
When you receive an external call during an internal communication, you will hear the
call-waiting tone.
3.2.1 Incoming Calls
When the base unit receives an incoming
call, it starts to ring and the Line indicator on
the base blinks. The handsets that are not
busy, are ringing and the PHONE indicator blinks on their displays.
•Press any button, except the ‘ ’ button.
or
•Pick up the handset from the base unit to accept the call.
All other handsets stop ringing.
The DTMF indicator appears on the
display.
If other users now press the ‘ ’ button, they will hear a busy tone.
An internal call between two other handsets is possible.

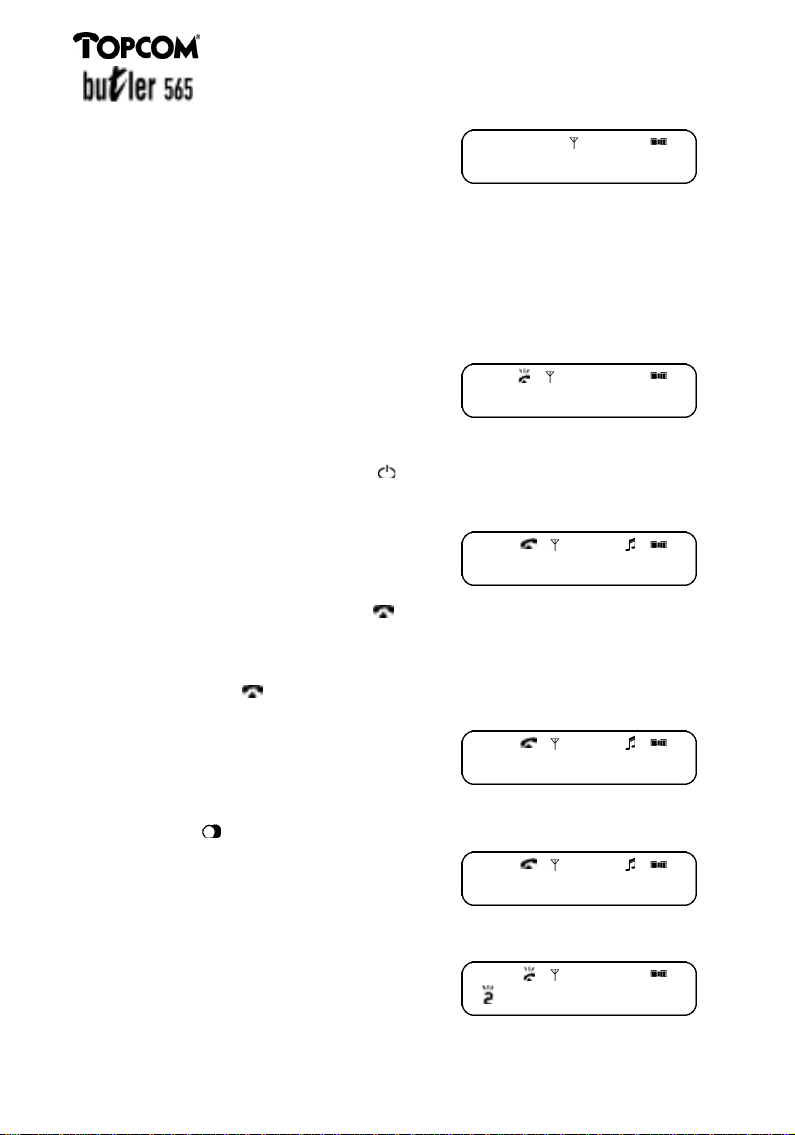

3.2.2 Outgoing Calls
• Press the ‘ ’ button.
The PHONE indicator blinks on the display.
Then you hear the dial tone and the
PHONE indicator stabilizes (stops blink-
ing). The DTMF indicator is displayed.
• Enter the telephone number.
•If you want to enter a dialling pause, press
the ‘ ’ button after dialling the number.
The dialling pause ‘P’ is displayed.
You can now have your conversation.
If another handset is already in
communication with an external caller,
you will hear the busy tone and the
handset number is shown on the display.
-1- H1
868P1230

53
3.2.3 Paging from Base to Handset (up to 6 Handsets)
The handset starts ringing when the Paging button is being pressed, but an
internal call between base and handset is not possible.
•Press the Paging button on the base
station. All handsets start ringing for
20 sec. If there’s no answer within these
20 sec., the paging will be automatically
stopped.
• To cancel this mode, press the Paging button once more. All handsets stop
ringing.
REMARKS
Paging is only possible when the base station is in idle mode.

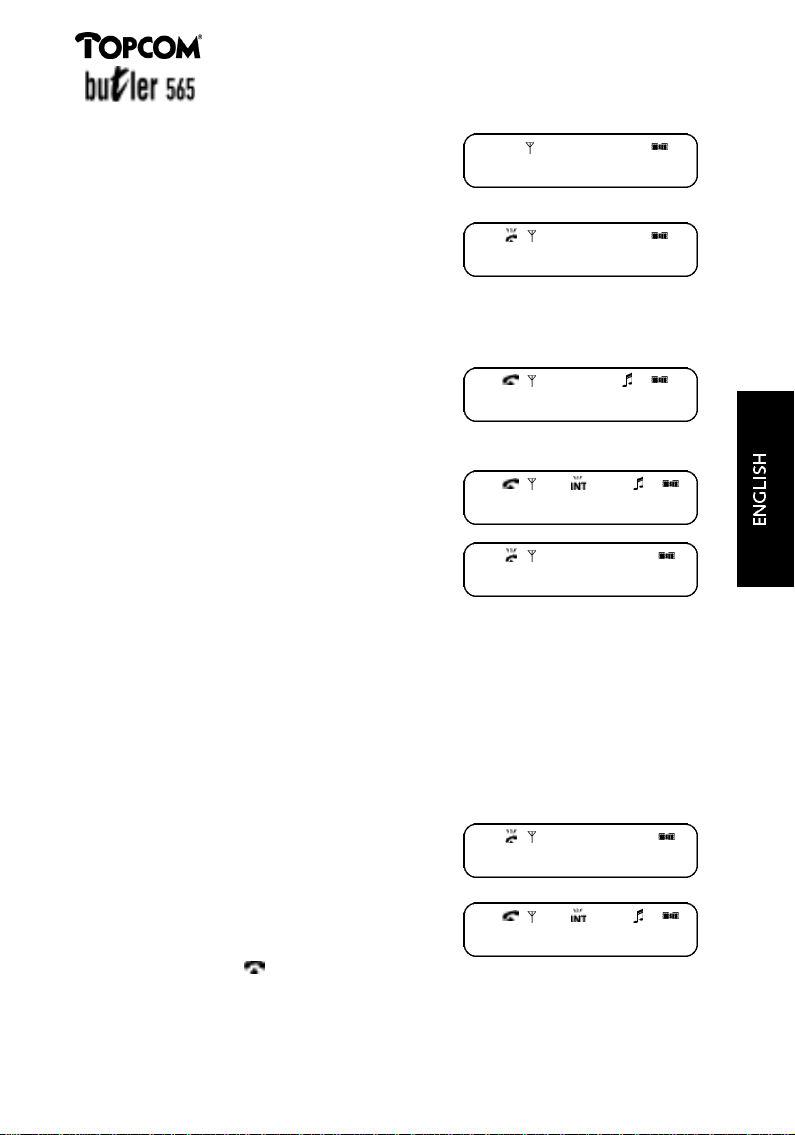

3.2.4 Internal Call to another Handset
• Press the ’INT‘ button.
You will hear the dialling tone and the
handset number is displayed.
When you are making an internal call,
the handset number of the handset that
you want to contact, appears on the
display. If the other handset is already in
internal communication with a third
handset, both of these numbers are
shown on the display.
•Enter the desired handset number
(1-6), ex. enter ‘2’.
or
• Press ‘*’ if you want to call all subscribed
handsets. All the handset numbers of the
subscribed handsets are displayed.
When the call is answered, you will hear
the ringing tone. If the called party is
busy or unavailable, you hear a busy
tone.
Press the ‘ ’ button or the ‘INT’ button to disconnect the internal call.
REMARKS
If the called party does not answer this call within 30 seconds, this call will be disconnected
automatically. Only one internal call is possible.
INT
1
3 -4
INT
2 1
INT
2 3 4 5 6 1
INT
1

54
3.2.5 Internal call from another Handset
When the handset receives an internal call
from another handset, it will ring and the
handset number of the calling hanset is
shown on the display.
•Press any key to connect this internal
call.
• Press the ‘ ’ button or the ‘INT’
button to disconnect the internal call.

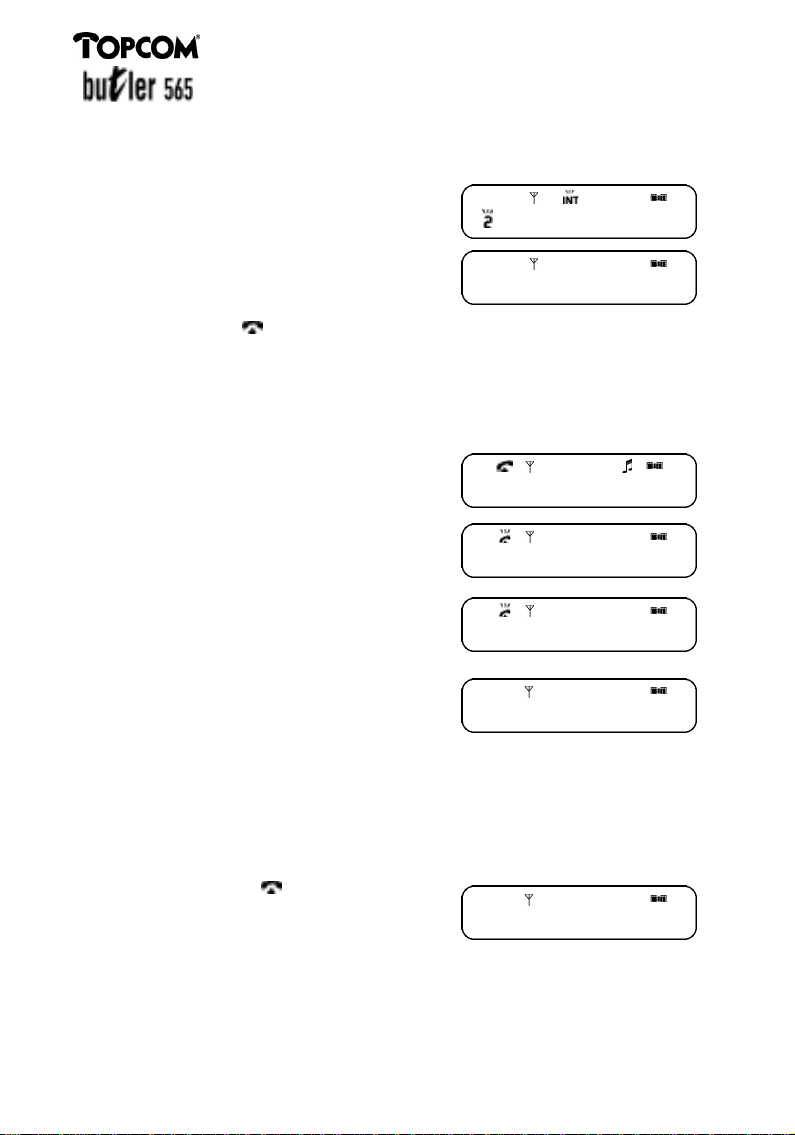

3.2.6 Internal call during an external call
This function offers you the possibility to transfer an external call to another
handset.
During an external connection
• Press the ‘INT’ button.
You will hear the dialling tone and the
external communication is put on hold.
The current handset number is displayed.
•Enter the desired handset number (1-6),
ex. handset number ‘2’.
or
• Press ‘*’ if you want to call all subscribed
handsets. All the handset numbers of the
subscribed handsets are displayed.
You will hear a ringing tone when the called party answers the internal call.
The following steps can be taken
a) To connect the external call that has been put on hold, to the other handset you
are currently connected with.
• Press the ‘ ’ button.
The external call is transferred
to the other handset. The call
duration is displayed.
1
INT
2 1
8681230
INT
1
INT
2 1
INT
2 3 4 5 6 1
04-00

55
After 5 seconds the handset returns to
standby mode.
If the called party does not answer the
transferred call within 30 seconds, the call
goes back to the first handset.
If the first handset doesn’t answer this call
within 30 seconds, the call will be
disconnected automatically.
b) To retrieve the external call, the internal
call is disconnected
• Press the ‘R’ button to end the
internal call.
c) To retrieve the external call, the internal
call is put on hold.
• Press the ‘INT’ button.
• Press the ‘INT’ button once more to
retrieve the internal call. The external
call is put on hold.
REMARKS
You can switch from the call you are connected with to the call on hold by pressing the
‘INT’ button.
3.2.7 Incoming external call during internal call
When you receive an external call, you will hear a call waiting tone and the PHONE
indicator blinks on the display.
• Press the ‘INT’ button to answer the
incoming external call.
• Press the ‘INT’ button again to go back
to the internal call.
• Press the ‘ ’ button to end the
connection.
-1- H1
8681230
8681230
INT
2 1
INT
2 1

56
3.2.8 MAKING A PHONE CALL
3.2.8.1 Normal Dialling
• Press the ‘ ’ button.
The PHONE indicator blinks on the
display. Then you hear the dialling tone
and the PHONE indicator stops blinking.
• Enter the telephone number.
•If you want to enter a dialling pause,
press the ‘ ’ button after dialling the
number. The dialling pause ‘P’ is
displayed.
3.2.8.2 Last number redial
The last dialled number can be redialled
automatically.
• Press the ‘ ’ button.
• Press the ‘ ’ button
The last number called will be displayed
and dialled automatically.
3.2.8.3 Memory numbers
You can easily call numbers that have been stored in the memory (see 3.4.7.
Programming memory numbers).
• Press the ‘ ’ button.
• Press the ‘ ’ button.
The cursor on the display is blinking
which means that the memory location
of the memory number needs to be
entered.
•Enter the location number (0 - 9).
The number is displayed and dialled.
REMARKS
The speed dial numbers will not be stored in the redial memory.
681230
868P1230
68P1230

57
3.2.9 Prenumeration
3.2.9.1 Normal numeration
• Enter the desired telephone number.
•If you want to enter a dialling pause,
press the ‘ ’ button after dialling the
number. The dialling pause ‘P’ is
displayed.
•If you have made a mistake while entering the number, press the
’ ’ button to correct it. You can delete
the entire dialled number by pressing
this key for more than 1 second. Then
you can enter the new number.
• Press the ‘ ’ button.
The entered numbers will now be dialled.
3.2.9.2 Redialling (4 last numbers)
• Press the ‘ ’ button
The number that has been called last, is
displayed.
• Press the ‘ ’ button again, if you want to select another number from the
redial memory. The 4 last entered telephone numbers are stored in the redial
memory.
• If you have made a mistake while entering the number, press the ’ ’ button
to correct it. You can delete the entire dialled number by pressing this key for
more than 1 second. Then you can enter
the new number.
• Press the ‘ ’ button.
The last dialled number will be redialled.
3.2.9.3 Memory numbers
• Press the ‘ ’ button.
The cursor on the display blinks which
means that the memory location of the
memory number needs to be entered.
•Enter the location number (0 - 9).
or
• Press the ‘ ’ button again to go to
the next location. The location number
(for ex: ‘0’) is displayed, followed by the
telephone number.
• Press the ‘ ’ button.
The number on the display is being
dialled.
868P1230
8681230
68P1230
08681230
681230
681230

58
REMARK
The memory numbers will not be stored in the redial memory.
3.2.10 Microphone Mute
It is possible to deactivate the microphone during a conversation. Now you can talk
freely without being heard by your correspondent.
• Press the ’ ’ button.
The microphone is deactivated and the
MUTE indicator is displayed.
• Press the ’ ’ button once more.
The microphone is activated again and
the MUTE indicator is no longer
displayed. You can continue the
conversation.
3.2.11 Dialling Mode
When you press the buttons, you will hear that each button has a key tone (DTMF).
During a conversation, you can program these key tones so that they sound longer,
for example for telecom services. First you have to enter the telephone number,
than you switch to longer key tones, otherwise the base station will not accept his
temporary change. The tone will be generated as long as you keep the button
pushed. Default = short key tones.
Long key tones (temporary)
• Press the ‘ ’ button.
• Press the ‘* *’ button.
• Press the ‘ ’ button.
3.2.12 Flash (R)
The R button, also called flash or recall, generates a line interruption. This interrup-
tion allows you to use comfort services. You can program the flash time as follows :
• Press the ‘R’ button short for a 85ms flash signal.
or
• Press the ‘R’ button for more than 1 second for a 250ms flash signal.
8681230
8681230
00

59
3.2.13 Call Duration Time
During or after an external call the call time
appears on the display.
•After picking up the handset, the call
duration time is displayed after 20 sec.
• After finishing the conversation the call
duration time will still be visible on the
display for another 5 sec.
REMARKS
1) Even when the external call takes less than 20 seconds, the call duration time will appear
on the display.
2) The call duration time of an external incoming call will also be displayed.
3) When the external call is transferred to another handset, the call duration time will restart
on the other handset.
3.2.14 Caller-ID Information
This device has the Caller-ID function through the FSK system. Caller identification is
only available if your telephone operator provides this service in FSK if you have a
subscription. When you receive an external call, the caller’s phone number will
appear on the display after the second ring. The number stays visible on the display
during the call or for 20 seconds after having pressed the ‘ ’ button.
•The phone number of the incoming call
is displayed.
• Press the ‘ ’ button to receive the
incoming call. After 20 seconds, the
Caller-ID information disappears and the
call duraton time is displayed.
3.2.15 Temporary Keypad Lock
To prevent that a number is being pressed accidentally, you can temporarily lock
the keypad.
The phone is in standby mode :
• Give the ‘ ’ button a short press to
lock the keypad.
• Press and hold the ‘ ’ button for
1 second to unlock the keypad.
REMARK
If you receive an incoming call when the keypad is locked, the keypad will be unlocked
automatically by pressing any key or by picking up the handset.
00-20
6682508
-1- H1
P
00-20
04-00

60
3.3 Programming the System Parameters
When you are programming the parameters of the base station, the programming
will be aborted automatically if there is no key action within 30 sec.
REMARKS
Do the programming when the base and handset are in standby mode.
During the programming you can receive an external or internal call by pressing
the ‘ ’ button or the ‘ ’ button.
You can always end the programming by pressing the ‘ ’ button.
3.3.1 Ring Volume and Ring Melody of the Base station
Ring Volume Base station
You can select the desired ring volume from 0 (no ringing tone) to level 3 (high).
•Press the buttons ‘ ’ and ‘#‘.
You will hear a confirmation tone
coming from the handset.
•Press ‘5‘.
• Enter the desired volume (0-3).
•Press the ‘ ’ button to confirm.
Ring Melody Base station
The base station has 6 different melodies.
•Press the buttons ‘ ’ and ‘#‘.
You will hear a confirmation tone
coming from the handset.
•Press ‘6‘.
• Enter the desired ringing melody (1-6).
•Press the ‘ ’ button to confirm.
REMARKS
When you receive an external call during this programming, the procedure will be aborted.
3.3.2 Pause Time Programming
•Press the buttons ’ ‘ en ‘#‘.
You will hear a confirmation tone
coming from the base station.
•Press ‘0’ ‘2’.
•Press ‘0’ for 1 second pause time.
or
•Press ‘1’ for 3 seconds pause time.
or
•Press ‘2’ for 5 seconds pause time.
•Press ‘ ’ button to confirm.
INT
5 2
INT
6 2
INT
02 1

61
3.3.3 PSIC/EIC Code Programming
When you use this phone on a PABX home telephone exchange, you can insert the
pause time automatically by programming the following. You can program a code for
PSIC (3 kinds : H0, H1, H2) and for EIC (3 kinds : A0, A1, A2).
REMARK
PSIC (Primary Station Identification Code)
EIC (Exchange Identification Code)
The pause time can automatically be inserted twice when your telephone is connected
to two serial PABX systems. For this purpose, you should program the following : PSIC
(Primary Station Identification Code) and EIC (Exchange Identification Code).
•Press the buttons ‘ ’ and‘#’.
You will hear a confirmation tone
coming from the handset.
•Press ‘0’ ‘0’.
• Enter the PSIC/EIC code. (max. 4 digits)
or
•Press the ‘ ’ button to select the next memory location for the PSIC/EIC code.
•Press the ‘ ’ button to confirm.
If the telephone is connected to only one PABX, the pause time can be inserted
by programming either the PSIC or the EIC code.
3.3.4 Emergency Numbers
You can program emergency numbers (max. 12 digits) in 3 locations. These numbers
can always be called even when the handset is locked for outgoing calls.
•Press the buttons ‘ ’ and ‘#‘.
You will hear a confirmation tone
coming from the base station.
•Press ‘2’ ‘5’.
• Enter the PIN code (default ‘0000’).
The content of the first memory location
is displayed.
•Press the ‘ ’ button to go to the
next location.
• Enter the desired emergency number
(max.12 digits).
•Press the ’ ’ button to delete the last
number if you have made a mistake
while entering the number.
PSTN
EIC
A0, A1,A2
PSIC
H0, H1,H2
TELEPHONE
INT
H0 ----
INT
25 ----
INT
0 112
INT
0 110

62
•Press the ‘ ’ button to save the content of the current location and to go
to the next location.
or
•Press the ‘ ’ button.
3.3.5 Call Barring
You can program a handset in such a way that certain telephone numbers can not be
called. The base station has 3 call barring memories for each handset (max. 8 digits).
When this function is activated, the LOCK indicator is displayed. Only the emergency
numbers (see 3.3.4) can always be called.
Call Barring Pogramming
•Press the buttons ‘ ’ and ‘#’.
You will hear a confirmation tone coming
from the handset.
•Press ‘7’ ‘4’.
• Enter the PIN code (default ‘0000’).
The handset numbers appear on the display
(for ex.: 1, 2, 3).
• Enter the hanset number that needs to be
programmed.
The handset number appears in the left
corner of the display and the current status of the barring appears in the right
corner of the display.
REMARK
• “0” means that the the call barring is deactivated.
• “1” means that the call barring is activated.
• “2” means that outgoing calls are not possible, only internal calls
•Press ‘0’, ‘1’ or ‘2’.
•Press the ‘ ’ button.
Programming Call Barring Numbers
•Press the buttons ‘ ’ and ‘#’.
•Press ‘7’ ‘5’.
• Enter the PIN code.
• Enter the number of the handset that needs
to be programmed. The content of the first
location is displayed.
•Press the ‘ ’ button to go to the next
location.
• Enter the number (max.8 digits).
INT
INT
74 ----
INT
1 2 3
INT
1 0
INT
0
INT
0 00

63
•Press the ’ ’ button to delete the last number if you have made a mistake
while entering the number.
•Press the ‘ ’ button to store the content of the current location and to go to
the next location.
or
•Press the ‘ ’ button.
3.4 Programming the Handset Parameters
When you are programming the handset parameters, the programming will be
aborted automatically if there is no key action within 30 sec.
REMARK
Do the programming when the base and handset are in standby mode, except for the program-
ming of the speaker volume and the notebook function.
The programming can be aborted by pressing the ‘ ’ button. This is not applicable for the
programming of the speaker volume and the notebook function.
3.4.1 Base Number Display on/off
•Press the buttons ‘ ’ and ‘2’.
•Press the buttons ‘0’ and ‘ ’ to
deactivate the number display.
•Press the buttons ‘1’ and‘ ’ to
activate the number display.
3.4.2 Handset Number Display on/off
•Press the buttons ‘ ’ and ‘3’.
•Press the buttons ‘0’ and ‘ ’ to
deactivate the number display.
•Press the buttons ‘1’ and ‘ ’ to
activate the number display.
3.4.3 Keytone on/off
•Press the buttons ‘ ’ and ‘5’.
•Press the buttons ‘0’ and ‘ ’ to
deactivate the key tones.
•Press the buttons ‘1’ and ‘ ’ to
activate the key tones.
2 1
3 1
5 1

64
3.4.4 Ring Volume and Melody of the Handset
Ring Volume Handset
You can select the desired ring volume : 0 (no ringing tone) to level 3 (high).
•Press the buttons ‘ ’ and ‘4’.
• Enter the desired ring volume (0, 1, 2 or 3).
•Press the ‘ ’ button.
Ring Melody Handset
The handset has 6 melodies.
•Press the buttons ‘ ’ and ‘6’.
• Enter de desired ring melody (1-6).
•Press the ‘ ’ button.
3.4.5 Speaker Volume Programming
During a conversation you can adjust the speaker volume. There are 3 levels.
•Press, during a conversation, the buttons
‘ ’ and ‘#’.
• Enter the desired speaker volume (1-3).
•Press the ‘ ’ button to confirm.
3.4.6 Notebook Function
During a telephone conversation, telephone numbers can be saved in the redial
memory for later use (external calls only). While entering the number, the number
will not be dialled.
•Press the ‘ ’ button during a
conversation.
• Enter the telephone number (max.20 digits)
• If you want to enter a dialling pause, press
the ‘ ’ after dialling the number. The
dialling pause ‘Pis displayed.
•Press the ‘ ’ button.
REMARK
Notebook numbers should not begin with ‘#’, ‘*’ or ‘**’ because these numbers are used for
other programming.
3.4.7 Programming Memory Numbers
4 2
6 2
- 2
854P1661

65
You can store 10 memory numbers in the memory (0-9).
•Press the buttons ‘ ’ and ‘ ’.
• Enter the memory location where you
want to store the memory number (0-9 ).
or
•Press the ‘ ’ button to go to the next
memory location. The memory location
(for ex.: 0) is displayed.
• Enter the telephone number (max.20 digits).
• If you want to enter a dialling pause, press
the ‘ ’ button after dialling the
number. The dialling pause ‘P’ is
displayed.
•Press the ’ ’ button to delete the last
number if you have made a mistake while entering the number.
•Press the ‘ ’ button.
3.4.8 Transfer redial memory numbers to memory locations
A number that is stored in the redial memory, can be transferred to the memory
numbers.
•Press the buttons ‘ ’ and ‘ ’.
• Enter the memory location number using
the numeric keys 0-9
or
•Press the ‘ ’ button to go to the next
memory location. The memory location
(for ex.: 0) is displayed.
•Press the ‘ ’ button to select the redial
memory. The numbers in the redial
memory appear in the display as memory
numbers.
•Press the ‘ ’ button.
3.4.9 Clear the dial memory
0
0
0 851P2385
0 851P2385

66
This procedure clears all the memory numbers, the redial numbers and the babycall
numbers.
•Press the buttons ‘ ’, ‘9’ and ‘9’.
•Press the ‘ ’ button.
3.4.10 Babycall
To prevent unauthorized use you can program a babycall number. This function
allows you to program one specific number that will be dialled automatically no
matter what key has been pressed. When the babycall function is activated, you can
call the babycall number in case of an emergency by pressing any button, except the
‘ ’ button.
Babycall Programming
•Press the buttons ‘ ’, ‘8’ and ‘0’.
• Enter the handset PIN code (default ‘0000’).
• Enter the babycall number (max. 20 digits).
•Press the ’ ’ button to delete the last
number if you have made a mistake while
entering the number.
•Press the ‘ ’ button.
The babycall function is activated.
The LOCK indicator and the babycall number
are displayed.
Deactivate the Babycall number
•Press the buttons ‘ ’, ‘8’ and ‘1’.
• Enter the handset PIN code
(default ‘0000’).
•Press the ‘ ’ button.
Activate the Babycall number
You can only use this function when the babycall number is programmed. When this
function is activated all other programming is disabled.
•Press the ‘ ’, ‘8’ and ‘2’.
80 0000
81 0000
81
82 0000
811124
811124

67
• Enter the handset PIN code
(default ‘0000’).
•Press the ‘ ’ button.
The babycall function is activated. The
LOCK indicator and the babycall number
are displayed.
REMARKS
1) Whenthe babycall number is activated, you can answer internal calls but you can’t make them.
2) When the babycall number is being dialled, you can end the call by pressing the ‘ ’
button or by putting the handset on the base station.
3) The babycall number will not be stored in the redial memory.
3.5 Programming the PIN code (Personal Identification Number)
To prevent unauthorized use, you can use this function. Handset and base function
can not be changed by unauthorized users. The PIN code is needed to change the
functions. (The default PIN code of the handset and the base station is ‘0000').
REMARK
Should you forget the PIN code, you have to go to the service center for repair of the handset.
That’s why it is very important to always remember the PIN code.
3.5.1 Programming the handset PIN code
•Press the buttons ‘ ’, ‘9’ and ‘0’.
• Enter the current PIN code of the
handset.
• Enter the new PIN code of the handset.
• Enter the new PIN code of the handset for
a second time.
•Press the ‘ ’ button.
3.5.2 Programming the base PIN code
•Press the buttons ‘ ’ and ‘#’.
You will hear a confirmation tone
coming from the handset.
•Press the buttons ‘8’ and ‘9’.
• Enter the current PIN code of the base
(4digits).
•Enter the new PIN code of the base
(4digits).
• Enter the new PIN code of the base
(4digits) for a second time.
•Press the ‘ ’ button.
82
INT
90 0000
INT
90
INT
INT
89 ----
INT
89
811124

68
3.6 REGISTRATION and DEREGISTRATION
3.6.1 Registration
A new handset can be registered to the base-station.
Base-station
•Press the Paging Button until you hear the registration tone
• You hear the registration tone for about 30 seconds. During this period you
can register the handset.
Handset
• Switch off the handset (Press and hold the ‘ ’ button for more than 1 sec.).
•Press the ‘ ’ button with the desired base Number (1-4).
• The handset supports a base PIN code of max. 8 digits, depending on the base
station.
•Press the ‘ ’ button and ‘1’ at the
same time.
• Enter the base PIN code (default ‘0000’) and
then press the ‘#’ button.
• Wait until the allowed handset numbers are
displayed.
• Select the desired handset number.
When the registration procedure is finished,
the base and handset number appear on the
display if this is programmed.
3.6.2 Deregistration
A handset can be deleted from the base unit to which it is registered. This function is
used when you have for ex. a damaged handset. The damaged handset will then be
deleted so that it can be replaced by a new one.
•Press the buttons ‘ ’ and ‘#’.
You will hear a confirmation tone coming
from the handset.
•Press the buttons ‘9’, ‘0’ and ‘0’.
• Enter the base PIN code (default ‘0000’).
On the display appear the handset numbers
of the handsets that are currently registered
to the base station.
• Select the handset number that you
want to deregister.
-1- 00000000
-1-
1 2 3 4 5 6
INT
INT
900 ----
INT
1 2 3 4 5 6
-1- H1
