Topdon JUMPSURGE 1200 User manual

For Services and Support
USER MANUAL
JUMPSURGE 1200
For 12 volt lead-acid batteries
JUMP STARTER
86-755-21612590
1-833-629-4832 (North America)
[email protected]
www.topdon.com
@TopdonO󰀩cial
@TopdonO󰀩cial

2
English
Welcome
About JUMPSURGE 1200
Safety Cautions
Thank you for purchasing JUMPSURGE 1200. If any issues arise
during the use of this product, welcome to contact support@topdon.
com for o󰀩cial technical support.
JUMPSURGE 1200 serves as a portable Jump Starter that delivers
1,200 peak amps for jump starting a 12V lead-acid battery in
seconds. It supports quick and safe starts for 12V cars, boats,
motorcycles, ATVs, lawnmowers, caravans, tractors, trucks, etc., up
to 6.5-liter gasoline or 4.0-liter diesel engines, with 25 times boost
capability on a single charge. It can also be used as a power bank
to quickly charge electronic devices like phones and tablets, or
supply power to DC devices.
Please read this user manual carefully before use and keep it for
future reference.
1. ONLY use the battery clamps that come with this product.
2. DO NOT use this product if the cable or the jump starter has any
damage.
3. This product can be only used for starting vehicles with 12 volt
lead-acid batteries.
4. Only jump start vehicles when the battery level of the jump
starter is more than 50%.
EN

3 4
What's Included
Jump Starter
Battery Clamp
Type-C Cable
Nylon Bag
User Manual
5. If the engine does not start successfully at the rst try,
disconnect the clamps from the vehicle battery and wait at least
20 seconds before reconnecting. DO NOT attempt more than 3
consecutive jump starts within 2 minutes.
6. DO NOT put the product under direct sunlight or at hot areas.
7. DO NOT disassemble the product by yourself.
8. DO NOT place the product in high temperature environment for
a long time. The working temperature is -10°C~40°C (14°F~104°F).
9. Check the battery level of this product every two months and
charge it regularly.
10. A Lithium-ion battery is included in the product. Please dispose
of it under local regulations at the end of its life.

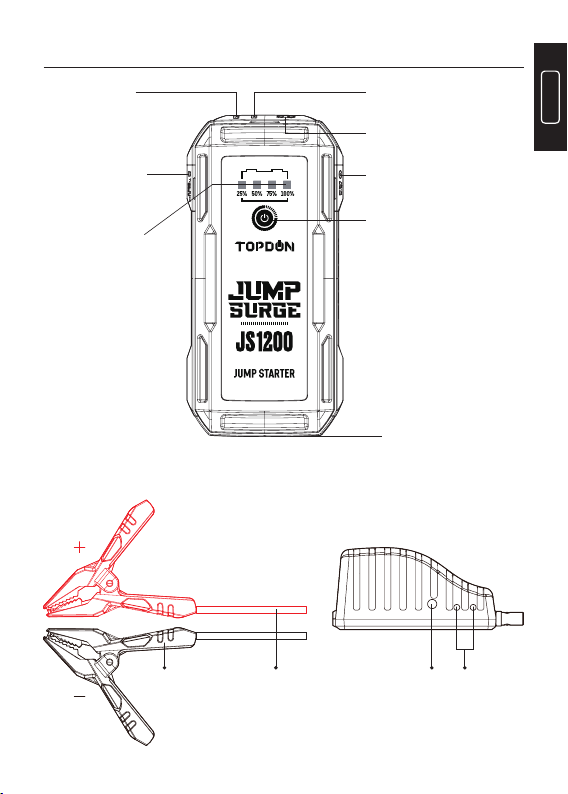

Positive
Clamp (Red) Safety
Indicator
Negative
Clamp (Black) BOOST Button
What's Included
Type-C Input
(5V/3A 9V/2A)
Power Button
Jump Start Socket
LED Light
USB Output
(5V/2A)
Battery Level
Indicator
DC Output
(Max 16.8V/10A)
USB Output (5/9/12V
Quick Charge 3.0)
EN

3 4
What's Included
Jump Starter
Battery Clamp
Type-C Cable
Nylon Bag
User Manual
5. If the engine does not start successfully at the rst try,
disconnect the clamps from the vehicle battery and wait at least
20 seconds before reconnecting. DO NOT attempt more than 3
consecutive jump starts within 2 minutes.
6. DO NOT put the product under direct sunlight or at hot areas.
7. DO NOT disassemble the product by yourself.
8. DO NOT place the product in high temperature environment for
a long time. The working temperature is -10°C~40°C (14°F~104°F).
9. Check the battery level of this product every two months and
charge it regularly.
10. A Lithium-ion battery is included in the product. Please dispose
of it under local regulations at the end of its life.
Positive
Clamp (Red) Safety
Indicator
Negative
Clamp (Black) BOOST Button
What's Included
Type-C Input
(5V/3A 9V/2A)
Power Button
Jump Start Socket
LED Light
USB Output
(5V/2A)
Battery Level
Indicator
DC Output
(Max 16.8V/10A)
USB Output (5/9/12V
Quick Charge 3.0)
EN

5 6
Reverse polarity of battery clamps is detected.
The Jump Starter is ready for use.
The battery level of the vehicle is too low.
Press the "BOOST" Button and wait until
the Safety Indicator becomes solid green.
Then start your vehicle within 30 seconds.
Solid green
Press the Power Button once to turn on the jump starter.
Solid red
Press and hold the Power Button for 3 seconds to turn on the
LED Light. Then press the Power Button once separately to
toggle between Flashlight, Strobe, SOS and OFF in turn.
The battery of the vehicle may be totally dead.
Make sure that you have correctly connected
the clamps to the vehicle battery. Then press
the "BOOST" Button and wait until the Safety
Indicator becomes solid green. And then start
your vehicle within 30 seconds.
Flash green
You have tried 4 jump starts within 10
minutes. Please disconnect the clamps
and reconnect to try again.
Alternately ash
red and green
The indicator
doesn't light up
A guide to Safety Indicator:
A guide to LED Light:

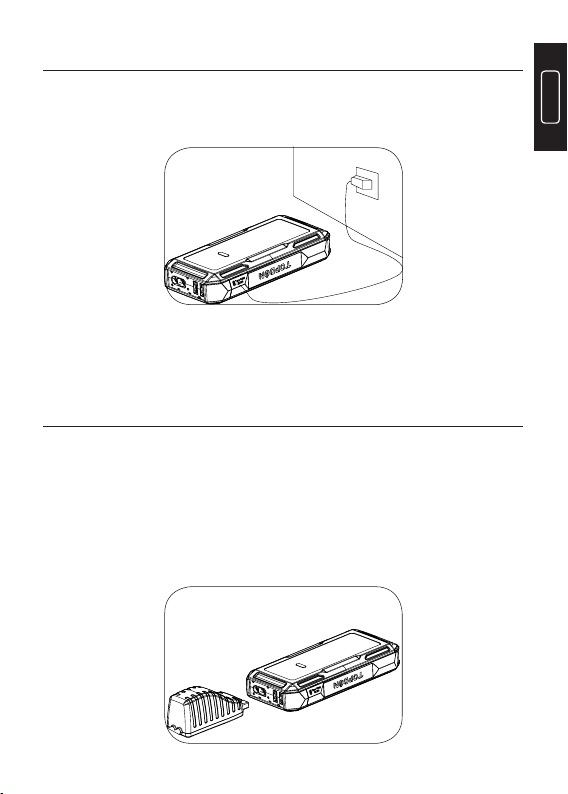

Recharge the Jump Starter
Jump Start Vehicles (12V Only)
The product comes partially charged and needs to be fully charged
prior to use. Please charge your jump starter through the Type-C
Input port once you receive it.
Important:
Make sure you have turned o󰀨 all of the power loads of the vehicle,
including headlights, radio, air conditioner, etc., before attempting to
jump start the vehicle.
Step 1:
Plug the blue end of jumper cable into the Jump Start Socket.
Note: Only jump start vehicles when the battery level of the jump
starter is more than 50%.
EN

5 6
Reverse polarity of battery clamps is detected.
The Jump Starter is ready for use.
The battery level of the vehicle is too low.
Press the "BOOST" Button and wait until
the Safety Indicator becomes solid green.
Then start your vehicle within 30 seconds.
Solid green
Press the Power Button once to turn on the jump starter.
Solid red
Press and hold the Power Button for 3 seconds to turn on the
LED Light. Then press the Power Button once separately to
toggle between Flashlight, Strobe, SOS and OFF in turn.
The battery of the vehicle may be totally dead.
Make sure that you have correctly connected
the clamps to the vehicle battery. Then press
the "BOOST" Button and wait until the Safety
Indicator becomes solid green. And then start
your vehicle within 30 seconds.
Flash green
You have tried 4 jump starts within 10
minutes. Please disconnect the clamps
and reconnect to try again.
Alternately ash
red and green
The indicator
doesn't light up
A guide to Safety Indicator:
A guide to LED Light:
Recharge the Jump Starter
Jump Start Vehicles (12V Only)
The product comes partially charged and needs to be fully charged
prior to use. Please charge your jump starter through the Type-C
Input port once you receive it.
Important:
Make sure you have turned o󰀨 all of the power loads of the vehicle,
including headlights, radio, air conditioner, etc., before attempting to
jump start the vehicle.
Step 1:
Plug the blue end of jumper cable into the Jump Start Socket.
Note: Only jump start vehicles when the battery level of the jump
starter is more than 50%.
EN

7 8
Step 2:
Connect the clamps to the vehicle battery. Red clamp to positive
polarity(+), black clamp to negative polarity(-). The Safety Indicator
will be solid green which indicates it is ready for jump starting.
Note: Please check the connection if the Safety Indicator is
abnormal or the buzzer rings.
Step 3:
Try to start the vehicle. If it fails, disconnect the clamps from the
vehicle battery and wait about 20 seconds, then reconnect and try
again. Do not attempt more than 3 consecutive jump starts within
2 minutes.
Step 4:
Remove the clamps from batteries, then separate the clamps and
jump starter after cranking the vehicle successfully. Your jump
starter will automatically power o󰀨 in several seconds.
Other Functions
This jump starter is able to be used as a power bank.
Press the Power Button once to turn on the jump starter. Then you
can quickly charge your phone or tablet through the USB Output
Port. Or use it to supply DC power (Max 16.8V/10A) to devices
through the DC Output Port.
(Red) (Black)
(Red) (Black)
EN

7 8
Step 2:
Connect the clamps to the vehicle battery. Red clamp to positive
polarity(+), black clamp to negative polarity(-). The Safety Indicator
will be solid green which indicates it is ready for jump starting.
Note: Please check the connection if the Safety Indicator is
abnormal or the buzzer rings.
Step 3:
Try to start the vehicle. If it fails, disconnect the clamps from the
vehicle battery and wait about 20 seconds, then reconnect and try
again. Do not attempt more than 3 consecutive jump starts within
2 minutes.
Step 4:
Remove the clamps from batteries, then separate the clamps and
jump starter after cranking the vehicle successfully. Your jump
starter will automatically power o󰀨 in several seconds.
Other Functions
This jump starter is able to be used as a power bank.
Press the Power Button once to turn on the jump starter. Then you
can quickly charge your phone or tablet through the USB Output
Port. Or use it to supply DC power (Max 16.8V/10A) to devices
through the DC Output Port.
(Red) (Black)
(Red) (Black)
EN

9 10
Specications
Model
Battery capacity
Output
Input
Peak Current
Operating temperature
Storage temperature
JUMPSURGE1200
10,000mAh, 3.7V / 37Wh
USB1 QC18W, 5V/9V/12V;
USB2 5V 2A; DC Max 16.8V 10A
Type-C 5V 3A, 9V 2A
1200A
-10°C~40°C (14°F~104°F)
-20°C~75°C (-4°F~167°F)
FAQ
Q1: How many times can JS1200 jump start a car with a full charge?
Up to 25 times. It depends on the vehicle engine's power and
vehicle battery's power.
Q2: How long does it take to recharge JS1200 fully?
It varies with di󰀨erent chargers.
If your charger is 5V/3A, the charging time is 3 hours; if 5V/2A, then
4.5 hours.
Q3: How to turn o󰀨 JS1200?
It will automatically power o󰀨 without use.
Warranty
TOPDON One Year Limited Warranty
TOPDON warrants to its original purchaser that TOPDON products
will be free from defects in material and workmanship for 12 months
from the date of purchase (Warranty Period). For the defects reported
during the Warranty Period, TOPDON will, according to its technical
support analysis and conrmation, either repair or replace the
defective part or product.
The TOPDON shall not be liable for any incidental or consequential
damages arising from the use, misuse, or mounting of the device.
Some states do not allow limitation on how long an implied warranty
lasts, so the above limitations may not apply to you.
This limited warranty is void under the following conditions:
Misused, disassembled, altered or repaired by unauthorized stores or
technicians.
Careless handling and violation of operation.
Notice: All information in this manual is based on the latest
information available at the time of publication and no warranty can
be made for its accuracy or completeness. TOPDON reserves the
right to make changes at any time without notice.
