Topens UPS01 User manual

C030565
User Manual of the Uninterrupted Power Supply
Model: UPS01
Thank you for your purchasing of the 24VDC 150W uninterrupted power supply. The power supply
can be used as power source for the swing gate opener as well as the other 24VDC electrical
appliance. The wire connection is very convenient because of the plug & play design. You can
plug it to the AC main electricity and connect the 24VDC output to the appliances. 24VDC Battery
(2PCS 12VDC batteries connected in series) can be added to the power supply as the main power
or the back-up power. The AC electricity can charge the battery if it’s used as a back-up power. A
maximum 240W 24VDC solar panel can be attached to the power supply to charge the batteries
as well.
Specifications
AC Input: 100-240V~ 50/60Hz
Battery Input: 24VDC (2PCS 12VDC batteries connected in series)
Solar Input: 24VDC (Max. 240W)
Rated output: 24VDC/150W Output Peak power: 180W IP degree: IP65
Features
Over-load / Over-current / Short circuit / Over-heat protection
Wire Connection of the power supply
1 Firstly please connect the output of the power supply to the electrical appliance. It can be wired
to the TOPENS A/AD/PW series swing gate opener by plug the output wire to the power input

cable of the control box. Please note that the polarity must be connected correctly or it may
damage the control board (Red wire is positive and yellow wire is negative).
2 Secondly please connect the battery to the power supply if you choose it as main power source
or the back-up power.
3 Thirdly you can connect the solar panel to the power supply if you choose it to charge the battery.
4 Finally you can plug the AC cable to the AC main socket as needed.
NOTE: Always ask the help of professional technician /electrician if you have any question.
Indicators

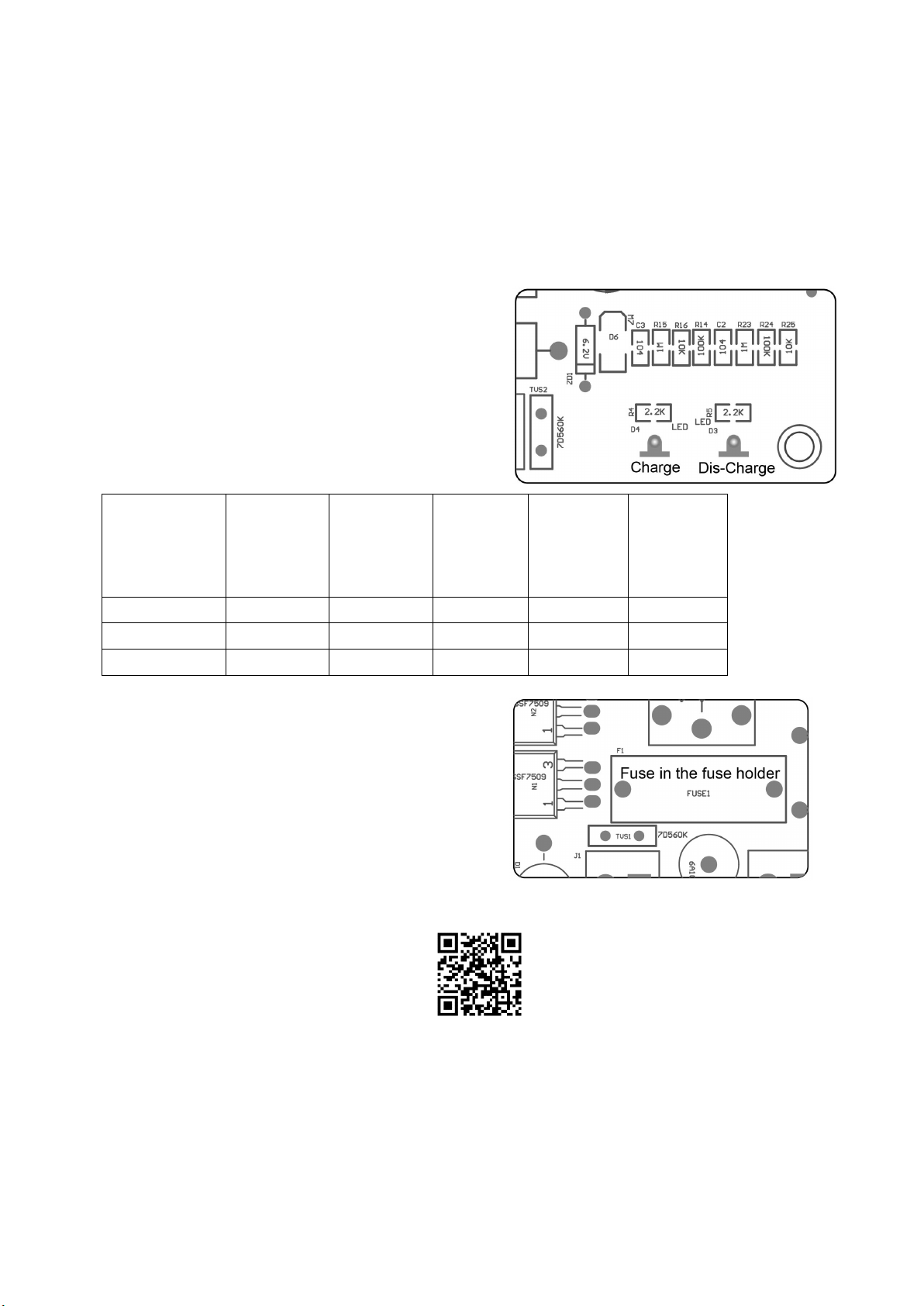

There are 2 LED lights on the main control board of
the power supply, one is Charge and another is
Dis-charge. You can confirm the voltage of the battery
via the 2 LED lights. Load output of the power supply
will be cut off once the battery voltage is below
22VDC.
Battery/AC-DC
transformer
module output
Charge
LED always
on
Charge
LED blink
once per
second
Charge
LED blink
once per 2
seconds
Dis-Charge
LED blink
once per
second
Dis-Charge
LED blink
once per 2
seconds
>28VDC √
22-28VDC √√
<22VDC √√
Trouble Shooting
1. Replace the fuse (φ5*20mm, 5A) in the fuse
holder which on the main control board as necessary.
2. Check the voltage of the battery if you use the
battery as the main power source and the output is
0v.
TOPENS Website
www.topens.com
Any question, please do not hesitate to contact us:
E-mail: [e-mail]
Kindly include your Product Model, Purchasing Date & Site, Order #, and your contact
information. All your concerns will be replied within 24 hours.
Tel: [phone] (China)
Mon-Fri 9:00AM-5:30PM (UTC +08:00)
