Topp Music Gear KS8A User manual

KS8A/10A/12A/15A/215A
ACTIVE SPEAKER CABINET
KS15A/18A SUB
NF03787-1.0

6
11
12
10. NOTES 17
16

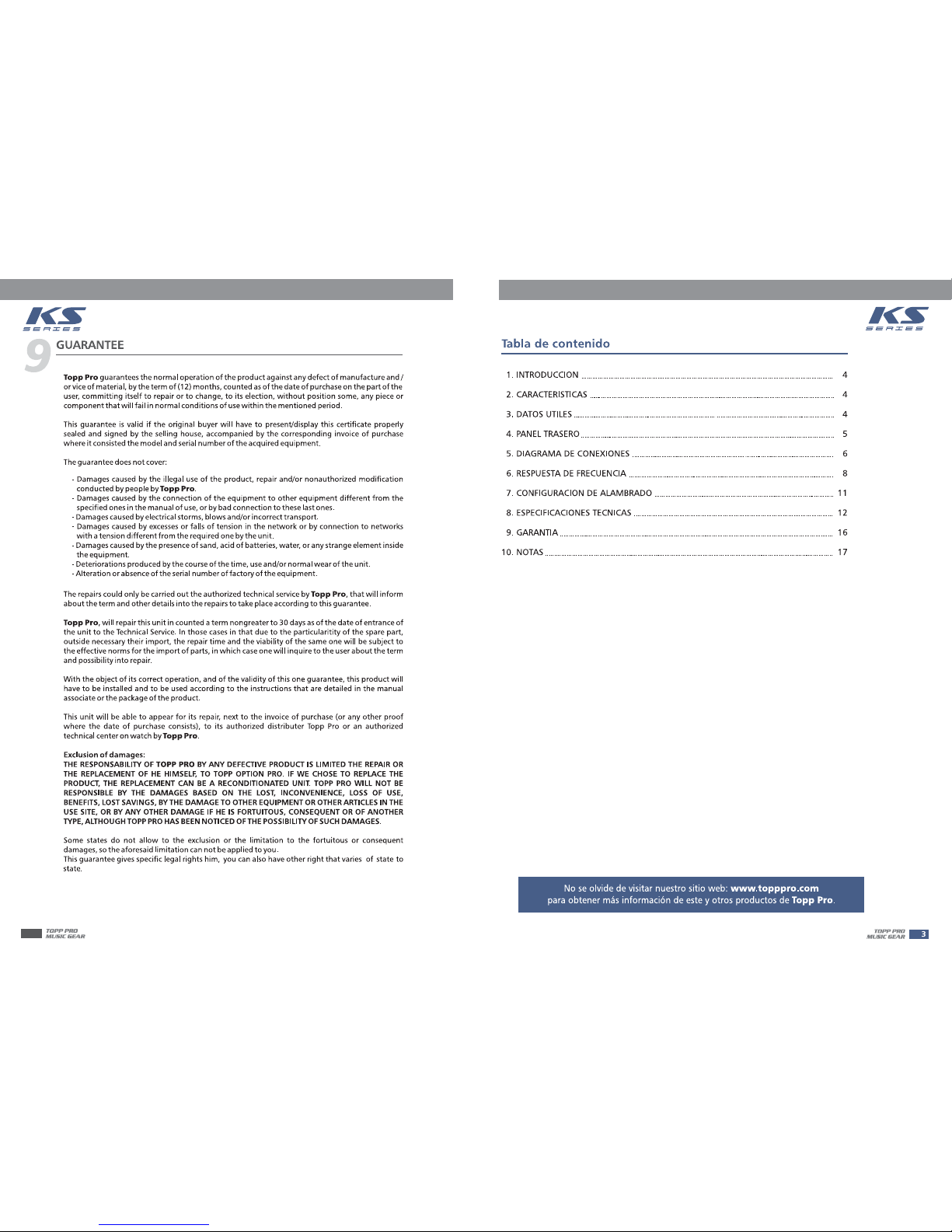

9. GUARANTEE......................................................................................
..............................................................................................
* KS8A, KS10A are Active Speakers for professional use, they can be used in
following electromagnetic environment: residential, commercial and light
industrial, urban outdoors. They are the apparatus Not intended for rack
mounting.
* For KS8A, KS10A, the audio input line length is less than 10m.
* For KS8A, KS10A, the peak inrush current is 3.8A
* KS15A SUB, KS18A SUB are Active Subwoofer for professional use, they can be
used in following electromagnetic environment: residential, commercial and
light industrial, urban outdoors. They are the apparatus Not intended for rack
mounting.
* For KS15A SUB, KS18A SUB, the audio input line length is less than 10m.
* For KS15A SUB, KS18A SUB, the peak inrush current is 7.46A

Thank you for choosing TOPP PRO. The new TOPP PRO MUSIC GEAR KS series cabinets have been
designed to provide a cost effective high grade solution while maintaining high quality construction
and optimum components.
The KS8A/10A/12A/15A/215A are designed lightweight powered loudspeaker systems, adopting an
all new, 1000Watt continuous Class D power module. KS 12A/15A/215A also break from
the traditional loudspeaker paradigm, every model is fit with the identical 1.75" voice coil
Compression Driver and woofer of high quality for unparalleled performance, regardless of speaker
size. Extensive DSP processing is employed throughout, providing levels of sonic clarity and total
output that defy the system's size and weight.
Premium-grade materials, advanced construction processes and multiple mounting and suspension
options allow for a wide range of live and installed applications. Great pride & care is placed in
delivering products with excellent performance, specifications, and dependable reliability. Every
TOPP PRO audio product is strictly tested and complied to very strict standards.
Please carefully read this manual before starting operation! Thank you again for choosing TOPP
PRO MUSIC GEAR KS SERIES.
8A/10A/
*Attractive and professional appearance
*2-Way Active Vented Speaker with DSP
*1"EXIT, 1.75" Voice Coil Compression Driver
*Linkwitz-Riley crossover with 24dB filter slope
*1000W Class D Bi-AMP (for KS12A/15A/215A),
*Volume control/Power ON with green LED/Clip limiter with Red LED/Ground lift
*Thermal/convection fan/overload/ Digital Lim/compressor
* switchable
*Plywood cabinet, resistant black paint, metal grille, rubber foot, two plastic handles
*One metal standard pole-mount plus( /12xM10 Flying points, KS
800W Class D Bi-AMP (for KS8A/10A)
for KS10/12A/15A)
110-120V~50/60Hz or 220-240V~50/60Hz
8A 10*m10 flying points
KS8A/10A/12A/15A/215A
KS15A/18A SUB
*1000W Class D Power AMP
*
*
*
*110-120V~50/60Hz or 220-240V~50/60Hz
*
*
In-Left/Mono(COMBO)Right(XLR-F)/Out-Left/Mono Right(XLR-M)/Link-Left/Mono-Right(XLR-M)
Bananced(15K Ohms)
Volume Control/Phase Switch/HPF for L-R Satellite or By Pass/Power ON with Green LED/
Clip Limiter with Red LED/ Ground Lift.
Thermal/Convection-Fan/Overload/Lim./Compressor
Switchable
Plywood cabinet, metal grille, rubber foot.
One metal standard pole-mount
110-120V~50/60Hz O 220-240V~50/60Hz
110-120V~50/60Hz O 220-240V~50/60Hz

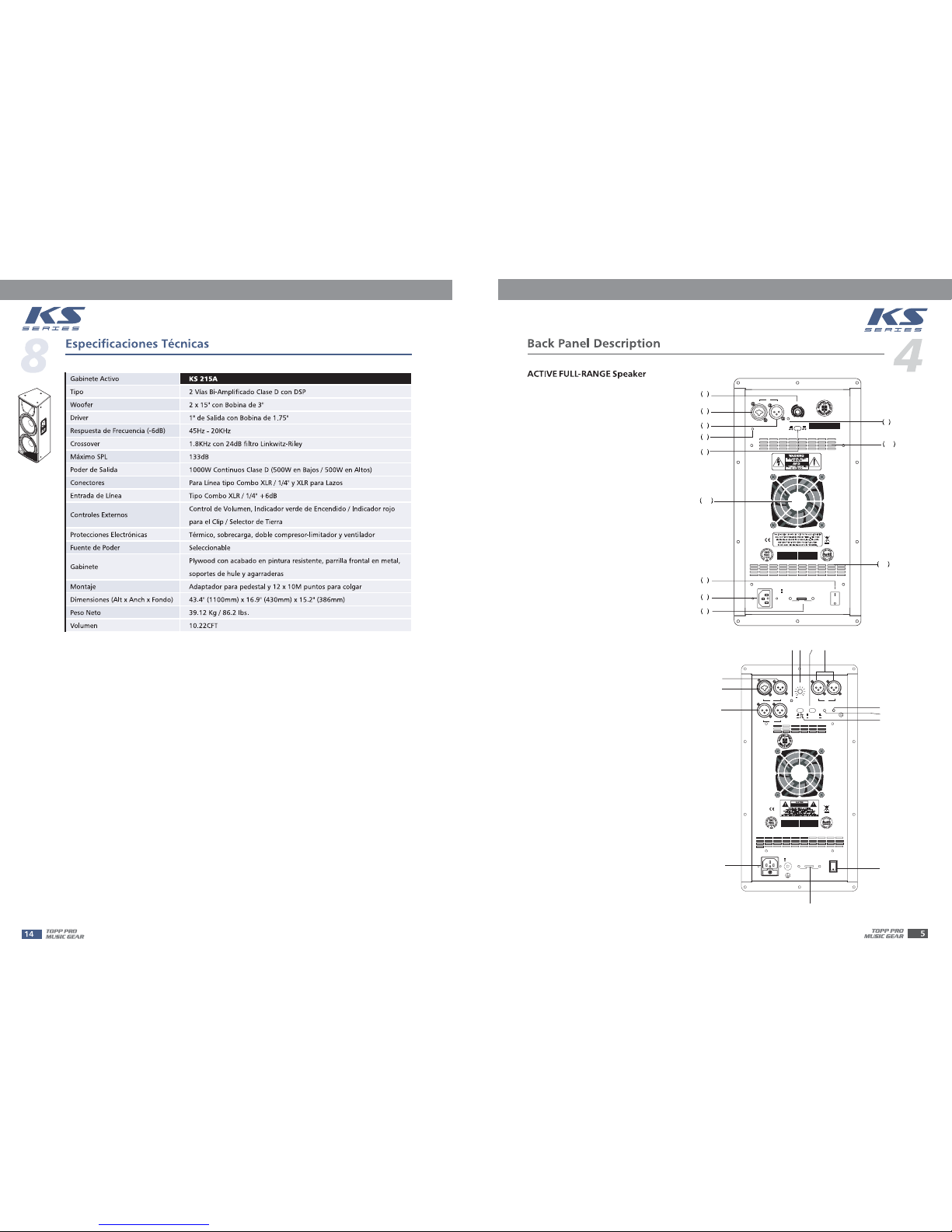

(1) Gnd switch
(2) Mic/line in with combo
(3) Link on XLR
(4) Volume control
(5) Main power switch
(6) Input AC power socket with AC fuse
(7) AC input voltage selector
(8) Clip LED indicator
(9) Power LED
(10) Convection fan
(11) Vents for heat dissipation and ventilation
3
1
2
4
5
7
6
SHIELD
LINK
BAL
LINE IN
110-120V 220-240V
POWER
ON
OFF
KS SERIES
AC INPUT
MADE IN CHINA
"WARNING" TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TORAIN OR MOISTURE.
AC FUSE
110-120V: T10AL 250V
220-240V: T5AL 250V
AC INPUT
110-120V~50/60Hz
220-240V~50/60Hz
ACTIVE SPEAKER CABINET
BI-AMP. PROCESSOR
CLASS D
DSP
SIGNAL
POWER
LIMIT
MODEL SERIAL
POWER CONSUMPTION:
8
9
10
11
11
MIC
LINE
VOLUME
(1)ON-OFF main power switch
(2)Input AC power socket with main fuse
(3)Power, green LED, indicate on status
(4)Bypass switch select high pass filter or bypass
(5)Ground lift switch
(9)Signal/limit, red LED, indicate on status
(10)Volume main power amplifier control
(11)Phase switch reverse the polarity of sub out
(12)Out left/right on 2x connectorXLR
(13)Power switch selector
ACTIVE SUBWOOFER KS15A/18A SUB
110-120V 220-240V
POWER
ON
OFF
AC INPUT
MADE IN CHINA
"WARNING" TOREDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
AC FUSE
110-120V: T10AL AC250V
220-240V: T5AL AC250V
AC INPUT
110-120V~50/60Hz
220-240V~50/60Hz
ACTIVE SPEAKER CABINET
CLASS D 1000W
MODEL SERIAL
POWER CONSUMPTION:
BY PASS
HPF
OUT
SIGNAL
LIMIT
RIGHT
LEFT / MONO
IN
POWER
PHASEGND
NORMAL
REVERSE
RIGHT
LEFT / MONO
LINK
RIGHT
LEFT
8
MAX
VOLUME
(6)
(7)
(8)
(11)(10)(9) (12)
(2) (1)
(13)
(5)
(4)
(3)
(6)Line in right on XLR connector
(7)Line in left/mono on combo connector
(8)Link left/right on XLR connector
KS8A/10A/12A/15A/215A
110-120V~50/60Hz O 220-240V~50/60Hz

KS8A/10A/12A/15A KS8A/10A/12A/15A
Tripod
mount
Tripod
mount
Tripod
mount
Tripod
mount
KS215AKS215A
110-120V~50/60Hz O 220-240V~50/60Hz
110-120V~50/60Hz O 220-240V~50/60Hz

KS15A/18A SUB
MAIN OUT LEFT
LINE IN LEFT/MONO
MAIN OUT RIGHT
LINE IN LEFT/MONO
KS8 /10 /12 /15AAAA KS8A/10A/12A/15A
KS15A/18A SUB
Mixer
Pole
Pole
LINE IN
1)Make your initial connections with all the equipment powered off, and ensure that all the main
volume controls are turned completely.
2)
4) Connect the power cords to main.
5) Turn on your mixer first, then the active speaker cabinets.
6) Turn up the volume controls of the active speaker cabinets.
7) Use PFL function to get the proper input level for the mixer, and adjust the Main Mix Level.
8) After using ,turn off your active speaker cabinets first, then the mixer.
Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT, and the other
side of the cable into the LINE INPUT of your active subwoofers.
3)Connect one side of another signal cable at your active subwoofers into LINK LEFT/RIGHT or OUT
LEFT/RIGHT, and the other side of the cable into the LINE INPUT LEFT/RIGHT of your active satellite
speakers.
*If you connect into the OUT LEFT/RIGHT, and press the BYPASS switch, the 80Hz HPF will be activated.
Two Active Subwoofers & Two Active Satellite Speakers
LINE IN
110-120V~50/60Hz or 220-240V~50/60Hz
110-120V~50/60Hz or 220-240V~50/60Hz

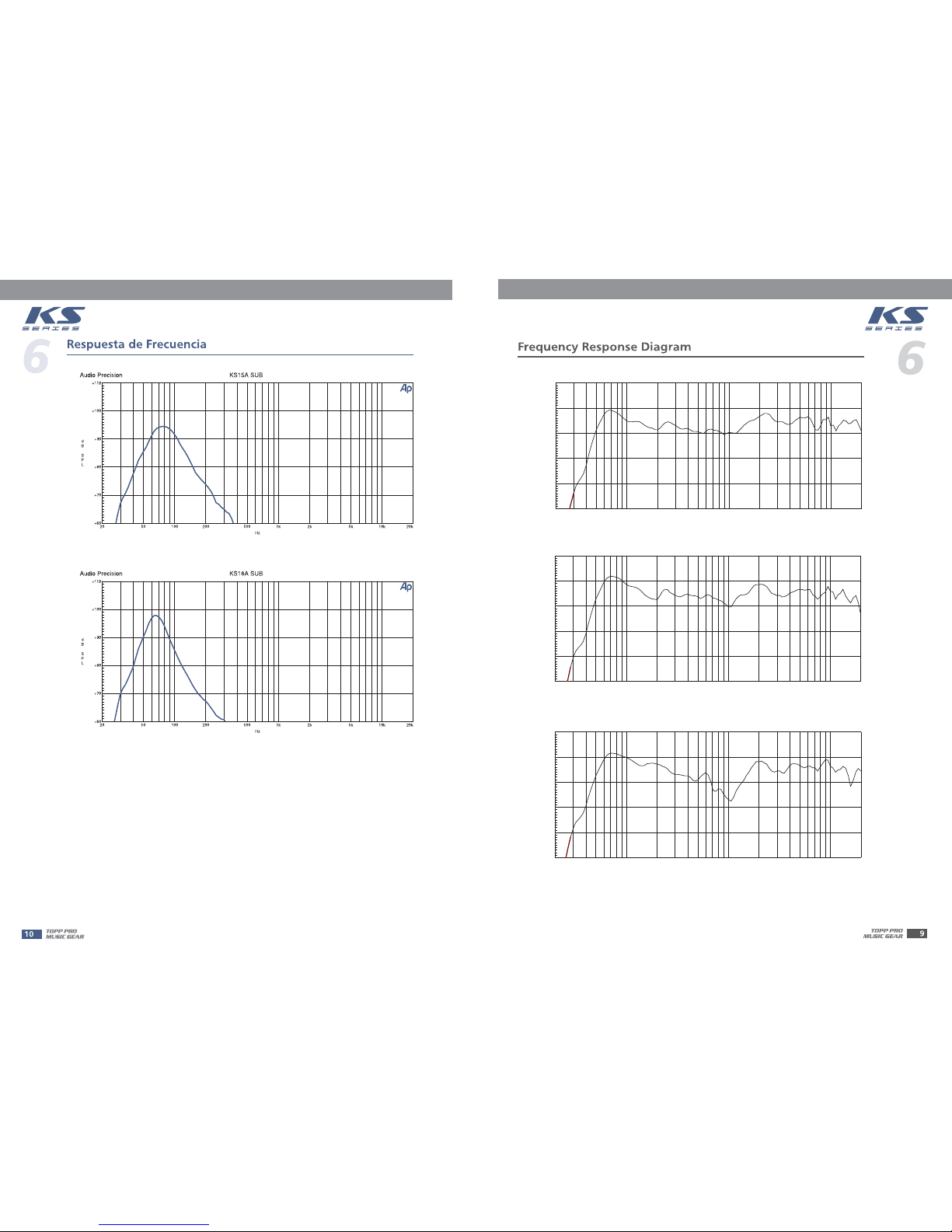

KS12A
+60
+110
+70
+80
+90
+100
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
KS15A
+60
+110
+70
+80
+90
+100
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz
T
KS215A
+60
+110
+70
+80
+90
+100
d
B
S
P
L
20 20k50 100 200 500 1k 2k 5k 10k
Hz

Line input
Frequency Response (-6dB)
Model Active
System Type
Transducer Low
Transducer Driver
Crossover Frequency
Max SPL
AMP Power Output
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
KS8A
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Net weight
Volume
2-Way Active Vented Speaker with DSP
8" Woofer, 2"voice coil
1" Compression Driver, 1.75" Voice Coil
60Hz-20KHz
At 2K Hz with 24db filter slope, Linkwitz-Riley Type
124dB Max.
Class D 800W,Bi-AMP
Line/Mic -Combo/Link-XLR
Combo Connector -6dBu
Volume Control/Power ON with Green LED/ Clip Limiter with Red
LED/ Ground Lift.
Thermal/Convection-Fan/Overload/Digital Lim./Compressor
Plywood cabinet, resistant black paint, metal grille, rubber foot,
plastic handle
One metal standard pole-mount plus /10xM10 Flying Points
18.11"(460mm) * 10.89"(276.4mm)* 11.81"(300mm)
15.93(kg)/35.05(Ibs)
2.554CFT
Line input
Frequency Response (-6dB)
Model Active
System Type
Transducer Low
Transducer Driver
Crossover Frequency
Max SPL
AMP Power Output
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
KS10A
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Net weight
Volume
Class D 800W,Bi-AMP
Line/Mic -Combo/Link-XLR
Combo Connector -6dBu
Volume Control/Power ON with Green LED/ Clip Limiter with Red
LED/ Ground Lift.
Thermal/Convection-Fan/Overload/Digital Lim./Compressor
2.554CFT
2-Way Active Vented Speaker with DSP
10" Woofer, 2.5"voice coil
1" Compression Driver, 1.75" Voice Coil
55Hz-20KHz
At 2K Hz with 24db filter slope, Linkwitz-Riley Type
126dB Max.
Plywood cabinet, resistant black paint, metal grille, rubber foot,
two plastic handle
One metal standard pole-mount plus /12xM10 Flying Points
22.95"(583mm) * 13.12"(333.2mm)* 12.8"(325mm)
19.72(kg)/43.49(Ibs)
12

Line input Combo connector -6dBu
Frequency Response (-6dB)
Model Active
System Type
Transducer Low
Transducer Driver
Crossover Frequency
Max SPL
AMP Power Output
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
50Hz-20KHz
KS12A
2-Way Active Vented Speaker with DSP
12" Woofer, 3"voice coil
1" , 1.75" Voice CoilCompression Driver
At 1.5KHz with 24db filter slope, Linkwitz-Riley Type
128dB
Class D 1000W,Bi-AMP
Mic/Line -COMBO/Link-XLR
Volume Control/Power ON with Green LED/ Clip Limiter with Red LED/
Ground Lift.
Thermal/Convection-Fan/Overload/Dual Digital Lim./Compressor
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Plywood cabinet, resistant black paint, metal grille, rubber foot,
two plastic handles
One metal standard pole-mount plus /12xM10 Flying Points
24.6"(625mm) * 15"(380mm)* 13.8"(350mm)
Net weight
Volume
23.18(kg)/51.1(Ibs)
4.95 CFT
Line input Combo connector -6dBu
Frequency Response (-6dB)
Model Active
System Type
Transducer Low
Transducer Driver
Crossover Frequency
Max SPL
AMP Power Output
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
48Hz-20KHz
KS15A
2-Way Active Vented Speaker with DSP
15" Woofer, 3"voice coil
1" , 1.75" Voice CoilCompression Driver
At 1.5KHz with 24db filter slope, Linkwitz-Riley Type
130dB
Class D 1000W,Bi-AMP
Mic Line -COMBO/Link-XLR/
Volume Control/Power ON with Green LED/ Clip Limiter with Red LED/
Ground Lift.
Thermal/Convection-Fan/Overload/Dual Digital Lim./Compressor
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Plywood cabinet, resistant black paint, metal grille, rubber foot,
two plastic handles
One metal standard pole-mount plus /12xM10 Flying Points
27.6"(700mm) * 16.9"(430mm)* 15.2"(386mm)
Net weight
Volume
26.16(kg)/57.7(Ibs)
6.82 CFT
13

Line input Combo connector -6dBu
Frequency Response (-6dB)
Model Active
System Type
Transducer Low
Transducer Driver
Crossover Frequency
Max SPL
AMP Power Output
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
45Hz-20KHz
KS215A
2-Way Active Vented Speaker with DSP
2*15" Woofer, 3"voice coil
1" , 1.75" Voice CoilCompression Driver
At 1.8KHz with 24db filter slope, Linkwitz-Riley Type
133dB
Class D 1000W,Bi-AMP
Mic/Line -COMBO/Link-XLR
Volume Control/Power ON with Green LED/ Clip Limiter with Red LED/
Ground Lift.
Thermal/Convection-Fan/Overload/Dual Digital Lim./Compressor
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Plywood cabinet, resistant black paint, metal grille, rubber foot,
two plastic handles
12xM10 Flying Points
43.4"(1100mm) * 16.9"(430mm)* 15.2"(386mm)
Net weight
Volume
39.12(kg)/86.2(Ibs)
10.22 CFT
14

15
Model Active
System Type
AMP Power Output
Transducer Low
Max SPL
Active Crossover
Frequency Response (-6dB)
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
Net Weight
Volume
KS15A SUB
Active subwoofer
Class D 1000W
15" Woofer, 3"Sandwich V.C With Long excursion
128dB Max.
BandPass type 12dB/oct. under analog processor
45Hz-120Hz under analog processor
In-Left/Mono(COMBO)Right(XLR-F)/Out-Left/Mono Right(XLR-M)/
Link-Left/Mono-Right(XLR-M)Bananced(15K Ohms)
Volume Control/Phase Switch/HPF-100Hz for L-R Satellite or
By Pass/Power ON with Green LED/ Clip Limiter with Red LED/ Ground Lift.
Thermal/Convection-Fan/Overload/Lim./Compressor
Plywood cabinet, metal grille, rubber foot.
One metal standard pole-mount
450 x580 x 485mm (17.72" x 22.84 x 19.1")
24.95kg/55.03(Ibs)
7.573CFT
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Model Active
System Type
AMP Power Output
Transducer Low
Max SPL
Active Crossover
Frequency Response (-6dB)
Input Connector
External Controls
Electronic Protections
Power Supply
Enclosure Construction
Mounting
Dimensions (HxWxD)
Net Weight
Volume
KS18A SUB
Active subwoofer
Class D 1000W
BandPass type 12dB/oct. under analog processor
In-Left/Mono(COMBO)Right(XLR-F)/Out-Left/Mono Right(XLR-M)/
Link-Left/Mono-Right(XLR-M)Bananced(15K Ohms)
Thermal/Convection-Fan/Overload/Lim./Compressor
Plywood cabinet, metal grille, rubber foot.
One metal standard pole-mount
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
18" Woofer, 3"Sandwich V.C With Long excursion
129dB Max.
40Hz-120Hz under analog processor
Volume Control/Phase Switch/HPF-80Hz for L-R Satellite or
By Pass/Power ON with Green LED/ Clip Limiter with Red LED/ Ground Lift.
535 x 661x 515.5mm (21.06" x 26.02 x20.3")
31.84kg/70.2(Ibs)
10.441 CFT

16

17
