1. Product Overview
GT103 is a kind of external GPS vehicle tracking product can be used for tracking and
security of motorcycle and automobile etc.
2. Applications
Vehicle Real Time Tracking
Motorcycle/car Security
Fleet Management
3. Features & Function
* Live tracking
* 100% made of industrial grade component, GSM module have full certificate (CE,
RoHS, FCC ) and with legal IMEI code.
* Mini size: 75*50*20(mm)
* Built in 250mah battery
* Detect engine status
* Wiretapping/remote listening (optional)
* Remote Engine cut off to stop the car via tracking platform / SMS
* Cut power alarm
* SOS alarm
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Get Google link via SMS /call
* Google Map link for location via SMS, it shows your location on map via mobile
phone.

User Manual of GT103
-4-
* View mileage data via SMS or GPS web-based tracking centre system
* Over speed alarm in the tracking platform
4. Specifications
Items
Specifications
Dimension
75*50*20(mm)
Weight
80g
Input voltage
DC 9V~36V/1.5A
Power Consumption
40mA standby current
Operating
Temperature
-40°C~75°C
Humidity
5%~95%
LED
2 LED lights to show GPS, GSM status
GSM Frequency
GSM 850/900/1800/1900MHz
Positioning Accuracy
20-500meters, CEP
5. First Use
5.1 Install SIM Card
Check that the SIM has not run out off credit
(test the SIM in a phone to make sure it can
send and receive SMS);
5.2 Charging
Connect the device with external power

User Manual of GT103
-5-
like car battery, LED light will flashing.
5.3 LED indications
Push the power switch to turn on/off SLT01
5.4 Power/GND
Connect GND (Black) and power
GPS LED (Red)
Flashing (every 0.1 second)
Initializing or back-up battery power is low
Flashing (0.1 second on and 2.9 seconds off)
Device has A GPS fix
Flashing (1 second on and 2 seconds off)
Device has no GPS fix
GSM LED (Green)
Flashing (every 0.1 second)
Initializing
Flashing (0.1 second on and 2.9 seconds off)
Device is connected to the GSM network
Flashing (1 second on and 2 seconds off)
Device is not connected to the GSM network

User Manual of GT103
-6-
(Red) wires to the battery of vehicle.

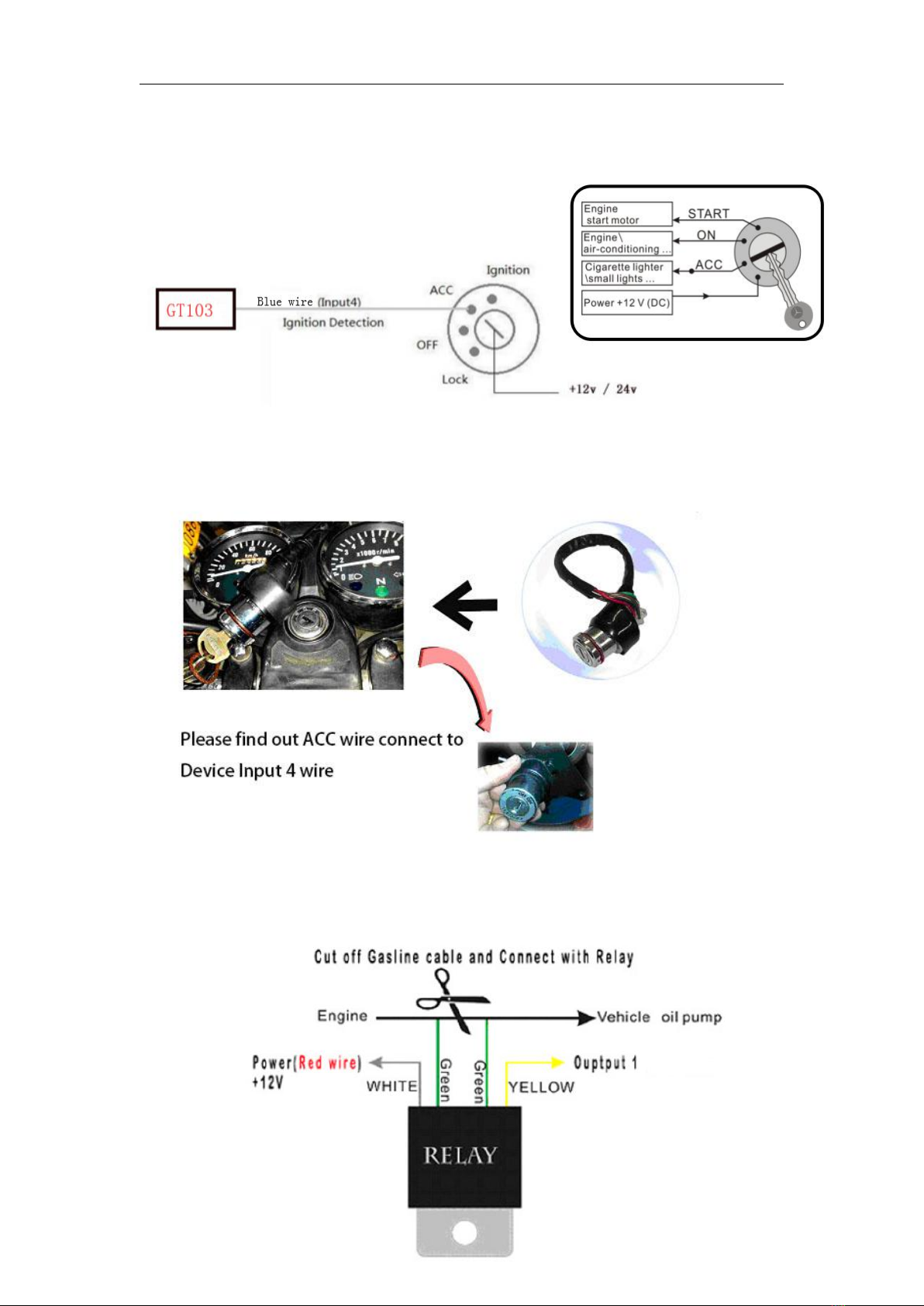

5.5 ACC Detection
Example: Detecting vehicle engine on/off status
5.6 Control fuel-cut (Output1 )

User Manual of GT103
-7-

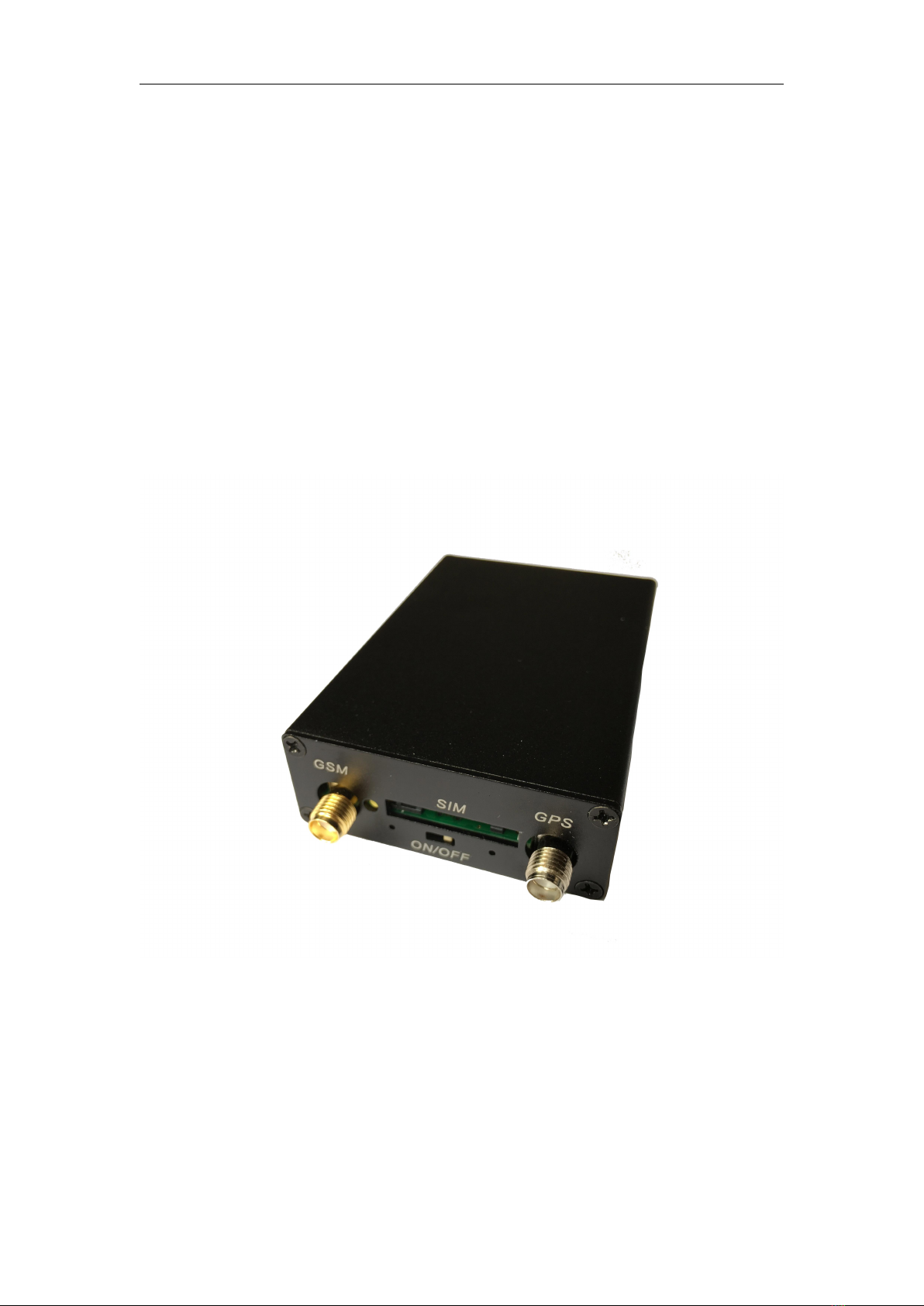

5.7 Install GPS/GSM Antenna and microphone
Note: Do not shield or cover the GPS Antenna with any objects containing metal.
6. Installation
Please select experienced technicians to install this system.
The installation should be carried in the working condition for this system.
Install this system in a secret place.
Prevent this system from dust and humidity.
Connect the wires of other wires, leave the plug unplugged.
Fixing, wiring connecting, binding should be carried on carefully.

User Manual of GT103
-8-
6.1 5-p wires instruction
PIN Number
Color
Description
GND
Black wire
Ground, Negative
POWER
Red wire
DC in (power source). Input voltage: 9V-24V, 12V suggested.
Input 1
(SOS button)
White wire
Digital Input 1 (negative triggering), E.g. connect SOS panic
button
Input4
Blue wire
Digital Input 4 (positive triggering), E.g. detecting status of
ACC on/off
Output 1
Yellow wire
E.g. Connect relay to cut off engine or fuel
6.2 Standard accessories of GPS tracker GT103
Accessories
QTY
FUNCTION
Main unit
1 piece
GSM Antenna
1 piece
Receiving GSM
network signal
GPS Antenna
1 piece
Receiving satellite
locating signal data
5 PIN wire
(Include SOS button)
1 piece
Mainly used to
connect to the vehicle
12V/24V relay
1 piece
To cut-off/restore the
power/fuel supply
Microphone
1 piece
Voice monitoring

User Manual of GT103
-9-
6.3 Recommended install place
For automobile:
For Motorcycle:

User Manual of GT103
-10 -
7. Set GT103 on GPRS01 Platform
7.1 SMS command
①Check tracker ID
Command: WWW
Tracker will reply message:
000000;68995039891033;internet;www.track-car.com,9700;TCP;00006;TK103 MC20 190314-4
Explain:
000000 is tracker’s password
68995039891033 is tracker ID (Default tracker ID, user cant change)
internet is APN
www.track-car.com is IP
9700 is port
TCP is GPRS
00001 is time interval
TK103 MC20 190314-4 is version
②Reset password and restart gsm/gps module
Command: W888888,999,666
③Change password
Command: W******,001,######

User Manual of GT103
-11 -
Description: Change user’s password.
Note:
****** is user’s password and the default password is 000000. The tracker will only accept
commands from a user with the correct password. Commands with wrong password will be
ignored.
###### is the new password. Password should be 6 digits.
Example:
W000000,001,123456
Decription: 000000 is current password, 123456 is new password
④Set APN by SMS
Command: W000000,011,APN,APN name, APN password
Description: APN name, APN username, APN password
If no password required, just put in APN name only.
Example: W000000,011,internet
⑤Set IP Address and Port by SMS
Description: IP address is www.track-car.com, Port is 9700
SMS command: W<password>,012,<IP>,<port>
Example:
SMS send: W000000,012,www.track-car.com,9700
Tracker will reply message: Set ok.
⑥Enable GPRS Function
Command: W<password>,013,X
Description: X=0,close GPRS(Default)
X=1,enable TCP
X=2,enable UDP
⑦Set Time Interval for Sending GPRS Packet
Command: W<password>,014,XXXXX
Description: XXXXX should be in five digits and in unit of 10 seconds.
XXXXX =00000, to disable this function
XXXXX =00001~65535, time interval for sending GPRS packet and in unit of 10 seconds
Example: W000000,014,00005
Mean time interval is 50 seconds.
○
8Get Google link
Command: W000000,100
○
9Authorized phone number
Commend: W000000,003,xxxxxxx
Description: xxxx are phone number

User Manual of GT103
-12 -

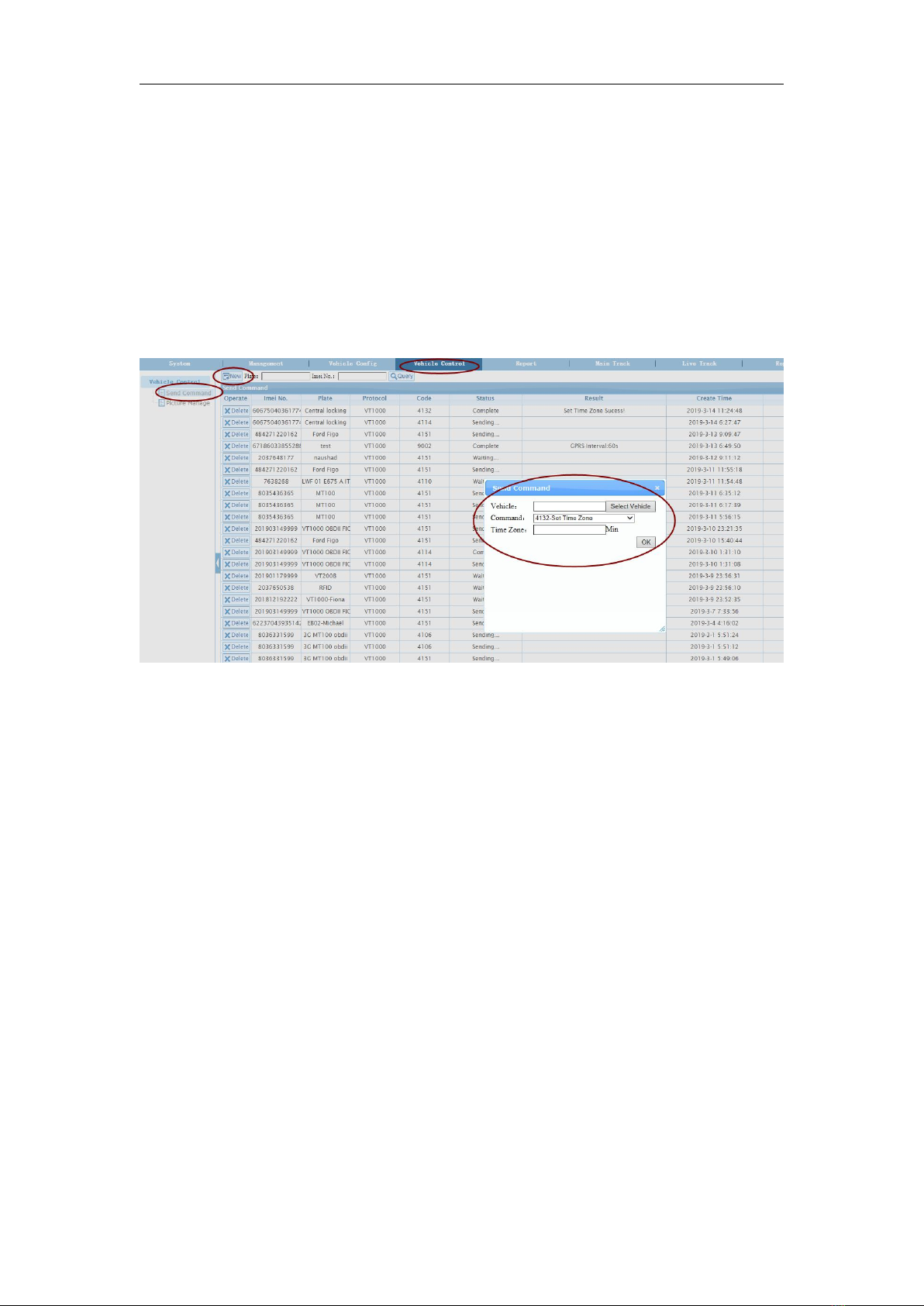

⑩Set time zone via sms command or tracking platform
SMS command: W000000,032,XX
XX = 0, to disable this function
XX = [ 1 , 65535 ] to set time difference in minutes to GMT.
Default value is GMT+, not necessary for those ahead of GMT. For example, if time zone is +2,
either +120 or 120 is acceptable. Like W000000,032,120 or W000000,032,-120
- is required for those behind GMT, for example, W000000,032,-120
Tracking platform: vehicle control --> send command --> new --> select vehicle -->
choose time zone command --> write time zone value -- > click “ ok”
○
11 Set over speed alarm
Command: W000000,005,XX
Description:
XX(the speed preset value)
XX=00, disable
XX=[01<XX<20] (unit:10Km)
Example:
SMS send: W000000,005,10
SMS receive: SET OK! SPEED LIMIT:100Km/h
Meaning: If your speed is over 100Km/h, an alarm SMS will be upload to tracking platform.
○
11 To cut off Engine, immobilize the vehicle (immediately)
Command: W000000,020,1,1 (Enable cut off engine funcion)
Command: W000000,020,1,0 (Restore engine)
If the output1 is connect to oil-cut relay, this command is to enable the engine-cut function, the
engine oil pump line will be cut-off to immobilize the vehicle.
While send W000000,020,1,0 is to restore the engine oil pump line and the vehicle can be started
again.

User Manual of GT103
-13 -

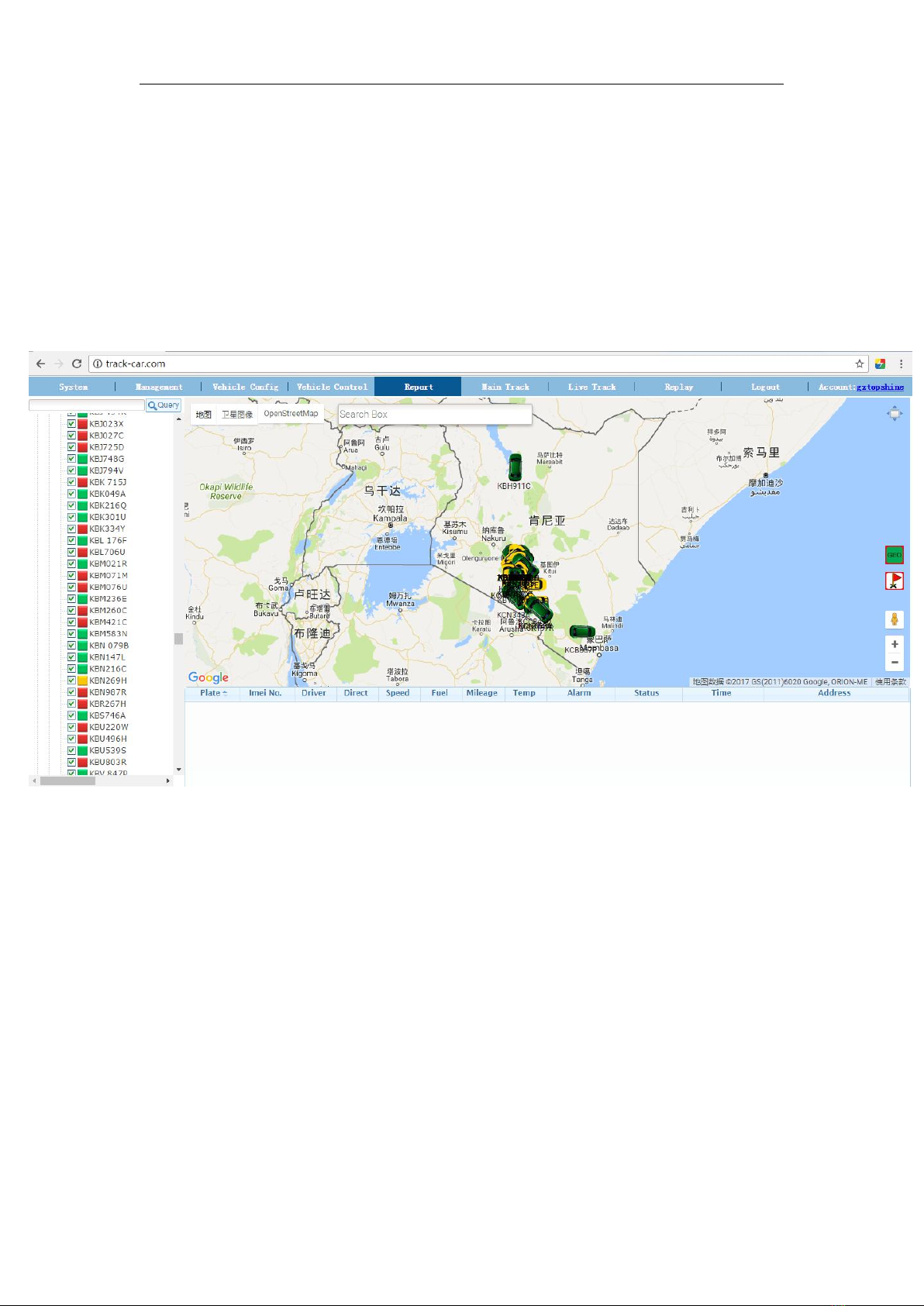

7.2 Set tracker on Topshine GPRS01 Platform
①Login Topshine GPRS01 Platform (Ask sales person to create one tracking account)
Website: www.track-car.com
Phone link: www.track-car.com/m
User Name: ***
Password: ***
Note: Red box means the vehicle Online;
Yellow box means the vehicle offline;
Green box means the vehicle running.
②Vehicle Information Management
Centralized management of all vehicles in the platform, the “Kind, IMEI ID, Plate No.” are
mandatory terms, and the IMEI ID must be consistent with the tracker ID.
Set up a new team and new vehicle information. For example,
Add a new team
1) Login in with Manage chosen.

User Manual of GT103
-14 -

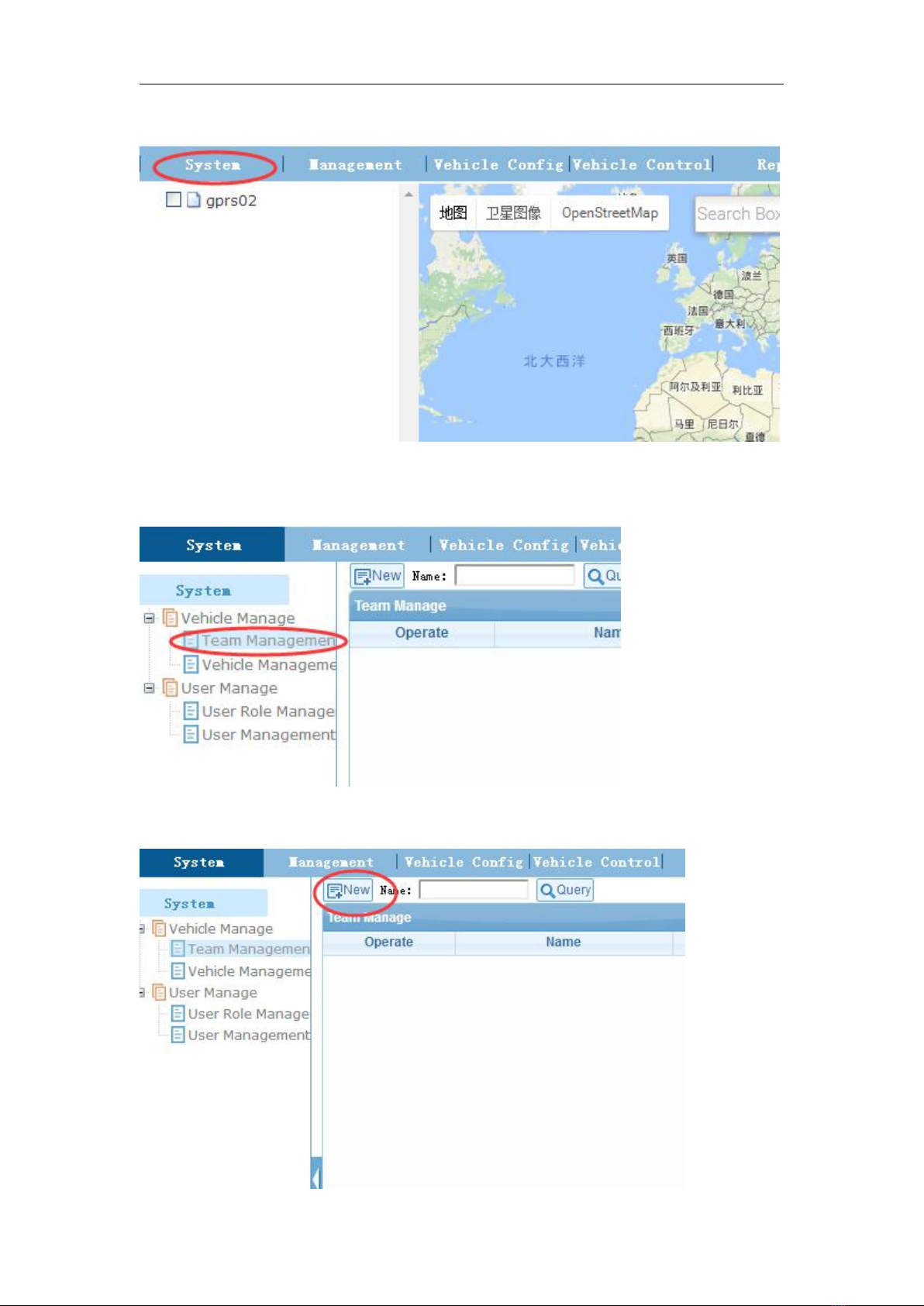

2) Click System
3) Click Team Management under Vehicle Manage.
4) Click New.

User Manual of GT103
-15 -
5) Put in Team Name and click Select Company.
6) Find a company and double click to finish choosing.
7) The chosen company will be showed in the blank.

User Manual of GT103
-16 -
8) Decide how many vehicles you will add under this Team and put it in Max Count.
9) Click Save it will show Operation Success!
Important Notes:
After a period of time, if you want to continue to add more vehicles into this Team, remember to
add the number of new vehicles which you want to add to the max count.
For example, you want to add 3 more vehicles in this Team, then original 2+3=5. So you can
continue to add more vehicles. Or it will show failure information.
10) Click Edit to modify.

User Manual of GT103
-17 -
Add a new vehicle
The parts in the three circles parts are must part you need to put.

User Manual of GT103
-18 -
1. Click Vehicle Management and click New

User Manual of GT103
-19 -

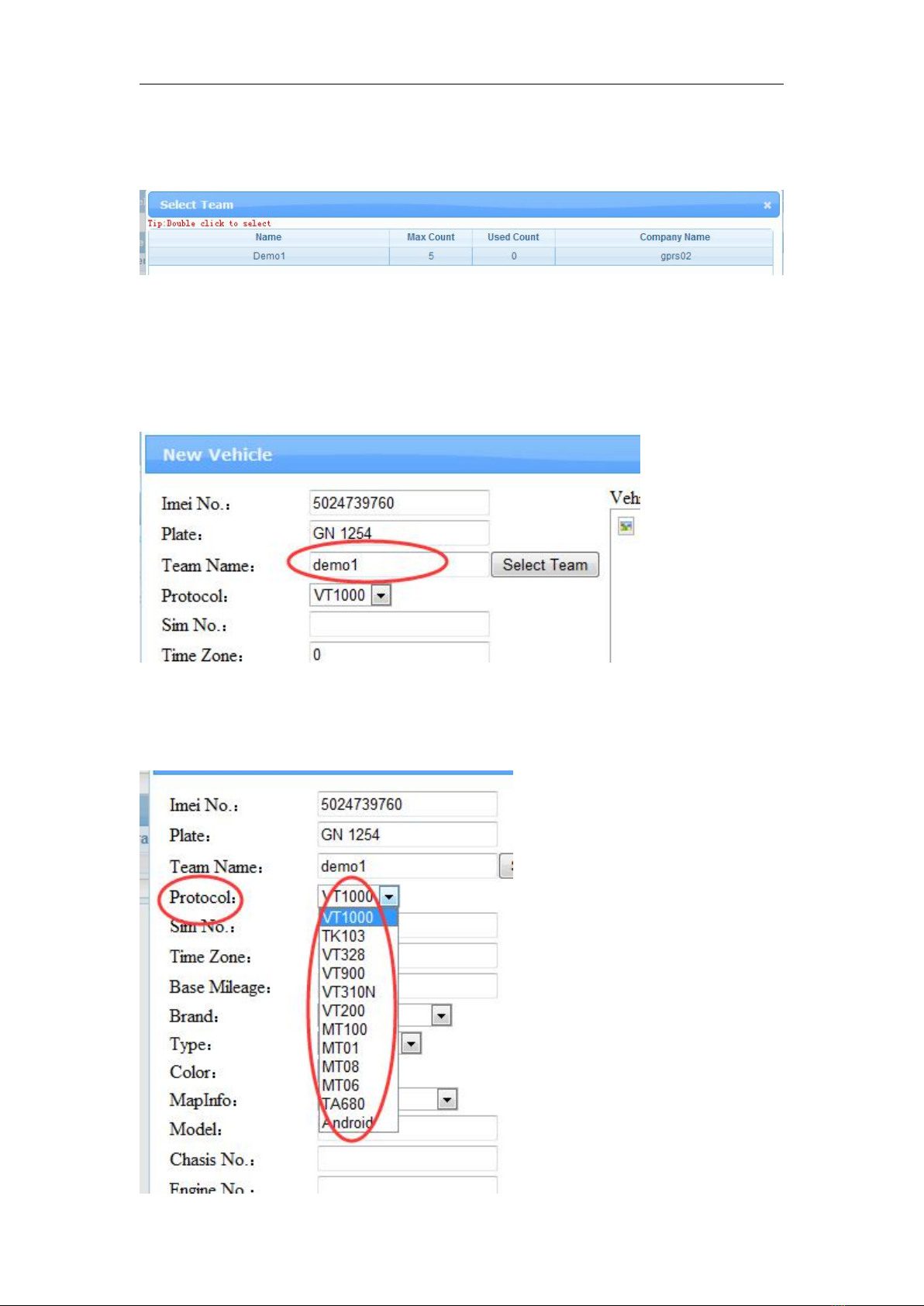

2. Put in Imei No..The Imei No. = Tracker ID
2. Put Vehicle License Plate Number in Plate.
3. Click Select Team to choose a team you have added.

User Manual of GT103
-20 -
After choose the team, it will show in the blank.
Choose corresponding device model from Protocol drop-down list. Here we choose VT1000.
