FormNo.3440-213RevB
60VInverter
ModelNo.51860T—SerialNo.322000001andUp
Registeratwww.Toro.com.
OriginalInstructions(EN)*3440-213*

WARNING
CALIFORNIA
Proposition65Warning
Thepowercordonthisproductcontains
lead,achemicalknowntotheState
ofCaliforniatocausebirthdefects
orotherreproductiveharm.Wash
handsafterhandling.
Useofthisproductmaycauseexposure
tochemicalsknowntotheStateof
Californiatocausecancer,birthdefects,
orotherreproductiveharm.
Introduction
Thisinverterisintendedtobeusedbyresidential
homeowners.ItisdesignedtouseToro60V
lithium-ionbatterypacks.Thesebatterypacksare
designedtobechargedonlybyToro60Vlithium-ion
batterychargers.Usingtheseproductsforpurposes
otherthantheirintendedusecouldprovedangerous
toyouandbystanders.
Model51860Tdoesnotincludeabatteryora
charger.
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
Visitwww.T oro.comformoreinformation,including
safetytips,trainingmaterials,accessoryinformation,
helpndingadealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuinethe
manufacturerparts,oradditionalinformation,contact
anAuthorizedServiceDealerorthemanufacturer
CustomerServiceandhavethemodelandserial
numbersofyourproductready.Figure1identies
thelocationofthemodelandserialnumbersonthe
product.Writethenumbersinthespaceprovided.
Important:Withyourmobiledevice,youcan
scantheQRcode(ifequipped)ontheserial
numberplatetoaccesswarranty,parts,andother
productinformation.
g388847
Figure1
ModelNo.
SerialNo.
©2022—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedinChina
AllRightsReserved

Safety-AlertSymbol
Thesafety-alertsymbol(Figure2)showninthis
manualandonthemachineidentiesimportantsafety
messagesthatyoumustfollowtopreventaccidents.
g000502
Figure2
Safety-alertsymbol
Thesafety-alertsymbolappearsaboveinformation
thatalertsyoutounsafeactionsorsituationsand
isfollowedbythewordDANGER,WARNING,or
CAUTION.
DANGERindicatesanimminentlyhazardoussituation
which,ifnotavoided,willresultindeathorserious
injury.
WARNINGindicatesapotentiallyhazardoussituation
which,ifnotavoided,couldresultindeathorserious
injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,mayresultinminorormoderate
injury.
Thismanualusestwootherwordstohighlight
information.Importantcallsattentiontospecial
mechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.
Safety
IMPORTANTSAFETY
INSTRUCTIONS
1.SAVETHESEINSTRUCTIONS—Thismanual
containsimportantsafetyandoperating
instructionsforpowerinverterModel51860T .
2.Beforeusingtheinverter,readalltheinstructions
andcautionarymarkingsontheinverter,battery
pack,andproductusingthebatterypack.
3.CAUTION—Toreduceriskofinjury,useonly
Toro60Vlithium-ionbatterypackswiththe
powerinverter.Otherbrandsandtypesof
batterypacksmayburst,causingpersonalinjury
anddamage.
4.WARNING—Donotconnecttheinvertertoa
walloutletoranyACdistributionwiring,thiscan
causecancauseareorelectricshock.
5.ThesedevicescomplywithPart15oftheFCC
rules.Operationissubjecttothefollowing
2conditions:(1)Thesedevicesmaynot
causeharmfulinterference;and(2)these
devicesmustacceptanyinterferencereceived,
includinginterferencethatmaycauseundesired
operation.
I.Training
1.Keepbystandersandchildrenoutofthe
operatingarea.Donotallowchildrento
operatethemachine.Allowonlypeoplewho
areresponsible,trained,familiarwiththe
instructions,andphysicallycapabletooperate
themachine.
2.Donotallowchildrentouseorplaywiththe
batterypackorbatteryinverter;localregulations
mayrestricttheageoftheoperator.
3

II.Preparation
1.Usetheinverteronlywithspecicallydesignated
batterypacks.Usingothertypesofbattery
packsmaycreateariskofinjuryand/orre.
2.Donotuseadamagedormodiedbatterypack
orbatteryinverter.Itmayexhibitunpredictable
behavior,resultinginre,explosion,orriskof
injury.
3.Iftheinverterisdamaged,contactanAuthorized
ServiceDealertoreplaceit.
III.Operation
1.Chargethebatterypackwithonlythebattery
chargerspeciedbyToro.Achargersuitablefor
1typeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
2.Usetheinverterinadry,well-ventilatedarea
only.Donotoperatetheinverterifitiswetor
nearammablematerials.
3.Donotgroundtheneutraloftheinverter.
4.Donotperformmaintenanceorservice
appliancesthatareconnectedtotheinverter.
Disconnectanyappliancesfromtheinverter
whentheyaredonecharging.
5.Followalloperationinstructionsanddonot
usethebatterypackorinverteroutsideofthe
temperaturerangespeciedintheinstructions.
Otherwise,youmaydamagethebatterypackor
inverterandincreasetheriskofre.
6.Underabusiveconditions,thebatterypackmay
ejectliquid;avoidcontact.Ifyouaccidently
comeintocontactwiththeliquid,ushwith
water.Iftheliquidcontactsyoureyes,seek
medicalhelp.Liquidejectedfromthebattery
packmaycauseirritationorburns.
7.Donotexposeabatterypackortooltoreor
excessivetemperature.Exposuretoreor
temperatureabove130°C(265°F)maycause
explosion.
8.CAUTION—Amistreatedbatterypackmay
presentariskofre,explosion,orchemical
burn.
•Donotdisassemblethebatterypack.
•Replacethebatterypackwithagenuine
Torobatterypackonly;usinganothertypeof
batterypackmaycauseareorriskofinjury.
•Keepbatterypacksoutofthereachof
childrenandintheoriginalpackaginguntil
youarereadytousethem.
IV.MaintenanceandStorage
1.Donotallowchildrentocleanormaintainthe
batteryinverter.
2.Whenthebatterypackisnotinuse,keepit
awayfrommetalobjectssuchaspaperclips,
coins,keys,nails,andscrewsthatcanmakea
connectionfrom1terminaltoanother.Shorting
thebatteryterminalsmaycauseburnsorare.
3.Donotattempttorepairthebatterypackor
powerinverter.HaveanAuthorizedService
Dealerperformserviceonthebatterypackor
powerinverterusingidenticalreplacementparts
toensurethattheproductissafelymaintained.
4.Checkwithlocalcodesforpossiblespecial
batterydisposalinstructions.
SAVETHESE
INSTRUCTIONS
4

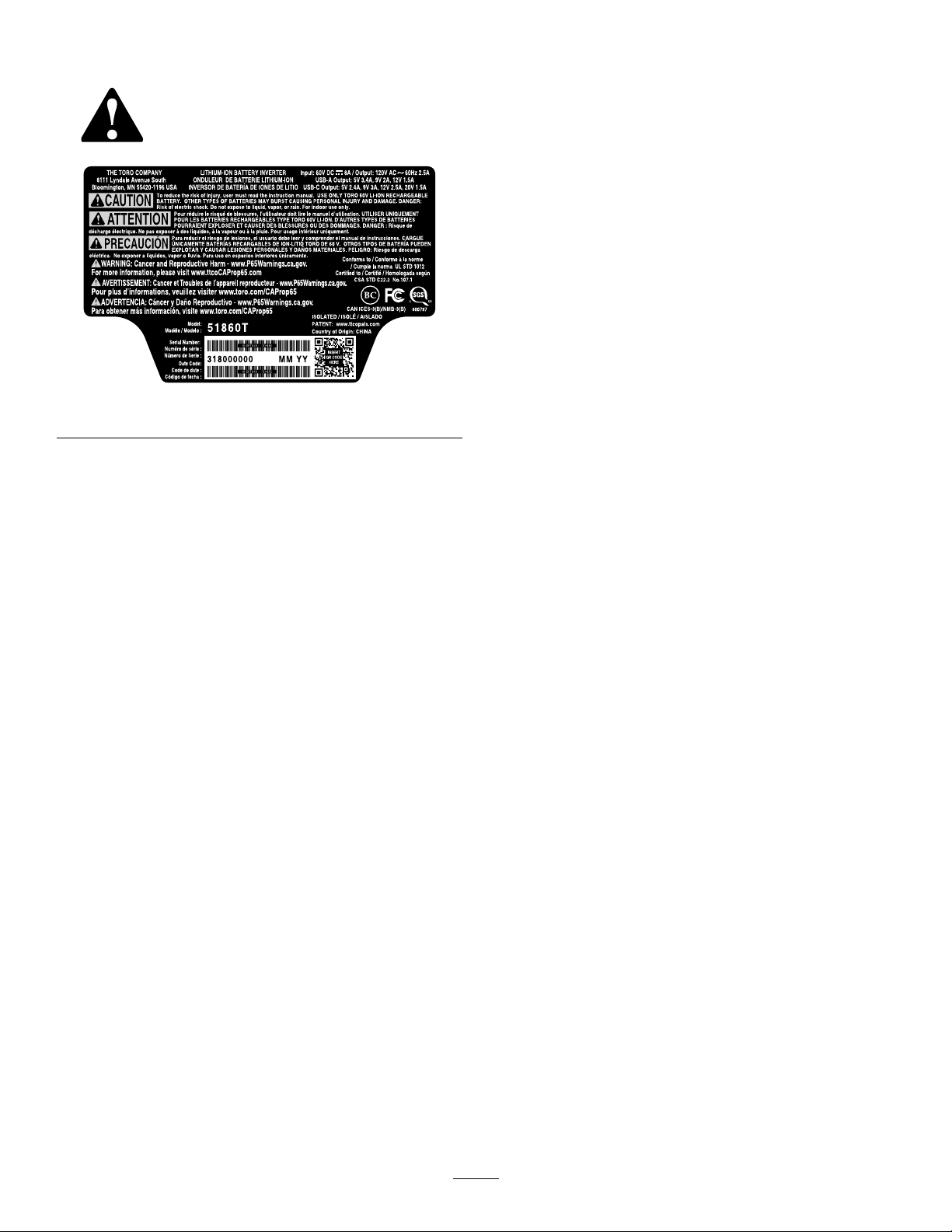

SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea
ofpotentialdanger.Replaceanydecalthatisdamagedormissing.
decal139-5366
139-5366
5

ProductOverview
g333934
Figure3
1.Powerbutton/LED4.ACreceptacle
2.USB-Cport5.Batterypacklatchbutton
3.USB-Aport6.Vents
Specications
BatteryCharger
Model51860T
Type60VMAXLithium-IonBatteryInverter
Watts330Wcontinuous,450Wmomentary
surge
Input60VDC8A
OutputWave
Form
Modiedsinewave
ACReceptacle
Output
120VAC~2.5A,60Hz
USB-C5V2.4A,9V3A,
12V2.5A,20V
1.5A,
USBPortOutput*
USB-A5V3.4A,9V2A,
12V1.5A
*TheUSBportsshareinternalcircuitry;iftheUSB-A
portisinuse;theUSB-Cportsupplies5Voutputonly.
AppropriateTemperatureRanges
Charge/storethebatterypack
at
5°C(41°F)to40°C(104°F)*
Usebatterypackat-30°C(-22°F)to49°C(120°F)
Usethetoolat0°C(32°F)to49°C(120°F)*
*Chargingtimewillincreaseifyoudonotchargethe
batterywithinthisrange.
Storethetool,batterypack,andbatterychargerinan
enclosedclean,dryarea.
Operation
InstallingtheBattery
1.Ensurethattheventsonthebatteryandinverter
areclearofanydustanddebris(Figure4).
2.Disconnectanydevicesattachedtotheinverter.
3.Lineupthecavityinthebatterypackwiththe
tongueontheinverter(Figure4).
4.Slidethebatterypackintotheinverteruntilitis
fullyseated.
5.Toremovethebatterypack,turnthepoweroff,
thenpressdownthelatchbuttonandslidethe
batteryupandawayfromtheinverter.
g333935
Figure4
1.Invertervents
6

UsingtheInverter
Important:Usetheinverteronlyintemperatures
thatarewithintheappropriaterange;referto
Specications(page6).
Important:Ensurethatthecombinedload
requirementofyourequipmentdoesnotexceed
theinverter’soutputrating.
Important:Donotconnecttheinvertertoa
householdwalloutletoranyACdistribution
wiring,anddonotconnecttheneutralinverter
connectortoground.
1.Installthebattery;refertoInstallingtheBattery
(page6)
2.Pressthepowerbuttononthebackofthe
invertertoturntheinverteron,theLEDlightsup
tosolidgreen(Figure3).
3.ConnectyourdevicetoaUSBportortheAC
receptacle(Figure5).
g333936
Figure5
4.ThepowerbuttonhasanLEDthatsignalsthe
conditionoftheinverter;refertothefollowing
tabletointerprettheLEDindicatorlightonthe
inverter.
IndicatorlightCondition
OffNobatterypackinserted
SolidGreenNormaloperation
FlashingGreenLowbatteryvoltage
SolidRedHigh-voltageprotectionorbatteryerror
FlashingRed,
intervalsof4
Short-circuitprotectionoroverload
protection
FlashingRed,
intervalsof5
Low-voltageprotection
FlashingRed,
intervalsof6
Batterypackand/orbatteryinverterisover
orundertheappropriatetemperaturerange.
*RefertoTroubleshooting(page9)formore
information.
Important:Whenevertheinverterisnotin
use,turntheinverteroffandremovethe
batteryfromtheinverter.
7

Maintenance
Maintenanceandservicingarenotrequiredunder
normalconditions.
Whenyoucleanthesurfaceoftheequipment,wipeit
onlywithadrycloth.
Donotdisassembletheequipment;ifitisdamaged,
contactyourAuthorizedServiceDealer.
Storage
Important:Storetheinverter,batterypack,and
chargeronlyintemperaturesthatarewithinthe
appropriaterange;refertoSpecications(page6).
Important:Ifyouarestoringtheinverterforthe
off-season,removethebatterypackfromthe
toolandchargethebatterypackuntil2or3LED
indicatorsturngreenonthebattery.Donotstore
afullychargedorfullydepletedbattery.When
youarereadytousetheinverteragain,charge
thebatterypackuntiltheleftindicatorlightturns
greenonthechargerorall4LEDindicatorsturn
greenonthebattery.
•Disconnecttheinverterfromthepowersupply(i.e.,
removethebatterypack)andcheckfordamage
afteruse.
•Cleanallforeignmaterialfromtheinverter.
•Donotstoretheinverterwiththebatterypack
installed.
•Whennotinuse,storetheinverter,batterypack,
andbatterychargeroutofthereachofchildren.
•Keeptheinverter,batterypack,andbattery
chargerawayfromcorrosiveagents,suchas
gardenchemicalsandde-icingsalts.
•T oreducetheriskofseriouspersonalinjury,do
notstorethebatterypackoutsideorinvehicles.
•Storetheinverter,batterypack,andbattery
chargerinanenclosedclean,dryarea.
PreparingtheBatteryPack
forRecycling
Important:Uponremoval,covertheterminalsof
thebatterypackwithheavy-dutyadhesivetape.
Donotattempttodestroyordisassemblethe
batterypackorremoveanyofitscomponents.
Lithium-ionbatterypackslabeledwiththe
Call2Recyclesealcanberecycledatany
participatingretailerorbatteryrecycling
facilityintheCall2Recycleprogram(US
andCanadaonly).Tolocateaparticipating
retailerorfacilityclosesttoyou,pleasecall
1-800-822-8837orvisitwww.call2recycle.org.
Ifyoucannotlocateaparticipatingretaileror
facilitynearby,orifyourrechargeablebattery
isnotlabeledwiththeCall2Recycleseal,
pleasecontactyourlocalmunicipalityformore
informationonhowtoresponsiblyrecyclethe
battery.IfyouarelocatedoutsideoftheUS
andCanada,pleasecontactyourauthorized
Torodistributor.
8

Troubleshooting
Performonlythestepsdescribedintheseinstructions.Allfurtherinspection,maintenance,andrepairwork
mustbeperformedbyanauthorizedservicecenterorasimilarlyqualiedspecialistifyoucannotsolvethe
problemyourself.
ProblemPossibleCauseCorrectiveAction
1.Theinstalledbatterypackisoutof
charge.
1.Replacewithachargedbatterypack
orchargethebatterypack.
2.Thebatterychargerisoverorunder
theappropriatetemperaturerange(red
ashingLEDinintervalsof4).
2.Unplugthebatteryfromtheinverter
andmovethemtoaplacewhereitis
dryandthetemperatureisbetween
5°C(41°F)and40°C(104°F).Allow
theunittocoolforatleast15minutes
beforerestartingafteraheat-related
shutdown.Unplugtheunitwhileitis
cooling.
3.Inputvoltageisoverorunder
acceptablelevels.
3.Thebatteryorinvertermaybe
damaged;contactanauthorized
servicedealer.
Theinverterdoesnotcharge,shutsdown,
ortheLEDindicatorlightisred.
4.Theinverterorbatteryshortcircuited
(redashingLEDinintervalsof4).
4.Removethebatteryandrestartthe
inverterafter5minutes.
Thebatterypackloseschargequickly.1.Thebatterypackisoverorunderthe
appropriatetemperaturerange.
1.Movethebatterypacktoaplace
whereitisdryandthetemperatureis
between5°C(41°F)and40°C(104°F).
1.Thereismoistureontheleadsofthe
batterypack.
1.Allowthebatterypacktodryorwipeit
dry.
Thetooldoesnotrunordoesnotrun
continuously.
2.Thebatteryisnotfullyinstalledintothe
tool.
2.Removeandthenreplacethebattery
intothetoolmakingsurethatitisfully
installedandlatched.
SomeACappliancesdonotstart.1.Thepowerneededtostartsome
ACappliancesmaybeasmuchas
2to8timesitscontinuouswattage
requirements.
1.Readtheinformationpaneloneach
ACappliancecarefullytoaccurately
determinethetool’sinputwattage.
Thereisabuzzingsoundinsome
plugged-inaudiosystems.
1.Thepowersupplyintheelectronic
devicedoesnotadequatelylterthe
modiedsinewaveproducedbythe
inverter.
1.Useahigherqualitysoundsystemthat
incorporatesahigherqualitypower
ampliedsupply.
1.TheTVsignalistooweak.1.Adjusttheorientationoftheinverter,
theantennacables,andtheTVpower
cordtominimizeinterferenceormove
toanareawithgreatersignalreception.
2.Theinverterisbeingusedtopower
otherhigh-powerappliances.
2.Donotoperatehigh-powerappliances
ortoolswhenyouarewatchingTV.
3.Theantenna/signalcableisdamaged
orinadequate.
3.Ensurethattheantennafeedingthe
televisionprovidesanadequate(“snow
free”)signalandthathighquality,
shieldedantennacableisused.
Thereisainterferenceinthesignalof
someplugged-intelevisiondevices.
4.Theinverterisshieldedtominimize
interferencewithTVsignals;the
shieldingmaybedamaged.
4.Contactanauthorizedservicedealer.
9

Notes:

CaliforniaProposition65WarningInformation
Whatisthiswarning?
Youmayseeaproductforsalethathasawarninglabellikethefollowing:
WARNING:CancerandReproductiveHarm—www.p65Warnings.ca.gov.
WhatisProp65?
Prop65appliestoanycompanyoperatinginCalifornia,sellingproductsinCalifornia,ormanufacturingproductsthatmaybesoldinorbroughtinto
California.ItmandatesthattheGovernorofCaliforniamaintainandpublishalistofchemicalsknowntocausecancer,birthdefects,and/orother
reproductiveharm.Thelist,whichisupdatedannually,includeshundredsofchemicalsfoundinmanyeverydayitems.ThepurposeofProp65isto
informthepublicaboutexposuretothesechemicals.
Prop65doesnotbanthesaleofproductscontainingthesechemicalsbutinsteadrequireswarningsonanyproduct,productpackaging,orliteraturewith
theproduct.Moreover,aProp65warningdoesnotmeanthataproductisinviolationofanyproductsafetystandardsorrequirements.Infact,the
CaliforniagovernmenthasclariedthataProp65warning“isnotthesameasaregulatorydecisionthataproductis‘safe’or‘unsafe.’”Manyofthese
chemicalshavebeenusedineverydayproductsforyearswithoutdocumentedharm.Formoreinformation,gotohttps://oag.ca.gov/prop65/faqs-view-all.
AProp65warningmeansthatacompanyhaseither(1)evaluatedtheexposureandhasconcludedthatitexceedsthe“nosignicantrisklevel”;or(2)
haschosentoprovideawarningbasedonitsunderstandingaboutthepresenceofalistedchemicalwithoutattemptingtoevaluatetheexposure.
Doesthislawapplyeverywhere?
Prop65warningsarerequiredunderCalifornialawonly.ThesewarningsareseenthroughoutCaliforniainawiderangeofsettings,includingbutnot
limitedtorestaurants,grocerystores,hotels,schools,andhospitals,andonawidevarietyofproducts.Additionally,someonlineandmailorder
retailersprovideProp65warningsontheirwebsitesorincatalogs.
HowdotheCaliforniawarningscomparetofederallimits?
Prop65standardsareoftenmorestringentthanfederalandinternationalstandards.TherearevarioussubstancesthatrequireaProp65warning
atlevelsthatarefarlowerthanfederalactionlimits.Forexample,theProp65standardforwarningsforleadis0.5μg/day,whichiswellbelow
thefederalandinternationalstandards.
Whydon’tallsimilarproductscarrythewarning?
•ProductssoldinCaliforniarequireProp65labellingwhilesimilarproductssoldelsewheredonot.
•AcompanyinvolvedinaProp65lawsuitreachingasettlementmayberequiredtouseProp65warningsforitsproducts,butothercompanies
makingsimilarproductsmayhavenosuchrequirement.
•TheenforcementofProp65isinconsistent.
•CompaniesmayelectnottoprovidewarningsbecausetheyconcludethattheyarenotrequiredtodosounderProp65;alackofwarningsfora
productdoesnotmeanthattheproductisfreeoflistedchemicalsatsimilarlevels.
Whydoesthemanufacturerincludethiswarning?
themanufacturerhaschosentoprovideconsumerswithasmuchinformationaspossiblesothattheycanmakeinformeddecisionsabouttheproducts
theybuyanduse.themanufacturerprovideswarningsincertaincasesbasedonitsknowledgeofthepresenceofoneormorelistedchemicalswithout
evaluatingthelevelofexposure,asnotallthelistedchemicalsprovideexposurelimitrequirements.Whiletheexposurefromthemanufacturerproducts
maybenegligibleorwellwithinthe“nosignicantrisk”range,outofanabundanceofcaution,themanufacturerhaselectedtoprovidetheProp65
warnings.Moreover,ifthemanufacturerdoesnotprovidethesewarnings,itcouldbesuedbytheStateofCaliforniaorbyprivatepartiesseekingto
enforceProp65andsubjecttosubstantialpenalties.
RevA
