Power Drive PDIPS1000B Installation and operating instructions

Please read this manual thoroughly before installing and
operating your Inverter. This manual contains information
you need to obtain the performance required for your
application. Keep this manual for future reference.
The PowerDrive®Bluetooth®inverter is the first ofits kind
in the market! This inverter has high starting capability
and max efficiency up to 90%. This Bluetooth® inverter
can connect with all Andriod®and iOS ® smartphones.
Our phone APP can help check and keep you updated
on the battery voltage, output power and product
temperature. Set up the protections such as under
voltage, over voltage, overload and over-temperature at a
distance! Also included are personal settings and battery
testing with a more user friendly experience. Welcome to
.the future ofpower Inverters!

-
LOAD PERFORMANCE CHART FOR THE 1000W
PURE SINE WAVE DIGITAL POWER INVERTER
This power inverter is pure sine wave inverter, it will perform
good for most of the appliances. Please refer to below
table for applications performance rating comparison of
modified sine wave inverter and pure sine wave inverter.
PERFORMANCE RATINGS
LCD/Plasma TV
Standard TV
Audio Eauipment
Laotoo
Desktop Comouter
Microwave
Table saw/Air Comoressor
Hand Power Tool
Coffeemaker. Toaster. Hair Drver
Blender, Mixer, Coffee Grinder
Laser Printer
Photo Cooier
Bubblejet Printer
Fax Machine
Air Conditioner
Liaht (incandescent)
Light (others)
Not
Re c omme n ded
*
Ad e quat e
Pe rformanc e
Modified
Sine Wave
-
**
*
***
**
**
**
**
***
**
-
-
**
**
*
***
**
**
Go od
Pe rform an ce
Test inverter using the enclosed test cables.
Pure
Sine Wave
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
***
Id eal
Pe rf o rman ce
Voltage drop should be no more than 0.5 volts using the
highest reated appliance(s).
If voltage drop is higherthan 0.5 volts, increase cable
gauge size.
11

WARNINGS, CAUTIONS AND NOTES
It's very important that any operator and installer of this
inverter read and follow all WARNINGS, CAUTIONS AND
NOTES and all installation and operation instructions. In
particular, comply with WARNINGS (possibility of serious
injury or death), CAUTIONS (possibility of damage to the
inverter and/ or other equipment), and NOTES (included to
assist you in achieving the maximum performance and
longest working life from this advanced-design inverter).
WARNINGS: INVERTER OUTPUT
This heavy-duty device producesvoltages similar to
commercial AC power.
• Danger of shock or electrocution -treat inverter output
the same as commercial AC power.
• Do not use the inverter nearflammable materials or
in any locations that may accumulateflammable
fumes or gases. This is an electrical device that
can briefly spark when electrical connections are
made or broken.
• Do not allow water or other liquids to contact the inverter.
• Do not use applianceswith damaged or wet cords.
Surrounding airtemperature should be between -4°F
and 104°F - ideally between 32°F-104°F. Keep the
inverter awayfrom direct sunlight, if at all possible.
• Keep the area surrounding the inverter,clear to ensure
free aircirculation around the unit. Do not place items
on or overthe inverter during operation. The unitwill
shut down if the internal temperature gets too hot.
Restart the inverterafter it cools.
• Your inverterwill only operate from a 12Vpower source.
Do not attempt to connectthe inverter to anyother
power source, including any AC power source. Do not
reverse the DC input polarity-this will void the warranty.
• Do not connect to transfer switch.
• Do not connect to household outlets.
12

APPLIANCE CAUTIONS
• DO NOT plug in battery chargers for cordless power
tools ifthe charger carries a warning that dangerous
voltages are present atthe battery terminals.
• Certain chargers for small nickel-cadmium or nickel-
metal-hydride batteries can be damaged if powered by
this inverter. Two types of appliances are susceptibleto
damage: Small, battery-operated appliances such as
flashlights, cordless razors and toothbrushes that plug
directly into an AC receptacle.
• Some fans with synchronous motors may slightly
increase in speed (RPM) when powered by the inverter.
This is not harmful to the fan or to the inverter.
• Use safety approved extension cords rated at 15 Amps
or higher.
• GFCI devices may not work with modified sine wave
(MSW) power.
• This inverter is not tested for use with medical
equipment.
• This inverter is not tested for use in marine applications.
• In the event of a continuous audible alarm or automatic
shut down, turn the inverter OFF immediately. Do not
restartthe inverter until the source of the problem has
been identified and corrected.
• When using your PowerDrive inverter to power lead acid
battery chargers (Like those used for a car,boat or
motorcycle) with modified sine wave, check the
temperature of the battery charger after 1Ominutes. Ifthe
battery charger becomes hot, immediately disconnect it
from the inverter and allow it to cool before resuming the
charging operation.
• Do not use powerstrips woth surge protection.
WARNING: DANGER OF BATTERY EXPLOSION - INSTALL A FUSE
Battery Banks can deliververy high levels of current that
can vaporize metal, start fires and cause explosions. l3

PowerDrive recommends installing one ANL type fuse and
fuse holder close to the positive battery bankterminal. This
fuse protects the batteries from accidental DC cable shorts,
which can cause batteries toexplode. ANL fuses and fuse
holders are available at most hardware supply stores.
Powerdrive accessories available.
PDIFSK300 -lnline Fuse Kit with 300A Fuse
PDIFSR300 - 300A Fuse (2 pack)
CAUTIONS
• Loose connections can result in asevere decrease in
voltage that can cause damage to cables and insulation.
• Failure to make correct polarity (Pos /Neg) connection
between the inverter and the battery bank can result in
blowing fuses in the inverter and can permanently
damage the inverter. Damage caused by reversed
polarity is not covered under the warranty.
• Ma lking the connection to the Positive terminal may
cause a spark as a result ofcurrent flowing to charge
capacitors within the inverter. This is a normal
occurrence.
• Because ofthe possibility of sparking, it is extremely
importantthat both the inverter and the 12-volt battery
be positioned far from any possible source of
flammable fumes or gases. Failure to heed this
warning could result in fire orexplosion.
• Operating the inverter without correctly grounding the
unit may result in an electrical shock.
GETTING STARTED
When some tools turn on, there is an initial surge ofpower
to start. This surge of power is referred to as the "starting
load" or "peak load." Once started, the tool or appliance
requires less power to operate. This is referred to as the
"continuous load
11
in terms of power requirements. You will
, need to determine how much power your tool or l4

appliance requires to start up (starting load) and it's
continued running power requirements (continuous load).
Powerconsumption is rated in watts, or it can be
calculated from Amperes (Amps). This information is
usually stamped or printed on most appliances and
equipment. If this information is not indicated on the
appliance or equipment, checkthe owner's manual. For.
electrically sensitive equipment, contact the manufactur-
er to determine if the device you are using is compatible
with modified sine wave AC.
Multiply: AC AMPS X 110 (AC voltage)= WATTS
This formula yields a close approximation of the
continuous load of your appliance.
Multiply: WATTS X2 = Starting Load for most appliances.
This formula yields a close approximation of the starting
load of most appliances. Exceptions are motorized
appliances such as pumps, freezers and air condition-
ers. These appliances can have startup loads of up to
eighttimes the rated watts.
15

FEATURES
1. Positive Power InputTerminal.
2. Negative Power Input Terminal.
3. High-Speed Cooling Fans. When the temperature
inside the inverter exceeds a preset limit, the cooling
fan automatically turns on to cool the inverter. When the
temperature reduces, the fan turns off.
4. Ground Terminal.
5. Green LED: Battery voltage indicator.
6. Yellow LED: Output power indicator (KW), which will be
activated when actual output power largerthan 1 000W.
7. RED LED: Output power indicator (W), which will be
activated when actual output power lower than 1 000W.
8. Two screws to attach removable control panel.
9. Four (4) standard North American AC outlets, each
rated at 15 Amps.
10. ON / OFF Switch. Turns the inverter ON and OFF.
11. Digtal display which can display battery voltage,
power watts and error code.
12. Standard USB output 2.4A and USB-C™ output 3.0A
13. Ventilation hole.
14. Voice alarm speaker.
Determining the DC Power Requirements
Your inverter requires the input of a 12-voltbattery. To
calculate the approximate power in Amps a 12-volt
battery bank to you need to know the current, or Amps
required for powering the continuous AC load. A
shortcut method is to divide the continuous AC load
wattage by 1o.For example, the continuous AC load is
3000 watts. The current (Amps) is: 3000/ 10 or 300 Amps
at 12 VDC. Add tothe load any DC appliances that may
be powered by the battery bank.
16

Sizing the Battery
To determine the minimum battery bank Ampere-hour
rating that you will need to operate appliances from the
inverter, and any DC appliances powered by the battery
bank. Follow these steps:
1. List the maximum wattage that the inverter has to
provide (as above).
2. Estimate the number ofhours the appliances will be in
use between battery recharges. This will vary
depending on appliances. As an example, atypical
home-use coffeemaker draws 500 Watts during its brew
time of 5minutes, it maintains the temperature ofthe
pot at about 100 watts. Typical use ofamicrowave
oven is only for a few minutes. Some longer operating
time appliances are lamps, TV's, computers, and
refrigerator/ freezers.
3. Determine the total watt-hours of energy needed.
Then multiply the average power consumption in
watts by the number ofhours of run time. For
example: 2000 Watts for 10 hours = 20,000 Watts
hours. Using the 2000 Watts (or 200 Amps) for 10
hours example as above, then 200 Amps is needed
for 10 hours. This provides us with the basic
Amp-hours (AH) ofbattery that is required. Ten hours
at 200 Amps equals 2000 Amp Hours (AH). This answer
is just a beginning because there are other conditions
that determine actual run time.
These include:
• AC appliance load and time in use (Basic Amp Hour)
• Cable gauge and length
• Charge level ofthe batteries (between use, chargers
have to be able to fully charge the batteries)
• Temperature of the batteries (colder batteries provide
fewer Amps)
• Age and condition of the batteries (older batteries lose
capacity Amp hours)
• Compliance with turning off unnecessary AC and
DC loads.
17

Ifthere is any doubtabout sizing the battery bank, it is
safe to over estimate the Amp hour requirements ofthe
battery bank.
Note:
The type of batteries you use to power your high-power
inverter is important. Operating a high-power inverter .
will routinely discharge batteries and they will require
frequent recharging. Batteries used to start engines are
not designed to repeatedly charge and discharge. We
recommend using "deep-cycle" or "marine" rated
batteries.
CABLE GAUGES
When connecting the inverter to a battery bank use the
thickest stranded insulated copper wire available in the
shortest length practical.
Mounting the Inverter
Your inverter should not
be mounted underthe
hood ofavehicle. If
installing in a vehicle,
choose a dry, cool,
ventilated area close to
the battery as practical.
Before drilling any
mounting holes, make
sure that there are no
wires,fuel lines, ortanks
directly behind the
surface to be drilled.
To mount the inverter:
LENGTH PDIPS1000B
1ft 8AWG
2ft
8AWG
3ft 8AWG
4ft 6AWG
5ft 4AWG
6ft 2AWG
7ft
2AWG
8ft 2AWG
9ft
2AWG
10ft 2AWG
RECOMMENDED FUSE SIZE
AMPERAGE 100A
1. Inverter ON/OFF switch must be in the OFF position.
2. The inverter should be mounted horizontally.
3. Position the inverter against the mounting surface and
mark locations ofthe mounting screw openings.
4. Remove the inverterand drill four (4) mounting holes.
18

5. Fasten the inverter tothe mounting surface using
corrosion-resistant fasteners sized #10 or larger.
CONNECTING THE INVERTER
This inverter has two DC cable connections, one
positive and one negative. The order of steps in the
following procedure minimizes the dangerofsparking
near the battery bank.
1. Prepare all cable set ends with ring terminals at the
battery ends.
2. Install one fuse holderwith fuse on the Positive cable
close to the battery bank end.
3. Make sure the ON/OFF switch located on the front
panel of the inverter is in the OFF (0) position.
4. Ensure all appliance cords or extension cords are
disconnected from the inverter.
5. Connect a #8 gauge stranded insulated wire to the
enclosure ground terminal and connect the free
end of the wire tothe vehicle's chassis or any other
ground point.
6. Connectthe unfused cable to the Negative (-)
terminal of the battery bank.
7. Connectthe Negative cable to the Inverter's
Negative (-) terminal.
8. Insulate the end ofcable to be connected to the
Positive ( +) Inverter terminal.
9. Connectthe fused cable tothe battery bank
Positive (+) terminal.
10.Connectthe Positive cable end tothe Positive(+)
inverter terminal.
_ ,Fuse Holder /Circuit Breaker
(±) -c:::S--------
RED
(±)
Battery Inverter
e ----------
BLACK
e
19

NOTE: Sparking is normal for the first connectic;,n.
1. Make sure you have good secure connections -
Do not over-tighten.
2. Ifyou need the information on the panel at a distance,
you can take outthe panel and connect it to a 12 '
extension cord (included) or simply use the APP.
REMOVABLE FACEPLATE REMOTE CONTROL
(1) Remove the screws fixing the panel
(Keep the screws safe)
(2) Follow the diagram below to connect the panel
and extension cord.
OPERATION
1. Turn On the inverter: Press the ON / OFF switch on
the front panel for 1 second.
2. Turn OFF the inverter: Press the ON / OFF switch on
the front panel for 1 second.
3. When you have confirmed thatthe appliance to be
operated is turned off, plug an appliance cord into
one ofthe 11 0v AC Outlets on the front panel ofthe
inverter.
4. Turn ON the inverter.
5. Display will FLASH between voltage and power usage
6. Turn the appliance ON.
7. Plug in additional appliances and turn them ON.

NOTE:
• When using an extension cord from the inverter to
an appliance the extension cord should not be longer
than 50 feet.
TELEVISION AND AUDIO SUGGESTIONS
Although all PowerDrive inverters are shielded and
filtered to minimize signal interference with your
television picture may be unavoidable, especially in
weak signal areas.
Here are some suggestions that may improve reception:
1. First, make sure that the television antenna
produces a clear signal under normal operating
conditions. Also, ensure that the antenna cable is
properly shielded and of good quality.
2. Change the positions of the inverter, antenna cables
or TV power cord.
3. Isolate the TV, its power cord and antenna cables
from the 12-volt power source by running an
extension cord from the inverter tothe television set.
4. Coil the television power cord and the input cables
running from the 12-volt power source to the inverter.
5. Attach a
11
Ferrite Data Line Filter" to the television
power cord. More than one filter may be required.
These filters are available at most electronic supply
stores.
NOTE:
Some inexpensive audio systems may produce a slight
"buzzing" sound when operated with the inverter. The
onlysolution tothis problem is to use asound system
with better power supply filtering.

TROUBLESHOOTING
PROBLEM: No Input Voltage
cause Solution
Battery is defective Replace battery.
Blown fuse Ask for help from technician.
Lose cable Check the connection tothe battery.
connections Tighten
as required.
PROBLEM: Inverter Shut Down
Cause
Solution
The actual output power
is higherthan rated Reduce load to have the
power of inverter, actual output lower than rated
Overload protection
has occurred power ofinverter.
The actual output is less
Use a product with starting
than rated power, but surge power within the
high starting surge has
inverter's capability.
caused overload shutdown
The voltage input is
too low Charge the battery.
Disconnect the inverter from
Inverter is overheated battery or
DC socket and allow
dueto poor ventilation to be cooled for
15 minutes.
and has shut down
Please ensure to remove
objects covering unit.
Test inverter using the enclosed test cables.
Voltage drop should be no more than 0.5V using
the highest rated appliance
If voltage drop is higher than 0. 5V ,increase cable gauge size.
~

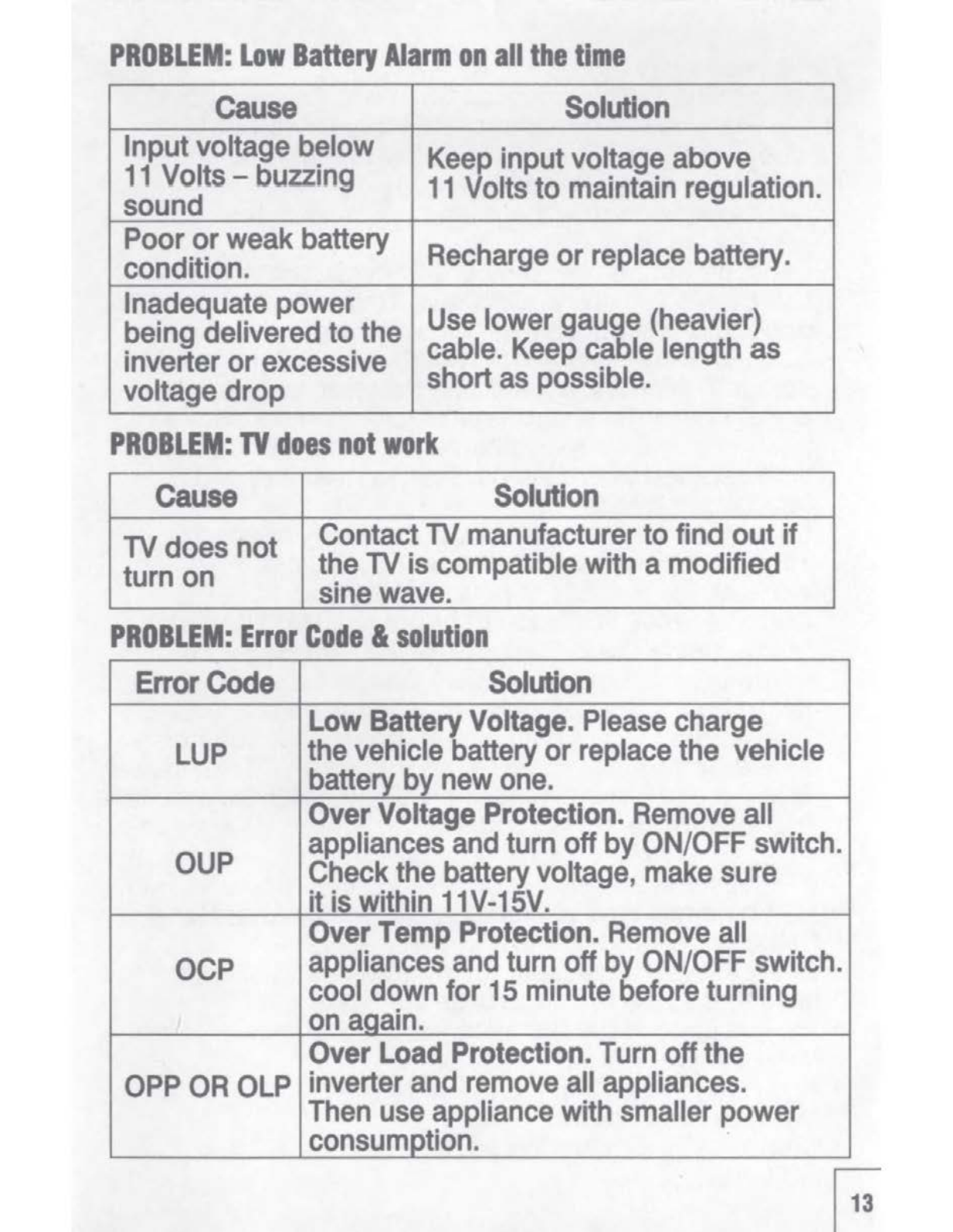

PROBLEM: Low Battery Alarm on all the time
cause Solution
Inputvoltage below
Keep input voltage above
11 Volts -buzzing
11 Volts to maintain regulation.
sound
Poor orweak battery
Recharge orreplace battery.
condition.
Inadequate power
Use lower gauge (heavier)
being delivered tothe cable.
Keep cable length as
inverter orexcessive
voltage drop short
as possible.
PROBLEM: TV does not work
Cause Solution
TV does not Contact
TV manufacturer tofind out if
the TV is compatible with a modified
turn on
sine wave .
PROBLEM: Error Code & solution
Error Code
Solution
LUP
Low Battery Voltage. Please charge
the vehicle battery or replace the vehicle
battery by new one.
Over Voltage Protection. Remove all
OUP
appliances and turn off by ON / OFF switch.
Check the battery voltage, make sure
it is within 11V-15V.
OCP
Over Temp Protection. Remove all
appliances and turn off by ON / OFF switch.
cool down for 15 minute beforeturning
I
on aaain.
Over Load Protection. Turn offthe
OPP OR OLP
inverter and remove all appliances.
Then use appliance with smaller power
consumotion.

SPECIFICATIONS
Model PDIPS1000B
Input 11-15V DC
Output 115VAC
Outout Freauency 58-62Hz
OutputWaveform Pure Sine
Wave (PSW)
Continuous Power 1000W
Surae Power 2000W
Efficiency 85 % Max
NoLoad Draw <0.6A
Low Batterv Shutdown 10.5t0.3V DC
USB Outout Port 2.4A
USB-C Output Port 3.0A (15W)
AC Output Socket 2 Standard North
American Sockets
Internal Fuse/ 5-30A blade fuse
Reolacement Fuse (reolaceable)
OperatinaTemo Ideally32°F-104°F
Battery LowAlarm 11 t0.3V DC
Power Cable Lenath 3'
Dimensions 11.s3·x9.os·x4.20.
NetWeiaht 5.2 lbs.
.
Fuses for battery cable short circuit only. Not for AC
power output!
F

FCC STATEMENT
This equipment has been tested andfound tocomplywith the limits for aClass B
digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.This equipment generates uses and can radiate radio frequency energy
and, Ifnotinstalled and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will notoccur In a particular installation. If this equipment does cause
harmful interference to radio or televslon reception, which can be determined by
turning the equipment off and on, the useris encouraged totryto correctthe
interference by one or more ofthe following measures:
• Reorient orrelocate the receiving antenna.
• Increasethe separation between the equipment and receiver.
• Connectthe equipment into an outlet on acircuit different from
thatto which the receiver is connected.
• Consultthe dealer or an experienced radio/TV technician for help.
Changes ormodifications notexpressly approved by the party responsible for
compliance could void the user's authority tooperate the equipment.
This device compiles with part 15 ofthe FCC Rules. Operation issubject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device mustaccept any interference received, including interference that
may cause undesired operation.
IC STATEMENT
This device complies with IndustryCanada's licence-exempt RSSs.
Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any Interference, Including Interference that may cause
undesired operation ofthe device.
Cet appareil est conforme aux CNR exempts de licence d'lndustrie
Canada. Son tonctionnement est soumis aux deux conditions suivantes:
( 1) Ce dispositif ne peut causer desinterferences ;et
(2) Ce dispositifdoitacceptertoute interference , y compris les interferences qui
peuvent causer un mauvais fonctionnement de l'appareil.
~ CERTIFIED
usa
CHARGER15W
PowerDrive, the PowerDrive stylized design and RoadPro
are registered trademarks of DAS Companies, Inc. All other
trademarks, registered trademarks, copyrights and logos
are the property of their respective owners.
© 2018 DAS Companies, Inc. and/or its affiliates.
l"AMILY 01" BRANDS
Distributed by POWERDRIVE
48 Industrial Road Elizabethtown, PA 17022

The POWERDRIVE Inverter App can be installed and
used on smartphones with Andriod or IOS.
Supports Andriod 4.2 or above.
Supports 1OS 7.0 or above.
Android phone:
Go into Google Play and search
11
POWERDRIVE
11
•
iPhone:
Go into the App Store and search
11
POWERDRIVE
11
•
Connected
POWER D '" VE
oO
SOTINGS
STAM TCSTING
Photo 1 Photo 2
11

A'l'I T1'
.t:21 PM .t:21 PM
Not connected Not connected
DEVICES DEVICES
Searching
..
POWERORIVE-AEC3
Not Paired
•
.
..
I
POWERDAIVE·BECO
NOi Paired
I
POWERORNE-COFE
Nol Pa,~d
Photo 3 Photo 4
.-c, ATIT•
4-21 PM
1500W
oO
CONNECT
SETTINGS
n,
SfATUS TEST IN G
ON/OFF SWITH
Photo 5
I'

(1) Please ensure the Bluetooth~ on your phone is ON .
(2) Click the icon on the screen to activate the APP
(Photo 1) .
(3) Click the
11
CONNECT11 icon (Photo 2).
(4) Your phone will automatically search for the inverter
(Photo 3). Click the device name to set up the
connection (Photo 4).
(5) Your phone will ask you to key in a code to set up the
connection. The default code is "8888 ".
(6) Once the connection has been made, all 4 working
modes are available to use (Photo 5).
'' liiiiii ·> ~ ,, • 1I ,1,
( Blueloolh OM ;
I
OPCVI
D Now \di.le to all nearny
BliJ,!00:hde'.-ic:es
t'O'll2l
*
POWEffDRIVER·LC708
I*
POWERORIVER · C708 I
Q
USER-PC
Photo 6
Not connected
< CONNF.CT X
DEVICES
I POWERDRIVER-c708
Pairtd I
Photo 7
I'

(1) On occasions the Andriod phone will be unable to
detect the inverter in the App. If this happens, go to
the Bluetooth page on your phone's
11
Settings
11
to pair
with the inverter
(2) If your Andriod phone has Bluetooth 4.0 or above,
you will see two devices in the Bluetooth page, one
with an "L" in its name and one without. Always
select the one without the
11
L
11
in its name in your
Andriod phone (Photo 6).
( 3) Then go into the App and click the "CONNECT" icon
Select the device name without an
11
L
11
to connect
with the inverter (Photo 7 ).
AT&T• .t:?1 PM
,on ..
1500W
Connected
DEVICES
* tP
PO WERD RIVE· AE C3 Nol Paired
I ✓ PO W EAO R IVE- 8 ECO
Connect~d I
CONNECT
SETTINGS
n,
l&
PO WER OR IVE-COFE
Not Pair~d
STATUS TESTING
...QHIOEF . SWIIl,J
Photo 8 Photo 9
I'
