Toro 03681 User manual

FormNo.3354-714RevE
8and11BladeDPACuttingUnits
with7inchReels
Reelmaster®5510&5610TractionUnits
ModelNo.03681—SerialNo.260000001andUp
ModelNo.03682—SerialNo.260000001andUp
Registeratwww.Toro.com.OriginalInstructions(EN)

Introduction
Readthisinformationcarefullytolearnhowtooperate
andmaintainyourproductproperlyandtoavoid
injuryandproductdamage.Youareresponsiblefor
operatingtheproductproperlyandsafely.
YoumaycontactTorodirectlyatwww.Toro.comfor
productandaccessoryinformation,helpndinga
dealer,ortoregisteryourproduct.
Wheneveryouneedservice,genuineToroparts,
oradditionalinformation,contactanAuthorized
ServiceDealerorToroCustomerServiceandhave
themodelandserialnumbersofyourproductready.
Figure1identiesthelocationofthemodelandserial
numbersontheproduct.Writethenumbersinthe
spaceprovided.
Figure1
1.Locationofthemodelandserialnumbers
ModelNo.
SerialNo.
Thismanualidentiespotentialhazardsandhas
safetymessagesidentiedbythesafetyalertsymbol
(Figure2),whichsignalsahazardthatmaycause
seriousinjuryordeathifyoudonotfollowthe
recommendedprecautions.
Figure2
1.Safetyalertsymbol
Thismanualuses2otherwordstohighlight
information.Importantcallsattentiontospecial
mechanicalinformationandNoteemphasizesgeneral
informationworthyofspecialattention.
Contents
Introduction.................................................................2
Safety..........................................................................3
SafetyandInstructionalDecals...........................3
Setup...........................................................................4
1Inspection.........................................................4
2CuttingUnitKickstand.....................................4
3AdjustingtheRearShield.................................5
4MounttheCounterWeights..............................5
ProductOverview.......................................................7
Specications......................................................7
CuttingUnitAccessoriesandKits(seeparts
catalogforpartnumbers).................................8
Operation.....................................................................9
Adjustments........................................................9
HeightofCutChartTerms.................................10
HeightofCutChart...........................................12
Maintenance..............................................................15
Lubrication........................................................15
AdjustingtheReelBearings..............................15
ServicingtheBedbar.........................................16
©2007—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN554202
Contactusatwww.Toro.com.
PrintedintheUSA.
AllRightsReserved

Safety
Hazardcontrolandaccidentpreventionare
dependentupontheawareness,concern,and
propertrainingofthepersonnelinvolvedinthe
operation,transport,maintenance,andstorageof
themachine.Improperuseormaintenanceofthe
machinecanresultininjuryordeath.Toreduce
thepotentialforinjuryordeath,complywiththe
followingsafetyinstructions.
•Read,understand,andfollowallinstructionsin
thetractionunitoperatorsmanualbeforeoperating
thecuttingunit.
•Read,understand,andfollowallinstructionsinthis
operatorsmanualbeforeoperatingthecuttingunit.
•Neverallowchildrentooperatethecuttingunits.
Donotallowadultstooperatetractionunitor
cuttingunitswithoutproperinstruction.Only
trainedoperatorswhohavereadthismanualshould
operatethecuttingunits.
•Neveroperatethecuttingunitswhenunderthe
inuenceofdrugsoralcohol.
•Keepallshieldsandsafetydevicesinplace.If
ashield,safetydeviceordecalisillegibleor
damaged,repairorreplaceitbeforeoperation
iscommenced.Alsotightenanyloosenuts,
bolts,andscrewstoensurecuttingunitisinsafe
operatingcondition.
•Alwayswearsubstantialshoes.Donotoperate
cuttingunitswhilewearingsandals,tennisshoes,
sneakersorshorts.Also,donotwearloosetting
clothingwhichcouldgetcaughtinmovingparts.
Alwayswearlongpantsandsubstantialshoes.
Wearingsafetyglasses,safetyshoesandahelmet
isadvisableandrequiredbysomelocalordinances
andinsuranceregulations.
•Removealldebrisorotherobjectsthatmightbe
pickedupandthrownbythecuttingunitreel
blades.Keepallbystandersawayfromtheworking
area.
•Ifthecuttingbladesstrikeasolidobjectortheunit
vibratesabnormally,stopandshuttheengineoff.
Checkcuttingunitfordamagedparts.Repairany
damagebeforerestartingandoperatingthecutting
unit.
•Lowerthecuttingunitstothegroundandremove
keyfromignitionswitchwhenevermachineisleft
unattended.
•Besurecuttingunitsareinsafeoperatingcondition
bykeepingnuts,boltsandscrewstight.
•Removekeyfromignitionswitchtoprevent
accidentalstartingoftheenginewhenservicing,
adjustingorstoringthemachine.
•Performonlythosemaintenanceinstructions
describedinthismanual.Ifmajorrepairsare
everneededorassistanceisdesired,contactan
AuthorizedToroDistributor.
•Toensureoptimumperformanceandsafety,
alwayspurchasegenuineTororeplacementparts
andaccessoriestokeeptheToroallTORO.Never
use"will-t"replacementpartsandaccessories
madebyothermanufacturers.LookfortheToro
logotoassuregenuineness.Usingunapproved
replacementpartsandaccessoriescouldvoidthe
warrantyofTheToroCompany.
SafetyandInstructionalDecals
Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyareaof
potentialdanger.Replaceanydecalthatisdamagedorlost.
93-6688
1.Warning—readthe
instructionsbefore
servicingorperforming
maintenance.
2.Cuttinghazardofhandor
foot—stoptheengineand
waitformovingpartsto
stop.
3

Setup
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
ProcedureDescriptionQty.Use
1Cuttingunit1Inspectthecuttingunit
2Nopartsrequired–Usethekickstandwhentippingthe
cuttingunit
3Nopartsrequired–Adjusttherearshield
4Nopartsrequired–Mountthecounterweights
MediaandAdditionalParts
DescriptionQty.Use
Partscatalog1
Operator’sManual1
CerticateofCompliance1
Reviewthematerialandsaveinanappropriateplace:
Note:Determinetheleftandrightsidesofthemachine
fromthenormaloperatingposition.
1
Inspection
Partsneededforthisprocedure:
1Cuttingunit
Procedure
Afterthecuttingunitisremovedfromthebox,inspect
thefollowing:
1.Checkeachendofthereelforgrease.Grease
shouldbevisiblyevidentinthereelbearingsand
internalsplinesofthereelshaft.
2.Ensurethatallnutsandboltsaresecurelytightened.
3.Makesurethecarrierframesuspensionoperates
freelyanddoesnotbindwhenmovedbackand
forth.
2
CuttingUnitKickstand
NoPartsRequired
Procedure
Wheneverthecuttingunithastobetippedtoexpose
thebedknife/reel,propuptherearofthecuttingunit
withthekickstand(suppliedwiththetractionunit)
tomakesurethenutsonthebackendofthebedbar
adjustingscrewsarenotrestingontheworksurface
(Figure3).
4

Figure3
1.Cuttingunitkickstand
3
AdjustingtheRearShield
NoPartsRequired
Procedure
Undermostconditions,bestdispersionisattained
whentherearshieldisclosed(frontdischarge).
Whenconditionsareheavyorwet,rearshieldmay
beopened.
Toopentherearshield(Figure4),loosenthecapscrew
securingtheshieldtotheleftsideplate,rotatethe
shieldtotheopenpositionandtightenthecapscrew.
Figure4
1.Rearshield2.Capscrew
4
MounttheCounterWeights
NoPartsRequired
Procedure
Allcuttingunitsareshippedwiththecounterweight
mountedtotheleftendofthecuttingunit.Usethe
followingdiagramtodeterminethepositionofthe
counterweightsandreelmotors.
Figure5
1.Onthe#2and#4cuttingunits,removethe2cap
screwssecuringthecounterweighttotheleftend
ofthecuttingunit.Removethecounterweight
(Figure6).
5

Figure6
1.Counterweight
2.Onrightendofcuttingunit,removetheplastic
plugfromthebearinghousing(Figure7).
3.Removethe2capscrewsfromtherightsideplate
(Figure7).
Figure7
1.Plasticplug2.Capscrew(2)
4.Installthecounterweighttotherightendofthe
cuttingunitwiththe2screwspreviouslyremoved.
5.Looselyinstallthe2reelmotormountingcap
screwstotheleftsideplateofthecuttingunit
(Figure7).
6

ProductOverview
Specications
TractorsThesecuttingunitswillmountontheReelmaster5510&5610TractionUnits.
HeightofCutCuttingheightisadjustedonthefrontrollerbytwoverticalscrewsandheldbytwolocking
capscrews
HeightOfCutRangeStandardbenchheightofcutrangeis.250inch(3mm)to1.00inch(25mm).Benchheight
ofcutrangewiththeHighHeightofCutKitinstalledis1.00inch(25mm)to2.00inches
(51mm).EffectiveHOCmayvarydependingonturfconditions,typeofbedknife,rollers
andattachmentsinstalled.
ReelWeldmentReelsare7inches(18cm.)indiameter,22inches(56cm.)inlength.Highstrengthlow
alloysteelbladesarethruhardenedandimpactresistant.
ReelBearingsTwodoublerowself-aligningballbearings,presstontoreelshaft.
PowerAttachmentDiecastaluminumcrossmemberwiththreebolt-ondie-castaluminumsideplates.
FrameThefrontrollerisa3inch(76mm)diameterplasticWiehleroller.Therearrollerisa3.0inch
(76mm)diametersteelfullroller.
RollersReplaceablesingleedged,highcarbonsteelbedknifeisfastenedtoamachinedcastiron
bedbarwith8screws.TheEdgeMaxtbedknifeisstandard.
BedknifeReplaceablesingleedged,highcarbonsteelbedknifeisfastenedtoamachinedcastiron
bedbarwith8screws.TheEdgeMaxtbedknifeisstandard.
BedknifeAdjustmentDualscrewadjustmenttothereel;detentscorrespondingto.0009inch(.023mm)bedknife
movementforeachindexedposition.
GrassShieldAdjustablerearshieldwithoptionaladjustablecut-offbartoimprovegrassdischargefrom
reelinwetconditions.
CounterweightAcastironweightmountedoppositetothedrivemotorbalancesthecuttingunit.
MaximumReelSpeed1650RPM.
Weight8Blade–147lb.(67kg)
11Blade–151lb.(69kg)
7

CuttingUnitAccessoriesandKits(see
partscatalogforpartnumbers)
Note:Allaccessoriesandkitsare1percuttingunit
unlessotherwisespecied.
GrassBasketKit:Aseriesofclippingcollection
basketsattachedtothefrontofthecuttingunitsto
collectgrassclippings.
RearLiftCylinderKit:Ahighspeed,highcontact
brushthatkeepstherearrollerfreeofgrassanddebris,
whichmaintainsaconsistentheightofcutandprevents
clumping.Thisleadstoabetteraftercutappearance.
RearRollerBrushKit:Ahighspeed,highcontact
brushthatkeepstherearrollerfreeofgrassanddebris,
whichmaintainsaconsistentheightofcutandprevents
clumping.Thisleadstoabetteraftercutappearance.
GroomerKit:Rotatingbladesassembledbehindthe
frontrollerwhichprovidethebestmethodforreducing
grainandspongyturfbystandingupthegrassbefore
cutting.Thegroomeralsoknocksoffdewfordecreased
stickinessandclumping,opensupcanopyforbetter
grassclippingintegration,andliftsgrassforaclean
crispcut.Theoveralldesignimprovesthequalityofcut
forhealthierturfgrasswhileimprovingtheaftercut
appearance
BroomerKit:Multiplebrushstripswovenintothe
helicalgroomerbladesimprovetheeffectivenessofthe
groomerkit.Performanceofthegroomerisenhanced
byenablingafullwidth"Brooming"effectofturfwhile
openingupcanopyforbettergrassclippingintegration.
Thecombinationofgroomerandbroomersystems
optimizethequalityofcutandaftercutappearancefor
moreconsistentplayingconditions.
Comb/ScraperKit:Axedcombinstalledbehindthe
frontrollerwhichhelpsreducegrainandspongyturfby
standingupthegrassbeforecutting.Ascraperforthe
frontWiehlerollerisincludedinthekit.
HighHOCKit:Newfrontrollerbracketsand
additionalspacersfortherearrollerallowsthecutting
unittoachieveheightsofcutabove1.00inch(25mm).
Thenewfrontrollerbracketsalsomovethefrontroller
outfarthertoimproveafter-cutappearance.
ShoulderRoller:Helpsreduceover-lapmarksfor
warmseasongrasses(Bermuda,Zoysia,Paspalum).
CollarKit(6perneededperroller):Helpsreduceover
lapmarksforwarmseasongrasses(Bermuda,Zoysia,
Paspalum).ThiskitisinstalledontheexistingWiehle
roller,butisnotasaggressiveastheShoulderroller.
ShortRearRoller:Helpsreducedoublerollermarks
forcoolseasongrasses(Bent,Bluegrass,Rye).
FullFrontRoller:Helpsproducemorepronounced
striping(repeatedcuttinginthesamedirection/path),
however,effectiveheightofcutisraisedandqualityof
cutisreduced.
Scrapers(Wiehle,Shoulder,Rearroller,FullFront
Roller):Fixedscrapersforalloptionalrollersare
availableforreducinggrassbuilduponrollerswhich
canaffectheightofcutsettings.
8

Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
Adjustments
AdjustingtheBedknifetotheReel
Bedknifetoreeladjustmentisaccomplishedby
looseningortighteningbedbaradjustingscrews,
locatedontopofmower.
1.Positionmachineonaat,levelworksurface.
Makesurereelcontactisremovedbyturning
bedbaradjustingscrewscounterclockwise
(Figure8).
Figure8
1.Bedbaradjustingscrew
2.Tiltmoweronback,ontothecuttingunit
kickstand,toexposebedknifeandreel.
Important:Makesurenutsonbackendof
bedbaradjustingscrewsarenotrestingonthe
worksurface(Figure8).
3.Atoneendofreel,insertastripofnewspaper
betweenreelandbedknife(Figure9).While
slowlyrotatingreelforward,turnbedbaradjusting
screw(Figure8)clockwise(onsameendofreel,
oneclickatatime,untilpaperispinchedlightly,
wheninsertedfromthefront,paralleltothe
bedknife.Aslightdragwillbenotedasthepaper
ispulled.
Note:Eachtimeadjustingscrewisrotatedone
clickclockwise,bedknifemoves.0009in(.023mm).
closertoreel.Donotovertightentheadjusting
screws.
Figure9
4.Checkforlightcontactatotherendofreelusing
paperandadjustasrequired.
5.Afteradjustmentisaccomplished,checktoseeif
reelcanpinchpaperwheninsertedfromthefront
andcutpaperwheninsertedatarightangletothe
bedknife(Figure9).Itshouldbepossibletocut
paperwithminimumcontactbetweenthebedknife
andthereelblades.Ifexcessivecontact/reeldrag
isevidentitwillbeeithernecessarytobacklapor
regrindthecuttingunittoachievethesharpedges
neededforprecisioncutting(RefertotheToro
manualforSharpeningReelandRotaryMowers,
FormNo.80-300PT).
AdjustingtheRearRoller
1.Adjusttherearrollerbrackets(Figure10)tothe
desiredheightofcutrangebypositioningthe
requiredamountofspacersbelowthesideplate
mountingange(Figure10)pertheHOCChart.
Figure10
1.Spacer3.Sideplatemountingange
2.Rollerbracket
2.Raiserearofcuttingunitandplaceablockunder
bedknife.
3.Remove(2)nutssecuringeachrollerbracketand
spacertoeachsideplatemountingange.
4.Lowerrollerandscrewsfromsideplatemounting
angesandspacers.
5.Placespacersontoscrewsonrollerbrackets.
9

6.Re-securerollerbracketandspacerstounderside
ofsideplatemountingangeswithnutspreviously
removed.
7.Verifythatbedknifetoreelcontactiscorrect.
Tipmowertoexposefrontandrearrollersand
bedknife.
Note:Thepositionoftherearrollertothe
reeliscontrolledbythemachiningtolerances
oftheassembledcomponentsandparallelingis
notrequired.Alimitedamountofadjustmentis
possiblebysettingthecuttingunitonasurface
plateandlooseningthesideplatemountingcap
screws(Figure11).Adjustandretightencapscrews.
Torquethecapscrewsto27-33ft-lb.
Figure11
1.Sideplatemountingcapscrews
HeightofCutChartTerms
HeightofCutSetting(HOC)
ThedesiredHeightofCut.
AggressivenessofCut
CuttingunitAggressivenessofCuthasasignicant
impactontheperformanceofthecuttingunit.
AggressivenessofCutreferstotheangleofthe
bedkniferelativetotheground(Figure12).
Thebestcuttingunitsetupisdependentonyour
turfconditionsanddesiredresults.Experiencewith
thecuttingunitonyourturfwilldeterminethebest
settingtouse.Aggressivenessofcutmaybeadjusted
throughoutthecuttingseasontoallowforvariousturf
conditions.
Ingeneral,lesstonormalaggressivesettingsare
moreappropriateforwarmseasongrasses(Bermuda,
Paspalum,Zoysia)whilecoolseasongrasses
(Bent,Bluegrass,Rye)mayrequirenormaltomore
aggressivesetups.Moreaggressivesetupscutmore
grassoffbyallowingthespinningreeltopullmore
grassupintothebedknife.
Figure12
1.Rearspacers3.Aggressivenessofcut
2.Sideplatemountingange
RearSpacers
Thenumberofrearspacersdeterminesthe
aggressivenessofcutforthecuttingunit.Foragiven
heightofcut,addingspacers,belowthesideplate
mountingange,increasestheaggressivenessofthe
cuttingunit.Allcuttingunitsonagivenmachine
mustbesettothesameaggressivenessofcut(Number
ofrearspacers,partno.106-3925),otherwisethe
after-cutappearancecouldbenegativelyaffected
(Figure12).
ChainLinks
Thelocationatwhichtheliftarmchainisattached
determinestherearrollerpitchangle(Figure13).
10

Figure13
1.Liftchain3.Bottomhole
2.UBracket
Groomer
Thesearetherecommendedheightofcutsettings
whenagroomerkitisinstalledonthecuttingunit.
11

HeightofCutChart
HOCSettingAggressivenessofCutNo.ofRearSpacersNo.ofChainLinksWithGroomerkits
installed
0.250"Less
Normal
More
0
0
1
5
5
5
Y
Y
-
0.375"Less
Normal
More
0
1
2
5
5
5
Y
Y
-
0.500"Less
Normal
More
0
1
2
5
5
5
Y
Y
Y
0.625"Less
Normal
More
1
2
3
5
5
5
Y
Y
-
0.750"Less
Normal
More
2
3
4
5
5
5
Y
Y
-
0.875"Less
Normal
More
2
3
4
5
5
5
Y
Y
-
1.000"Less
Normal
More
3
4
5
5
5
4+
Y
Y
-
1.125"Less
Normal
More
4
5
6
5
5
5
-
-
-
1.250"*Less
Normal
More
4
5
6
5
5
5
-
-
-
1.375"*Less
Normal
More
4
5
6
5
5
5
-
-
-
1.500"*Less
Normal
More
5
6
7
5
5
5
-
-
-
1.625"*Less
Normal
More
6
7
8
4
4
4
-
-
-
1.750"*Less
Normal
More
6
7
8
4
4
5
-
-
-
1.875"*Less
Normal
More
7
8
9
4
5
5
-
-
-
2.000"*Less
Normal
More
7
8
9
5
5
5
-
-
-
+IndicatestheUbracket,onliftarm,ispositionedinthebottomhole(Figure13).
*HighHOCKit(PartNo.110-9600)mustbeinstalled.FrontHOCbracketmustbepositionedinthetopsideplatehole.
Note:Changingonechainlinkwillchangetherearrollerpitchanglemovementby4.5degrees.
Note:ChangingtheUbracket,ontheliftarm,tothebottomholewilladd2.3degreestotherearrollerpitchangle
12

AdjustingtheHeightofCut
Note:Forheightsofcutgreaterthan1.00"theHigh
HeightofCutKitmustbeinstalled.
1.Loosenlocknutssecuringheight-of-cutarmsto
cuttingunitsideplates(Figure14).
Figure14
1.Height-of-cutarm3.Adjustingscrew
2.Locknut
2.Loosennutongaugebar(Figure15)andset
adjustingscrewtodesiredheight-of-cut.Distance
betweenbottomofscrewheadandfaceofbaris
height-of-cut.
Figure15
1.Gaugebar4.Holesusedforsetting
GroomerHOG
2.Heightadjustingscrew5.Holenotused
3.Nut
3.Hookthescrewheadoncuttingedgeofbedknife
andrestrearendofbaronrearroller(Figure16).
4.Rotatetheadjustingscrewuntilthefrontroller
contactsthegaugebar(Figure16).Adjustboth
endsofrolleruntilentirerollerisparalleltothe
bedknife.
Figure16
Important:Whensetproperly,therearand
frontrollerswillcontactthegaugebarandthe
screwwillbesnugagainstthebedknife.This
ensuresthattheheight-of-cutisidenticalat
bothendsofthebedknife.
5.Tightennutstosecureadjustment.Donot
overtightennut.Tightenenoughtoremoveplay
fromwasher.
Usethefollowingcharttodeterminewhich
bedknifeisbestsuitedforthedesiredheightof
cut.
Bedknife/HeightofCutChart
BedknifePartNo.BedknifeLip
Height*
HeightofCut
LowHOC
(Optional)
110-4084.220.250-.375"
EdgeMaxt
(Production)
108-9095.270.375-1.50"
Standard
(Optional)
108-9096.270.375-2.0"
HD(Optional)110-4074.370.500-2.0"
Figure17
CuttingUnitCharacteristics
Thedualknobbedknife-to-reeladjustmentsystem
incorporatedinthiscuttingunitsimpliesthe
13

adjustmentprocedureneededtodeliveroptimum
mowingperformance.Thepreciseadjustment
possiblewiththedualknob/bedbardesigngives
thenecessarycontroltoprovideacontinual
self-sharpeningaction-thusmaintainingsharpcutting
edges,ensuringgoodquality-of-cut,andgreatly
reducingtheneedforroutinebacklapping.
DailyAdjustmentsofCuttingUnit
Priortomowingeachday,orasrequired,eachcutting
unitmustbecheckedtoverifyproperbedknife-to-reel
contact.Thismustbeperformedeventhough
qualityofcutisacceptable.
1.Lowerthecuttingunitsontoahardsurface,shut
offtheengine,andremovetheignitionkey.
2.Slowlyrotatethereelinareversedirection,
listeningforreel-to-bedknifecontact.Ifno
contactisevident,turnthebedknifeadjusting
knobsclockwise,oneclickatatime,untillight
contactisfeltandheard.
Note:Theadjustmentknobshavedetents
correspondingto0.0009in.(0.023mm)bedknife
movementforeachindexedposition.
3.Ifexcessivecontactisfelt,turnthebedknife
adjustingknobscounterclockwise,oneclickat
atimeuntilnocontactisevident.Thenturn
thebedknifeadjustingknobsoneclickatatime
clockwise,untillightcontactisfeltandheard.
Important:Lightcontactispreferredatall
times.Iflightcontactisnotmaintained,
thebedknife/reeledgeswillnotsufciently
self-sharpenanddullcuttingedgeswillresult
afteraperiodofoperation.Ifexcessivecontact
ismaintained,bedknife/reelwearwillbe
accelerated,unevenwearcanresult,andquality
ofcutmaybeadverselyaffected.
Note:Asthereelbladescontinuetorunagainst
thebedknife,aslightburrwillappearonthefront
cuttingedgesurfacealongthefulllengthofthe
bedknife.Ifaleisoccasionallyrunacrossthe
frontedgetoremovethisburr,improvedcutting
canbeobtained.
Afterextendedrunning,aridgewilleventually
developatbothendsofthebedknife.Thesenotches
mustberoundedofforledushwiththecutting
edgeofthebedknifetoensuresmoothoperation.
Note:Overtime,thechamfer(Figure18)willneed
toberegroundasitisonlydesignedtolast40%
ofthebedknifelife.
Figure18
1.Lead-inchamferonrightendofbedknife
Note:Donotmakelead-inchamfertoolargeas
itmaycauseturftufting.
14

Maintenance
Lubrication
Eachcuttingunithas(6)greasettings(Figure19)
thatmustbelubricatedregularlywithNo.2General
PurposeLithiumBaseGrease.
Thelubricationpointsarefrontroller(2),rearroller
(2)andreelbearing(2).
Note:Lubricatingcuttingunitsimmediatelyafter
washinghelpspurgewateroutofbearingsand
increasesbearinglife.
1.Wipeeachgreasettingwithacleanrag.
2.Applygreaseuntilcleangreaseisseencomingout
ofrollersealsandbearingreliefvalve.
3.Wipeexcessgreaseaway.
Figure19
1.Reliefvalve
AdjustingtheReelBearings
Toensurelonglifeofthereelbearings,periodically
checkifreelendplayexists.Thereelbearingscanbe
checkedandadjustedasfollows:
1.Loosenreeltobedknifecontactbyturning
thebedknifeadjustingknobs(Figure20)
counterclockwiseuntilnocontactexists.
Figure20
1.Bedknifeadjustingknob
2.Usingaragorthicklypaddedglove,holdontothe
reelbladeandtrytomovethereelassemblyside
toside(Figure21).
Figure21
3.Ifendplayexists,proceededasfollows:
A.Loosenexternalsetscrewsecuringbearing
adjustingnuttobearinghousinglocatedonthe
leftsideofthecuttingunit(Figure22).
Figure22
B.Usinga1-3/8"socketwrench,slowlytighten
thereelbearingadjustmentnutuntilnoend
playofthereelexists.Ifadjustingnutdoesnot
eliminatereelendplay,replacereelbearings.
15

Note:Reelbearingsdonotrequirepreload.
Overtighteningreelbearingadjusternutwill
damagereelbearings.
4.Retightensetscrewsecuringbearingadjustingnut
tobearinghousing.Torqueto12-15in-lb.
ServicingtheBedbar
RemovingtheBedbar
1.Turnbedbaradjusterscrews,counterclockwise,to
backbedknifeawayfromreel(Figure23).

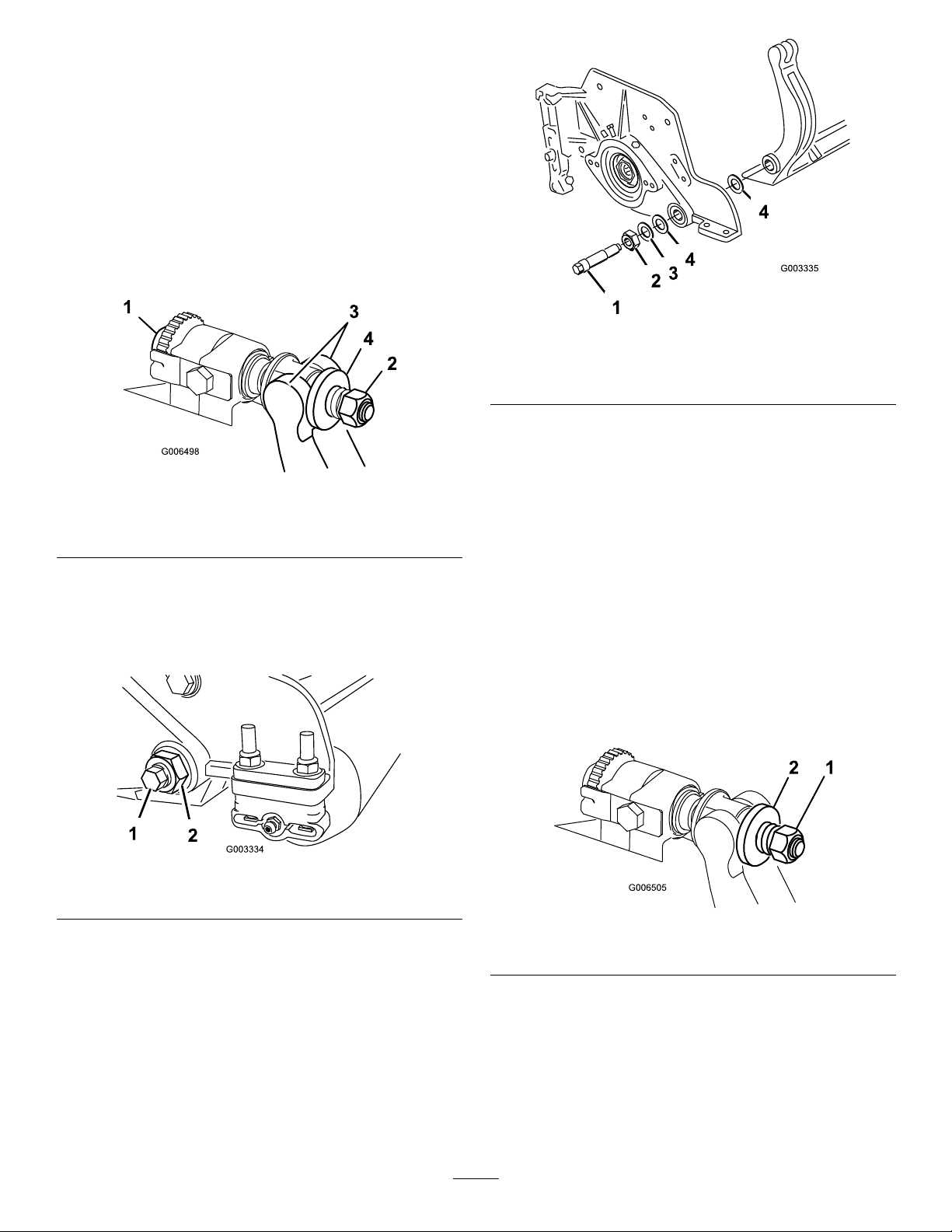

Figure23
1.Bedbaradjustingscrew3.Bedbar
2.Springtensionnut4.Washer
2.Backoutthespringtensionnut,untilthewasheris
nolongertensionedagainstthebedbar(Figure23).
3.Oneachsideofthemachine,loosenthelocknut
securingthebedbarbolt(Figure24).
Figure24
1.Bedbarbolt2.Locknut
4.Removeeachbedbarboltallowingbedbartobe
pulleddownwardandremovedfrommachinebolt
(Figure24).Accountfor2nylonand1stamped
steelwashersoneachendofbedbar(Figure25).
Figure25
1.Bedbarbolt3.Steelwasher
2.Nut4.Nylonwasher
AssemblingtheBedbar
1.Installbedbar,positioningmountingearsbetween
washerandbedbaradjuster.
2.Securebedbartoeachsideplatewithbedbarbolts
(nutsonbolts)and6washers.Anylonwasheristo
bepositionedoneachsideofsideplateboss.Place
asteelwasheroutsideeachofthenylonwashers
(Figure25).Torquebedbarboltsto27-33ft.-lb.
Tightenlocknutsuntiltheoutsidesteelwasher
stopsrotatingandendplayisremovedbutdonot
overtightenordeectsideplates.Washerson
insidemayhaveagap.
3.Tightenspringtensionnutuntilspringiscollapsed,
thenbackoff1/2turn(Figure26).
Figure26
1.Springtensionnut2.Spring
16

The Toro General Commercial Products Warranty
A Two-Year Limited Warranty
Conditions and Products Covered
The Toro Company and its affiliate, Toro Warranty Company,
pursuant to an agreement between them, jointly warrant your Toro
Commercial Product (“Product”) to be free from defects in
materials or workmanship for two years or 1500 operational
hours*, whichever occurs first. Where a warrantable condition
exists, we will repair the Product at no cost to you including
diagnosis, labor, parts, and transportation. This warranty begins
on the date the Product is delivered to the original retail purchaser.
* Product equipped with hour meter
Instructions for Obtaining Warranty Service
You are responsible for notifying the Commercial Products
Distributor or Authorized Commercial Products Dealer from whom
you purchased the Product as soon as you believe a warrantable
condition exists.
If you need help locating a Commercial Products Distributor or
Authorized Dealer, or if you have questions regarding your
warranty rights or responsibilities, you may contact us at:
Toro Commercial Products Service Department
Toro Warranty Company
8111 Lyndale Avenue South
Bloomington, MN 55420-1196
952-888-8801 or 800-982-2740
E-mail: [email protected]
Owner Responsibilities
As the Product owner, you are responsible for required mainte-
nance and adjustments stated in your operator’s manual. Failure
to perform required maintenance and adjustments can be grounds
for disallowing a warranty claim.
Items and Conditions Not Covered
Not all product failures or malfunctions that occur during the
warranty period are defects in materials or workmanship. This
express warranty does not cover the following:
•Product failures which result from the use of non-Toro
replacement parts, or from installation and use of add-on,
modified, or unapproved accessories
•Product failures which result from failure to perform required
maintenance and/or adjustments
•Product failures which result from operating the Product in an
abusive, negligent or reckless manner
•Parts subject to consumption through use unless found to be
defective. Examples of parts which are consumed, or used up,
during normal Product operation include, but are not limited to,
blades, reels, bedknives, tines, spark plugs, castor wheels,
tires, filters, belts, and certain sprayer components such as
diaphragms, nozzles, and check valves, etc.
•Failures caused by outside influence. Items considered to be
outside influence include, but are not limited to, weather,
storage practices, contamination, use of unapproved coolants,
lubricants, additives, or chemicals, etc.
•Normal “wear and tear” items. Normal “wear and tear” includes,
but is not limited to, damage to seats due to wear or abrasion,
worn painted surfaces, scratched decals or windows, etc.
Parts
Parts scheduled for replacement as required maintenance are
warranted for the period of time up to the scheduled replacement
time for that part.
Parts replaced under this warranty become the property of Toro.
Toro will make the final decision whether to repair any existing part
or assembly or replace it. Toro may use factory remanufactured
parts rather than new parts for some warranty repairs.
General Conditions
Repair by an Authorized Toro Distributor or Dealer is your sole
remedy under this warranty.
Neither The Toro Company nor Toro Warranty Company is
liable for indirect, incidental or consequential damages in
connection with the use of the Toro Products covered by this
warranty, including any cost or expense of providing substi-
tute equipment or service during reasonable periods of
malfunction or non-use pending completion of repairs under
this warranty. Except for the Emissions warranty referenced
below, if applicable, there is no other express warranty. All
implied warranties of merchantability and fitness for use are
limited to the duration of this express warranty.
Some states do not allow exclusions of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so
the above exclusions and limitations may not apply to you.
This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Note regarding engine warranty: The Emissions Control System
on your Product may be covered by a separate warranty meeting
requirements established by the U.S. Environmental Protection
Agency (EPA) and/or the California Air Resources Board (CARB).
The hour limitations set forth above do not apply to the Emissions
Control System Warranty. Refer to the Engine Emission Control
Warranty Statement printed in your operator’s manual or con-
tained in the engine manufacturer’s documentation for details.
Countries Other than the United States or Canada
Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer)
to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or
have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty
Company.
Part No. 374-0031 Rev. C
