Toro TEMPUS AIR PR User manual
Toro Tempus Air PR
USER'S GUIDE
EN
Tempus Air PR
TEMPUS AIR PR
Pump Relay
Pump Relay
Toro Tempus Air PR
2
Example of basic installation
The Tempus Air PR is a pump relay that allows to control the openings and closings of a 16A relay in dry contact
from a Tempus Air CT/MV controller.
Warning: this control relay only works with a Tempus Air CT / MV. Do not connect other controllers to this relay.
INTRODUCTION
SPECIFICATION
DIMENSIONS
Width : 10,8 cm
Height: 10,8 cm
Depth : 5,2 cm
FEATURES
The Tempus Air PR has 1 relay which can only be
controlled by a 9V command (pulse).
Tempus Air PR is a 230 VAC 16A relay.
Maximum controlled power: 3600W
INSTALLATION
An irrigation command from the Tempus Air CT/MV operates
the CLOSING of the Tempus Air PR.
Example: start a pump
An irrigation command from the Tempus Air CT/MV operates
the OPENING of the Tempus Air PR.
Example: stop a pump
Environmental conditions use:
- Maximum altitude use : 2000m
- Indoor or outdoor (sheltered) installation
- Maximum temperature use : 50°C
- Relative humidity : 90%
With an irrigation start command,
the relay contact closes.
With a stop irrigation command,
the relay contact opens.
Phase OUT
Phase IN
C: Common
P: 9V pulse irrigation
control
Neutral
Phase
Installation must be performed by qualified personnel in accordance with local regulations.
INSTALLATION
3
Toro Tempus Air PR
Example of direct drive installation
Example of installation (Pump Control)
Protection
Load Example:
Pump
Contactor
Before any work on an electrical installation
turn o sensitive equipment and activate the
main circuit breaker! Check the power o of
the involved electrical circuit(s).
Respect the electrical standard NF C 15-100
and installation guides.
Use CE marked material or NF (HAR
recommended for wires and cables).
Add a sectioning device
Overcurrent protection device
Cable section on the relay part mini 1,25 mm2
if < = to 16A
POWER SUPPLY 230V
Power Supply:
230VAC
ENGINE
Toro Tempus Air PR
Tempus Air PR
Pump Relay
For Technical Assistance:
The Toro Company

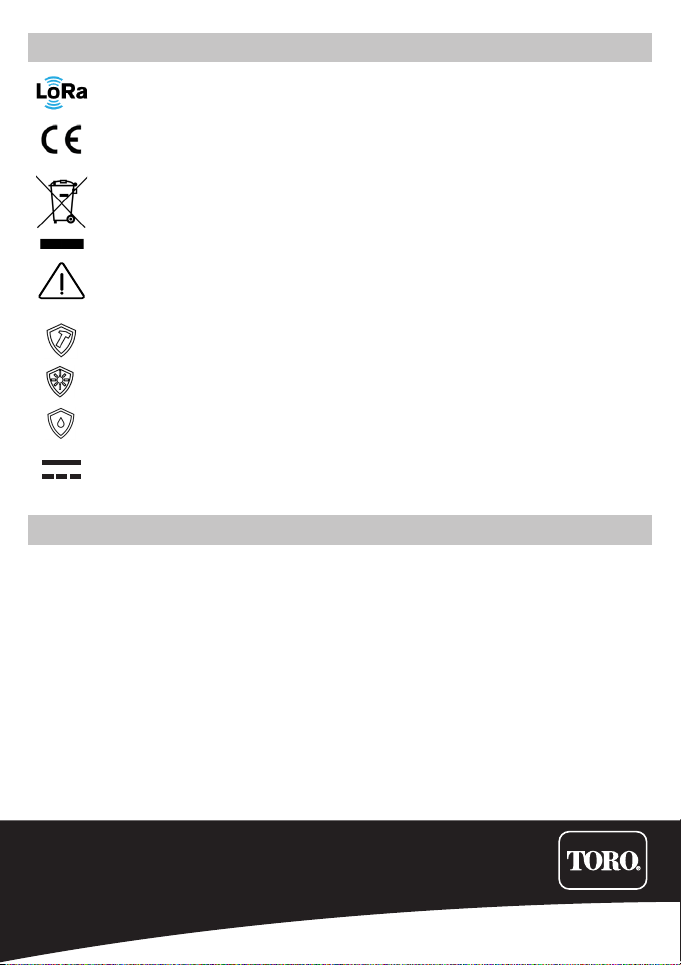

This symbol indicates that the product uses a LoRaTM technology radio.
The symbol «CE» indicates that this device complies with the European standards on safety, health,
environment and user protection. Devices with the symbol «CE» are intended for sale in Europe.
This symbol indicates that these types of electrical and electronic equipment must be disposed of
separately in European countries. Do not dispose of this device with
your household waste. Please use the collection and recycling points available in your country
when you no longer need this device.
In case of contrary use to the indications given in this user manual, the device protection may be
compromised.
GENERAL INFORMATION
This symbol indicates that the product is waterproof.
This symbol indicates that the product is resistant to ultra violet.
This symbol indicates that the product is shock resistant.
This symbol indicates that the supply voltage is a direct voltage.
DECLARATION OF CONFORMITY
The Toro Company declares that TEMPUS AIR PR conforms to the following directives and standards:
RoHS Directive 2011/65/EU as amended by (EU)2015/863, as amended
Directive 2014/35/UE (LVD) as amended
LVD standard: EN IEC 60335-1:2013
This declaration has been issued under the sole responsibility of the manufacturer.
The object of the declaration is in conformity with relevant Union harmonization legislation.
The Toro Company
5825 Jasmine Street
Riverside, CA92504
USA
Tel. +1 (951) 688-9221
