SERVICE MANUAL
BN interface
FILE No. A10-2302-1
Revision 1: Oct., 2023
PRINTED IN JAPAN, OCT., 2023 TBEX

2-EN
BN interface Service Manual
Contents
Precautions for safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-1. BMS-IFBN1281U-UL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2-2. Component Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2-3. Internal board block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Software Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3-1. BACnet Communication Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3-2. Connectable Air Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3-3. BACnet Object List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3-4. Object Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 Factory default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
5 Items included with the product. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
7 Power and signal line connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
8 Startup and Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
8-1. Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
8-2. Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
9 Test run. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9-1. BACnet Communication Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9-2. Indoor Unit Device Information Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9-3. Search Results File (SearchObjectLog.tsv) . . . . . . . . . . . . . . . . . . . . . . . . . 88
9-4. LED Display During Normal Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
10 Engineering Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
10-1. IP Address Setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
10-2. BACnet Device Object Instance Number Setting . . . . . . . . . . . . . . . . . . . . . 92
10-3. Acquiring the Search Results File (SearchObjectLog.tsv) . . . . . . . . . . . . . 93
10-4. Searching for the BN interface IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . 94

3-EN
BN interface Service Manual
11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
11-1. During test runs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
11-2. When starting up BN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11-3. When Using BN interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11-4. Directly After Changing the microSD Card (Service Component) . . . . . . . 99
11-5. When the Power Supply to the Indoor Units Is Interrupted. . . . . . . . . . . . . 99
12 Replacing Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
12-1. Replacing the microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
12-2. Replacing the Power Adaptor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
13 Service Component List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
14 Systems in which the BN interface is used in conjunction with another
air conditioning controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
14-1. Compatible Air Conditioning Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . 104
14-2. System for Combination Use with the TOUCH SCREEN CONTROLLER
(BMS-CT5120UL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
14-3. System for Combination Use with Smart BMS Manager . . . . . . . . . . . . . . 107
14-4. System for Combination Use with Touch Screen Controller
(BMS-CT2560U-UL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
14-5. System for Combination Use with Central Remote Controller
(TCB-SC640U-UL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
15 Old BN interface product replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
15-1. BMS-IFBN640TLUL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Installation Manual (BMS-IFBN1281U-UL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

BN interface Service Manual
4-EN
Precautions for safety
• Carefully read these "Precautions for Safety" before service, and perform service work safely.
• These precautions contain important information regarding safety.
• After service work, carry out an operation trial to confirm that there are no problems, and explain to the customer how to
operate and maintain the system.
Expressions
Graphic symbols
Warning
Text set off in this manner indicates that failure to adhere to the directions in the warning could result
in serious bodily harm (*1) or loss of life if the product is handled improperly.
Caution Text set off in this manner indicates that failure to adhere to the directions in the caution could result
in serious bodily injury (*2) or damage (*3) to property if the product is handled improperly.
*1: Serious bodily harm indicates loss of eyesight, injury, burns, electric shock, bone fracture, poisoning, and other injuries which
leave aftereffect and require hospitalization or long-term treatment as an outpatient.
*2: Bodily injury indicates injury, burns, electric shock, and other injuries which do not require hospitalization or long-term treatment
as an outpatient.
*3: Damage to property indicates damage extending to buildings, household effects, domestic livestock, and pets.
" " indicates prohibited items.
The actual contents of the prohibition are indicated by a picture or text placed inside or next to the
graphic symbol.
" " indicates compulsory (mandatory) items.
The actual contents of the obligation are indicated by a picture or text placed inside or next to the
graphic symbol.
Warning
• Service should be performed by a qualified electrician
Attempting to carry out service work on your own, and doing so incorrectly, may result in electric
shock or fire.
• Electrical work must be performed by a qualified electrician in accordance with
this Service Manual. The work must satisfy all local, national and international
regulations
Inappropriate work may result in electric shock or fire.
• Be sure to turn off the power before starting work
Failure to do so may result in electric shock.
• Use only the power adapter supplied with this unit
A power adapter other than that supplied with this unit may provide a different voltage and have
different polarity (+) (−), which could lead to fire, explosion or generation of heat.
• Do not modify the unit
Doing so may result in excessive heat or fire.
The following instructions
must be observed.
Prohibited
Compulsory

BN interface Service Manual
5-EN
Trademarks
• BACnet®is a registered trademark of the American Society of Heating, Refrigerating and Air-Conditioning Engineers
(ASHRAE).
• Ethernet®is a registered trademark of Xerox Co., Ltd.
•microSD
TM is a registered trademark of SD Card Association.
• Windows®is a registered trademark of Microsoft corporation.
• All other company and product names are either registered trademarks or trademarks of the respective owners.
In this manual such names are not indicated by TM, ® or © marks.

BN interface Service Manual
6-EN
1Product Overview

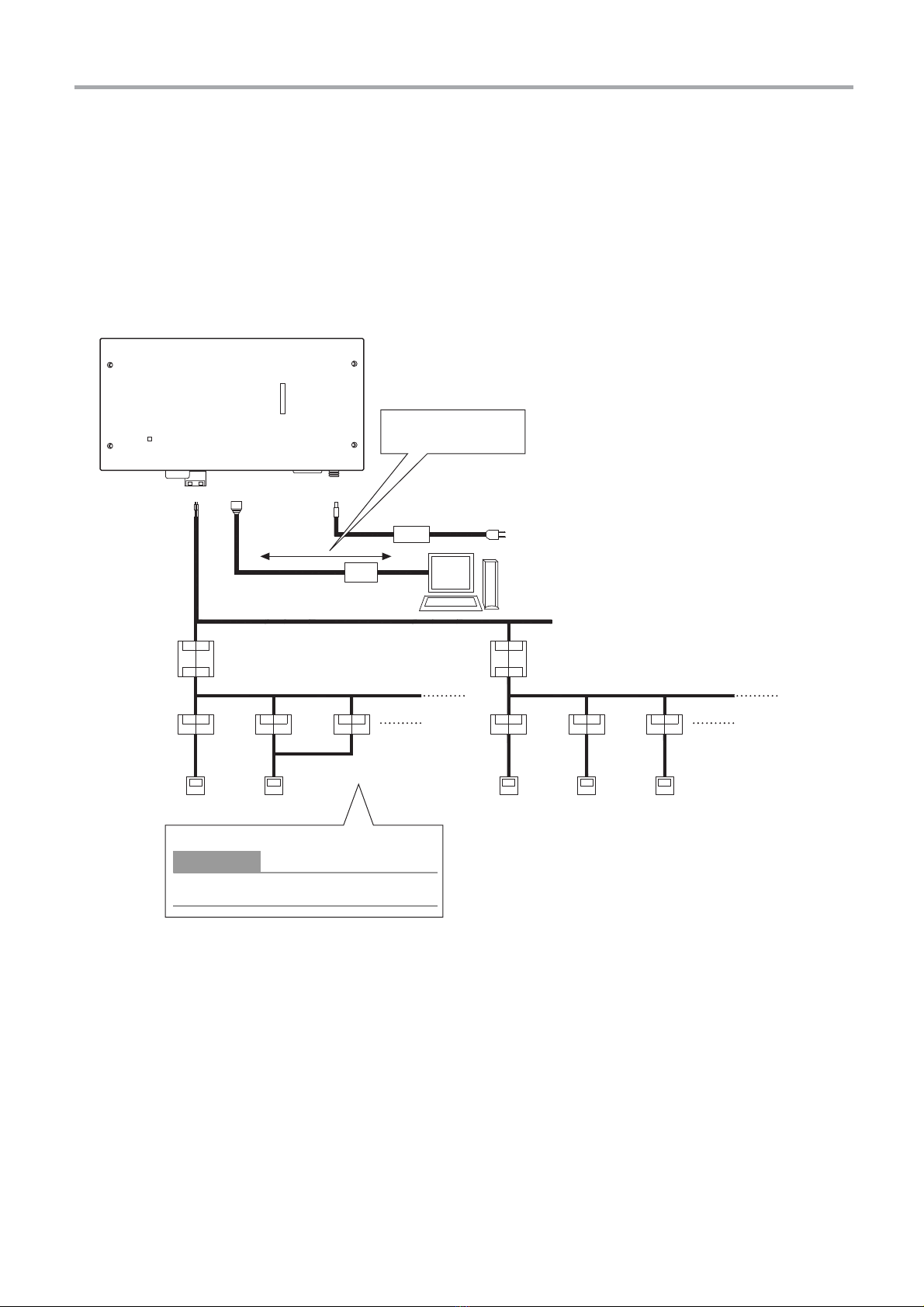

BN interface relays communications between Building Management Systems and VRF Systems in order to observe and control
the VRF Systems from Building Management Systems. The communication protocol used between Building Management
Systems and the BN interface is BACnet, an open network communication protocol for building automation.
BACnet Protocol Revision is ANSI/ASHRAE Standard 135-2012 (Revision15).
This product is for use when connected to TU2C-LINK Uh Line (hereinafter referred to as Uh Line).
78&/,1.
8 8
88
8 8 8 8 8 8
8 8
88
9'&,1
(WKHUQHW/$1
+8%
8 8 8 8 8 8
BN interface
Building Management System
Power adapter Power Supply
Uh Line / TCC-LINK
Outdoor unit
Outdoor unit
Indoor unit Indoor unit
Remote
controller Remote
controller
Open network protocol
BACnet protocol (BACnet/IP)
Remote
controller
Indoor unit Indoor unit Indoor unit Indoor unit
Remote
controller
Remote
controller
Up to 128 indoor units can be connected to 1 BN interface.
CAUTION
A central control address must be set for the indoor units.

BN interface Service Manual
7-EN
2Hardware Specifications
2-1. BMS-IFBN1281U-UL
Specifications

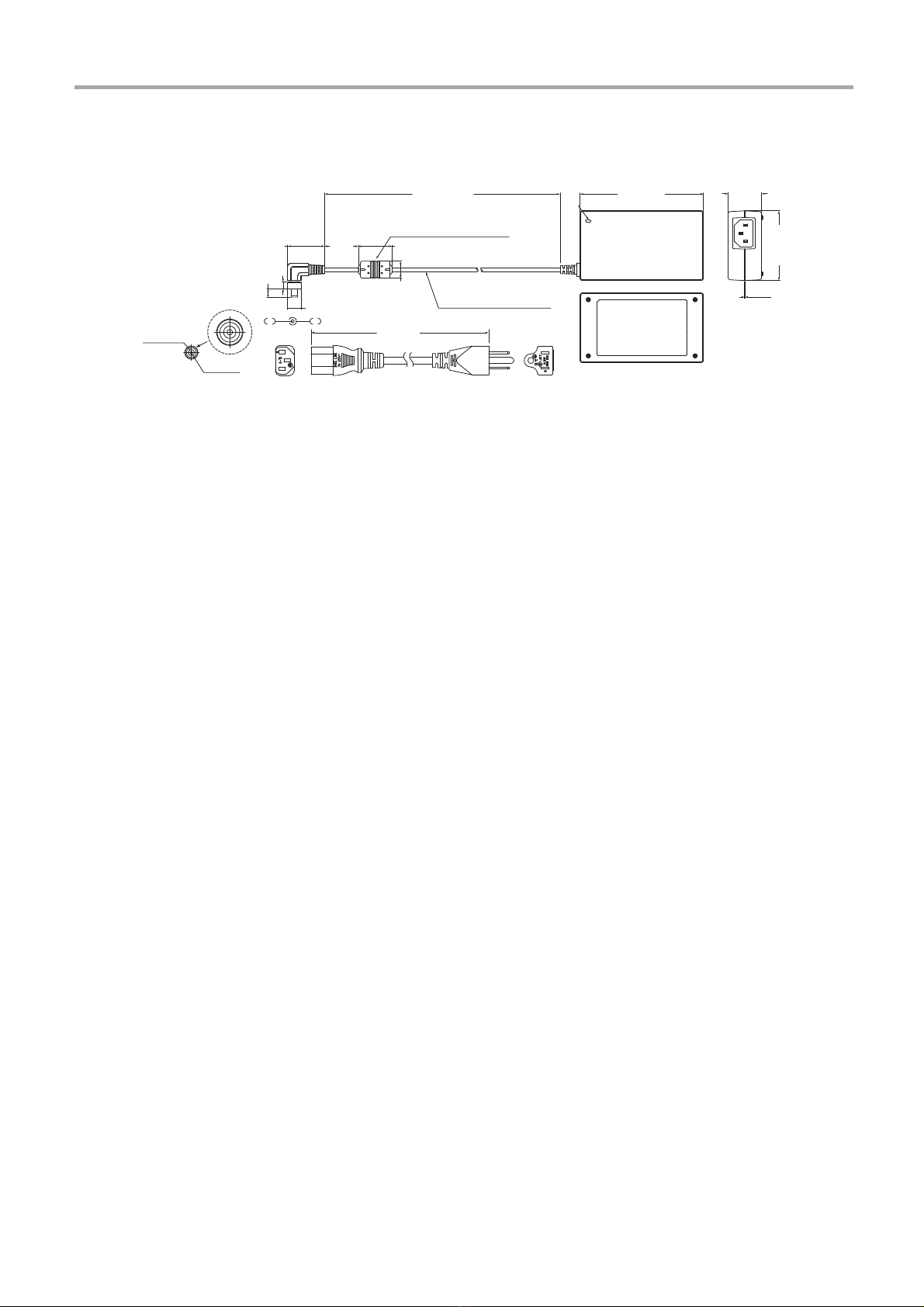

External View (BN interface equipment) Unit: inch (mm)
Power supply Rated voltage 120 V AC 60 Hz
Power consumption 10 W
Operating temperature range 32 to 104°F (0°C to 40°C), 10% to 80% RH (no condensation)
Storage temperature range 14 to 140°F (−10°C to +60°C), 10% to 90% RH (no condensation)
Dimensions Width 7.87 inch x Height 3.94 inch x Depth 2.32 inch
(Width 200 mm x Height 100 mm x Depth 59 mm)
Mass BN interface 1.7 lb (765 g)
Power adapter 1.0 lb (450 g)
Number of connected
units
Indoor unit Up to 128 units (TU2C-LINK)
Up to 64 units (TCC-LINK)
2.32″ (59)
3.94″ (100)
4.37″ (111)
(200)7.87″

BN interface Service Manual
8-EN
(Power adapter)
Ø5/8
"
(Ø15.0)
1.16"±0.01"
(29.6±0.5)
(1500.0±20.0)
59.05"±0.78"
(30±5)
1.18"± 0.19"
(110.0±0.5)
4.33"±0.01"
(62.0±0.5)
2.44
"
±0.01
"
(Ø5.5)
Ø7/32"
Ø3/32" (Ø2.5)
0.01" (0.5)
Ø1/2" (Ø12.0)
(6.5±0.3)
0.25"±0.01"
(33.0±0.5)
1.29"±0.01"
(7.5±0.3) 0.29
"
±0.01
"
+-
(2000±50)
78.74"±1.96"
FERRITE AS REQUIRED
WIRE NO:1185
GAUGE:16AWG (BLACK)
SPEC LABEL
LED
1.24"
(31.5)
MAX

BN interface Service Manual
9-EN
2-2. Component Names
External component names
Name Function
12V DCIN Connect the power adapter
USB (For service)
Ethernet (LAN) Connect to the Building Management System
Shutdown button Shutdown or switch to air conditioner search mode
LINK(Uh) Connect the central control wiring


 
86%
9'&,1/,1.8K
(WKHUQHW/$1
6KXWGRZQEXWWRQ

BN interface Service Manual
10-EN

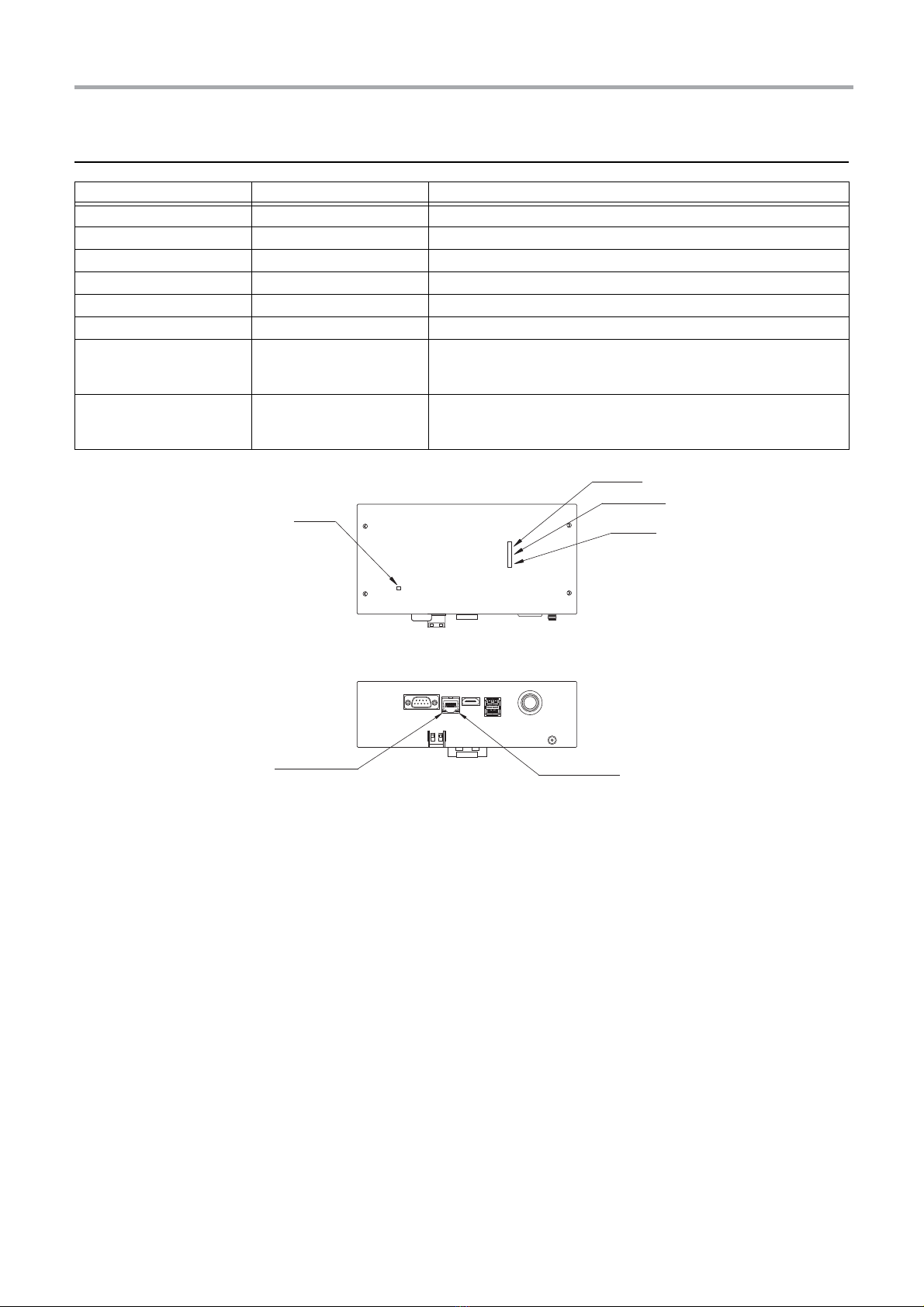

Internal component names
SW100 Uh Line termination resistance setting switch
bit1:use, bit2:not use
Refer to " Termination resistance setting" (P.80)
Shutdown button Shutdown function / air conditioner search mode function button
Use this button to stop BACnet process and network process of the BN interface or to start up in the air
conditioner search mode. Note that button operation changes depending on how long it is depressed.
Time duration button is depressed Operation
The Shutdown button 2 times Stop BACnet process and network process of the BN interface.
4 seconds or more Start up in the air conditioner search mode.
Use the air conditioner search mode to set up equipment data in the
indoor unit.
Connector Description
COM port For maintenance
USB port Not used
HDMI Not used
6:
6KXWGRZQEXWWRQ
Unscrew and open the product
circuit board

BN interface Service Manual
11-EN
LED names
LED LED color Use
POWER Red Power indicator
RS485 Green Not use
LINK1(Uh) Orange Uh Line communication status indicator
LINK2(Uh) Orange Not use
ERROR Red Uh Line communication error indicator
L1 Green BACnet communication status indicator, setting error indicator
LAN port LED1 Green
Link LED
Lights when a LAN cable is inserted and a link is established.
Is unlit when no link is established.
LAN port LED2 Green
Communication speed LED
Lights when the communication speed is 100 Mbps.
Blinks during communication.
ERROR
L1
LINK1(Uh)
LAN port LED1 LAN port LED2
POWER

BN interface Service Manual
12-EN
2-3. Internal board block diagram
Ethernet (LAN)
12V DCIN
CN21
12V DCOUT
RTC_BAT
CN08
CPU BOARD
MCU
SW1
Shutdown button
CN2 CN1 (not used)
CR2032 battery
12V DCIN
LINK (Uh)
Phoenix Contact GMSTB 2.5/2-ST
TU2C-LINK communication board
CPU BOARD
CN2 1357911 13 15 17 19
 AC D 
B E
246810 12 14 16 18 20
ABlack Shutdown button
BRed Shutdown button
CBlue CPU board cable
DWhite CPU board cable
EBlack CPU board cable
SW1 ON
OFF
1 2
CPU BOARD
SD

BN interface Service Manual
13-EN
3Software Specifications
For details, refer to the Specifications Manual below.
- "PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT (DEC0329501)"
- "Network Object and Variables Specifications (DEC0329401)"
3-1. BACnet Communication Specifications
ANNEX A - PROTOCOL IMPLEMENTATION CONFORMANCE STATEMENT (NORMATIVE)
BACnet Protocol Implementation Conformance Statement
Product Description:
System Configuration
Sample Control Wiring diagram
System Configuration and Limits
Vender Name Toshiba Carrier Corporation (ID:129)
Product Name BN Interface
Product Model Number BMS-IFBN1281U-UL
BACnet Protocol Revision ANSI/ASHRAE Standard 135-2012 (Revision 15)
Item Model Name Specification Connectable Q’ty
BN Interface BMS-IFBN1281U-UL Protocol transformation
TCC-LINK to BACnet IP -
Indoor unit - - Up to 128 units (TU2C-LINK)
Up to 64 units (TCC-LINK)
Building Management System (3rd Party / Integrator)
Ethernet: BACnet/IP
BN Interface
Toshiba Products
Air Conditioners
TU2C-LINK (TCC-LINK)

BN interface Service Manual
14-EN
BACnet Standardized Device Profile (Annex L):
BACnet Interoperability Building Blocks Supported (Annex K):
Segmentation Capability:
BACnet Operator Workstation (B-OWS)
BACnet Building Controller (B-BC)
BACnet Advanced Application Controller (B-AAC)
BACnet Application Specific Controller (B-ASC)
BACnet Smart Sensor (B-SS)
BACnet Smart Actuator (B-SA)
BIBB Name Designation
Data Sharing
ReadProperty-B DS-RP-B
ReadPropertyMultiple-B DS-RPM-B
WriteProperty-B DS-WP-B
WritePropertyMultiple-B DS-WPM-B
COV-Unsolicited-B DS-COVU-B
Alarm & Event Notification Internal-B AE-N-I-B
Management Information-B AE-INFO-B
Device & Network
Management
Dynamic Device Binding-A DM-DDB-A
Dynamic Device Binding-B DM-DDB-B
Dynamic Object Binding-B DM-DOB-B
DeviceCommunicationControl-B DM-DCC-B
TimeSynchronization-B DM-TS-B
Restart-B DM-R-B
Segmented requests supported Window Size
Segmented responses supported Window Size 4

BN interface Service Manual
15-EN
Standard Object Types Supported:
Data Link Layer Options:
Device Address Binding:
Is static device binding supported?
(This is currently necessary for two-way communication with MS/TP slaves and certain other devices.)
Yes No
Object-Type Supported Dynamically
Creatable
Dynamically
Deletable
Accumulator
Analog Input 
Analog Output 
Analog Value
Binary Input 
Binary Output 
Binary Value
Calendar
Command
Device Yes N/A N/A
Event Enrollment
File
Group
Loop
Multi-state Input 
Multi-state Output 
Notification Class 
Program
Schedule
BACnet IP, (Annex J)
BACnet IP, (Annex J), Foreign Device
ISO 8802-3, Ethernet (Clause 7)
ANSI/ATA 878.1, 2.5 Mb. ARCNET (Clause 8)
ANSI/ATA 878.1, RS-485 ARCNET (Clause 8), baud rate(s)
MS/TP master (Clause 9), baud rate(s):
MS/TP slave (Clause 9), baud rate(s):
Point-To-Point, EIA 232 (Clause 10), baud rate(s):
Point-To-Point, modem, (Clause 10), baud rate(s):
LonTalk, (Clause 11), medium:
Other:

BN interface Service Manual
16-EN
Networking Options:
Router, Clause 6 - List all routing configurations, e.g., ARCNET-Ethernet, Ethernet-MS/TP, etc.
Annex H, BACnet Tunneling Router over IP
BACnet/IP Broadcast Management Device (BBMD)
Does the BBMD support registrations by Foreign Devices? Yes No
Character Sets Supported:
Indicating support for multiple character sets does not imply that they can all be supported simultaneously.
If this product is a communication gateway, describe the types of non-BACnet
equipment/networks(s) that the gateway supports:
Not applicable
ISO 10646 (UTF-8) IBM™/Microsoft™ DBCS ISO 8859-1
ISO 10646 (UCS-2) ISO 10646 (UCS-4) JIS X 0208

BN interface Service Manual
17-EN
3-2. Connectable Air Conditioners
Item Specification
Number of indoor units 128 units maximum
In the following case, the number of indoor units is 64.
- When used with controller for TCC-LINK old communication
- When replacing a failed BMS-IFBN640TLUL
CAUTION
A central address must be set for the indoor units.
Type of air conditioner 1) VRF System
- Super Modular Multi System-i, Super Heat Recovery Multi System-i
- Super Modular Multi System-e, Super Heat Recovery Multi System-e
- Super Modular Multi System-u
- Mini-SMMS Series
- Side Blow VRF
- VRF Dx-coil controller (TCB-IFDMX01UP-E, TCB-IFDMR01UP-E)
2) Light Commercial model
- Super Digital Inverter Series (*1)
- Digital Inverter Series (*1)
(*1) TCB-PCNT31TLUL is necessary except High wall Series.

BN interface Service Manual
18-EN
3-3. BACnet Object List A list of objects used when observing and controlling the air conditioner status via BACnet communication. Object List
Object Name Object Type Object Type
(10bit)
Equipment
category
(5Bit)
Equipment
Number
(1Byte)
Instance
Number
(1Byte)
Object ID
(4Byte) Value
Gateway Device Device Object(8) 8 00000 0 IP address 0x020**** ON/OFF Status
Monitor Binary Input Object(3) 3 00000 FCU(n) 1-128 0x02 0x00C0xx02 Start/Stop
Control Binary Output Object(4) 4 00000 FCU(n) 1-128 0x82 0x0100xx82 Start/Stop
Operation Mode
Monitor Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x03 0x0340xx03 Heat/Cool/Fan/Dry/Auto
Control Multi-state Output Object(14) 14 00000 FCU(n) 1-128 0x83 0x0380xx83 Heat/Cool/Fan/Dry/Auto
Fan Speed
Monitor Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x05 0x0340xx05 Auto / HH / H / L / LL / H+ / L+
Control Multi-state Output Object(14) 14 00000 FCU(n) 1-128 0x85 0x0380xx85 Auto / HH / H / L / LL / H+ / L+
Set Temperature *1
Monitor Analog Input Object(0) 0 00000 FCU(n) 1-128 0x04 0x0000xx04
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)
Control Analog Output Object(1) 1 00000 FCU(n) 1-128 0x84 0x0040xx84
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)
Auto Cool Set Temperature *1,*3
Monitor Analog Input Object(0) 0 00000 FCU(n) 1-128 0x6E 0x0000xx6E
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)

BN interface Service Manual
19-EN
Auto Cool Set Temperature *1,*3
Control Analog Output Object(1) 1 00000 FCU(n) 1-128 0xEE 0x0040xxEE
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)
Auto Heat Set Temperature *1,*3
Monitor Analog Input Object(0) 0 00000 FCU(n) 1-128 0x6F 0x0000xx6F
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)
Control Analog Output Object(1) 1 00000 FCU(n) 1-128 0xEF 0x0040xxEF
Standard FCU
From 18.0 to 29.0 (䰳)
From 64.0 to 84.0 (°F)
Fresh Air Intake Indoor
From 16.0 to 27.0 (䰳)
From 60.0 to 80.0 (°F)
Room Temperature Analog Input Object(0) 0 00000 FCU(n) 1-128 0x08 0x0000xx08 From -39.0 to 150.0 (䰳)
From -38.2 to 302.0 (°F)
Permit / Prohibit of
Local
Monitor Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x09 0x0340xx09
- Start/Stop - Operation Mode - Temperature Setting
Control Multi-state Output Object(14) 14 00000 FCU(n) 1-128 0x89 0x0100xx89
- Start/Stop - Operation Mode - Temperature Setting
Filter Sign
Monitor Binary Input Object(3) 3 00000 FCU(n) 1-128 0x14 0x00C0xx14 Normal / Filter Sign
Control Binary Output Object(4) 4 00000 FCU(n) 1-128 0x95 0x0100xx95 - / Filter Sign Reset
Alarm status Binary Input Object(3) 3 00000 FCU(n) 1-128 0x40 0x00C0xx40 Alarm / No Alarm Check Code Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x01 0x0340xx01 No Check Code / Check Code Louver
Monitor Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x07 0x0340xx07 Swing / F1 / F2 / F3 / F4 / F5 / Stop
Control Multi-state Output Object(14) 14 00000 FCU(n) 1-128 0x87 0x0380xx87 Swing / F1 / F2 / F3 / F4 / F5 / Stop
Ventilation ON/OFF Status (option)
Monitor Binary Input Object(3) 3 00000 FCU(n) 1-128 0x28 0x00C0xx28 Start/Stop
Control Binary Output Object(4) 4 00000 FCU(n) 1-128 0xA8 0x0100xxA8 Start/Stop

BN interface Service Manual
20-EN
NOTE
*1 The setting of each property changes with the model. *2 This object can be used by the TU2C-LINK model.
In order to issue a notice code, the notice code must be registered on the air conditioner side. For details of notice code, refer to the air conditioner service manual.
*3 In the case of Auto cool temperature setting ≥Auto heat temperature setting, both setting values will be transmitted to the indoor unit.
In the case of Auto cool temperature setting < Auto heat temperature setting, the setting values will not be transmitted.
To change the value of "Auto cool temperature setting" or "Auto heat temperature setting", perform the change while operation mode is "Auto". Precautions when changing the value of "Auto cool temperature setting" or "Auto heat temperature setting" on the same indoor unit.
• Before performing the change, wait at least 10 seconds after the last change. • Do not change both the "Auto cool temperature setting" and "Auto heat temperature setting" values in one "WritePropertyMultiple" service operation.
Indoor thermo status Monitor Binary Input Object(3) 3 00000 FCU(n) 1-128 0x54 0x00C0xx54 Thermo ON / Thermo OFF Save operation rate (option)
Monitor Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x55 0x0340xx55
No Save (100% operation) / XX% Save (100-50%) / 50% Save (50%) / 100% Save (Forcibly Thermo OFF)
Control Multi-state Output Object(14) 14 00000 FCU(n) 1-128 0xD5 0x0380xxD5
No Save (100% operation) / XX% Save (100-50%) / 50% Save (50%) / 100% Save (Forcibly Thermo OFF)
Indoor㻌Communication㻌Failure Binary Input Object(3) 3 00000 FCU(n) 1-128 0x41 0x00C0xx41 Normal / Alarm Facility request Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x0A 0x0340xx0A 1(Thermo off)䡚16 Notice Code 1 *2 Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x63 0x0340xx63 No Notice Code / Notice Code Notice Code 2 *2 Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x63 0x0340xx64 No Notice Code / Notice Code Notice Code 3 *2 Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x63 0x0340xx65 No Notice Code / Notice Code Notice Code 4 *2 Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x63 0x0340xx66 No Notice Code / Notice Code Notice Code 5 *2 Multi-state Input Object(13) 13 00000 FCU(n) 1-128 0x63 0x0340xx67 No Notice Code / Notice Code
