Toshiba TS605 Operating manual

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 1 of 103
TS605 / TS2050
Technical Service
Manual

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 2 of 103
INDEX PAGE
1.0 GENERAL ADVICE 5
1.1 CUSTOMER CARE SOLUTIONS 6
1.2ESDPROTECTION 7
2.0 HANDSET SPECIFICATION AND INTRODUCTION 8
2.1 HANDSET SPECIFICATION 9
2.1.1 HARDWARE 9
2.1.2 SOFTWARE 10
2.1.3 PHYSICAL 11
2.1.4 VIDEO 12
2.1.5 OTHERS 13
2.1.6 PRODUCT OVERVIEW 15
2.2INTERFACES 16
2.2.1 SIM CARD INTERFACE 16
2.2.2 MEMORY CARD INTERFACE 18
2.2.3 BATTERY INTERFACE 20
2.2.4 CHARGING THE BATTERY 21
2.2.5 CHARGING INDICATOR 22
2.3 HANDSET USER INTERFACE 23
2.3.1 HANDSET DESCRIPTION 23
2.3.2 KEY FUNCTIONS 24
2.3.3 DISPLAY CONCEPT 26
2.3.4 MAIN MENU 27
2.4MMITEST 29
3.0 MECHANICAL CONCEPT 30
3.1 EXPLODED VIEW 31
3.2 MECHANICAL SPARE PARTS LIST 33
3.3 SPARE PARTS PHOTO 34
4.0 DISASSEMBLY AND REASSEMBLY PROCEDURE 35
4.1DISASSEMBLY 36
4.2REASSEMBLY 43

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 3 of 103
INDEX PAGE
5.0 SOFTWARE DOWNLOAD 53
5.1 SOFTWARE DOWNLOAD 54
5.1.1 DOWNLOAD CABLES 54
5.1.2 DOWNLOAD TOOL 55
5.1.3 EQUIPMENT SETTING 56
5.1.4 MAIN PROGRAM INTERFACE 57
5.1.5 BACKUP TOOL 59
6.0 SYSTEM MODULE AND USER INTERFACE 60
6.1 TECHNICAL DESCRIPTION 61
6.1.1 RF OVERVIEW 61
6.1.2 RF FUNCTION BLOCK DIAGRAM 62
6.1.3 FREQUENCY PLAN 63
6.1.4 TRANSMITTER 64
6.1.5 RECEIVER 65
6.2 BASEBAND OVERVIEW 66
6.2.1 INTRODUCTION 67
6.2.2 CPU MEMORY 68
6.2.3 REAL TIME CLOCK (RTC) 68
6.2.4 LCD MODULE 68
6.2.5 CAMERA / BACKEND IC 68
6.3SWITCHES 69
6.3.1 KEYPAD 69
6.3.2 POWER KEY 69
6.4 AUDIO SYSTEM 70
6.4.1 VOICE BAND CODEC 71
6.4.2 MICROPHONE 72
6.4.3 RECEIVER 72
6.4.4SPEAKER 73
6.5 POWER MANAGEMENT 73
6.5.1 POWER ON SEQUENCE 74
6.5.2 POWER SOURCE 75
6.5.3 REGULATOR CONTROL 75
6.5.4VOLTAGE REGULATION 75

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 4 of 103
INDEX PAGE
7.0 TROUBLE SHOOTING 77
7.1 MAIN TROUBLE SHOOTING DIAGRAM 78
7.1.1 NO POWER UP 79
7.1.2 FLASH FAILED 80
7.1.3 WILL NOT READ SIM CARD 81
7.1.4 POOR SERVICE 82
7.1.5 WILL NOT CHARGE 83
7.1.6 LCD FAILURE 84
7.1.7 BUZZER FAULT 85
7.1.8 VIBRATOR FAULT 86
7.1.9 FAULTY KEYPAD 87
7.1.10 FAULTY RTC 88
7.1.11FAULTY MICROPHONE 89
7.1.12 LCD TESTING 90
7.1.13 FAULTY CAMERA 91
7.2 CONNECTIONS 92
7.2.1 CONNECTIONS ON BOARD 92
7.2.2 ACF CONNECTIONS 93
7.2.3 MAIN BASEBAND IC’S 94
7.2.4 MAIN RF IC’S 96
7.2.5 CONNECTORS ON KEYPAD PCB 97
7.3 ACF – ANISOTROPIC CONDUCTIVE FILM 98
7.4 LABEL SPECIFICATION 103

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 5 of 103
1.0 GENERAL ADVICE

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 6 of 103
1.1 CUSTOMER CARE SOLUTIONS
TECHNICAL DOCUMENTATION
Warnings
1- Care must be taken on installation in vehicles fitted with electronic
engine management systems and ABS. Under certain faulty conditions,
emitted RF energy can affect their operation.
2- The handset must not be operated in areas likely to contain potentially
explosive atmospheres, e.g. Petrol/Gas stations.
3- Operation of any radio transmitting equipment may interfere with the
functionality of inadequately protected medical equipment. All
electronic equipment may also be subject to interference.
4- All documentation within this service manual must remain confidential
and should not be shared with any unknown 3rd party, without written
consent from Toshiba MCD, UK.
Cautions
1- Servicing and alignment must be undertaken by qualified personnel
only.
2- Ensure all work is carried out at an ESD protected work station.
3- Ensure that the qualified technician is wearing all necessary ESD
protective clothing such as wrist straps and heel straps.
4- Ensure solder, wire and/or other foreign matter do not enter the
handset as damage may result.
5- Use only approved components as specified in the parts list.
6- Ensure all components are correctly refitted after servicing and
alignment. Ensure all mechanical fittings are reassembled correctly.

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 7 of 103
1.2 ESD (Electro Static Discharge)PROTECTION
SERVICE REQUIRMENTS
1- Toshiba require that all TPSV’s ensure that the technicians work bench
has sufficient ESD protection.
2- Accessories such as batteries, chargers, multimedia cards and sim
cards can be replaced in normal conditions (Non ESD protected
environment).
3- A mobile handset contains many parts such as LCD’s and cameras.
These parts, along with more discreet components such as resistors
and capacitors are susceptible to ESD.
4- Metallised protective bags must be used during any transportation of
ESD sensitive parts, including the PCB.
5- All repair actions other than accessory replacement, must be
conducted under ESD protection.
Should you require any further information on ESD please refer to
www.static-sol.com

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 8 of 103
2.0 HANDSET
SPECIFICATION AND
INTRODUCTION

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 9 of 103
2.1 HANDSET SPECIFICATION
2.2.1 HARDWARE
Item Description Remark
Frequency EGSM-900(880MHz– 960MHz).
GSM-1800(1710MHz– 880MHz)
PCS-1900(1850MHz– 990MHz)
Three-band
Display 1.93" 176X220 TFT Citizen
Camera 1.3 Mega CMOS
w/o Marco
Bluetooth
V1.2
Vender: CSR
Chipset: BC3-ROM
Support: v1.2
Power Class: Class 2 or 3
Max Size of data of phone
memory : 350KB
FM Radio with RDS Silicon Lab SI4701
IrDA N/A
Multimedia Chip AIT 811T Support MP3, 1.3 M, T-flash
Audio Codec Wolfson
System Memory 256Mb(NOR) + 64Mb(SRAM) Study Nuro bit type
Built-In Memory Option
External Memory Card 1024Mb Micro SD Flash
Base Band AD6527 + AD6537B
RF CX74117+CX77328

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 10 of 103
2.1.2 SOFTWARE
Item Description Remark
WAP WAP 2.0
MMS OMA 1.1
DRM Ver. 1.0 Openwave
IMPS Ver. 1.2 Magic4
Java Yes Esmertec
Doja N/A
KVM yes JTWI 1.0
JSR-75 PDA PIM & FC yes
JSR-120 WMA 1.1 Yes
JSR-135 Yes
JSR-205 WMA 2.0 Yes
JSR-234 Advanced
Multimedia Supplements N/A
JSR-248 Mobile Service
Architecture for CLDC N/A
JSR-185 JTWI
Yes JTWI (Mandatory: JSR-30
CLDC 1.0 + JSR -120
Wireless Messaging API +
JSR-118 MIDP 2.0)
(Conditional: JSR-135
MMAPI (mobile multimedia
API) + JSR-139 CLDC 1.1)
Text Input T9 Input 6.1.3 TBD, define by Toshiba
SynML DS 1.1.2 ExtendSI
SynML DM N/A
Email POP3/SMTP
QR code recognition N/A TBD

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 11 of 103
2.1.3 PHYSICAL SPECIFICATION
Item Description Remark
Detail Features
Air Link Protocol
GPRS Class10
EDGE ----
Physical Features
Form Factor Candy Bar
Dimension 113*47*10.3mm
Weight 84g (AL) ; 81g(Ma)
Display Features
Resolution 176X220 (w*h)
Dimension 1.93"
LCD Technology TFT
Reflective Type Transmissive type w/o
Micro reflective
Reflective Ratio 1.0%
NTSC Ratio >40%
Contrast Ratio 200:1
Brightness 150 cd/m2
Response Time Max 40msec
View Angle (Up/DL/Left/Right) (15,65, 35,35)
Storage
Embedded SRAM 64M bit
Embedded NOR Flash 32MByte
External Memory Card Slot 1024MB Micro SD Flash
Embedded User Storage 7480KB (share W/NOR)
Camera Feature
Sensor Type CMOS
Resolution 1.3M
Focus Type Fix Focus
Optical Zoom N/A
Strobe Type N/A
External Flash
Synchnoization N/A

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 12 of 103
2.1.4 VIDEO SPECIFICATION
Item Description Remark
Video Codec Feature
Digital Zoom capability X8
Still image output format BMP, JPEG, GIF, PNG
Video Decode Capability
(MPEG4/H263) CIF @ 15fps
Video Decode Capability
(H264/AAC) N/A
Video Encode Capability
(MPEG4/AMR) CIF @ 15fps
Video Phone (MPEG4/H263) N/A
Streaming (Progressive
Download) N/A
2 way Streaming N/A
3G - H.324M N/A
Pocket Video Player N/A
RealPlayer N/A
MS-Multimedia Player N/A
Video Recording while Video
Playback N/A
Dvix Support N/A
Audio Codec Features
Audio Chip Wolfson WM8976
Audio Encode Capability AMR
Audio Decode Capability AMR/MP3(H/W)/AAC+
FM Recording N/A
Melody Support Poly40 (TBD)
Interface I2S (MP3), ADI-AD6537
(ringtone)
MP3 Yes
MP3 ring tone Yes
Battery standby time > 150Hours
Battery Voice talk time > 2.5hrs
Battery Capacity 700mAh Lishen

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 13 of 103
2.1.5 OTHERS
Item Description Remark
SIM
STK Release 98 Yes
STK Release 99 Yes
STK Class 3
SIM Lock Yes
CPHS V. 4.2 (excluded IN &
CSP)
USSD Phase 1 & 2
Multimedia Message
WAP 2.0
SMS Yes
SMS - Cell Broadcast Yes
EMS Yes
MMS Yes OMA 1.1
i-Mode N/A
E-Mail POP3/SMTP
DRM DRM 1.0
IMPS Yes V1.2
Mobile QQ N/A N/A (need to purchase)
PoC (Push to Talk) N/A
Data Exchange
OBEX Yes
SynML DS 1.1.2
SynML DM N/A
FOTA N/A
IrDA N/A

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 14 of 103
2.1.5 OTHERS CONTINUED
Item Description Remark
Wifi N/A
USB Yes 1.1
Mass Storage Yes 7480KB for user memory
Java Yes
Doja N/A
KVM Yes JTWI 1.0
JSR-75 PDA PIM & FC Yes
JSR-82 Bluetooth API N/A
JSR-120 WMA 1.0 Yes
JSR-184 3D (OpenGL) N/A
JSR-205 WMA 2.0 Yes Yes
JSR-234 Advanced
Multimedia Supplements N/A
JSR-248 Mobile Service
Architecture for CLDC N/A
JSR-185
Yes JTWI (Mandatory: JSR-30
CLDC 1.0 + JSR -120
Wireless Messaging API +
JSR-118 MIDP 2.0)
(Conditional: JSR-135
MMAPI (mobile multimedia
API) + JSR-139 CLDC 1.1)
Voice Recognition
Speaker Dependent Yes
Speaker Independent N/A
Text to Speech N/A
USB Features
USB drive Yes
Webcam Yes
PC software Yes
Others
Image Stabilization N/A
Motion Detection N/A
Digital TV Support N/A
3D Capability N/A
FM Radio With RDS
FM Transmitter N/A
TV Output N/A
Pic Bridge N/A
Instant ON N/A

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 15 of 103
2.1.6 PRODUCT OVERVIEW
The TS605/TS2050, is a slim and very stylish product that boast all of the
features that you would expect as standard. Although the product
incorporates a simple 1.3 mega pixel camera, the display really does show off
the high quality of images with excellent detail. Along with the many features,
the product is of the easiest to use and with the simple menu structure, even
people whom are new to phones will find this very easy to use. There is a slot
for a micro SD card, up to 1Gb and then you can really get in to the handset
features by downloading video clip and mp3’s that you can listen to either via
the loudspeaker or the Handsfree headphone.
The handset only has one external connector. This is used for the headset,
the charger and connectivity via the PC suite. The PC suite allows you to
connect your handset directly to the PC and transfer files to and from the
memory card and user memory. This enables a very quick transfer of the
many types of file the handset supports.
Another way to transfer files is by Bluetooth connection. Bluetooth will enable
you to connect to many different devices, such as headsets and other
handsets.
Also boasting in this small package is an FM radio with RDS (HF acts as
antenna).
There are many different features to the TS605/TS2050 and of course, it will
support all the features you would expect in a 2.5G handset such as,
messaging(MMS/SMS/Email), Java, WAP, GPRS.

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 16 of 103
2.2 INTERFACES
2.2.1 SIM CARD INTERFACE
Your SIM card identifies your phone on the network and stores your details,
including your PIN, call history, and subscription information. It can also be
used to store some phone book data.
You should only remove your SIM card when absolutely necessary. If it is lost
or damaged, the information stored on it cannot be retrieved.

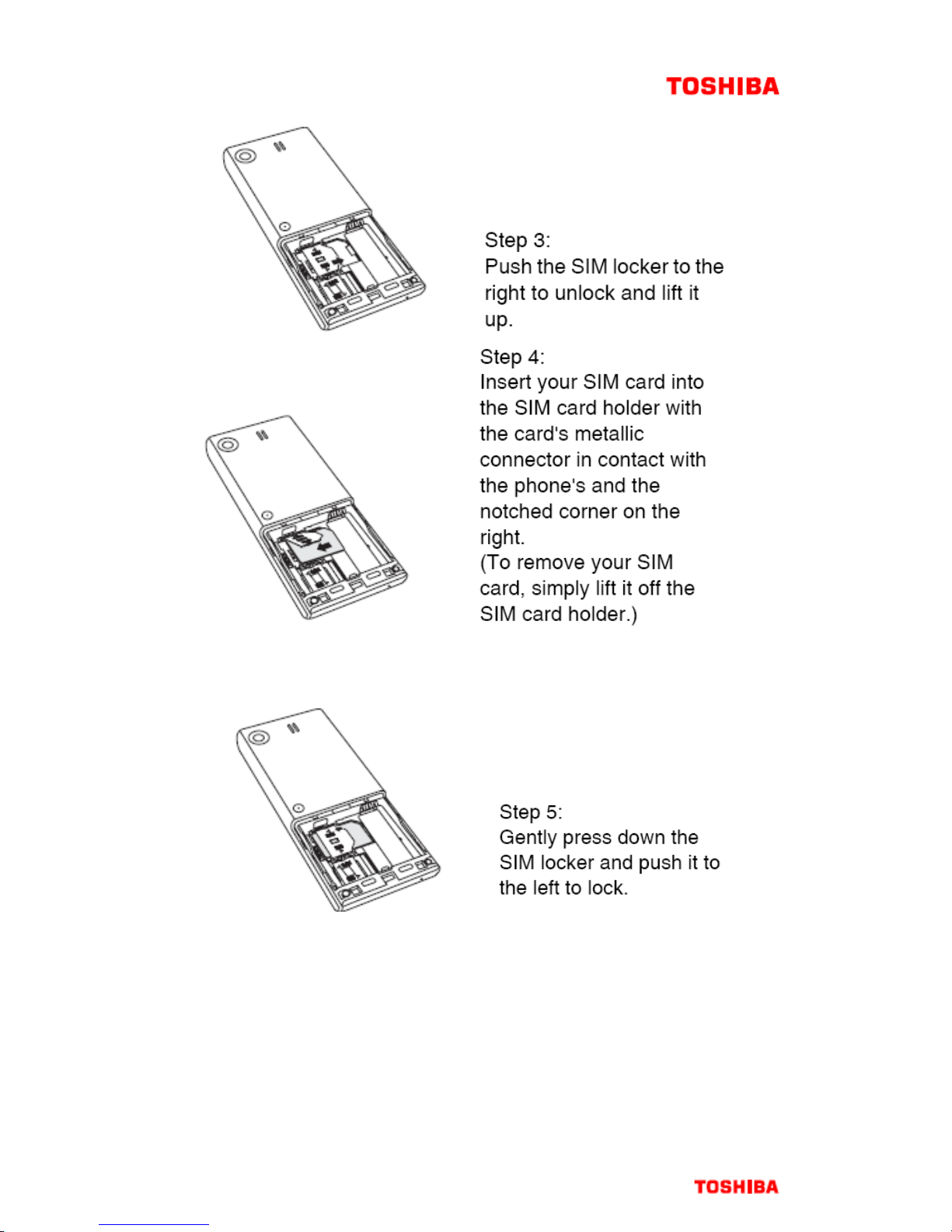

Inserting / Removing the SIM Card
Turn to the back of your phone to locate your battery room. To insert or
remove the SIM card (Step 1-5):

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 17 of 103

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 18 of 103
2.2.2 MEMORY CARD INTERFACE
Your Phones supports a microSD card up to 1GB. The memory card slot is
located under the battery. The battery cover is located on the rear of the
phone.

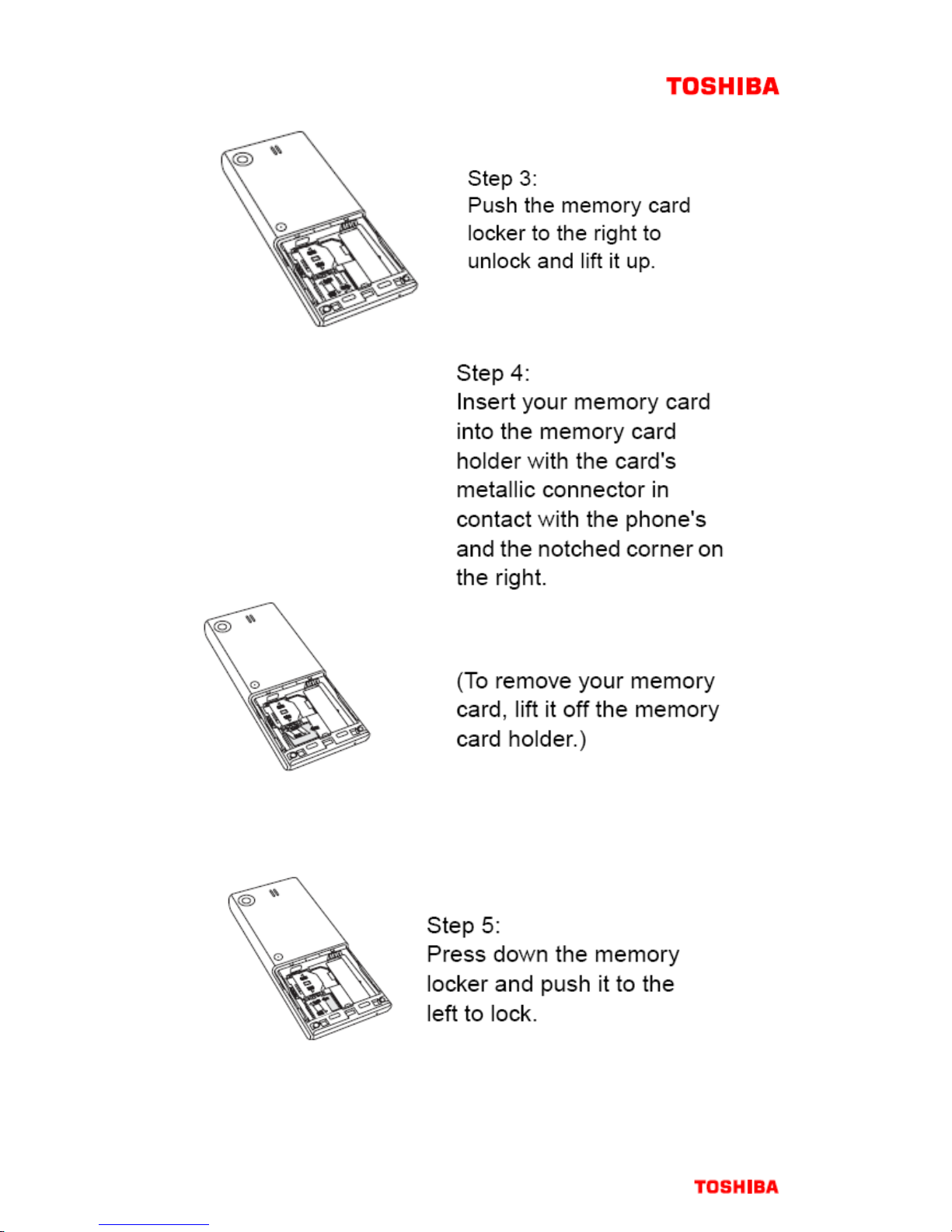

Inserting / Removing the Memory slot
Turn to the back of your phone to locate your battery room. To insert or
remove the Memory card (Step 1-5):

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 19 of 103

MOBILE COMMUNICATIONS DIVISION
CUSTOMER SERVICES
Version 1.0 22/11/2006
Created by Konrad Szombara Page 20 of 103
2.2.3 BATTERY INTERFACE
The battery included with your phone is not charged. Before you can switch
on your phone for the first time, you need to install the phone's battery and
charge it.

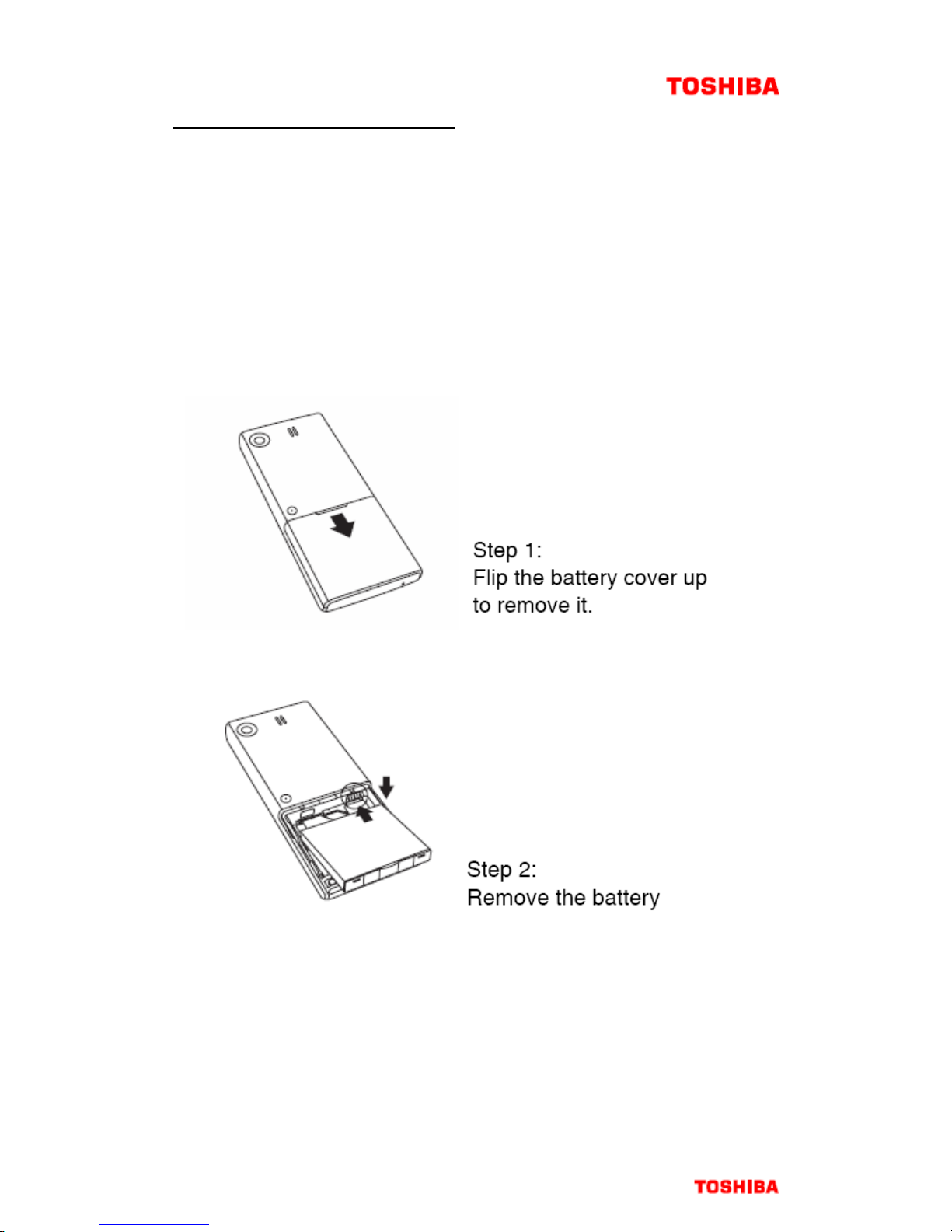

Inserting or Changing the Battery
To insert or change the battery:
