Before Reading This Manual
This Instruction Manual describes how to install the software provided and a brief explanation of how to use the
SoftwareApplication.
To ensure that you use this Software Application correctly, read this Instruction Manual carefully before you
start using the Software Application.
This document has been written assuming that you basically understand how to use the Toshiba PDR-3320
Digital Still Camera and your personal computer that the Software Application is running on.
For basic details on the PDR-3320 and your personal computer, refer to the Toshiba PDR-3320 Digital Still
Camera’s Instruction Manual or the Instruction Manual for your personal computer.
Trademark Information
Microsoft®and Windows®are registered trademarks of the Microsoft Corporation of the U.S. registered in the USA
and other countries.
Windows is an abbreviated term referring to the Microsoft Windows Operating System.
Macintoshis a trademark ofApple Computer, Inc.
ACDSeeTM is a registered trademark ofACDSystems Ltd.
Direct X® is a registered trademark of the Microsoft Corporation.
SmartMediaTM is a trademark of Toshiba Corporation .
Other companies or product names are trademarks or registered trademarks of the respective companies.
Conventions Used in This Manual
Indicates items or details that you should observe to prevent loss of data, malfunction and impaired
performance. Also indicates information relating to specifications and functions.
Memo
Indicates extra useful information.
IMPORTAN
T

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
2
Before Reading This Manual (continued)
Abbreviations Used in This Manual
Windows 98
This refers to the Microsoft® Windows® 98 operating system.
Windows 2000
This refers to the Microsoft® Windows®2000 Professional operating system.
Windows ME
This refers to the Microsoft® Windows®ME operating system.
Windows XP
This refers to the Microsoft® Windows®XP operating system.
Images
This refers to still images.
About Bundled Software in CD-ROM
After USB connection between the camera and the computer is established, the system will automatically
launch ACDSee software.
Either using Classic or X environment mode on Macintosh, the software installations remain the same.
About OS Platform
Macintosh
Do not remove SmartMediaTM Memory Card from your camera or your PC card adapter until USB
connection is properly terminated between the computer and the camera.
At Windows 2000, software installation is required on Administrator mode.
Windows
On Macintosh OS X, the images reviewed via ACDSee software cannot be copied or moved to another
storage media.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
3
Before Reading This Manual (continued)
Make sure that you have all of the items below before you start using your software application.
USB cable
Software Manual
(this manual) CD-ROM (1 disk)

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
4
Contents
Getting Ready
Before Reading This Manual ........................ 1
Contents ...................................................... 4
Features of This SoftwareApplication .......... 5
About Files ................................................... 6
About the Software....................................... 8
Pre-installation Checks ................................ 9
When Using Windows
Installation Procedure (for Windows) ......... 10
InstallingACDSee.................................. 10
Insalling the USBDriver
(for Windows 98 Only)............................. 11
 Using the USB Cable
(Windows 98/2000/ME/XP) ........................
12
Copying Images to Camera........................ 15
When Using Macintosh
Installation Procedure (for Windows) ......... 17
InstallingACDSee ................................... 17
Using the USB Cable (Macintosh) .............. 18
Operations inACDSee
GeneralOperations.................................... 19
Starting the Photo Enhancer ...................... 21
How toAccess the Service and Support...... 23
Global Contacts ........................................... 24

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
5
Features of This Software Application
If you install the software and drivers on your personal computer, you can perform the following:
Importing Images
You can import images taken on the Toshiba PDR-3320 Digital Still Camera into your personal computer.
To import images, you need to use the USB cable (packaged with this camera), or PC card adapter.
Editing Still Images
You can edit imported still images by usingACDSee, or print them out on a printer connected to the
personal computer you are using.
Saving Images
You can save imported images or edited images on the personal computer you are using.
When You Use SmartMediaTM Memory Card on Your Personal Computer
When you use SmartMediaTM Memory Card on your personal computer, do not change or delete the
folder or names of files (image data) on the SmartMediaTM Memory Card. Otherwise, you may no longer
be able to use the SmartMediaTM Memory Card on the PDR-3320.
 Format the SmartMediaTM Memory Card on the PDR-3320.
 To edit image data, first copy the image data to the personal computer’s hard disk, and edit the copied image
data.

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
6
About Files
File Structure of SmartMediaTM Memory Card
The images taken on the Toshiba PDR-3320 Digital Still Camera are stored on the SmartMediaTM Memory Card as
shown below.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
7
About Files (continued)
About Still Picture Data
On the PDR-3320, still image data is saved in Exif format. This format is JPEG data that includes a thumbnail image
and the photographic settings.
Still image data is saved as follows as shown on page 6:
Folder name :XXXTOSHI (XXX is any number within the range 100 to 999)
File name :PDR_XXXX (XXXX is any number within the range 0001 to 9999)

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
8
IMPORTAN
T
About the Software
You can install the following software from the CD-ROM:
ACDSee
This software allows you to edit and print imported still images.
USB driver(for Windows 98 only)
This USB driver provided on the CD-ROM is exclusively for Windows 98. Installing the USB driver for use in
Windows 2000, Windows ME, Windows XP and Macintosh is not necessary.
DirectX
This software allows you to playback movies.
This camera does not have a video function.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
9
Pre-installation Checks
To install the software supplied on the CD-ROM, your personal computer must conform to the system requirements
in the table below. Check the following items before you install the software.
Minimum system requirements
*Proper connections with not all PCs will be assured.
When using Mac OS 9.0 or 9.1, you need to install CarbonLib 1.3 or later.
You can download the program from the web site of Apple Computer, Inc.

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
10
Installation Procedure(for Windows)
Installing ACDSee

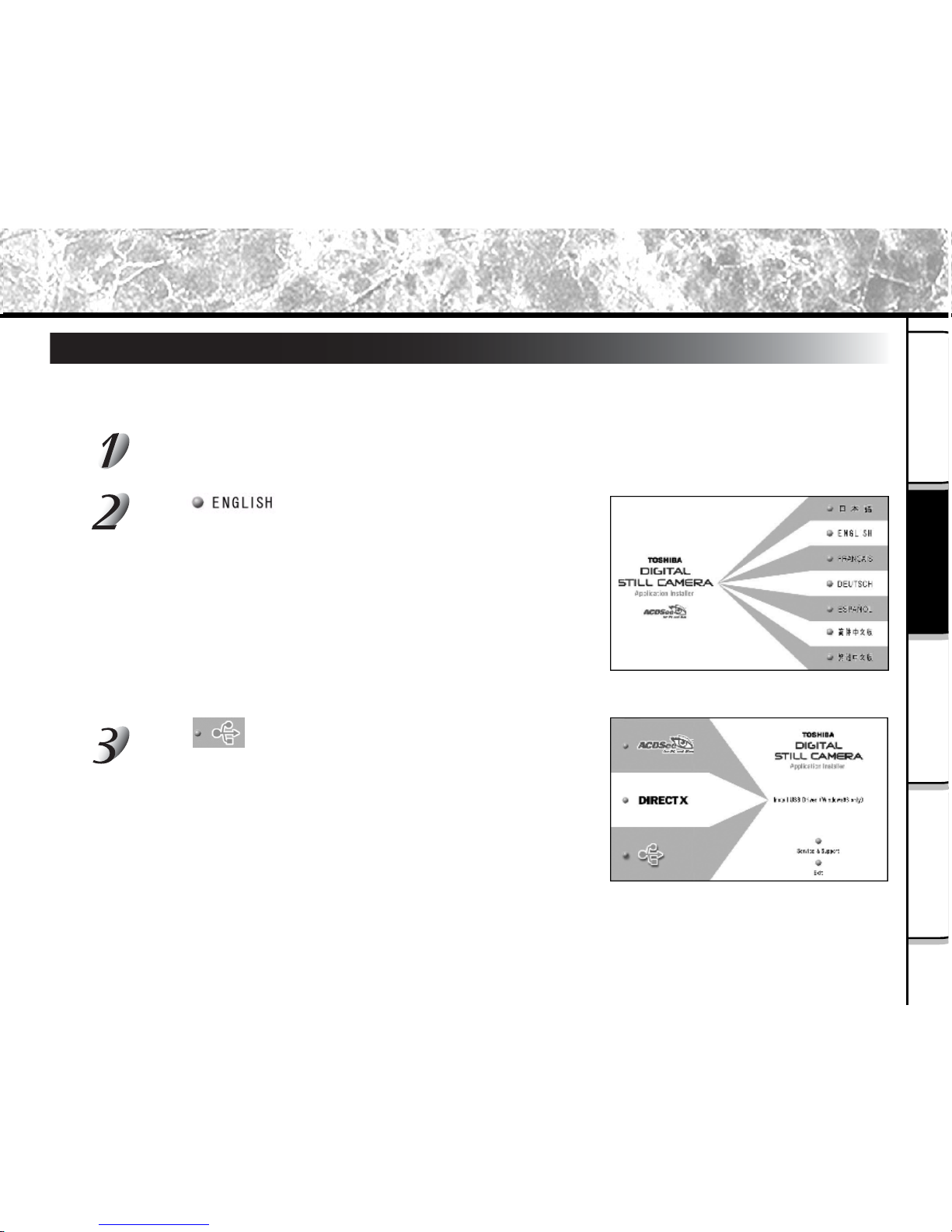

Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to complete the
installation.
Memo
Before installing theACDSee, install the USB driver(only required on Windows 98).
After ACDSee software is properly installed into your personal computer, CamDetect icon
will appear on the Windows Task bar.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
11
Installing the USB Driver (for Windows 98 Only)
Install this driver when the USB cable(provided) is used. (The USB driver provided on the CD-ROM is
exclusively for Windows 98. Installing the USB driver for use in Windows 2000/ME/XP is not necessary.)
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to complete the
installation.
Installation Procedure(for Windows) (continued)

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
12
Using the USB Cable (Windows 98/2000/ME/XP)
To enable importing of images on the PDR-3320 to your personal computer, the PDR-3320 must be connected to
your personal computer by the USB cable(provided).
When you connect the PDR-3320 to your personal computer by the USB cable, the connection can only be made with
both the PDR-3320 and your personal computer turned ON. The USB connection will be automatically recognized by
the computer. Connectable personal computer: Windows 98/2000/ME/XP pre-installed machine
IMPORTAN
T
If the camera’s power is turned OFF while image data is being transferred to the PC, the data may be
damaged. When the PDR-3320 is connected to the personal computer, use the AC adapter.
Connect one end of the USB cable to theDIGITAL terminal on the PDR-3320.
Connect the large end of the USB cable to the USB port on your personal computer.
Perform the following operation with Windows 98/2000/ME/XP already booted up.When
the icon appears on the Windows task bar, it means the USB cable is successfully
connected.
If this is the first time for an image to be imported using the USB cable, theAddNew
Hardware Wizard screen appears. Install the USB driver.
<When using Windows 98>
Refer to installing the USB driver on page 11
<When using Windows 2000/ME/XP>
Follow the on-screen instructions to perform the driver installation.
It is added as a RemovableDisk as the standard Windows 2000/ME/XP driver is installed.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
13
IMPORTAN
T
When connecting the USB cable, pay attention to insert the connector in a proper direction.
If CamDetect function is active ( icon will appear on Windows task bar),ACDSee
software will be automatically launched.
If CamDetect icon is not active, you can open the CameraDetector program:
a.Click the [Start] menu.
b.Select [Programs|ACDSystems].
c.Click CamDetect.
Using the USB Cable (Windows 98/2000/ME/XP)(continued)

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
14

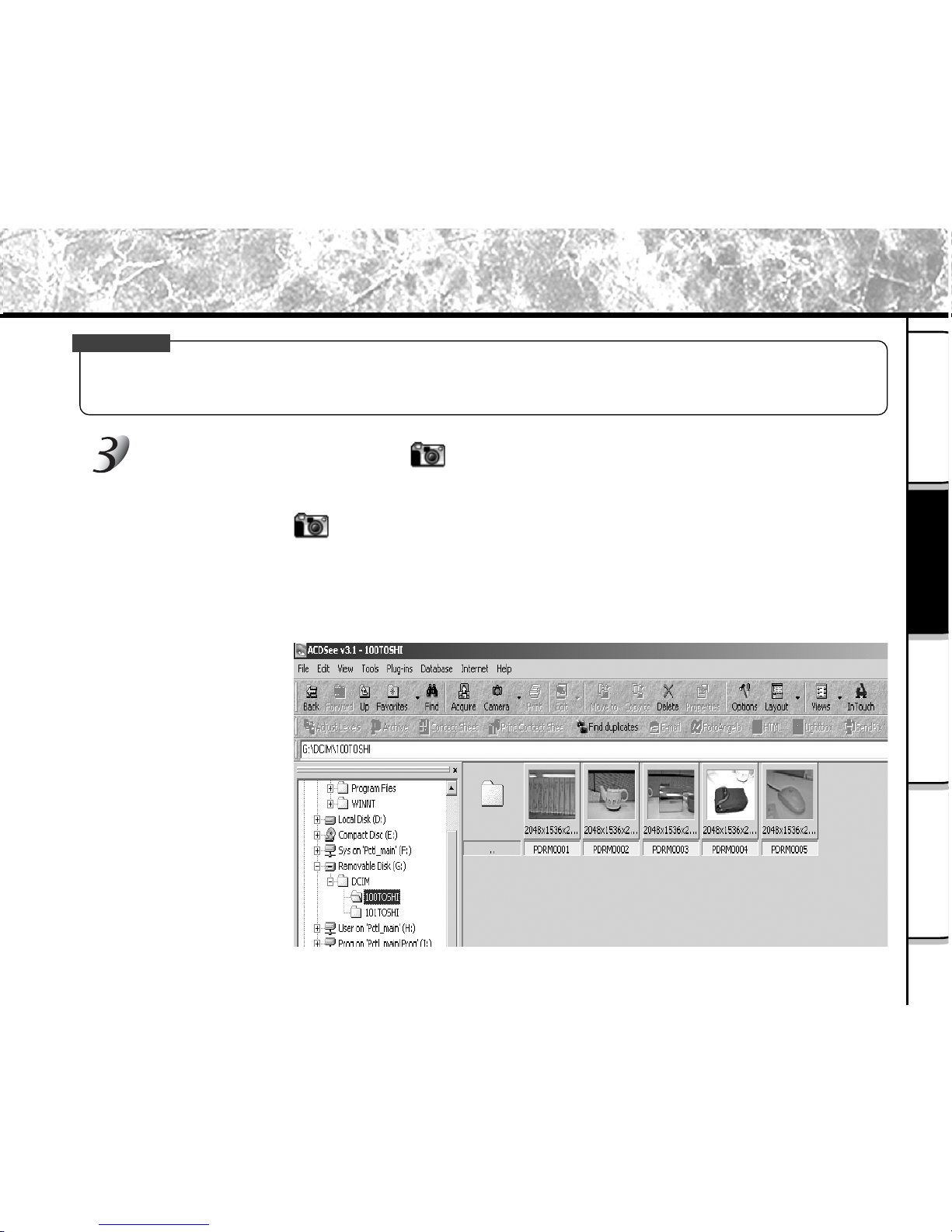

OnceACDSee starts up, it will automatically open the existing XXXTOSHI subfolder
stored inDCIM folder. The Removable disk automatically appears once the camera’s
power is ONafter USB connection is successfully accomplished between the camera
and the computer.
Download the images.
<To download all images>Go to [Edit|Select All Files]
All the images are being highlighted. Drag and drop those images to copy on your hard disk.
Using the USB Cable (Windows 98/2000/ME/XP)(continued)

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
15
Copying Images to Camera
Start upACDSee.
Click [Start]-[Program]-[ACDSystems]-[ACDSee] on theWindows task bar.
Select images that you wish to copy to the camera.
Go to [Plug-ins| Copy to Camera].
Copy Images to Camera will appear.
Choose Camera source, select PDR-3320 camera [TOSHIBAPDR onG:]
Select the options on Resize Images:
Best fit to standard camera resolutions
If the current image size between
640x480 ~ 1024x768, it will resize
to640x480.
If the current image size is bigger than
1024x768, it will resize to 1024x768.
Resize for TV viewing
The current image size will be automatically
resized to 1024x768.
Do not resize
It will remain at the original size and the copied
images may not properly display on the camera.

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
16
Click OK.

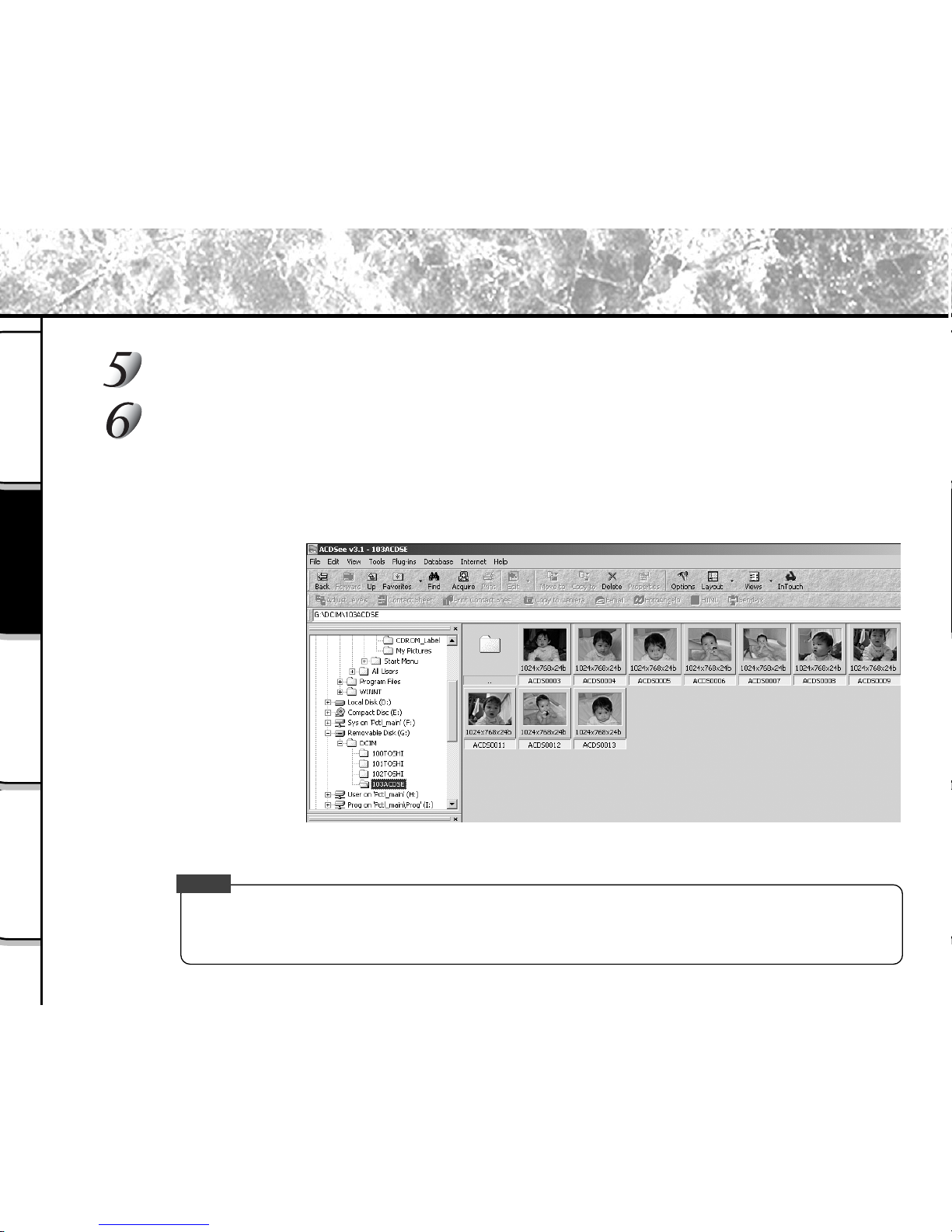

After copying images process completed, one XXXACDSE folder will be automatically
created on the Folder tree pane.
XXXACDSE folder is created next to the last existing XXXTOSHI folder on the Folder tree pane.
Memo
[Do not resize] option on [Copy to Camera] function, the copied images may not properly
display on the camera.
Copying Images to Camera(continued)

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
17
Installation Procedure(for Macintosh)
Installing ACDSee
Insert the CD-ROM supplied with this software package into the CD-ROM drive.
The screen for selecting the display language appears.
Click
Click
Follow the on-screen instructions to complete the
installation.
During the ACDSee installation process, LaunchACDSee will automatically be installed along
with it. With this feature, ACDSee will automatically launch when the camera is connected to your
computer with the USB cable.
LaunchACDSee can be accessed by [Function Extend Manager] - [Setup Item] for MacOS9, and in
the case of MacOSX LaunchACDSee can be accessed by the [Login Items] tab under [Systems
Preferences] - [Login].
Memo

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
18
Using the USB Cable (Macintosh)
To transfer images stored on the PDR-3320 to your computer, you need to connect PDR-3320 to your computer first
by using the USB cable (provided). For Mac OS 9.0 or later users, the computer will recognize the camera and load its
own USB driver while the USB cable is connected so that installing the USB driver is not necessary.
IMPORTAN
T
If the camera's power is turned off while image data is being transferred to the computer, the data may be
damaged. We recommend that you use the AC adapter while connecting the PDR-3320 to your computer.
When connecting the USB cable, pay attention to the shapes of the connectors on the cable.
Connect one end of the USB cable to theDIGITAL terminal on the PDR-3320.
Connect the large end of the USB cable to the USB port on your personal computer.
Turn on the PDR-3320.
Aremovable disk (untitled) appears on the desktop.
Double-clickACDSee.
Go to [Toshiba Camera | XXXTOSHI].
A list of images is displayed on the Browse Window.
Download the images.
<To download all images>Go to [Edit|Select All ]
All the images are being highlighted.Drag and drop those images to copy on your hard disk.

Operationsin
ACDSee
WhenUsing
Macintosh
WhenUsing
Windows
GettingReady
19
General Operations
General Operations
ACDSee is a program composed of three main windows, which work to manage, view and manipulate your images.
TheBrowseWindow
It presents an Explorer-like
interface that lets you locate and manage images
stored in your file system. By default, this
window comes up when you start ACDSee. You
can open more than one Browser at a time by
going to [File |New Window].
Several customization features allow you to
choose the windowpanes, the toolbars, and the
shortcut buttons you wish to use.
TheViewWindow
It lets you view a selected
sequence of images, one at a time. Slide show,
zoom, and some file management features are also
available in this window. To switch between the
Browse window and the View window, doubleclick
an image file in the Browser, or select an
image and press the <Enter> key.
Clicking the Browse button, double -clicking
the image, or pressing <Enter> will return you to
Browse mode.

WhenUsing
Macintosh WhenUsing
Windows GettingReady
Operationsin
ACDSee
20
ThePhotoEnhancer
It lets you touch up your photographs,
or alter them dramatically, with a wide range
of easy-to-use tools.
Clicking the Enhance button or selecting the
[Tools | Edit…] command, will begin a photo
enhancement session. You can have as many
Photo Enhancer windows open simultaneously as
you like.
General Operations(continued)
