Toshiba MV-AM20T(BK) User manual

Microwave Oven
INSTRUCTION MANUAL
Model:
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you
with many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY
MV-AM20T(BK)

Welcome to the world of
TOSHIBA
BEFORE OPERATING THIS PRODUCT,
READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.
BE SURE TO SAVE THIS BOOKLIST FOR FUTURE REFERENCE
CONTENTS
OPERATION
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
UTENSILS

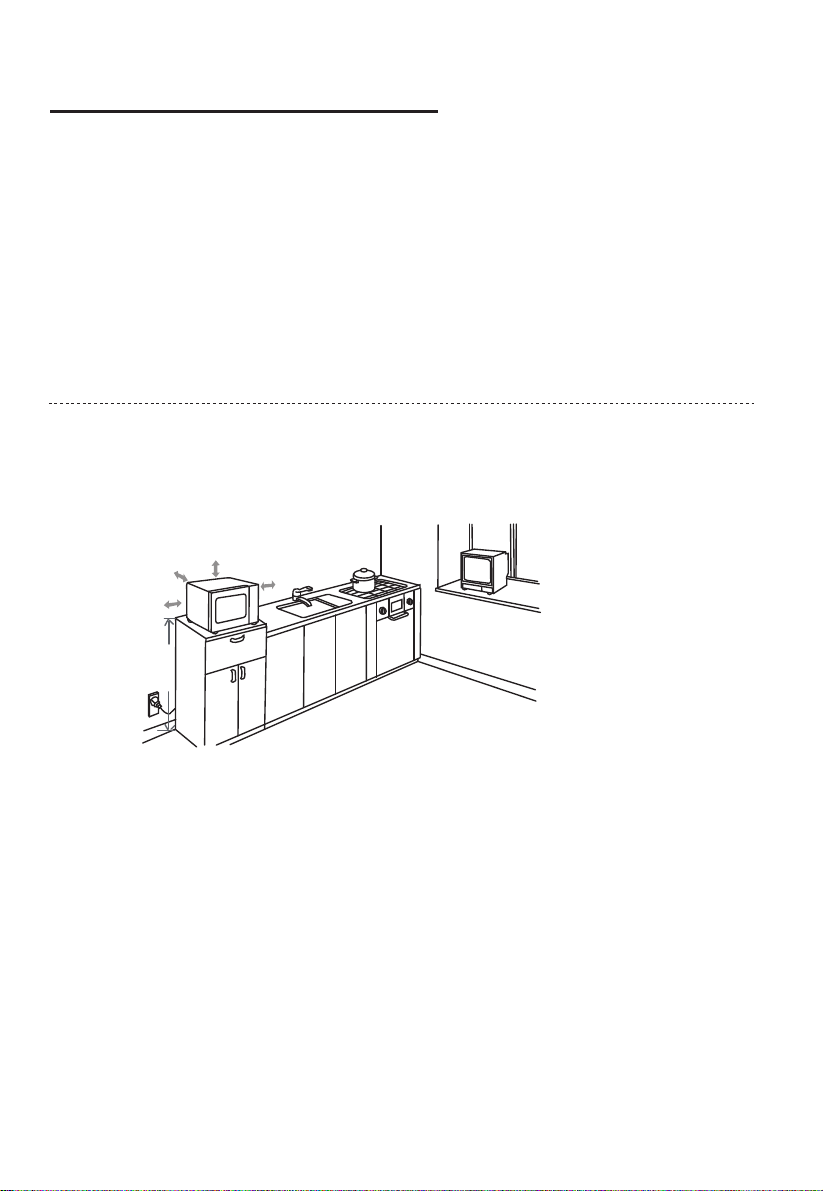

SETTING UP YOUR OVEN
TROUBLE SHOOTIHG
2

Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
240V~50Hz
20L
255mm
Approx.
1250-1320W
1000W
12.59kg
462x381x282mm
800W
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
MV-AM20 (BK)T
3

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
1. Read and follow the specific:"PRECAUTIONS TO
3. Keep the appliance and its cord out of reach of children
less than 8 years.
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
IMPORTANT SAFETY
INSTRUCTIONS WARNING
4

.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due to the possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foods must not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
6. WARNING: It is hazardous for anyone other than a
adversely affect the life of the appliance and possibly
result in a hazardous situation.
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
IMPORTANT SAFETY
INSTRUCTIONS WARNING
5

-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
21.The microwave oven is intended for heating food and
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
18.The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
this oven.(for ovens provided with a facility to use a
17.Only use the temperature probe recommended for
temperature-sensing probe.)
allowed during microwave cooking.
cleaner.
19.The microwave oven must be operated with the
22. Metallic containers for food and beverages are not
23. The appliance shall not be cleaned with a steam
16. The appliance must not be installed behind a
applicable for appliances with decorative door.)
decorative door in order to avoid overheating. (This is not
24.The appliance is intended to be used freestanding.
20.This appliance is intended to be used in household
a wall.
25.The rear surface of appliances shall be placed against
IMPORTANT SAFETY
INSTRUCTIONS WARNING
6

READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
means of an external timer or separate remote-control
system.
26.The appliances are not intended to be operated by
when the appliance is operating.
27. The temperature of accessible surfaces may be high
28.WARNING: When the appliance is operated in the
adult supervision due to the temperatures generated.
combination mode, children should only use the oven under
IMPORTANT SAFETY
INSTRUCTIONS WARNING
7

TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal injury or death. Do not
disassemble this appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding can result in electric shock.
Do not plug into an outlet until appliance is properly
installed and grounded.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of electric
for the electric current.
This appliance is equipped with a cord having a
plug must be plugged into
an outlet that is properly installed and grounded.
shock by providing an escape wire grounding
wire with a grounding plug. The
Consult a qualified electrician or serviceman
instructions are not completely understood or if doubt exists
as to whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-wire
extension cord.
if the gronuding
8

TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
1. A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a
longer cord.
2. If a long cord set or extension cord is used:
1)The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the a[[ppliance.
2)The extension cord must be a grounding-type 3-wire cord.
3)The long cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on
by children or tripped over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
9

TO REDUCE THE RISK OF
INJURY TO PERSONS
GROUNDING INSTALLATION
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a competent person to carry out any
service or repair operation that involves the removal of
a cover which gives protection against exposure to
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water
(250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
microwave energy.
not use it for microwave cooking.
10

MATERIALS YOU CAN USE IN MICROWAVE OVEN
UTENSILS REMARKS
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
11

Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
UTENSILS REMARKS
12

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
Grill Rack( Can not be used in microwave
function and must be placed on the glass tray )
SETTING UP YOUR OVEN
NAMES OF OVEN PARTS AND ACCESSORIES
Remove the oven and all materials from the carton and oven cavity. Your
oven comes with the following accessories:
13

Installation
1.Select a level surface that provide enough open space
for the intake and/or outlet vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.
Leave a minimum clearance of 30cm above the oven, a
minimum clearance of 20cm is required between the oven
and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/ or outlet openings can damage
the oven.
(5) Place the oven as far away from radios and TV as
possible. Operation of microwave oven may cause
interference to your radio or TV reception.
20cm
30cm
20cm
min85cm
0cm
SETTINGUP YOUR OVEN
COUNTERTOP INSTALLATION
Remove all packing material and accessories. Examine the
install if oven is damaged.
Cabinet: Remove any protective film found on the microwave
cover that is attached to the oven cavity to protect the magnetron.
oven for any damage such as dents or broken door. DO not
oven cabinet surface. Do not remove the light brown Mica
14

SETTINGUP YOUR OVEN
INSTALLATION
2.Plug your oven into a standard household outlet. Be sure
WARNING
Do not install oven over a range cooktop or other heat-
the oven could be damaged and the warranty would be avoid.
The accessible surface may
be hot during operation
and the frequecy on the rating label.
the voltage and the frequency is the same as the voltage
producing appliance. If installed near or over a heat source,
15

OPERATION INSTRUCTIONS
1) Press " " once, the screen display "800w".
2) Turn " " to adjust the hour figures, the input time should be within 0--23.
3) Press " ", the minute figures will flash .
3) Press " " to confirm, and the screen displays "600w".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " " to start cooking .
1. Clock Setting
When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.
1) Press " " twice to select clock function, the hour figures will flash.
4) Turn " " to adjust the minute figures, the input time should be within 0--59.
5) Press " " to finish clock setting. ":" will flash, and the time will light.
2) Press " " once again or turn " " to choose 600W microwave power.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " " or if there
2. Microwave Cooking
Press "" once, the screen will display "800w" and "00:00" is
" "
confirm, and turn " " to set 0:05 to 95:00.
again to
Example: If you want to use 600W microwavepower to cook for 20 minutes, you can
operate the oven as the following steps.
MICROWAVE
STOP/CANCEL
" to choose the power you want, and "800w",
"600w", "400w", "
to
s
KITCHEN TIMER
cooking time from
start cooking.
,"100w" will display for each added press.Then press
repeatedly or turn "
CLOCK/
light. Press
200w "
is no operation in 1minute, the oven will go back to the previous status automatically.
MICROWAVE
"START/+30SEC."
"START/+30SEC."
MICROWAVE
MICROWAVE
START/+30SEC.
START/+30SEC.
Press
START/+30SEC.
START/+30SEC.
6) If need to reset the clock, please repeat the step1 to step 5.
16

3. Grill or Combi. Cooking
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 min ute
30---95 min : 5 minutes
Order Microwave
Power
Display
1
2
3
4
5
100%
80%
50%
30%
10%
"
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook
for 10 minutes, you can operate the oven as the following steps.
Press "" once, the screen will display "G". Press " "
confirm, and turn
" " to set
0:05 to 95:00. Press " " again to
START/+30SEC.
START/+30SEC.
" to choose the power you want, and "G", "C-1". "C-2"
press " " to
cooking time from
start cooking.
will display for each added press.Then
repeatedly or turn "
" Pad instructions
MICROWAVE
800w
600w
400w
200w
100w
GRILL/COMBI GRILL/COMBI
1) Press " " once, the screen display "
3) Press " " to confirm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press " " to start cooking.
2) Press " " for times or turn " " to choose combi. 1 mode.
START/+30SEC.
START/+30SEC.
s
GRILL/COMBI
GRILL/COMBI
G".
OPERATION INSTRUCTIONS
17

1) Press " " twice, and the oven will display the defrost power "240w" and
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
1) Press " " once, and "100" will flash to remind you input the defrost weight.
2) Turn " " to select the weight of food from 100 to 1500 g.
3) Press " " to start defrosting.
" " to set 30 seconds of cooking time and the oven
"800w" is light, and "00:00" will flash. Then turn " " left or right to set cooking
4. Quick Start
6. Defrost By Time
5. Defrost By Weight
START/+30SEC.
START/+30SEC.
START/+30SEC.
3) Press " " to start defrosting. The defrost power cannot be changed.
START/+30SEC.
Grill
Power
100%
45%
64%
0%
55%
36%
1
2
3
Microwave
Power
Order Display
"GRILL/COMBI" Pad instructions
G
C-1
C-2
DEFROST
DEFROST
"00:00" will flash to remind you input the defrost time.
time (or press
start cooking automatically). After choosing the cooking time, press " "
seconds cooking time. Defrosting stage cannot increase time.
START/+30SEC.
to start cooking.
1) In multi-stage cooking state, each press of " " can increase 30
" " can increase 30 seconds of cooking time.
2) In microwave, grill, combination cooking or time defrost state, each press of
3) In waiting state, turn " " left to set cooking time with 100% microwave power,
START/+30SEC.
OPERATION INSTRUCTIONS
18

1) Turn " " clockwise till "A-6" display .
Example: If you want to use "Auto Menu" to cook pasta for 100g.
2) Press " " to confirm.
1) Turn " " right to choose the menu, and "A-1" to "A-12" will display.
2) Press " " to confirm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " " to start cooking.
3) Turn " " to select the weight of fish till "100" display .
4) Press " " to start cooking.
8. Auto Menu
START/+30SEC.
START/+30SEC.
START/+30SEC.
START/+30SEC.
s
s
7. Kitchen Timer
", the screen will display 00:00.
" to confirm setting.
4) When the kitchen time is reached, the buzzer will ring 5 times and "End" will display
on the screen.
Note: 1) The inquiry of current time cannot work when the kitchen timer is working.
START/+30SEC.
once1) Press "
2) Turn " " to enter the correct time. (The maximum cooking time is 95 minutes.)
3) Press "
KITCHEN TIMER
CLOCK/
STOP/CANCEL
2) During the working of kitchen timer, press" " can cancel the kitchen timer
and the oven go back to waiting state.
OPERATION INSTRUCTIONS
19
