Canvio AERO Mobile
Model: DTQ112
User Manual

TOSHIBACorporation –wireless SSD User Manual v0.1.1
2
1. CanvioAERO Mobile Overview
Toshiba Wi-Fi SSD (code name: CanvioAEROMobile) allows to wirelessly
access your music, videos, pictures, data and stream it to your iPad®,
iPhone®, tablets, smartphones, and notebooks – no cords or cables to
tangle. With the internal SSD storage, there is no need to worry about
running out of space on your mobile devices and the built-in USB 3.0 port
makes the file transfer easier and much faster.
2. CanvioAEROMobileFeatures
Can work in two modes: DAS(Direct-Attached Storage) mode and
Wi-Fi mode(Wi-Fi Storage mode)
Access and stream your music, videos, pictures and data using the
free Application supporting iOS and Android operating systems
Up to8Hours of continuous battery life in video streaming condition.
Search function to locate and access your file much faster.
Internet access capability via wireless, supporting 802.11 b/g/n
Built-in 128GB SSD with NTFS format.
Supports SD memory, SDHC, Class 10 compatible.
Support multiple-network accessing, including WebDAV.
3. Components
CanvioAEROMobileincludes the following components:
Toshiba Wi-Fi SSD( CanvioAEROMobile)
AC adapter
USB 3.0 cable
Quick Start guide
User manual(This document)
Pouch for AEROMobile

TOSHIBACorporation –wireless SSD User Manual v0.1.1
3
4. CanvioAEROMobile Specification
4.1Hardware specification
Product Dimension: 123.5mm (L)*63.0mm (W)*12.5mm (H)
Weight: 1xxg
CPU: MTK MT7620A (600MHZ)
Battery: 3100mAh Li-ion type
Wi-Fi:
Standard: 802.11 b/g/n
Frequency: 2.4 GHZ
Speed: 1T1R up to 150Mbps
On/Off button:
Press it 2 seconds, Wi-Fi mode turn ON,
Press it 2 seconds, Wi-Fi mode turn OFF from ON.
If battery is too low, you could not turn on the AEROMobile, Orange
color battery indicator will blinking with 6 seconds, then OFF.

TOSHIBACorporation –wireless SSD User Manual v0.1.1
4
Reset button:
In Wi-Fi mode, press it with 5S, system restore to factory settings
USB3.0 Host：
Compatible with USB3.0 and USB2.0
Connect to computer, It uses for transmit data between the computer
and CanvioAEROMobile.
Connect to AC adapter, it use for charging the product battery.
SD Card Slot:
Class 10 compatible, support SD memories, SDHC.
In Wi-Fi mode, youcan access SD card.
Battery Indicator
Green color: The battery power is ≥30%.
Yellow color: The battery power is <30% and >10%.
Orange color with faster blinking: the product is out of battery or the
production temperature is too high, it will shut down with blinking 30s.
Green or Yellow color with slow blinking: The battery is charging.
Green or Yellow color with faster blinking: The product is shutting
down or turning on.
LED off: The device is power off.
Wi-Fi/SSD indicator
Wi-Fi Mode
Blue color: Wi-Fi is ON, without data access.
Blue color with blinking: Storage access
Blue light off: Wi-Fi is OFF.
DAS Mode
White color: without data access
White color with blinking: data access

TOSHIBACorporation –wireless SSD User Manual v0.1.1
5
White Light off: Safety Remove, system Sleep or standby.
SD Card indicator:
Only light in Wi-Fi Mode
Violet color: without access.
Violet color with blinking: SD card access
Violet color off: SD Card goes into standby.
Environment requirement:
Temperature
Operating: 5 to 35degree Celsius
Storage: -20 to 60 degree Celsius
Humidity
Operating: 20-80%
Storage: 8-90%
4.2Software specification
Compatible file type
Videos: mp4, 3gp, m4v, mov, avi
Music: mp3, m4a, aac, wav
Pictures: jpg, bmp, png, gif, tif
Documents(iOS only): pdf, doc, docx, ppt, pptx, xls, xlsx, txt, (rtf)
Others: will be opened by external software
System requirement
PC Operating System
Windows: Windows 7/8/8.1
Mac: OS X 10.7/10.8/10.9
Web browser:
Windows: Internet Explorer 9.0 or later

TOSHIBACorporation –wireless SSD User Manual v0.1.1
6
Mac: Safari 5.0 or later
Others: Firefox 3.0 or later; Google Chrome 13 or later;
iOS: 5.1and above
Android: 2.3 and above
4.3Function modes

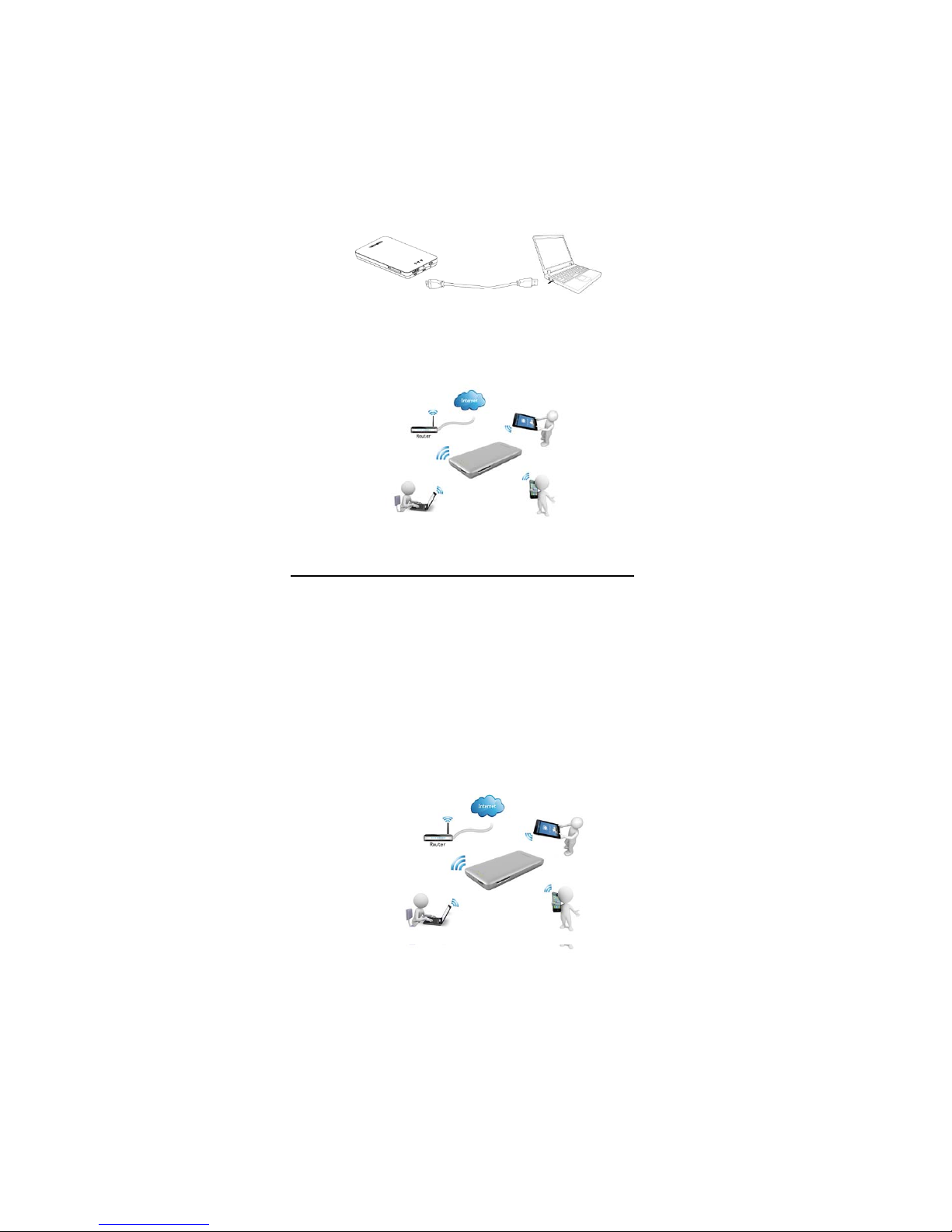

DAS mode (Direct-Attached Storage):
Simply connect CanvioAEROMobile to computer’s USB port with attached
USB 3.0 cable. It works in DAS mode automatically. You can start
transferring data to and from the product.
Wi-Fi mode (Wi-Fi storage)
Press ON/OFF button and power on system, CanvioAEROMobile works as
Wi-Fi mode, you can accessed CanvioAEROMobile wirelessly from PC,
MAC, iOS and Android mobile devices using the AEROMobile Client.

TOSHIBACorporation –wireless SSD User Manual v0.1.1
7
5. Charging CanvioAERO Mobile
CanvioAEROMobilecan be charge via AC adaptor with attached USB
cable.
You should charge CanvioAEROMobile when you see the battery indicator
is Yellow color.
While charging, you can see the battery indicator will light with slowblinking
(interval time is 2 seconds).

TOSHIBACorporation –wireless SSD User Manual v0.1.1
8
6. Canvio AERO Mobile Software Utility
Instruction
6.1 System login
6.1.1 Web browser login
A. Connecting Wirelessly to PC/Mac
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Enable the Wi-Fi feature on your PC/Mac and open the Wireless Network
Connection.
Select “Toshiba-wssd-xxxx” wireless connection (default wireless SSID:
Toshiba-wssd-xxxx) and enter the default password as 12345678. Once
you have successfully connected to your CanvioAEROMobile.
B. Web browser login
Open web browser, input “http://10.10.10.254” as the default URL
(If Internet is not available, input any URL, will jump to this page)
You will enter the web interface as below

TOSHIBACorporation –wireless SSD User Manual v0.1.1
9
Type the default User Name as admin and leave the User Password as
blank, and you can select the language you want.
Click on the “login” button to access the Web main Interface
6.1.2 iOS client login
A. Install iOS application
Search and locate the free TOSHIBA app called “WiFiSSD” from the Apple
Store.
Install the “WiFiSSD” app and follow the on-screen installation instructions.
The “WiFiSSD” icon will appear on the desktop once the installation
process has been completed
B. Connecting wirelessly to iOS device.
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Go to the Setting->Wi-Fi option in your iPad/iPhone. Click and choose on
the “Toshiba-wssd-xxxx” as seen on the image below, Using “12345678”
as the default password.
C. Application login
Run the applet “WiFiSSD” and log into the“WiFiSSD” as seen on the
screenshot below.
Default setting of the users is “admin”
Default setting of the password is no password needed

TOSHIBACorporation –wireless SSD User Manual v0.1.1
10
Click on the “OK” button to access the mainInterface.
Android client login
A. Install Android application
Search and locate the free TOSHIBA application called “WiFiSSD” from the
Google Play Store. Install the “WiFiSSD” app and follow the on-screen
installation instructions.
The “WiFiSSD” icon will appear on the desktop once the installation
process has been completed.
B. Connecting Wirelessly to Android device.
Switch-on the CanvioAEROMobile by pressing the power button. Wait for
few minutes until the Wireless LED steady.
Go to the Setting->Wi-Fi option in your tablet or smart phone. Click and
choose on the “Toshiba-wssd-xxxx”, Using “12345678” as the default
password.
C. Application login

TOSHIBACorporation –wireless SSD User Manual v0.1.1
11
Run the applet “WiFiSSD” and log into the“WiFiSSD” as seen on the
screenshot below.
Default setting of the users is “admin”
Default setting of the password is no password needed
Click on the “OK” button to access the mainInterface.
6.2 Main interface

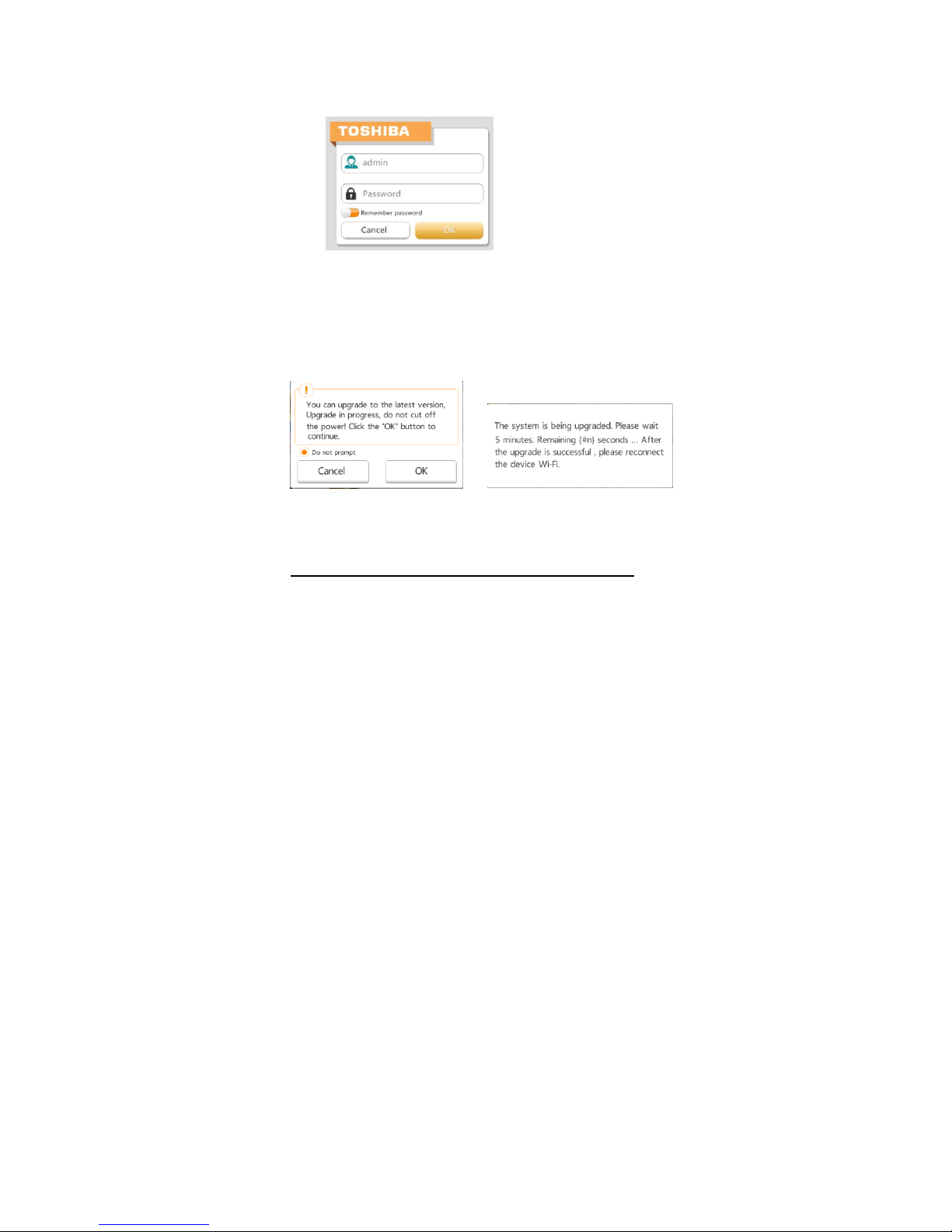

When you enter the main interface, AEROMobile may inform you if there is
a new Firmware. You can select to“OK” update, or select cancel, or never
prompt.
If you select OK to update, the system will inform you to wait 5mins.
If you select cancel, next time when you login and enter main interface,
AEROMobile will inform you again.
If you select never prompt, AEROMobile will never inform you the firmware

TOSHIBACorporation –wireless SSD User Manual v0.1.1
12
upgrade. If you still want to upgrade firmware. You can go to setting page to
upgrade firmware manually.
Web main interface

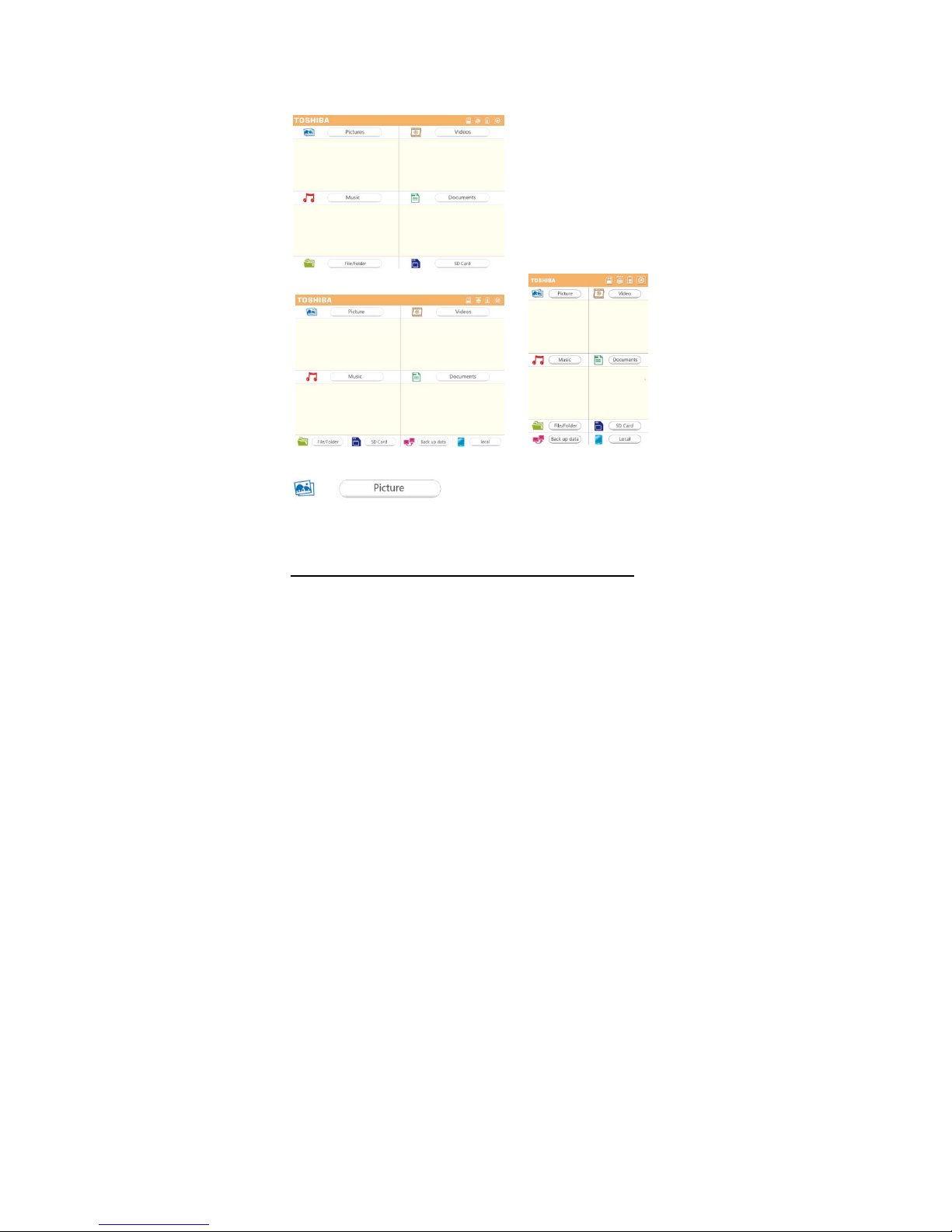

Application main interface:
(For big screen) (For small screen)
Display pictures preview. If it is not enough pictures, it will show the current
pictures.
Click on the pictures button to enter Pictures Management

TOSHIBACorporation –wireless SSD User Manual v0.1.1
13
Display video files preview. If no video, it will use the default picture. If it is
not enough videos, it will show the current videos.
Click on the videos button to enter Videos Management.
Display music files preview. If no music, it will use the default picture. If it is
not enough 2 music, it will show the current music.
Click on the music button to enter Music Management
Display documents preview. If no document, it will use the default picture. If
it is not enough documents, it will show the current documents.
Click on the documents button to enter Documents Management.
Click on this button, you can enter File/Folder Management Interface,
where you can create folder, copy file/folder, delete file/folder, share file,
upload/download file etc.
You can incremental back up all the videos and pictures in the SD Card to
one of the four user directories: Default, Owner1, Owner2 or Owner3.
(iOS and Android device only)
You can incremental back up the local camera videos and pictures to one of
the four user directories: Default, Owner1, Owner2 or Owner3.

TOSHIBACorporation –wireless SSD User Manual v0.1.1
14
(iOS and Android only)
You can switch to the local, access to the local files
SD card is available
I
nternet connection is available.
No Internet connection
Display the current battery capacity of CanvioAEROMobile
Click on this button, you can enter the CanvioAEROMobile’s system
settings
6.3 Pictures Management
6.3.1pictures management interface

TOSHIBACorporation –wireless SSD User Manual v0.1.1
15

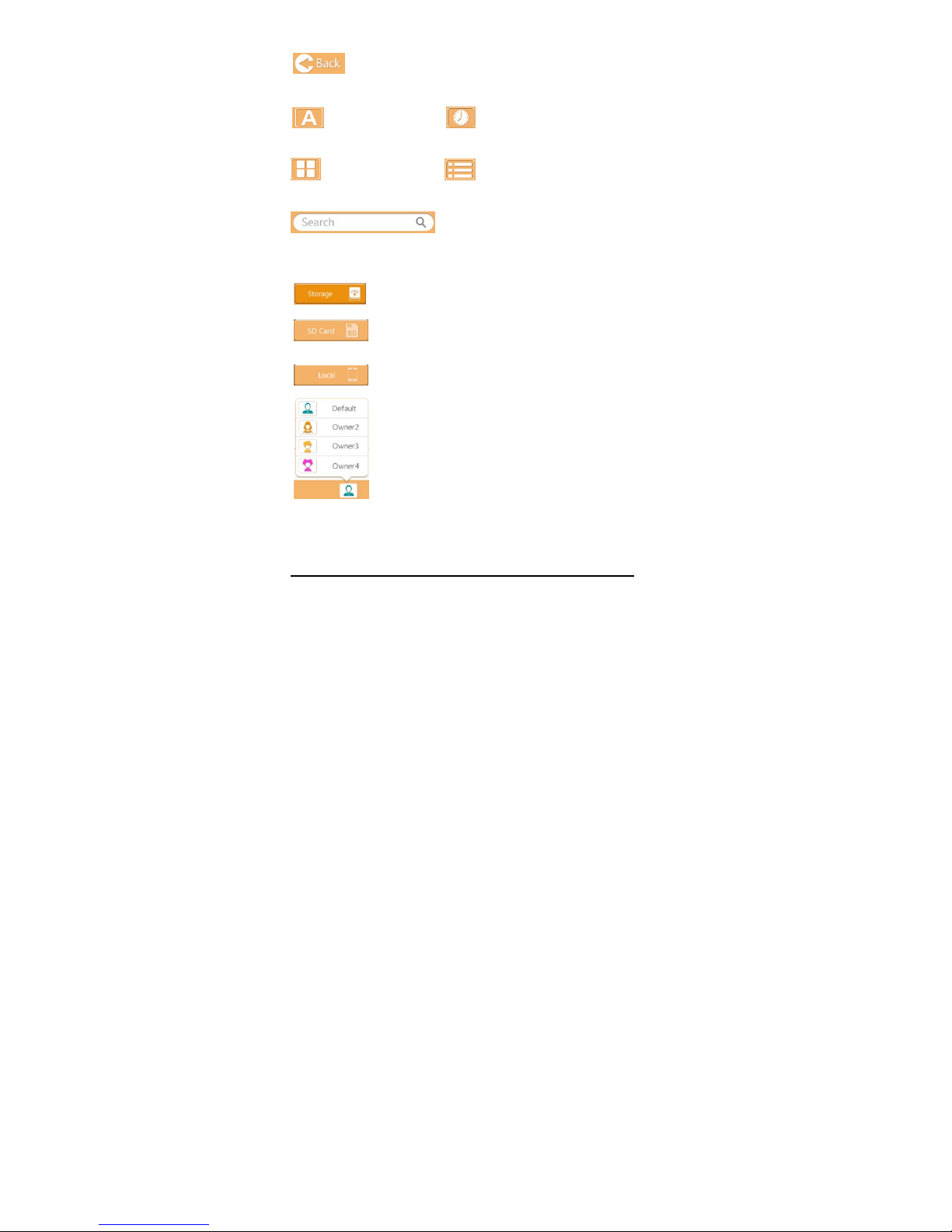

Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
Switch to the local iOS and Android device. (iOS and
Android device only)
When switch to SSD “Storage” of the
CanvioAEROMobile. You can choice the pictures from
one of the 4 users.The 4 users default names are
“Default”, “Owner1”, “Owenr2”, and “Owener3”

TOSHIBACorporation –wireless SSD User Manual v0.1.1
16
6.3.2Picture Viewer Interface
Click the picture to enter the Picture Viewer Interface.
Click the "Back" button to return to Pictures Management Interface.
Click the “Download" button, you can download the current picture to
the local album.
Click on the "play/pause" button, can start and stop photo slide show.
“Loop playback” mode, “Sequential Mode”
Click on the button, you can switch to each other.
Click the”Share” button, you can share the current picture to
Facebook/Twitter/Email.

TOSHIBACorporation –wireless SSD User Manual v0.1.1
17
6.4 Videos Management
6.4.1Videos Management Interface
Return to the main page
“Sort by name” mode, “Sort by date” mode
Click the button can switch to each other
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile

TOSHIBACorporation –wireless SSD User Manual v0.1.1
18
Switch to the local iOS and Android device. (iOS and
Android only)
When switch to SSD “Storage” of the CanvioAEROMobile. You
can choice the pictures from one of the 4 users.
The 4 users default names are “Default”, “Owner1”, “Owenr2”, and
“Owener3”

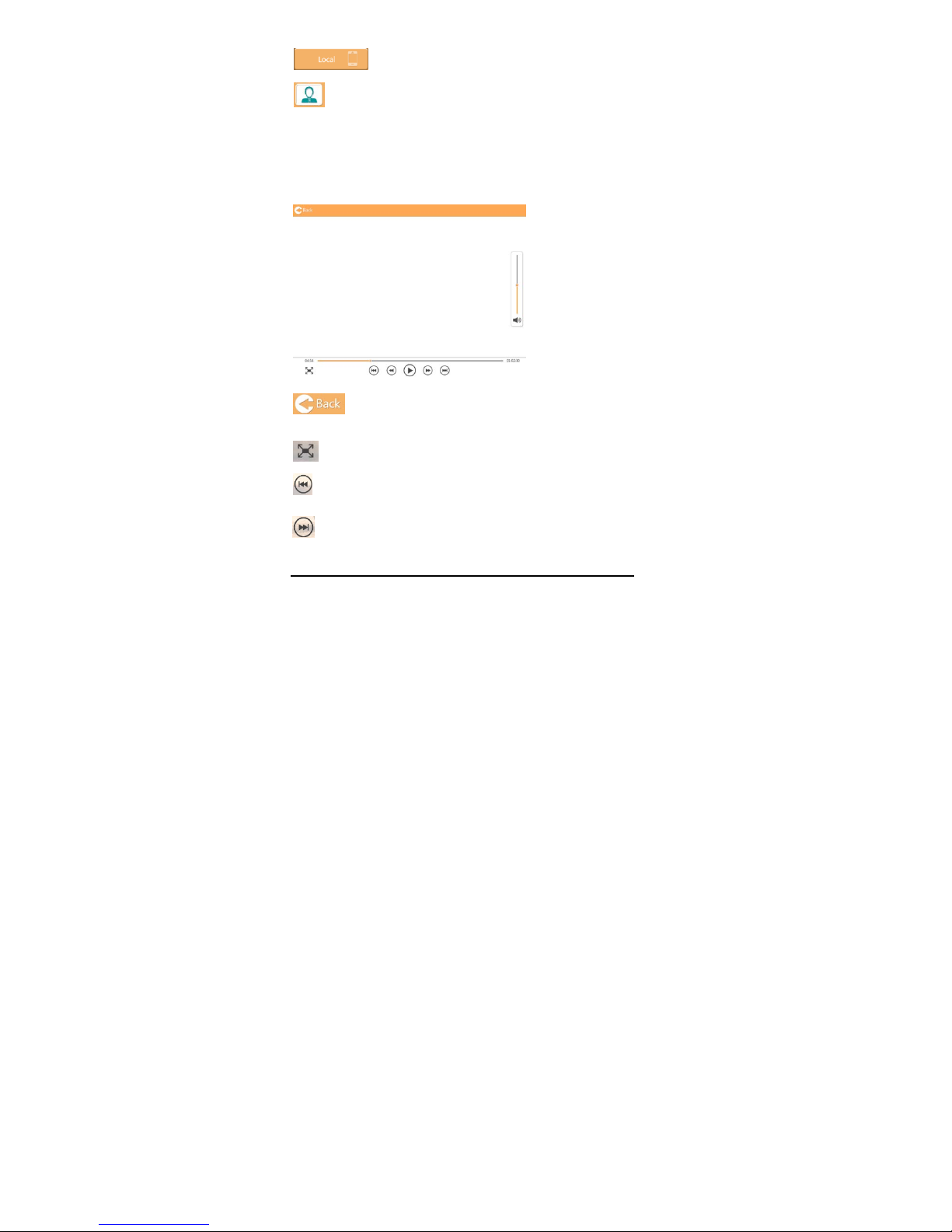

6.4.2Video playback interface(iOS and Android device only)
Click on the video file, switch to the video player interface.
Click the "Back" button to return to the Videos Management Interface.
Click the “Zoom” button; you can adjust the playback screen size.
Click the "Previous" button to switch to the previous video playback.
Click the “Next " button to switch to the next video playback.

TOSHIBACorporation –wireless SSD User Manual v0.1.1
19
Click the “Rewind” button and the video rewind at the speed of 20
seconds.
Click the "Forward" button and the video forward at the speed of 20
seconds.
Click the “Pause / Play “button to play / pause the current playing
video.
Playback progress bar, drag the progress bar, the video will jump to the
drag position to play.
Volume control bar, drag the control bar, you can adjust the volume of
the video. The volume is divided into four states: quiet, small,
medium and maximum volume.
If the web browser support video play, you can play the video within the web
browser, otherwise, you will be asked to download the video to local device.
6.5 Music Management
6.5.1Music Management Interface

TOSHIBACorporation –wireless SSD User Manual v0.1.1
20
Return to the main page
“
Thumbnail” mode, “list” mode
Click the button can switch to each other
Enter the key letters or numbers in the search box, you can search out all
the picture files contains the keyword
Switch to SSD Storage of the CanvioAEROMobile
Switch to SD Card of the CanvioAEROMobile
Switch to the local iOS and Android device. (iOS and
Android device only)
"All Songs", "All Songs" is the default mode.
"Album": All the songs are classified by album.
"Artist": All the songs are classified by artist.
"Favorites": "Favorites" is display all your favorites
songs. You can add the songs to favorite page by
clicking on in “All music” page, “Album” page and
“Artist” page, and remove the songs from favorite page
by clicking on in favorite page.
