User’s Manual

User’s ManualEN-2
Copyright
Copyright 2009. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a
retrieval system or translated into any language or computer
language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the
prior written permission of this company.
Disclaimer
This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability or fitness
for any particular purpose. Further, this company reserves the
right to revise this publication and to make changes from time to
time in the contents hereof without obligation to notify any
person of such revision or changes.
Important safety instructions
n Retain this user’s manual for future reference.
n Read the safety and operating instructions carefully before
using the product. All warnings on the product and in the
operating instructions should be observed.
n Do not place this product under direct sunlight or near heat
sources, such as in a closed car under sunlight or near a
stove. The outer casing of this product may become
deformed and the sophisticated sensors inside may become
damaged due to excessive heat.
n Do not use this product near water, in the rain or allow any
liquid to get inside this product. Water and moisture may
Regarding the digital TV function, please be notified that
in some areas, the signal reception quality can be
affected due to the distance to signal transmission sites,
or affected when blocked by an obstruction.

User’s Manual EN-3
cause short-circuit to the electronic components and lead to
malfunctions.
n Do not use this product near strong electromagnetic sources,
such as a microwave oven. The electromagnetic interference
may cause this product to malfunction.
n Do not drop or apply shock/vibration to this product. Strong
impacts may damage the components inside.
n Do not insert objects other than compatible memory cards
into the memory card slots of this product. The metal
contacts inside the slots can easily become damaged by
foreign objects.
n Do not use an unknown power adapter other than the one
supplied with this product. Connecting this product to an
unknown power adapter is very dangerous and may lead to
fire or explosion.
n Do not cut, bend, modify, place heavy objects, or step on the
cable of the power adapter. Otherwise the external insulation
may be damaged and result in short-circuit or fire.
n If there are strange odors or heat emitting from this product
or any signs of malfunction, disconnect this product from the
power immediately and contact your dealer for inspection or
service.
n Use a smooth, soft cloth to clean the surface of the screen.
Do not use liquid cleaners or glass cleaners.
n If a foreign substance or water gets in this product, please
turn the power off immediately and disconnect the power
adapter. Next, remove the foreign substance or water, and
then send the product to your nearest service center.
n Do not attempt to disassemble or modify this product. There
are no user serviceable parts inside this product, and
unauthorized modifications will cause the warranty to void.
n Although the LCD panel is made with high-precision
technology and has effective pixels of 99.99% or more, black
dots or bright points of light (red, blue, or green) may appear
constantly on the LCD panel. This is a structural property of
the LCD panel and is not a malfunction.

User’s ManualEN-4
Introduction
Welcome and thank you for choosing a TOSHIBA product.
For your convenience, your TOSHIBA product is furnished with
two guides:
n Quick Start Guide, and
n this comprehensive PDF User’s Manual.
Journ e M400 features a 4.3" touch-sensitive Liquid Crystal
Display (LCD) panel. This unit enables you to display photos or
play music and video files stored on a microSD or microSDHC
card. More than just a photo frame, this unit comes with digital
TV and radio functions.
This unit (digital photo frame) is equipped with the following
features:
n Clear and bright pictures
n Capable of receiving digital TV and radio signals that comply
with the DVB-T standard
n Supports multiple audio channels (depending on the signals
received)
n Supports playback of multimedia files.
n Automatic/manual time zone configuration
n Multi-language On-Screen Display (OSD) menus
n Built-in speaker
n Supports output of audio signals to equipment with
compatible audio input sockets.

User’s Manual EN-5
Table of contents
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying the parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Right view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Getting started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the hand strap . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Using the foot stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the power switch/lock key. . . . . . . . . . . . . . . . . . . . . 13
Inserting or removing the supplied microSD card. . . . . . . . 14

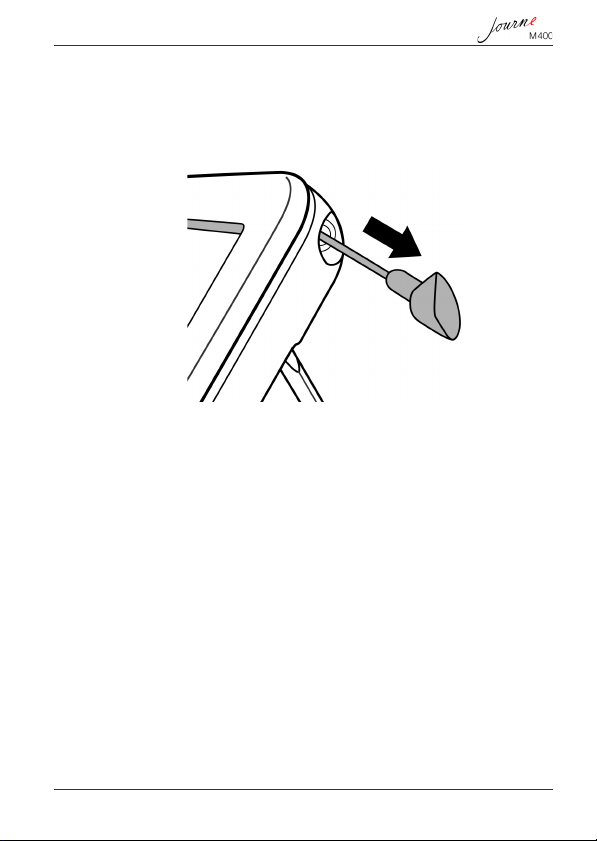

Using the built-in antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Operating this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
First-time startup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Selecting a channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Using the OSD menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Photo menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Music menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Video menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Digital TV and Digital Radio menus . . . . . . . . . . . . . . . . . . 23
Viewing TV Guide and Radio Guide (EPG) . . . . . . . . . . 24
Setting your favorite channels . . . . . . . . . . . . . . . . . . . . 24
Adding favorite channels . . . . . . . . . . . . . . . . . . . . . . 24
Removing favorite channels . . . . . . . . . . . . . . . . . . . 24
Going to a favorite channel . . . . . . . . . . . . . . . . . . . . 25
Setting up your password. . . . . . . . . . . . . . . . . . . . . . . . 25

User’s ManualEN-6
Setting Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To set Channel Lock for channels: . . . . . . . . . . . . . . . 26
To enable/disable Channel Lock: . . . . . . . . . . . . . . . . 27
Setting Parental Control . . . . . . . . . . . . . . . . . . . . . . . . . 27
Searching for channels manually . . . . . . . . . . . . . . . . . . 28
Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
TOSHIBA support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Regulatory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
CE compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Working environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Following information is only valid for EU-member States: . 36
Disposal of products . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Disposal of batteries and/or accumulators . . . . . . . . . . . 37
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

User’s Manual EN-7
Package contents
Carefully open the packing box and ensure that you have the
following items.
n Journ e M400 x 1
n CD x 1 (including a User’s Manual PDF file and video
converter software)
n Power adapter x 1 (with a replaceable plug)
n 1GB microSD card x 1 (with an SD adapter and a card
container)
n Hand strap x 1
n Warranty leaflet
n Quick Start Guide x 1
Available accessories may vary depending on the area where you
purchased this unit.

User’s ManualEN-8
Identifying the parts
Left view
No. Description
XTouch panel
Allows you to operate the menus and functions of this
unit by tapping the touch-sensitive Liquid Crystal Display
(LCD) panel.
YEarphone/Audio output socket
Supports stereo audio signal output to earphones or
external audio devices.
• The built-in speaker will be muted once this socket
is used.
• Avoid prolonged use of the earphones or listening
at high volume. Otherwise your hearing may be
damaged.
\
X
Y
Z
[

User’s Manual EN-9
Right view
ZPower socket
Allows you to connect the supplied power adapter to
charge the built-in battery of this unit.
This socket does not support file transfer with PC.

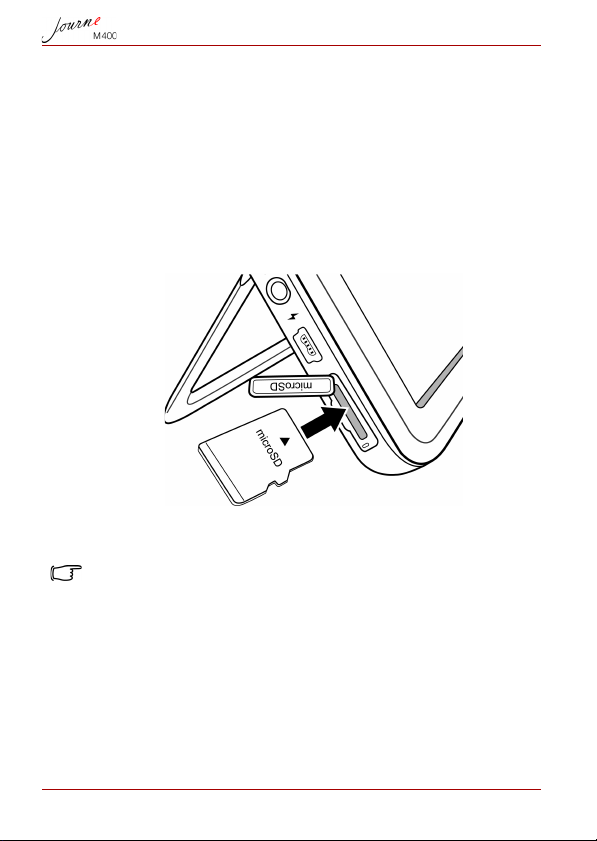

[microSD/microSDHC slot
Allows you to insert a microSD or microSDHC card into
this slot for playing your stored audio, video, and image
files. See “Inserting or removing the supplied microSD
card” on page 14 for details.
\Foot stand
See “Using the foot stand” on page 11 for details.
No. Description
XBuilt-in antenna
See “Inserting or removing the supplied microSD card”
on page 14 for how to extend the antenna.
X
Y

User’s ManualEN-10
Rear view
YStrap hole
See “Installing the hand strap” on page 11 for how to
install the hand strap.
Avoid applying excess force onto the connection
between this unit and the hand strap. Otherwise the
hand strap may break apart, causing this unit to fall
and result in damages.
No. Description
XPower switch/Lock key
n : Turns this unit on/off.
n : Locks up the touch panel.
See “Using the power switch/lock key” on page 13 and
“Charging the battery” on page 12 for details.
YSpeaker
This speaker only delivers mono audio. To enjoy high
quality stereo sounds, you need to connect this unit to a
stereo audio device via the Earphone/Audio output socket.
X
Y

User’s Manual EN-11
Getting started

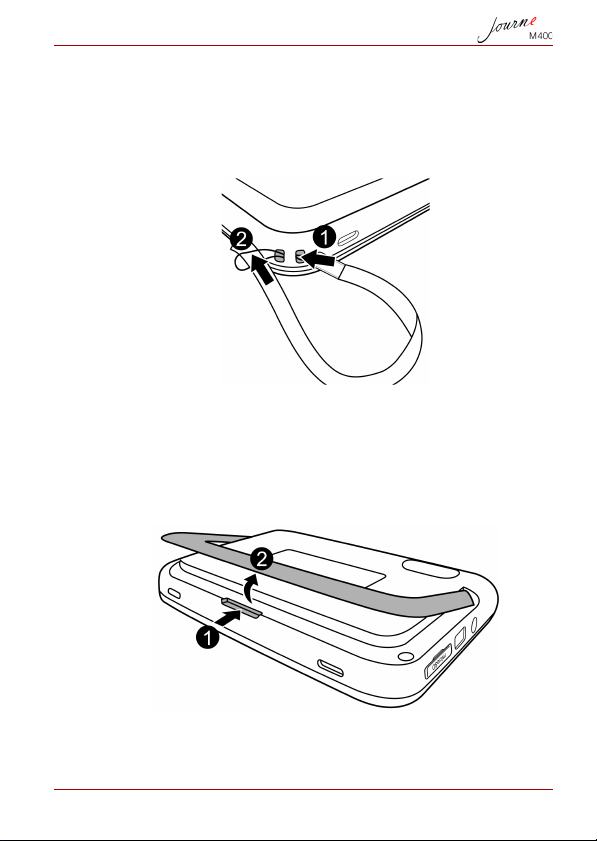

Installing the hand strap
Refer to the illustration below to install the hand strap.
Using the foot stand
1. Use your fingernail to press in at the groove on the bottom
edge of this unit as illustrated.
2. Lift up the foot stand as illustrated, and then place this unit on
a stable surface.

User’s ManualEN-12
Charging the battery
1. Connect one end of the power adapter to the power socket on
this unit, and then plug the other end into a wall outlet.
Power systems and plug types may vary depending on your
country/region.
2. When charging the battery, the power status indicator lights
up in orange, and an icon appears on the top right
corner of the screen. Once the battery is fully charged, the
orange light goes off and the icon disappears.
• When this unit is turned on and the built-in battery is in use, the
indicator lights up in blue.
• When this unit is turned on and the battery is being charged, the
indicator lights up in both orange and blue.
• It takes approximately 3 hours to charge the battery using the
power adapter, depending on the status of the battery (remaining
battery power and battery life) and conditions of this unit (signal
strength, volume, and brightness settings, etc.)
• You can turn on and use this unit while charging the battery. To
speed up the charging process, turn off this unit.
Power
socket

User’s Manual EN-13
• You can also charge the battery by connecting this unit to a USB
port on your PC using a USB cable (not provided). However, the
charging speed is slower.
• The average lifetime of the built-in Lithium-polymer battery is
about 300 cycles. After 300 recharging cycles, battery
performance and capacity begins to decline gradually.
• Do not disassemble or modify the battery.
Using the power switch/lock key
Turning this unit on/off:
n To turn on the power, slide the power switch/lock key to the
position.
n When the power is on, slide the power switch/lock key to the
position to turn it off.
Locking up the touch panel:
To lock up the touch panel, slide the power switch/lock key to the
position.
Power switch/Lock key
Power on/offScreen lock-up

User’s ManualEN-14
Inserting or removing the supplied
microSD card
Load your photos onto the supplied microSD card, and then
insert the memory card to this unit to display your photos. You
can also load other types of media files to the microSD card,
such as music and video files.
To insert the microSD card:
Insert the microSD card into the card slot following the direction
indicated on the card.
To remove the microSD card:
Press on the microSD card to release the card.
• This unit can support a microSD or microSDHC card with
capacity up to 8GB.
• Both FAT16 and FAT32 file formats are supported. However, the
NTFS file format is not supported.
• You can change or remove the microSD card when the power of
this unit is either turned on or turned off.

User’s Manual EN-15
Using the built-in antenna
If you want to use the digital TV function, follow the instructions
below to adjust the built-in antenna.
1. Gently pull the built-in antenna all the way out.

User’s ManualEN-16
2. Rotate the antenna while observing the display on the screen
until the signal reception achieves a satisfactory level.
To determine the signal quality, check the signal quality indicator
shown on the top right corner of the screen.

User’s Manual EN-17
Operating this unit
First-time startup
When using this unit for the first time, follow the instructions
below to complete the first-time startup settings:
1. Slide the power switch to the position to turn on this unit.
2. After startup, the touch panel calibration function will be
initially activated, showing 5 plus signs on the screen. Tap
these signs with your fingertip until they all disappear.
3. The Auto Installation screen appears.
a. Tap or in the OSD Language menu item to select
your language.
b. Tap or in the Region menu item to select the
country/region where you are located.
The “Time Zone” menu item will change accordingly as you choose
your region setting. In some regions, there are more than one time
zone, please choose the correct time zone manually according to
the place you are located in.
c. Tap the Auto Search menu item, and then tap YES to
start searching for available channels.
This unit will start searching for digital TV and radio
channels with a search progress bar indicating the status.

User’s ManualEN-18
4. Once the Auto Search process is complete, this unit will
display the first registered channel.
The time required for the Auto Search process may vary depending
on the number of available channels.
In some areas, the signal reception quality can be affected due to
the distance to signal transmission sites, or affected when blocked
by an obstruction.
Basic operations
Selecting a channel
n Changing channels sequentially:
In the Digital TV or Digital Radio menu, tap or to
switch channels sequentially.
n Selecting a channel directly from the channel list:
In the Digital TV or Digital Radio menu, tap to access
the channel list. Tap or of the scroll bar to browse
through the channel list, and tap the specific channel you
want to go to.
Adjusting the volume
In the Digital TV or Digital Radio menu, tap or to
increase or decrease volume.
The earphone or audio output volume will also change according to
the volume level selected.

User’s Manual EN-19
Using the OSD menus
You can use the On-Screen Display (OSD) menus of this unit to
change settings or access your desired functions. To go to each
menu, tap a menu icon on the home page.
Photo menu
The Photo menu allows you to view photos that are stored on a
microSD or microSDHC card.
This unit supports the JPEG (*.jpg) and BMP (*.bmp) file formats.
1. Tap the Photo menu.
2. On the My Photo screen, browse your image files or any
folder that contains image files.
3. Tap a photo to display it in full size.

User’s ManualEN-20
Controls on the Photo menu:
Home page
Returns to the
“My Photo” screen Rotate Next photo
Zoom-in/Zoom-out
Setup for slide show
interval, music
playback on/off, and
photo transition
effects
Slide Show Previous
Specifies a music file to be played when
viewing photos (only available if “Play Music”
in Setup is turned on)
