SERVICE MANUAL
COLOR TELEVISION
DOCUMENT CREATED IN JAPAN, March, 2006
30HF86C
(MFR’S VERSION A)
FILE NO. 050-200542GR
The above model is classified as a green product (*1), as indicated by the underlined serial number.
This Service Manual describes replacement parts for the green product. When repairing this green
product, use the part(s) described in this manual and lead-free solder (*2).
For (*1) and (*2), see the next page.

(*1) GREEN PRODUCT PROCUREMENT
The EC is actively promoting the WEEE & RoHS Directives that define standards for recycling
and reuse of Waste Electrical and Electronic Equipment and for the Restriction of the use of
certain Hazardous Substances. From July 1, 2006, the RoHS Directive will prohibit any
marketing of new products containing the restricted substances.
Increasing attention is given to issues related to the global environmental. Toshiba Corporation
recognizes environmental protection as a key management tasks, and is doing its utmost to
enhance and improve the quality and scope of its environmental activities. In line with this,
Toshiba proactively promotes Green Procurement, and seeks to purchase and use products,
parts and materials that have low environmental impacts.
Green procurement of parts is not only confined to manufacture. The same green parts used in
manufacture must also be used as replacement parts.
(*2) LEAD-FREE SOLDER
This product is manufactured using lead-free solder as a part of a movement within the consumer
products industry at large to be environmentally responsible. Lead-free solder must be used in
the servicing and repair of this product.
WARNING
This product is manufactured using lead free solder.
DO NOT USE LEAD BASED SOLDER TO REPAIR THIS PRODUCT !
The melting temperature of lead-free solder is higher than that of leaded solder by 86°F to 104°F
(30°C to 40°C). Use of a soldering iron designed for lead-based solders to repair product made
with lead-free solder may result in damage to the component and or PCB being soldered. Great
care should be made to ensure high-quality soldering when servicing this product especially
when soldering large components, through-hole pins, and on PCBs as the level of heat
required to melt lead-free solder is high.
A1-1

SERVICING NOTICES ON CHECKING
6. AVOID AN X-RAY1. KEEP THE NOTICES
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
3. USE THE DESIGNATED PARTS
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
Safety is secured against an X-ray by consider-
ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe-
ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-
ray tube.
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
HOW TO ORDER PARTS
When you exchange IC and Transistor with a heat sink, apply silicon grease on the contact section of
the heat sink. Befor applying new silicon grease, remove all the old silicon grease. (Old grease may
cause damages to the IC and Transistor.)
IMPORTANT
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is
flowing.
The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has
the same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated
parts must be used.
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation
material such as a tube or tape for safety, or
which are assembled in the condition that
these do not contact with the printed board.
The inside wiring is designed not to get closer
to the pyrogenic parts and high voltage parts.
Therefore, put these parts in the original
positions.
In the condition that an explosion-proof cathode-
ray tube is set in this equipment, safety is
secured against implosion. However, when
removing it or serving from backward, it is
dangerous to give a shock. Take enough care to
deal with it.
PERFORM A SAFETY CHECK AFTER
SERVICING
7.
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
Headphone jack
A1-2
Licensed by BBE Sound, Inc. under USP5510752 and 5736897.
BBE and BBE symbol are registered trademarks of BBE
Sound, Inc.

TABLE OF CONTENTS
GREEN PRODUCT PROCUREMENT ........................................................................................
LEAD-FREE SOLDER ................................................................................................................
SERVICING NOTICES ON CHECKING.....................................................................................
HOW TO ORDER PARTS ..........................................................................................................
IMPORTANT ...............................................................................................................................
TABLE OF CONTENTS..............................................................................................................
GENERAL SPECIFICATIONS ...................................................................................................
DISASSEMBLY INSTRUCTIONS

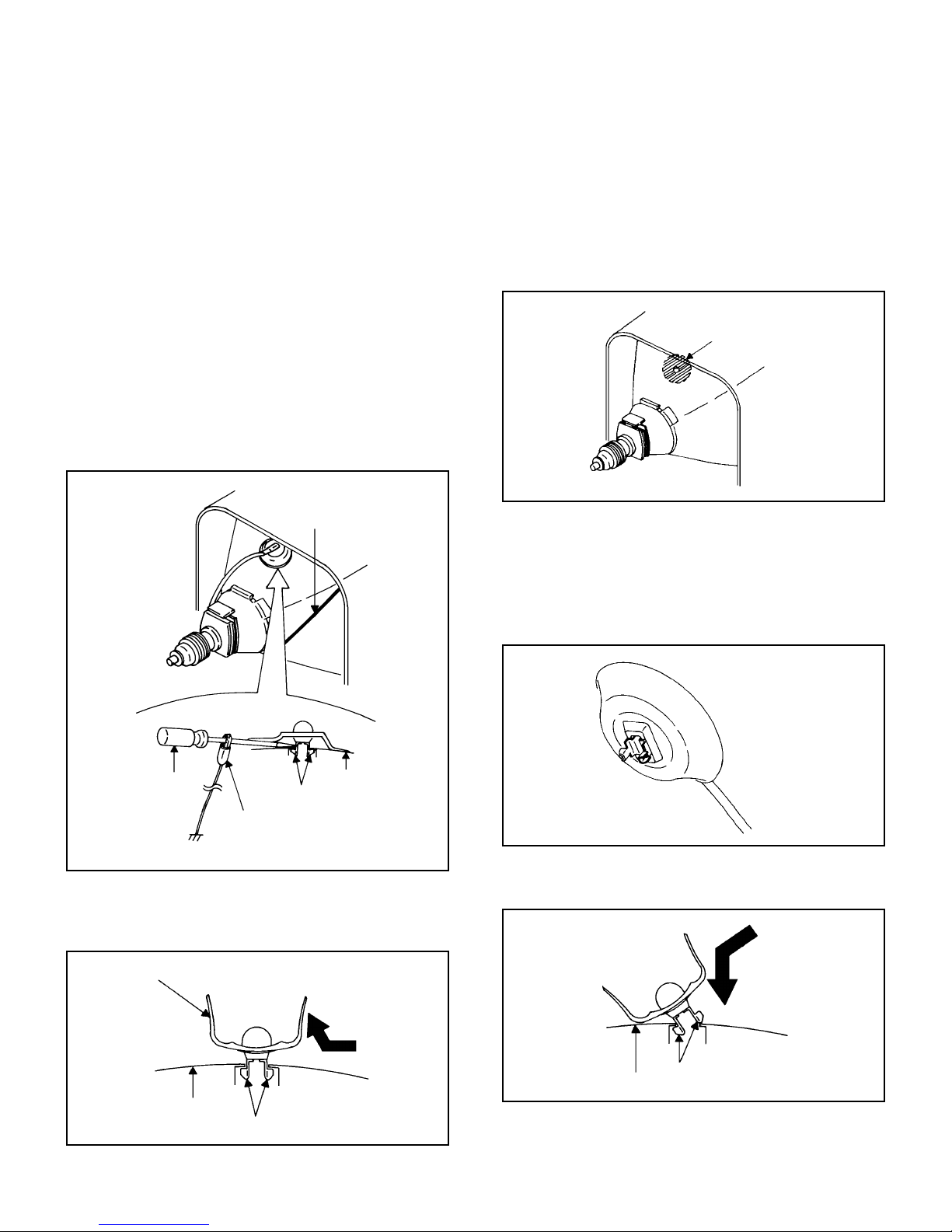

1. REMOVAL OF ANODE CAP ...............................................................................................

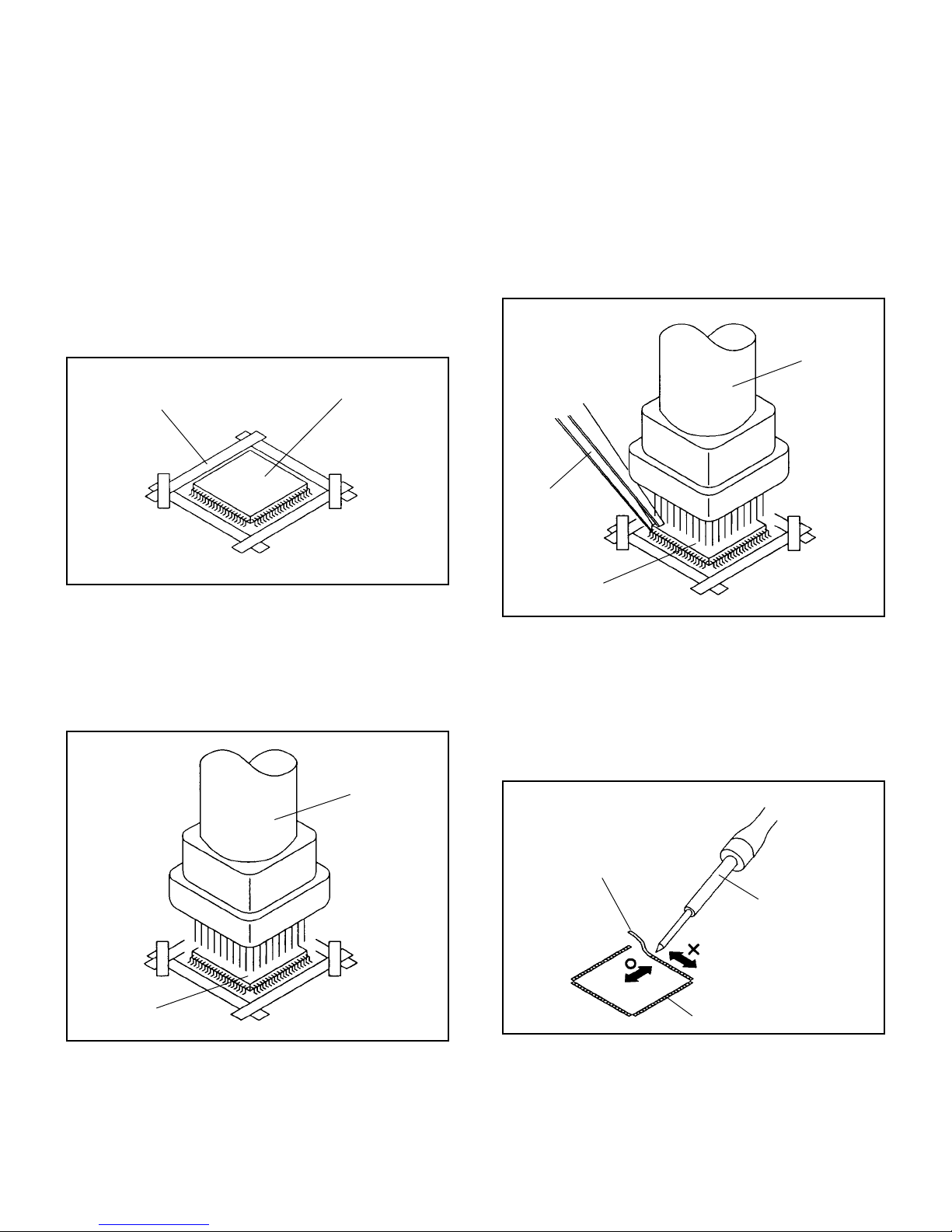

2. REMOVAL AND INSTALLATION OF FLAT PACKAGE IC ................................................
SERVICE MODE LIST ................................................................................................................
CONFIRMATION OF HOURS USED .........................................................................................
WHEN REPLACING EEPROM (MEMORY) IC ..........................................................................
ELECTRICAL ADJUSTMENTS..................................................................................................
BLOCK DIAGRAMS
TV.............................................................................................................................................
SOUND AMP/FRONT JACK ...................................................................................................
MICON1/STEREO ...................................................................................................................
AV/SYNC COUNT/CONNECTOR...........................................................................................
INTERFACE.............................................................................................................................
MICON2 ...................................................................................................................................
SCALER ..................................................................................................................................
PRINTED CIRCUIT BOARDS
MAIN ........................................................................................................................................
AV ............................................................................................................................................
HD-MI/FRONT JACK...............................................................................................................
SCALER/CRT/VM COIL ..........................................................................................................
SCHEMATIC DIAGRAMS
CHROMA/PROGRESSIVE/PIN ..............................................................................................
DEFLECTION ..........................................................................................................................
TV POWER..............................................................................................................................
OPERATION............................................................................................................................
MICON1 ...................................................................................................................................
STEREO ..................................................................................................................................
TUNER/AV...............................................................................................................................
REGURATOR ..........................................................................................................................
SYNC COUNT/CONECTOR ...................................................................................................
CRT/SVM.................................................................................................................................
INTERFACE.............................................................................................................................
MICON2 ...................................................................................................................................
SOUND AMP/FRONT AV........................................................................................................
ANALOG/DIGITAL CONVERTER...........................................................................................
SCALER...................................................................................................................................
DIGITAL COMB .......................................................................................................................
SDRAM ....................................................................................................................................
IN/OUT/REGULATOR .............................................................................................................
WAVEFORMS .............................................................................................................................
MECHANICAL EXPLODED VIEWS...........................................................................................
MECHANICAL REPLACEMENT PARTS LIST .........................................................................
ELECTRICAL REPLACEMENT PARTS LIST...........................................................................
A1-1
A1-1
A1-2
A1-2
A1-2
A2-1
A3-1~A3-6
B1-1
B2-1, B2-2
C-1
C-1
C-2
D-1~D-6
E-1, E-2
E-3, E-4
E-5, E-6
E-7, E-8
E-9, E-10
E-11, E-12
E-13, E-14
F-1~F-4
F-5, F-6
F-7, F-8
F-9, F-10
G-1, G-2
G-3, G-4
G-5, G-6
G-7, G-8
G-9, G-10
G-11, G-12
G-13, G-14
G-15, G-16
G-17, G-18
G-19, G-20
G-21, G-22
G-23, G-24
G-25, G-26
G-27, G-28
G-29, G-30
G-31, G-32
G-33, G-34
G-35, G-36
H-1~H-4
I-1~I-3
J1-1
J2-1~J2-8
A2-1

GENERAL SPECIFICATIONS
G-1 TV CRT CRT Size / Visual Size 30 inch / 760mmV
System CRT Type Flat (16:9)
Magnetic Field BV/BH +0.45G/0.18G
Color System NTSC
Display Capability 1080i/540p
Speaker 2 Speaker
Position Front Bottom
Size 1.8 x 3.9 Inch
Impedance 4 ohm
Sound Output MAX 10W+10W
10%(Typical) -W
NTSC3.58+4.43 /PAL60Hz No
G-2 Tuning Broadcasting System US System M
System Tuner and System 1Tuner
Receive CH Destination USA(W/ CABLE)
Input Impedance VHF/UHF 75 ohm
2 - 69, 4A, A-5 - A-1,
CH Coverage A - I, J - W, W+1 - W+84
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
FP-FS 4.50MHz
Preset CH No
Stereo/Dual TV Sound Yes
Tuner Sound Muting Yes
G-3 Power Power Source AC 120V AC 60Hz
DC
Power Consumption at AC 185 W at AC 120 V 60 Hz
Stand by (at AC) 1 W at AC 120 V 60 Hz
Per Year -- kWh/Year
Protector Power Fuse Yes
Safety Circuit Yes
IC Protector(Micro Fuse) Yes
G-4 Regulation Safety CSA
Radiation IC
X-Radiation HWC
G-5 Temperature Operation +5oC ~ +40oC
Storage -20oC ~ +60oC
G-6 Operating Humidity Less than 80% RH
A3-1

GENERAL SPECIFICATIONS
G-7 On Screen Menu Yes
Display Menu Type Icon
Picture Yes
Mode(Picture preference) Yes
Brightness Yes
Contrast Yes
Color Yes
Tint Yes
Sharpness Yes
Color Temperature Yes
Display Format Yes
Cable Clear Yes
SVM Yes
Reset Yes
Audio Yes
MTS Yes
Bass Yes
Treble Yes
Balance Yes
Stable Sound Yes
Speakers On/Off Yes
Dolby Virtual No
WOW SRS 3D No
WOW Focus No
WOW Tru Bass No
BBE Yes
HDMI1 Yes
HDMI2 No
Reset Yes
Setup Yes
Language Yes
Clock Set Yes
TV/CABLE Yes
CH Program Yes
Add/ Erase Yes
Closed Caption Yes
Picture Size Yes
Picture Scroll Yes
Cinema Mode Yes
Aspect Yes
Image Tilt Yes
Option Yes
On/Off Timer Yes
Favorite CH Yes
CH Label Yes
VIDEO Label Yes
Locks Yes
V-Chip No
Lock (CH Lock, Video Lock, Game Timer) Yes
Front Panel Lock Yes
New Password Yes
A3-2

GENERAL SPECIFICATIONS
Control Level Yes
Volume Yes
Contrast Yes
Brightness Yes
Color Yes
Tint Yes
Sharpness Yes
Bass Yes
Treble Yes
Balance Yes
Image Tilt Yes
Picture Scroll Yes
Stereo, SAP, Mono Yes
Video Yes
Color Stream(Component) Yes
HDMI Yes
Channel(TV/Cable) Yes
CH Label Yes
Video Label Yes
Clock Yes
Game Timer Yes
Front Panel Lock Yes
On/Off Timer Yes
Sleep Timer Yes
Reset Yes
Sound Mute Yes
V-chip Rating No
NOT AVAILABLE Yes
Picture Size Yes
G-8 OSD Language English French Spanish
G-9 Clock and Sleep Timer Max Time 120 Min
Timer Step 10 Min
On/Off Timer Program Yes
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec
A3-3

GENERAL SPECIFICATIONS
G-10 Remote Unit RC-KK
Control Glow in Dark Remocon Yes
Back Light Remocon No
Remocon Format Toshiba
Format Toshiba
Custom Code TV:40-BFh
Power Source Voltage(D.C) 3V
UM size x pcs UM-4 x 2 pcs
Total Keys 44 Keys
Keys Power Yes
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
100 /+10 Yes
CH Up Yes
CH Down Yes
Volume Up Yes
Volume Down Yes
TV/Video(Input Select) Yes
ENT,CH RTN(Quick View) Yes
Menu > / FAV Up Yes
Menu < / FAV Down Yes
Menu Up Yes
Menu Down Yes
Mute Yes
PIC SIZE (16:9) Yes
Sleep Yes
Exit Yes
Light No
Multi Brand Keys TV Yes
CBL/SAT Yes
VCR Yes
DVD Yes
(DVD Keys) Enter Yes
DVD Clear Yes
Top MENU Yes
(TV / DVD Keys) RECALL(Call) / (Display) Yes
Menu/Enter / DVD MENU Yes
(DVD / VCR Keys) Pause/Still Yes
FF Yes
Rew Yes
Play Yes
Stop Yes
<</Skip / Search Forward Yes
>>/Skip / Search Forward Yes
(VCR Keys) Rec Yes
TV/VCR Yes
A3-4

GENERAL SPECIFICATIONS
G-11 Features Auto Shut Off Yes
CABLE Yes
Memory(Last CH) Yes
Memory(Last Volume) Yes
V-Chip No
Type
SRS WOW(SRS 3D/Focus/Tru Bass) No
Virtual Dolby No
BBE Yes(Digital)
Stable Sound Yes
Timer(On Timer /Off Timer/Sleep Timer) Yes
Aspect Yes
Cinema Mode Yes
Image Tilt Yes
Direct Input Selection Yes
Auto Search No
CH Lock Yes
CH Program Yes
CH Label Yes
SAP Yes
Just Clock Function No
VIDEO Label Yes
SVM Circuit Yes
Comb Filter Yes
3 -D
Super Wide Band AMP No
Cable Clear Yes
Hotel Lock No
Closed Caption Yes
FBT Leak Test Protect Yes
Video Lock Yes
Game Timer(Max Time:120Min) Yes
Energy Star Yes
Favorite CH Yes
Variable Audio Out Yes
Picture Size Yes
Color Temperature Control Yes
Mode(Picture Preference) Yes
Front Panel Lock Yes
Available Scan Rates (Component/HDMI) 480i/480p/720p/1080i
Menu=Volume Up+Volume Down Yes
Auto Setup(Language/CH Program) Yes
G-12 Accessories Owner's Manual Language English / French
W/ Warranty Yes
Remote Control Unit Yes
Rod Antenna No
Poles
Terminal
Loop Antenna No
Terminal -
U/V Mixer No
DC Car Cord (Center+) No
Guarantee Card No
Warning Sheet No
Circuit Diagram No
Antenna Change Plug No
Service Station List No
Important Safety Instruction No
Dew/AHC Caution Sheet No
AC Plug Adapter No
Quick Set-up Sheet No
Battery Yes
UM size x pcs UM-4 x 2
OEM Brand No
AC Cord No
AV Cord (2Pin-1Pin) No
Registration Card (NDL Card) No
PTB Sheet No
ESP Card No
300 ohm to 75 ohm Antenna Adapter No
Information Sheet(for HDMI) No
A3-5

GENERAL SPECIFICATIONS
G-13 Interface Switch Front Power Yes
Channel Up/Menu Up Yes
Channel Down/Menu Down Yes
Volume Up/Menu > Yes
Volume Down/Menu < Yes
Indicator Power Yes(RED)
Stand-by No
On Timer No
Terminals Front Video Input = VIDEO3 RCA
Audio Input = VIDEO3 RCA x 2(L/MONO, R)
S Input = VIDEO3 Yes
Other Terminal No
Rear Video Input(Rear1) = VIDEO1 RCA
Video Input(Rear2) = VIDEO2 RCA
S Input = VIDEO1 Yes
S Input = VIDEO2 Yes
Audio Input(Rear1) = VIDEO1 RCA x 2(L/MONO, R)
Audio Input(Rear2) = VIDEO2 RCA x 2(L/MONO, R)
Video Output RCA
Audio Output RCA x 2 (Variable)
Component Input1 RCA x 3
Analog Audio RCA x 2(L/MONO, R)
Component Input2 RCA x 3
Analog Audio RCA x 2(L/MONO, R)
HDMI Input1 HDMI x 1
Analog Audio RCA x 2(L/MONO, R)
HDMI Input2 No
Analog Audio No
Diversity No
Ext Speaker No
VHF/UHF Antenna Input F Type
AC Outlet No
G-14 Set Size Approx. W x D x H (mm) 796 x 563 x 549.2
G-15 Weight Net (Approx.) 50.5 kg ( 111.4 lbs)
Gross (Approx.) 59.0 kg ( 130.1 lbs)
G-16 Carton Master Carton No
Content ---- Sets
Material -- /--
Dimensions W x D x H(mm) -- x -- x --
Description of Origin No
Gift Box Material Double/Brown
Dimensions W x D x H(mm) 916 x 691 x 711
Description of Origin Yes
Drop Test Natural Dropping At 1 Corner / 2
Edges / 4 Surfaces
Height (cm) 40 (ORION SPEC:25)
Container Stuffing 129 Sets/40' container
G-17 Cabinet Material Cabinet Cabinet Front PS 94V0 DECABROM
Cabinet Rear PS 94V0 NON-DECABROM
PCB Non-Halogen Demand No
Eyelet Demand Yes
G-18 Environment Environmental standard requirement Green procurement of TOSHIBA
Pb-free Phase3(Ph
A3-6

B1-1
1. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
*
*
REMOVAL
1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 1-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
Flip up the sides of the Rubber Cap in the direction of the
arrow and remove one side of the support.
(Refer to Fig. 1-2.)
2.
DISASSEMBLY INSTRUCTIONS
GND on the CRT
Screwdriver
Alligator Clip
Support CRT
GND on the CRT
Rubber Cap
CRT Support
Fig. 1-1
Fig. 1-2
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)
Location of Anode Cap
Fig. 1-3
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.
3.
Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)
Fig. 1-4
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.
5.
6. Confirm that the Support is securely connected.
Put on the Rubber Cap without moving any parts.
CRT Support Fig. 1-5

B2-1
Masking Tape
(Cotton Tape)
DISASSEMBLY INSTRUCTIONS
2.
REMOVAL
IC
Put Masking Tape (cotton tape) around the Flat Package
IC to protect other parts from any damage.
(Refer to Fig. 2-1.)
1.
Fig. 2-1
NOTE
REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC leads
or solder lands under the IC when removing it.
NOTE
Masking is carried out on all the parts located within 10
mm distance from IC leads.
Blower type IC
desoldering machine
IC
Heat the IC leads using a blower type IC desoldering
machine. (Refer to Fig. 2-2.)
2.
Fig. 2-2
NOTE
Do not rotate or move the IC back and forth , until IC
can move back and forth easily after desoldering the
leads completely.
When IC starts moving back and forth easily after
desoldering completely, pickup the corner of the IC using a
tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 2-3.)
3.
Blower type IC
desoldering
machine
IC Fig. 2-3
Tweezers
Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided
Shield Wire. (Refer to Fig. 2-4.)
5.
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Braided Shield Wire
Soldering Iron
Fig. 2-4
IC pattern

B2-2
DISASSEMBLY INSTRUCTIONS
Supply soldering
from upper position
to lower position
IC
Supply the solder from the upper position of IC leads
sliding to the lower position of the IC leads.
(Refer to Fig. 2-6.)
2.
Fig. 2-6
Soldering IronSolder
IC
Absorb the solder left on the lead using the Braided Shield
Wire. (Refer to Fig. 2-7.)
3.
Fig. 2-7
Soldering Iron
Braided Shield Wire
NOTE
Do not absorb the solder to excess.
IC
When bridge-soldering between terminals and/or the
soldering amount are not enough, resolder using a Thin-tip
Soldering Iron. (Refer to Fig. 2-8.)
4.
Fig. 2-8
Thin-tip Soldering Iron
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, always be sure to replace the IC in this
case.
Finally, confirm the soldering status on four sides of the IC
using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the IC.
If some abnormality is found, correct by resoldering.
5.
Solder temporarily
Soldering Iron
INSTALLATION
Take care of the polarity of new IC and then install the new
IC fitting on the printed circuit pattern. Then solder each
lead on the diagonal positions of IC temporarily.
(Refer to Fig. 2-5.)
1.
Fig. 2-5
Solder temporarily

C-1
SERVICE MODE LIST
This unit is provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter to the Service Mode, press both set key and remote control key for more than 2 seconds.
Set Key Remocon Key Operations
VOL. (-) MIN 0Releasing of V-CHIP PASSWORD.
VOL. (-) MIN 1
Initialization of factory data.
NOTE: Do not use this for normal servicing.
If you set factory initialization, the memories are reset such as the channel setting,
and the POWER ON total hours.
VOL. (-) MIN 6
POWER ON total hours is displayed on the screen.
Refer to the "CONFIRMATION OF HOURS USED".
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
VOL. (-) MIN Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
9
CONFIRMATION OF HOURS USED
POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.
NOTE: If you set a factory initialization, the total hours is reset to "0".
1.
2.
3.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 2 seconds.
After the confirmation of using hours, turn off the power.
ADDRESS DATA
INIT 000 7F
CRT ON 0000
OEC7118A_032
FIG. 1
Initial setting content of MEMORY IC.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
MICON Version

C-2
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
ADDRESS DATA
INIT 000 7F
CRT ON 0000
OEC7118A_032
FIG. 1
Table 1
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
The unit will now have the correct DATA for the new MEMORY IC.
Enter DATA SET mode by setting VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 2 seconds.
ADDRESS and DATA should appear as FIG 1.
ADDRESS is now selected and should "blink". Using the UP/DOWN button on the remote, step through the ADDRESS until
required ADDRESS to be changed is reached.
Press RIGHT/LEFT button to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using UP/DOWN button until required DATA value has been selected.
Pressing RIGHT/LEFT button will take you back to ADDRESS for further selection if necessary.
Repeat steps 3 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
After the data input, set to the initializing of shipping.
Turn POWER on.
Press both VOL. DOWN button on the set and Channel button (1) on the remote control for more than 2 seconds.
After the finishing of the initializing of shipping, the unit will turn off automatically.
INI +0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
0000 7F A2 05 C1 E6 1C 87 98 42 E4 B3 03 0D 36 03 00
0010 01 05 1F 24 40 45 5D 62 45 4A 67 0F 15 0A AA 64
0020 8C 00 00 00 00 00 00 00 00 1A 00 5A 98 33 04 76
0030 77 05 07 22 10 07 00 22 74 81 01 07 06 40 40 40
0040 8F C0 40 00 27 0A 0A 00 13 40 00 51 70 72 99 59
0050 68 99 59 00 73 14 1F 2D 24 16 00 00 00 00 00 F6
0060 EF DB DB DB 15 00 00 26 06 07 09 00 C9 C8 E8 BC
0070 40 0F 00 21 66 77 00 00 00 0F 1D 6D FF FF FA FA
0080 FF C0 52 50 8B 00 06 06 22 00 96 8B 6C 90 22 00
0090 11 F0 00 07 00 00 00 B6 01 48 33 23 27 2A 2D 30
00A0 33 36 39 3C 3F 42 45 48 4B 4E 51 53 55 57 58 59
00B0 5A 5B 5C 5D 5E 5F 61 63 65 67 69 6A 6B 6C 6D 6E
00C0 6F 70 71 71 72 72 73 73 74 74 75 75 75 75 76 76
00D0 76 76 77 77 77 77 78 78 78 78 79 42 00 00 00 08
00E0 15 18 11 14 E0 E6 F5 2B 38 FF 17 31 36 40 00 3F
00F0 54 --- --- --- --- --- --- --- --- --- --- --- --- --- --- ---
0100 DC F1 21 66 66 0C 71 69 33 00 0E 38 22 66 DA 71
0110 69 33 00 44 00 77 5E 99 59 03 82 88 88 00 82 01
0120 00 03 82 03 82 0F 85 00 82 8D 83 00 82 D0 01 82
0130 00 82 00 82 0D 00 05 11 00 11 00 11 1A 00 1C 00
0140 00 80 00 00 00 25 1E F4 05 16 A4 03 03 00 7F 7F
0150 00 7E 7E 0E 0A 00 00 00 00 84 00 00 00 00 00 83
0160 00 00 00 00 00 00 00 00 00 00 FF FF FF FF FF FF
0170 FF FF FB 00 10 01 FB 00 20 01 FB 00 4D 01 FB 00
0180 2A 01 FB 00 10 01 FB 00 05 01 FB 00 19 01 FB 00
0190 42 01 FB 00 27 01 FB 00 05 01 77 77 77 --- --- ---

ELECTRICAL ADJUSTMENTS
D-1
1. ADJUSTMENT PROCEDURE
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
Use an isolation transformer when performing any service
on this chassis.
Before removing the anode cap, discharge electricity
because it contains high voltage.
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
When you exchange IC and Transistor with a heat sink,
apply silicon grease on the contact section of the heat
sink. Before applying new silicon grease, remove all the
old silicon grease. (Old grease may cause damages to the
IC and Transistor.) 2. BASIC ADJUSTMENTS
Prepare the following measurement tools for electrical
adjustments.
1. Oscilloscope
2. Digital Voltmeter
3. Multi-sound Generator
4. Pattern Generator
On-Screen Display Adjustment
1. In the condition of NO indication on the screen.
Press the VOL. DOWN button on the set and the Channel
button (9) on the remote control for more than 2 seconds
to appear the adjustment mode on the screen as shown
in Fig. 1-1.
Fig. 1-1
3.
4.
5.
Use the Channel UP/DOWN button or Channel button
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end the
adjustments.
To display the adjustment screen for AV, CS and HD-
MI mode, press the TV/VIDEO button on the remote
control to set to the AV, CS and HD-MI mode. Press
the VOL.DOWN button on the set and the channel (9)
on the remote control for more than 2 seconds.
TV
00 OSD H
2-2: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
2.
3.
4.
5.
6.
7.
Place the set in Aging Test for more than 15 minutes.
Receive the gray scale pattern from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (24) on the remote control to
select “R.BIAS”.
Press the CH. UP/DOWN button on the remote control to
select the “R.BIAS”, “G.BIAS”, “B.BIAS”, “R/G.DRV”, “B/
R.DRV”, “R.BIAS(C)”, “G.BIAS(C)”, “B.BIAS(C)”, “R/
G.DRV(C)”, “B/R.DRV(C)”, “R.BIAS(W)”, “G.BIAS(W)”,
“B.BIAS(W)”, “R/G.DRV(W)” or “B/R.DRV(W)”.
Adjust the VOL. UP/DOWN button on the remote control
to whiten the R.BIAS(C), G.BIAS(C), B.BIAS(C), R/
G.DRV(C), B/R.DRV(C), R.BIAS(W), G.BIAS(W),
B.BIAS(W), R/G.DRV(W) and B/R.DRV(W)”at each step
tone sections equally.
Perform the above adjustments 5 and 6 until the white
color is achieved.
2-1: CUT OFF
1.
2.
3.
4.
5.
6.
Adjust the unit to the following settings.
R.BIAS=64, G.BIAS=64, B.BIAS=64, R/R.DRV=64,
B/R.DRV=64.
Place the set in Aging Test for more than 15 minutes.
Place the set in AV MODE without signal.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select "CUT OFF".
Adjust the Screen Volume until a dim raster is obtained.
Fig. 1-2
FUNCTION
OSD H
CUT OFF
H.POSI
V.POSI
H. SIZE
V. SIZE
V. LIN
V-EHT
H-EHT
V-BLK P
V-BLK S
V.CENT
V.LIMIT
V.CORR
V.S.CORR
EW PARA
TRAPEZIUM
COR.TOP
COR.BTM
S.CORR
NO.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
NO.
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
FUNCTION
CORNER
C.PARA
C.SAW
V.SYMM
R.BIAS
G.BIAS
B.BIAS
R/G.DRV
B/R.DRV
R.BIAS(C)
G.BIAS(C)
B.BIAS(C)
R/G.DRV(C)
B/R.DRV(C)
R.BIAS(W)
G.BIAS(W)
B.BIAS(W)
R/G.DRV(W)
B/R.DRV(W)
R-Y GAIN
NO.
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
FUNCTION
R-Y PHASE
G-Y GAIN
G-Y PHASE
BRI.CENT
BRI.MAX
BRI.MIN
CONT.CENT
CONT.MAX
CONT.MIN
COL.CENT
COL.MAX
COL.MIN
SUB CONT
TINT
SHARP.CENT
SHARP.MAX
SHARP.MIN
TILT.CENT
TEST STEREO
TEST AUDIO
THEATER WIDE 1
5
•
•
•
•

ELECTRICAL ADJUSTMENTS
D-2
2-6: VERTICAL CENT/ VERTICAL SIZE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Receive the monoscope pattern.
Press the MENU button. And, then press the UP/DOWN
button on the remote control until the PICTURE menu
appears.
Press the UP/DOWN button on the remote control to
highlight DISPLAY FORMAT.
Press the LEFT/RIGHT button on the remote control to
select 1080i.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (11) on the remote control to
select “V. CENT”.
Press the VOL. UP/DOWN button on the remote control
until the horizontal line becomes fit to the notch of the
shadow mask.
Receive the monoscope pattern.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select “V. SIZE”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on upside and
downside becomes 8%.
2-4: OSD HORIZONTAL
1.
2.
3.
4.
Receive the monoscope pattern .
Using the remote control, set the brightness and
contrast to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (00) on the remote control to
select "OSD H".
Press the LEFT/RIGHT button on the remote control
until the difference of A and B becomes minimum.
(Refer to Fig. 2-2)
2-5: HORIZONTAL POSITION/ HORIZONTAL SIZE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Receive the monoscope pattern.
Press the MENU button. And, then press the LEFT/
RIGHT button on the remote control until the PICTURE
menu appears.
Press the UP/DOWN button on the remote control to
highlight DISPLAY FORMAT.
Press the LEFT/RIGHT button on the remote control to
select 1080i.
Press the PIC SIZE button on the remote control to
select the FULL screen mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select "H.POSI".
Press the VOL. UP/DOWN button on the remote
control until the SHIFT quantity of the OVER SCAN on
right and left becomes becomes minimum.
Receive the monoscope pattern.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (04) on the remote control to
select “H. SIZE”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right and
left becomes 7.5%.
2-3: DOUBLE FOCUS
1.
2.
3.
Receive the cross hatch signal from the Pattern
Generator.
Turn the F1 VR and F2 VR fully clockwise once. (Refer
to Fig. 2-1)
Adjust the F1 VR so that the screen becomes clearest.
Then adjust the F2 VR.
Fig. 2-1
F1 VR
F2 VR
SCREEN VR
Focus VR
Fig. 2-2
B
A
00 OSD H
TV
THEATER WIDE 1
5

ELECTRICAL ADJUSTMENTS
D-3
2-7: BRIGHT CENT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Receive the monoscope pattern. (RF Input)
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (43) on the remote control to
select "BRI CENT".
Press the VOL. UP/DOWN button on the remote control
until the white 2.7% is starting to be visible
Receive the monoscope pattern. (Audio Video Input)
Press the TV/VIDEO button on the remote control to set to
the AV mode. Then perform the above adjustments 2~5.
Receive the monoscope pattern.
Press the TV/VIDEO button on the remote control to set
to the CS mode.Then perform the above adjustments
2~5.
Receive the monoscope pattern.
Press the TV/VIDEO button on the remote control to set
to the HD-MI mode.Then perform the above adjustments
2~5.
2-8: SUB CONTRAST
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (52) on the remote control to
select "SUB CONT".
Check if the step No. SUB CONT is "13".
Receive a broadcast and check if the picture is normal.
Press the TV/VIDEO button on the remote control to set to
the AV mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (52) on the remote control to
select "SUB CONT".
Check if the step No. SUB CONT is "15".
Receive a broadcast and check if the picture is normal.
Press the TV/VIDEO button on the remote control to set
to the CS mode.Then perform the above adjustments
6~8.
Press the TV/VIDEO button on the remote control to set
to the HD-MI mode. Then perform the above adjustments
6~8.
Receive the crosshatch signal from the Pattern Generator.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (15) on the remote control to
select “E W PARA”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines become straight.
Press the PIC SIZE button on the remote control to select
the NATURAL screen mode.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines of the screen become
parallel.
2-9: E/W PARA
1.
2.
3.
4.
5.
6.
7.
2-10: TRAPEZIUM
1.
2.
3.
4.
5.
6.
7.
8.
Receive the crosshatch signal from the Pattern Generator.
Press the MENU button. And, then press the LEFT/
RIGHT button on the remote control until the PICTURE
menu appears.
Press the UP/DOWN button on the remote control to
highlight DISPLAY FORMAT.
Press the LEFT/RIGHT button on the remote control to
select 1080i.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select “TRAPEZIUM”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines of the screen become
parallel.
2-11: COR TOP/BTM
1.
2.
3.
4.
5.
6.
7.
Receive the crosshatch signal from the Pattern Generator.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (17) on the remote control to
select “COR. TOP”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines become straight.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select “COR. BTM”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines of the screen become
parallel.
2-12: CENTER SAW
1.
2.
3.
4.
5.
6.
7.
Receive the crosshatch signal from the Pattern Generator.
Press the MENU button. And, then press the LEFT/
RIGHT button on the remote control until the PICTURE
menu appears.
Press the UP/DOWN button on the remote control to
highlight DISPLAY FORMAT.
Press the LEFT/RIGHT button on the remote control to
select 1080i.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (22) on the remote control to
select “C.SAW”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines of the screen become
parallel.

ELECTRICAL ADJUSTMENTS
D-4
2-13: CENTER PARA
1.
2.
3.
4.
5.
6.
7.
Receive the crosshatch signal from the Pattern Generator.
Press the MENU button. And, then press the LEFT/
RIGHT button on the remote control until the PICTURE
menu appears.
Press the UP/DOWN button on the remote control to
highlight DISPLAY FORMAT.
Press the LEFT/RIGHT button on the remote control to
select 1080i.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (21) on the remote control to
select “C.PARA”.
Press the VOL. UP/DOWN button on the remote control
until the both ends vertical lines of the screen become
parallel.
2-14: TINT/COLOR CENT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Receive the color bar pattern.
Connect the oscilloscope to TP806.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (53) on the remote control to
select "TINT".
Press the VOL. UP/DOWN button on the remote control
until the section "A" becomes as straight line.
(Refer to Fig. 2-3)
Connect the oscilloscope to TP805.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (49) on the remote control to
select "COL.CENT".
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 120 ±10% of the
white level. (Refer to Fig. 2-4)
Please check whether the waveform of TP806 is straight
line. If is not a straight line, adjust to TINT again.
Receive the color bar pattern. (Audio Video Input)
Press the TV/VIDEO button on the remote control to set to
the AV mode. Then perform the above adjustments 2~8.
Receive the color bar pattern.
Press the TV/VIDEO button on the remote control to set to
the CS mode. Then perform the above adjustments 2~8.
Receive the color bar pattern.
Press the TV/VIDEO button on the remote control to set to
the HD-MI mode. Then perform the above adjustments
2~8.
Fig. 2-3
"A"
Fig. 2-4
120%
100%
2-16: Confirmation of Fixed Value (Step No.)
Please check if the fixed values of the each adjustment
items are set correctly referring below.
FUNCTION
V.POSI
V-EHT
H-EHT
V-BLK P
V-BLK S
V.LIMIT
V.CORR
C.S.CORR
S.CORR
CORNER
V.SYMM
R-Y GAIN
R-Y PHASE
G-Y GAIN
G-Y PHASE
BRI.MAX
BRI.MIN
CONT.CENT
CONT.MAX
CONT.MIN
COL.MAX
COL.MIN
SHARP.CENT
SHARP.MAX
SHARP.MIN
TEST STEREO
TEST AUDIO
NO.
03
07
08
09
10
12
13
14
19
20
23
39
40
41
42
44
45
46
47
48
50
51
54
55
56
58
59
RF
01
04
06
31
00
00
02
30
16
21
128
08
03
05
00
240
50
70
80
50
95
00
55
100
00
00
00
CS
01
04
06
31
00
00
02
30
16
21
128
08
03
05
00
240
50
70
80
50
110
00
55
100
00
00
00
AV
01
04
06
31
00
00
02
30
16
21
128
08
03
05
00
240
50
70
80
50
95
00
55
100
00
00
00
2-15: TILT
1.
2.
3.
4.
5.
6.
Connect the digital voltmeter between W843 and W844.
Receive the crosshatch signal from the Pattern Generator.
Press the PIC SIZE button on the remote control to select
the FULL screen mode.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (57) on the remote control to
select “TILT CENT”.
Press the VOL. UP/DOWN button on the remote control
until the voltage become minimum(0V).
HD-MI
01
04
06
31
00
00
02
30
16
21
128
08
03
05
00
240
50
70
80
50
110
00
55
100
00
00
00

ELECTRICAL ADJUSTMENTS
D-5
3. PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
1.
2.
3.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
1.
2.
3.
4.
5.
6.
7.
8.
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green raster pattern from the color bar
generator.
Slide the deflection yoke until it touches the funnel side
of the CRT.
Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
2.
3.
4.
5.
Receive the green raster pattern from color bar generator.
Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the ends
are equally wide.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.
Confirm red and blue color.
Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.
DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
PURITY MAGNETS
6 POLE MAGNETS
4 POLE MAGNETS
Fig. 3-1
3-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-2.
1.
2.
3.
Receive the crosshatch pattern from the color bar
generator.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
3-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-3.
1.
2.
Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
BR
G
B
R G B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
Fig. 3-2-a
WEDGE WEDGE
WEDGE
WEDGE POSITION
Fig. 3-2-b
Table of contents
Other Toshiba TV manuals

Toshiba
Toshiba CX32C80 User manual

Toshiba
Toshiba 42WH36P User manual

Toshiba
Toshiba 14N21ES User manual

Toshiba
Toshiba 43L1753DB User manual

Toshiba
Toshiba 29VH14P User manual

Toshiba
Toshiba 19W300PG User manual

Toshiba
Toshiba CF35D50 User manual

Toshiba
Toshiba 19A20 User manual

Toshiba
Toshiba CF30F40 User manual

Toshiba
Toshiba 49L1753DB User manual

Toshiba
Toshiba CZ32V61 User manual

Toshiba
Toshiba MD13P3 User manual

Toshiba
Toshiba 28ZH46 Series User manual

Toshiba
Toshiba CX36F67 User manual

Toshiba
Toshiba 43VJ33Q User manual

Toshiba
Toshiba 37AV505D User manual

Toshiba
Toshiba 32HFX71 User manual

Toshiba
Toshiba CF32H40 User manual

Toshiba
Toshiba 14N21E2 User manual

Toshiba
Toshiba 29PB201 User manual
