SERVICE MANUAL
FILE NO. 120-200152
VIDEO CASSETTE RECORDER
V-621EW
MAY, 2001
V-621EW 5/18/01 12:50 PM Page 1

438B ALEXANDRA ROAD BLOCK B #06-01
ALEXANDRA TECHNOPARK
SINGAPORE 119968
TOSHIBA VIDEO PRODUCTS PTE LTD
V-621EW 5/18/01 12:50 PM Page 2

TOTAL CONTENTS
1. Precautions
2. Reference Information
3. Product Specifications
4. Disassembly and Reassembly
5. Alignment and Adjustment
6. Exploded View
7. Replacement Parts List
8. Block Diagram
9. PCB Diagrams
10. Schematic Diagrams

Toshiba 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all pretective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known erath
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.
Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD

Precautions
1-2 Toshiba
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.

Toshiba 2-1
GB
6
Infrared Remote Control
ON/
STANDBY
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
123
456
789
0
AUDIO
MENU
TV/VIDEO
SLOW
PLAY
REW
STOP
COUNT.RST
TIMER
REC
CLR/RST
CH
FF
PAUSE/STILL
I.SELECT
COUNT/TR
INDEX
VTR
TRK
VIDEO Plus+
F.ADV
CURSOR
TV/VIDEO
DISPLAY EJECT
DISPLAY
To display the tape indicators on the
television screen
EJECT
To eject a tape
Numbered buttons
and Counter Reset
INPUT SELECT
To select video source
Frame Advance BUTTON
INDEX buttons
For Search, Rew/FF
MENU
To bring up the green MAIN MENU
RECORD
Recording buttons
Tape playing buttons
PLAY, STOP, REW (rewind),
FF (fast forward), SLOW (slow
motion playback), PAUSE/STILL
(holding an image on screen), OK,
CURSOR (menu selection button)
SP/LP To select tape speed
AUDIO DUB
To add soundtrack/narration to
previously recorded tapes
ON/STANDBY CHANNEL Channel: To find the required television station, up or down one station at a time. TRACKING Tracking: To optimise the picture and sound on VTR playback Clear and Reset button COUNT/TAPE REMAIN Selects tape counter display or tape time remaining TIMER Timer recording buttons TV/VIDEO mode selection button AUDIO For sound track selection SATELLITE MONITOR
GB
5
Front View of the VCR
Rear View of the VCR
ON/STANDBY
REC
CHANNEL
PLAY STOP
REW FF
EJECT
NTSC PLAYBACK AUTO SPEED REC
VIDEO
AUX
L/MONO
AUDIO
R
VIDEO CASSETTE COMPARTMENT REW
BUTTON STOP
BUTTON
EJECT BUTTON
RECORD BUTTON PLAY
BUTTON FF
BUTTON
ON/STANDBY BUTTON
AUX VIDEO
INPUT SOCKET CHANNEL SELECTION
BUTTON
AUX AUDIO L, R INPUT SOCKETS
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
AV2 (DEC./EXT.) SCART (EURO-21) SOCKET
AV1 (EURO AV) IN/OUT
SCART (EURO-21) SOCKET
AERIAL IN CONNECTOR
OUT TO TV CONNECTOR RCA AUDIO L, R OUTPUT
SOCKETS
2. Reference Information
2-1 Operation of Controls

Reference Information
2-2 Toshiba
GB
8
Deciding How to Connect Your VCR
You must take into account various factors when connecting audio or video systems:
◆Types of connectors available on your systems ◆Systems connected permanently to the VCR or temporarily (camcorder for example)
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use AV1 Rear SCART In/Out ◆Television
◆Other VCR
AV2 Rear SCART In/Out ◆Decoder for scrambled Pay TV
broadcasts Example: CANAL+.
◆Other VCR
◆Other VCR
AUX Front Audio/Video RCA In ◆Audio Hi-Fi system
◆Camcorder ◆Hi-Fi Stereo VCR
Audio output Rear Audio RCA Out ◆Audio Hi-Fi system
OUT TO TV Rear 75 ΩOut ◆Television
coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
coaxial ◆Cable television network
☛
Whenever you connect an audio or video system to your VCR, ensure that all elements are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions and associated safety precautions.
TV
R/D
L/G
AUDIO
OUT/SORTIE
VIDEO
L/MONO
AUDIO
R
AV2 (DEC./EXT.)
AV1 (EURO AV)
GB
7
Display Indicator
Accessories
You have just purchased a TOSHIBA Video Cassette Recorder (VCR). Together with your VCR, you will find the following accessories in the box.
ON/
STANDBY
OK
EJECT.
VIDEOINSERT
SP/LP
VIDEOPlus+
SAT.MONI.
A.DUBSAT.CONT.
123
456
789
0
AUDIO
MENU
TV/VIDEO
SLOW
PLAY
REW
STOP
COUNT.RST
TIMER
REC
CLR/RST
CH
FF
PAUSE/STILL
I.SELECT
COUNT/TR
INDEX
VTR
TRK
VIDEOPlus+
F.ADV
CURSOR
TV/VIDEO
DISPLAYEJECT
REMOTE CONTROL &
BATTERIES “AAA”
OWNER’S INSTRUCTIONS
COAXIAL CABLE
1Cassette loaded indicator 2ECO Mode display 3 Multi-function display 4 Timer indicator 5VIDEO indicator 6 Hi-Fi indicator 7Rec indicator
VCR
5 6 7
12 3 4
VCR Hi-Fi

Reference Information
Toshiba 2-3
GB
10
Connecting a Decoder for scrambled PAY TV broadcasts
This VCR is fully equipped to receive scrambled Pay TV broadcasts. Example: CANAL+ or Premiere broadcasts.
You can:
◆Record a scrambled programme while watching another
channel
◆Record another channel while watching a scrambled
programme
1Connect the VCR to the television as indicated on page 9. 2Plug the SCART cable with the decoder into the AV2 (DEC./EXT.)
socket on the rear of the VCR.
3Plug the other end into the decoder.
Connecting the Audio Output Cable
You can connect your VCR to a Hi-Fi system. Example: You wish to take advantage of the quality of your Hi-Fi
stereo system when watching a programme or recording via your VCR.
☛◆Regardless of the type of connection chosen, you
must always connect the coaxial cable supplied. Otherwise, no picture will be visible on the screen when the VCR is switched off.
◆Make sure that both the television and the VCR are
switched off before connecting the cables.
1Connect the coaxial cable or SCART as indicated on page 9. 2Plug the audio output cable into the audio connectors on the rear
of your VCR. ➢Respect the colour coding of the left and right channels.
3Plug the other end of the audio cable into the appropriate input
connectors on your Hi-Fi stereo system.
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
2
2
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
1
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
SCART Cable
SCART Cable
DECODER
Aerial
TV
Aerial Connector
2
3
GB
9
Connecting Your VCR to the TV using the Coaxial Cable and SCART cable
To receive television programmes a signal must be received from one of the following sources:
◆An outdoor aerial ◆An indoor aerial ◆A cable television network
☛Make sure that both the television and the VCR are
switched off before connecting the cables.
1Remove the aerial or network input cable from the television. 2Connect this cable to the 75Ωcoaxial socket marked on the
rear of your VCR.
3Plug the coaxial cable supplied into the socket on your VCR. 4Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5To obtain better quality pictures and sound on your television, you
can also connect your VCR to the television via the SCART cable if your television is equipped with this type of connection. Connect one end of the SCART cable to the AV1(EURO AV) socket on the rear of the VCR.
6Plug the other end into the appropriate connector on the
television.
TV
TV
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
5
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
4
2
TV
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
3

Reference Information
2-4 Toshiba
GB
12
Plug & Auto Tuning
Your VCR will automatically set itself up when it is plugged into the mains for the first time. TV stations will be stored in memory. The process takes a few minutes. Your VCR will then be ready for use.
1Connect the coaxial cable as indicated on page 9.
(Connecting Your VCR to the TV Using the Coaxial Cable)
2Plug the VCR into the mains. The LANGUAGE SET menu will be
displayed.
3Press the corresponding

,

or
¥
,

buttons to select required
language. And then OK to store the language selected. A message appears “AUTO SET-UP WILL BE STARTED. CHECK
ANTENNA AND TV CABLE CONNECTION”.
4Press OK to proceed. 5The process will finish after a few minutes. Then the date and time
are set automatically from the broadcast signal, but this function will not operate if there is no Teletext signal.
TV
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
2
LANG
ENGLISH ITALIANO DEUTSCH ESPAÑOL FRANÇAIS CESKY

¥
MEMORY:OK
END:MENU
CLOCK
MON
12:00 1/JAN/2001
¥

END:MENU
LANGUAGE SET
AUTO SET-UP WILL BE STARTED. CHECK ANTENNA AND TV CABLE CONNECTION.
PROCEED : OK
END : MENU
GB
11
Connecting a Satellite Receiver
●This VCR can be connected to your satellite receiver and you can enjoy watching or recording satellite
programmes through the VCR.
➢By means of 21-pin Scart Cable:
If both your TV and Satellite receiver have a SCART socket, use a SCART cable (not supplied) to connect the VCR.
➢By means of RF Coaxial Cable:
After making this connection, you must preset the station received through the satellite tuner. RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the VCR, e.g. re-adjust to channel 55.
Satellite Receiver
21-Pin Scart Terminal
21-Pin Scart Terminal
Aerial Connector
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
SCART Cable
TV SCART Cable
Satellite Receiver
Aerial
TV
AV2 (DEC./EXT.)
AV1 (EURO AV)
R/D
L/G
AUDIO
OUT/SORTIE
SCART Cable
Aerial Connector
TV
Aerial
(Not supplied)
RF IN RF OUT

Reference Information
Toshiba 2-5
GB
14
Setting the Date and Time
You must insert or replace the batteries in the remote control when you: ◆Purchase the video cassette recorder
◆Find that the remote control is no longer working
correctly
1
Push the tab in the direction of the arrow to release the battery compartment cover on the rear of the remote control.
2
Insert two AAA, R03 or equivalent batteries, taking care to respect the polarities: ◆+ on the battery with + on the remote control ◆–on the battery with –on the remote control
3
Replace the cover by aligning it with the base of the remote control and pushing it back into place.
➢Do not mix different battery types (manganese and
alkaline for example).
Inserting Batteries in the Remote Control
1
Your VCR contains a 24-hour clock and calendar used to:
◆Automatically stop programme recording ◆Preset your VCR to record a programme automatically
You must set the date and time when:
◆You purchase the video cassette recorder
☛◆Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
CLOCK SET
option.
3
Press the OK button to select this option. Result: The
CLOCK SET
menu is displayed.
4
Press
¥
or

to select the hour, minutes, day, month and year.
Result: The option selected flashes.
5
Press the

or

buttons to increase or decrease the value.
Result: The day of the week is displayed automatically.
➢
You can hold the

or

buttons down to scroll more
quickly through the values.
6
On completion, press MENU twice to exit the menu.
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
2
2
23
1
2
CLOCK SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG
CLOCK
CLOCK
MON
12:00 1/JAN/2001

¥
END:MENU
¥

END:MENU
GB
13
Tuning Your Television for the VCR
You must tune your television for the VCR only if you are not using
a Scart cable
➢To view pictures from your VCR when a Scart cable is
used, the television must be set to the audio/video mode (AV).
1Switch on the television. 2Switch on the VCR by pressing ON/STANDBY on the front of the
VCR or on the remote control.
3Select a programme position on the television to be reserved for
use with your VCR.
4Insert the video cassette in the VCR. Check that the VCR starts
reading the cassette; if not, press PLAY (

)button.
5Start a scan on your television or set the television to UHF
channel 60.
6Fine tune the television until the pictures and sound are obtained
clearly.
7If you cannot find the pictures and sound, or there is interference
from nearby channels, it may be necessary to change the setting of the VCR output channel (see Solving Problems section of this manual).
8When the picture and sound are perfectly clear, store this channel
at the desired programme position on the television. Result:
That programme is now reserved for use with your VCR.
OK
SP/LP
VIDEO Plus+
AUDIO
TV/VIDEO
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
CURSOR
TV/VIDEO
4
ON/
STANDBY
123
456
789
CH
VTR
DISPLAY EJECT
2

Reference Information
2-6 Toshiba
GB
16
Your VCR output channel may need to be changed if the pictures suffer from interference or if your TV cannot find the pictures. Also, you can change the VCR output channel to adjust the frequency in which information is displayed on the screen.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the

or

buttons, until the
VCR OUTPUT CH
option is
selected.
5
Select the required output channel (CH21~CH69) by pressing the ¥
or

buttons.
6
On completion, press MENU twice to exit the menu. Then tune your television again (see page 13).
You can choose the sound mode (B/G or D/K) according to the TV set connected to your VCR.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the corresponding

or

buttons, until the
TV SYSTEM
option is selected.
5
Press the

button to select G or K.
6
On completion, press MENU twice to exit the menu.
Selecting the RF OUT Sound Mode (B/G-D/K)
Setting the VCR Output Channel
INSTALL
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
GB
15
Displaying/Hiding On-Screen Information Choosing Your Language
You can change the language in which information is displayed on the screen.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
LANGUAGE SET
option.
3
Press the OK button to select this option. Result: The
LANGUAGE SET
menu is displayed.
4
Select the required language by pressing the

,

or
¥
,

buttons.
5
Press OK to store the language selected.
6
Press MENU to exit the menu. Result: From now on, all the on-screen information will be
displayed in the language selected.
Your VCR displays most information both on the VCR and the television. You can choose to display or hide this information on the television screen (except for the Index and Programming MENU, which cannot be hidden).
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
USER SET
option.
3
Press the OK button to select this option. Result: The
USER SET
menu is displayed.
4
Press the corresponding

or

buttons, until the
OSD
option is
selected.
5
To... Press
¥
or

, until...
Display on-screen information
ON
is displayed.
Hide on-screen information
OFF
is displayed.
6
On completion, press MENU twice to exit the menu.
PTIONS
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
2
2
23
1
2
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO FORMAT 16:9 :AUTO NICAM :ON ECO.MODE :OFF


END:MENU
LANG
ENGLISH ITALIANO DEUTSCH ESPAÑOL FRANÇAIS CESKY

¥
MEMORY:OK
END:MENU

Reference Information
Toshiba 2-7
GB
18
Presetting the Stations Manually
☛You do not need to preset the stations manually if you
have already set them automatically.
➢To enable the VCR to decode a scrambled TV station, the
decoder must be switched on.
1
Press the MENU button on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the

or

buttons to select
MANUAL SET UP
option.
5
Press the

button to select this option.
Result: The
TV STATION TABLE
menu is displayed.
6
Press the

or

buttons to select a programme number as
required.
7
Press the

button to preset the station.
Result: The
MANUAL TUNING
menu is displayed.
8
Press the
¥
or

buttons to start scanning.
Result: The frequency band is scanned and the first station
found is displayed.
If you know the number of the channel you want, press the numeric buttons on the remote control for example, for channel E21, first press “0”and then press “2”, “1”(see page 41).
9
Press the

button, until the
DECODER
is selected.
10
Press the

button to activate or deactivate use of the decoder for
the TV station, if necessary.
11
Press the

or

buttons until the
NAME
is selected.
The station name is set automatically from the broadcast signal.
12
To change the programme’s name, press the

button.
Result: The first letter of the name flashes.
13
To... Then... Select a character Press the

or

button until the
in the name required character is displayed
(letters, numbers or “-”character).
Move to the next or Press the

or
¥
buttons
previous character respectively.
14
If you... Then... Wish to store the ◆Press the corresponding

or

buttons,
station displayed until the
MFT
is selected.
◆Press the
¥
or

buttons to adjust the
picture, if necessary.
◆Press OK to store the station .
Do not wish to ◆Press the corresponding

or

buttons,
store the station until the
CH
is selected.
displayed ◆Press the
¥
or

buttons to go on
scanning the frequency band and display the next station
◆Go back to the beginning of Step
14
15
Repeat this procedure from Step
6
onwards, until all the required
stations have been stored.
16
On completion, press the MENU button three times to exit the menu.
** MANUAL TUNING **
PR : 1 CH : 002 MFT : - DECODER : OFF NAME : ----

¥
MEMORY: OK
END:MENU
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
** TV STATION TABLE **
PR CH NAME DEC
1 002 ---- OFF 2 3 4 5


SWAPPING:OK
DELETE:CLR/RST MENU
GB
17
Presetting the Stations Automatically
☛
You do not need to preset the stations if you have already set them automatically (see Plug & Auto Set Up on page 12)
.
Your VCR contains a built-in tuner used to receive television broadcasts. You must preset the stations received through the tuner. This can be done:
◆Plug & Auto Set up (see page 12) ◆Automatically ◆Manually (see page 18)
You can store up to 80 stations.
➢
To enable the VCR to decode a scrambled TV station, the decoder must be activated after the scan (see pages 18).
1
Press the MENU button on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the corresponding

or

buttons, until the
AUTO SET UP
option is selected. And then press the

button to select this option.
Result: A message appears, indicating that any channels
already preset on your VCR will be deleted.
5
Press OK to start the auto scanning.
Result:◆The
PLEASE WAIT
indication flashes on the
television screen.
◆The first frequency band is scanned and the first
station found is displayed and stored.
◆
The VCR then searches for the second station and so on.
◆When the automatic scanning procedure has
finished, the VCR switches automatically to pro- gramme 1.
➢
The number of stations automatically stored by the VCR depends on the number of stations that it has found.
6
If you wish to cancel the auto scanning before the end, press the MENU button three times to exit the menu.
➢◆Once the auto scanning procedure has finished, some
stations may have been stored more than once; select the stations with the best reception and delete the ones no longer required (see page 19).
AUTO SET UP PLEASE WAIT
30%
I
■■■■■■■■■■■■
-------I
END:MENU
YOUR DATA WILL BE LOST
PRESS OK TO CONTINUE
MENU TO EXIT
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU

Reference Information
2-8 Toshiba
GB
20
Changing the Preset Station Table
You can rearrange the preset TV stations according to your own preferences programme number assigned to the station.
1
Press the MENU button on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the

or

buttons to select
MANUAL SET UP
option.
And then press the

button to select this option.
Result: The
TV STATION TABLE
menu is displayed.
5
Press the corresponding

or

buttons, until the required preset
TV programme is selected. Result: The selected station is displayed at the same time on
the television screen.
6
To change the programme number assigned to a station press the OK button on the remote control. (For example, To move a TV station in programme 1 to programme 3)
7
Press the

or

buttons to select required position. And then
press OK again to swap the position.
8
You can modify this station by repeating the same procedure from Step
5
onwards.
9
On completion, press the MENU button three times to exit the menu.
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :CH60


END:MENU
** TV STATION TABLE **
PR CH NAME DEC
1 002 ---- OFF 2 3 4 5

SWAPPING:OK
MENU
** TV STATION TABLE **
PR CH NAME DEC
1 2 3 002 ---- OFF ) 4 5

SWAPPING:OK
MENU
GB
19
If you have stored a TV station:
◆That you do not require ◆At the wrong programme position
you can cancel it.
1
Press the MENU button on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
INSTALLATION
option.
3
Press the OK button to select this option. Result: The
INSTALLATION
menu is displayed.
4
Press the

or

buttons to select
MANUAL SET UP
option.
5
Press the

button to select this option.
Result: The
TV STATION TABLE
menu is displayed.
6
Press the corresponding

or

buttons, until the required preset
TV station is selected. (PR)
7
Press the CLR/RST button.
8
Repeat the same procedure from Step
6
onwards until all the
required stations have been cleared.
9
On completion, press the MENU button three times to exit the menu.
Clearing a Preset Station
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
INSTALL
INSTALL
AUTO SET UP MANUAL SET UP TV SYSTEM :G VCR OUTPUT CH :60


END:MENU
** TV STATION TABLE **
PR CH NAME DEC
1 002 ---- OFF 2 3 4 5


SWAPPING:OK
DELETE:CLR/RST MENU

Reference Information
Toshiba 2-9
GB
22
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO
Selecting the Cassette Type
If you wish to use the tape counter to display the time remaining on a cassette, you must indicate the type of cassette inserted.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
USER SET
option.
3
Press the OK button to select this option.
4
Press the corresponding

or

buttons, until the
TAPE SELECT
option is selected.
5
Press the
¥
or

buttons as many times as required, until the
correct cassette length is displayed.
E180 E240 E 300 E260
6
Press MENU twice to exit the menu.
Selecting the Recording Speed
T
ype Recording Time (in SP)
E-180 180 mins. or 3 hours E-240 240 mins. or 4 hours E-260 260 mins. or
4 hours and 20 mins.
E-300 300 mins. or 5 hours
You can record a cassette at two different speeds:
◆SP (Standard Play) ◆LP (Long Play)
In Long Play modes:
◆Each cassette lasts twice as long ◆The recording is of a slightly lower quality
To record a cassette... Press the SP/LP button on the
remote control, until...
In standard play mode
SP
is displayed.
In long play mode
LP
is displayed.
PTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO FORMAT 16:9 :AUTO NICAM :ON ECO.MODE :OFF


END:MENU
GB
21
The TV/VIDEO button allows you to record one channel with the VCR while you watch another channel on the TV. When the VIDEO indicator is... Your television... On The television receives the picture from
the VCR and you can select channels with the CHANNEL (
or
) buttons
on the VCR or CH (
or
) on the
remote contro
l.
Off (or the VCR is turned off) The television receives the picture from
your home aerial or cable television system as it did before you connected the VCR. You can then use the
programme
(
or
) buttons on your television to select
the channels.
To switch the VCR indicator on and off, simply press the TV/VIDEO button.
Satellite Monitor functions
For Satellite Receiver with only ONE SCART socket: If the Satellite receiver has only one Scart output, Connect it to the BLUE input socket on the VCR. Use another Scart lead to connect the AV1 (EURO AV) Socket on the VCR to the TV. ☛If the Satellite receiver has two SCART outputs, one to
the VCR and another to the TV, you do not need to use this function.
To view Satellite when video is in standby or (not ECO. mode) recording a television station:
1
Press the SAT.MONI. button on the remote control once to select the AV2 (DEC./EXT.) scart. This will loop the satellite signal through the VCR up to the television.
2
If it has not been automatically selected, select the SCART socket on the television. (refer to TV Owner’s Manual)
3
To cancel press the SAT.MONI. button again. ➢
If you press MENU on the remote control the Satellite Monitor function will be canceled.
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO
Switching between the TV and VCR Modes
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO

Reference Information
2-10 Toshiba
GB
24
Recording a Programme Immediately
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
7
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO
5
6
6

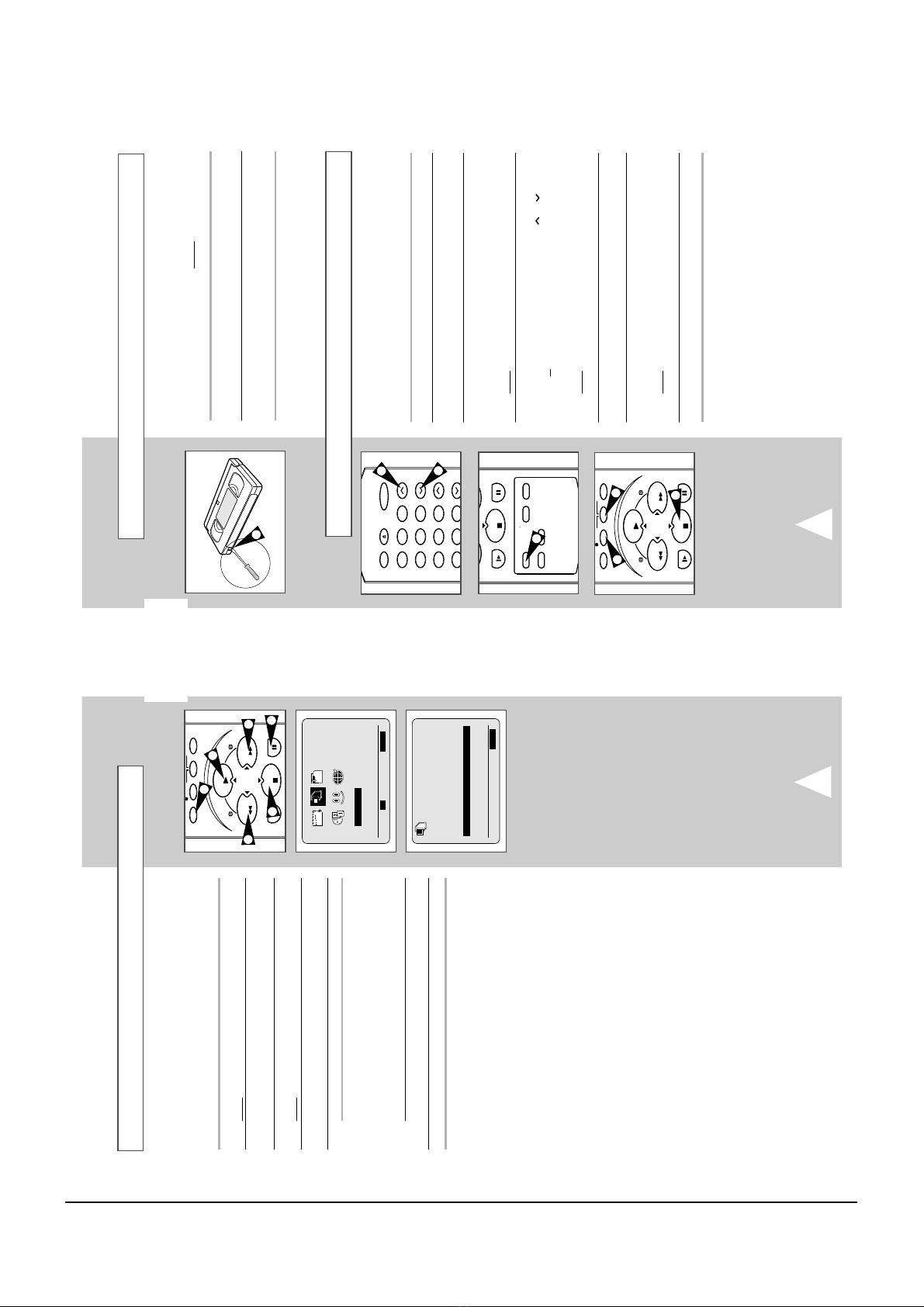

Protecting a Recorded Cassette
Video cassettes have a safety tab to prevent accidental erasure. When this tab has been removed, you cannot record on the tape.
1
If you wish to protect a cassette, break off the tab using a small screwdriver.
2
To re-record over a protected cassette (safety tab broken), cover the hole with adhesive tape.
1
Before recording a programme, you must have preset the corres- ponding station (unless you are recording via an external video source). If you have not done so, refer to pages 17 and 18.
1
Switch on the television.
2
To monitor the programme being recorded, select the television channel reserved for use with your VCR (or the AV input if used).
3
Insert the cassette on which the programme is to be recorded, with the window visible and the safety tab intact or the opening covered with adhesive tape. Result: The VCR is switched on automatically.
4
Select: ◆The station to be recorded using the CH ( or ) buttons
or
◆The AV1, AV2 or AUX source using the I.SELECT button for
a satellite tuner or external video source
Result: The station number is displayed and the programme
can be seen on the television.
5
Select the recording speed (SP/LP) by pressing the SP/LP button as many times as required (see page 22).
6
Press two REC buttons on the remote control or REC button on the front of the VCR. Result:
The record indicator appears on the television and VCR display. An index is recorded on the tape (see page 32).
7
To stop recording, press STOP (
■
) once.
➢◆If the cassette is ejected when you start recording,
check that the safety tab is intact or the opening is covered with adhesive tape.
◆If you reach the end of the tape while recording, the
cassette rewinds automatically.
ON/
STANDBY
123
456
789
0COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
4
4
GB
23
NICAM programmes are divided into 3 types. NICAM Stereo, NICAM Mono and Bilingual (transmission in another language). NICAM programmes are always accompanied by a standard mono sound broadcast and you can select the desired sound. Please refer to page 30.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
USER SET
option.
3
Press the OK button to select this option. Result: The
USER SET
menu is displayed.
4
Press the corresponding

or

buttons, until the
NICAM
option
is selected.
5
To... Press
¥
or

, until...
Mono mode
OFF
is displayed.
OFF: Only set at this position to record the
standard mono sound during a NICAM broadcast if the stereo sound is distorted due to inferior reception
conditions.
NICAM mode
ON
is displayed.
ON: Normally set at this position.
6
On completion, press MENU twice to exit the menu.
NICAM
PTIONS
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
2
2
23
1
2
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO FORMAT 16:9 :AUTO NICAM :ON ECO.MODE :OFF


END:MENU

Reference Information
Toshiba 2-11
GB
26

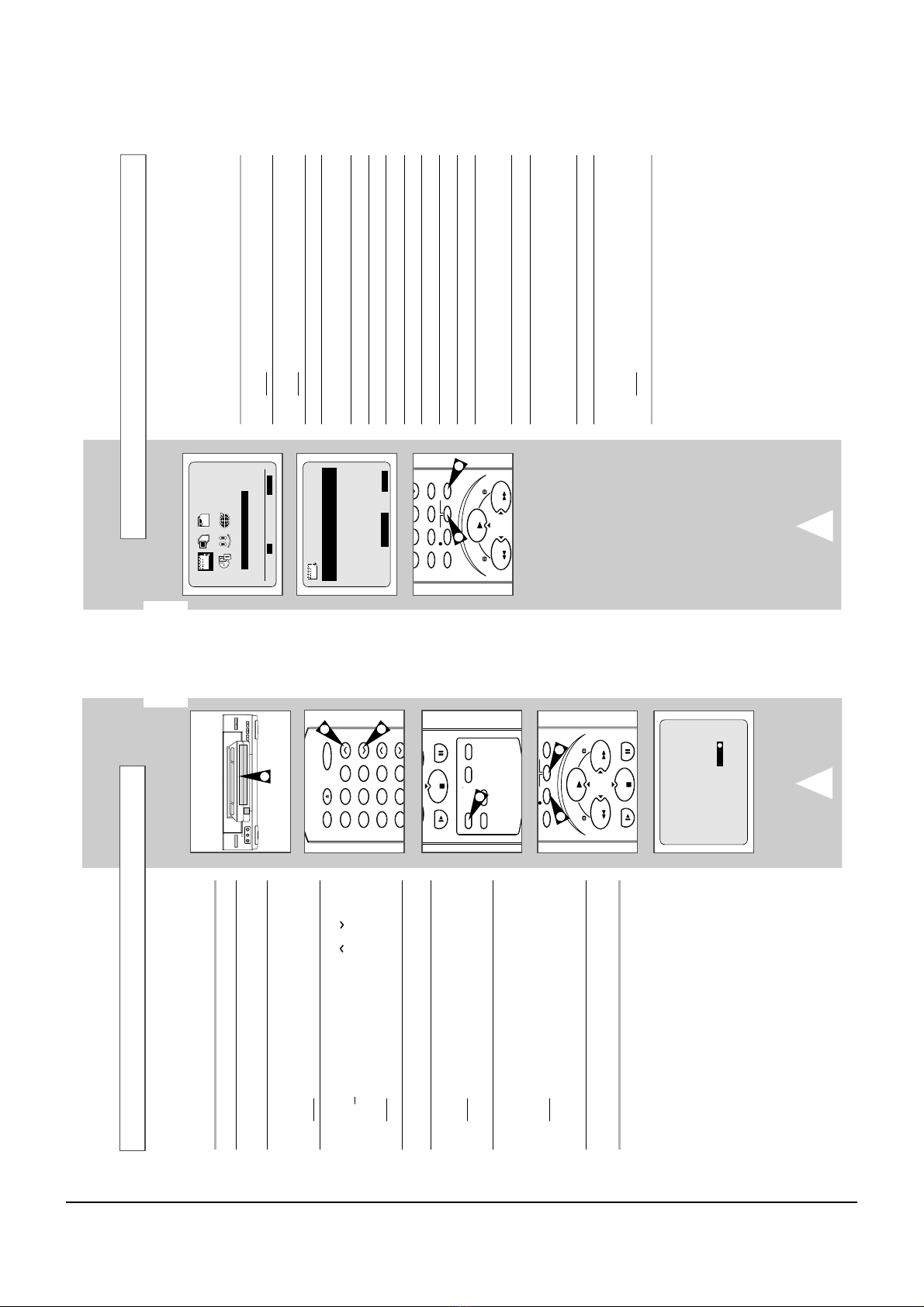

Using the TIMER Programming Feature
The TIMER Programming feature allows you to preset the VCR to record a programme up to one month before that programme is to be broadcast. Up to six programmes can be preset.
☛Before presetting a recording, check that the date and
time are correct.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select this option.
Result: The TIMER PROGRAMMING menu is displayed.
3Press

to select the input source.
4Select the required station by pressing the

,

buttons or
I.SELECT to select the AV1, AV2 or AUX input sources.
5Press

to select the recording day.
6Select the required day by pressing the

or

buttons.
7Press

to select the recording start time.
8Select the required hour value by pressing the

or

buttons.
9Press

to select the minutes.
10 Select the required minute value by pressing the

or

buttons.
11 Press

to select the recording end time.
12 Select the required recording end time by pressing the

or

buttons, following the same procedure as when selecting the recording start time.
13 Press

to select the recording speed (AUTO/SP/LP).
14 Press the

or

buttons to switch between the AUTO, SP
(Standard Play) and to set another timer programme, press

, to
go to next line and followed step 3to 14 LP (Long Play) recording
speeds.
15 When you have finished, press the MENU button. 16 Press the two TIMER buttons to activate the timer.
☛If you wish to turn the timer off any reason simply press the
two TIMER buttons again.
Result: Before starting recording, the VCR compares the timer
duration with the remaining time on the cassette.
☛Auto Tape Speed Select
The VCR’s “Auto Tape Speed Select” function compares the duration of the timer recording to the actual recording time remaining on the tape loaded. If there is insufficient tape to complete a timer recording in AUTO mode, the VCR automatically switches to LP mode to record the whole programme.
E.g. If there is a one hour Timer Recording in AUTO
mode to be started, and only 40 minutes tape remaining, the VCR will record in SP for 20 minutes and switch to complete the remaining 40 minutes in LP mode.
PROG
1/JAN MON 21:28
PR DAY START
→
STOP
1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

¥
DELETE:
CLR/RST MENU
TIMER PROGRAMMING
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
PROG
0
MENU
PLAY
REW
TIMER
REC
CLR/RST
FF
COUNT/TR
INDEX
F.ADV
CURSOR
16
16
GB
25
Recording a Programme with Automatic Stop
ON/STANDBY
REC
CHANNEL
PLAY STOP
REW FF
EJECT
NTSCPLAYBACK AUTOSPEED REC
VIDEO
AUX
L/MONO
AUDIO
R
3
This function enables you to record up to nine hours of programmes. (LP) Your VCR stops automatically after the requested length of time.
1
Switch on the television.
2
To monitor the programme being recorded, select the television channel reserved for use with your VCR (or the AV input if used)
3
Insert the cassette on which the programme is to be recorded, with the window visible and the safety tab intact or the opening covered with adhesive tape. Result: The VCR is switched on automatically.
4
Select: ◆The station to be recorded using the CH ( or ) buttons
or
◆The AV1, AV2 or AUX source using the I.SELECT button for
a satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
5
Select the recording speed (SP/LP) by pressing the SP/LP button as many times as required (see page 22).
6
Press two REC buttons on the remote control or REC button on the front of the VCR. Result: The record indicator appears on the television screen
and VCR display. An index is recorded on the tape (see page 32).
7
Press the REC button (
●
) several times to increase the recording
time in:
◆30-minute intervals up to four hours ◆1-hour intervals up to nine hours (LP)
Result: The length is displayed on the television displays. The
selected programme is recorded for the length of time requested. At the end of that time, the VCR stops recording automatically.
8
If you wish to cancel the recording before the end, press ON/STANDBY.
☛If the end of the tape is reached while recording:
◆The recording stops ◆The VCR automatically turns off
LENGTH 2:30
SET LENGTH :
PRESS REC
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
CURSOR
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO
5
ON/
STANDBY
123
456
789
0COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
4
4
6
6

Reference Information
2-12 Toshiba
GB
28

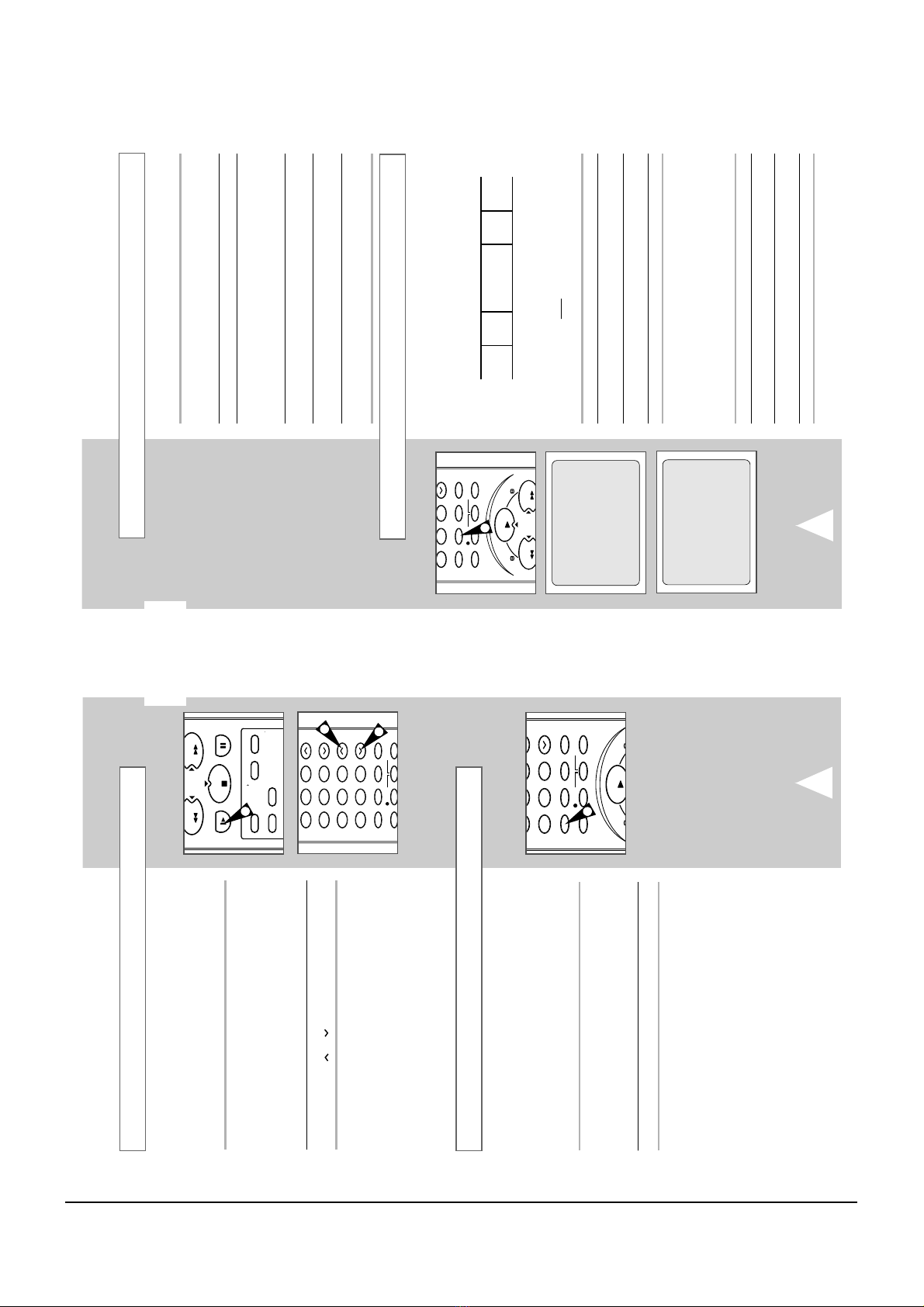

This function allows you to play back any pre-recorded cassette.
1Switch on both the television and your VCR. 2Insert the video cassette to be played. If the safety tab on the
cassette is intact, press PLAY (

).
Otherwise, the cassette is played automatically.
➢When a cassette is loaded, the tape position is optimized
automatically to reduce disturbance (Digital Auto Tracking). When playing a cassette, if the end of the tape is reached, the cassette is rewound automatically. NTSC tapes can be played back but cannot be recorded with this VCR.
3To... Then press...
Stop the playback
■
(STOP).
Eject the cassette (EJECT).
Playing a Cassette
Adjusting Picture Alignment Manually
The Picture Alignment feature allows you to adjust the alignment manually to obtain the best possible picture. When noise bars or streaks appear during playback, adjust alignment manually by pressing the
TRK
(
or
) buttons until the picture is clear
and stable. Result:
◆
The tracking bar appears.
◆
The image is adjusted.
◆
The tracking bar disappears when you release the button.
OK
SP/LP
VIDEO Plus+
AUDIO
TV/VIDEO
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
CURSOR
TV/VIDEO
PLAY STOP
REW FF
EJECT
2
3
3
123
456
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
CH
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
GB
27

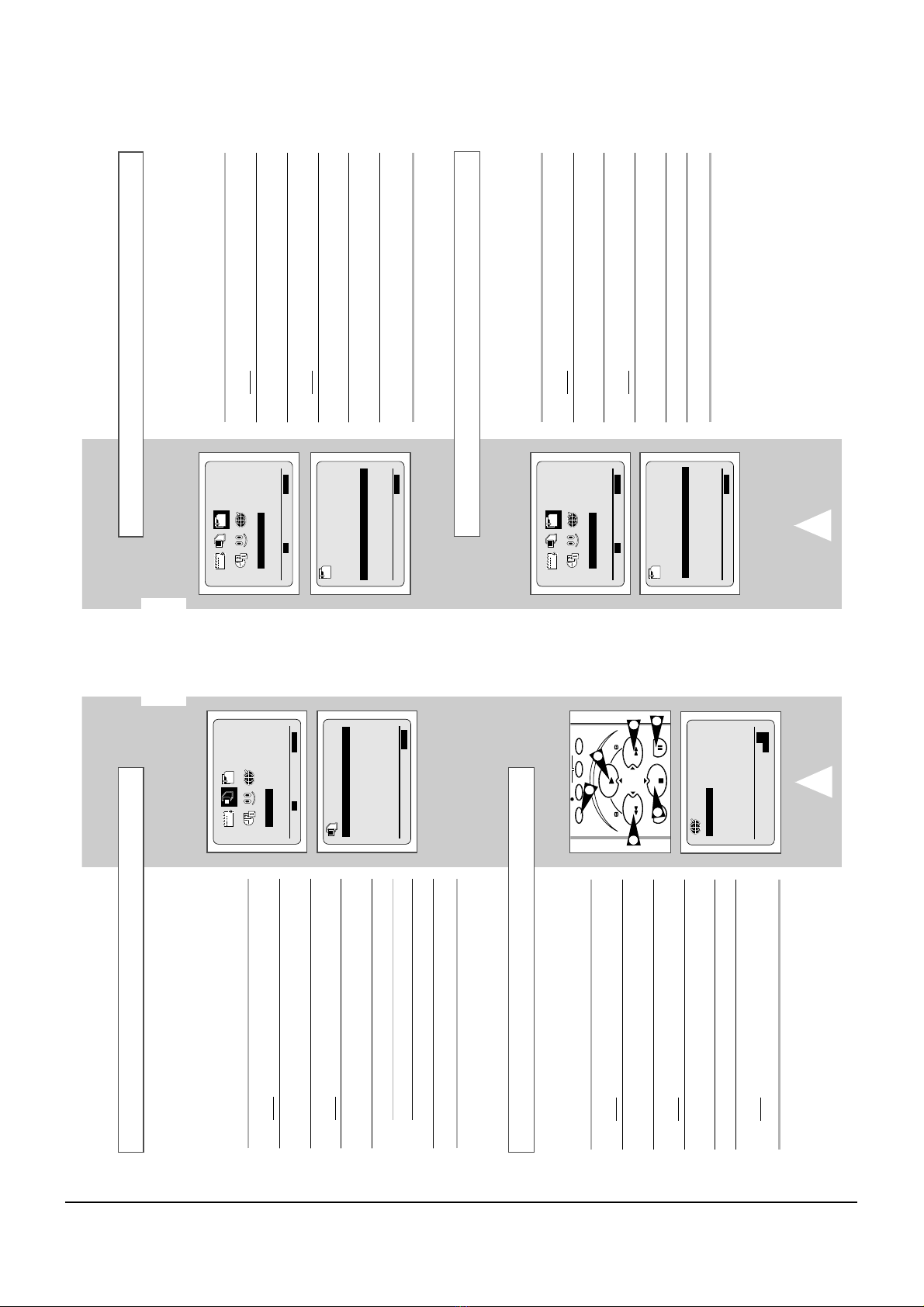

Checking a Preset Recording Cancelling a Preset Recording
You can check your preset recordings:
◆When you have finished presetting the VCR ◆If you have forgotten which programmes will be
recorded
◆Before the VCR enters the timer standby mode
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select this option.
Result: The TIMER PROGRAMMING menu is displayed.
3Press the

or

buttons to select the required programme.
4Press the
¥
or

buttons to select and change any values as
required. For more details, refer to the previous page.
5On completion, press MENU.
You can cancel any programmes that are:
◆Incorrect ◆No longer required
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select this option.
Result: The TIMER PROGRAMMING menu is displayed.
3Select the programme to be cancelled by pressing the

or

buttons.
4Press the CLR/RST button to cancel the selected programme.
Result: All the recording information is deleted and the broad-
cast will not be recorded.
5On completion, press MENU.
789
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
4
PROG
1/JAN MON 21:28
PR DAY START
→
STOP
1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

S
ET:

DELETE:
CLR/RST MENU
PROG
1/JAN MON 21:28
PR DAY START
→
STOP
1 MO 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----

S
ET:

DELETE:
CLR/RST MENU

Reference Information
Toshiba 2-13
GB
30
Selecting the Audio Output Mode
You can select the mode in which the sound is reproduced on the loudspeakers and AV outputs. The following options are available.
Option Description L Used to listen to the sound on the left Hi-Fi channel. R Used to listen to the sound on the right Hi-Fi channel. MIX Used to listen to the mixed sound of the Hi-Fi and normal
channels.
MONO Used to listen to the sound on the normal mono channel. L R Used to listen to Hi-Fi stereo sound on the left and right
channels.
➢When playing back tapes recorded in Hi-Fi, the
sound switches to Hi-Fi after five seconds of Mono.
To select the sound mode, simply press the AUDIO button on the remote control until the required option is displayed.
OK
EJECT.
VIDEO INSERT
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW STOP
PAUSE/STILL
VIDEO Plus+
TV/VIDEO
L R MIX
L R MONO
GB
29

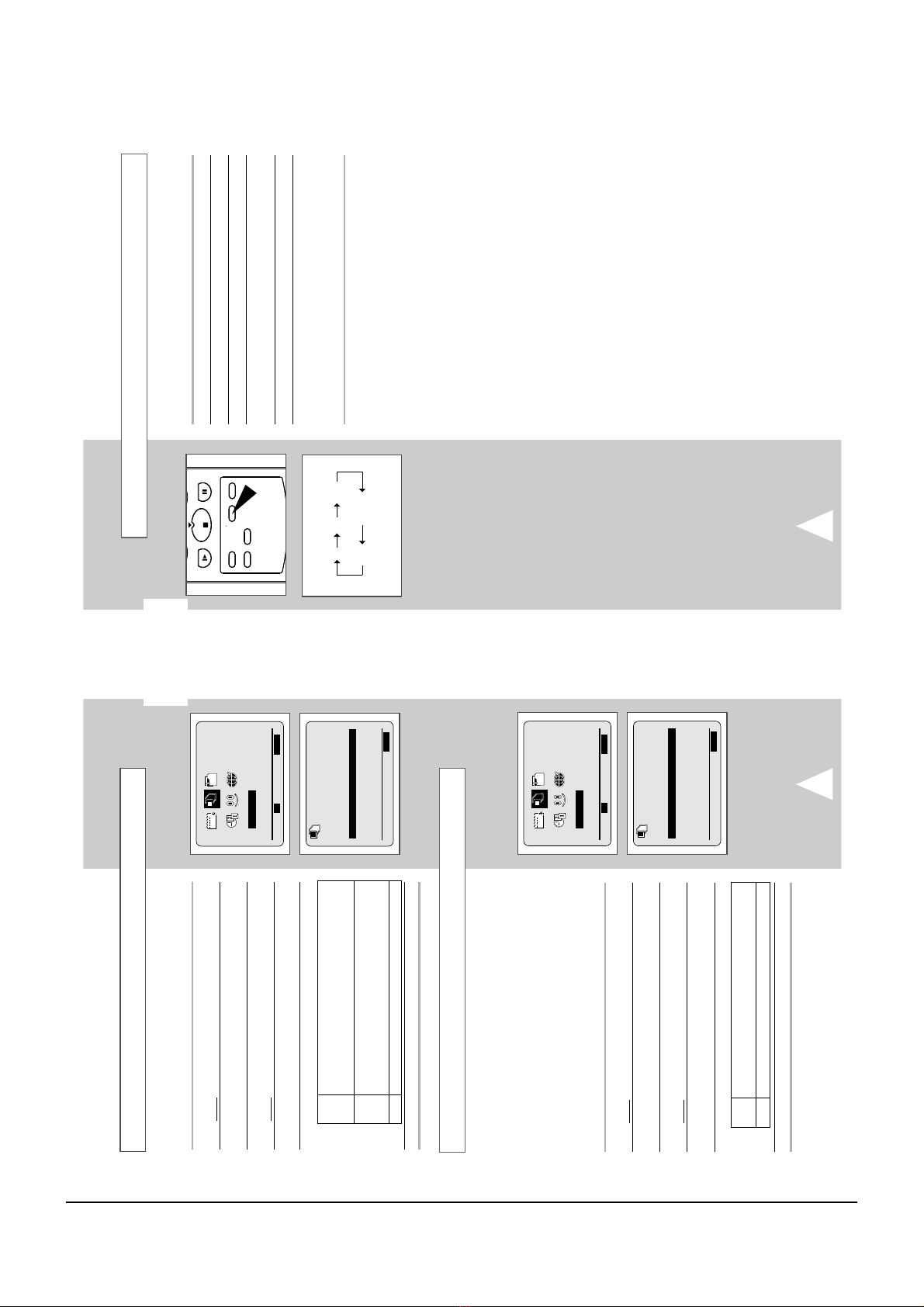

Selecting the Colour Mode
Before recording or playing back a cassette, you can select the required system standard. Otherwise, the system automatically selects the reception standard when you select AUTO. ➢
◆When playing back a cassette, the standard is
automatically selected by the VCR.
◆When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV. If your TV is a PAL system only TV, set NTPB. If your TV is Multi System TV (NTSC 4.43 compatible), set NT4.43 and you can record NT4.43.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding

or

buttons, until the
COLOUR SYSTEM option is selected.
5Press the

button to select AUTO ➝ PAL ➝ MESECAM ➝ B/W.
AUTO When playing back a cassette, the system standard is
automatically selected by the VCR.
B/W Black and White
6On completion, press MENU twice to exit the menu.
Format 16:9 (Wide Screen)
Your VCR can automatically read a 16:9 signal from the AV1/AV2 input or a prerecorded 16:9 tape. It can broadcast a 16:9 signal through a 21 pin scart cable.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding

,

or
¥
,

buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding

or

buttons, until the FORMAT 16:9
option is selected.
5Press the

button to select AUTO
➝
ON
➝
OFF.
AUTO Set when you use a wide TV. The VCR detects wide TV
programmes and normal TV programmes automatically when playing back and recording.
ON The VCR always plays back and records in the mode
compatible with 16:9 wide screen. Set if the VCR cannot detect wide TV programmes with “AUTO”set.
OFF Set if you do not use a wide TV.
6On completion, press MENU twice to exit the menu.
PTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO FORMAT 16:9 :AUTO NICAM :ON ECO.MODE :OFF


END:MENU
PTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
OPTIONS
OSD :ON TAPE SELECT :E180 COLOUR SYSTEM :AUTO FORMAT 16:9 :AUTO NICAM :ON ECO.MODE :OFF


END:MENU

Reference Information
2-14 Toshiba
GB
32
Picture Search, Fast Forward/Rewind
Picture Search enables you to Fast Forward or Rewind and look for a particular part of a tape.
1
Press PLAY, the VCR will enter normal play mode. While in play, press and release the FF (or REW) button. The VCR will search at 5 times the normal playback speed.
2
To return to normal playback mode, press the PLAY (

) button.
3
If you press and HOLD down the FF (or REW) button the VCR will search at 9 times the normal speed. Releasing the FF (

) button
will return the VCR to search at 5 times the normal speed. To return to normal playback mode, press the PLAY (

) button.
4
Whilst in Picture Search mode, if you press the FF (

) button
again, the VCR will enter normal Fast Forward mode.
5
Likewise, whilst in Picture Search REW mode, if you press the REW (
¥¥
) button again, the VCR will enter normal Rewind mode.
6
If, when Rewinding (REW) or Fast Forwarding (FF), you press the REW (or FF) button, the VCR will enter the Picture Search mode.
Searching for a Specific Sequence
Each time you record a cassette on this VCR, an “index” is automatically marked on the tape when recording starts. The Search function allows you to fast-forward or rewind to a specific index and start playback from that point. Depending on the direction selected, the indexes are numbered as follows:
etc. Prev
Seq. Seq. being
played Next
Seq. etc.
21 12
➞
➢This VCR uses a standard indexing system (VISS). As a
result, it will recognize any indexes marked by other VCRs using the same system and vice versa.
INTRO SCAN
1
To search for a specific index, press INDEX.
2
Press the REW(
¥¥
) or FF(

)
buttons depending on the direction
where your desired programme is located.
3
When an Index mark is found the VCR will playback the tape for 5 seconds, after which it will continue searching for the next Index mark.
4
If you want to watch the tape from a particular Index, simply press PLAY.
Index Skip Search: This feature will enable you to fast forward/rewind to a specific point on a tape: E.g. if you have recorded 3 different programmes on a tape and you have rewound the tape to the beginning, by using this feature you can go directly to the start of programme 2 simply by pressing the INDEX button.
1
Press the INDEX to start the Index search.
2
Press the REW(
¥¥
) or FF(

)
buttons twice more. This will take
you directly to the start of the desired programme is located.
3
These Index searches can be made forwards: (press

) or
backwards: (press
¥¥
).
4
To cancel an Index search simply press the PLAY or STOP button.
0
MENU
PLAY
REW
TIMER
REC
CLR/RST
FF
COUNT/TR
INDEX
F.ADV
CURSOR
1
INDEX:
¥¥
INDEX SEARCH:

+01
GB
31
Playing a Cassette in Slow Motion
You can play a cassette in slow motion.
➢No sound is heard when playing back a cassette in slow
motion.
1Press:
◆
PLAY (

) to start playing the cassette
◆
SLOW (
I

) and release the SLOW (
I

) button on the
remote control. If you press the SLOW (
I

) button twice, the
playback will slow down to 1/12 th of normal speed.
◆
To return to the normal speed, press the PLAY (

)button.
2When playing back in slow motion, picture interference may occur.
Press the TRK ( or ) buttons to minimize this effect.
☛When you have been using the Slow Motion function for
more than about five minutes, the VCR will automatically play to protect the: ◆Cassette ◆Video heads
OK
SP/LP
VIDEO Plus+
SAT.MONI.A.DUB SAT.CONT.
AUDIO
TV/VIDEO
SLOW
REW
STOP
FF
PAUSE/STILL
VIDEO Plus+
CURSOR
TV/VIDEO
1
You can:
◆Stop the cassette at a given frame (image) ◆Advance one frame at a time
➢No sound is heard when playing back frame by frame.
1Press:
◆
PLAY (

) to start playing the cassette
◆
PAUSE/STILL (
II
) to stop the tape at a given frame
◆
F.ADV to advance frame by frame
2To return to normal playback, press PAUSE/STILL (
II
).
☛When you have been using the Frame-by-Frame function
for more than about five minutes, the VCR will auto- matically play to protect the cassette and video heads.
Playing a Sequence Frame by Frame
123
456
789
0
MENU
COUNT.RST
TIMER
REC
CLR/RST
CH
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
2
2
7
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
1

Reference Information
Toshiba 2-15
GB
34
The tape counter:
◆Indicates the elapsed time in the play and record modes
(hours, minutes and seconds)
◆Is reset when a cassette is inserted in the VCR ◆Allows you to find the beginning of a sequence easily
☛If the remaining time is to be calculated correctly, you
must indicate the type of cassette being used.
1
Insert a cassette in your VCR.
2
To set the tape counter to zero at the beginning of a sequence: ◆
Press DISPLAY twice to display the counter
◆
Press CLR/RST when you want to set the tape counter to zero
3
When you are ready, ◆
Start playback or Recording.
◆
Press the STOP button.
◆
To fast-froward or rewind to the sequence at which the counter was set to zero, press REW (
¥¥
)
or
FF (

).
➢Some VCR information, such as the counter, can be
displayed on the television screen (unless you have deactivated the OSD mode; refer to page 15). Press DISPLAY: ◆Once to display the current function, programme
number, recording speed, date, time and counter
◆Twice to display the counter only ◆Three times to display the time remaining on the
cassette
◆Four times to clear the display
Press COUNT/TR:
◆Once to display the counter ◆Twice to display the time remaining on the cassette
Using the Tape Counter
0:00:00
789
0
MENU
PLAY
COUNT.RST
TIMER
REC
CLR/RST
I.SELECT
COUNT/TR
INDEX
TRK
F.ADV
2
ON/
STANDBY
123
456
789
CH
VTR
DISPLAY EJECT
2
GB
33
You can set repeat play to repeat the tape continuously from beginning to end.
1
Press MENU on the remote control. Result: The programming menu is displayed.
2
Press the corresponding

,

or
¥
,

buttons to select the
EASY OPERATION
option.
3
Press the OK button to select this option. Result: The
EASY OPERATION
menu is displayed.
4
Press the corresponding

or

buttons, until the
REPEAT PLAY
option is selected.
5
To... Press
¥
or

, until...
Repeat play
ON
is displayed.
Do not wish to repeat play
OFF
is displayed.
6
On completion, press MENU twice to exit the menu.
Auto Repeat Play
EASY OPERATION
PROG OPTIONS INSTALL
CLOCK BONUS LANG

¥
OK END:MENU
AUTO POWER OFF :OFF REPEAT PLAY :OFF


END:MENU
BONUS
BONUS
