Toshiba TW-BK100S2 User manual

Read This ManualRead all instructions and explanations for the installation before use. Follow the instructions carefully. Keep the operation instructions handy for later use. If the appliance is sold or passed on, ensure that the new owner always receives this operation instructions.OWNER’S MANUALFRONT LOADING
WASHER
MODEL:TW-BK100S2

CONTENTSSAFETY INSTRUCTIONS Safety Instructions ........................................................INSTALLATION Product Description ...................................................... Installation .....................................................................OPERATIONS Quick Start ...................................................................... Before Each Washing .................................................... Detergent Dispenser .................................................... Control Panel .................................................................. Programmes.................................................................... Option............................................................................. MAINTENANCES Cleaning and Care ........................................................ Trouble Shooting .......................................................... Technical Specifications ............................................. Product Fiche ................................................................. 2910141617192027293233341

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.
its service agent or similarly qualified persons in order to avoid a hazard.•If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.Risk of electric shock!•If the supply cord is damaged, it must be replaced by the manufacturer, ELECTRIC SHOCK HAZARDSAFETY INSTRUCTIONSSafety Instructionsa potentially dangerous situation which may result in death or serious injuries unless it’s avoided.This combination of symbol and signal word indicates Warning!！a potentially dangerous situation which may result in slight or minor injuries.This combination of symbol and signal word indicates Note!a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.This combination of symbol and signal word indicates Caution!Warning!！2

SAFETY INSTRUCTIONS•The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.•Children should be supervised that they do not play with the appliance.•Children 3 years and under shall be kept away from the appliance or continuously supervised.•Animals and children may climb into the machine. Check the machine before every operation. •Do not climb or sit on the appliance.INSTALLATION LOCATION AND SURROUNDING•All washing and additional substances are to be kept in a safe place out of the reach of children.•Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.•Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.•Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.•The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.3

SAFETY INSTRUCTIONS•Do not operate the machine in rooms with a temperature of below 5°C. This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.•Never use flammable sprays or substances in the immediate proximity of the appliance.INSTALLATION•Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.•This appliance is equipped with a single inlet valve and can be connected to the cold water supply only. •Mains plug must be accessible after installation.•Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.•Before using the washing machine, the product shall be calibrated.•Do not put any excessively heavy objects on the appliance, like water containers or heating devices.•The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.•Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.ELECTRICAL CONNECTION•Make sure the supply cable is not trapped by the machine, it can get damaged. •Connect the product to a grounded outlet protected by a fuse complying with the values in the “ Technical specifications“ table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.4

SAFETY INSTRUCTIONS•Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations.•Don´t use multiple plugs or extension cords.•The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.•Do not pull the plug out of the mains outlet if there is flammable gas around.•Never pull out power plug with wet hands. •Always pull at the plug, not at the cable.•Always unplug the appliance if it is not being used.Warning!！WATER CONNECTIONS•Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.•Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.•The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.•Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.5

SAFETY INSTRUCTIONSOPERATION AND MAINTENANCE•Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.•Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.•Remove all objects from pockets such as lighters and matches before use the appliance.•Thoroughly rinse items that have been washed by hand.•Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.•Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine•Fabric softeners or similar products should be used as recommended in their instructions. •Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.•Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.6

SAFETY INSTRUCTIONS•Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.•Never pour water over the appliance for cleaning purpose. Risk of electric shock!•Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.TRANSPORT•Before Transport:-Bolts shall be reinstalled to the machine by a specialized person-Accumulated water shall be drained out of the machine•This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.INTENDED USEThe product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use. Only use according to these instructions. The appliance is not intended for commercial use.Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.•Thisapplianceisintendedtobeusedinhouseholdand similarapplicationssuchas:-Staffkitchenareasinshops,officesandother working environments;-Farmhouses;-Byclientsinhotels,motelsandother residentialtypeenvironments;-Bedandbreakfasttypeenvironments;-Areasforcommunaluseinblocksofflatsorin launderettes.7

SAFETY INSTRUCTIONSThis marking indicates that this product should not be disposed with other household wastes throughout the EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of material resources.To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.
Packaging/Old appliance
8

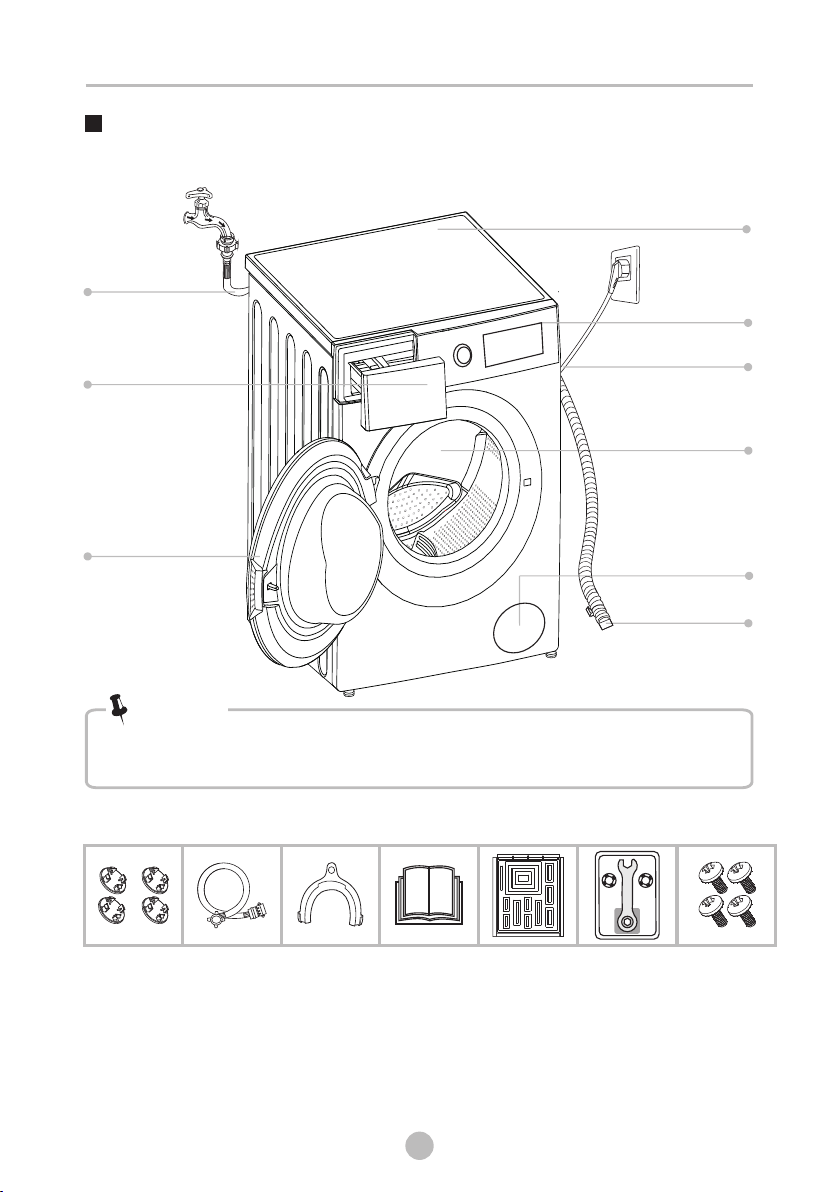

AccessoriesProduct DescriptionTransport plughole Supply hosecold waterDrain hose (supportoptional)
• The product line chart is for reference only, please refer to real product as standard.
Note!Owner’s manualDrum Power supply cordControl panel
Detergent dispenser
Drain pump filterDoor
Water supply hose
Top cover Drain hoseScrew(optional)Rat resistance panel(optional)
Spanner assembly(optional)
INSTALLATION9

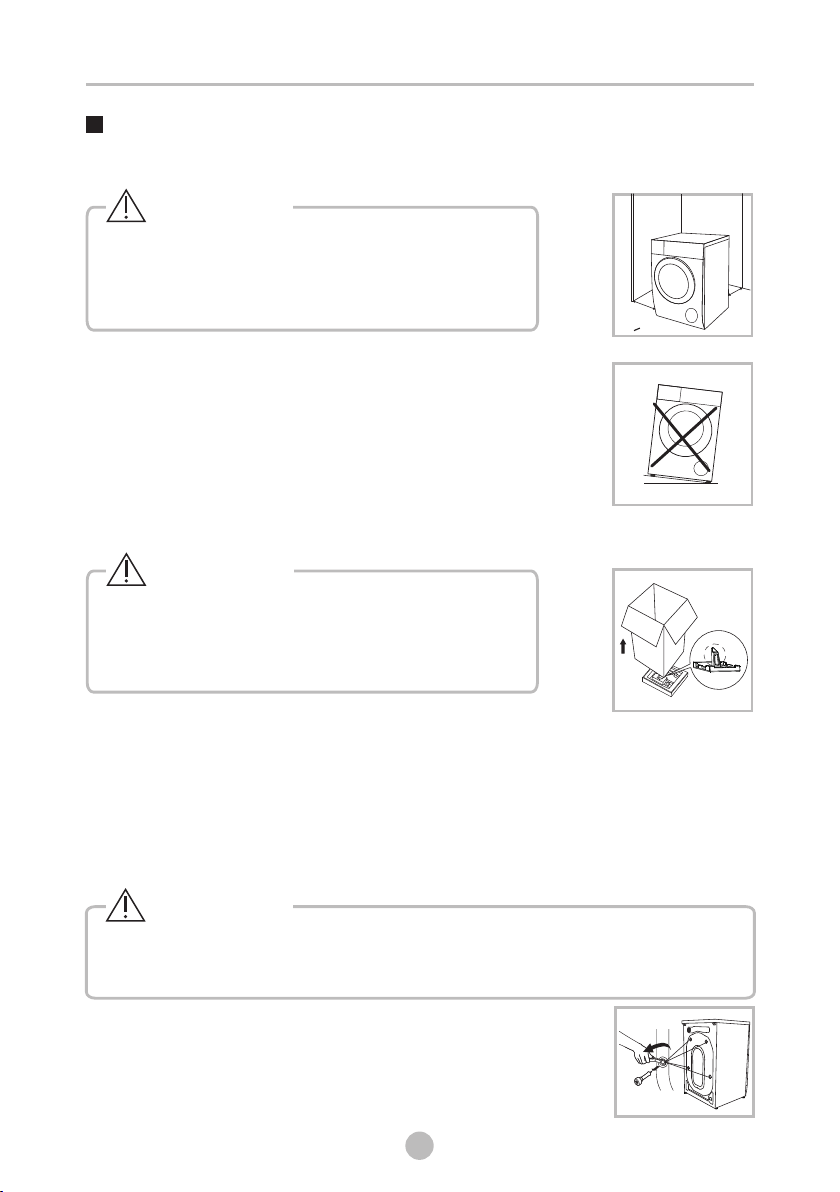

INSTALLATIONInstallation Before installing the machine, the location characterized as follows shall be selected:1.Rigid, dry, and level surface 2.Avoid direct sunlight3.Sufficient ventilation4.Room temperature is above 0C5.Keep far away from the heat resources such as coal or gas.° Unpacking the washing machine1. Remove the cardboard box and styrofoam packing.2. Lift the washing machine and remove the base packing.Make sure the small triangle foam is removed with the bottom one together. If not, lay the unit down with side surface, then remove the small foam from the unit bottom manually.3. Remove the tape securing the power supply cord and drain hose.4. Remove the inlet hose from the drum.Please take the following steps to remove the bolts:1.Loosen 4 bolts with spanner and then remove them.2.Cover the hole with transport hole plugs.3.Keep the transport bolts properly for future use.Remove transport bolts• Stability is important to prevent the product from wandering!• Make sure that the product should not stand on the power cord.Warning!• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.• There is a risk of suffocation ! Keep all packaging well away from children.Warning!
• You must remove the transport bolts from the backside before using the product. • You’ll need the transport bolts again if you move the product , so make sure you keep them in a safe place.
Warning!wwW 20mm>Installation area10

INSTALLATIONRemove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!！Loosen the 4 transport bolts with a spanner.Remove the bolts including the rubber parts and keep them for future use.Close the holes using the cover caps.Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!！1. Loosen the lock nut.2. Turn the foot until it reaches the floor.3. Adjust the legs and lock the nuts with aspanner. Make sure the machine is level andsteady. Connect the water supply hoseTo prevent leakage or water damage, follow the instructions in this chapter• Do not kink, crush or modify water inlet hose.Warning!！Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated. • Connect manually, do not use tools. Check if the connections are tight.Note!11

INSTALLATIONWarning!Drain HoseThere are two ways to place the end of drain hose:1.Put it into the drain port.2.Connect it to the branch drain pipe of the trough.
•• If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. When installing drain hose, fix it properly with a rope.
• •Position drain hose properly ,otherwise damage might result of water leakage.Do not kink or protract the drain hose.
Drain port
Min.60cm100cmMax.
TroughHose Retainer
Bind
Max.100cmMin.60cm
Min.60cmMax.100cm
If the machine has • drain hose support, please install it like the following .Warning!Note! 12

INSTALLATIONLevelling the washing machine
• Check with the gradienter if the machine placement is balanced and steady.• If there is no gradienter, check the balance as per the following method.
Warning!bacFront CoverControl PanelTop Cover1.If it’s balanced from left to right.•Take a long stick, and tie a rope at the end of it. Bind a heavy object at the end of the rope.• Hang the rope from the top cover of the machine. Adjust the legs till the difference between ‘a’ and ‘b’ is less than 1cm. 2.If it’s balanced from front to back• Put the stick at the middle of the control panel, and hang the rope in front of the machine.• Keep 10cm away from the rope end to the control panel edge. Adjust the legs till ‘c’ is 3.5~4.5cm (‘c’ is the distance from rope to bottom of front cover ).13

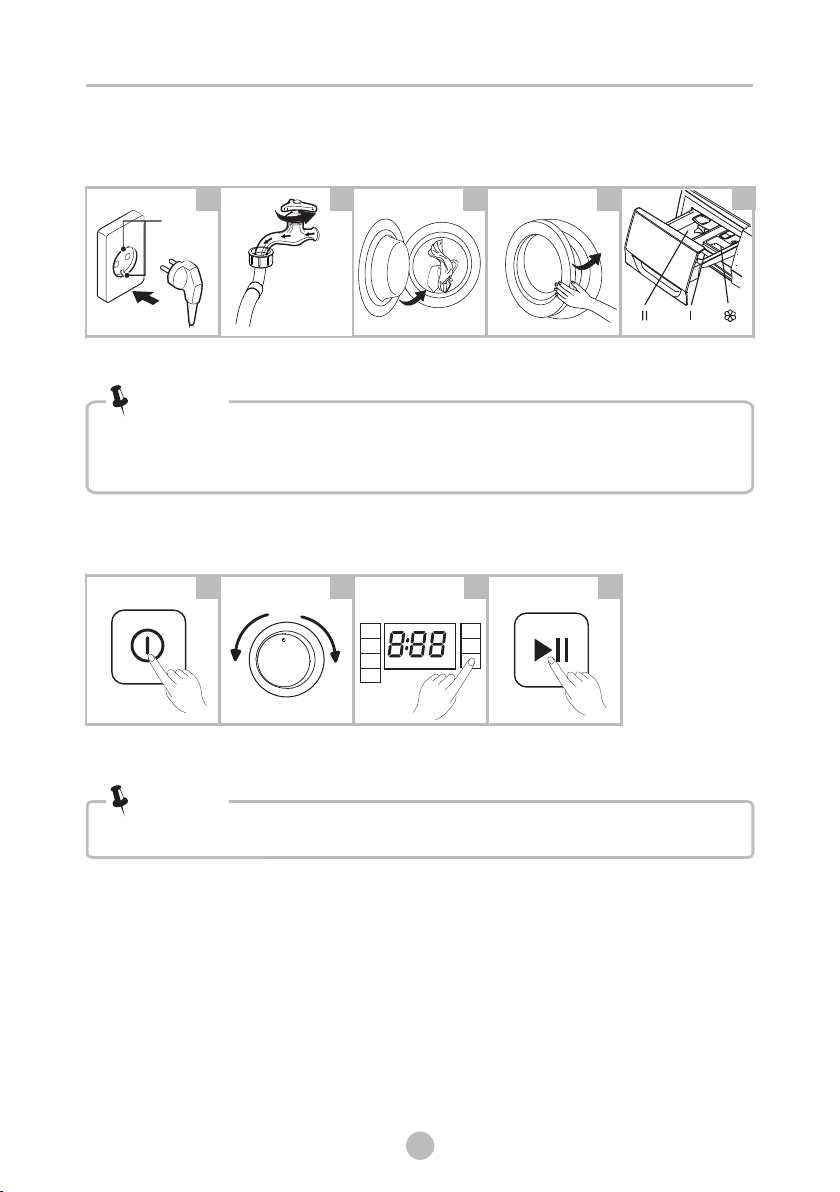

Quick Start
• Before washing, please make sure the washing machine is installed properly. • Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it’s recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.
Caution!It’s recommended to calibrate the washing machine, so that provide the best performance.The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it’s recommended to calibrate the appliance for best use.1- Remove all accessories from the drum and close the door;2- Insert the mains plug to the socket;3- Switch on the washing machine and press “Temp.” and “Delay” simultaneously for 1 second until “t20” is displayed;4- Press [ ] to start the appliance and wait till “****” is displayed.CalibrationOPERATIONS14

2. WashingBuzzer beep and “End” on display.3. After Washing1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
• Detergent need to be added in compartment I if the pre-wash function is selected.1234Note!earth terminal5 Main wash Prewash Softener
Power On
Select Programme Select functionor default Start up
1234• If default is selected, step 3 can be skipped.Note!OPERATIONS15

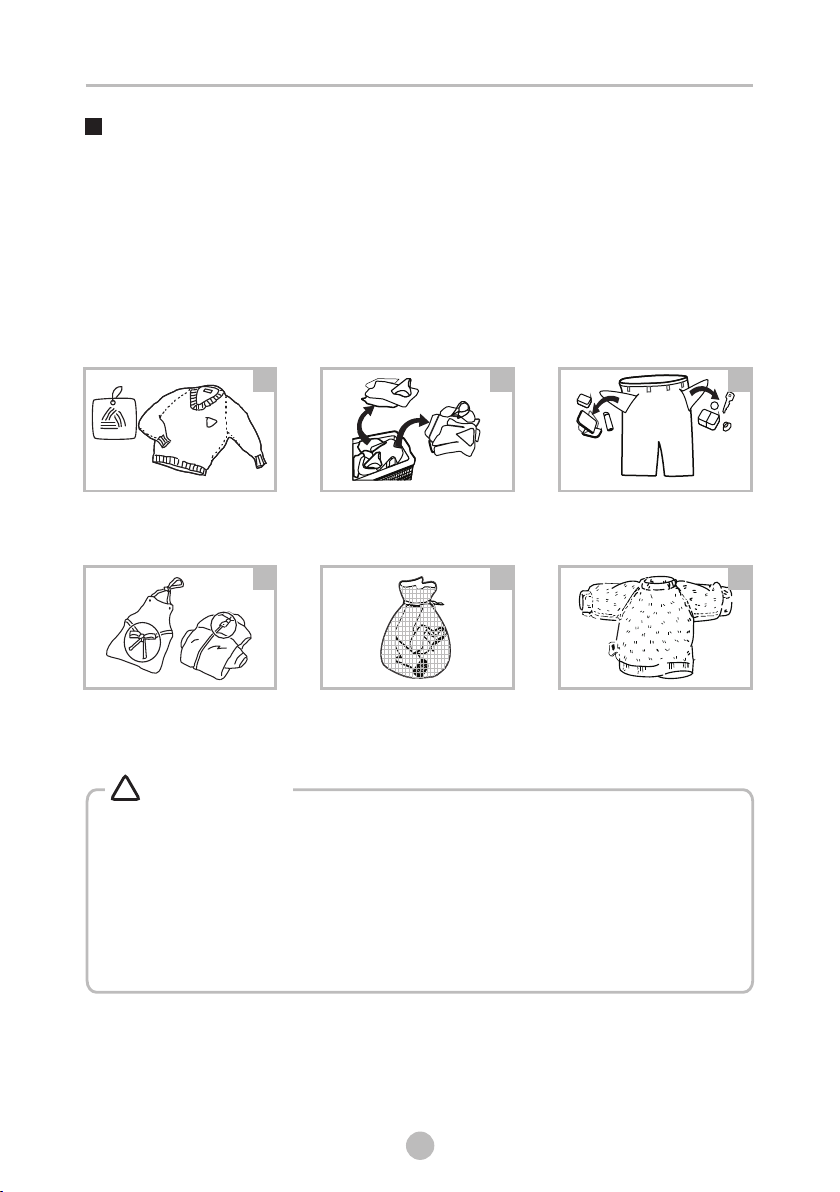

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly. • The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.Tie together long textile strips and belts, close zipsand buttonTake all items out of the pocketsPut small items into a laundry bag Check the care labelBefore Each Washing
Turn easy-pilling andlong-pile fabric inside out
Sort laundry according to color and textile typeWarning!！123456OPERATIONS16

ProgrammeCOTTONSYNTHETICBABY CAREBEDLINENMIXCOLORALIVESPIN ONLYDRUM CLEAN
Means must Means optional ○
ProgrammeECO 40-60DOWN JACKETSPORT WEAR15’ QUICK DELICATEWOOLRINSE&SPIN
Detergent Dispenser• As for the agglomerated or ropy detergent or additive, before they are poured into the detergent box, it is suggested to use some water for dilution to prevent the inlet of detergent box from being blocked and overflowing while filling water.• Please choose suitable type of detergent for the various washing temperature to get the best washing performance with less water and energy consumption.Note!OPERATIONS Pre wash detergent Main wash detergentSoftener IIIPull out the dispenserLiquid detergent Powder detergent Dam-boardDam-board17

Detergent RecommendationAgglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption.• To achieve the best cleaning result a proper detergent dosing is important.• Use a reduced detergent amount if the drum is not filled completely.• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.• Dose according to how dirty your laundry is, less dirty clothes require less detergent.• Highly concentrated (compact detergent) requires particularly accurate dosing.Following symptoms are a sign of detergent overdosing:- heavy foam formation- poor washing and rinsing resultFollowing symptoms are a sign of detergent underdosing:- laundry turns grey- built-up of limescale deposits on the drum, the heating element and/or the laundry• Note!OPERATIONS18Recommended washing detergentHeavy-duty detergent with bleaching agents and optical brightenersColour detergent without bleaching agent and optical brightenersColor or mild detergent without optical brightenersMild washing detergentSpecial wool detergentWashing temp.40 / 60 / 9020 / 30 / 4020 / 30 / 4020 / 3020 / 30 / 40Type of laundry and textileWhite laundry made from boil-proof cotton or linenColoured laundry made from cotton or linenColoured laundry made from easy care fibres or synthetic materialsDelicate textiles, silk, viscoseWoolCotton,ECO 40-60,MixWash cyclesCotton,ECO 40-60,MixDelicateWoolColoralive

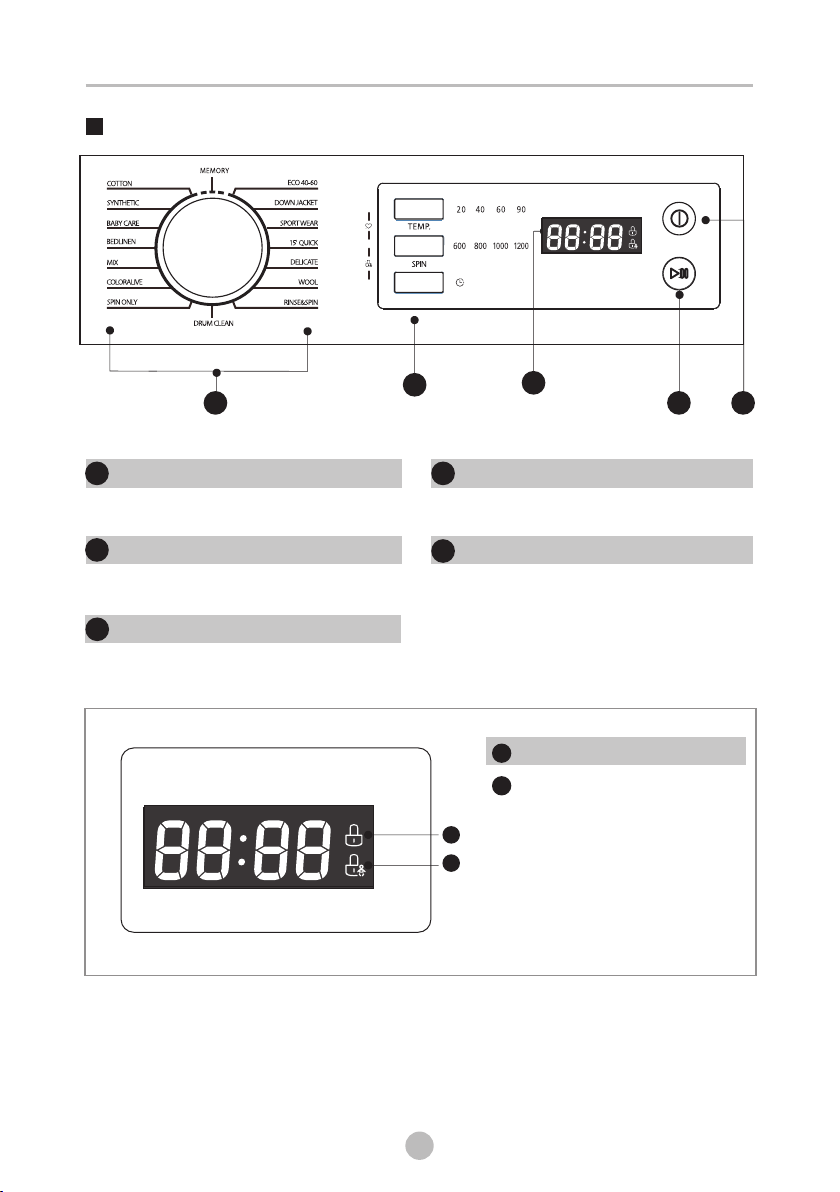

Control Panel PowerProduct is on/off.Start/PausePress the button to start or pause the washing cycle.ProgrammesAvailable according to the laundry type.Option This allows you to select an additionalfunction and will light when selected.113124DisplayThe display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.5
Door Lock
A
Child Lock
BAB5311124
DELAY END
OPERATIONS19
