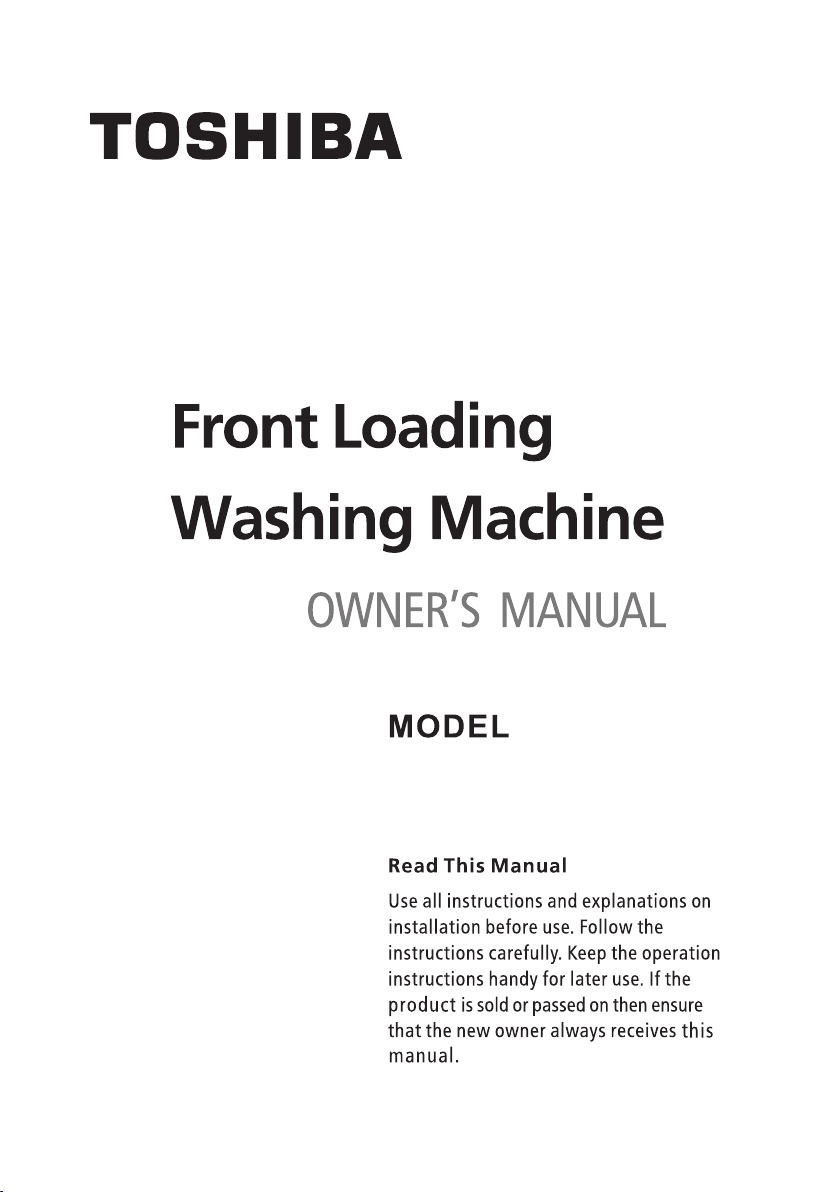

Toshiba TW-BH95M4PH User manual

TW-BH95M4PH
TW-BH105M4PH

SAFETY INSTRUCTIONS
INSTALLATION
OPERATION
MAINTENANCE
Safety Instructions ..................................................
Product Description ................................................
Installation ...........................................................
Quick Start .............................................................
Before Each Washing ..............................................

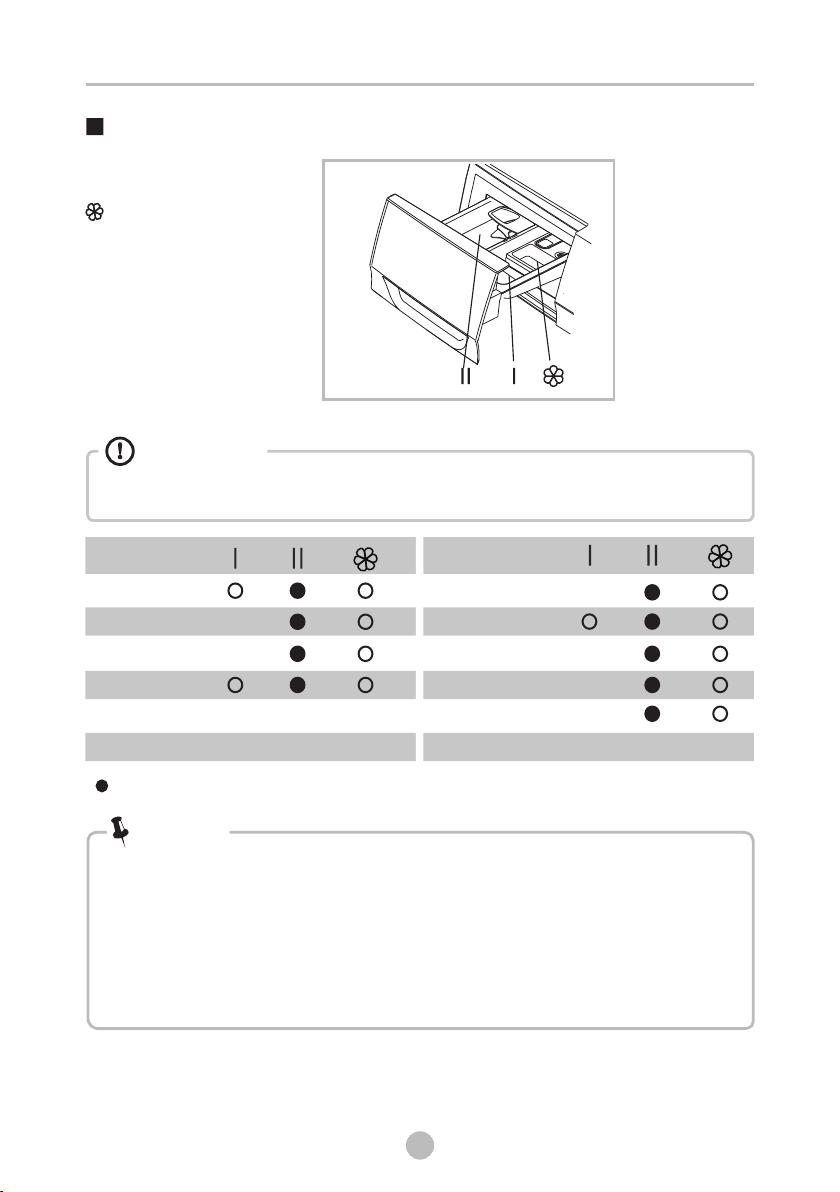

Detergent Dispenser ...............................................

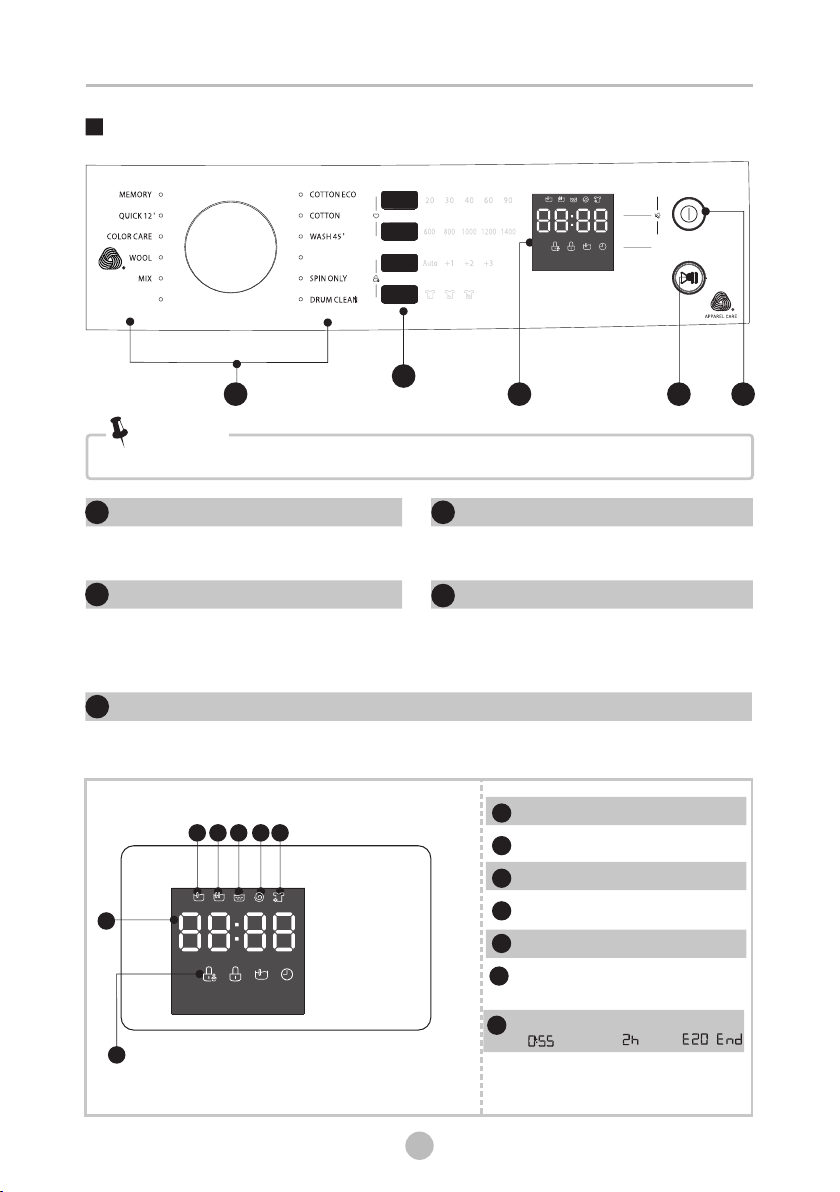

Control Panel .........................................................
Option....................................................................
Other Functions ......................................................
Programs.................................................................
Washing Program Table ............................................
Cleaning And Care .................................................
Troubleshooting ....................................................
Technical Specifications .........................................
2
9
10
14
15
16
17
18
20
22
23
24
27
28
1
CONTENTS

2
SAFETY INSTRUCTIONS
Safety Instructions
• This appliance is not intended for use by
persons(includingchildren) with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge,unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid hazards.
• The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household
and similar applications such as:
− staff kitchen areas in shops, offices and other
working environments;
− farm houses;
− by clients in hotels, motels and other residential type
environments;
− bed and breakfast type environments;
− areas for communal use in blocks of apartments or in
laundromats.
• The maximum permissible inlet water pressure, 1 MPa,
for appliances is intended to be connected to the water mains.
The minimum permissible inlet water pressure is 0.05 MPa, if
this is sufficient for the proper operation of the appliance.
The maximum washing capacity is 8.5/9.5 kg.

3
SAFETY INSTRUCTIONS
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualified
persons,in order to avoid hazards.
• If the supply cord is damaged, it must be replaced by the
Electric shock!
This combination of symbol and descriptive words
indicates a potentially dangerous situation which may
result in death or serious injuries unless it’s avoided.
Warning!
！
indicates a potentially dangerous situation which may
result in slight or minor injuries.
This combination of symbol and descriptive words
Note!
indicates a potentially dangerous situation which may
result in slight or minor injuries or damage to property
and the environment.
This combination of symbol and descriptive words
Caution!
Warning!
！

4
• The new hose-sets supplied with the appliance must
be used and the old hose-sets must not be used.
• Before maintenance, unplug the appliance.
• Always unplug the machine and turn off the water
supply after use. The standard inlet water pressure:
0.05MPa~1MPa.
• This appliance must be grounded. In the event of
malfunction or breakdown , grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current.
• This appliance is equipped with a cord having an
equipment-grounding conductor and grounding plug.
The plug must be inserted into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
SAFETY INSTRUCTIONS
• Improper connection for the appliance when using
a not-grounded outlet or when ground terminal of outlet
is not suitable with ground terminal of power plug, can
result in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt as to
whether the appliance is properly grounded or not.
• Do not modify the plug provided with the appliance. If it
does not fit the outlet , have a proper outlet installed
by a qualified electrician.
• Make sure that the water and electrical devices are
connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.

5
SAFETY INSTRUCTIONS
Risk to children !
• The appliance can be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be done by children without supervision.
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children can climb onto the machine. Check
the machine before every operation.
• Children should be supervised that they do not play with
the appliance.
Risk to children !

• The glass door may be very hot during the operation. Keep
children and pets far away from the machine during the
operation .
• Remove all packaging materials and transport bolts before
using the appliance. Otherwise, serious damage may result.
• The plug must be accessible after installation.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or spotted with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Rinse the articles thoroughly by hand before putting them
in the appliance.
• This washing machine is for indoor use only.
• It is not intended for built-in use.
• The openings must not be obstructed by a carpet.
• The washing machine shall not be installed in bath room
or very wet rooms as well as in the rooms with explosive
or explosive and corrosive gases.
• The washing machine with a single inlet valve only can be
connected to a cold water supply.
• The plug must be accessible after installation.
Installing the product!
SAFETY INSTRUCTIONS
Caution!
6

7
• Remove all packaging materials and transport bolts before
using the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on the top cover of the machine.
• Do not lean against the machine door.
• Cautions during machine handling and transport:
1.Transport bolts shall be reinstalled to the machine by
a qualified person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold protruding
parts of the machine while lifting. Machine door can
not be used as the handle during transport.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive force. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes for the first time, the product
should be operated without clothes, using DRUM CLEAN as
the suggested program.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for front load washing machines.
SAFETY INSTRUCTIONS

8
• Make sure that all pockets are emptied. Sharp and rigid
items such as coins,brooches,nails,screws or stones etc.
may cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained,before opening its door.Please do not open
the door if there is any water visible.
• Be careful of being scalded when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, please wait for two
minutes before opening the door.
SAFETY INSTRUCTIONS

Accessories

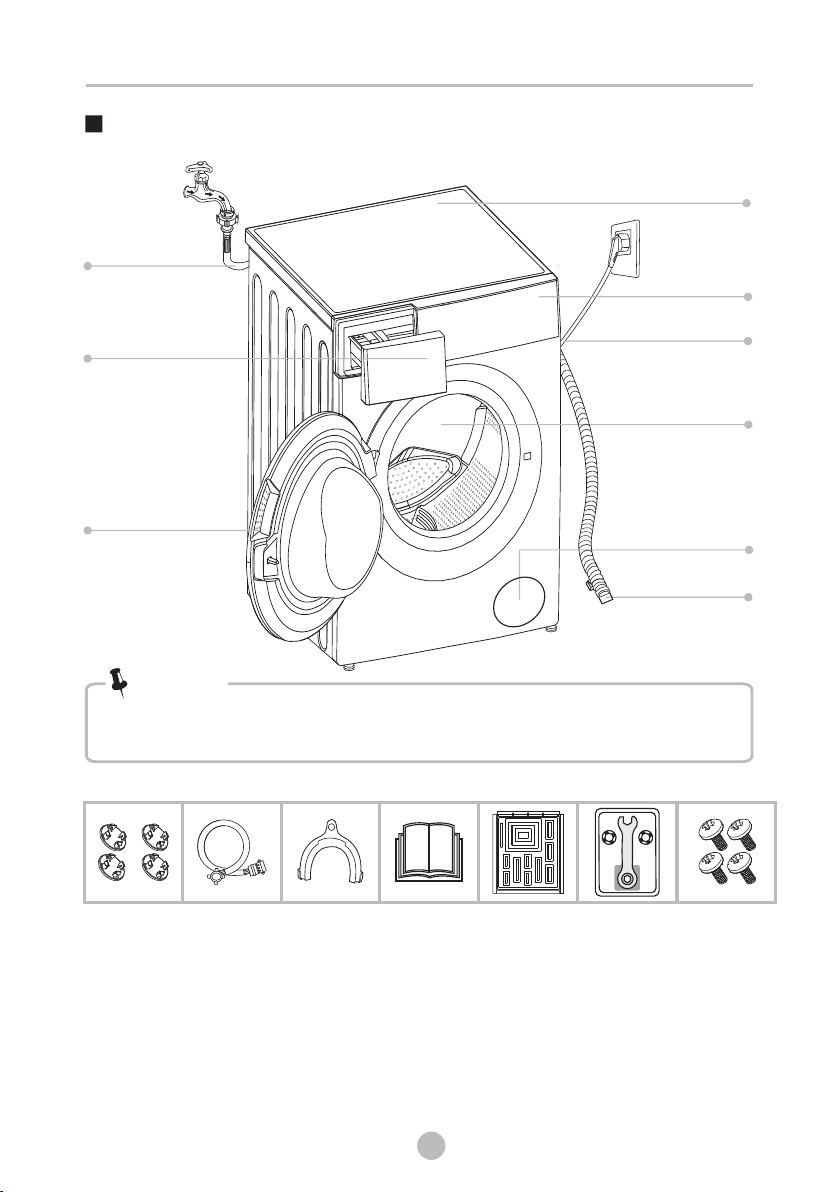

Product Description
Transport
plughole
Supply hose
cold water
Drain hose
(
support
optional)
• This illustration is for reference only, please refer to the actual product as
standard.
Note!
9
Owner’s manual
INSTALLATION
Drum
Power supply cord
Control panel
Detergent dispenser
Drain pump filter
Door
Water supply hose
Top cover
Drain hose
Screw(optional)
Anti-rat cover
(optional)
Spanner assembly
(optional)

10
INSTALLATION
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
°

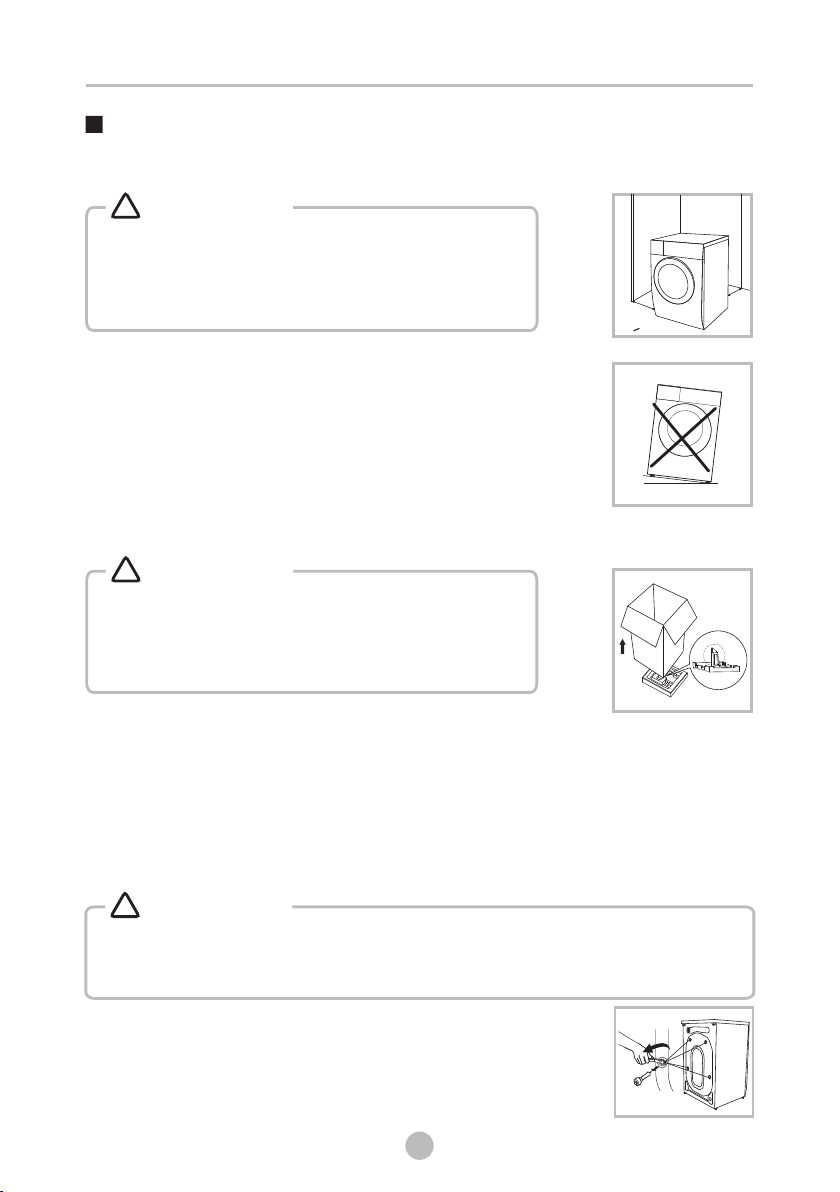

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.Make sure the small triangle
foam is removed together with the bottom foam. If not, lay the unit down on its side,
then remove the small foam from the unit bottom manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Please do the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Cover the holes with transport hole plugs.
3.Keep the transport bolts properly,for future use.
Remove transport bolts
• Stability is important to prevent the product from
moving!
• Make sure that the product does not stand on
the power cord.
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous to children.
• There is a risk of suffocation ! Keep all packaging
materials well away from children.
Warning!
！
• You must remove the transport bolts from the back, before using the product.
• You’ll need the transport bolts again if you will transport the product , so
make sure you keep them in a safe place.
Warning!
！
w
w
W 20mm>
Installation area

9
11
INSTALLATION

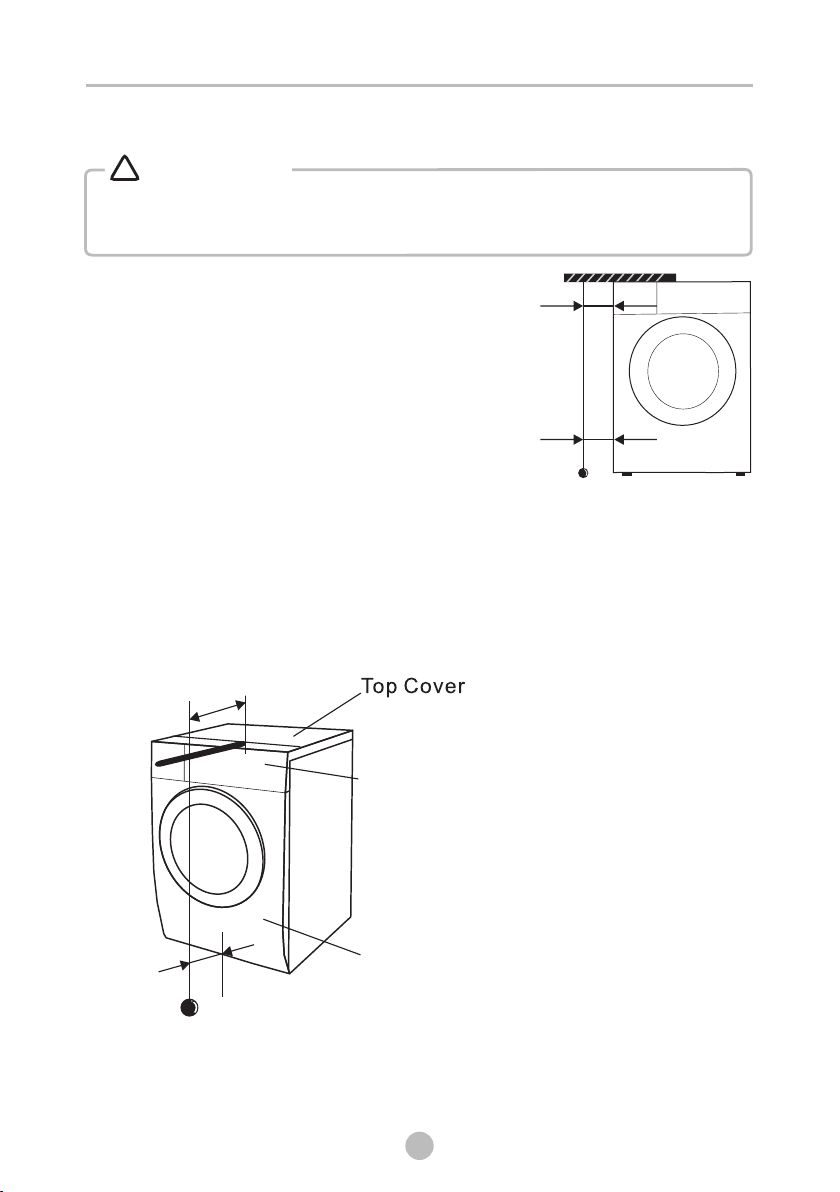

Levelling the washing machine
• Check with a levelling device if the machine placement is balanced and steady.
• If there is no levelling device, check the balance as per the following methods.
Warning!
！
b
a
dFront Cover
Control Panel
1.If it’s balanced horizontally
• Take a long stick, and tie a rope at the end of it.
Bind a heavy object at the end of the rope.
• Hang the rope from the top cover of the
machine. Adjust the legs until the difference
between ‘a’ and ‘b’ is less than 1cm.
2.If it’s balanced vertically
• Put the stick at the middle of the control panel, and hang the rope in front of the
machine.
• Maintain a distance of 10cm from the rope end to the control panel edge( c ). Adjust
the legs until ‘d’ is 3.5-4.5cm (‘d’ is the distance from rope to bottom of front cover).
c

9
12
INSTALLATION
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original position then tighten the nuts.
2.Loosen the lock nut then turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a wrench, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions below
Do not kink, crush, modify or cut the water inlet hose
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Press the tap end
against the rubber ring
inside the clamp then
tighten the 4 screws.
Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

10
13
INSTALLATION
Warning!
！

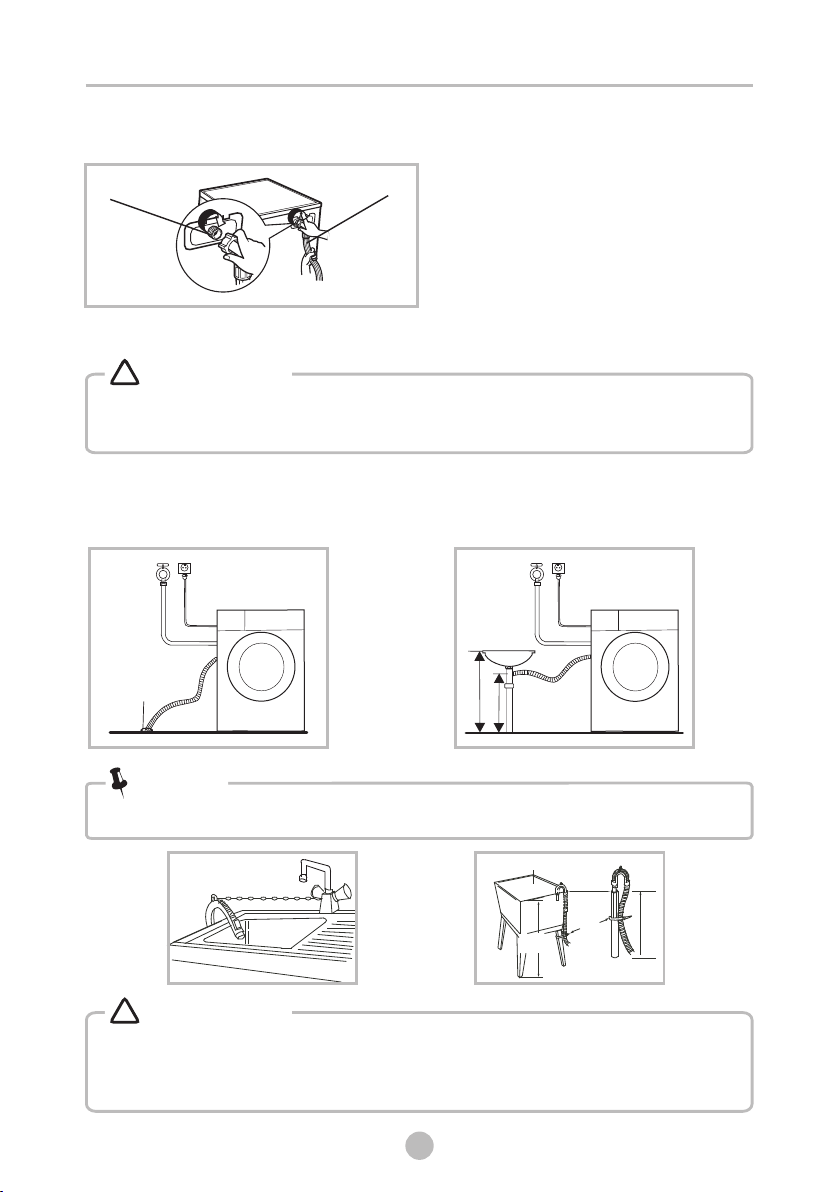

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the floor drain. 2.Connect it to the pipe of the
floor drain.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result due to water leakage.
Do not kink or protract the drain hose.
Water trough
Min.60cm
100cm
Max.
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has • drain hose support, please install it as shown below .
Warning!
！Warning! ！
Note!
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the back of the product
and fasten the pipe tightly clockwise.

• Before washing, please make sure that the unit is installed properly.
• Before washing for the first time, the product should be operated without clothes,
using DRUM CLEAN as the suggested program.
1. Before Washing
The buzz will sound or “End” will be displayed.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
•
selected.
Detergent needs to be added in "case I" only when pre-washing option is
1 2 3 4 5
2. Washing
Power On
Select Programme Select function or
default
Start up
1 2 3 4
• If default is selected, step 3 can be skipped.
Note!
Note!
Caution!
OPERATION
Main wash
Prewash Softener
10
14

10
15

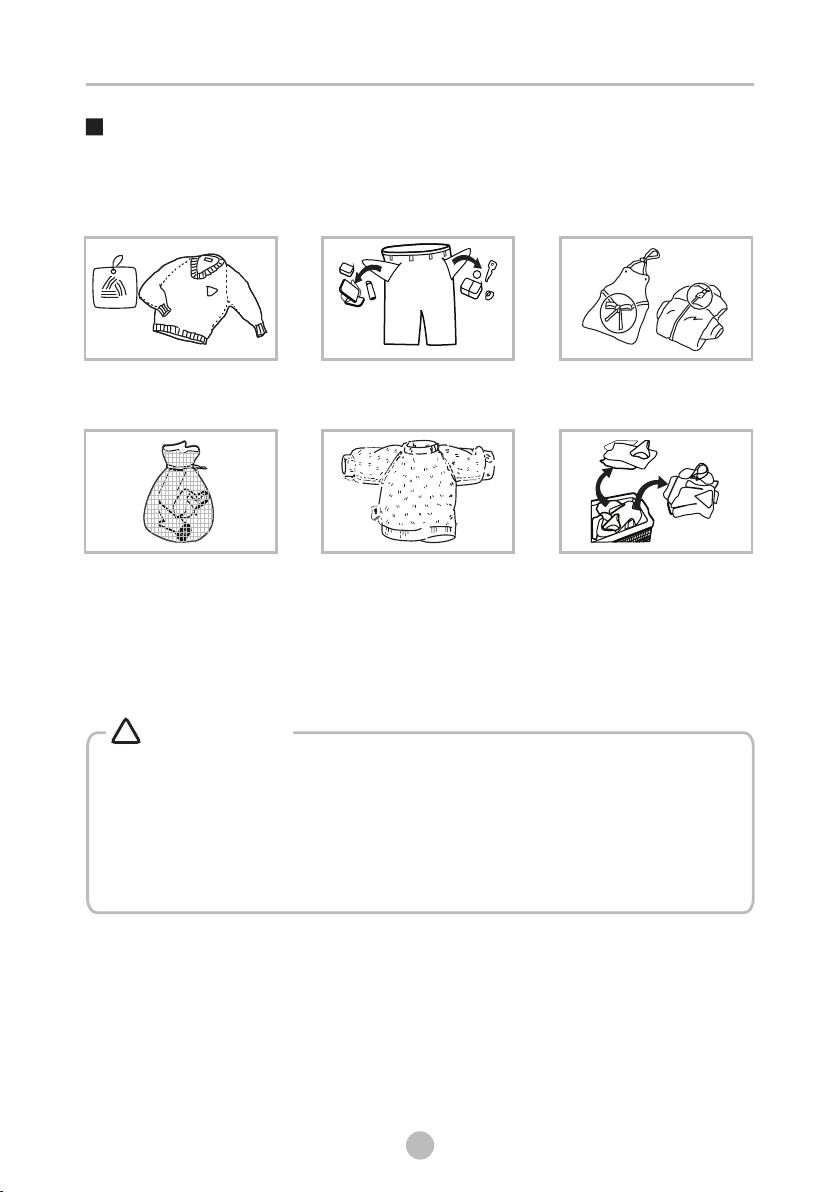

Tie tassels into knots;fasten
zippers and buttons
• Washing a single piece of clothing may cause severe unbalance and consequently
sound an alarm. In this case, it is suggested to add one or two more pieces of
clothing to the wash load that will also make draining smoother. Do not wash
clothes stained with kerosene,gasoline,alcohol,and other flammable materials.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take items out of the
pockets
Put small clothes into a
laundry net
Check the label
Before Each Wash
Turn the following clothes
inside out: those that easily
form fiber balls on its surface
and those with long strands
of fiber
Segregate clothes with
varying textures or materials
Warning!
！
OPERATION

Program
COTTON
COTTON ECO
WASH 45’
BEDLINEN
SPIN ONLY
DRUM CLEAN
Means required Means optional ○
Program
ANTI-ALLERGY
MIX
WOOL
COLOR CARE
QUICK 12’
Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
I I
I
Pull out the dispenser
• As for powder detergents that have formed into cluster or masses, it is suggested
to dilute the detergent in some water, before pouring into the detergent box. This
will prevent the inlet of the detergent box from clogging and water from
overfowing during the filling process.
• Choose the suitable type of detergent for the various washing temperatures, to
get the best washing effect with less water and energy consumption.
Note!
Caution!
•
selected.
Detergent needs to be added in "case I" only when pre-washing option is
10
16
OPERATION

Control Panel
5
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programs
Available according to the laundry type.
Option
This allows you to select additional
functions and the buttons will light up
when selected.
3
1
Note!
• This illustration is for reference only, Please refer to the actual product as standard.
1
1
2
4
1
1
3
1
2
4
Display
The display shows the settings, estimated remaining time, options, and status messages
for your washer. The display will remain on throughout the cycle.
5
10
17
OPERATION
Prewash
A
Wash
B
Rinse
C
D
Spin
E
Child lock – Door lock –
Prewash - Delay End
F
F
A
G
B C D E
Wash Time Delay End Time Error End
G
Reload
ANTI-ALLERGY
BEDLINEN
TEMP.
SPIN
RINSE
SOIL LEVEL
DELAY END
FAST WASH
PREWASH
HOLD 3 SEC. TO RELOAD

PREWASH
The PREWASH function provides an extra wash before the main wash is executed.
It’s suitable for cleaning soiled clothes and needs detergent in case 1.
RINSE
This setting provides an extra rinse, when selected.
FAST WASH
This function decrease the washing time.
Option
10
18
OPERATION
DELAY END
To set the Delay function:
1. Select a program
2.Press the DELAY END button to choose the start time delay(the delay time is 0-24 hours.)
3.Press [ START/PAUSE] to commence the delay operation
Choose the Program Start
ON/OFF Set the time
DELAY
END
[ ]
To cancel the Delay function:
Press the DELAY END button until the display becomes 0H.It should be pressed before
starting the program. If the program has already started, the [ON/OFF] button should be
pressed, to reset the program.
SOIL LEVEL
The default level is set at “light” and the washing time increase from “light”,” normal”
and “heavy”
Caution!
• If there is an interruption in the power supply while the machine is operating,
a special memory stores the selected program and when the power is
restarted, the machine will run the previous program automatically.

OPERATION
Means optional ○
10
19
Program Option
PREWASH SOIL LEVEL FAST WASH RINSE
COTTON ECO ○
COTTON ○ ○ ○ ○
WASH 45' ○ ○
BEDLINEN ○ ○ ○ ○
ONLY
DRUM CLEAN
ANTI-ALLERGY ○ ○
MIX ○ ○ ○
WOOL ○ ○
COLOR CARE ○
QUICK 12'
DELAY END
○
○
○
○
○
○
○
○
○
○
○
○
Model:TW-BH95M4PH;TW-BH105M4PH
