OWNER’S MANUAL
Fully Automatic
Washing Machine
Read This Manual
Read and
Keep the operation instructions handy for
future use .
follow the instructions carefully.
Model:
AW-DUM1000JS
AW-DUM1100JS
AW-DUM1300KS

1
CONTENTS
SAFETY INSTRUCTIONS
Safety instructions ...................................... .................................
INSTALLATION
Product description ............................................ .......................
Installation area ................................................. .. ... .....................
Unpacking the washing machine ..................... ....................
Levelling the washing machine ..............................................
Selection of tap .................................................... ... ......................
Connection of inlet hose, tap and washing machine......
Preparation before washing................................. ....................
Washing .......................................................... ....... .... ......................
After washing................................................. ...... .... ......................
Washing matters needing attention ................ .....................
The usage of detergent and washing powder.... ...............
Control pan ...........................................................el ......................
Option............................................................ ... .......... ......................
Personalized setting of washing ...... ... ......course .......... ......
Operations of washing process................ ...............................
Washing table .............................. ...... ..course ....................... ....
Maintenance
Cleaning and care .............................................. ..........................
Cleaning the cabinet............................................ ... .... ................
Trouble hooting.................................................. ... ..s.................. ...
Technical ...................................... . .......specifications . ..............
2
8
9
9
10
11
11
12
12
12
13
13
14
15
16
16
17
19
19
20
21
OPERATION
Cleaning inlet filter .................................. ....the ........................ 19
18
Recommended detergent amount.............................
Installation of the cabinet base cover......................... 9
Lid lock open/close ...................................................... 17

2
SAFETY INSTRUCTIONS
For your safety, the information in this manual must be
followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, personal injury or
loss of life.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities or lack of experience and
knowledge unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to
be used and that old hose-sets should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household
.

SAFETY INSTRUCTIONS
3
Washing Capacity Standard Water Pressure
Warning!
This combination of symbol and word
indicates a potentially dangerous situation which may
result in death or serious injuries unless it is avoided.
descriptive
Explanation of the symbols:
Caution!
This combination of symbol and word
indicates a potentially dangerous situation which may
result in slight or minor injuries or damage to property
and the environment.
descriptive
Note!
This combination of symbol and word
indicates a potentially dangerous situation which may
result in slight or minor injuries.
descriptive
0.03MPa~0.8MPa
10.0kg
Model
AW-DUM1300KS
12.0kg 0.03MPa~0.8MPa
AW-DUM1100JS
AW-DUM1000JS
9.0kg 0.03MPa~0.8MPa

4
SAFETY INSTRUCTIONS
The electric shock!
Warning!
•
• Do not put washing machine humid place.
• Hands not be inserted into .
• Before maintenance the , unplug the
appliance from the
• Always unplug the machine and turn off the water supply
after use. Be aware of the maximum and minimum inlet
water pressure which is in megapascals (M a)
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices
are connected by a qualified technician in accordance with
the manufacturer's instructions and local safety regulations
・This product is used only domestic.
This is for indoor use only.washing machine
this in a
should the rotating drum
doing any unit
electrical source.
provisions
P

• he appliance used by children
with reduced physical sensory or mental capabilities or
lack of experience and knowledge if they have been
given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Cleaning and user maintenance shall not be by
children without supervision.
• Animals and children climb into the machine.
Check the machine before every operation.
• should be supervised that they do not play with
the appliance.
• Keep children and far away from the machine
during operation.
T
done
can
can not be
not
Children
animals
and persons
Risk of explosion!
•
washed in, soaked in, or dabbed with combustible or
explosive substances( such as wax, oil, paint, gasoline,
degreasers , dry-cleaning solvents, kerosene, etc.)
• This may result in fire or explosion.
• Rinse the clothes or wash articles thoroughly by hand
putting them in the appliance .
Do not wash or dry articles that have been cleaned in,
.
before
5
SAFETY INSTRUCTIONS
Risk to children!

• This washing machine is for indoor use only.
• built-in using.It is not intended for
• The openings must not be obstructed by a carpet.
• ashing machine shall not be installed in bath room
or very wet rooms as well as in the rooms with explosive
The w s
or caustic gases.
• Remove all before using
Otherwise, serious damage may result.
packaging materials the appliance.
• The washing machine with single inlet valve may only
connected to a cold water supply. be
• The plug must be accessible after installation.
•
•
Avoid place where the machine is exposed to direct
sunlight .Plastic parts may become deformed or discolored .
Avoid place where the machine may become frozen
during cold weather.
This appliance is intended to be used in household.
6
SAFETY INSTRUCTIONS
Installing the product!
Caution!

Operating the appliance!
• Before washing the clothes first time, the product for the
shall be operated without clothes using tub clean as the
displayed program on the control panel.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc. Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for top-loading fully automatic washing
machines.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coins,
may cause serious to this machine.
brooches, nails, screws or ston s etc.
damage
e
• Never refill the water by hand during washing.
7
SAFETY INSTRUCTIONS
Risk of damaging appliance!
• Your product is only for home use and is only designed
fo extiles suitable for machine washing.
• Do not climb up and sit on of the machine.
• Cautions during Machine Handling and transport:
1.The accumulated water shall be drained out of the
machine.
2.Handle the machine carefully. Never hold
part the machine while lifting.
• Please do not close
• It is forbidden to wash carpets.
r t
the
protruding
s of
t with excessive force.
glass lid
3.This appliance is heavy, it should be transported carefully.
he glass lid

8
INSTALLATION
Product description
• All illustrations in this manual are for reference only.
Please refer to the product ,for actual appearance of the parts.
Note!
Adjustable foot knob
Glass lid
Drum
Frame
Control panel
Cabinet
Water inlet valve
Power cord and plug
Handle
Drain hose
Drain pump filter
Lid lock
Accessories
Inlet hose assy Manual Screw Cabinet baseboard

Installation Area
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from fuel sources such as coal or gas
Unpacking The Washing Machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and
drain hose.
4. Pick up the inlet hose from the drum.
• Stability is important to prevent the product
from moving!
• Make sure that the product does not stand on
the power cord.
Warning!
• be
•
Packaging material (e.g. Films, Styrofoam) can dangerous for children.
There is a risk of suffocation ! Keep all packaging well away from
children.
materials
Warning!
9
INSTALLATION
w
w
W> 20mm
Installation of the cabinet base cover
Soft fabric
Cabinet
base cover
Running the machine or washing while placing on
the bottom foam is strictly forbidden
Lay the washing machine backward on the soft fabric .
Then Insert the cabinet base cover into washing machine
base trough, push into the end and tighten screw at one
position.

9
10

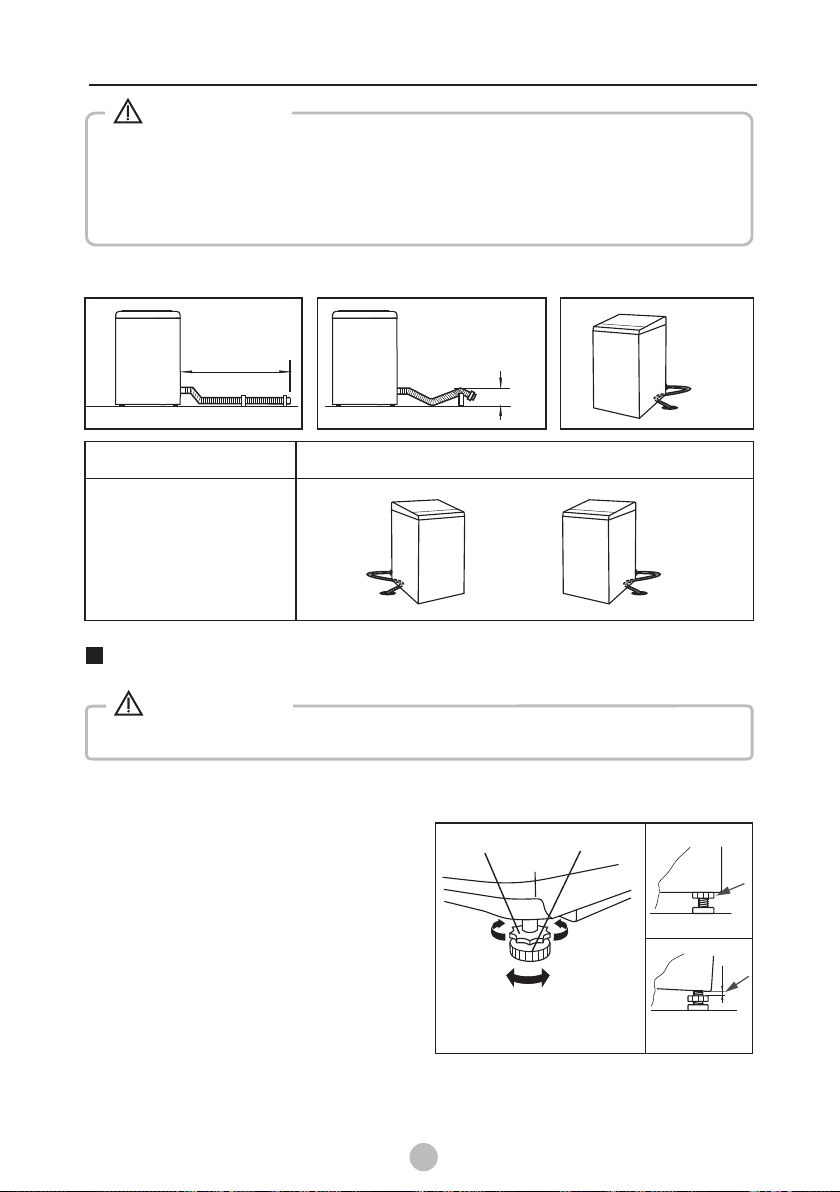

The way to place the end of drain hose:
•
• Position drain hose properly otherwise
water leakage.
Do not kink protract the drain hose. or compress
, ,
• If drain hose is too long, do not force it into washing machine as this will
cause abnormal noises.
the improper position may
result in
Warning!
Water trough
Less than 3m
Less than 15cm
1. Check if the are properly attached
the cabinet. If not, please rotate them to
their original position and tighten the nuts.
2. Check alignment of the product with a
leveler and do the succeeding steps if
necessary.
3. Loosen the lock nut and
feet to
4.
rotate the foot
either clockwise or counter clockwise ,
until it closely contacts with the floor.
Assure that the lock is secure and then
alternately press the four top corners of the
machine, to check if the proper adjustment
has been done.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the washing machine
Warning!
Lock nut Foot
Raise Lower
Lock
Loosen
Right
Wrong
INSTALLATION
Drain direction Left or right style
Picture Left
Right

11
Wall
Slide bushing

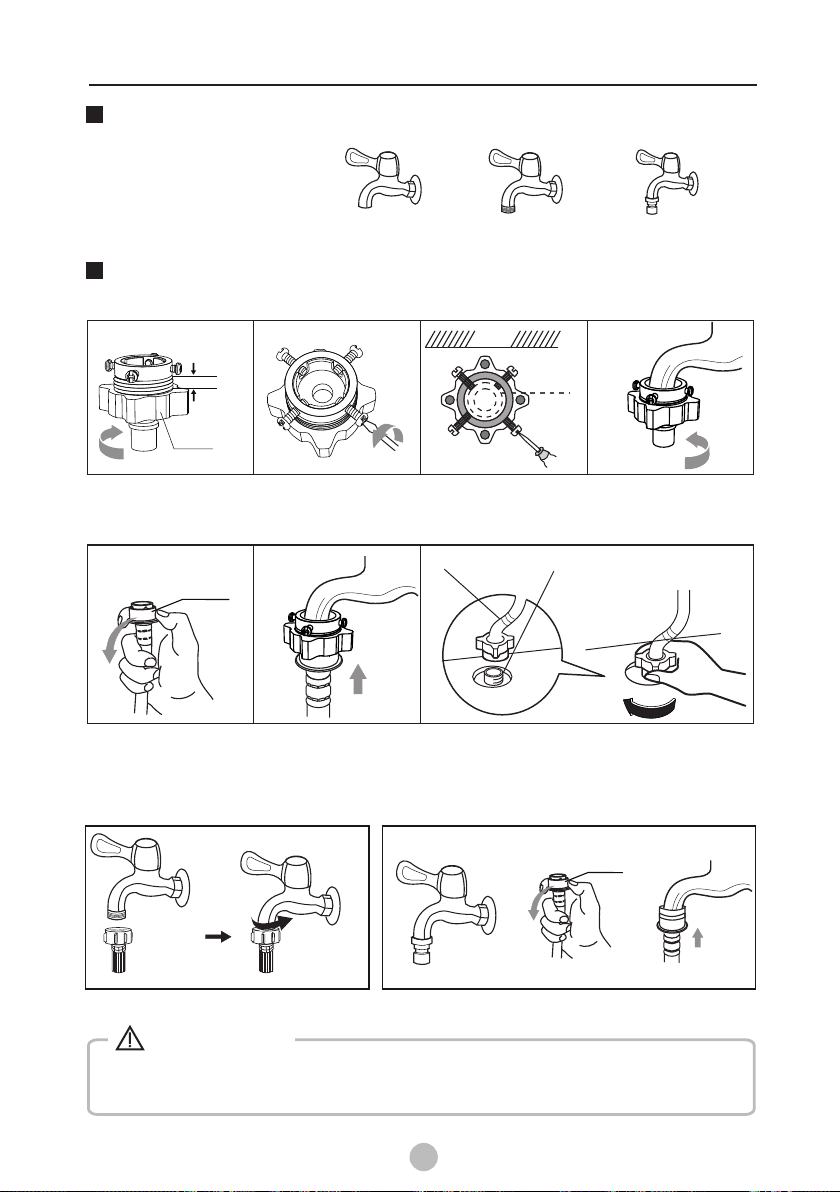

1:Connection between ordinary tap and inlet hose.
2:Connection between screw tap and inlet hose.
• To prevent leakage or water damage, follow the instructions
Do not kink, crush, modify or cut the .
above-mentioned !
• water inlet hose
Warning!
Selection of tap
Please select
tap.
appropriate
Connection of inlet hose, tap and washing machine
Clamp nut
Tap
1.Loosen clamp nut
to show 5mm groove
2.Loosen four
screws
3.Set connecting base
on tap and tighten
screws evenly
4.Tighten clamp nut
Inlet valve
Inlet hose
Slide bushing
5.Press slide bushing,
insert inlet hose into
connecting base
6. onnection finishedC7.After connection and installation,
check if there is water leakage
Tap with threads and inlet hose Special tap for washing machine
Screw tap Special washing
machine tap
Ordinary tap
INSTALLATION
5mm

Caution!
Before washing, please make sure installed properly.
Before washing first time, the washing machine shall be operated
•
•
•
that the unit is
for the
without clothes using tub clean as the recommended course.
Do not use water with temperatures over 50 °C
After Washing
Washing
Power on Start up
1
10
12
The buzzer will beep after washing finished and the power supply will be cut off
automatically . unload the laundry.
At this point , you may
3
Preparation Before Washing
OPERATION

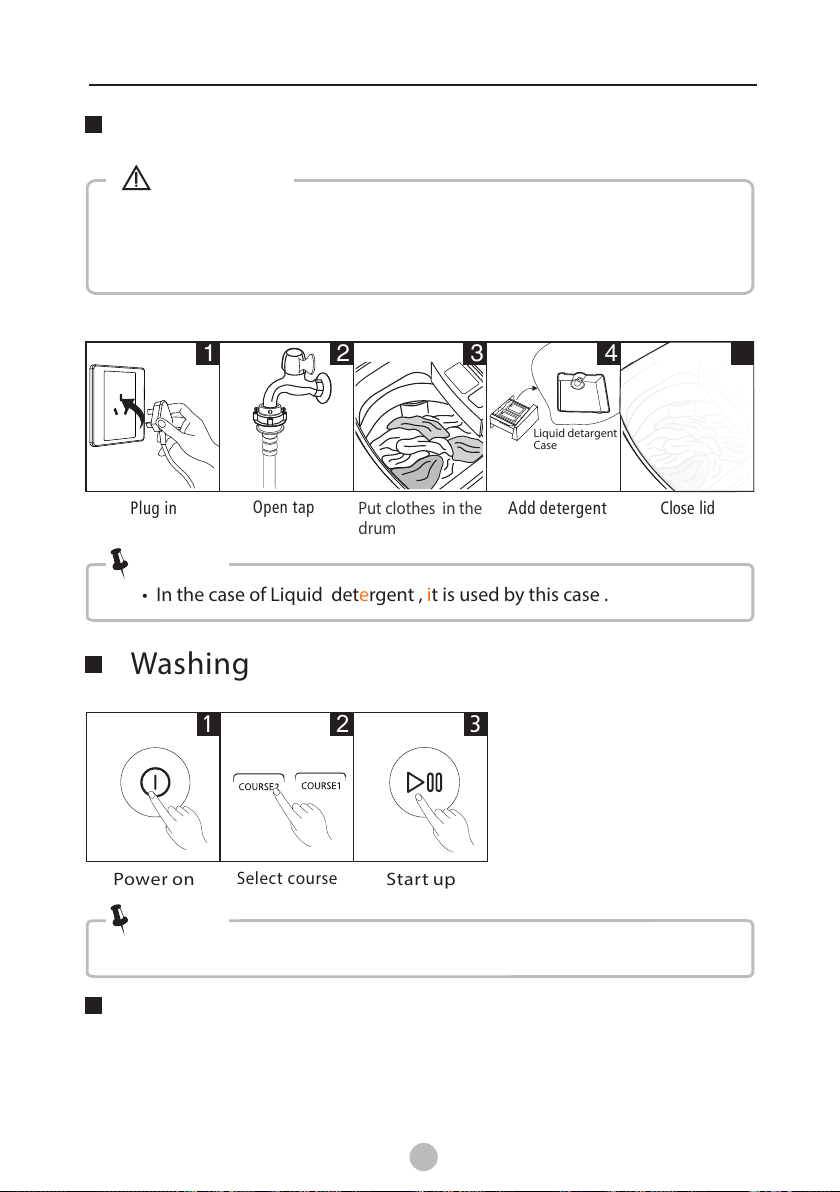

A complete cycle is as shown below
2
• Water level can be selected manually .
Note!
Select course
• In the case of Liquid det rgent , t is used by this case .e i
Liquid detargent
Case
Open tap
Plug in Add detergent
1 2 3 4
Put clothes in the
drum
Close lid
5
Note!
/

Tie tassels into Knot, fasten
zippers and buttons
• Washing a single piece of clothing may cause , severe unbalance and
consequently sound an alarm. In this case, it is suggested to add one or two
more pieces of clothing to the wash load that will also make smoother.
• Do not wash clothes stained with kerosene ,touching gasoline, alcohol and
other flammable materials.
spinning
• Before washing , lease check the clothes labels and the detergent usage
instructions. se low-density detergent before wash suitable for washing
machines .
p
U
Take items out
of the pockets
Put small clothes into a
laundry net
Check the label

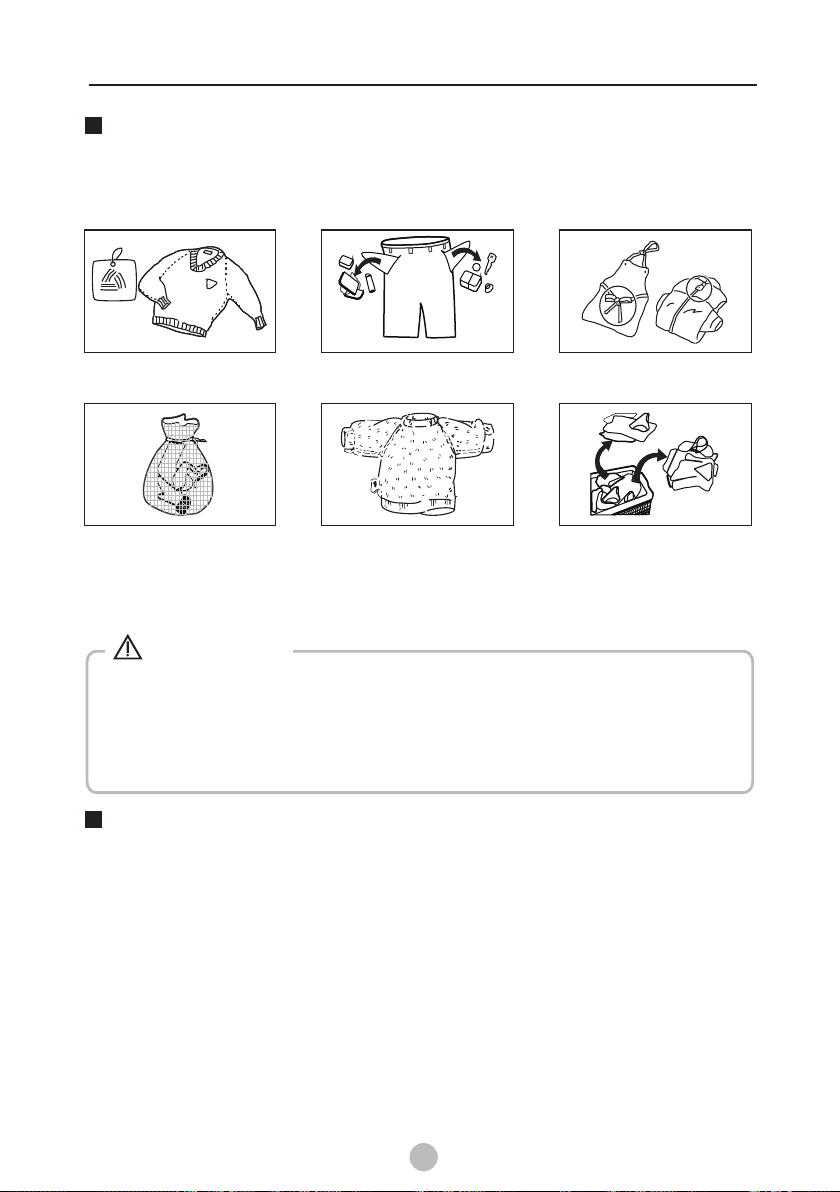

Washing matters needing attention
Turn the following clothes
inside out those that easily
form fiber on its surface and
those with long strands of fiber
Segregate clothes with
varying textures or materials
Warning!
10
13
• As for powder detergent that can form into clusters or masses, it is suggested
to dilute the detergent some water ,before pouring into the detergent
box, this will prevent the inlet of the detergent box from clogging and water
from over flowing during the filling process
• Choose the suitable type of detergent for the various washing temperature
to get the best washing effect with less water and energy consumption.
with
.
The usage of detergent and ashing powder w
OPERATION

10
14
Control Panel
OPERATION
The display shows the settings, estimated
remaining time , options, and status
messages for your washer. The display
will remain on throughout the cycle.
7
Lid lock
Lid lock refer to page 17.
1
2
3
44 4
SOFTENER
ACTIVE
+5M
+10M
+15M
44
4
4567
4

Option
15
OPERATION
select the water level according to clothing categories, degree of soiling
and washing habits of users
washing time, number of rinses , spinning time and other settings
can be selected
Softener active
To select the softener active to increase the soaking time of a set
Only for having these . models functions
Water level
Wash /Rinse /Spin
Start
On
CHILD PROOF
To avoid mis operation by children.
Start To activate press
the two buttons at the same time
CHILD PROOF
•
• The “ CHILD ” will lock all buttons except [ On/Off ].
If this mode is set to ON and the lid opened during operation, he buzzer beeps ,
the indicator flashes , the washer stops water supply and stops wash/spin operation,
and drains water from wash tub approximately 5 seconds of the lid opening.
t
PROOF
Caution!
Preset
1. Select a course
2.Press the button to choose the finish time before operation startsPreset
3.Press to commence the operationPreset
Choose the course Start
On Setting timepreset
Press the [ ] button repeatedly , to see time choices ,the time
should be set before starting the course. If you want to set the Preset time ,
after the course has already started, the on/off button should be pressed to
reset the course
Preset Preset Preset
Caution!
If there is any interruption in the power supply while the machine is operating,
a special memory stores the selected program and recalls the memory setting
when the power is restarted.
GREATWAVES is able to shorten wash time by special rhythm and
water flow.
On
SOFTENER
ACTIVE
Choose the Course1 Choose the
GREATWAVES
The is on
/

16
OPERATION

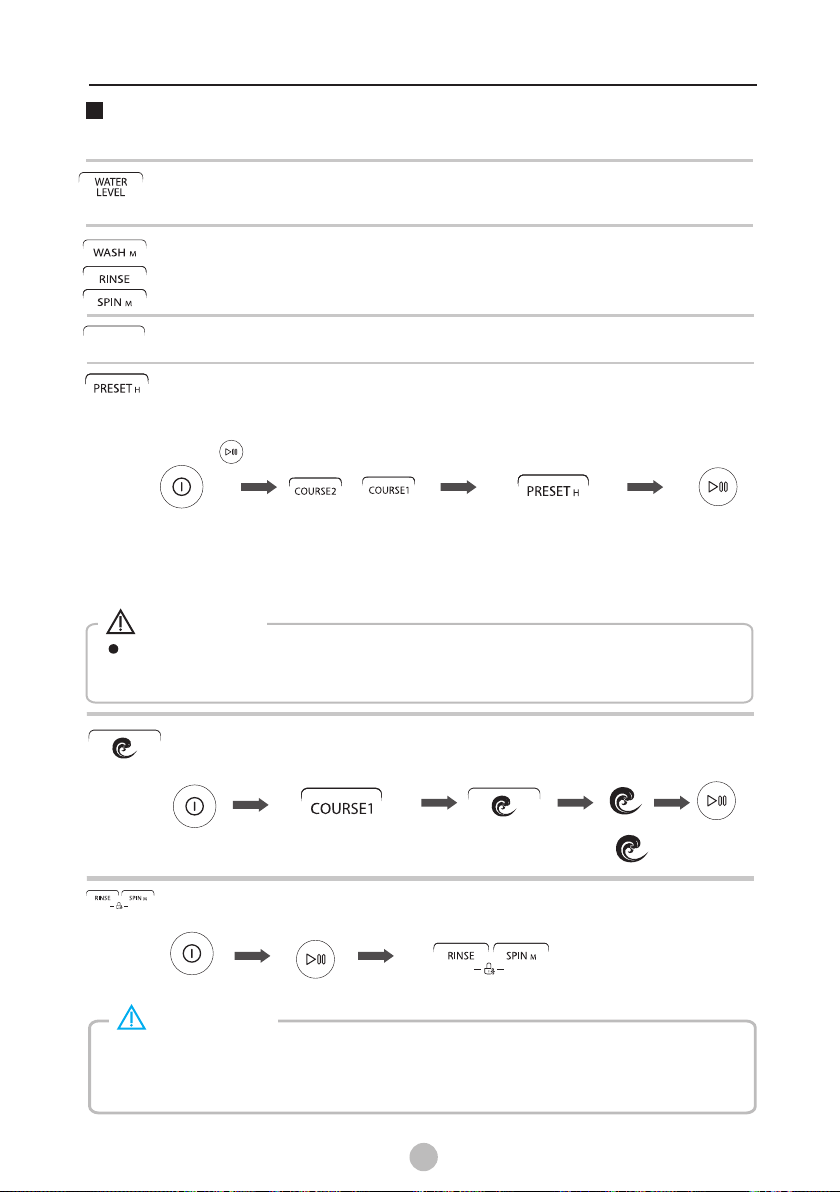

Set program
Personalized setting of washing program
Customers can select washing program according to actual demand.
Operations of washing process
Start
On
Spin only
Wash only
Set washing time Set rinse times Set timespin
Select water level
Set program
On
Set washing time Set rinse times” 0" Set timespin ” 0"
Start
Set program
On
Set washing
time” 0"
Set rinse
times” 0"
Set timespin
Start
/
/
/
Wash Spin+Rinse+
Set program
On
Set washing time Set rinse times Set timespin
Start
/

17
Washing TableCourse
OPERATION
Course
REGULAR: Standard fabric washing program, suitable to wash cotton fabric.
Washing is done once, twice for rinsing and the spin time is a bit long.
SPEED: Suitable to wash lightly- stained clothes and clothes for summer.
SPIN ONLY:
SOAK: Select this program if clothes need to be soaked before washing.
HEAVY WASH:
BLANKET :
Courses are available according to the laundry type.
Only for having these models functions:
Heavily-stained/thick clothes.
The wash time is longer, the water action stronger, so the
washing effect is better.
DELICATE: Mid/High/Low water level selection, the tempo is soft, slow
washing and spinning speed, for minimal wear and deformation.
With intermittent spinning the dirt on the inner & outer surfaces
of the drum, as well as the pulsafor are removed.
TUB CLEAN:
Select this program to Spin and drain only .
Lid lock open/close
During operation, the lid lock light is on,but the door cover cannot be
opened;when the lid lock light is off.
During operation, the lid lock light is on,when the power cord is pulled
out directly, or the power is off, the lid lock light is off, and the door cover
cannot be opened.
During operation, the lid lock light is on,press the pause button, the door
lock light is off,and the door cover can be opened.
* For AW-DUM1000JS and AW-DUM1100JS, "Speed program, 15℃water temperature,
'4'levels default." is the recommended washing program designed to minimize water
consumption for normally soiled load at rated capacity.
* For AW-DUM1300KS, "Speed program, 15℃water temperature, '3'levels default." is
the recommended washing program designed to minimize water consumption for
normally soiled load at rated capacity.

OPERATION
10
18
Rated capacity(kg)
Manual Water
Level Setting Detergents Softener
Powder Liquid Normal
type
Concentrated
type
12kg
6kg
3kg
1kg
73L
62L
48L
29L Approx.
11g
Blanket
12kg
Approx.
10mL
Approx. 50mL Approx. 75mL
Approx.
18mL
Approx.
18m -36mLL
Approx.
9mL
Approx.
9 -14mLmL
Approx. 25mL
Note!
This is just for reference.
Only 1 gear water level can be selected manually
(2gear)
(4gear)
(6gear)
(8gear)
10kg
Approx.
10m -20mLL
Approx.
11 -33gg
Approx.
33 -55gg
Approx.
55 -100gg
Approx.
20m -35mLL
Approx.
35m -50mLL
Approx.
36m -55mLL
Approx.
55m -75mLL
Approx.
12 -18mLmL
Approx.
18 -25mLmL
Recommended Detergent Amount
If press pause during the process of washing and dehydration of the whole
machine, the lid lock cannot be remove immediately, and the cover can
be opened after it completely stopped.
If the lid lock fault and cannot be removed, please stop the operation
and contact the after-sales service.
Note!

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the cabinet
Proper maintenance the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use wet cloth to wipe it off immediately.
No sharp items are allowed.
of
a
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products ,etc.
•
alcohol,
Warning!
Note!
10
19
Cleaning And Care
Cleaning the inlet filter
• Inlet filter must be cleaned if pressure of water from the inlet drops.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the of the
machine.
2.Pull out the filter with ong nose
pliers and reinstall it back after being
washed.
3.Use to clean the filter.
4.Reconnect the inlet .
the
back
a pair of l
a brush
hose
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter cleaning
MAINTENANCE
