OWNER’S MANUAL
FRONT LOADING
WASHING MACHINE
Read This Manual
Read and follow the instructions carefully.
Keep the operation instructions handy for
use . future
MODEL:
TWD-BM105GF4S
TWD-BM115GF4S
TWD-BM135GF4S

CONTENTS
1
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Programmes............................................................
Option....................................................................
MAINTENANCE
Cleaning and Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiche ........................................................
2
9
10
13
15
16
17
18
23
27
30
31
32

Please read the following safety information thoroughly and follow it
strictly to minimize the risk of fire or explosion, electric shock and to
prevent property damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
·I f the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
·I f the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons.
Risk of electric shock!
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS
Safety Instructions
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！
2

SAFETY INSTRUCTIONS
•The appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
•Children should be supervised that they do not play with the
appliance.
•Children 3 years and under shall be kept away from the
appliance or continuously supervised.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Do not climb or sit on the appliance.
INSTALLATION LOCATION AND SURROUNDING
•All washing and additional substances are to be kept in a
safe place out of the reach of children.
•Do not install the machine on a carpet floor. The obstruction
of the openings by a carpet can damage the machine.
•Keep the appliance clear from heating sources and direct
sunlight to avoid plastic and rubber parts to corrode.
•Do not use the appliance in humid environments or rooms
containing explosive or caustic gas. In case of water leakage
or water splashes let the appliance dry in the open air.
•The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that
of the washer dryer.
3

SAFETY INSTRUCTIONS
•Do not operate the machine in rooms with a temperature of
below 5°C. This can cause damages to parts of it. If it is
unavoidable, make sure to drain the water completely from
the appliance after every use (see „Maintenance - Cleaning of
drain pump filter“) to avoid damages caused by frost.
•Never use flammable sprays or substances in the immediate
proximity of the appliance.
INSTALLATION
•Remove all packaging material and transport bolts before
using the appliance. Otherwise, serious damage may result.
•This appliance is equipped with a single inlet valve and can
be connected to the cold water supply only.
•Mains plug must be accessible after installation.
•Before washing clothes for the first time, the product shall
be operated once throughout all the procedures without any
clothes inside.
•Before using the washer dryer, the product shall be
calibrated.
•Do not put any excessively heavy objects on the appliance,
like water containers or heating devices.
•The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
•Max. Inlet water pressure 1 MPa. Min. inlet water pressure
ELECTRICAL CONNECTION
•Make sure the supply cable is not trapped by the machine, it can get
damaged.
•Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
4

SAFETY INSTRUCTIONS
•Water and electrical connections must be carried out by a
qualified technician in accordance with the manufacturer‘s
instructions and local safety regulations.
•Don´t use multiple plugs or extension cords.
•The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
•Do not pull the plug out of the mains outlet if there is flammable gas around.
•Never pull out power plug with wet hands.
•Always pull at the plug, not at the cable.
•Always unplug the appliance if it is not being used.
Warning!
！
WATER CONNECTIONS
•Check the connections of the water inlet tubes, the water tap
and the outlet hose for possible problems due to changes of
water pressure. If the connections loosen or leak close the
water tap and get it repaired. Do not use the appliance before
the pipes and hoses are installed properly by qualified
persons.
•Glass door may become very hot during the operation. Keep
children and pets far away from the machine while it is
operating.
•The water inlet and outlet hoses have to be safely installed
and remain undamaged. Otherwise, water leakage can occur.
•Do not remove the drain pump filter while there is still water
in the appliance. Big quantities of water can leak out, and
5

SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
•Never stop the washer dryer before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat can dissipate.
•The washer dryer is not to be used if industrial chemicals have been used for
cleaning. Risk of explosion.
Warning!
！
•Never use any flammable, explosive or toxic solvents. Do not
use gasoline and alcohol etc. as detergents. Only select
detergents that are suitable for machine washing.
•Make sure that all pockets are emptied. Sharp and rigid
items such as coins, brooches, nails, screws, stones etc. may
cause serious damages to this machine.
•Remove all objects from pockets such as lighters and
matches before use the appliance.
•Thoroughly rinse items that have been washed by hand.
•Do not dry unwashed items in the appliance.
•Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, wax and wax removers should be washed in hot
with an extra amount of detergent before being dried in the
appliance.
•Items containing foam rubber (latex foam), shower caps,
water proof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in the
machine
•Fabric softeners or similar products should be used as
recommended in their instructions.
•Never try to open the door forcefully. The door will unlock
shortly after the end of a cycle.
•Please do not close the door with excessive force. If it is
found difficult to close the door, please check if the clothes
6

SAFETY INSTRUCTIONS
•Always unplug the appliance and close the water tap before
cleaning and maintenance and after each use.
•Never pour water over the appliance for cleaning purpose.
Risk of electric shock!
•Repairs shall only be carried out by the manufacturer, its
service agent or similarly qualified persons in order to avoid a
hazard. The producer will not be responsible for damages
caused by the intervention of not authorized persons.
TRANSPORT
•Before Transport:
-Bolts shall be reinstalled to the machine by a specialized
person
-Accumulated water shall be drained out of the machine
•This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door
INTENDED USE
The product is intended only for home use and for textiles in
household amounts suitable for machine washing and drying.
This appliance is for indoor use only and not intended for built
in use. Only use according to these instructions. The
appliance is not intended for commercial use.
Any other use is considered as improper use. The producer is
not responsible for any damage or injuries that may result of
it.
•Thisapplianceisintendedtobeusedinhouseholdand similar
applicationssuchas:
-Staffkitchenareasinshops,officesandother workingenvironments;
-Farmhouses;
-Byclientsinhotels,motelsandother residentialtypeenvironments;
-Bedandbreakfasttypeenvironments;
-Areasforcommunaluseinblocksofflatsorin launderettes.
7

SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
8

INSTALLATION
Accessories

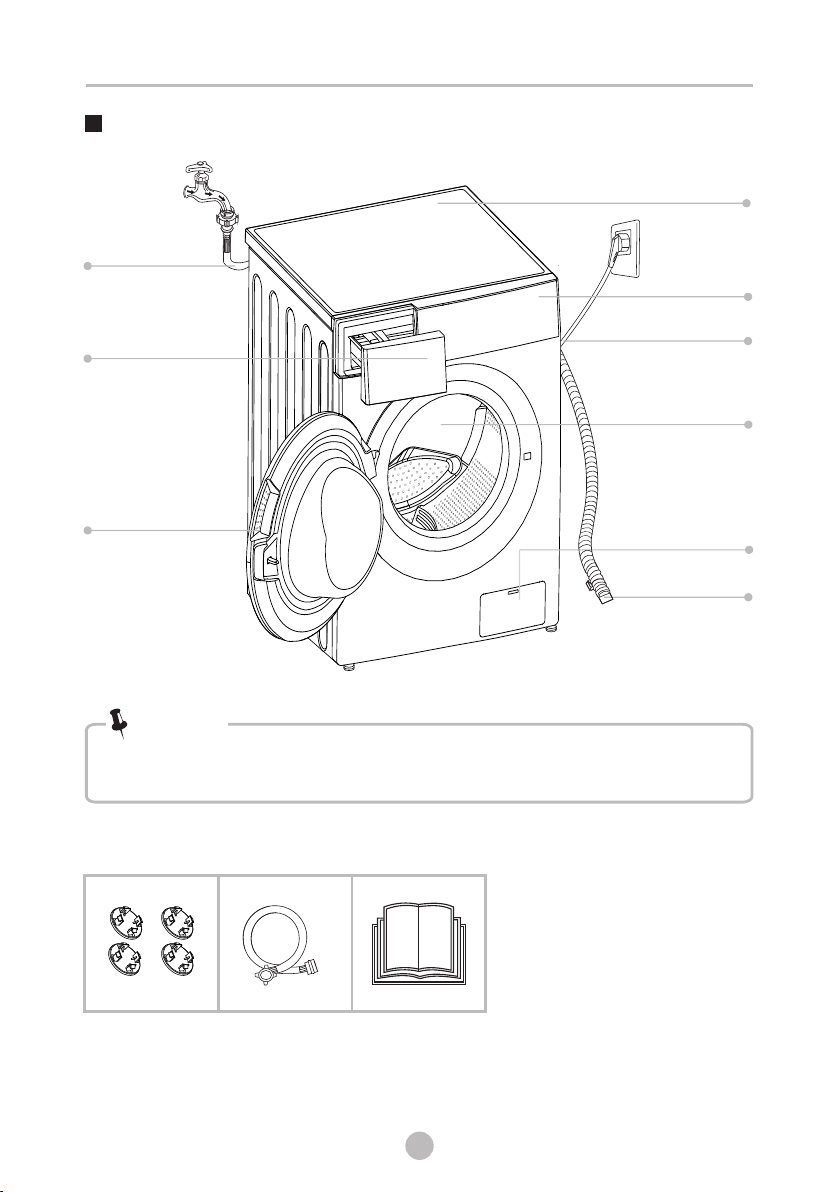

Product Description
4 x Cover caps 1 x Supply hose
cold water
• The product picture is for illustration only, please refer to real product as
reference.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service flap
Door
Water supply hose
Top cover
Drain hose
1 x Owner’s manual
9

INSTALLATION
Installation
Before installing the machine, the location characterized
as follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0°C
5.Keep far away from the heat sources such as coal or gas burning appliances.
Unpacking the washer dryer
1. Remove the cardboard box and styrofoam packing.
2. Lift the washer dryer and remove the base packaging.Make sure the small triangle
foam (a) is removed with the bottom packaging together. If not, lay the unit down on
the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
· Stability is important to prevent the product from
wandering! Make sure the machine is standing leveled and
stable.
• Make sure that the product does not stand onto the power
cord.
• Make sure to maintain the minimum distances from the
walls as shown in the picture
Warning!
！
• Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
• There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
w
w
W> 20mm
Installation area
a
10

INSTALLATION
Remove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!
！
Loosen the 4
transport bolts with a
spanner.
Remove the bolts
including the rubber
parts and keep them
for future use.
Close the holes using
the cover caps.
Levelling the washer dryer
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!
！
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level and
steady.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush or modify water inlet hose.
Warning!
！
Connect the water supply
hose to the water inlet valve
and a water tap with cold
water as indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Note!
11

INSTALLATION
Drain Hose

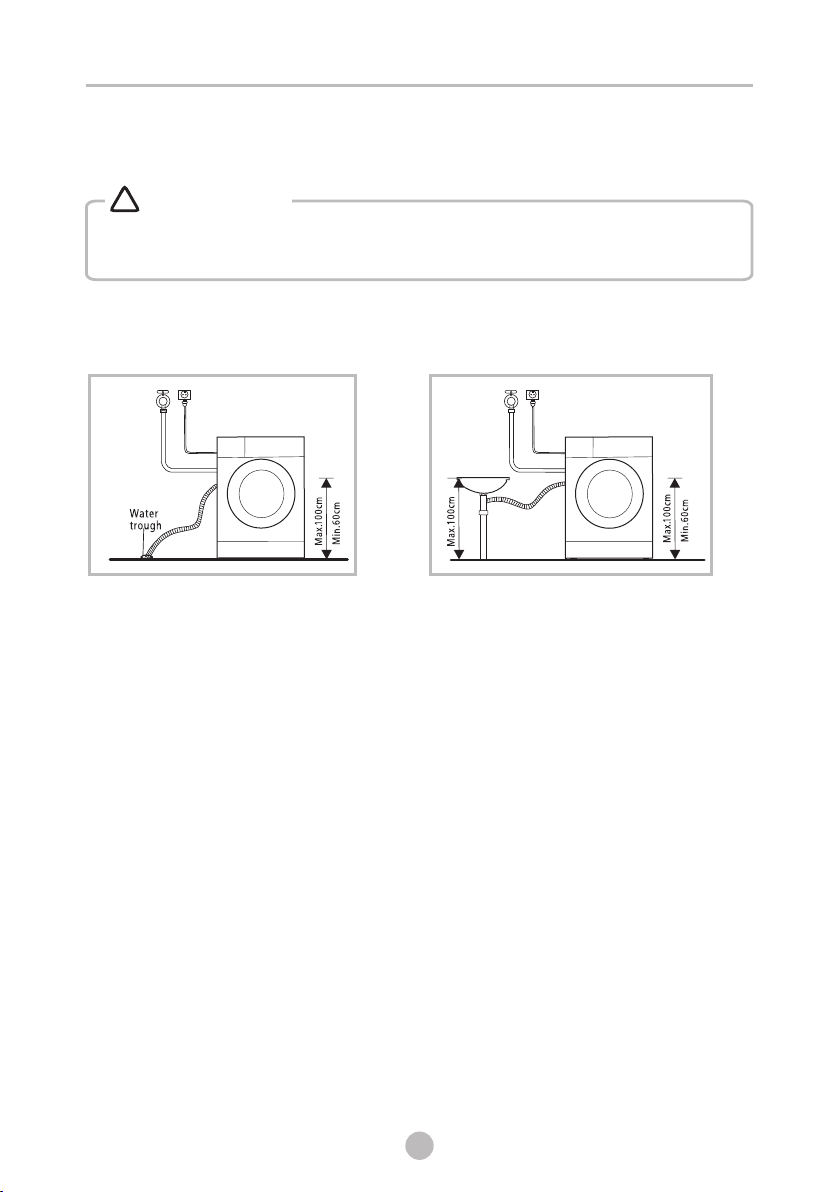

There are two ways to place the end of drain hose:
1. Put it into the water trough. 2. Connect it to the branch drain pipe of
the trough.
• Do not kink or protract the drain hose.
• Position drain hose properly ,otherwise damage might result of water leakage.
Warning!
！Warning! ！
12

• Before washing, please make sure the washer dryer is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove
any residual water and to neutralize potential odors, it’s recommended to
clean your appliance before first use. For this reason, start the Cotton program
at 90°C without laundry and detergent.
Quick Start
Caution!
OPERATION
It’s recommended to calibrate the washer dryer, so that provide the best
performance.
The appliance is able to detect the amount of laundry loaded. This function is
optimizing the product performance by minimizing energy and water
consumption, saving you money and time. For this reason it’s recommended to
calibrate the appliance for best use.
1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washer dryer and press “Temp.” and “Dry.” simultaneously
for 10 seconds until “t19” is displayed;
4- Press [ ] to start the appliance and wait till “****” is displayed.
Calibration
13

OPERATION

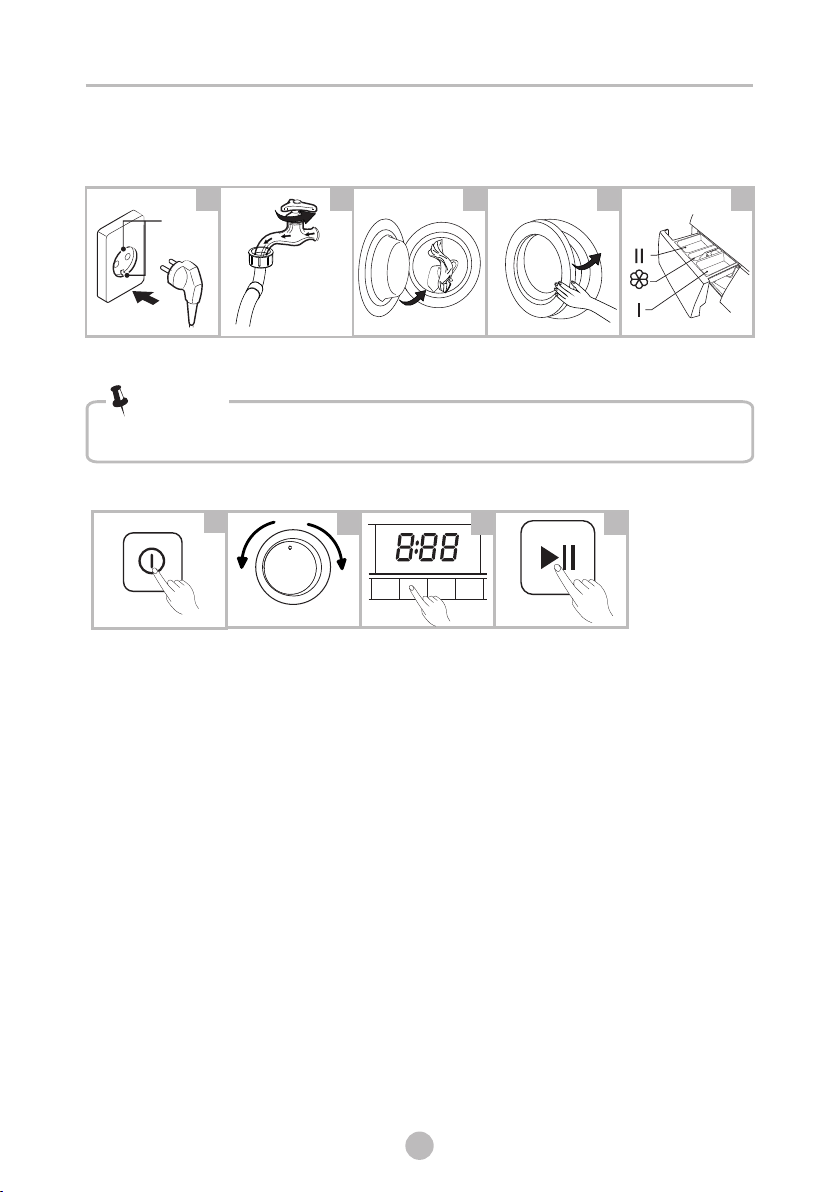

2. Washing
Buzzer beep and “End” on display.
3. After Washing
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
• Detergent need to be added in compartment I if the pre-wash function is selected.
1 2 3 4 5
Note!
Main
wash
Prewash
Softener
earth
terminal
Select programme Select function or
remain default
settings
Press
Start/Pause to
start the program
2 3 4
Power On
1
14

• Do not wash or dry articles that have been cleaned in, washed in, soaked in,
or dabbed with combustible or explosive substances like wax, oil, paint,
gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause
alarm due to unbalance. Therefore it is suggested to add one or two more
laundry items to the wash so that spin can be done smoothly.
• The ambient temperature of the washer dryer should be 5-40°C. If used under
0°C, the inlet valve and draining system may be damaged. If the machine is
installed under freezing conditions, it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose can unfreeze before
use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine
washing properly.
Tie together long textile
strips and belts, close zips
and button
Take all items out of the
pockets
Put small items into a
laundry bag
Check the care label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Sort laundry according to
color and textile type
Warning!
！
OPERATION
1 2 3
4 5 6
15

• As for the agglomerated or ropy detergent or additive, before they are
poured into the detergent box, it is suggested to use some water for
dilution to prevent the inlet of detergent box from being blocked and
overflowing while filling water.
• Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
Programme
Cotton
Mix
Baby Care
20℃
Drum Clean
Spin Only
Wash and Dry
Means must ○ Means optional
Programme
Rinse & Spin
Wool
ECO 40-60
Dry Only
1h W/D
Quick 15’
Intensive
Detergent Dispenser
Caution!
• Detergent only need to be added in "compartment I “after selecting
pre-wash function.
Pre wash
Main wash
Softener
II
I
Release button to
pull out the dispenser
OPERATION
16

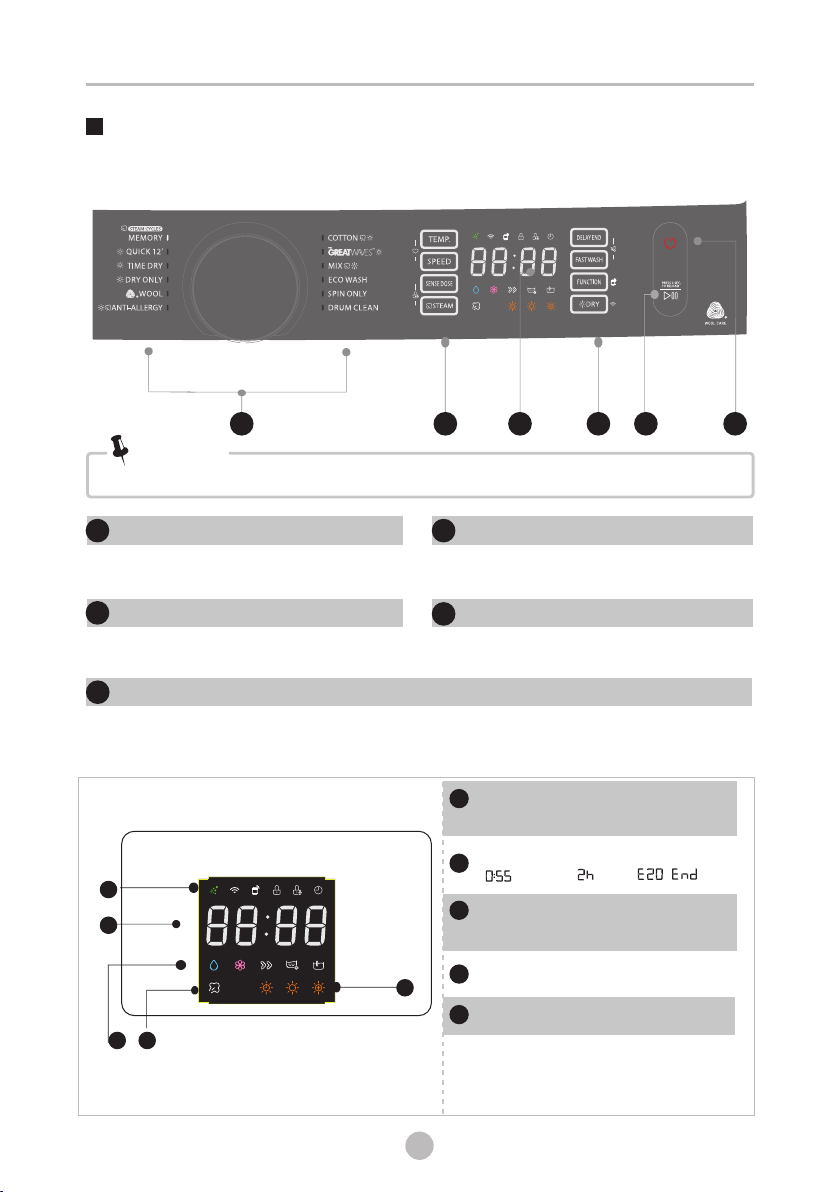

Control Panel
OPERATIONS
5
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
3
Note!
• The chart is for reference only, Please refer to real product as standard.
1
1
1
2
4
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5
A
B
Detergent-Softener
C
D
Steam
E
С
A
Time Dry-Dry-Extra Dry
D
UFB-WiFi-Remote control-
Model: TWD-BM105GF4S; TWD-BM115GF4S; TWD-BM135GF4S
B
Wash Time Delay EndTime
Error End
E
3
Door lock-Child lock-Delay end
Speed Wash-Extra rinse-Prewash
18

OPERATION
Note!
Programme
Load(kg) Default Time
COTTON
GREATWAVES
MIX
ECO WASH
SPIN ONLY
DRUM CLEAN
MEMORY
QUICK 12’
TIME DRY
DRY ONLY
WOOL
ANTI-ALLERGY
10.0
10.0/7.0
10.0
Programmes
21
1:18
3:47
1:10
0:55
0:12
1:18
1:18
0:12
0:30
3:00
1:07
4:31
5.0/5.0
10.0
10.0
-
10.0/7.0
10.0/7.0
2.0/1.0
7.0/7.0
10.0/7.0
2.0
10.0/7.0
12.0
12.0
12.0/8.0
6.0/6.0
12.0
12.0
-
12.0/8.0
12.0/7.0
2.0/1.0
8.0/8.0
12.0/8.0
2.0
12.0/8.0
Model: TWD-BM105GF4S; TWD-BM115GF4S; TWD-BM135GF4S

Programmes
Programmes
QUICK 12'
WOOL
MIX
COTTON
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Press [Temp.] and [Spin] 3sec. for my cycle to memory the
procedure. The default my cycle is cotton.
Mixed load consisting of textiles made of cotton and synthetics.
/
Default 40℃,not selectable,suitabale for laundry washing at
about 40℃-60℃.
This procedure is suitable for washing few and not very dirty
clothes quickly.
This program applies 60℃ high temperature sterilization to
make the clothes washing more clean .to achieve the
anti-allergy effect.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer
programme pauses (textiles rest in wash liquor).
Extra spin with selectable spin speed.
Specially set in this machine to clean the drum and tube. It
applys 90 °C high temperature sterilization to make the
clothes washing more green. When this programme is
performed, the clothes or other washing cannot be added.
When proper amount of chlorine bleaching agent is put in,
the barrel cleaning effect will be better. The customer can use
this programme regularly according to the need.
Select it to dry clothes, the temperature is different .The drying
time according to the load .
The standard energy program.
SPIN ONLY
MEMORY
Programmes are available according to the laundry type.
DRUM CLEAN
DRY ONLY
ECO 40-60
WASH AND DRY
OPERATION
24
ANTI-ALLERGY
* "Cotton program, 60℃water temperature, 1400 RPM." is the recommended washing
program designed to minimize water consumption for normally soiled load at rated capacity.
