Totally Wicked Arc Sigma User manual

USER MANUAL

2 3
Tank
connection
Power
button
UP
adjustment
button
DOWN
adjustment
button
Mouthpiece
Glass section
Airow
control ring
Atomizer head
Tank base
LED
screen
USB
charging
port
YOUR ARC SIGMA

4 5
REMOVING THE
ATOMIZER HEAD
PRIME THE
ATOMIZER HEAD
Wait 5 minutes before vaping
a new atomizer head.
x2

6 7
FILL THE TANKREATTACH THE TANK BASE
ADJUST AIRFLOW

8 9
TURN POWER ON
x5
On/O
Press the UP and DOWN
buttons to adjust the power
SET WATTAGE

10 11
CHARGE THE BATTERYVAPING
Press and hold
to vape.

12 13
PRIMING THE ATOMIZER HEAD
It is important to “prime” a new atomizer head
before rst use. Failure to do so can damage
the atomizer head.
Remove the tank from the arc Sigma battery
by unscrewing at the tank base. Turn the tank
upside down, then unscrew the tank base
from the glass section of the tank. Remove
the atomizer head by pulling straight out, drip
a few drops of e-liquid onto the cotton wick
through the openings on the sides of the
atomizer head, and push back into the tank.
Screw the base back onto the tank and ret
to the battery.
ATOMIZER HEAD LIFESPAN
Atomizer heads do not last forever and
need to be replaced periodically. Lifespan is
generally from a few days to several weeks,
depending on power used, vaping style,
avour and type of e-liquid. A slight burnt
taste, general loss of vapour production,
or a reduction in avour intensity can all be
indicators that the atomizer head requires
replacement.

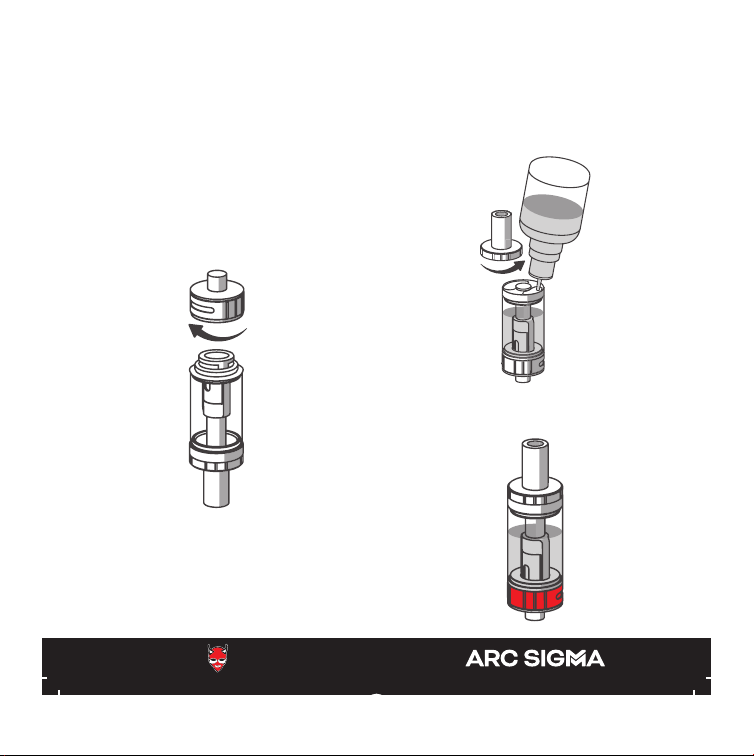

FILLING THE TANK
Unscrew the top section of the GT Air Slim tank
and ll the tank through one of the apertures
either side of the central air hole. Do not allow
liquid to enter the central air hole. Ret the top
section of the tank.
Note: To avoid leaking, ensure an air gap of
2mm remains above the e-liquid after lling.
After priming a new atomizer head and lling
the tank, it is recommended to wait 5 minutes
to ensure the atomizer head is fully saturated.
POWERING ON AND OFF
Press the power button 5 times in quick
succession to turn the arc Sigma on. To turn
the device o again, press the power button 5
times quickly.
SETTING THE CORRECT WATTAGE
The arc Sigma has adjustable wattage that
can be set from 1 - 40W. Use the adjustment
buttons on the battery to increase or decrease
the wattage. We recommend a wattage of 11W
with the supplied atomizer head but feel free to
experiment to nd your favourite setting.
Tip: Press and hold down either of the
adjustment buttons to make speedy changes
to the wattage.
USING YOUR ARC SIGMA

14 15
VAPING
Press and hold the power button as you inhale
the vapour, the screen will display a vape timer
while the power button is held down.
ADJUSTING THE AIRFLOW
To adjust the airow to your personal
preference, rotate the airow control ring
located at the bottom of the tank. The more
area exposed behind the slots in the airow
ring, the more open the air draw will be.
E-LIQUID LEVEL
To prevent the atomizer head from becoming
dry and burning prematurely, ensure the
e-liquid level does not drop below the cotton
inlets on the atomizer head, visible through
the glass section of the tank.
CHARGING THE BATTERY
To charge the battery, connect the charge
port on the battery to a USB port or suitable
wall adaptor with the supplied charging cable.
The screen will display an animated battery
icon while charging, once the battery is fully
charged the screen will switch o completely.
REPLACING THE ATOMIZER HEAD
Remove the tank from the arc Sigma battery
by unscrewing at the tank base. Invert the tank
and unscrew the base. Remove the atomizer
head from the tank by pulling, and insert a new
atomizer head. Before tting a new atomizer
head, remember that it will need priming
as described in the section “Priming the
Atomizer Head”.
Reminder: After priming a new atomizer head
it is recommended to wait 5 minutes before
vaping to ensure the atomizer head is fully
saturated.
STEALTH MODE
If stealth mode is enabled, the display will not
activate when pressing the power button to
vape. The display will still activate whenever
the adjustment buttons are pressed to make
changes to wattage. To enable stealth mode,
ensure the arc Sigma is switched on, then
press and hold down the power and down
adjustment buttons at the same time, the
screen will display “Stealth ON” when enabled.
Repeat the process to disable stealth mode,
the screen will display “Stealth OFF” when
disabled.
USING YOUR ARC SIGMA

16 17
KEY LOCK MODE
Key lock mode prevents accidental changes
to the wattage. If key lock mode is enabled,
the screen will display “Lock” if the adjustment
buttons are pressed. Adjustments to wattage
cannot be made until key lock has been
disabled. To enable key lock mode, ensure the
arc Sigma is switched on, then press and hold
down both adjustment buttons at the same
time, then screen will display “Lock” when
enabled. Repeat the process to disable key
lock mode, the screen will display “Unlock”
when disabled.
ROTATING THE DISPLAY
Switch the arc Sigma o, then press and hold
down both adjustment buttons at the same
time to rotate the display 180°. Then switch
the arc Sigma back on.
PUFF & VAPE DURATION
If the pu counter and vape duration display is
enabled, the arc Sigma will display the number
of the times the power button has been
pressed to vape and total time spent vaping in
seconds. To enable the counter, quickly press
the power button 4 times while the arc Sigma
is switched on. Pu counter is displayed on
the rst row while vape duration is displayed
on the second row. To reset the number of
recorded pus to zero, press and hold down
the power and up adjustment buttons at the
same time. To reset the vape duration to zero,
press and hold down the power and down
adjustment buttons at the same time. Quickly
pressing the power button 4 times switches
the arc Sigma back to wattage display mode.
USING YOUR ARC SIGMA

18 19
ATOMIZER HEAD PROTECTION
If the power button is held down for longer
than 10 seconds while vaping, the screen
will display “Over 10s” and the arc Sigma
will refuse to power or produce any vapour.
Releasing the power button will allow normal
operation to resume.
LOW VOLTAGE PROTECTION
If battery voltage drops to 3.3V, “Lock” will
be displayed onscreen and the arc Sigma
will refuse to power or produce any vapour.
Charge the battery using the steps outlined
in “Charging the Battery” to unlock the arc
Sigma allowing normal operation to resume.
LOW BATTERY ALERT
If battery drops to 10% charge, the power
symbol on screen will ash continuously. This
is a reminder the battery will need charging
soon.
SHORT CIRCUIT PROTECTION
If an atomizer short circuit occurs, the screen
will display “Atomizer short” and the arc Sigma
will refuse to power or produce any vapour.
Replacing the atomizer head should allow
normal operation to resume. To replace the
atomizer head follow the steps outlined in
“Replacing the Atomizer Head”.
NO ATOMIZER DETECTED PROTECTION
If no atomizer head is detected, the screen will
display “No atomizer” and the arc Sigma will
refuse to power or produce any vapour. Ensure
the atomizer head is fully pushed into the
tank and the tank base is correctly screwed
onto the tank, then t the tank back onto
the battery. If the “No atomizer” message
continues, replacing the atomizer head should
allow normal operation to resume. To replace
the atomizer head follow the steps outlined in
“Replacing the Atomizer Head”.
TEMPERATURE ALERT
If the temperature of the arc Sigma exceeds
the maximum safe operating temperature,
the screen will display “Device Too Hot” and
the arc Sigma will refuse to power or produce
any vapour. Stop vaping and allow the arc
Sigma to cool down for normal operation to
resume.
PROTECTIONS

20 21
The arc Sigma battery and tank connection
can be cleaned by wiping down with tissue
or a dry cloth. The tank can be cleaned by
removing it from the battery, unscrewing the
tank base from the glass section of the tank
then removing the atomizer head. The entire
tank and base can now be cleaned under
hot running water. Allow the tank to fully dry
before retting the atomizer head into the
tank. Reassemble the tank.
Note: Do not attempt to clean the atomizer
head with water. Do not submerge the arc
Sigma battery unit in water or allow it to get
wet.
KIT CONTENTS
1 x arc Sigma battery
1 x GT Air Slim tank
2 x GT 1.2ohm atomizer heads
1 x USB cable
1 x User manual
ARC SIGMA BATTERY
Dimensions: 78mm (height)
x 23mm (width) x 35mm (depth)
Weight: 105g
Battery capacity: 2600mAh integrated battery
Wattage range: 1 – 40 watts.
Voltage range: 0.5 – 8.0 volts
Thread type: Spring loaded 510 connection.
Atomizer resistance compatibility:
> 0.4ohm – 3.0ohm.
GT AIR SLIM TANK
Dimensions: 52mm (height)
x 16.5 (diameter)
Weight: 27.5g
Tank capacity: 2.0ml
Atomizer type: GT
Thread type: 510 connection
Atomizer head resistance: 1.2ohm
Airow type: Bottom, adjustable
Maximum rell nozzle diameter: 2.3mm
Suggested power: 5-16W
ADDITIONAL PRODUCT INFORMATION
There are no reported medical side
eects with this product. If you believe you
experience a side eect, please contact the
manufacturer.
CLEANING AND
MAINTENANCE
SPECIFICATIONS

22 23
• Store the arc Sigma e-cigarette and its
accessories away from children whilst not
in use.
• Please only use the charging cable provided.
• Please dispose of dead batteries in
accordance with your country’s appropriate
legislation.
• Do not charge the battery in a damp
environment, or in temperatures under 0°C
or above 45°C.
• Do not use the device in temperatures
under -10°C or above 60°C.
• Do not carry batteries in a pocket or bag
with other metallic objects.
• Do not attempt to repair a faulty arc Sigma
battery as these are sealed units with no
serviceable parts. Attempted repairs will void
the warranty.
The arc Sigma kit has a 6 months parts
warranty, with the exception of atomizer
heads, which are consumable items and
covered by “dead on arrival” warranty only.
The USB cable supplied has a 12-month
warranty. If any parts are found to be faulty
within this time please contact our customer
service team, whose details are on the back
page of this booklet and we will arrange for a
replacement. We may require the goods to be
returned for further investigation.
PRODUCT STORAGE AND
BATTERY PRECAUTIONS
WARRANTY
