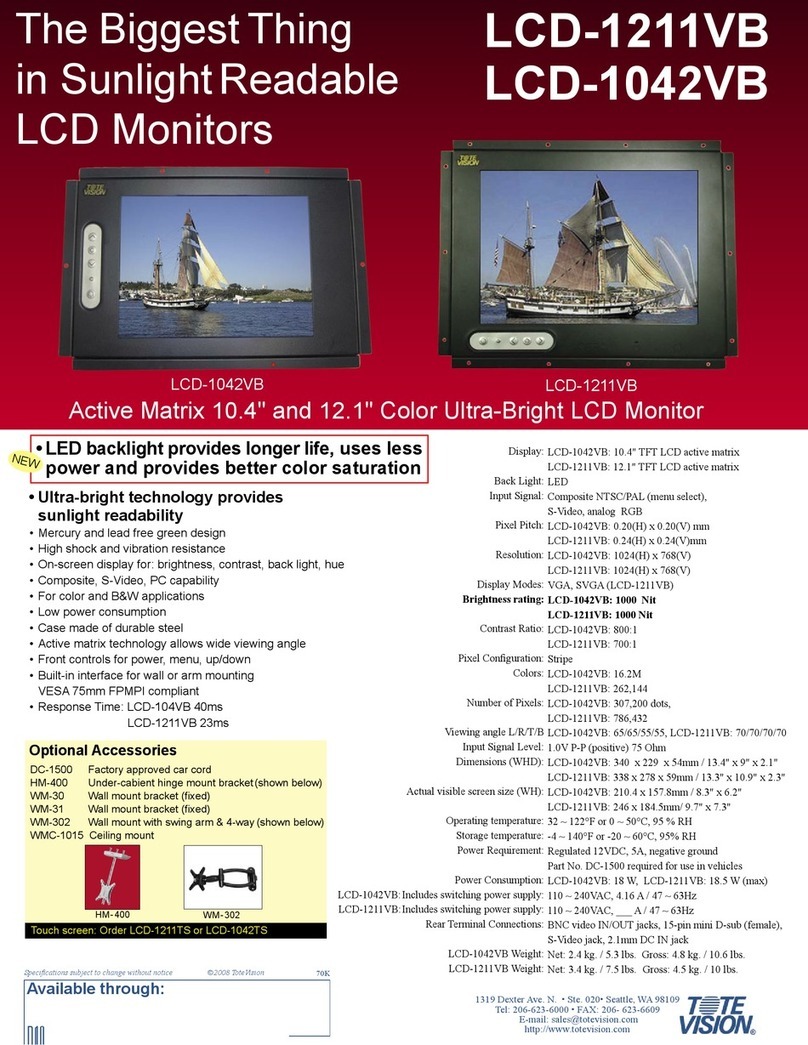

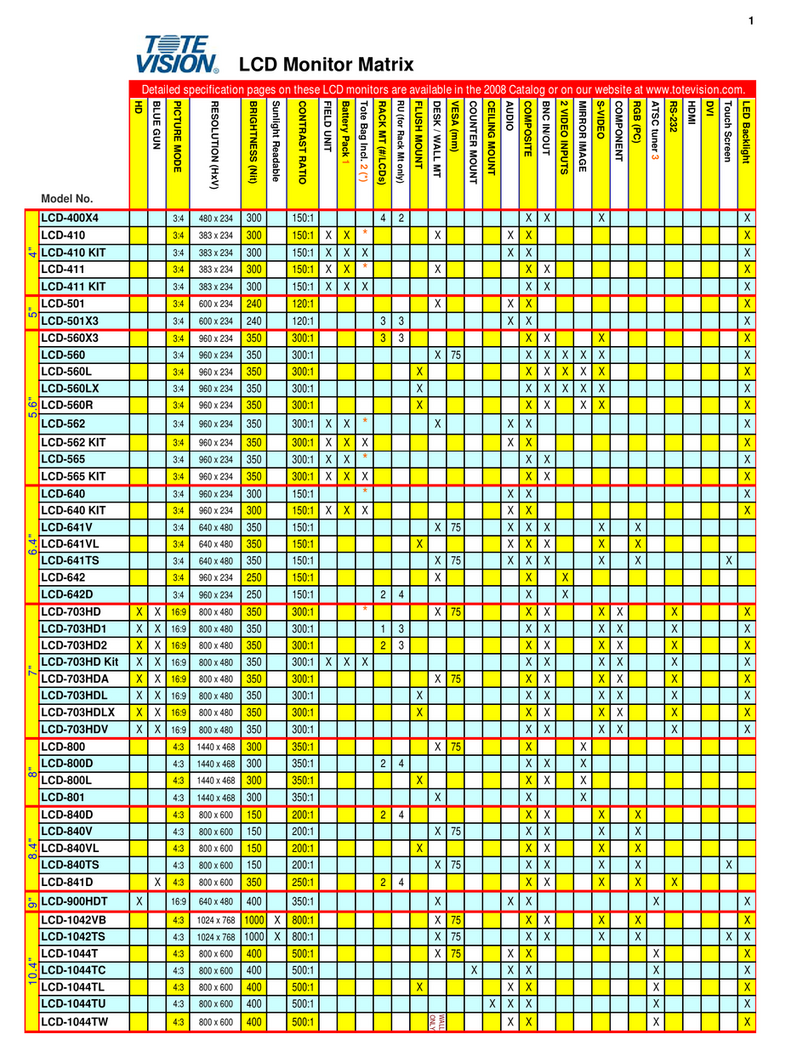

Totevision LCD-1042TS Manual

Setting Up Touch Screen with PenMount Driver
(For ToteVision LCD-1042TS and LCD-1211TS Models)
1. Connect LCD touch screen to computer.
2. Insert PenMount Driver CD-ROM
-or-
Download PenMount Driver
-www.penmount.com
-Select “Download” from top menu
-Scroll down to select “Drivers”
-Go to bottom of license agreement to select “I agree with the above license…”
-Under Driver Downloads, scroll down to select link for your operating system. For Windows XP
users, scroll down to Windows
and Other Driver and select “PenMount DMC9000 Windows 2000-XP-2003 Drivers (WHQL
Certified)”
-Select link next to right of Download. (For Windows XP: “PenMount DMC9000 Windows
2000/XP/2003 Driver V5.0006”)
-Run download.
-Unzip files.
3. Open folder on disc or from download and select Setup.exe
4. Installation wizard will come up. Select “Next”
5. Accept license and “Next”
6. Select “Install”
7. When installation is done select “Finish” and reboot computer.
8. Select “PM” in menu bar.
10. Click “Calibrate” from PenMount Control Panel.
11 Use your finger or stylus to touch the red squares in a sequence. After the 5th red point the
touch screen is done being calibrated.
Now touch screen is ready to be used.
If you have trouble calibrating or getting touch screen to function, try…
1. Check RS-232 connection to computer and LCD touch screen
2. Check that you serial port is working okay.

3. Disable or remove other device(s) using same port. The touch screen will need to have
its own serial port free from other devices. If you have a second or third port (Com 2 or 3),
try moving the RS-232 connection to the other serial port.
4. The distance between the computer and touch screen too much. The maximum length
the touch screen can be from PC is 8 meters (about 26 ft.) If you need to have the unit
farther than 8 meters from the PC PenMount suggests you use an Extend Box that
supports Serial PnP Device. To learn more go to www.penmount.com .
If you have tried all of our troubleshooting ideas and still can’t get our touch screen to function
please call ToteVision at ph# [phone].
