TourPro Lighting Titan 300 UV User manual

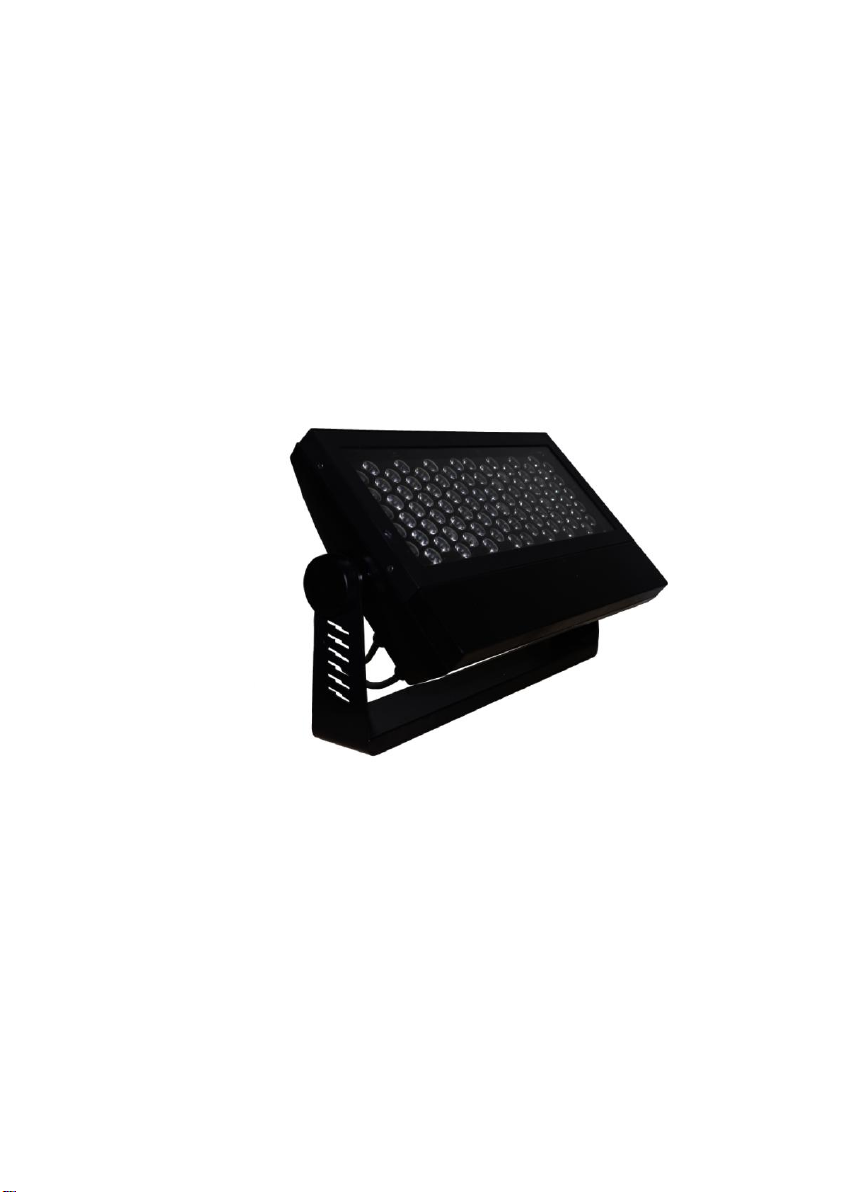

Titan 300 UV
TourPro

1
INTRODUCTION
Thank you for having chosen our LED lighting
Unpack the device ,inside the box you should find:
The fixture device
One power cable
One XLR connection cable
This manual
Please check carefully that there is no damage caused
by transportation. Should there be any, consult your dealer and
don’t install this device.
DESCRIPTION
Features
. Over temperature protect
. Can Set DMX Address by controller
. 3,5,or 7 DMX channels selectable for numerous applications
. DMX-controlled operation or stand alone operation
with Master/Slave-function
. Automatic identify Master signal and change to slave mode
. Stepless RGB color changing
. Color calibrate function
. Equipped with 88 x 3W UV LEDS
. Switch-mode power supply, 110v-240v
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to
maintain this condition and to ensure a safe operation, it
is absolutely necessary for the user to follow the safety instructions
and warning notes written in this user manual.
This device falls under protection-class I. Therefore it is essential that
the device should be earthed.
The electric connection must carry out by qualified person.
If the external flexible cable or cord of this luminaire is damaged,
it shall be exclusively replaced by the manufacturer or his
service agent or a similar qualified person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at the
end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
If this would be the case,replacement of the cable must be done by

2
an authorized dealer.
Always disconnect from the mains, when the device is not in use or
before cleaning it. Only handle the powercord by the plug. Never
pull out the plug by tugging the power cord.
Never look directly into the light source, as
sensitive persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not
subject to warranty. The dealer will not accept liability for any
resulting defects or problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors.
Screened cables in compliance with EIA RS-485 specifications and the
following characteristics must be used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in
an electrically noisy environment,such as in a discotheque, it is
recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 OHM resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket
of the last fixture in the chain.

3
Display Menu
Menu 1
Menu 2（Config Menu 1）
Axxx（address）
DMX Address Setting
SPEd（Auto speed）
Auto speed setting(00 is fastest)
Auto (Auto mode)
At 0 Auto mode 0: fade mode
At 1 Auto mode 1:3 color change mode
At 2 Auto mode 2:7 color change mode
AUdi (Audi mode)
Ad 0 Audio mode 0: fade mode
Ad 1 Audio mode 1: 3 color change mode
Ad 2 Audio mode 2: 7 color change mode
Ad 3 Audio mode 3:stobe with 7 color
CoLr(Show Color Mode)
R for Red g for GREEN b for Blue
Hr(Power on time)
Xxxx Time in hour for power on
CCAL(Color Calibrate)
r
Red Calibrate Mode
g
Green Calibrate Mode
b
Blue Calibrate Mode
tEp(Temperature)
xxxC
Temperature
in ℃
xxx Temperature
Calibrate
CnFg(Parameter Config)
CHAn
CH3:3Channel mode
CH5:5Channel mode
CH7:7Channel mode
diCS
Inst: Instant Mode:Light on/off
instant
DELA:Delay Mode:Light on/off
delay for 0.5sec
LoCS
Loc:Active self lock keboard if no
operation on the button for 30 sec
UnLoc:DisActive self lock keboard if
no operation on the button for 30
sec
StAt
HoLd:Hold the DMX status when no
DMX signal
oFF:light Off when no DMX sighnal

4
Main functions
ⅠAXXX:Current DMX address
A.Setting DMX address by button
1. press ENTER button when show the Axxx menu, then adjust
the DMX address by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or pressing [ESC] to return to main menu.
B.Setting DMX address by controller
1.Set the DMX value of channel 5 to 10-15,channel t to 20-26,
channel 7 to 30-36,channel 8 to 40-46,then the devices connected
to the controller will enter to the setting address mode
2. Set the DMX value of channel 1 from 0-59,then you will see the
the first number of the Address change to (channel 1 vaule)/10.
For example,when set the value of channel 1 to 20,the first DMX
address number will be 2(20/10=2) ,
3. Set the DMX value of channel 2 from 0-99,then you will see the
the sencond number of the Address change to (channel 2
vaule)/10.
For example,when set the value of channel 2 to 30,the first DMX
address number will be 2(30/10=3) ,
2. Set the DMX value of channel 3 from 0-99,then you will see
the the third number of the Address change to (channel 3
vaule)/10.
For example,when set the value of channel 1 to 40,the first DMX
address number will be 3(40/10=4) ,
And the DMX address you set by conctroller will be 234.
5. Set the DMX value of channel 4 to 255,then you will save the
DMX address setted by the controller.
Caution: It won’t save the address if the address number is
over 512
6. set the value of channel 5-8 out of the value range show on the
step 1,and the device will exit the setting address mode
ⅡSPEd : Auto Run speed
Setting Auto Run speed
press ENTER button when show the SPEd menu, then adjust the
speed by pressing [UP] or [DOWN] button,00 is the fasted speed.
ⅢAuto : Auto Run mode
press ENTER button when show the Auto menu, then adjust
the mode by pressing [UP] or [DOWN] button
ⅣAudi : Audio Run mode
press ENTER button when show the Audi menu, then adjust
the mode by pressing [UP] or [DOWN] button
ⅤCoLr: Show color mode

5
press ENTER button when show the CoLr menu, then adjust
the color by pressing [UP] or [DOWN] button
6 Hr: Show the time of power on
A:Show time
press ENTER button when show the Hr menu ,then you will see
the time of power on ,when the time is over 9999 hours,then
the
first number will be in hexadecimal,for example A999 means
10999 hours,B999 means 11999hours,C999 means 12999
hours,if the time is over 15999 hours,then the first number
will be null.
B: clear the time
press ENTER button when show the Hr menu, and then press up
and down button at the same time for few second,then the time
will be clear to 0000.
7 CCAL: Color Calibrate
1. press ENTER button when show the CCAL menu, then chose the
r,g,b calibrate by pressing [UP] or [DOWN] button
2. Press ENTER to enter the color calibrate you chosed, then ajust
the brightness of this color by pressing [UP] or [DOWN] button
3 .Press [ENTER] to confirm or pressing [ESC] to return to main
menu.
8 tEp :Temperature information
A:Show Temperature
press ENTER button when show the tEp menu,and you will see
the temperature of the led in ℃,if there are no temperature
sensor,it will show Err
CAUTION!
The brightness will decrease gradually when the led
temperature is over 50℃,and if over 70℃,then will black out
B: Temperature Calibrate
press ENTER button when show Temperature, then adjust
the Temperature by pressing [UP] or [DOWN] button to the exact
Temperature
9 CnFg: Parameter Config
press ENTER button when show the CnFg menu, then chose
the Parameter by pressing [UP] or [DOWN] button then press
enter
A: CHAn: Chose the Channle mode
Chose the Channle mode by pressing [UP] or [DOWN] button then

6
press enter to confirm.CH 3 is 3channle mode ,CH 5 is 5 channle
mode ,CH 7 is 7 channle mode.
B: dICS: Chose instant or delay mode
Chose the mode by pressing [UP] or [DOWN] button then press
enter to confirm.INSt is instant mode ,the light will be on
instant,
and dELA is delay mode ,the light will be on delay for about 0.5
sec
C: LoCS: Chose key self lock function
Chose the mode by pressing [UP] or [DOWN] button then press
enter to confirm.chose Loc will active key self lock function,the
button will be locked if no operation to any of the buttons for
about 30 sec ,press any button for about 3sec will active the
button again
and chose UnLoc will disactive the key self lock function
D: StAt: Status of DMX signal
Chose the mode by pressing [UP] or [DOWN] button then press
enter to confirm. HOLd is holding the last DMXsignal mode,the
device will hold the last DMX signal while there no DMX signal
and chose oFF will not hold the last signal and turn off the device
while ther no DMX signal
DMX functions and values
Channel
Value
Functions
Channel 1
0-255
Master Dimmer (0-100%)
Channel 2
0-255
Red (0-100%)
Channel 3
0-255
Green (0-100%)
Channel 4
0-255
Blue (0-100%)
Channel 5
0-255
Strobe
Channel 6
0-95
Static Colors
96-127
Gradual Color Change
128-159
Quick Color Change
160-191
Sound Activate Mode1
192-255
Sound Activate Mode2
Channel 7
0-255
Macro Speed, slow to fast
Channel 8
0-255
Dimmer Delay, Fast to Slow

7
CLEANING AND MAINTENANCE
We recommend a frequent cleaning of the device. Please use a soft
lint-free and moistened cloth. Never use alcohol or solvents!
CAUTION!
Disconnect from mains before starting maintenance operation.
There are no servicable parts inside the device. Maintenance and
service operations are only to be carried out by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to
be
replaced by authorized dealers only in order to avoid hazards.
If you have further questions, please contact your dealer.
INSTALLATION
The device must only be installed at a vibration-free, oscilation-free
and fire-resistant location.
TECHNICAL SPECIFICATIONS
Power supply: 100V~240V AC，50 Hz /60Hz
Power consumption: max. 200 W
Waterproof grade: IP 20
Packing dimensions: 62.5x14x35.5CM
Net weight:9 KGS
Gross weight: 10KGS
