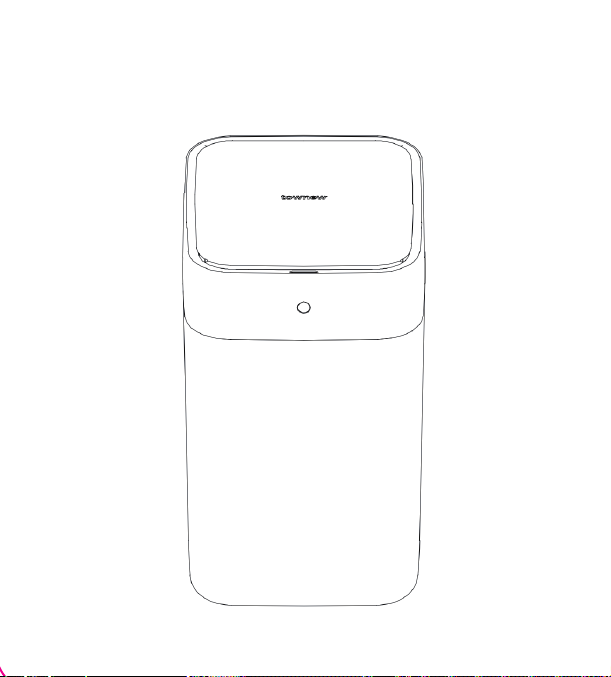

townew T1 User manual
Part Name Pb Hg Cd Cr(VI) PBB PBDE
Harmful Substances
Circuit components
The shell
Transmission wheel,
fan blade structural parts
Harmful substances and contents in products
Warranty Regulations
1.We provide 1-year warranty for the main body
2.Warranty documents for details at our website:ww-
w.townew.com
3.We do not replace or refund any sold product except for
quality problem.
Disclaimers
Weibo
WeChat
townew
Address: C-213,1#, No.899 Dan Gui Road | Shanghai | China
Web:www.townew.com
Tel: 400-821-6632
Man-made surface corruption,break,distortion,or damages
due to improper installation,operation,and maintenance.
The warranty period has expired.
Product repaired by unauthorized service provider or person-
nel,or disassembled by users themselves.
The consumable,such as the box of garbage bags are not
covered by warranty.
This warranty does not cover the following cases:
1.
2.
3.
4.
—— We reserve all the right for the final explanation.——
Kindly Reminders
Warning
* Please do not put excessive garbage, for avoiding improper
packing
* Please do not open the cover when the product is packing, for
avoiding scald.
* If the product will not be used for a long time, please turn off
the power after fully charged
* The machines contain lead-acid batteries. At the end of their
lives , please handed over the batteries to the recycling drop
points or professional recycling organizations
Do not use unofficial batteries and chargers for charging purpose.
Do not dismantle, repair, refit the product and replace the batteries
by yourself.
Do not expose the product to high temperature conditions or wash
it by water
Do not throw flame, alcohol, gasoline, gunpowder and other
volatile, flammable and combustible articles into it.
Common Trouble Shooting
Automatic sensor failure
Manually close the cover during open-cover mode – then touch the
button, and automatic sensor can be restored after the "Di" sound.
1.
Touch button failure
Touch the button when opening the power – restart the bin 5 seconds
later.
2.
Packing system failure
The previous packing stick did not return to its initial position - long press
the touch button to reset it, and then long press the button again for
restarting
Excessive rubbish in the garbage can, which exceeding the height of the
packing system - compact or remove a part of rubbish and repackaging
it.
3.
Cutting bags failure
Water or garbage is stuck at the sealing bag mechanism - manually pull
out part of the garbage bag and repack it.
4.
Bag changing failure
Infrared ray in the bottom of the garbage can is covered by water or dirt
– clean them out from the garbage can.
5.
Directions for use
First use
Step 1: open the power switch on the back and press the button “I”;
Step 2: long press the button on the front until hearing the “Di” sound
twice,then it can work normally，then all function is available.
Automatic induction mode
Access to the sensor within 35 cm from above, then the cover will be
opened automatically. After removing, LED lights gradually fade and turn
off automatically.
1.
2.
The open-cover mode
Touch the button and the mode will be activated after ‘Di’ sound. Press it
again for closing the cover and restore the automatic induction. Under the
open-cover mode, the light and the induction are off.
3.
Automatic packing system
Long press the button, after twice ‘Di’ sounds, the garbage can will be
automatically packed. When the packing is completed, the cover will open
and the packaged garbage bag can be taken out.
4.
Charge
When there is a continuous “Di” sound and the light bar is flashing, it
means it's low power. The power should be turned on during 10 hours
charging time. Meanwhile, the light bar is keeping continuous flashing.
The light will turn off when the charging completed.
5.
6. Replace the box of garbage bags
1. Turn off the power 2. Open the cover 3. Remove the packing gland
4. Take out the old box
and put in the new
5. Cover the gland 6. Turn on the power
Product Introduction
The Basic Parameters
Name
G.W
N.W
Carton Size
Product Size
Battery
Power Adapter
Charge Time
Operative Norm
Parameters
4kg
3.5kg
293x343x453mm
240x310x402mm
12V 2.2AH
13.8V 0.65A
10h
GB4706.1
Power switch
Charging jack
Cover
Packing gland
Box of garbage bags
Infrared sensor
Touch key
Power adapter
TOWNEW T1 Manual
