Toyostove Laser 72 Owner's manual

LASER CLEAN HEATING SYSTEM/VENTED HEATER
INSTALLATION AND OPERATION INSTRUCTIONS
LASER CLEAN VENTED
MODEL Laser 72
(TYPE E, F, G)
®lil:
IMPORTANT
READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING HEATER.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE CHECK AND LOCAL CODES FOR PERMITTED USE.
SECTION A:
Specifications
Safety Features
SECTION B:
Safety Tips for Operation
SECTION C:
Fuel Guide
SECTION D:
Operating Controls and Part Names
SECTION E:
Operation
Before
Ignition
Ignition
Adjusting Room Temperature ......... .
Turning Heater Off ................... .
Programing
for Automatic Operation ....... .
CONTENTS
SECTION F:
2 Routine Maintenance
3 SECTION G:
Troubleshooting
4 SECTION H:
Long Term Storage .
5 SECTION 1:
Installation:
6 Tools Needed
for Installation
Standard Installation Parts
Accessory Parts
9 Tips
for Safe Installation
9
Installation of Heater and Flue Pipe
10
Parmanent Wiring Installation
10 SECTION J:
11
Fueling
12
14
15
16
16
18
21
22
29
30

2
SECTION A:
SPECIFICATIONS
Model:
Heater Efficiency:
Heat Rating:
Fuel Consumption:
Fuel System:
Fuel Type:
Dimensions (WxHxD):
(Includes drip tray)
Weight:
Vent Pipe Hole:
Maximum Length of Vent Pipe System:
Electrical Rating:
Typical Room Size(2):
Laser
72
92% (1)
High -
40,000 BTU/h
Low 20,000 BTU/h
High -0..3038 gal/h
Low 0.1453 gal/h
External tank(3)
Water Clear No .. 1-K Kerosene Only
30" X 27-lf2" X 16-%"
88 lbs. Empty
3-1
/8"- 3-1 /2" diameter
10ft., 3 bends or less
120 Volts AC, 60Hz
Preheat - 285W
Burning- BOW
1500 square feet (0°F)
2300 square feet (20°F)
(1) Heat and vaporized water are produced by the combustion process of this
kerosene heater.. This rating does not take into account heat loss due to
condensation of water vapor.
(2) Room size
for which this heater is suitable will vary depending on outside
temperature, house insulation,
window size, and other factors.
(3) External
tank to be purchased from local suppliers ..

SAFETY FEATURES
Your Laser 72 is equipped with the following safety features .. Please familiarize yourself with these features ..
When your heater is extinguished due to a safety mechanism, be sure to identify and correct the problem
Circulation fan
Heat exchanger
Fuel nozzle
Igniter
Intake air
Blower motor
Burner mat
1. Flame Sensor
Heater will automatically stop all operations if ignition fails or if flame fails during combustion, in order to
prevent fuel overflow.. Warning lamp turns on
2. Fuel Strainer
Special strainer catches any dust or impurities present in the fuel before it is sent to the burner.
3. Overheat Protector
Automatically stops all operations if heater cabinet reaches abnormally high temperatures due to motor
malfunction or abnormal combustion, in order to prevent fire. Warning lamp turns on ..
4. Power Failure Recovery System
If power fails during heater operation, heater will turn off. When power resumes, heater will automatically
reignite to maintain the selected room temperature.
5. Fully Vented System
Flue pipe system provides outside air for combustion and vents all combustion products to the outdoors
6.
Fusible Link Valve
If a household fire should occur, bringing the fuel line or heater to extremely high temperatures, the fusible
link valve will stop the fuel supply to the burner. This will prevent the fuel supply from the external tank
continuing to flow into the house ..
3

4
SECTION B:
SAFETY TIPS FOR OPERATION
CAUTION: Heater and vent pipe system must be properly installed before
operation
.. Please follow instructions under "Installation", Section I.
1.. Never use any fuel other than water-clear kerosene (ASTM No .. 1-K Kerosene).
NEVER USE GASOLINE. Use
of gasoline can lead to uncontrollable flames,
resulting in destructive fire ..
2.. Due to high surface temperatures, keep heater away from children, furniture
and clothing while in operation (See Page 22) ..
3 To prevent abnormal operation and prolong heater life, be sure to perform
routine maintenance (See Pages 12-13) ..
4.. Never store or transport kerosene in other than a metal or plastic container that
is (1) acceptable for kerosene, (2) non-red in color, and (3) clearly marked,
"KEROSENE". Never store kerosene in the living space ..
RIGHT WRONG

SECTION C:
FUEL GUIDE
The Toyostove Laser 72 is designed for use with water clear No .. 1-K kerosene only .. Use of low-quality kerosene
will cause burner performance to drop, leading to abnormal combustion and reduced heater life.
Purchase only 1-K kerosene in non-red cans reserved exclusively for kerosene and markedaccordingly with the
word "KEROSENE" Always store your kerosene in a separate area from where you store gasoline for your
power equipment to avoid accidental use of gasoline in your heater
What to Buy ..
ALWAYS: Crystal clear, colorless, high-quality KEROSENE, ASTM No .. 1-K.
ALWAYS: Kerosene free of contaminants, water or cloudiness.
NEVER : Gasoline, alcohol,
white gas, camp stove fuel or additives ..
NEVER: Yellow or sour-smelling fuel
How to Use It .... (when optional removable fuel tank is used)
ALWAYS : Fill heater away from living quarters when heater is cool; use
siphon
..
ALWAYS: Watch fuel gauge to avoid overfilling heater
How to Store It
ALWAYS : Store in a clean container, non-red in color, clearly marked
KEROSENE
ALWAYS : Store away from direct sunlight, heat sources or extreme temper-
ature changes.
NEVER:
NEVER:
NEVER:
In a glass container, or one that has been used for other fuels ..
For longer than six months. Begin each heating season with fresh
kerosene; discard at
the end of season ..
In the living space.
Why It is Important ..
Pure, clean kerosene is essential for safe and efficient heater operation Poor
quality or contaminated kerosene can cause:
• Excess tar deposits on burner and flue pipe
• Incomplete combustion
• Reduced heater life
Use of a highly volatile flammable fuel such as gasoline can produce un-
controllable flames, creating a severe fire hazard..
5

6
SECTION 0:
OPERATING CONTROLS AND PART NAMES
Before using heater, familiarize yourself with the following operating controls and part names.
Louver
Front panel
8 Burning mode lamps
ON/OFF switch
9. ON/OFF lamp
11 Normal temperature lamp
12. Set-back temperature lamp
4. Timer & clock set
5 Timer selector
Driptray
,.. Programmable Set Back
,....,
PMI C
IU
.:1 I
Circulating motor
6. Digital time indicator
7. Reset lamp
2. Auto switch
10. Auto lamp
3 Temperature selectors
Make a note of your heater's serial number,
located on the outside cabinet surface
Your heater's serial number:
ISERIAL NO

1. ON/OFF switch:
2
.. Auto switch:
3
.. Temperature selectors:
4
.. Timer & clock set:
5
.. Timer selector:
6
.. Digital time indicator:
7
.. Reset lamp:
8 .. Burning mode lamps:
9 .. ON/OFF lamp:
10 .. Auto lamp:
11. Normal temperature lamp:
12 .. Set-back temperature lamp:
13 .. Circulating fan:
14 .. Room Temperature sensor:
15
.. Power supply cord:
16
.. Plumb bob:
Main switch turns heater burner on and off.. When switched on,
heater begins operation and combustion starts after a 220-
second preheat period
The switch turns automatic operation modes on and off which
have been programmed into timer.
"Normal" and "Set-Back" temperature selectors allow user to
select desired temperature during manual or automatic
operation.
Timer and clock set modes can be set by pressing hour or minute
buttons ..
Clock, clock set, "Set-back" mode, start time set or end time set
can
be selected by this switch ..
Continuous display on digital clock.
Lights when safety devices activate due to heater malfunction ..
Flame will be extinguished automatically.. Heater may be
reignited after problem is corrected (See Page 3)
Indicates
whether heater is operating at high or low combustion.
Lights when heater is in operation ..
Lights when automatic operation is in use ..
Lights when heater runs with manual or "Normal" mode of
automatic operation.
Lights
When heater runs with "Set-back" mode of automatic
operation.
Two-speed motor supplies high-capacity warm air flow during
high combustion for heating room up quickly, and low-capacity
warm air flow during low combustion for maintaining
comfortable room temperature ..
Constantly senses room temperature and supplies information to
heater so that desired room temperature can be maintained ..
For use in 120V,AC electrical outlets ..
Allows user to check if heater is positioned evenly.
7

REF#
PART#
1
20478146
2
20475804
3
20450007
4
20475170
5 20475841
6 20478141
7
20478129
8
20475842
9
20478142
10 20475813
11 20475843
12
20475834
13 20478026
14 20475194
15 20475893
16 20475881
17
20474992
18
20474080
19 20475808
20 20475831
21 20475847
22
20478147
23
20475819
24
20475534
25
20475890
26 20475891
27
20479469
28
20474506
29 20475811
30
20475535
31
20475518
32
20475773
33
20474579
34
20475712
35
20475817
36
20479876
37
20475701
38
20479801
39
20474045
40
20474039
41
20474014
42
20474050
43
20474051
44
20475553
45
20474055
46
20478156
47
20474057
48
20474272
49
20474925
50
20474059
51
20450120
52
10005597
53
20478162
54
20478163
55
20478164
56
20475844
57
20475877
58
20475875
59
20475878
60 20475871
61
20475874
62 20475883
63
20475837
64
20475872
65
20478090
66 20478091
67
20475172
68
20474920
69
20478187
70
20479895
71.
20479499
8
PART NAME
Front panel assembly
Carrying handle
Plumb bob
Adjustable leg
Fuel pipe assembly
(Type E)
Fuel pipe assembly (Type F G)
Drip tray
Burner assembly (Type E)
Burner assembly (Type F. G)
Burner mat
Burner ring
Fuel nozzle (Type E)
Fuel nozzle (Type F, G)
Burner gasket
Radiant
chamber gasket
Peep window gasket
Joint packing
Igniter gasket
Radiant
chamber assembly
Mica Window
Blower motor assembly with
case (Type E, F)
Blower motor assembly with
case (Type G)
Fuel pump
Fuel sump
Resistor A
Resistor 8
Circulation
fan motor
High limit switch
Primary flame rod
Power supply cord
Igniter
Thermistor
Fuse
Main circuit board
Transformer
Indicator lamp circuit
Knob for temperature selector
Standard flue pipe
Syringe
Insulator A
Spacer A
Screw C
Screw D
Screw 1P
ScrewO
Screw 1S
Flange nut
ScrewM
Oil catch
Holder A
Screw for igniter unit
Fusible link valve
Top plate
Right side panel
Left side panel
Heat exchanger
0-ring (</>75)
Blower motor case gasket
Rubber
mat
Blower motor exhaust fan
Washer for blower motor
Blower motor intake fan
Blower motor assembly
Motor mount (Type E F)
Screw 1T
Screw 1U
Fan cover
Igniter cover
Air pressure switch (Type G)
Instruction manual
Carton
Laser72 (Type E, F, G)
1 -
33
DETAILC
42
\.,
/
<
;>
67
~49
~39
/ -48
A3a

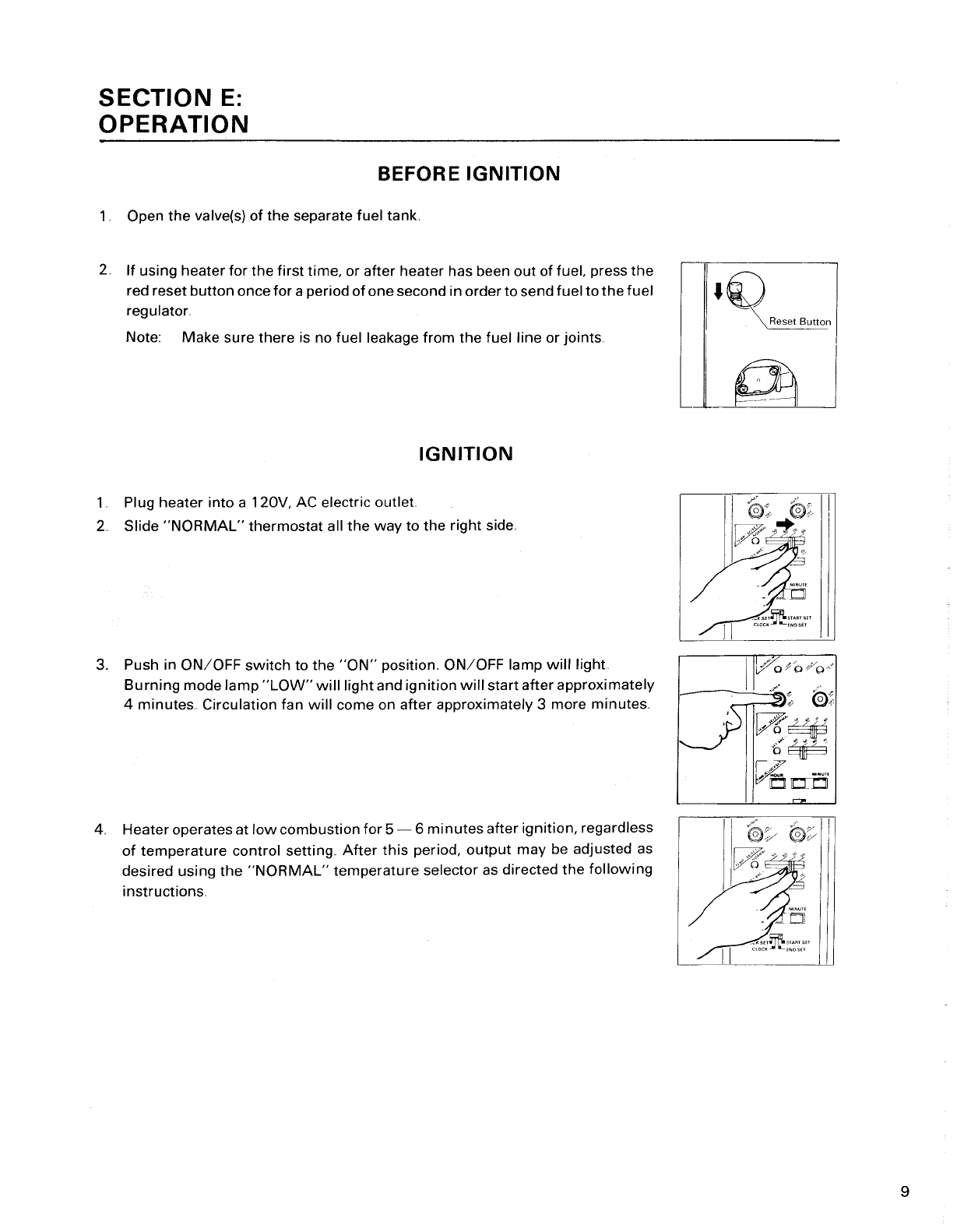

SECTION E:
OPERATION
BEFORE IGNITION
Open the valve(s) of the separate fuel tank.
2. If using heater for the first time, or after heater has been out of fuel, press the
red reset button once for aperiod of one second in order to send fuel to the fuel
regulator
Note:
Make sure there is no fuel leakage from the fuel line or joints
IGNITION
1 Plug heater into a 120V, AC electric outlet
2.. Slide "NORMAL" thermostat all the way to the right side ..
3. Push in ON/OFF switch to the "ON" position .. ON/OFF lamp will light
Burning mode lamp "LOW" will light and ignition will start after approximately
4 minutes .. Circulation fan will come on after approximately 3 more minutes.
4.. Heateroperates at low combustion for 5-6 minutes after ignition, regardless
of temperature control setting .. After this period, output may be adjusted as
desired using
the "NORMAL" temperature selector as directed the following
instructions.
·~""""
1~,
9

10
ADJUSTING ROOM TEMPERATURE
1.. The temperature control should be set at the position you find most comfort-
able .. Heat output will be regulated automatically in accordance with the room
temperature registered by the room temperature sensor ..
2. Heater will burn at high combustion until room temperature reaches the
selected temperature leveL When room temperature reaches the selected
setting, heater will automatically shift to low combustion to maintain the
desired temperature .. When the room temperature exceeds the selected
setting, heater will automatically shut off.. As room temperature drops, heater
will automatically re-start to maintain desired settings.
Note:
Burning mode lamps indicate at which output level the heater is
operating at any given
time .. The heater shifts automatically between
low and high output levels to maintain the desired temperature.
TURNING HEATER OFF
Press ON/OFF switch to "OFF" position .. (Auto lamp, temperature lamp and
burning mode lamp will go out) Circulation fan and combustion fan motors
continue to operate for approximately three minutes to cool heater down ..
Make sure ON/OFF lamp (green lamp) goes out when fans stop ..
Note:
Note:
If ON/OFF switch is pressedto "ON" position during the cool down
period, heater will automatically re-start at the end of cool down
period.
Disconnect
heater plug from electrical outlet after power lamp has
turned off if heater will be out of use for any period .. Plug should also
be disconnected during electrical storms ..
I I.., 'L'l
PM# C ~ I

PROGRAMING FOR AUTOMATIC OPERATION
1.. SET CLOCK- Position Timer Selector
to "Clock Set". Press hour or minute
buttons of Timer & Clock Set to correct
time .. Position Timer Selectorto "Clock"
after clock setting is completed Clock
will be shown on Digital Time Indicator ..
Note: In case of powerfailure for over
30 seconds, all clock & timer
settings are cancelled. If Digital
Time Indicator is flashing "PM
12:00", this indicates a power
loss of more than 30 seconds ..
At this point you need to reset
alltimer and set-backfunctions ..
2.. SET START TIME OF "SET-BACK"
MODE -Position Timer Selector to
"Start Set" .. Press hour or minute
buttons of Timer & Clock Set to desired
time .. Start time of "Set-Back" mode will
be shown on Digital Time Indicator .. (Ex
PM 10:00)
8. Burning mode lamps
1. ON/OFF switch
9. ON/OFF lamp
11. Normal temperature lamp
12. Set-back temperature lamp
4. Timer & clock set
5. Timer selector
::;u
_I I
6. Digital time ind1cator
7. Reset lamp
2.
Auto switch
10. Auto lamp
3. Temperature selectors
3.. SET END TIME OF "SET-BACK" MODE- Position Timer Selector to "End Set" Press hour or minute
buttons of Timer & Clock Set to desired time .. End time of "Set-Back" mode operation will be shown on
Digital Time Indicator .. (Ex. AM 06:00)
Note: Always return Timer Selector to "Clock" position for time indication ..
4.. TURN POWER ON -Press both ON/OFF switch and auto switch to the "ON" position
5.. SET ROOM TEMPERATURE -Slide temperature selector knobs on "NORMAL" mode operation and
"SET-BACK" to desired settings .. (Ex. "NORMAL" -75°F, "SET-BACK" -60°F)
Note: Set-back function operates only when "AUTO" switch is on
Note:
"Set-Back" mode operation is designed for energy saving lower temperature and setting .. One
"Set-Back" mode operation can be programmed in
24 hours period.
Ex.
PM10:00
I
Start Set-Back _I
I
75°F
60°F
I
I
AM6:00
I
PM10:00
'
I
I- End Set-Back
I
60°F
11

12
SECTION F:
ROUTINE MAINTENANCE
CAUTION: Be sure to unplug heater before performing any checks or cleaning ..
CAUTION: Allow heater to cool completely before cleaning or maintenance.
FOR OPTIMUM HEATER PERFORMANCE, THE PARTS SHOWN BELOW SHOULD BE CLEANED
REGULARLY:
~~-----------------
~----~--~==~0
Louvers ~ ! V~
D
Fan cover

Clean Louvers (ONCE A WEEK)
Dust and stains
should be wiped off louvers with a damp cloth
2.. Clean Circulation Fan Cover (ONCE A WEEK)
Remove any
dust or pet hair from the fan cover on the back of the heater
3 Check for Kerosene Leaks (REGULARLY)
Make it a habit to check for anysign of kerosene leakage along the fuel line and
at all joints. Kerosene leaks may lead
to risk of fire.
4 Check Flue Pipe
Area (ONCE A WEEK)
Check the flue pipe joint to make sure connection isfirm.. Use a vacuum cleaner
to remove any dust or pet hair
5 Clean Fuel Strainer (ONCE A MONTH)
The strainer of the fuel sump should be cleaned once a month and before
storing heater at the end of each season ..
(a) Close the valve(s) of the separate fuel tank.
(b) To catch the fuel which will drain out, set the oil catch below the strainer
cover, with a small container under it.
(c) Loosen the two screws from the strainer cover and remove.
(d) Remove the strainer and wash with kerosene ..
(e) Return the strainer to its original position .. Replace strainer cover and
screw to secure ..
(f) Wipe away any spilled kerosene ..
(g) Open the valve (s) of separate fuel tank. Check for kerosene leakage ..
Note: Be sure to unscrew the drain screw to remove all remaining kerosene
from the fuel sump at the end of each season ..
n
0
~
F\
rf
0
'
•/
A
Check /
t%
=
~
/
~
/
t<
~ ChecJ..
%V
13

14
SECTION G:
TROUBLESHOOTING
Should problems arise during operation or ignition, use this chart to determine the cause and the proper steps
to take .. Be sure to unplug heater and allow to cool completely before taking corrective measures ..
PROBLEM
CAUSE
SOLUTION
POWER LAMP FAILS Disconnected
power plug Plug
into 1 20V AC outlet
TO TURN ON Circuit board
malfunction
Consult your dealer.
NO IGNITION
Out of fuel
Check fuel gauge on fuel tank; refuel.
Fuel tank valve closed Open valve by
turning counterclockwise
Air pocket in fuel line Push reset
button on the fuel sump, located inside
side door, once.
Clogged fuel strainer Clean fuel strainer (see page 13)
..
Igniter, circuit board or fuel pump mal- Consult your dealer
function
EXTINGUISHED
Air pocket in fuel line Push reset button on the fuel sump, located inside
AFTER IGNITION side door, once
Out of fuel Check fuel gauge on fuel tank; refuel.
High limit switch activated Clean circulation fan cover, remove any obstruc-
tions
Flame sensor malfunction
Consult your dealer
----
POOR COMBUS- Soot
buildup on flue pipe line Clean
out any soot
liON/NOISY COM-
Burner ring not properly seated
BUSTION Consult
your dealer
Altitude too high Consult your dealer
ODOR Leaking
flue pipe Tighten all
flue pipe connections
Kerosene leakage
Tighten all fuel line joints. Wipe away any kerosene
drippage
Faulty packing or gasket in combustion Consult
your dealer
area
If the corrective measures outlined above do not solve the problem, please consult your TOYOSTOVE dealer ..

SECTION H:
LONG TERM STORAGE
At the close of each heating season, or when you do not plan to use your heater for an extended period, the
following procedures are recommended.
1.
As the end of the season approaches, calculate your kerosene purchases so that you can use up all the
kerosene you have on hand. When kerosene is stored for over six months, its quality may deteriorate. The
use
of such kerosene will have an unfavorable effect on heater operation.
2.. If your heater needs any service orrepair, now is the time to call your dealerandget it donebeforestorage ..
That way your heater will be ready for immediate use when the next heating season begins ..
3.. If you plan to store your heater in place,
(a) Unplug heater.
(b) Close the main tank valve ..
(c) Remove all kerosene from the fuel sump and clean the fuel strainer (see
page 13)
(d) Wipe off any stains or dust on heater with a damp cloth, then wipe once
again using a
dry cloth ..
(e) Cover heater completely with a large plastic bag to protect from dust.
4. To store heater in
another location,
(a) Unplug heater ..
(b) Close the main tank valve ..
(c) Remove all kerosene from the fuel sump and clean the fuel strainer (see
page 13).
(d) Disconnect fuel line and flue pipe from the heater..
Note: Kerosene remaining in the fuel line may flow out when fuel line is
disconnected
.. Have a container ready to catch drainage ..
(e) Remove any soot accumulated in the flue pipe using a brush and/or
vacuum cleaner ..
(f) Wipe off any stains or dust on heater with a damp cloth, then wipe once
again using a
dry cloth ..
(g) Put the heaterand flue pipe in the original shipping box, and store in a dry
place .. Iforiginal shipping boxis not available, cover the heatercompletely
with a large plastic bag to protect from dust during storage
(h) Plug inner and outer sleeve openings using the two rubbercaps provided
for this purpose
..
15

16
SECTION 1:
INSTALLATION
TOOLS NEEDED FOR INSTALLATION
Tool
Phillips Head Screwdriver
Electric Drill
Hole Saw,
31j
2" diameter
Use
Hacksaw
(with a 32 teeth/inch blade)
Installation of
flue pipe, etc.
Drilling hole in wall for flue pipe
Making hole in wall for flue pipe
Cutting wall sleeve
STANDARD INSTALLATION PARTS
The following standard installation partsare enclosed with heater .. For alternateinstallation methods, you may
need
to purchase additional accessories which are available from your TOYOSTOVE dealer. See "Accessory
Parts", page 18 ..
'
Drip tray (1) (PART #204 78129)
Wall Brackets (2 sets) (PART #20474962)
Pipe holder (1) (PART #20474963)
Pipe stopper (1) (PART #20474964)

Standard Flue Pipe (1) (PART #20479801)
Exhaust Air Cap (PART #20474945)
Intake Air Cap (PART #20474949)
Bent
Joint (1) (PART #20474984)
Oil Catch (1) (PART #20474925)
Wall Sleeve and Sleeve Nut (1 ea)
(PART #20479867)
(PART #20474968) (PART #20474969)
Inner and Outer Sleeve Flange (1 ea) w/screws
~---------------------------------+-----
Flange Gasket (2) (PART #20474971) Flue Pipe Gasket (1) (PART #20474974)
--------+----------------------------------~
Sleeve Cap (2) (PART #20474978) L-Shaped Hose
(2) (PART#20474975)
a
Inlet Hose (1) (PART #20474951) Hose Band (2) (PART#20474977)
17

18
ACCESSORY PARTS
The follwing accessory parts are available for use in non-standard installation of the Laser 72 .. After giving
careful consideration to your desired heater and flue pipe locations and flueling system, consult your
TOYOSTOVE dealer to purchase the necessary accessory parts ..
Accessory

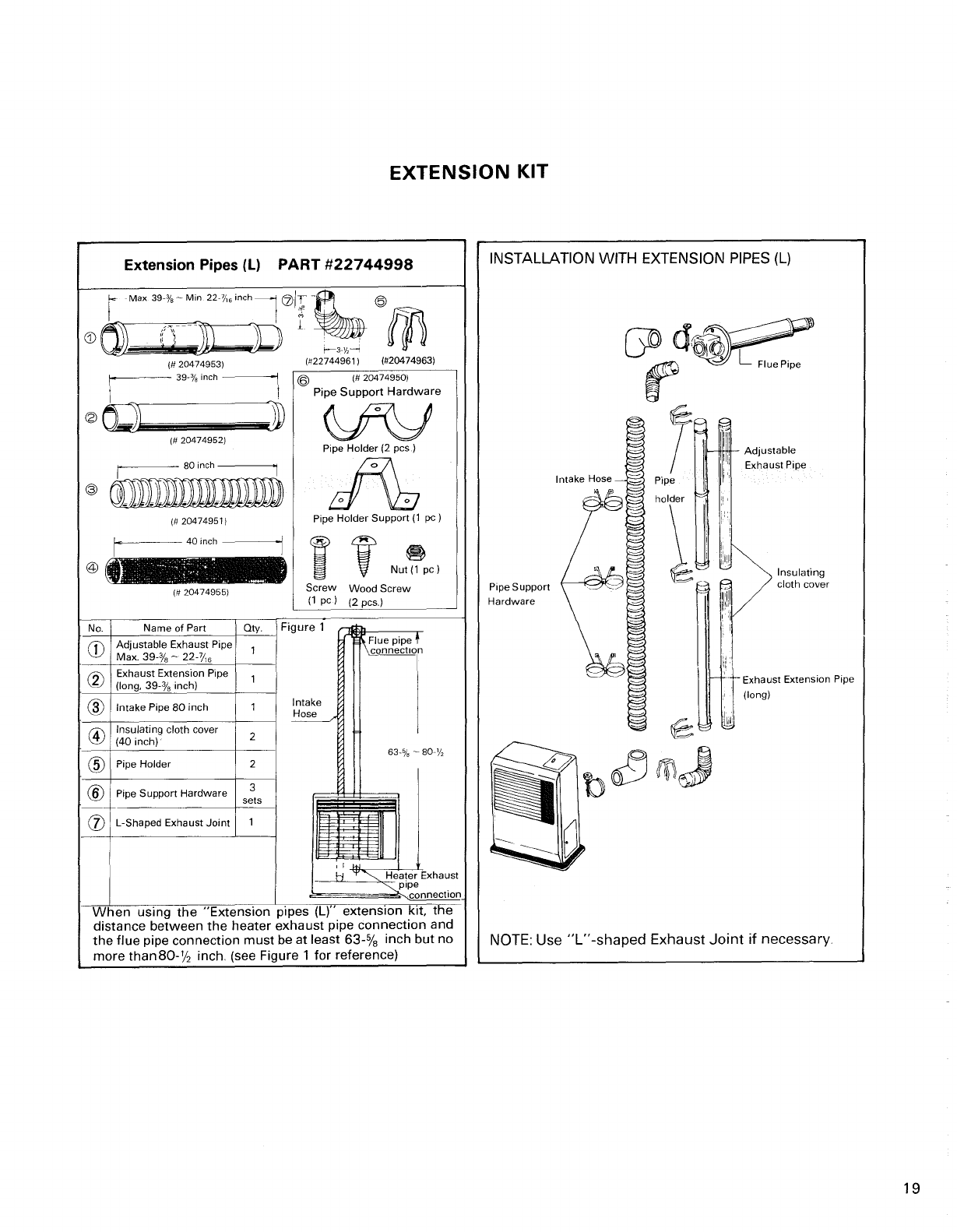

Extension pipes (L)*
Extension pipes (M)*
Extension pipes (S)*
L-Shaped exhaust joint*
Electric Kerosene Lifter
Model OL-A-2
Window Kit (L)
Window Kit (S)
Long flue pipe
External Fuel Supply
Installation Kit
Part No.
22744998
22744997
22744996
22744961
22744992
20475589
20475588
20479857
10005098
Application
Extendspipe system by 61-3/4 to 78-3/ 4"
Extendspipe system by 22-1/2 to 39-3/8"
Extendspipe system by 1 2-5/8 to 19-5/8"
For 90 degree bend in exhaust pipe
Used
to lift fuel to heater when fuel tank is
located underground or outdoors in a
position
lower than the heater ..
With automatic recovery.
For installation of
flue pipe in windows
from 31 to 50 inches wide ..
For installation of flue pipe in windows
from 20 to 32 inches wide
For installation in wall thicknesses 18 inches ..
For installation of external tank system
* Total length of extension pipe between heater and flue pipe must be no greater than 10ft No more than
three bends may be used in extension pipe
Exhaust Extens1on P1pe
t"r 39-f, "i~
o:J1 ])
PART# 20474952
Adjustable Exhaust Pipe
r--- Max 39··%- Mm 22-7
/
16
~
tt-" '•-tt- -t"T
~
PART# 20474953
Long Flue Pipe (w1th sleeve)
(PART #204 79857)
C?Qr~
PART• 20474950 ~--3-v,-1
PART# 22744961
Intake P1pe
r 10ft---_.,
@]lD]l1niDIDJ)ID
PART# 204 74951
Protective Sock Intake P1pe
f------40 •nch ----1 Joint
-· t3-V,-t
PART# 20474955 LJ
PART#
20474954
External Fuel Supply 1J
Installation Kit €)
~ <-'
"" u ,_, __

EXTENSION KIT
Extension Pipes (l) PART #22744998
®,k;~)lQ)r~ ®m
~ ~-3y,-1 uw ~
I# 204749531 {#22744961 1 {#204749631
.__ ___ 39-% inch ----1
{# 20474952)
I 80 inch
@ oommnmiDlliD
{# 20474951)
1-------- 40 inch ------i
@
~~
. .. .,-- . .
• •d, .., ~- ..
; • ' I'~ 1'
... "' .. '....:.• ··-.
@ {# 20474950)
Pipe Support Hardware
~
Pipe Holder (2 pes.)
A
Pipe Holder Support (1 pc)
IV
®
Nut (1 pc)
Screw Wood Screw
(1 pc) (2 pes.)
Intake
Hose
63-% -80-Y,
When using the "Extension pipes (L)" extension kit, the
distance between the heater exhaust pipe connection and
the flue pipe connection must be at least 63-% inch but no
more than 80-% inch .. (see Figure 1 for reference)
INSTALLATION WITH EXTENSION PIPES (L)
Pipe Support
Hardware
Adjustable
Exhaust Pipe
Insulating
cloth cover
Exhaust Extension Pipe
(long)
NOTE: Use "L" -shaped Exhaust Joint if necessary
19

20
Extension Pipes (M) PART #22744997
rMax 39::~-Min 22-~"inch~@ ~: \ @ ---_
G)~) ~
~ 3Y,~ ll~~
@
I# 20474953) 1•22744961) (#20474963)
I# 20474951 I
(# 20474955)
@ (# 20474950)
Pipe Support Hardware
~
Pipe Holder (2 pes )
A
Pipe Holder Support (1 pc)
~ ' Nu~pc)
Screw Wood Screw
(1pc) (2pcs)
No. Name of Part Oty.
l--+---------+-----'-----1 Figure 1
CD
Adjustable Exhaust Pipe
Max.
39-%- 22-
7
/16
®
Intake Pipe 40 inch
01 fl---~
!'\lue pipe
connection
@ Protective Sock
40 inch
Intake I
H~~
@ Pipe Holder 2
25-%- 42-V,
® Pipe
Support Hardware
2
sets
® L-Shaped Exhaust
Joint
I
In
1
I
=
==: "'~
I I
~Heater Exhaust
.[#
"Pipe .
connect1on
_L~~~----:-;---~
When using the "Extension pipes (M)" extension kit, the
distance between the heater exhaust pipe connection and
the flue pipe connection must be at least 25-% inch but no
more than 42-% inch. (see Figure 1 for reference)
Extension Pipes (S) PART #22744996
t-----20inch -----1
I# 20474951)
f------ 40 inch---~
@
(# 20474955)
No.
Name of Part Oty.
CD
Adjustable Exhaust Pipe
Max.
19-
1
)'
16
.- 12-%
® Intake Pipe
20 inch
@ Protective Sock
40 inch
@ Pipe Holder 2
® Pipe
Support Hardware
set
® L-Shaped Exhaust
Joint
Pipe Holder Support (1 pc)
~ ' Nut~c)
Screw Wood Screw
(1 pc) (2 pes)
Figure 1
Flue pip61
~,
151- 22-~,
I I
1--_..,l_;';:;-.J ----"'0Heater Exhaust
pipe
connection
When using the "Extension pipes (S)" extension kit, the
distance between the heater exhaust pipe connection and
the flue pipe connection must be at least 15-% nch but no
more than 22-% inch. (see Figure 1 for reference)
WINDOW KIT
~~~~~~~~--------------------~
Window Kit (l) PART #20475589 (31 -50 inches) Ex ..
Window Kit (S) PART #20475588(20- 32 inches)
