Toyota 2006 Yaris User manual

1
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 6. . . . . . . . . . . . . . . . . . . . . . .
05 11.10
SECTION 1−1

22006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Instrument panel overview
1. Window lock switch
2. Cup holders
3. Side vents
4. Engine immobilizer/theft deterrent sys-
tem indicator light
5. Auxiliary boxes
6. Instrument cluster
7. Center vents
8. Glove boxes
9. Personal lights
10. Power window switches
11. Automatic transmission selector lever or
manual transmission gear shift lever
12. Parking brake lever
13. Power door lock switches
14. AUX adapter
15. Power rear view mirror control switches
16. Hood lock release lever
17. Instrument panel light control knob
05 11.10
PS11505

3
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
1. Headlight, turn signal and front fog light
switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Audio system
5. Front passenger airbag on−off indicator
lights
6. Front passenger’s seat belt reminder
light
7. Rear window defogger switch
8. Power outlet
9. Air conditioning controls
10. Ignition switch
11. Tilt steering lock release lever
05 11.10
PS11502

42006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

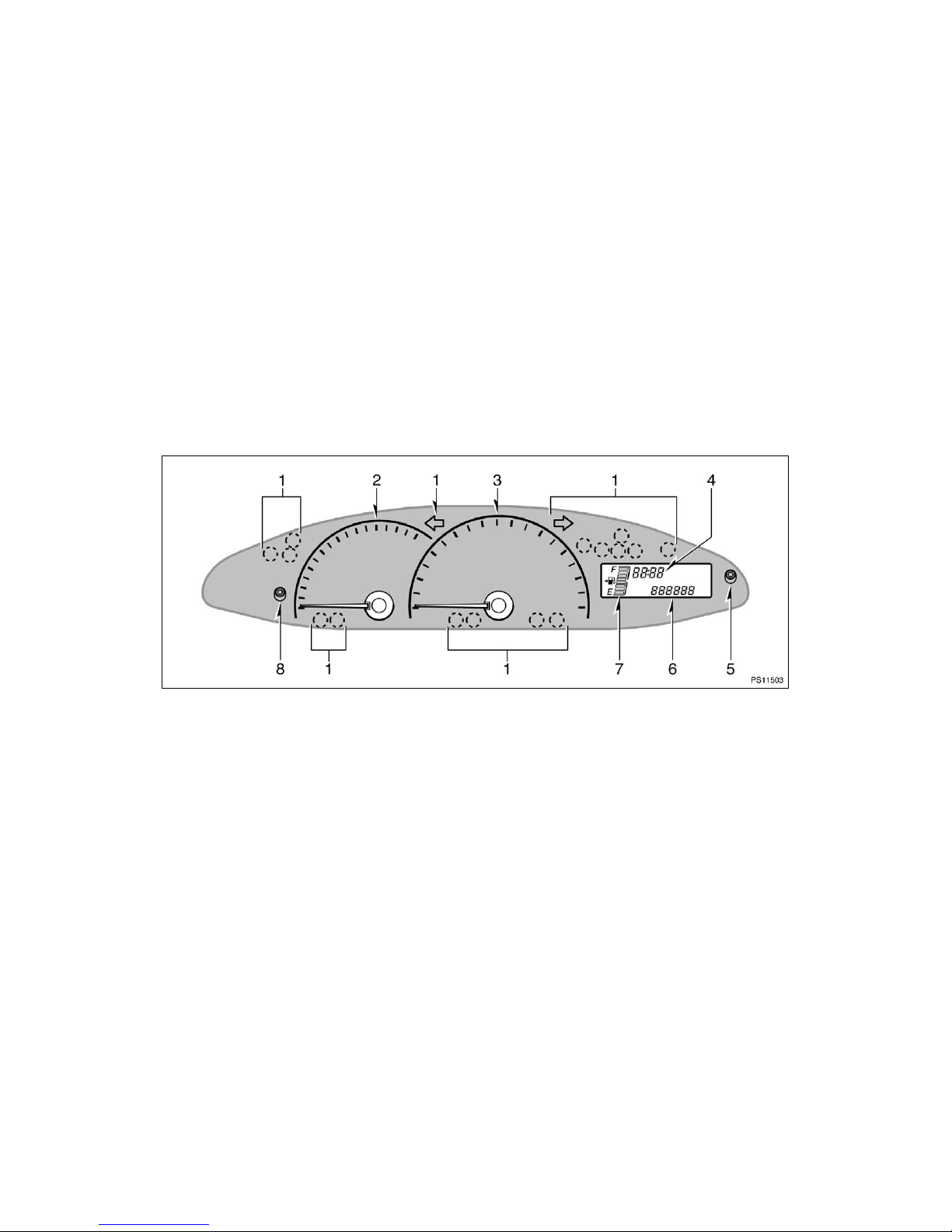

PS11503
1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Clock
5. Clock reset knob
6. Odometer and two trip meters
7. Fuel gauge
8. Trip meter reset knob
05 11.10
Instrument cluster overview
"With tachometer

5
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

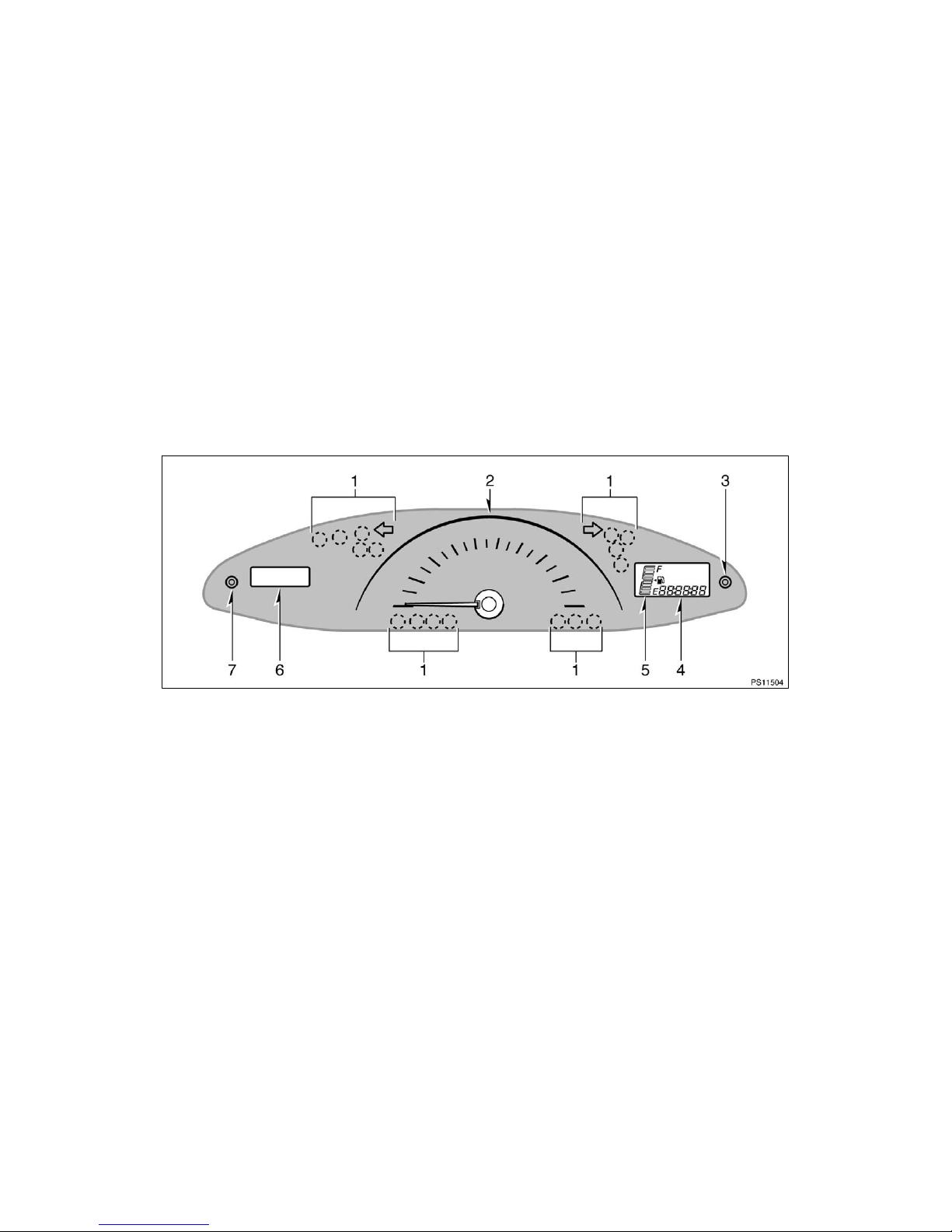

PS11504
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Trip meter reset knob
4. Odometer and two trip meters
5. Fuel gauge
6. Clock
7. Clock reset knob
05 11.10
"Without tachometer

62006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

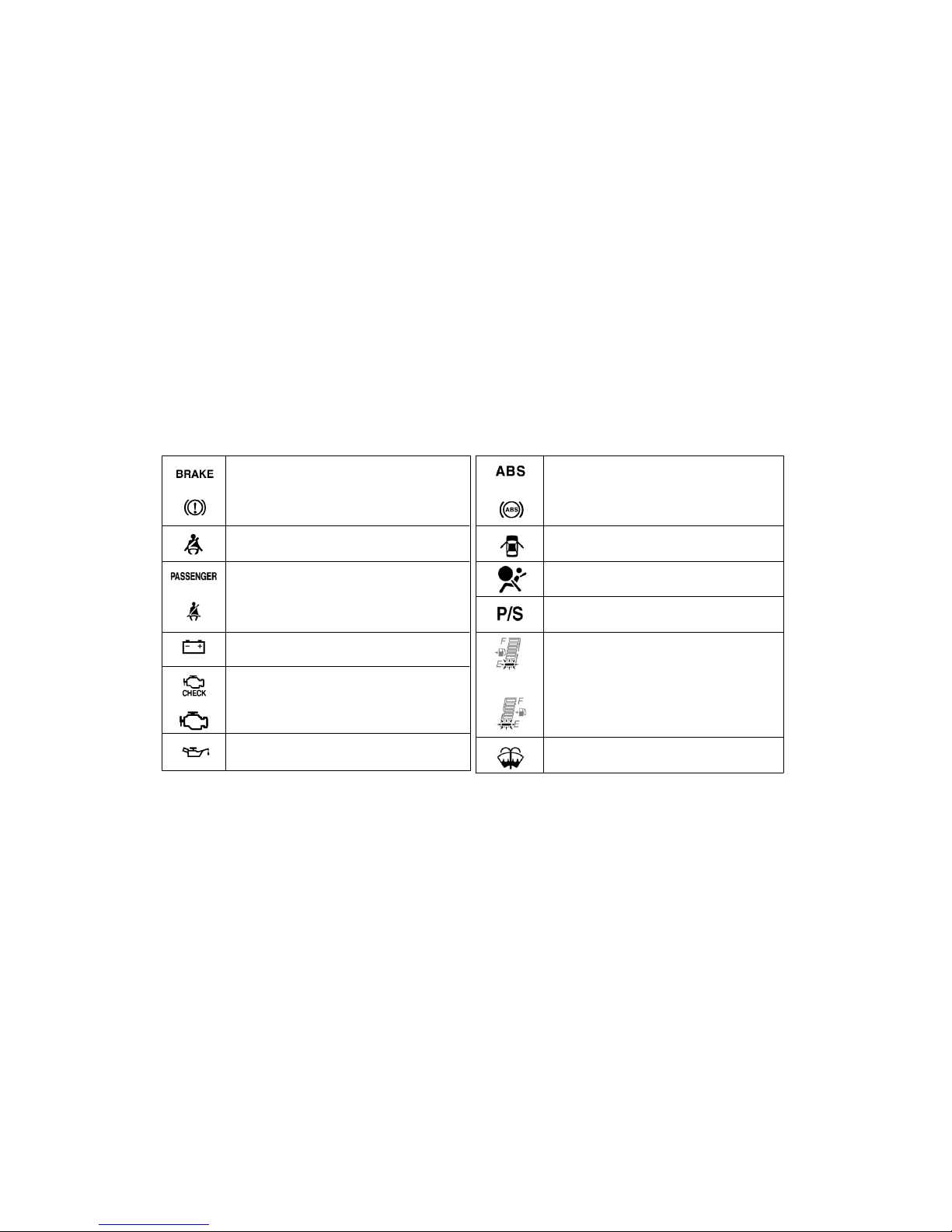

Indicator symbols on the instrument panel
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti-lock brake system warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Low fuel level indicator light∗1
Front passenger’s seat belt reminder light∗1
Open door warning light∗1
or
or
or
Electric power steering system warning light∗1
or
05 11.10

7
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
“AIRBAG ON” indicator light
Taillight indicator light
Turn signal indicator lights
Headlight high beam indicator light
High engine coolant temperature warning light∗1
Headlight low beam indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 114 in Section 1−6.
∗2: For details, see “Engine coolant temperature indicator and
warning light” on page 111 in Section 1−6.
Low engine coolant temperature indicator light∗2
Engine oil replacement reminder light∗1
“AIRBAG OFF” indicator light
Front fog light indicator light
05 11.10

82006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
05 11.10

169
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock 170. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 171. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove boxes 171. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 172. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 173. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottle holders 174. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage storage box 175. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage cover 175. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 176. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
05 11.10
SECTION 1−10

170 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

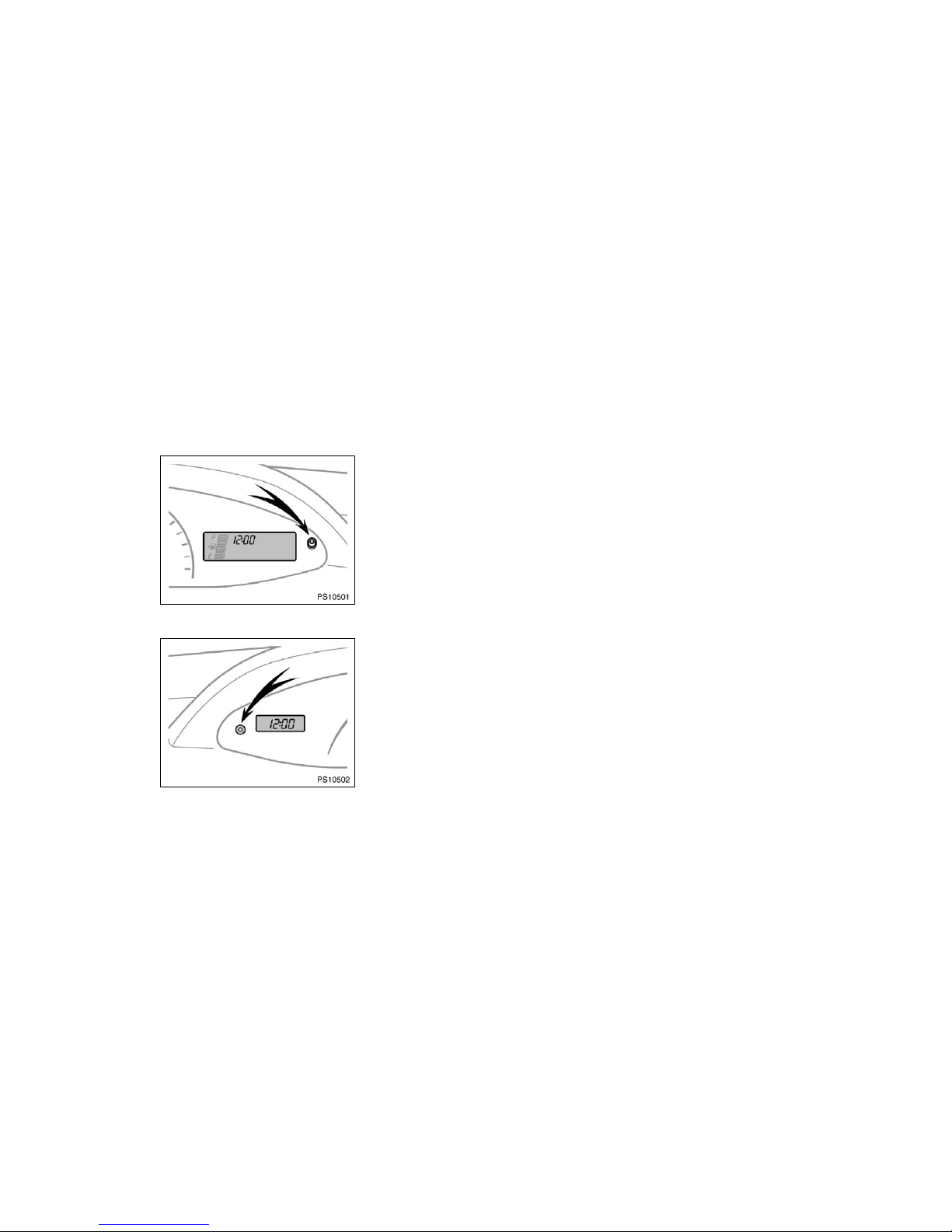

Clock
PS10501
With tachometer
PS10502
Without tachometer
The digital clock indicates the time.
To adjust the clock, put the key in the
“ON” position.
With tachometer—
Pushing the reset knob flashes the indica-
tor for the hour and you can adjust the
hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds pass without op-
erating, the indicator for the minute
flashes. Then you can adjust the minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
Without tachometer—
Pushing the reset knob flashes the indica-
tor for the minute and you can adjust the
minute.
Press the reset knob until the desired
minute will appear.
After 5 or more seconds pass without op-
erating, the indicator for the hour flashes.
Then you can adjust the hour.
Press the reset knob until the desired
hour will appear.
After 5 or more seconds passes without
operating, the indicator will return to the
normal display.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock)
05 11.10

171
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)

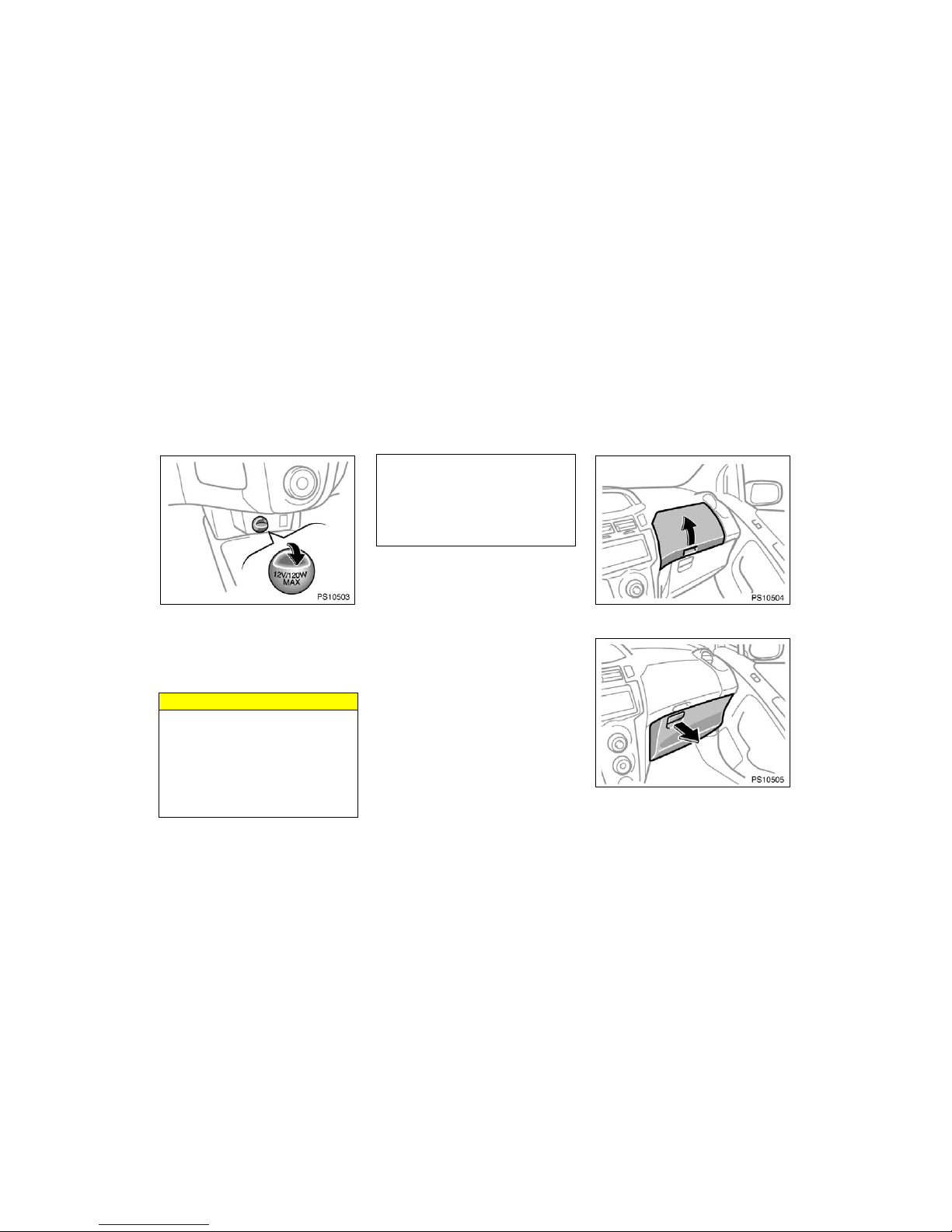

Power outlet
PS10503
The power outlet is designed for power
supply for car accessories. To use the
power outlet, open as shown in the il-
lustration.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
zTo prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
zTo prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
zClose the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
Glove boxes
PS10504
Upper glove box
PS10505
Lower glove box
05 11.10

172 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
To open the glove boxes, pull the lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
NOTICE
Upper glove box: During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.

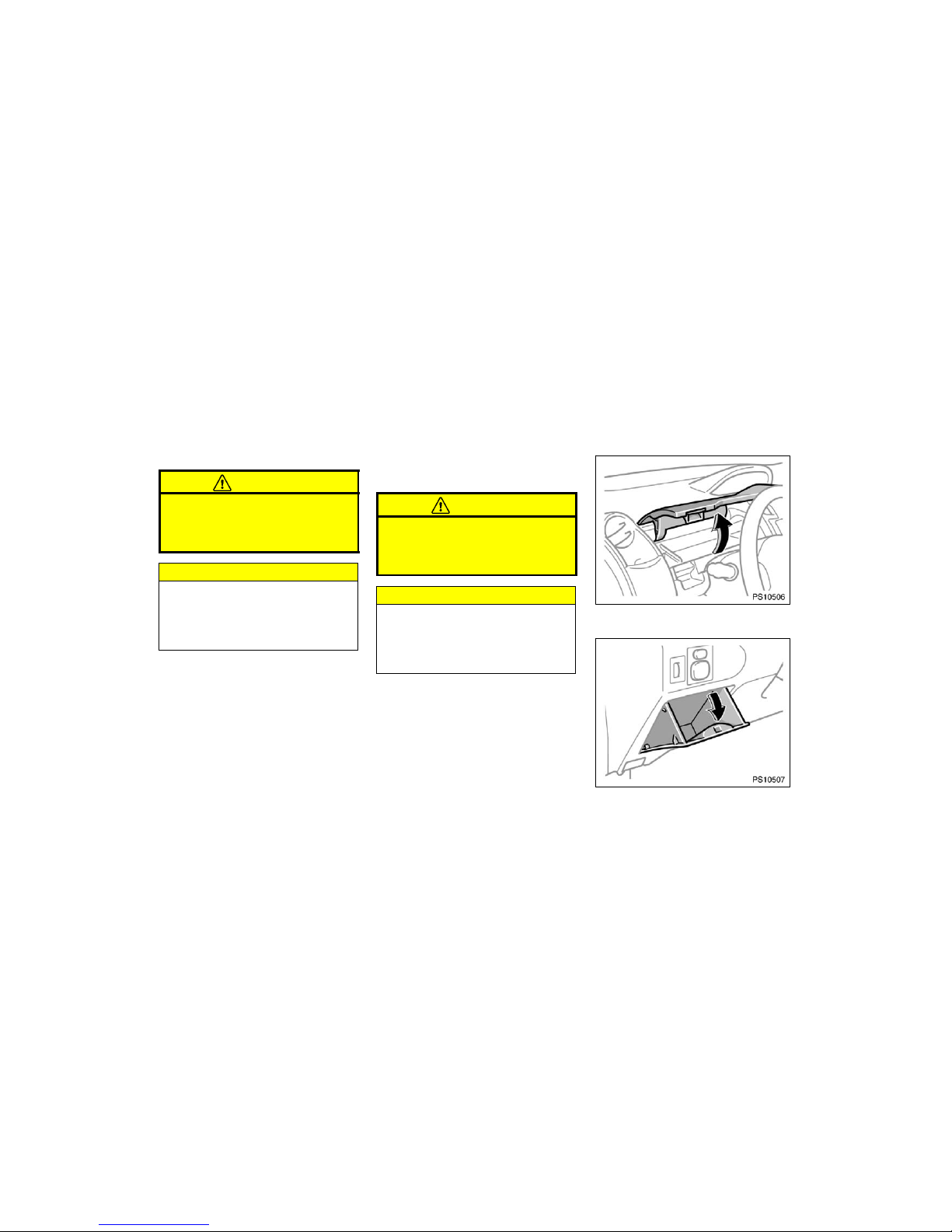

Auxiliary boxes
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
NOTICE
Type A: During hot weather, the inte-
rior of the vehicle becomes very hot.
Do not leave anything flammable or
deformable such as a lighter, glasses,
etc. inside.
PS10506
Type A
PS10507
Type B
05 11.10

173
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Cup holders
PS10508
Front
PS10509
Rear
The cup holder is designed for holding
cups or drink−cans securely.
Front cup holders—To use the cup holder,
pull it out.
Keep the cup holder closed when it is not
in use.
CAUTION
Do not place anything else other than
cups or drink−cans in the cup holder,
as such items may be thrown about
and possibly injure people in the ve-
hicle during sudden braking or in an
accident.
05 11.10

174 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Bottle holders
PS10510
Front doors
PS10511
Rear doors (5−door models only)
PS10512
Rear side (3−door models only)
The bottle holders are designed to hold
bottles securely.
CAUTION
Do not attempt to use the holder for
any other purpose for which it was
intended. Inappropriately sized or
shaped objects may be thrown about
in the compartment and possibly in-
jured people in the vehicle during a
sudden braking or an accident.
NOTICE
Do not put a cup or open bottle in
the bottle holder because the con-
tents may spill when the door opens
or closes.
05 11.10

175
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
Luggage storage box
PS10513
To open the luggage storage box, turn
the knobs to the “UNLOCK” position
and open the lid. To close the luggage
storage box, lower the lid and turn the
knobs to the “LOCK” position.
The luggage storage box is detachable.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage
boxes closed and locked while driv-
ing.
PS10514
To remove the luggage storage box,
turn the knobs to the “UNLOCK” posi-
tion and remove it.
Luggage cover
PS10515
PS10516
05 11.10

176 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
When you open the back door, the lug-
gage cover tilts up for easy access to
the luggage area.
For additional luggage space, unhook the
cords, remove the luggage cover from the
seatback and lift the cover out of the
retainers.
Floor mat
PS10517
Use a floor mat of the correct size.
If the floor carpet and floor mat have two
holes, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the holes in the floor carpet.
PS10518
CAUTION
Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
05 11.10

9
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobilizer system 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
05 11.10
SECTION 1−2

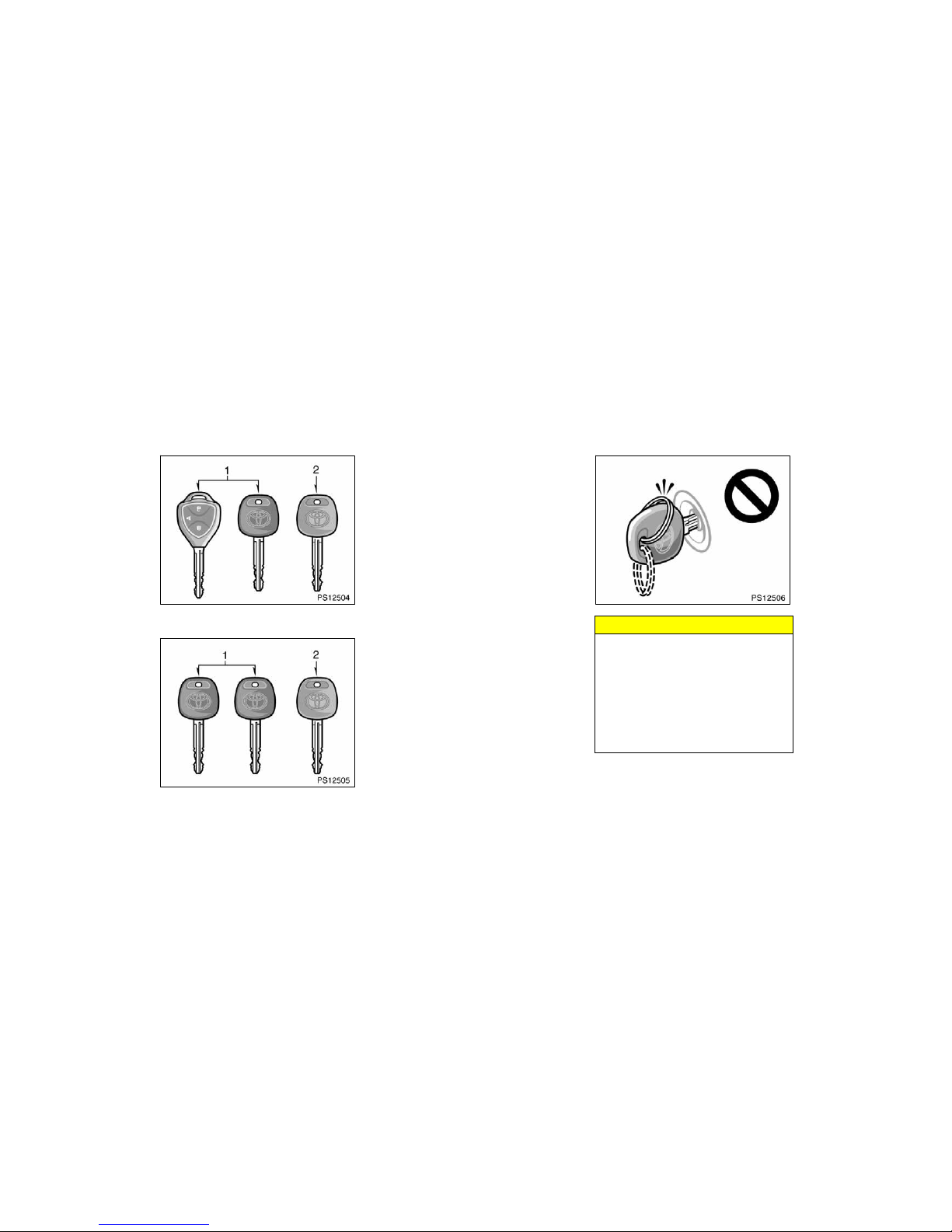

10 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS12501
With wireless remote control
PS12502
Without wireless remote control
These keys work in every lock.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare key in case you acci-
dentally lock your keys inside the vehicle.
PS12503
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
05 11.10
Keys (without engine
immobilizer system)

11
2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS12504
With wireless remote control
PS12505
Without wireless remote control
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built−in transponder chip.
2. Sub key (gray)—This key also works in
every lock.
A transponder chip for engine immobilizer
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Since the side doors and back door can
be locked without a key, you should al-
ways carry a spare key in case you acci-
dentally lock your keys inside the vehicle.
PS12506
NOTICE

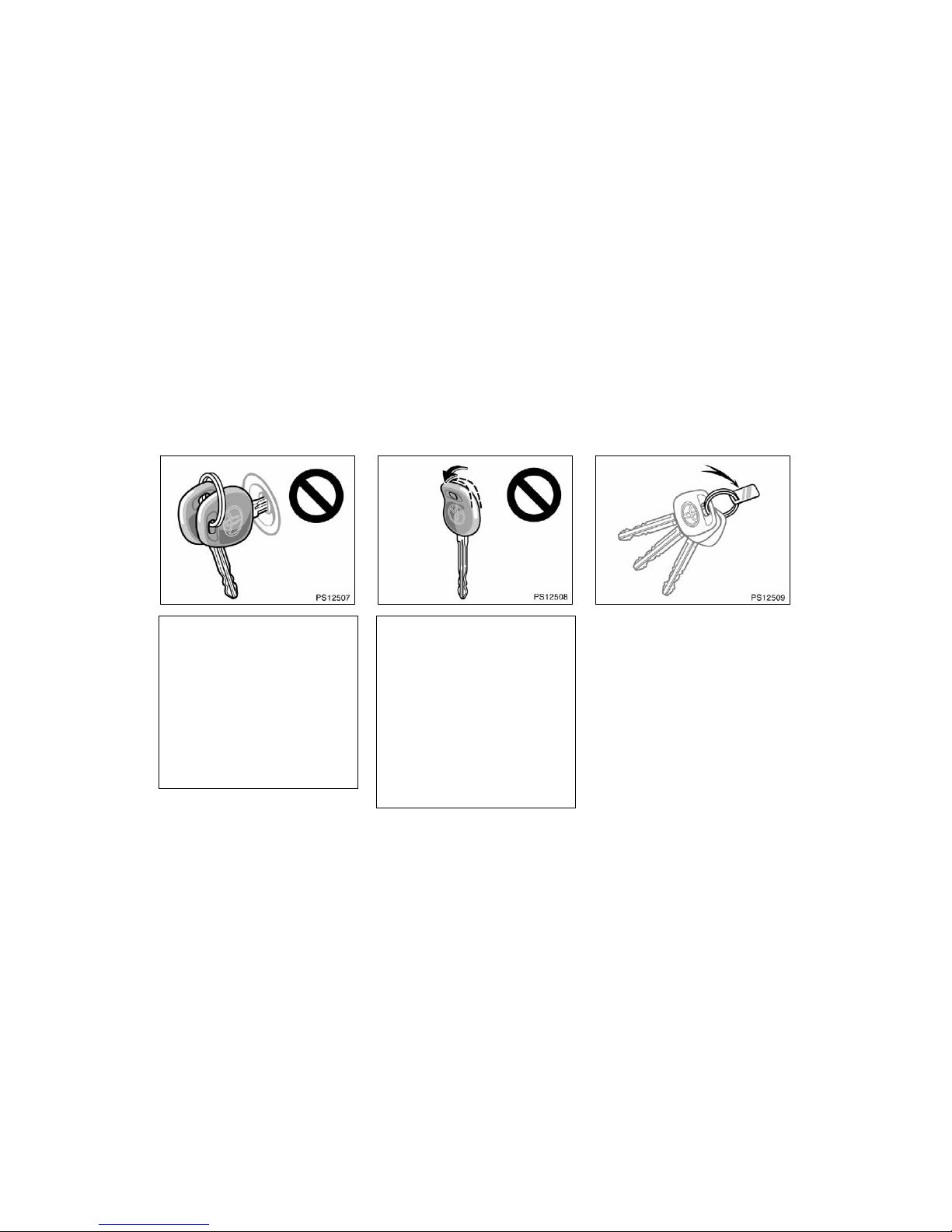

When using a key containing a trans-
ponder chip, observe the following
precautions:
zWhen starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
05 11.10
Keys (with engine immobilizer
system)

12 2006 YARIS HATCHBACK from Aug. ’05 Prod. (OM52703U)
PS12507
zWhen starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
PS12508
zDo not bend the key grip.
zDo not cover the key grip with any
material that cuts off electromagnet-
ic waves.
zDo not knock the key hard against
other objects.
zDo not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
zDo not put the key in water or
wash it in an ultrasonic washer.
zDo not use the key with electromag-
netic materials.
PS12509
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
05 11.10
