2009 Quick Reference Guide

This iGuide is not intended as a substitute for the Owner’s Manual
located in the vehicle’s glove box. We strongly encourage you to
review the Owner’s Manual and supplementary manuals so you will
have a better understanding of the vehicle’s capabilities and
limitations. Important Cautions, to help you avoid injuries, and
Notices, to help you avoid equipment damage or malfunction, can
also be found in the Owner’s Manual.
www.ToyotaiGuide.com
Interactive Owner’s Guide
Have a question about the main features of your new Toyota? Find
the answers quickly and easily in this Quick Reference Guide, which
includes highlights from the Owner’s Manual. For more detailed
information, and helpful interactive demonstrations and tips, visit
www.Toyotaiguide.com. This user-friendly website makes learning
all about your new vehicle fun and easy.
25
Spare tire & tools
Tool location
Wheel nut wrench
Jack handle
Transport eyelet
(if equipped)
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Removing the spare tire
(1) Loosen and remove the nut.
(2) Remove the spare tire cover.
(3) Loosen and remove the bolt.
(4) Remove the jack tray.
Refer to the Owner’s Manual for
tire changing and jack
positioning procedures.
Jack
Spare tire
Trunk-Internal release
Pull up
(1)
(4)
(3)
(2)

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
2009 Camry Hybrid Quick Reference Guide
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 9
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 8
Smart Key system1,2 7
Air Conditioning/Heating 20-21
Audio 18-19
Auto lock functions211
Clock 21
Cruise control 15
Cup holders 22
Door locks 22
Garage door opener (HomeLink®)315
Hybrid Synergy Drive System 10
Lights1& turn signals 13
Moonroof 17
Multi-information display 17
Parking brake 12
Power outlets 22
Seat adjustments-Front 14
Seat heaters 21
Seats-Folding rear seats 14
Seats-Head restraints 14
Steering lock release 11
Steering wheel switches 19
Telephone controls (Bluetooth®)16
Tilt and telescopic steering wheel 12
Transmission 11
Windows-Power 12
Windshield wipers & washers 13
Child comfort guide 24
Doors-Child safety locks 23
Fuel filler door-Internal release 23
Seat belts 23
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Tire Pressure Warning System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW

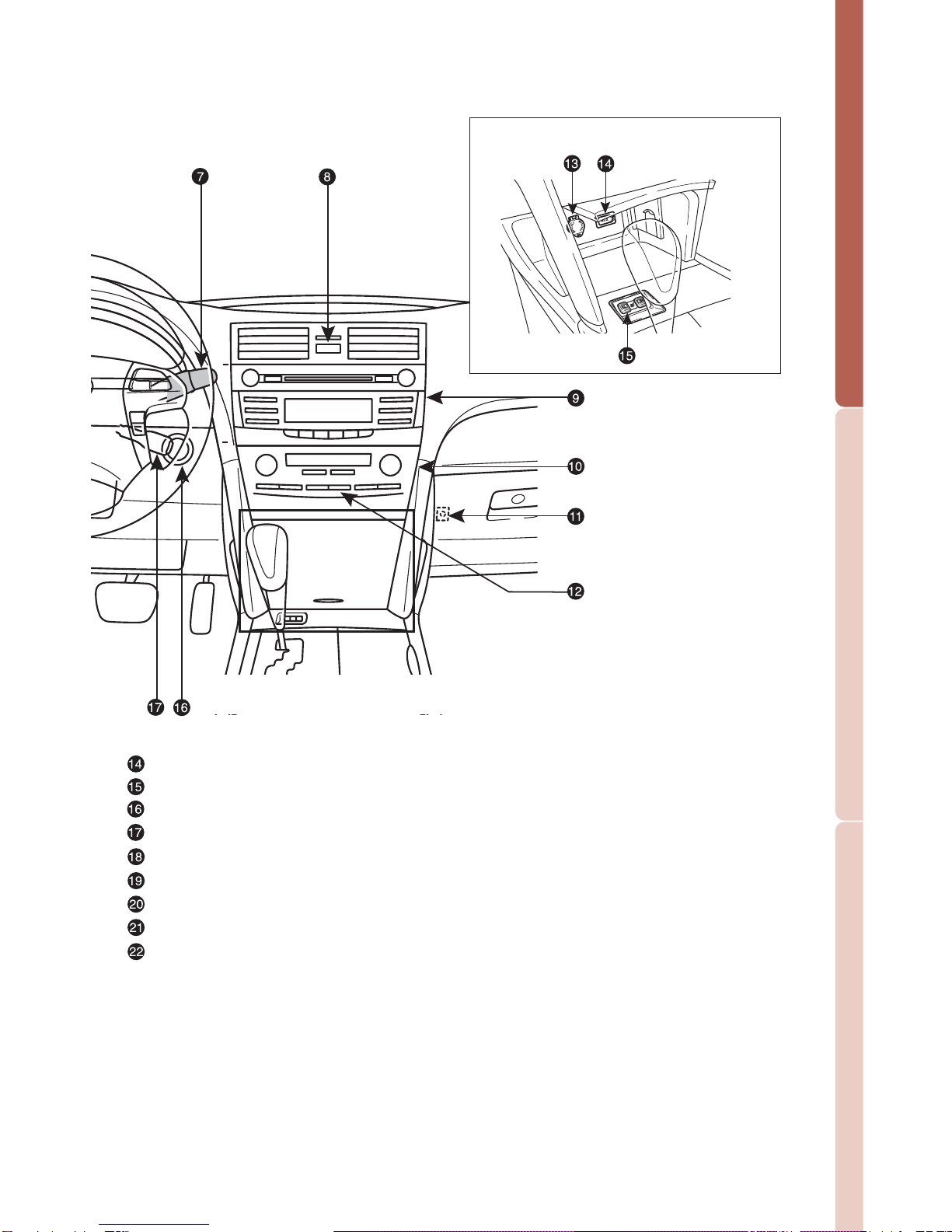

Instrument panel
Steering wheel audio controls
Steering wheel climate controls
Multi-information display button
Voice command button1,2
Telephone controls1,2
Headlight and turn signal controls
Wiper and washer controls
Emergency flasher button
Audio system or navigation system with integrated audio system1,2
Air Conditioning controls
Tire Pressure Warning System reset (in glove box)
Rear window and outside rearview mirror defogger switch1
12V DC Power outlet
Steering wheel controls

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
AUX audio jack
Seat heater controls1
“POWER” switch
Cruise control
Tilt and telescopic steering lock release
Auxiliary boxes
Air Conditioning/Heating economy (ECO) mode switch
Fuel filler door opener
Power outside rearview mirror controls
1 If equipped
2 For details, refer to the “Navigation System Owner’s Manual.”

4
OVERVIEW
Instrument cluster
Engine coolant temperature
Service indicator and reminder
Fuel economy meter
Gear shift position indicator
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control
Multi-information display
Driving ready light

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

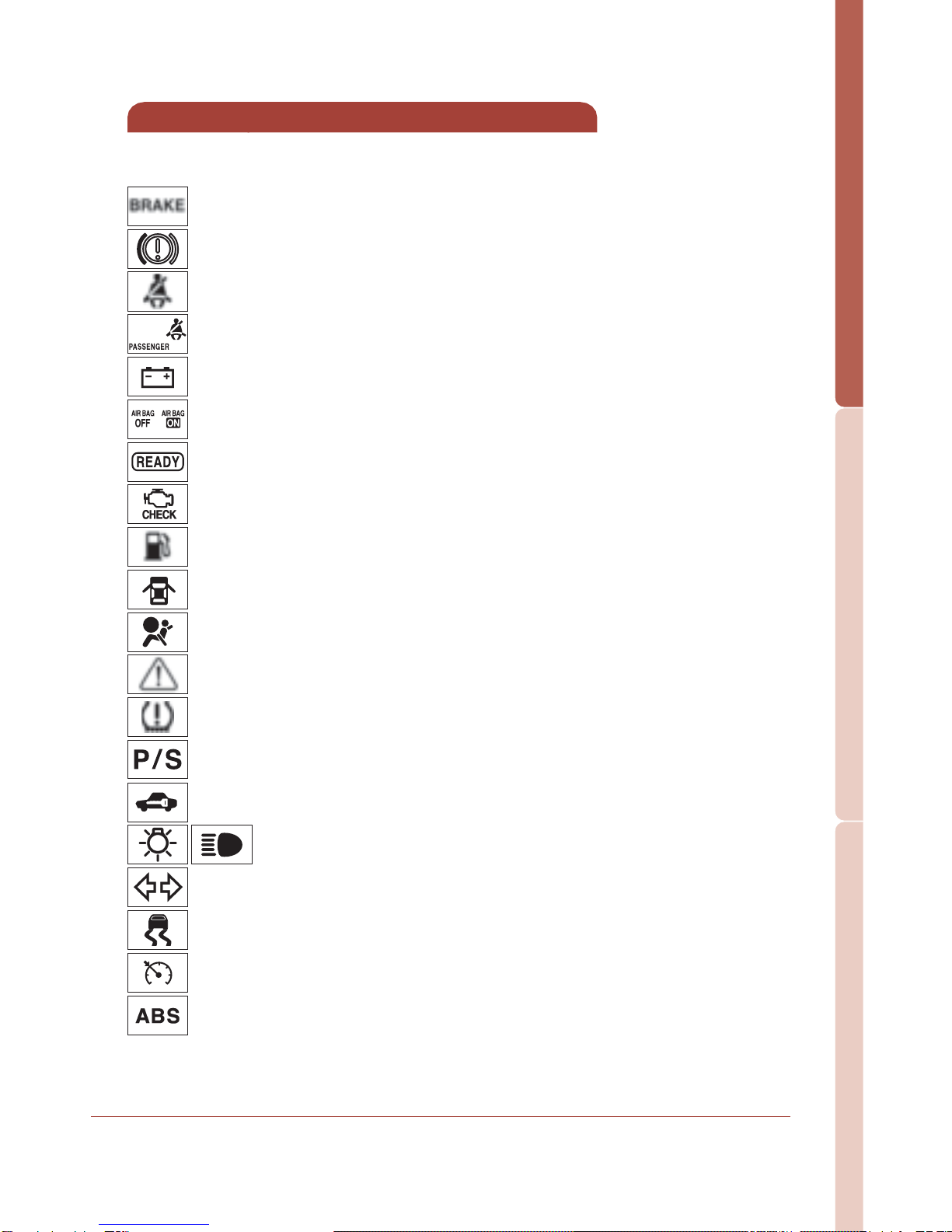

Indicator symbols
Charging system warning1
Brake system warning1
Front passenger occupant classification or front passenger air bag
ON/OFF indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2009 Owner’s Manual.
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Master warning
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Driving ready light
Malfunction/Check Engine indicator1
Low fuel level warning
Electric power steering system warning1
Brake system warning light1
For details, refer to “Indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.

6
OVERVIEW

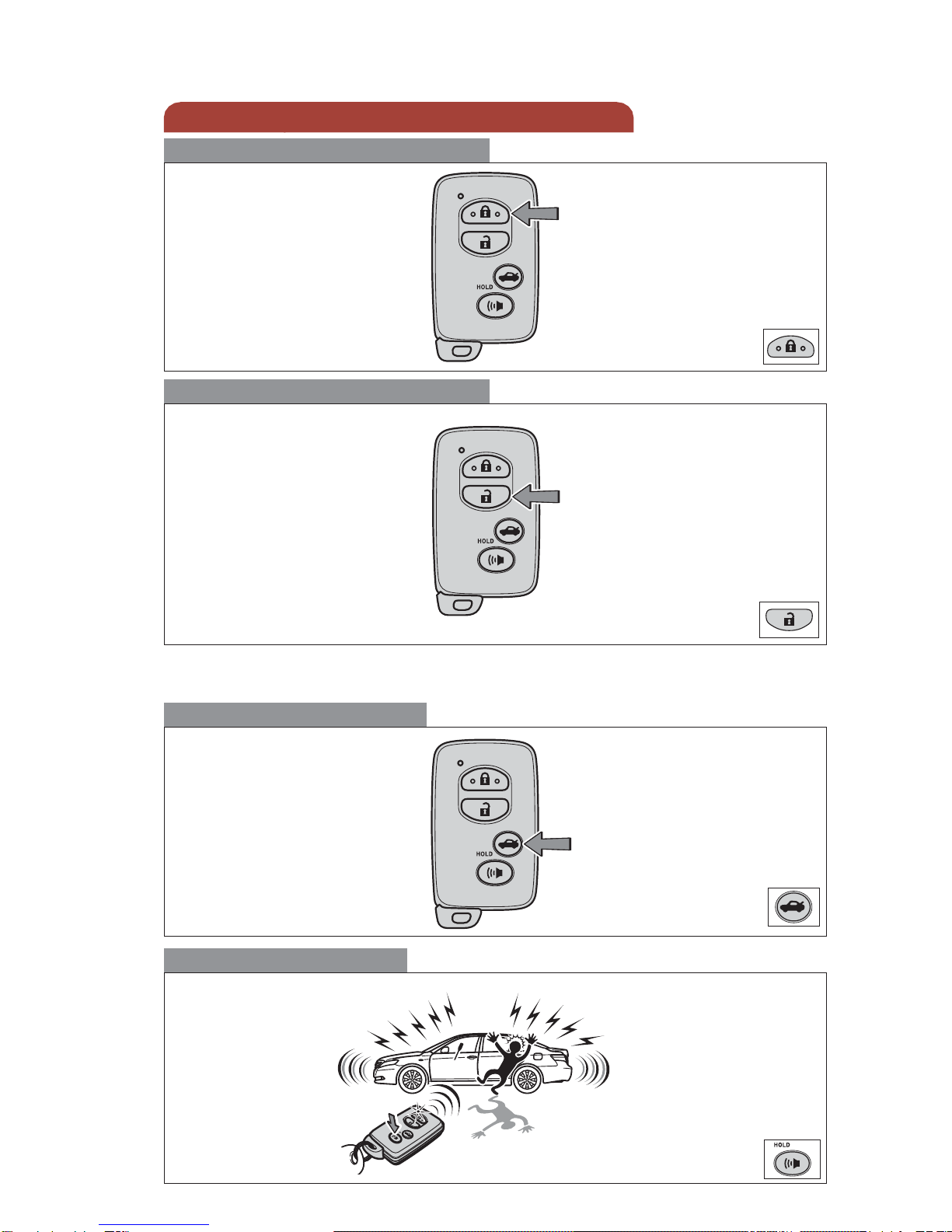

Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Trunk lid operation
Push and hold
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

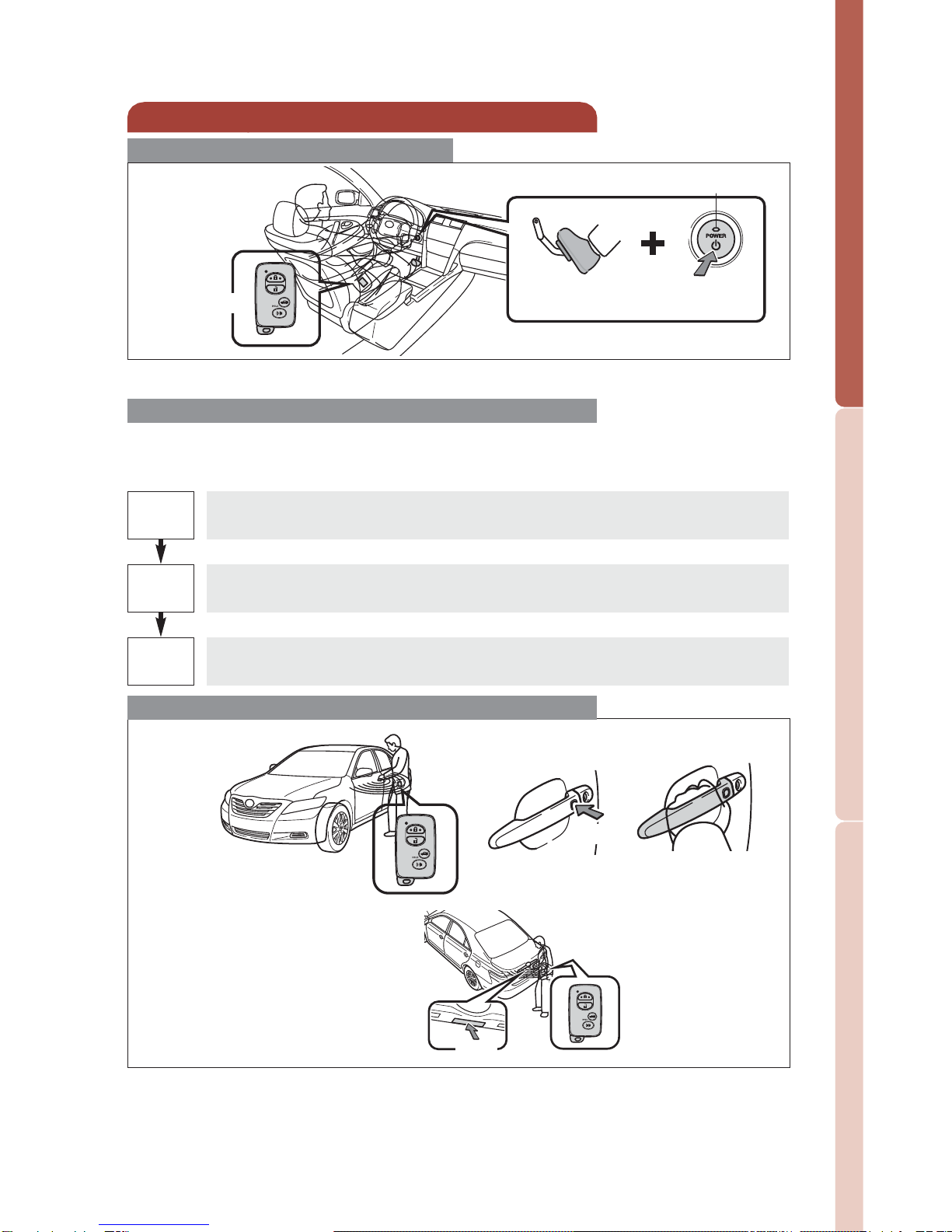

Smart Key system*
Start function
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
ACC
ON
OFF
NOTE: Gear shift lever must be in “Park” and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” switch will
change the operation mode in succession from:
Locking/Unlocking operation
Carry remote
to lock/unlock
Push
Front door unlock*
Grasp
Front door lock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping front passenger door handle will unlock all
doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
Push
Trunk open

8

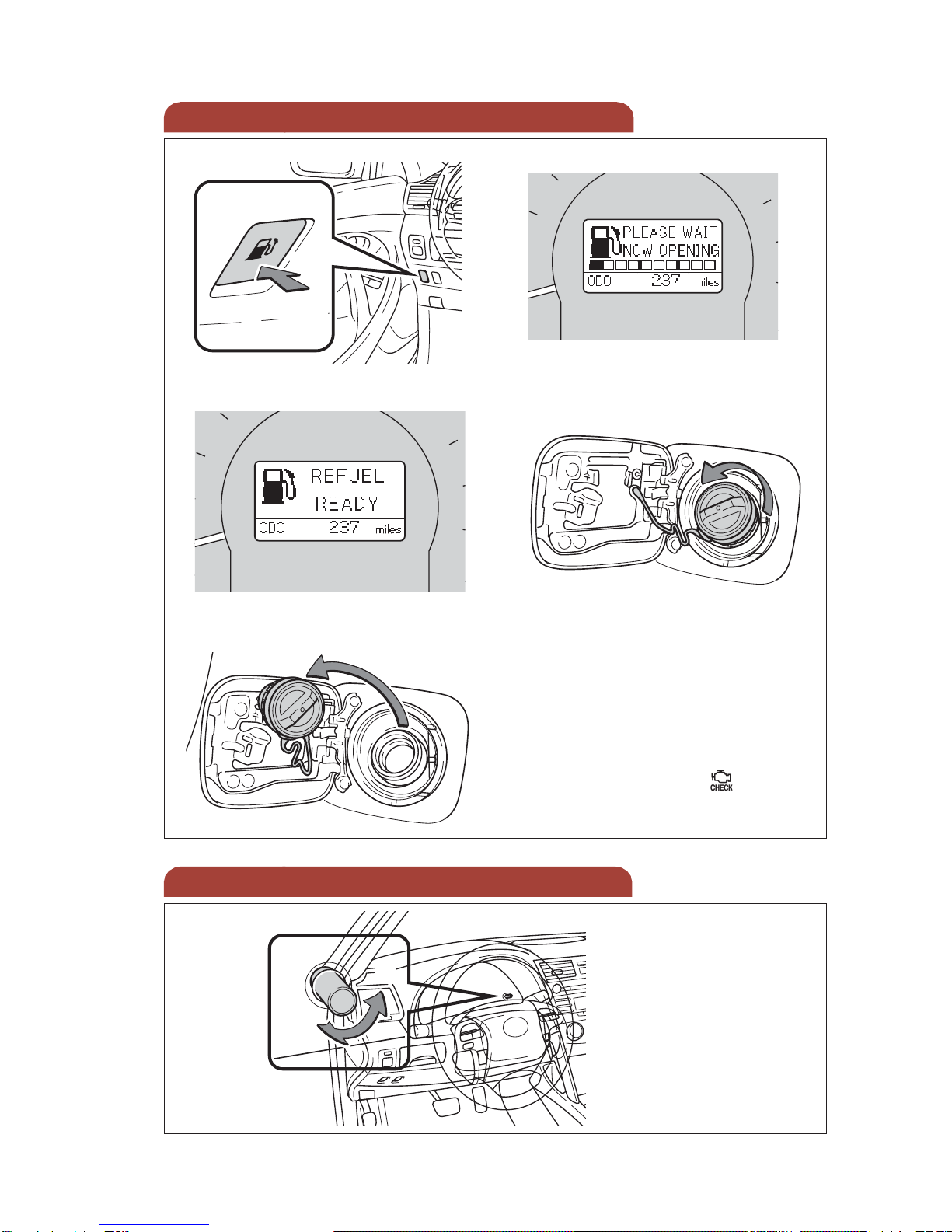

Fuel tank door release and cap
* It may take up to 10 seconds after
pushing button for the door to
open if the internal tank pressure
is high.
Push*
Light control-Instrument panel
Brightness
control
-
+
Store
Tu r n
OVERVIEW
(1)
(3)
(5)
(2)
(4)
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
This is also the trip
meter reset button.

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Hood release
Pull up latch and
raise hood
Pull
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
Engine coolant reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance

10
FEATURES/OPERATIONS

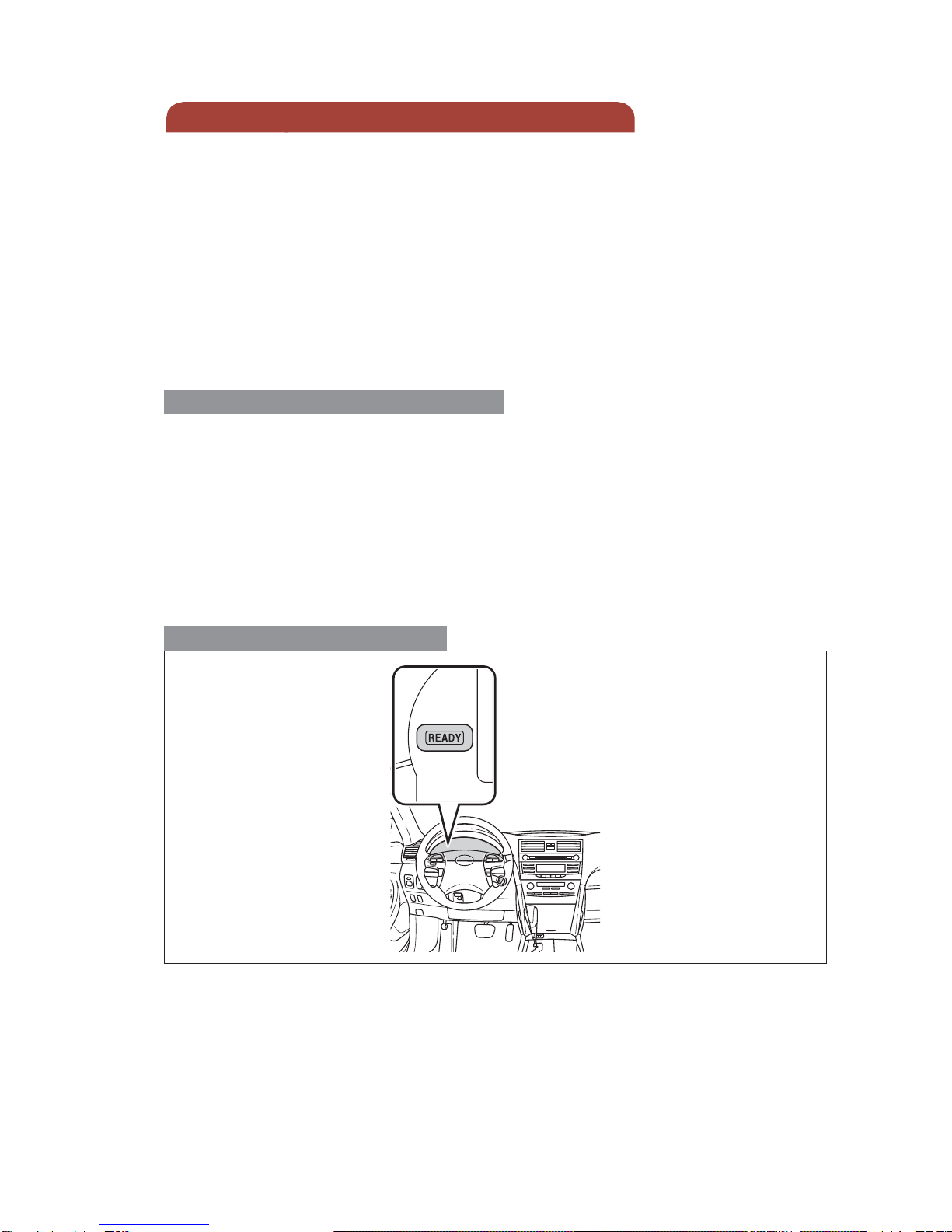

(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After a few seconds, when the light
remains steady and a beep sounds, you may begin driving.
Starting the Hybrid System
The Hybrid Synergy Drive System utilizes a computer controlled gasoline
engine and electric motor to provide the most efficient combination of
power for the vehicle. To conserve energy, when the brakes are applied
the braking force generates electricity which is then sent to the traction
battery. In addition, the engine shuts off when the vehicle is stopped. The
benefits are better fuel economy, reduced vehicle emissions and improved
performance.
Note: Fuel consumption and energy information of the Hybrid System
are shown on the multi-information display and/or navigation
system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s
Manual.
2. Link trips, if possible, to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the
highway.
4. When possible, avoid sudden stops to maximize regenerative braking
energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

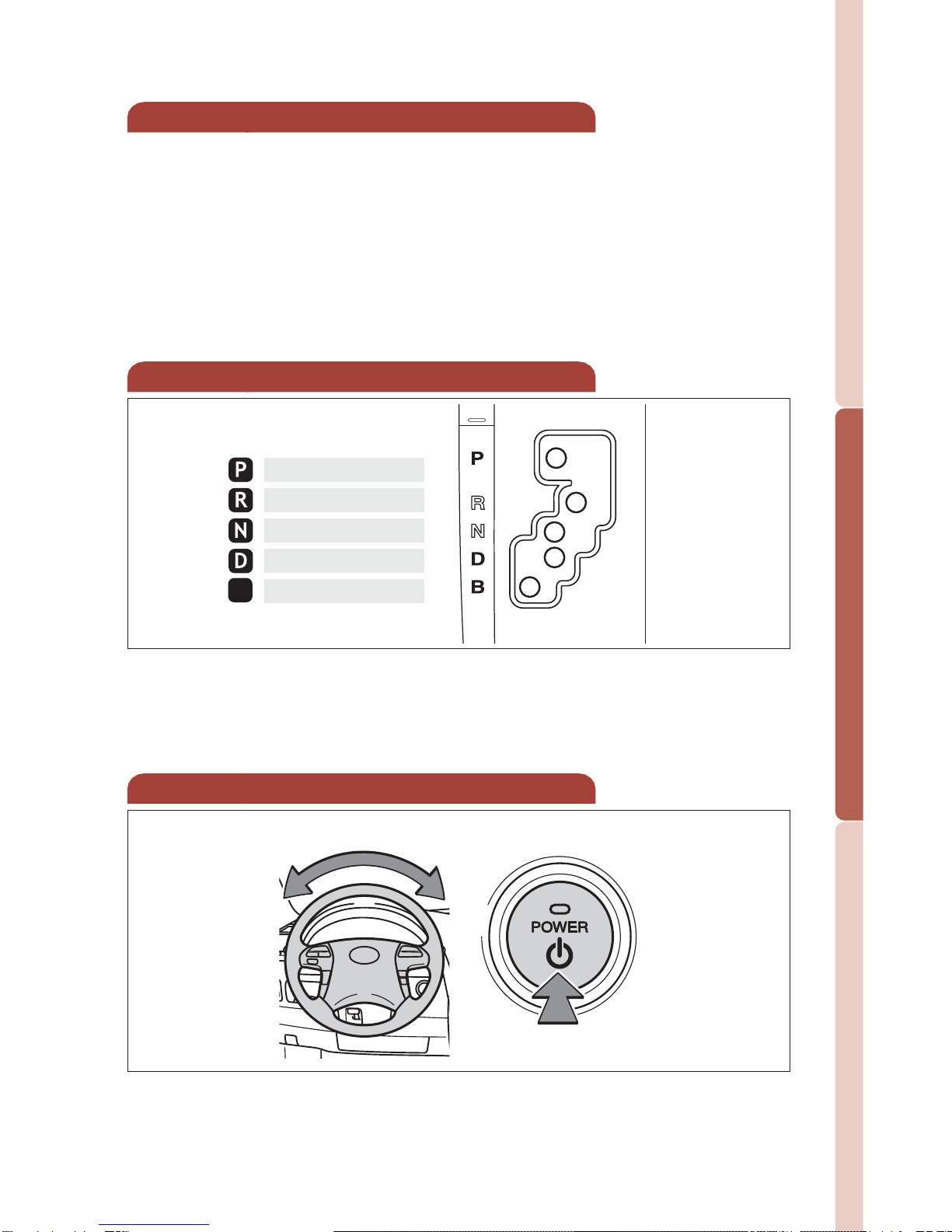

Transmission
1 The “POWER” switch must be set at ON, and the brake pedal depressed
to shift from “Park.”
2 The engine brake is the equivalent of downshifting. Shift to “B” when
engine braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Park1
Reverse
Neutral
Drive
BEngine braking2
Steering lock release
Tu r n
Push
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the “POWER” switch is set from ON to ACC or OFF
and driver’s door is opened.
Refer to the Owner’s Manual for more details.
Gently turn wheel while pressing the POWER switch. If the lock does not
release, the switch indicator will flash green.

12
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side Window lock switch
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window midway, lightly pull the
switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
Angle
Length
Lock release lever
Note: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Adjust interval
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed.
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam
Auto
DRL OFF

14
FEATURES/OPERATIONS

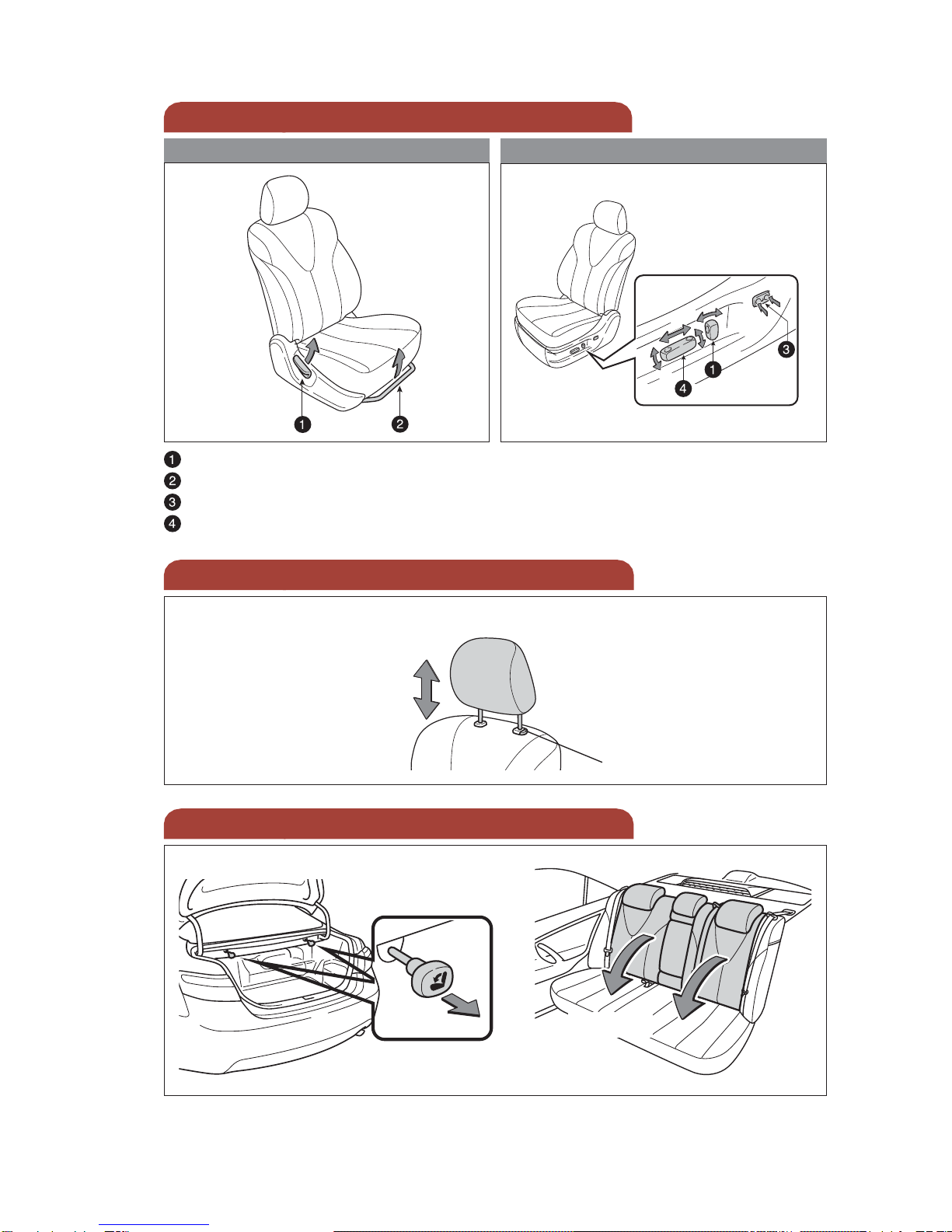

Seat adjustments-Front
Seatback angle
Position
Lumbar support (driver side only)
Position, cushion angle and height (driver side only)
Manual seat Power seat
Seats-Head restraints
Lock release button
Fold down
Pull
Seats-Folding rear seats

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-6 in the Owner’s Manual for
more details.
For programming assistance, contact the Toyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set

16
FEATURES/OPERATIONS

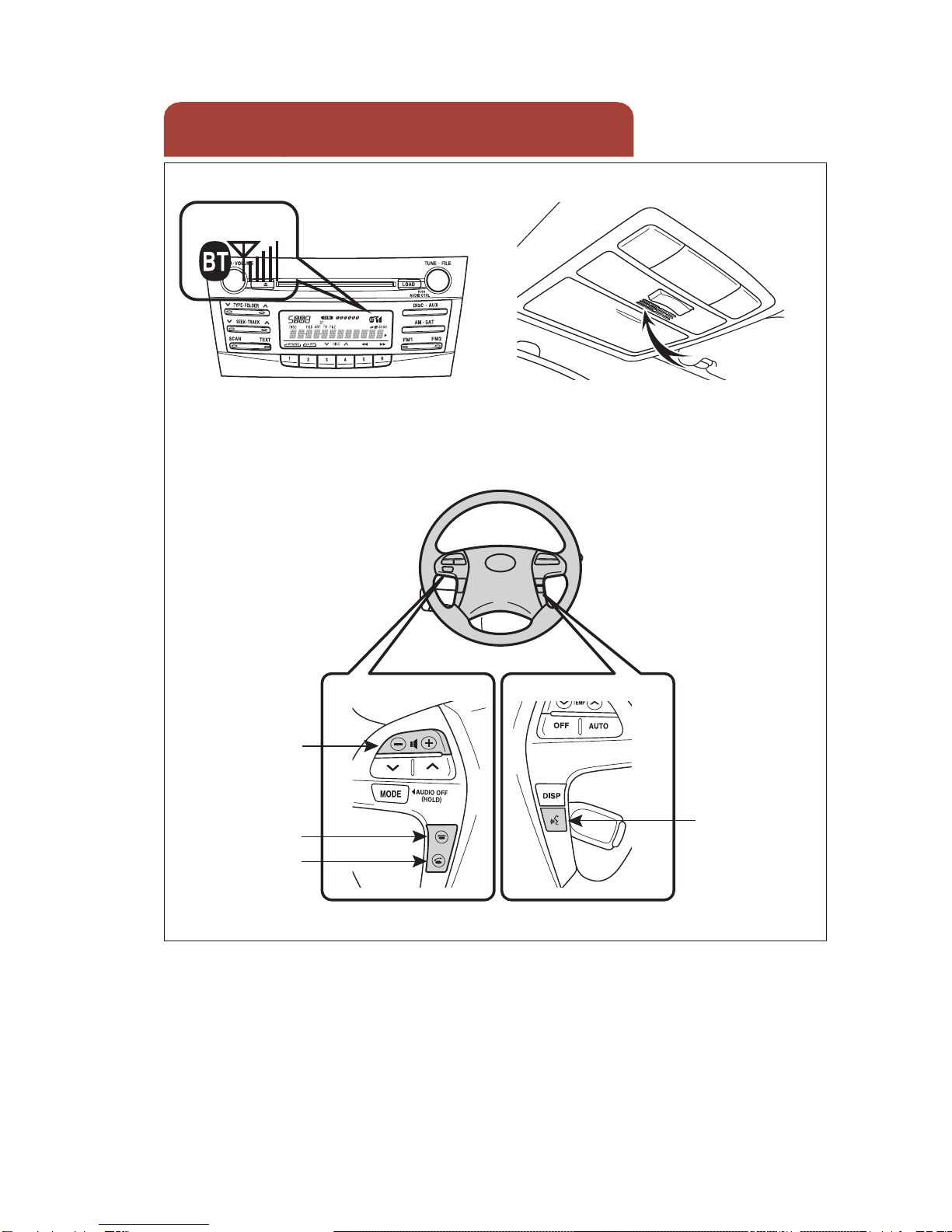

Bluetooth®technology allows you to place or receive calls without taking
your hands from the steering wheel or using a cable to connect the
compatible telephone and the system.
Refer to “Hands-free phone system (for cellular phone),” Section 3-3 in
the Owner’s Manual for more details.
Microphone
Audio unit
Steering wheel telephone switches
Volume
Start call
End call
Voice command
button
Telephone controls (Bluetooth®)
(if equipped)

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Moonroof (if equipped)
Sliding operation Tilting operation
Open
Tilt
Close
Close
Recommended driving
position to minimize
wind noise.

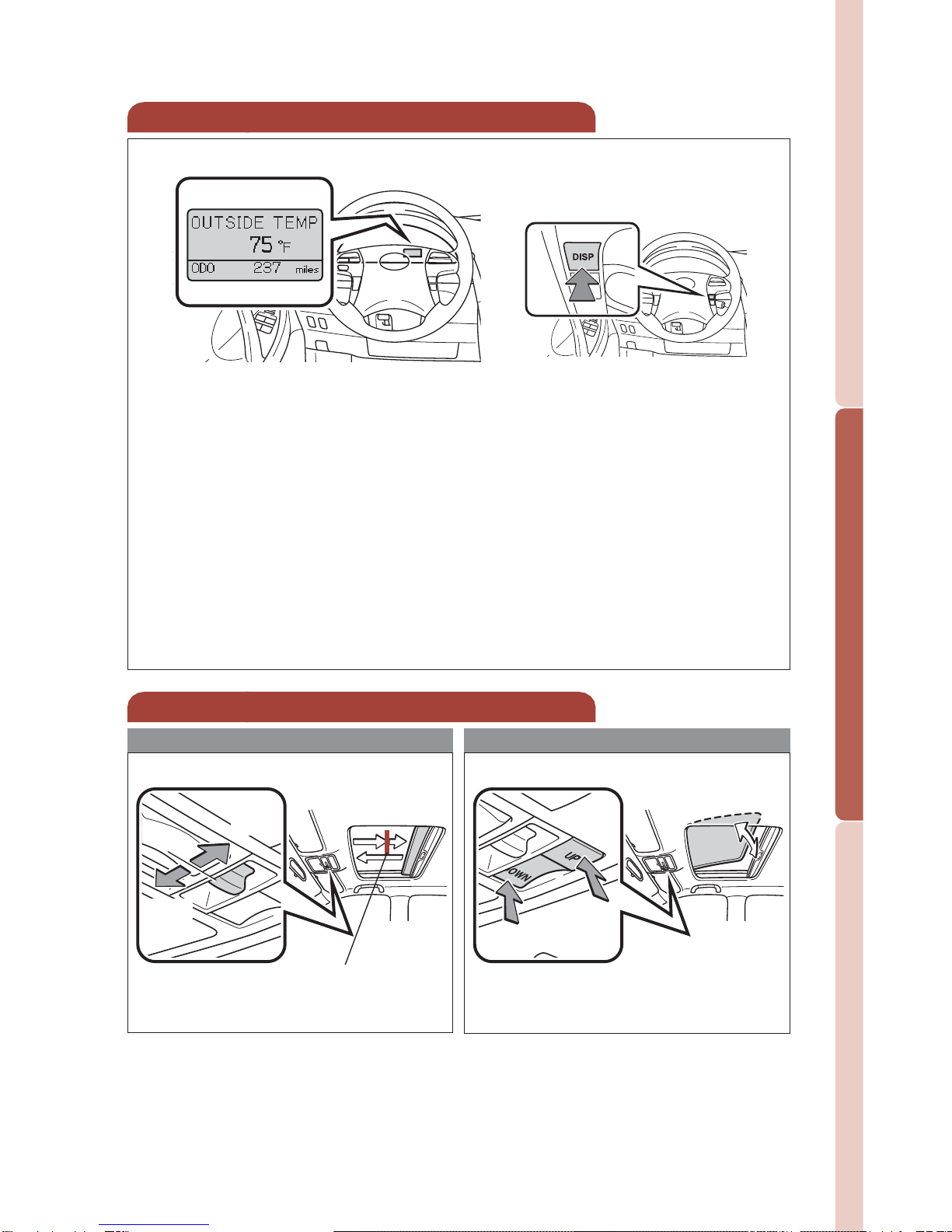

Multi-information display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Miles left on remaining fuel
(3) Current gas mileage
(4) Running distance from engine start
(5) Average vehicle speed from engine start
(6) Multi-information display OFF
(7) Zoom display of odometer and trip meter
(8) Energy monitor
(9) Average gas mileage
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.

18
FEATURES/OPERATIONS
Audio
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
Type 2 other functions
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Seek station/
CD track select
Station/CD
track scan
Mode
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Push to skip
up/down folder
View CD text
View genre/Push to skip up/down folder
AM/Satellite radio
Type 1
