Toyota LAND CRUISER 2010 User manual

QUICK REFERENCE
GUIDE
LAND CRUISER
2010
413634M1.indd 2413634M1.indd 2 7/6/09 1:09:10 PM7/6/09 1:09:10 PM

2010
Land Cruiser
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Land Cruiser.
This Quick Reference Guide is not a full description of Land
Cruiser operations. Every Land Cruiser owner should review
the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Text_413634M2.qxd 7/1/09 8:08 PM Page CVR2

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 9
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20-21
Auto lock functions110
Automatic Transmission 10
Back door 17
Clock 24
Cool box 27
Crawl control 22
Cruise control 22
Cup holders 27
Door locks 25
Four-wheel drive 11
Garage door opener (HomeLink®)323
Lights1& turn signals 15
Moonroof 17
Multi-information display224
Parking brake 27
Power outlets-12V DC 23
Power outlets-115V AC 23
Rear seat entertainment system 26
Seat adjustments-Front 12
Seat adjustments-Rear 12
Seat heaters 19
Seats-Head restraints 12
Seats-Tumbling second row seats 13
Seats-Tumbling third row seats 14-15
Steering lock release 11
Tilt and telescopic steering wheel 26
Telephone controls (Bluetooth®)25
Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Text_413634M2.qxd 7/1/09 8:20 PM Page 1

2
OVERVIEW

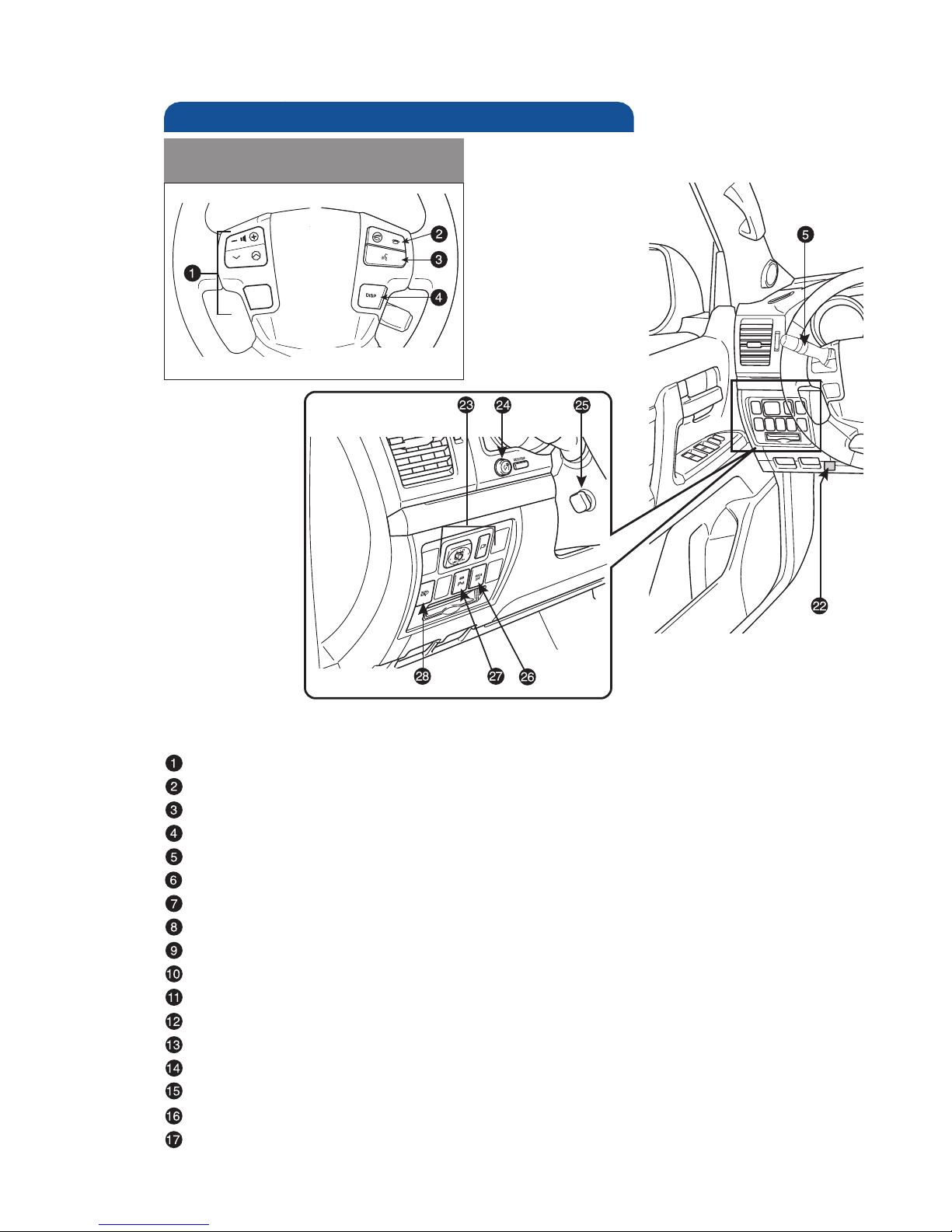

Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seatbelt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE
Text_413634M2.qxd 7/1/09 8:20 PM Page 2

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Four-wheel drive control switch
VSC/TRAC OFF switch
Center differential lock/unlock switch
Cruise control
Tire Pressure Monitoring (warning) System reset
Power rearview mirror control
Instrument panel light control
Tilt and telescopic steering control
Roll Sensing of Curtain shield Airbag OFF switch
Intuitive park assist switch1
Headlight cleaner1
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Without navigation system
With navigation system
Text_413634M2.qxd 7/1/09 8:20 PM Page 3

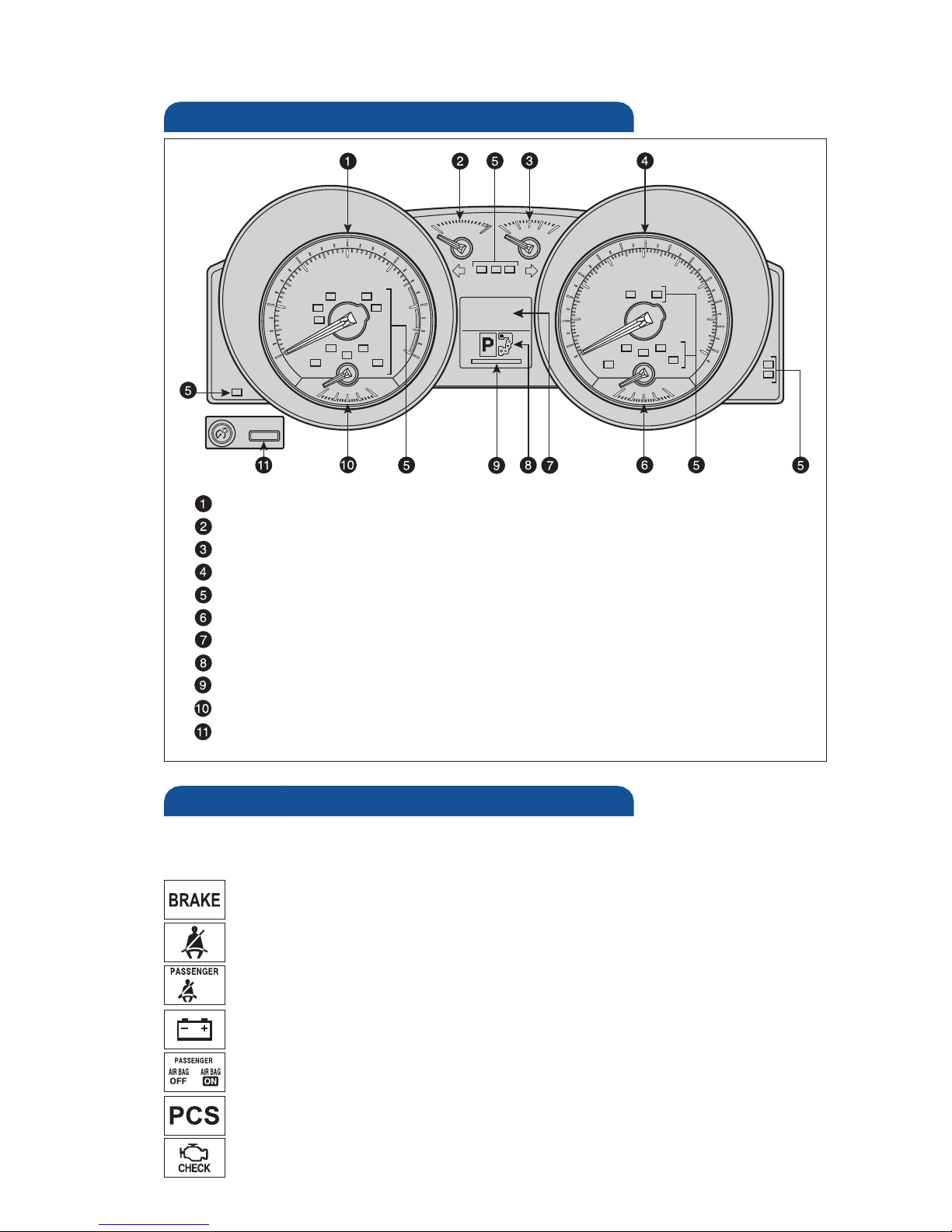

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Voltmeter
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Text_413634M2.qxd 7/1/09 8:20 PM Page 4

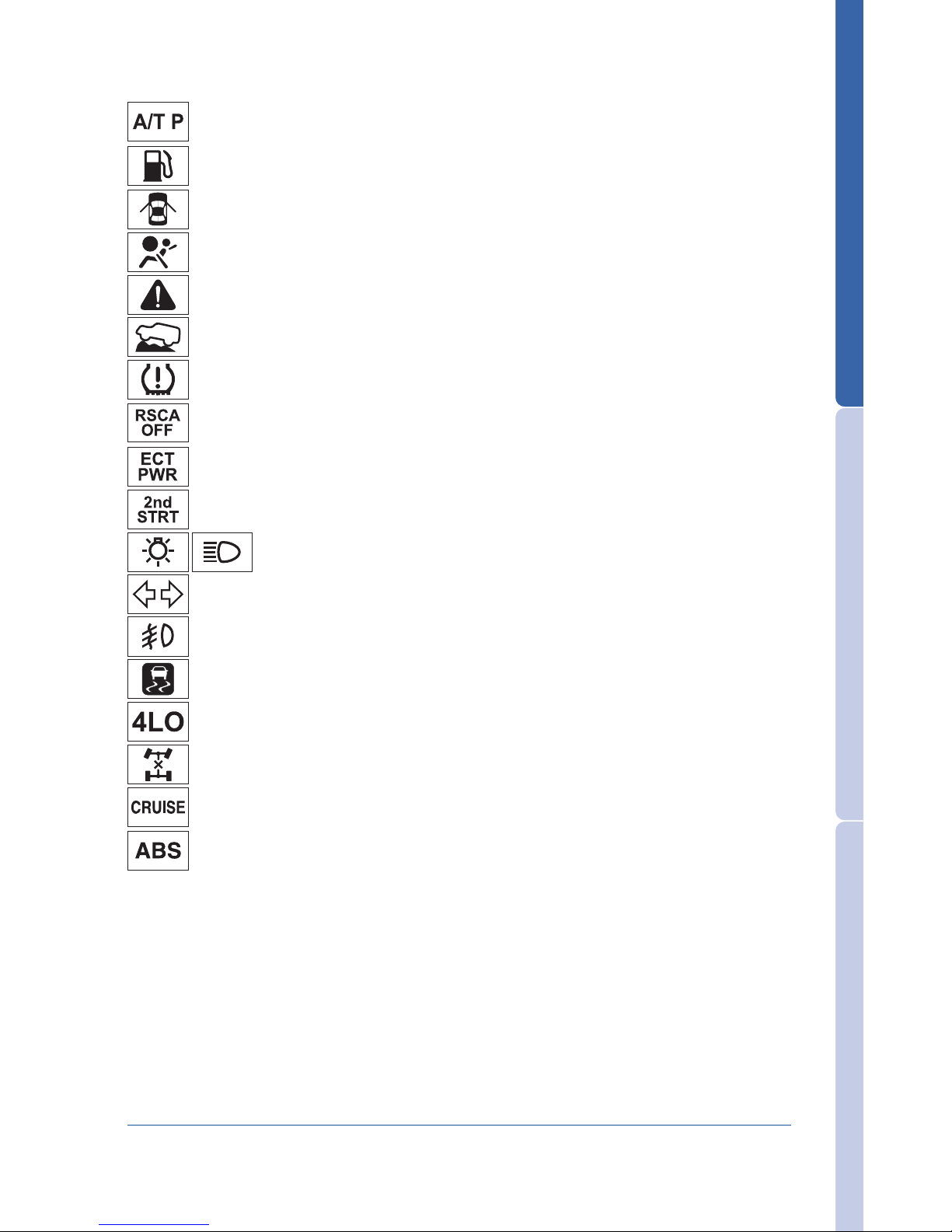

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
Power mode indicator
Unengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Text_413634M2.qxd 7/1/09 8:20 PM Page 5

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
Text_413634M2.qxd 7/1/09 8:20 PM Page 6

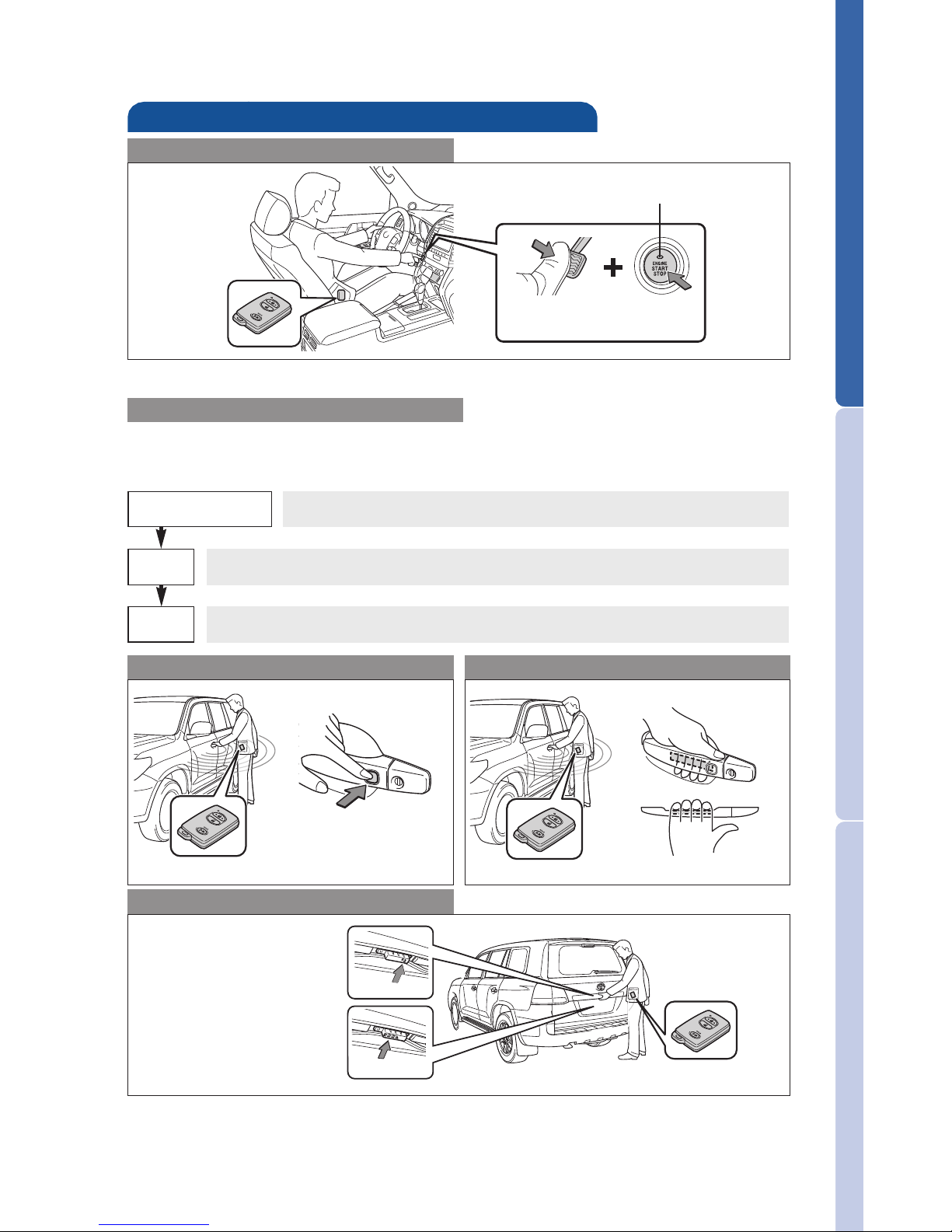

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Lock
Push
Unlock
Locking operation Unlocking operation
Carry remote to lock/unlock Carry remote to lock/unlock
Push
Front door lock Front door unlock*
Grasp
Carry remote
to lock/unlock
Text_413634M2.qxd 7/1/09 8:20 PM Page 7

8

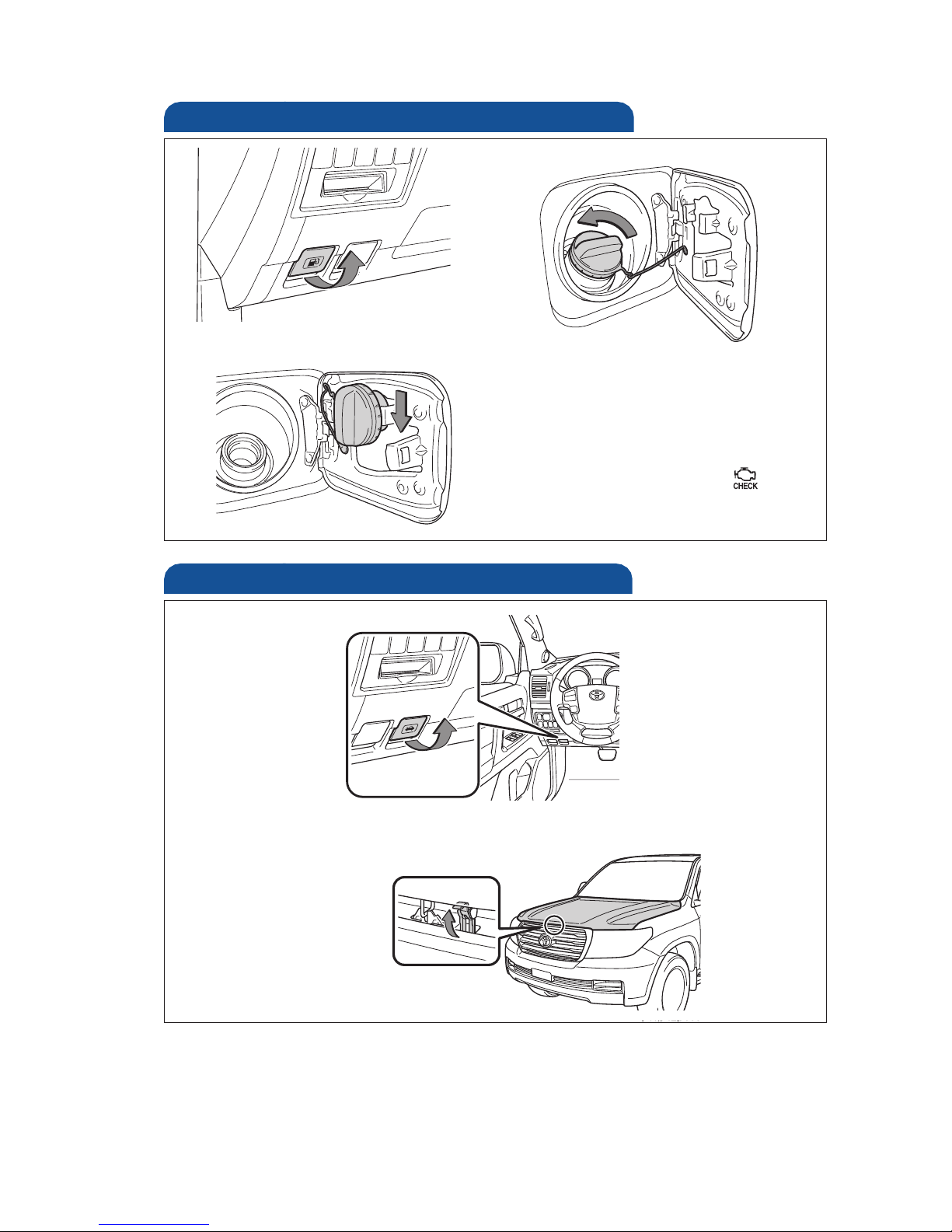

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Turn
Store
Pull
OVERVIEW
Text_413634M2.qxd 7/1/09 8:20 PM Page 8

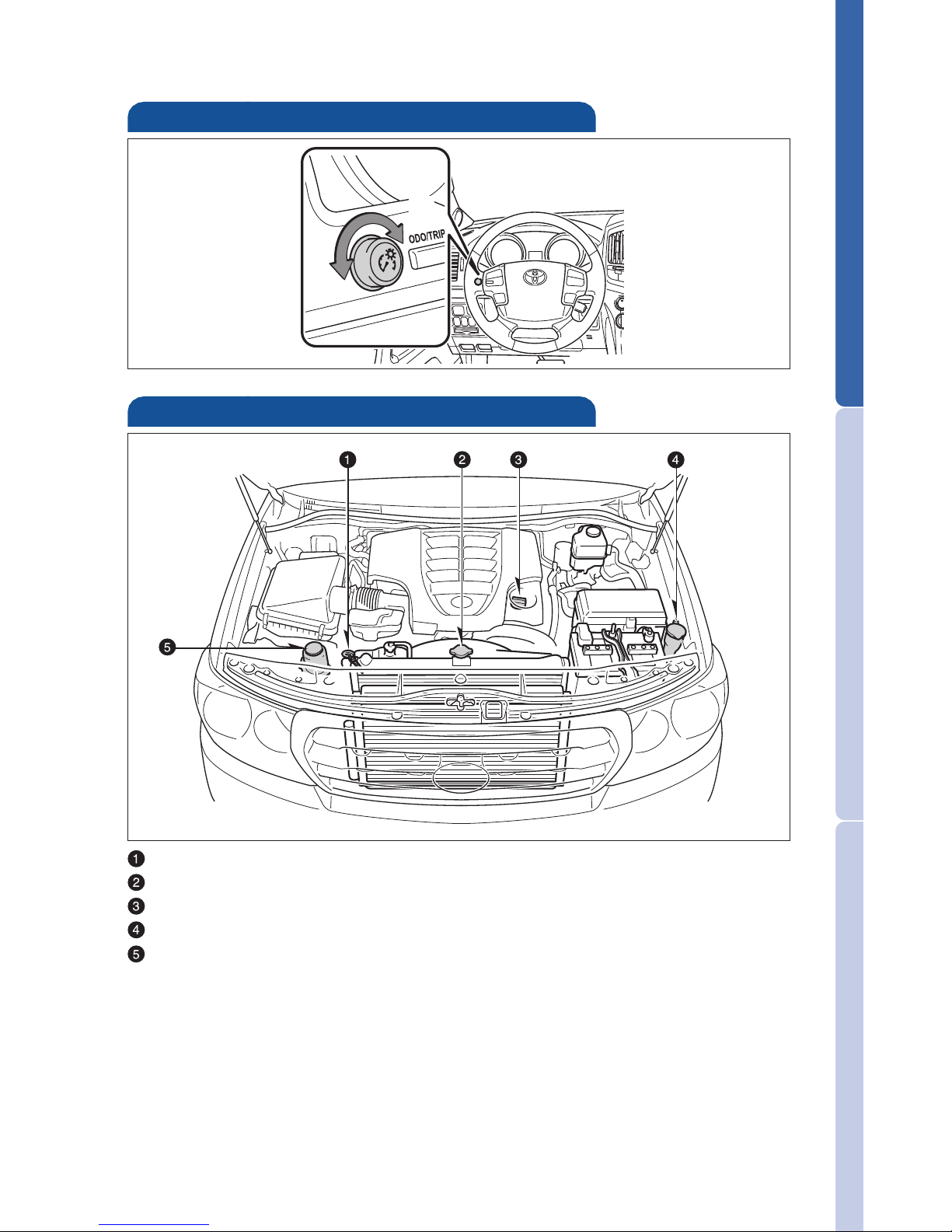

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Power steering fluid reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
Text_413634M2.qxd 7/1/09 8:20 PM Page 9

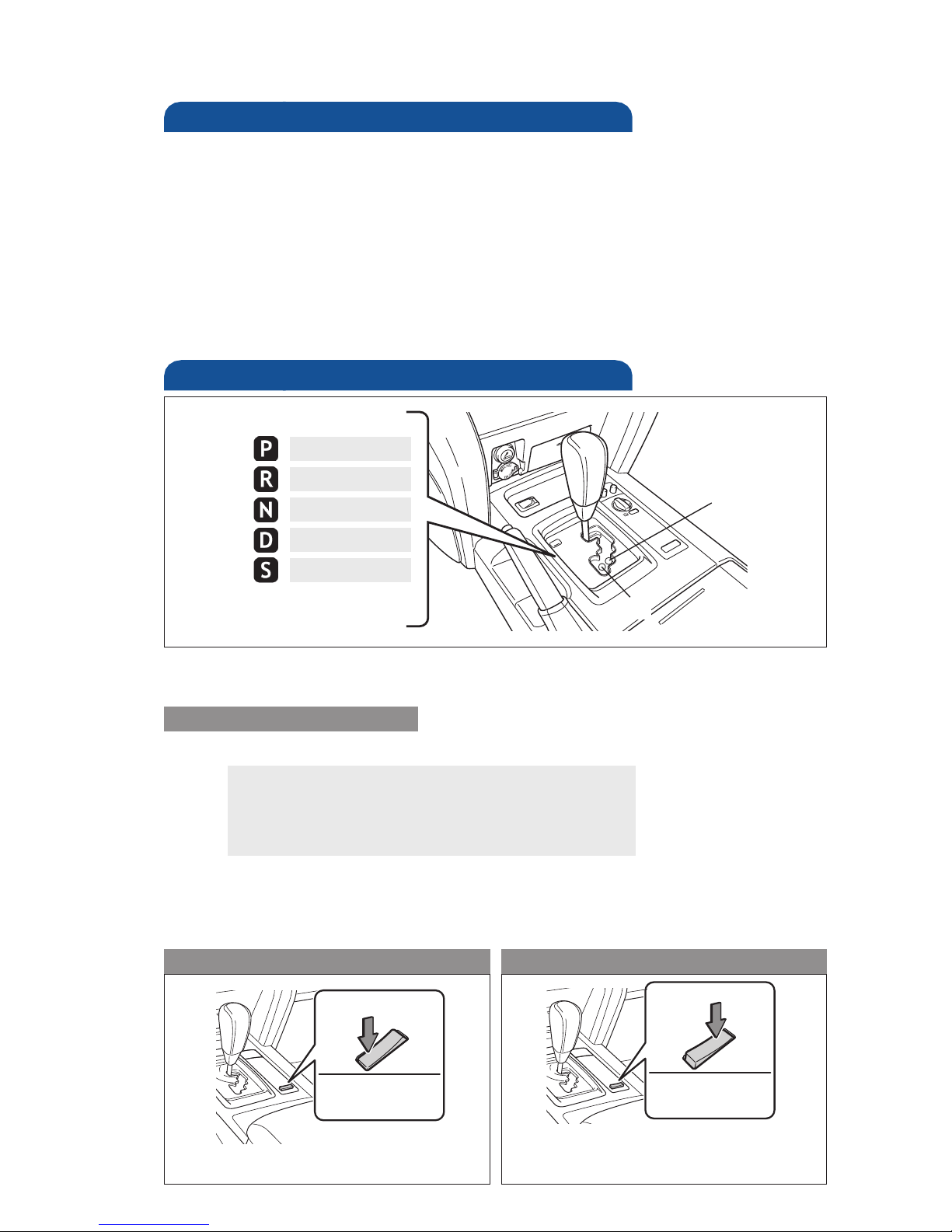

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mode and
the brake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
P
R
R
N
N
+
-
S-D
W
PRD
N
2
ON/OFF
SPEED
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
E
T
C
PWR
d
n
2
R
W
P
d
n
2
ECT
PWR
R
WP
d
n2
E
T
C
P
WR
d
n
2
2nd
STRT
R
W
P
d
n
2
R
W
P
d
n
2
Power mode Second start mode
For powerful acceleration and driving
in mountainous regions.
For starting on slippery surfaces, such
as snowy roads. Press “2nd” to return
to normal mode.
Push Push
Text_413634M2.qxd 7/1/09 8:20 PM Page 10

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Steering lock release
Turn
Push
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Turn
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push
Text_413634M2.qxd 7/1/09 8:20 PM Page 11

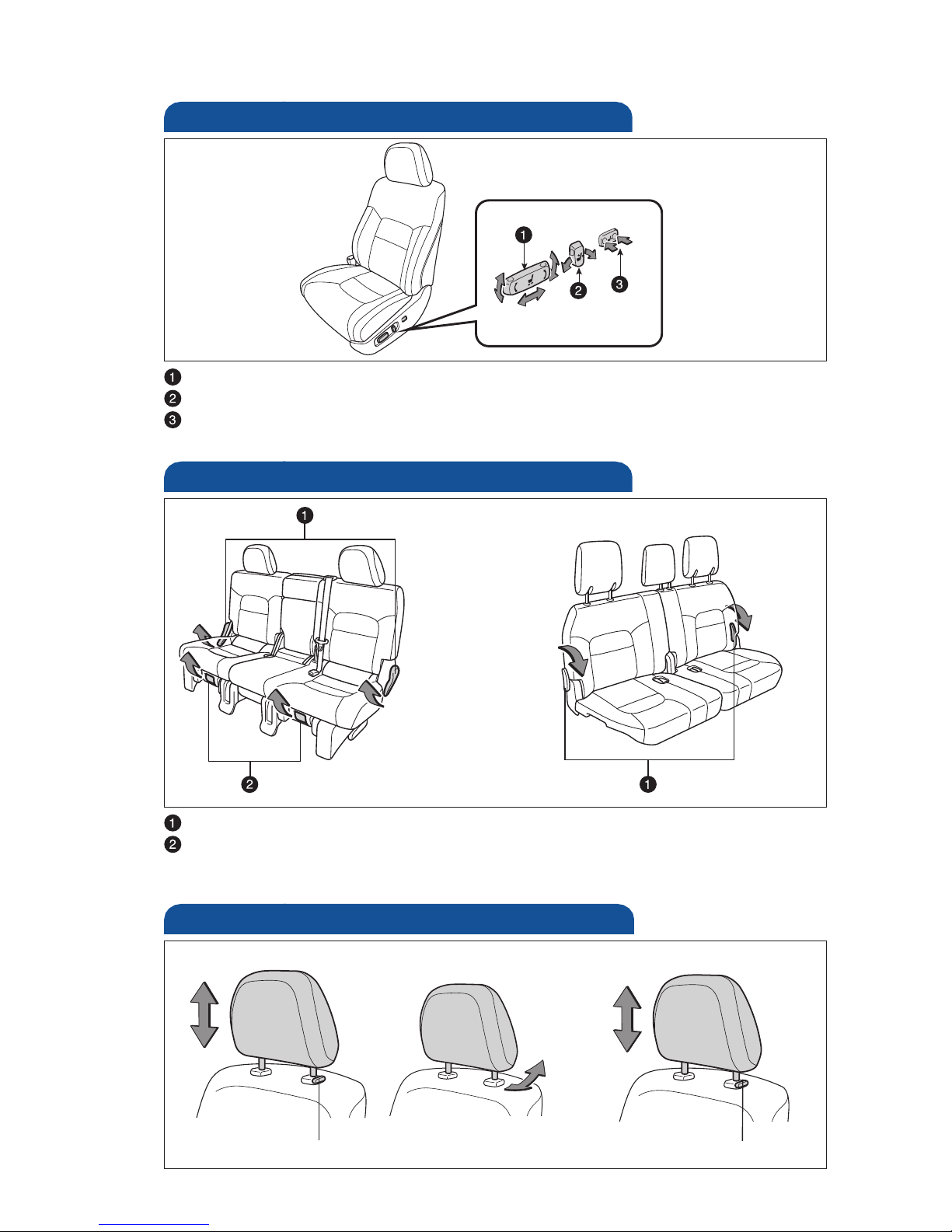

12
FEATURES/OPERATIONS
Seat adjustments-Rear
Seatback angle
Seat position
Refer to the Owner’s Manual for more details.
Seat adjustments-Front
Seat position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row
Seats-Head restraints
Front Second row
Lock release button Lock release button
Height Angle
Text_413634M2.qxd 7/1/09 8:20 PM Page 12

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
(1) Stow the seatbelt buckles and lower the head restraints.
(2) Hook the seatbelt to the seatbelt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

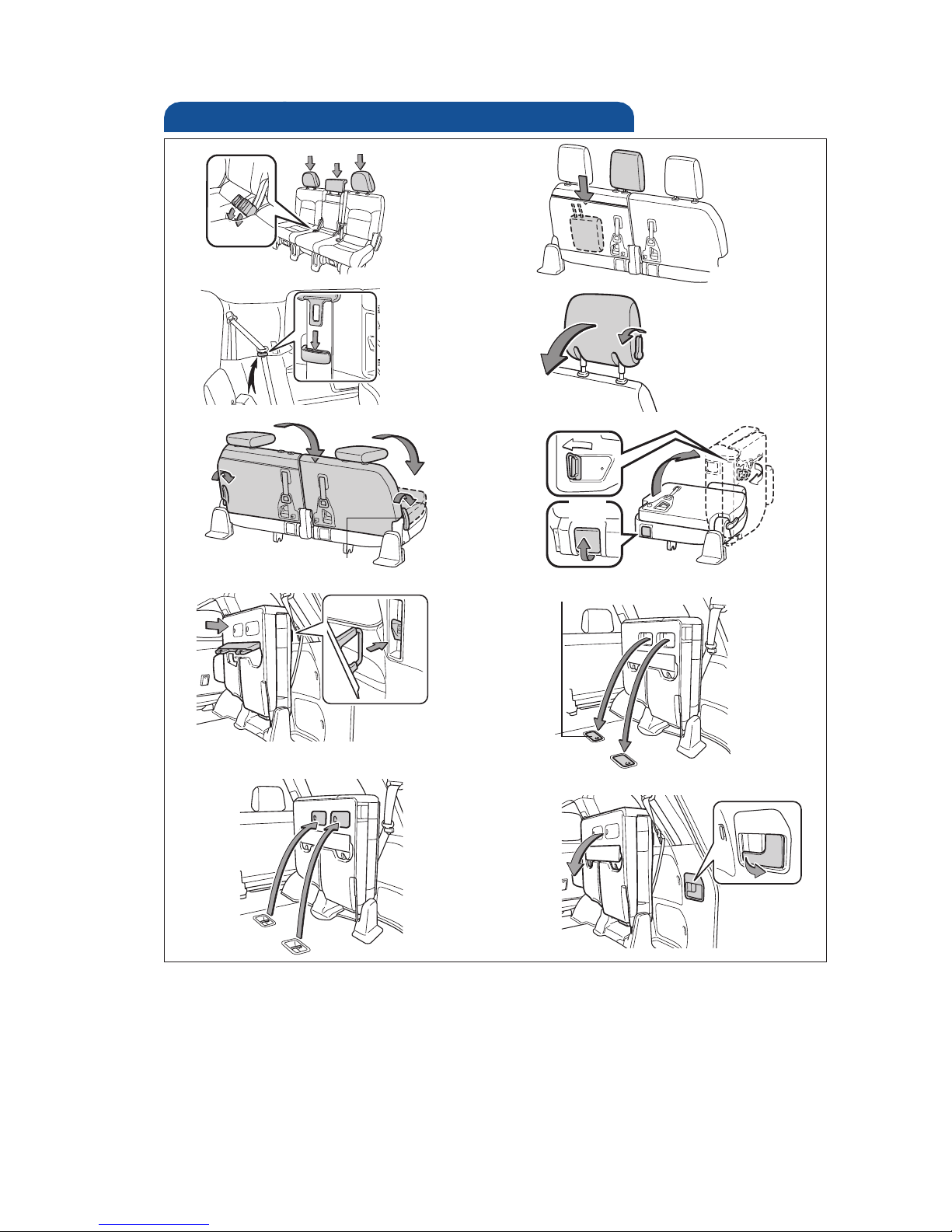

Seats-Tumbling second row seats
(4)
Pull
Seat hook cover
Pull
Text_413634M2.qxd 7/1/09 8:20 PM Page 13

14
FEATURES/OPERATIONS
(1) Stow the seatbelt buckles.
(2) Stow the center head restraint.
(3) Hook the seatbelt to the seatbelt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7) (8) Seat hook cover
Pull
Pull
Returning seats
(1) (2)
Text_413634M2.qxd 7/1/09 8:20 PM Page 14

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

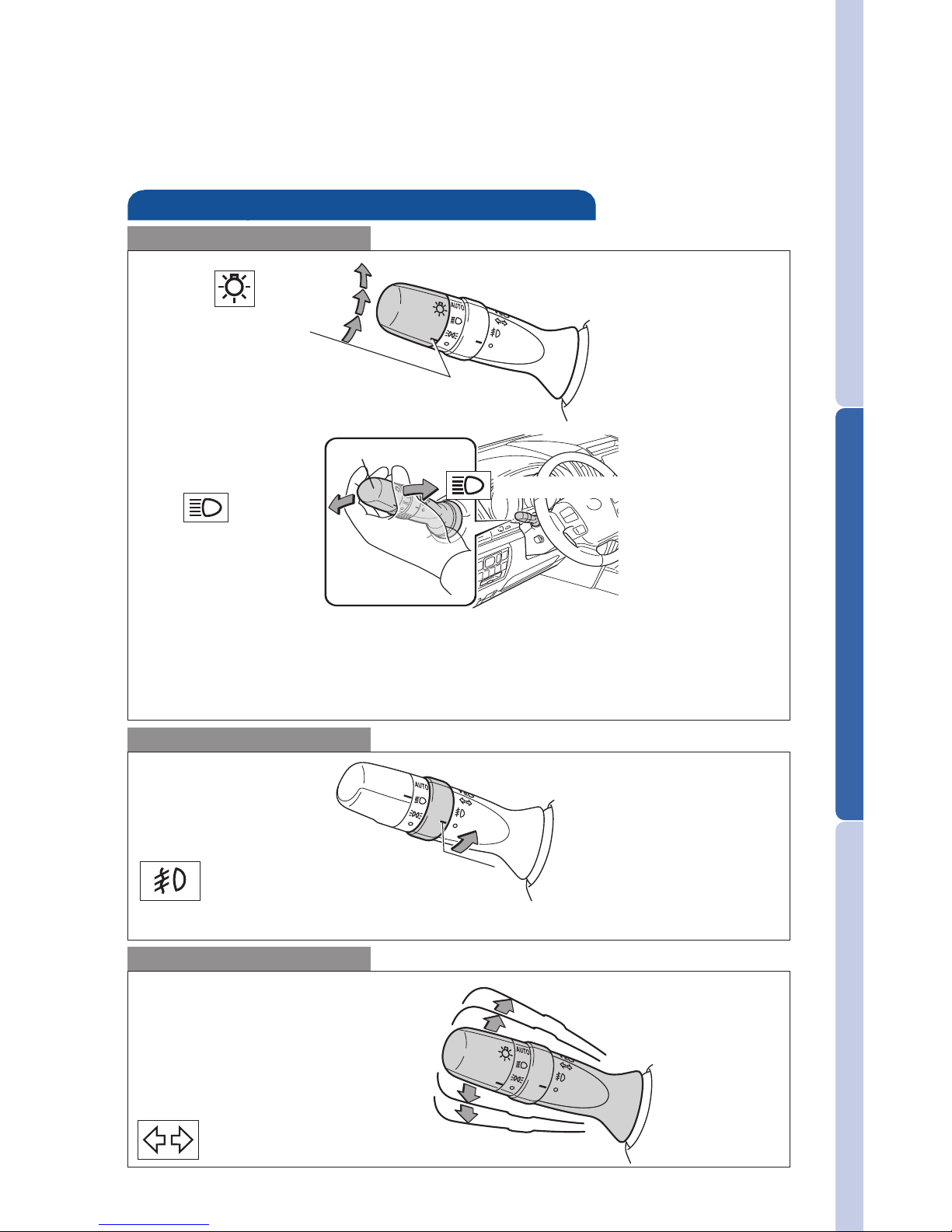

Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam
Auto
Headlights
Parking lights
Turn
Returning seats
(1) Install the seat hook covers into the back of the seat cushions.
(2) Lower the seats to their original position.
Text_413634M2.qxd 7/1/09 8:20 PM Page 15

16
Window wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
FEATURES/OPERATIONS
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Adjust frequency*
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Text_413634M2.qxd 7/1/09 8:20 PM Page 16

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Back door
Pull
Unlock
The back door can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Raise
Moonroof
Sliding operation Tilting operation
Open Tilt
Close Close
Recommended driving position to
minimize wind noise.
Push once to open partway;
again to open completely.
Text_413634M2.qxd 7/1/09 8:20 PM Page 17

18
FEATURES/OPERATIONS
Air Conditioning/Heating
Front Air Conditioning
Temperature selector (driver side/rear left passenger side*)
Climate control OFF
“4ZONE” button
Indicator ON: Separate temperature settings for driver, front
passenger and rear passengers.
Indicator OFF: Synchronize temperature settings for driver and all
passengers.
Fan speed (front/rear*)
Micro dust and pollen removal mode ON/OFF
Windshield wiper de-icer
Temperature selector (front and rear right passenger side*)
Airflow vent (front passenger side/rear passenger side*)
Fresh or recirculated cabin air
Rear Air Conditioning operation mode ON/OFF
Air Conditioning ON/OFF
Outside rearview mirror/Rear window defogger
Windshield airflow/defogger (fresh air only)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Airflow vent (driver side/rear passenger side*)
In “ ” mode, use fresh air (“ ” indicator ON or “ ”
indicator OFF) to reduce window fogging.
* To change the rear seat setting, press the “REAR” button.
Without windshield
wiper de-icer
NOTE: For vehicles without navigation system. For information on vehicles
with navigation system, refer to the “Navigation System Owner’s Manual.”
Text_413634M2.qxd 7/1/09 8:20 PM Page 18
