!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Sequoia.
This Quick Reference Guide is not a full description of
Sequoia operations. Every Sequoia owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
413511M1.qxd 4/10/09 6:19 PM Page CVR2

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Engine maintenance 10
Fuel tank door release and cap 9
Hood release 9
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Keyless entry18
Light control-Instrument panel 10
Accessory meter 31
Air Conditioning/Heating 22-23
Audio 24-25
Auto lock functions112
Automatic Transmission 11
Cruise control 20
Cup holders 31
Door locks 28
Door-Power back 19
Dynamic Laser Cruise Control 27
Four-wheel drive 12
Garage door opener (HomeLink®)326
Lights1& turn signals 17
Moonroof 20
Multi-information display228
Parking brake 15
Power outlets-12V DC 30
Power outlets-115V AC 30
Rear seat entertainment system 26
Seat adjustments-Front 13
Seat adjustments-Rear 14
Seat ventilators/Heaters 23
Seats-Folding second row seats 15
Seats-Folding third row seats 16
Seats-Head restraints 13
Steering wheel switches 25
Te l e p h o n e controls (Bluetooth®)29
Tilt and telescopic steering wheel 21
“TOW/HAUL” switch 11
VSC OFF button 21
Window-Back 19
Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33
Seatbelts 32
Seatbelts-Shoulder belt anchor 33
Spare tire & tools 33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
INDEX
413511M1.qxd 4/10/09 4:49 PM Page 1

2
OVERVIEW

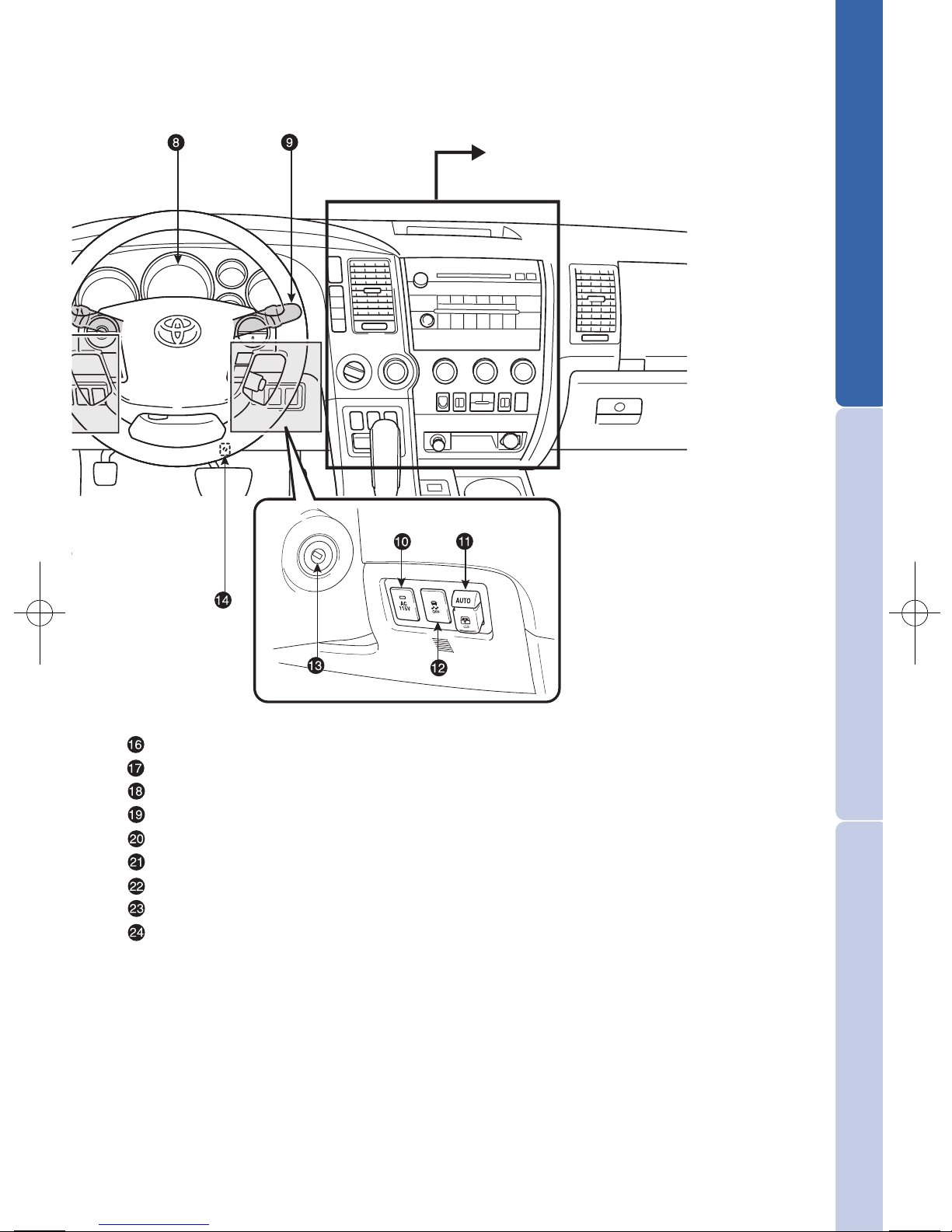

Instrument panel
Steering wheel audio controls1
Voice command button1
Steering wheel climate controls1
Cruise control
Dynamic Laser Cruise Control distance switch1
Telephone controls1,2
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
115V AC Power outlet main switch1
Power back window switch
VSC OFF switch
Ignition switch
Tire Pressure Monitoring (warning) System reset
Personal/Interior light main switch
Steering wheel controls
(if equipped)
413511M1.qxd 4/10/09 4:49 PM Page 2

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Instrument panel light control
Tilt and telescopic steering control switch1
Tilt and telescopic steering lock release lever1
Power back door main switch1
Roll Sensing of Curtain shield Airbag OFF switch
Headlight cleaner1
“REVERSE TILT” (side mirrors) switch1
Power back door button1
Power rearview mirror controls
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Details on the center panel
area on next page
413511M1.qxd 4/10/09 4:49 PM Page 3

4
Accessory meter
Theft deterrent system/Engine immobilizer indicator
Audio system2
Air Conditioning controls
Outside rearview mirrors1/Back window defogger/Windshield wiper
de-icer1button
12V DC Power outlet
Seat heater1and ventilator1controls
Cigarette lighter
AUX audio jack/USB adapter1
Height control switch1
AVS button1
“TOW/HAUL” button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-information display control button1 and/or accessory meter
control button1
Emergency flasher button
1If equipped
2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
OVERVIEW
Center panel area
413511M1.qxd 4/10/09 4:49 PM Page 4

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Voltmeter
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-information display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
With multi-information display
Without multi-information display
413511M1.qxd 4/10/09 4:49 PM Page 5

6

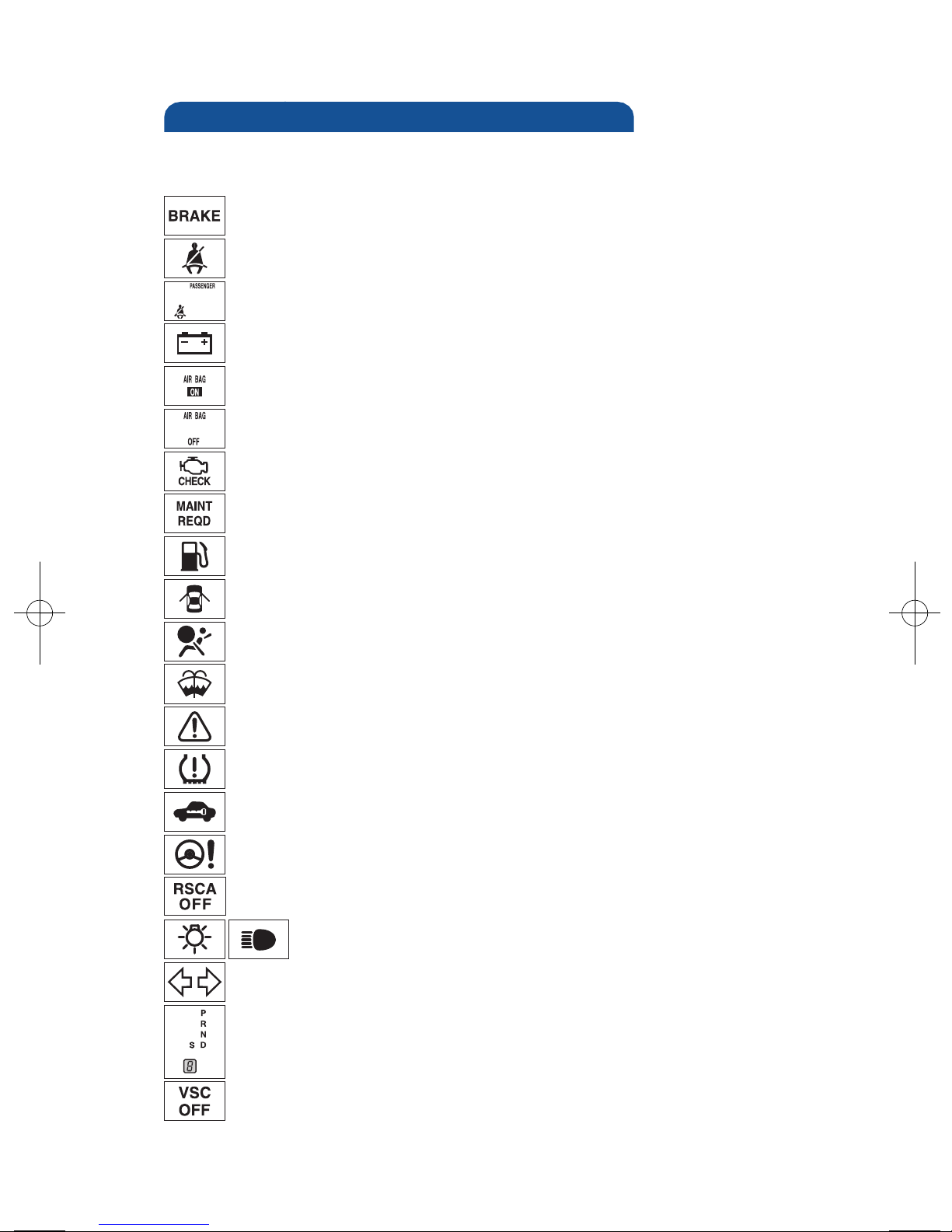

Indicator symbols
Charging system warning1
Brake system warning1
AIR BAG ON indicator1
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator1
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning1
Power steering warning1
Open door warning
Airbag SRS warning1
Master warning
Theft deterrent/Engine immobilizer system indicator
Malfunction/Check Engine indicator1
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator
Shift position and shift range indicators
Vehicle Stability Control OFF indicator1
Low windshield washer fluid level warning
OVERVIEW
413511M1.qxd 4/10/09 4:49 PM Page 6

7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Anti-lock Brake System warning1
Slip indicator1
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator
AUTO Limited Slip Differential indicator1
TOW/HAUL mode indicator
Height control indicator1
Height control/MANUAL indicator1
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning1
413511M1.qxd 4/10/09 4:49 PM Page 7

8
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Power back door operation (if equipped)
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will
relock for safety.
With power back door Without power back door
With power back door Without power back door
Panic button
Push and hold
413511M1.qxd 4/10/09 4:49 PM Page 8

9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

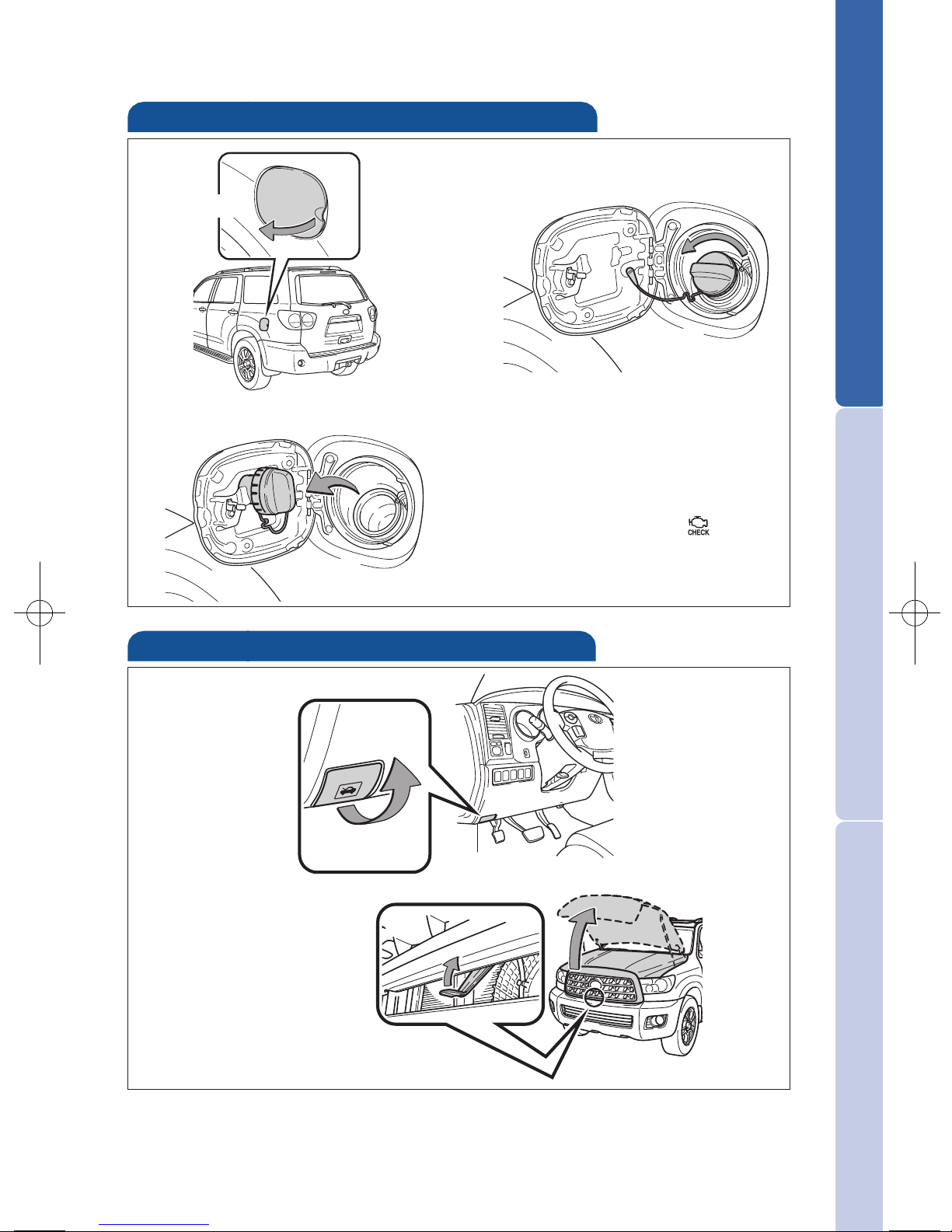

Hood release
Pull up latch and raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Tu r n
Pull
Store
Pull
413511M1.qxd 4/10/09 4:49 PM Page 9

10
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW
413511M1.qxd 4/10/09 4:49 PM Page 10

11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

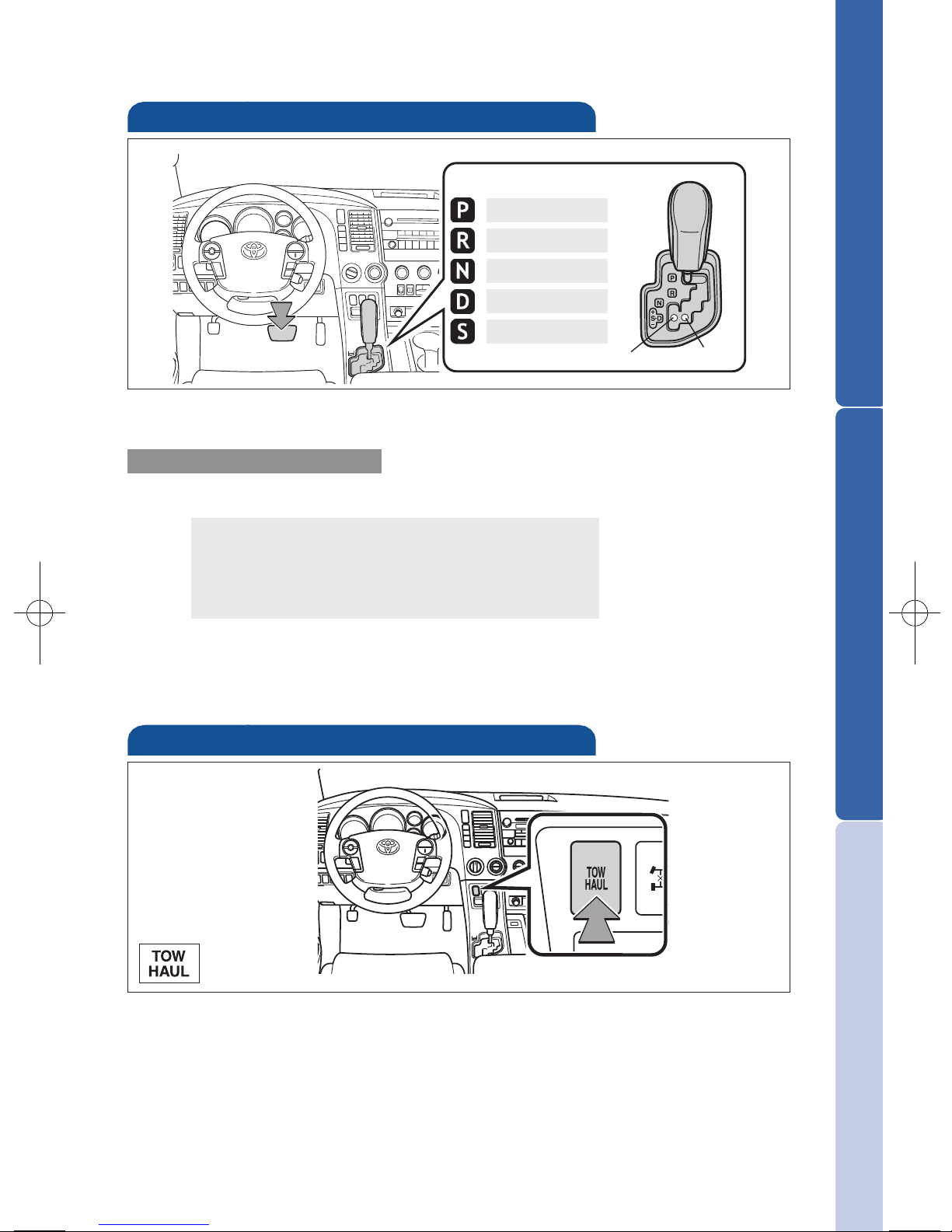

Automatic Transmission
* The engine switch must be “ON” and the brake pedal depressed to shift
from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode
“S” “D”
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when
driving without a load is recommended.
Refer to the Owner‘s Manual for more details on this system before
attempting to use it.
System ON/OFF
413511M1.qxd 4/10/09 4:49 PM Page 11

12
FEATURES/OPERATIONS
Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
turning the engine switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Lock the center differential if the vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
Center differential lock/unlock switch

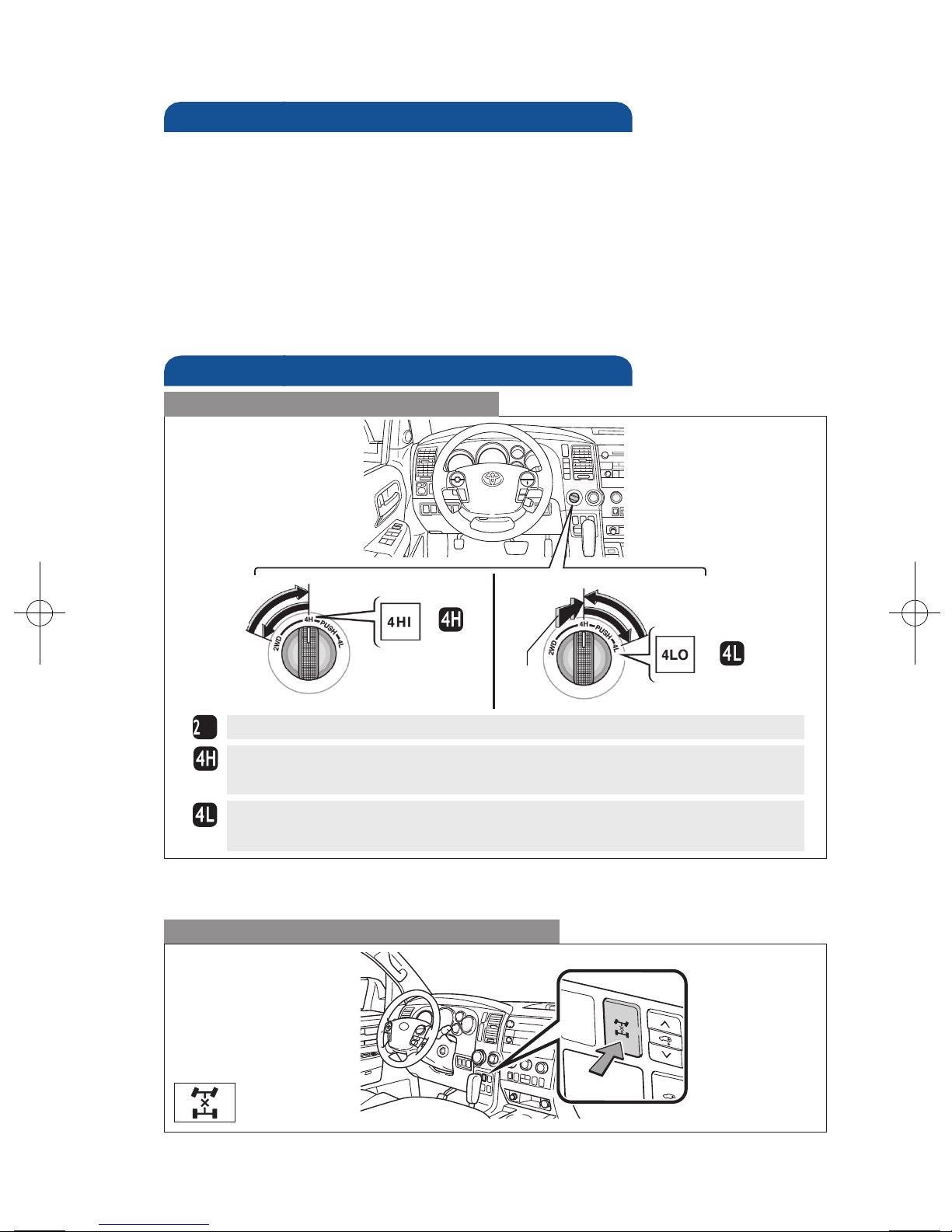

Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Tu r n
Tu r n
Push
Four-wheel drive control switch
413511M1.qxd 4/10/09 4:49 PM Page 12

13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

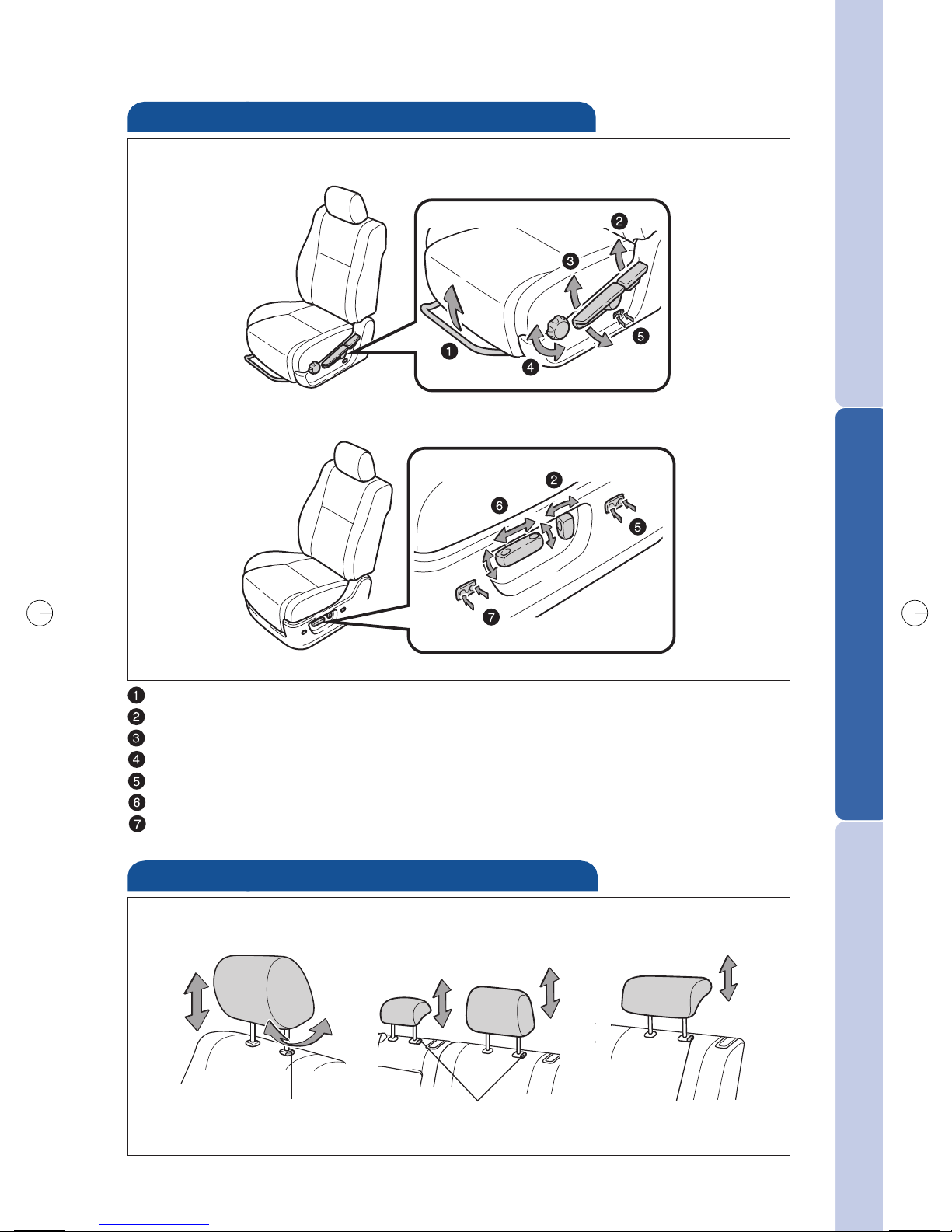

Seat adjustments-Front
Seat position (forward/backward)
Seatback angle
Seat height
Seat cushion angle
Lumbar support
Position, cushion angle and height
Leg support (if equipped)
Manual seat
Power seat
Seats-Head restraints
Front Third row
Lock release button Lock release button
Height Angle
Second row
Height
Height
Lock release button
Height
413511M1.qxd 4/10/09 4:49 PM Page 13

14
FEATURES/OPERATIONS

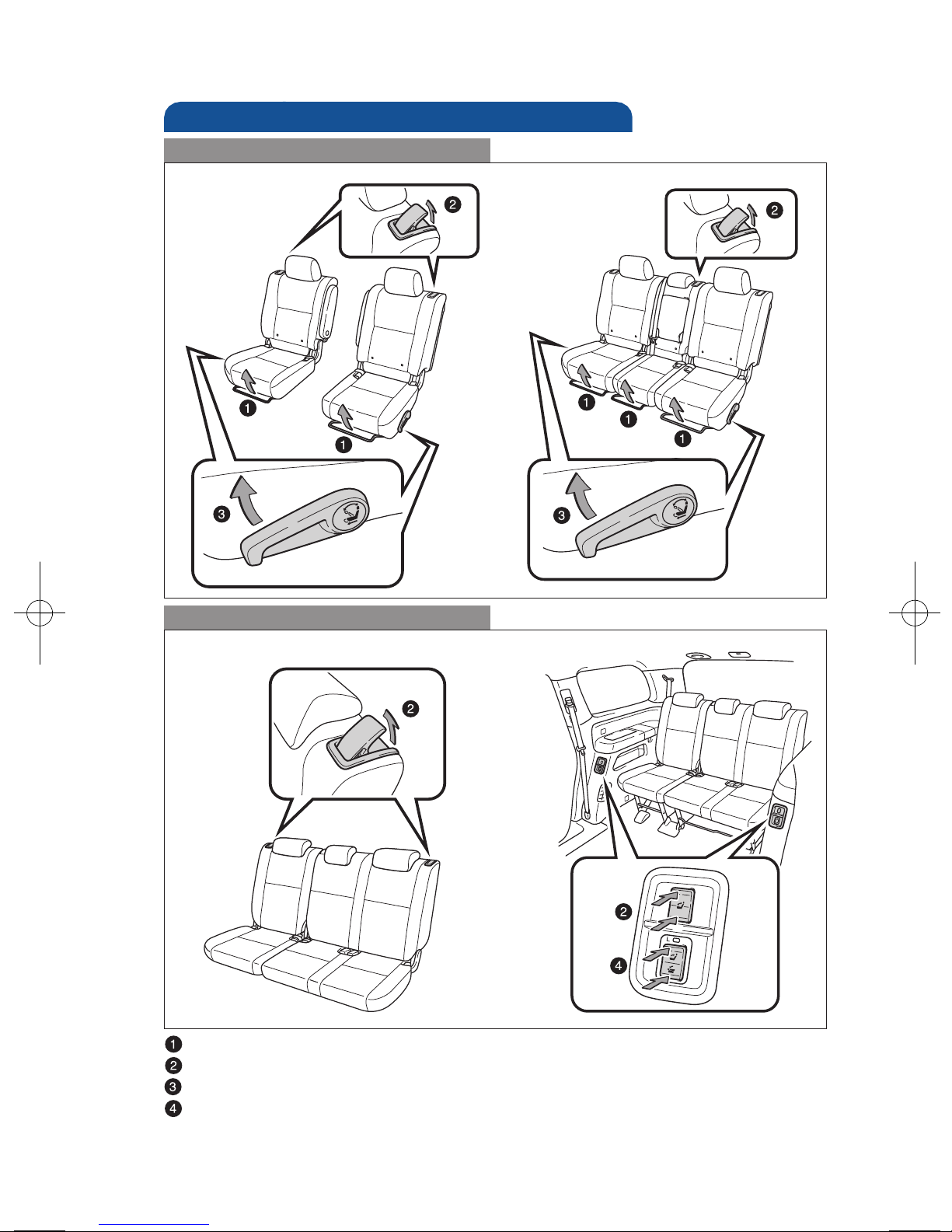

Seat adjustments-Rear
Seat position (forward/backward)
Seatback angle
Seatback lock release and slide
Seatback folding/returning
Refer to the Owner’s Manual for more details.
Second row
Third row
Separate seat Bench seat
Manual seat Power seat
413511M1.qxd 4/10/09 4:49 PM Page 14

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

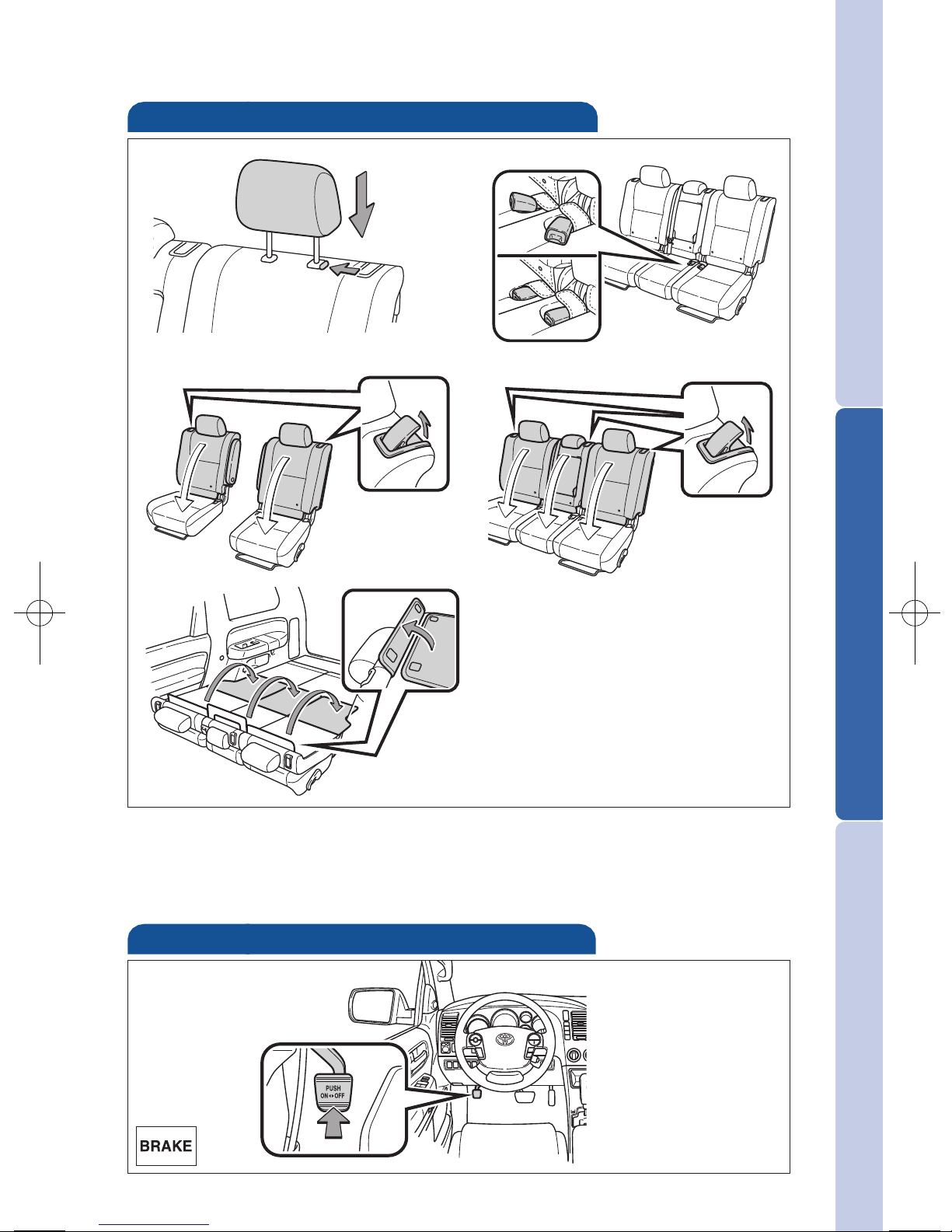

(1) Lower the head restraints.
(2) Stow the seatbelt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
Seats-Folding second row seats
(4)
Pull Pull
Separated seat Bench seat
Parking brake
Set: Depress
Release: Depress again
413511M1.qxd 4/10/09 4:49 PM Page 15

16
FEATURES/OPERATIONS
(1) Release the center seatbelt tab.
(2) Stow the center seatbelt tab.
(3) Lower the head restraint.
(4) Stow the seatbelt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)

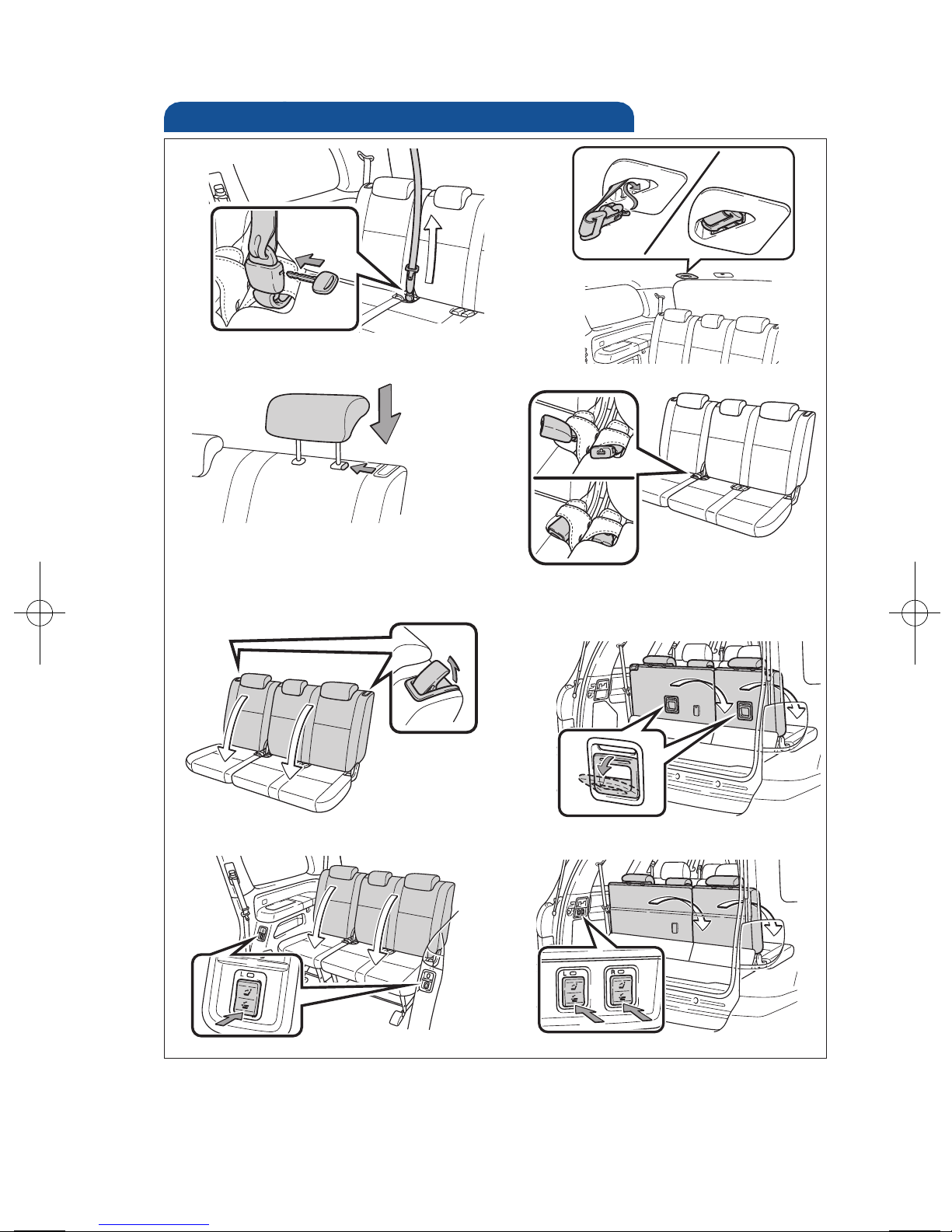

Seats-Folding third row seats
(4)
Power seat
Pull
Insert
From back door side
From rear door side
Power seat
Manual seat Manual seat
413511M1.qxd 4/10/09 4:49 PM Page 16

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Lights & turn signals
Turn signals
Headlights
High beam
Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam flasher
Auto
Headlights
Parking lights
Tu r n
413511M1.qxd 4/10/09 4:49 PM Page 17

18

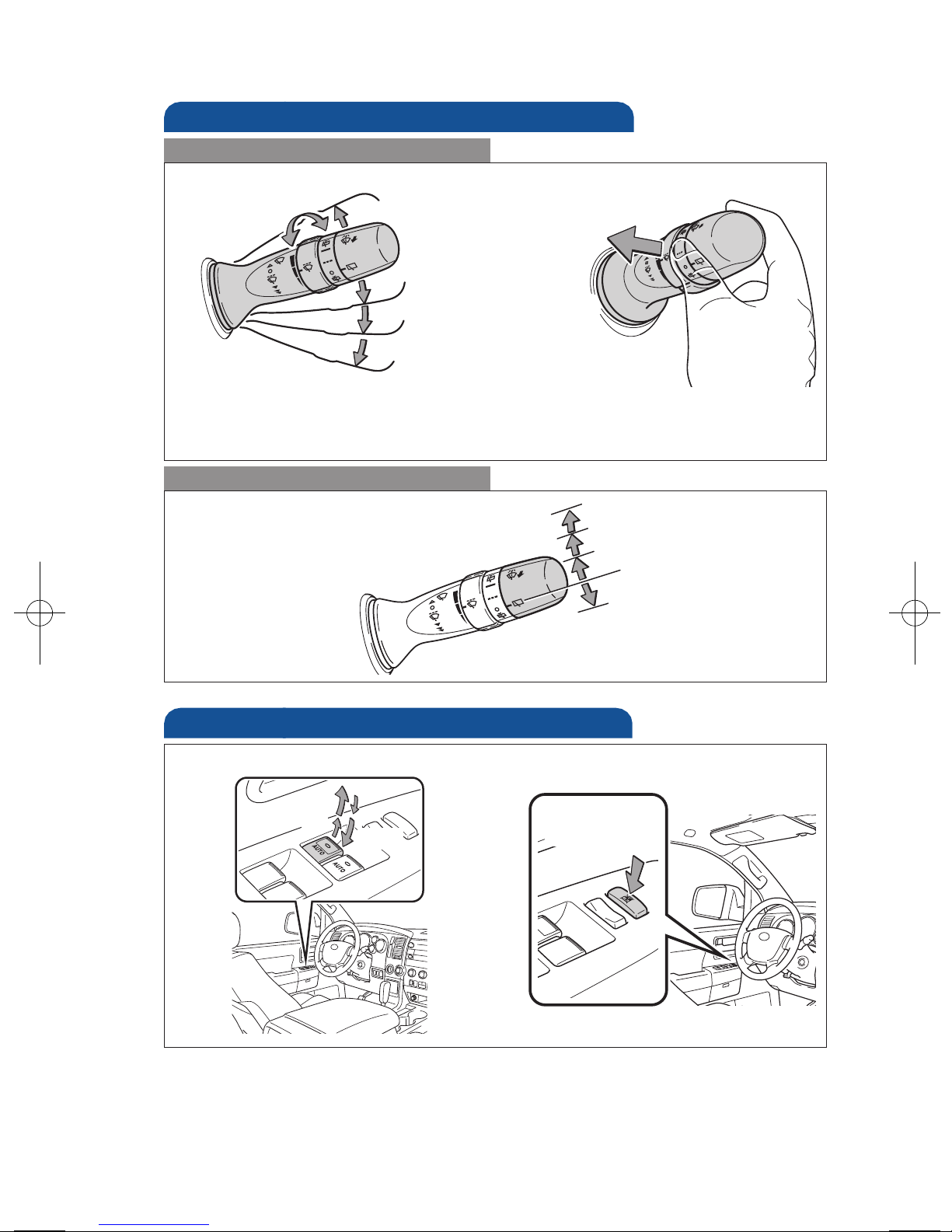

Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows
Window lock
switch
Automatic operation Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
Up
Down
Driver side
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
413511M1.qxd 4/10/09 4:49 PM Page 18
