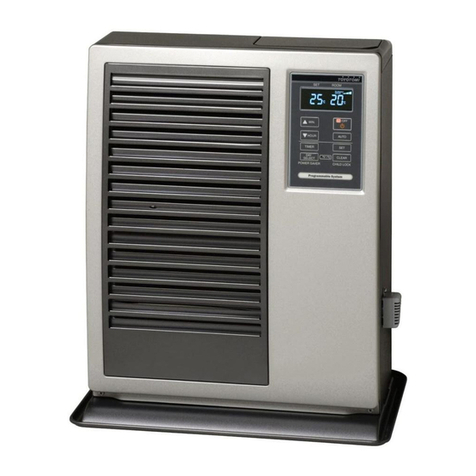

Toyotomi FF-55T User manual

CONTENTS
Page No
SECTION A:
Specifications ··························································· 1
Safety Features ························································· 2
SECTION B:
Safety Tips for Operation ·········································· 3
SECTION C:
Fuel Guide ································································· 4
SECTION D:
Operating Controls and Part Names ························· 5
SECTION E:
Operation
Before Ignition ························································ 7
Operation ································································ 9
Turning Heater Off ·············································· 14
Page No
SECTION F:
Routine Maintenance ·············································· 15
SECTION G:
Troubleshooting ······················································ 17
Section H:
Long Term Storage ················································· 18
Section I:
Installation
Standard Installation Parts ··································· 19
Optional Accessory Parts ····································· 20
Installation Advice ················································ 24
Installation of Heater and Flue Pipe ····················· 25
Extension Wire of Room Temperature Sensor ······ 26
MODEL FF 55T(Type B)
IMPORTANT
1) READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING HEATER.
2) RETAIN INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.
3) CHECK LOCAL AUTHORITY & BUILDING CODES FOR INSTALLATION REQUIREMENTS.
VENTED HEATING SYSTEM
OPERATION INSTRUCTIONS
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ a

Model: FF 55T
Heater Efficiency: 92.4% (1)
Heat Rating: High - 5.50 kW (18,800 BTU/h)
Med - 3.74 kW (12,800 BTU/h)
Low - 1.88 kW ( 6,430 BTU/h)
Fuel Consumption: High - 0.622 L/h
Med - 0.423 L/h
Low - 0.213 L/h
Fuel System: Removable fuel tank (7.6L)
Fuel Type: Paraffin only
Dimensions (W ×H ×D): 496 ×600 ×339 mm
Weight: 20 kg
Vent Pipe Hole: 70 ~ 80 mm diameter
Maximum Length of Vent Pipe System: 3 m, 3 bents or less
Electrical Rating: 220 Volts AC, 50 Hz
Preheat - 240W
Burning - 46W
(1) Heat and vaporized water are produced by fuel combustion. Heat rating does not account for heat loss due to
condensation of water vapor.
SECTION A:
SPECIFICATIONS
1
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 1

2
Flame Sensor
Heater will automatically stop all operations if ignition fails or if flame fails during combustion, in order to
prevent fuel overflow. Error code will be displayed on the digital indicator.
Overheat Protector
Automatically stops all operations if heater cabinet reaches abnormally high temperature due to motor
malfunction or abnormal combustion, in order to prevent fire.
Power Failure Recovery System
If power fails during heater operation, heater will turn off. When power resumes, heater will
automatically reignite and maintain the normal selected temperature.
NOTE: The operation varies depending on the time length of power failure and other conditions.
Please see page.14 for more details.
Fully Vented System
Flue pipe system provides outside air for combustion and vents all combustion products to the
outdoors.
1.
2.
3.
4.
SAFETY FEATURES
Your heater is equipped with a number of integral safety features. Please familiarize yourself with these features. If
the heater shuts down due to the operation of any safety device, ensure the problem is identified and corrected.
Note that normal combustion flames inside the combustion chamber, can be seen through a “peep hole”, located in
the front bottom left hand corner of the hot air outlet louver’s.
Fuel pipe
Burner ring
Blower motor
Heat exchanger
Burner
Peep hole
Fuel acceptance fitting
Igniter
Fuel pump
Fuel sub tank
Removable fuel tank
Heat shield plate
Overheat protector
Flame sensor
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 2

CAUTION: Heater and vent pipe system must be properly installed before operation. Please follow
instructions under “Installation”, Section I.
SECTION B:

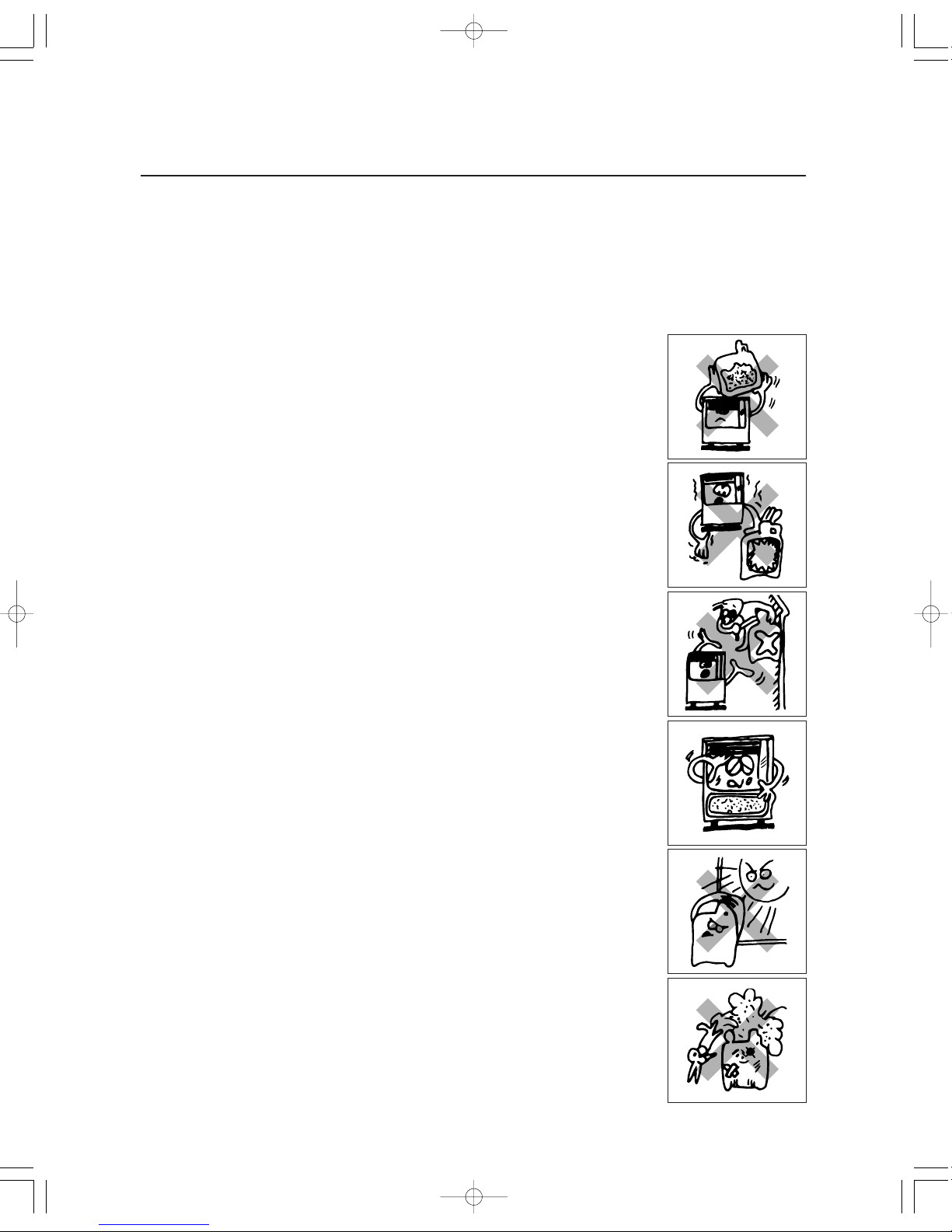

SAFETY TIPS FOR OPERATION
1. NEVER use any fuel other than Paraffin. NEVER USE GASOLINE. Use of gasoline can lead to uncontrollable
flames, resulting in destructive fire.
2. Due to high surface temperatures, keep heater away from children, furniture and clothing while in operation. (See
Page 25.)
• The appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been give supervision or instruction.
• Children being supervised not to play with the appliance.
• This appliance can be used by children aged from 8 years and above and per-
sons with reduced physical, sensory or mental capabilities or lack of experiance
and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
•
Cleaning and user maintenance shall not be made by children without supervision.
3. To prevent abnormal operation and prolong heater life, be sure to perform routine maintenance. (See Page 15.)
4. NEVER store or transport fuel in other than a metal or plastic container that is acceptable for fuel and clearly
marked “PARAFFIN”. NEVER store fuel in the living space.
5. Operating Temperature Range
Use heater within the range of temperatures
indicated in the right figure.
Point A: If outside temperature -29˚C
than room temperature has to be -18˚C or above
Point B: If outside temperature -43˚C
than room temperature has to be 16˚C or above
-18 -7 4 16
-29 A
B
Room Temperature (˚C)
Outside Temperature (˚C)
-32
-34
-37
-40
-43
Operating Range
RIGHT WRONG
GAS
PARAFFIN
PARAFFIN
Danger
3
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 3

4
The FF 55T is designed for use with Paraffin. Use of low-quality fuel will cause burner performance to drop, leading
to abnormal combustion and reduced heater life.
Purchase only Paraffin, in non-red cans reserved exclusively for fuel and marked accordingly with the word
“PARAFFIN”. Always store your fuel in a separate area from where you store gasoline for your power equipment to
avoid accidental use of gasoline in your heater.
What to Buy . . .
ALWAYS: Clean and high-quality Paraffin.
ALWAYS: Fuel free of contaminants, water or cloudiness.
NEVER: Gasoline, alcohol, white gas, camp stove fuel or additives.
NEVER: Yellow or sour-smelling fuel.
How to Store It . . .
ALWAYS: Store in a clean container, clearly marked PARAFFIN.
ALWAYS:
Store away from direct sunlight, heat sources or extreme temperature
changes.
NEVER: In a glass container, or one that has been used for other fuels.
NEVER: For longer than six months. Begin each heating season with
fresh fuel; discard at the end of season.
NEVER: In the living space.
Why It is Important . . .
Pure, clean fuel is essential for safe and efficient heater operation. Poor quality or
contaminated fuel can cause:
●Excess tar deposits on burner and flue pipe
●Incomplete combustion
●Reduced heater life
Use of a highly volatile flammable fuel such as gasoline can produce uncontrolla-
ble flames, creating a severe fire hazard.
SECTION C:
FUEL GUIDE
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 4

5. POWER SAVER/DAY SELECT button
3. TIMER button 9. AUTO indicator
10. TIMER indicator 11. POWER SAVER indicator
12. CHILD LOCK indicator
4. TEMP/TIMER/CLOCK/DAY set
15. SUN MON TUE WED
THU FRI SAT indicator
7. ˚F/˚C toggle switch
6. CHILD LOCK/CLEAR button 2. AUTO button
1. ON/OFF switch
8. ON lamp
13. BURNING MODE indicator
14. ˚F/˚C indicator
Before using heater, familiarize yourself with the following operating controls and part names.
Outlet opening
Inlet opening
Ciraulation air filter 16. Circulation fan
Pipe stopper
18. Power supply cord
Control panel
Front panel
Combustion
flames peep
hole
Drip tray
Louver
17. Room temperature sensor
SECTION D:

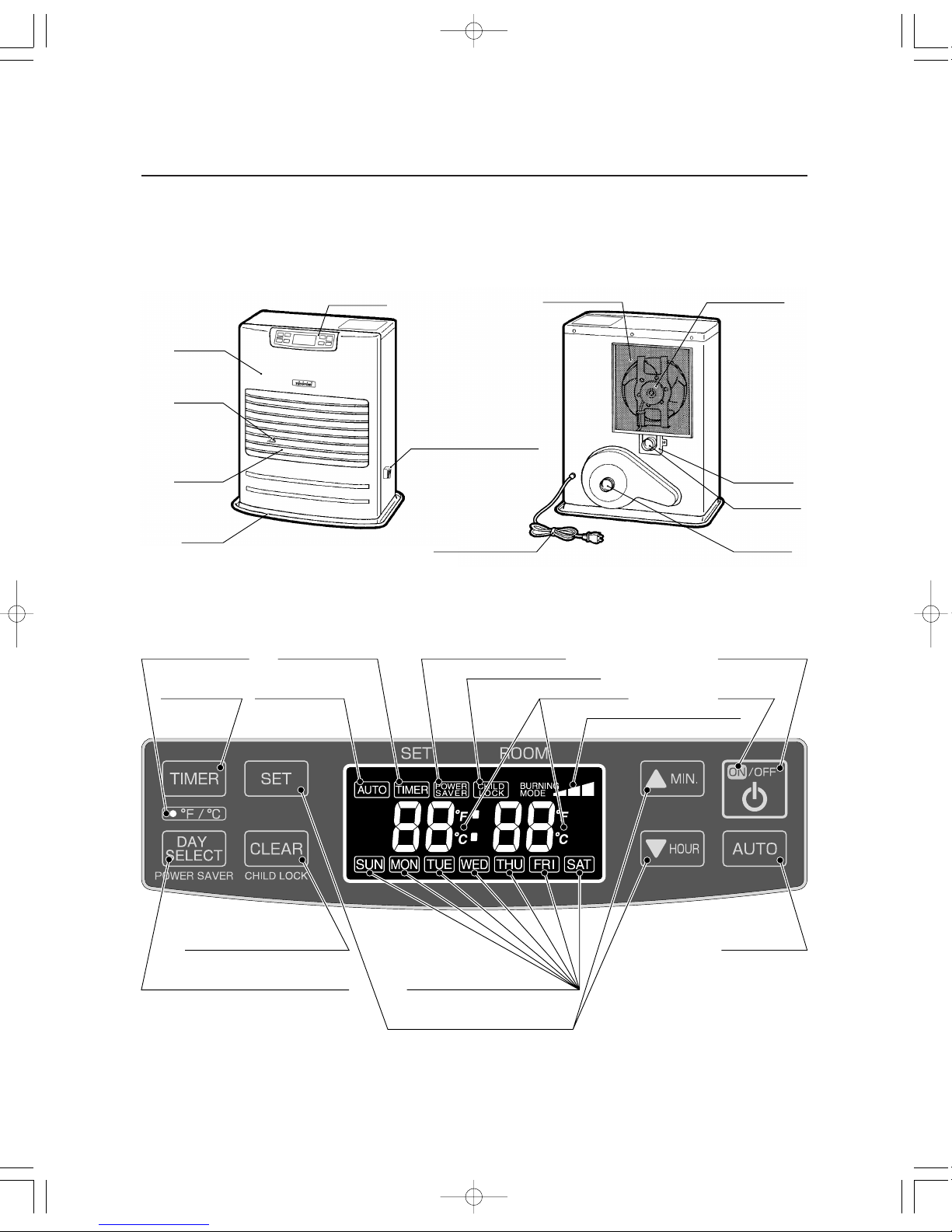

OPERATING CONTROLS AND PART NAMES
5
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 5

6
Main switch turns heater on and off. When switched
on, heater begins operation and combustion starts
after preheat period.
The button turns weekly timer operation modes on and
off which have been programmed into weekly timer.
The button turns weekly timer set mode on and off.
TEMP/TIMER/CLOCK/DAY set modes can be set by
pressing the ▲/MIN. or ▼/HOUR buttons.
The button turns POWER SAVER operation mode on
and off. When setting weekly timer, the button is used
to select a day of the week.
The button turns CHILD LOCK operation mode on
and off. When setting weekly timer, the CLEAR button
is used.
˚F/˚C toggle switch.
Lit – Heater is in operation.
Flashing – Pre-heating and pre-purging.
Lit – Weekly timer operation is in use.
Lit – Heater operating in weekly timer set mode.
Lit – Heater operation in POWER SAVER mode.
Lit – Heater operation in CHILD LOCK mode.
Lit – Heater operation at high, medium or low
combustion.
Lit – Digital indicator shows current temp.
Flashing – Current temp can be changed.
Lit – Digital indicator shows current day or timer day.
Three speed motor supplies high-capacity warm air
flow during high combustion for heating room up
quickly, and low or medium-capacity warm air flow
during low or medium combustion for maintaining
comfortable room temperature.
Constantly senses room temperature and supplies
information to heater so that desired room
temperature can be maintained.
The position of room temperature sensor can be
changed by using the extension wire (*optional) (See
Page 26.)
For use in 220V AC, 50Hz electrical outlet.
1. ON/OFF switch:
2. AUTO button:
3. TIMER button:
4. TEMP/TIMER/CLOCK/DAY set:
5. POWER SAVER/DAY SELECT button:
6. CHILD LOCK/CLEAR button:
7. ˚F/˚C switch:
8. ON lamp:
9. AUTO indicator:
10. TIMER indicator:
11. POWER SAVER indicator:
12. CHILD LOCK indicator:
13. BURNING MODE indicator:
14. ˚F/˚C indicator:
15. SUN MON TUE WED THU FRI SAT indicator:
16. Circulation fan:
17. Room temperature sensor:
18. Power supply cord:
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 6

BEFORE IGNITION

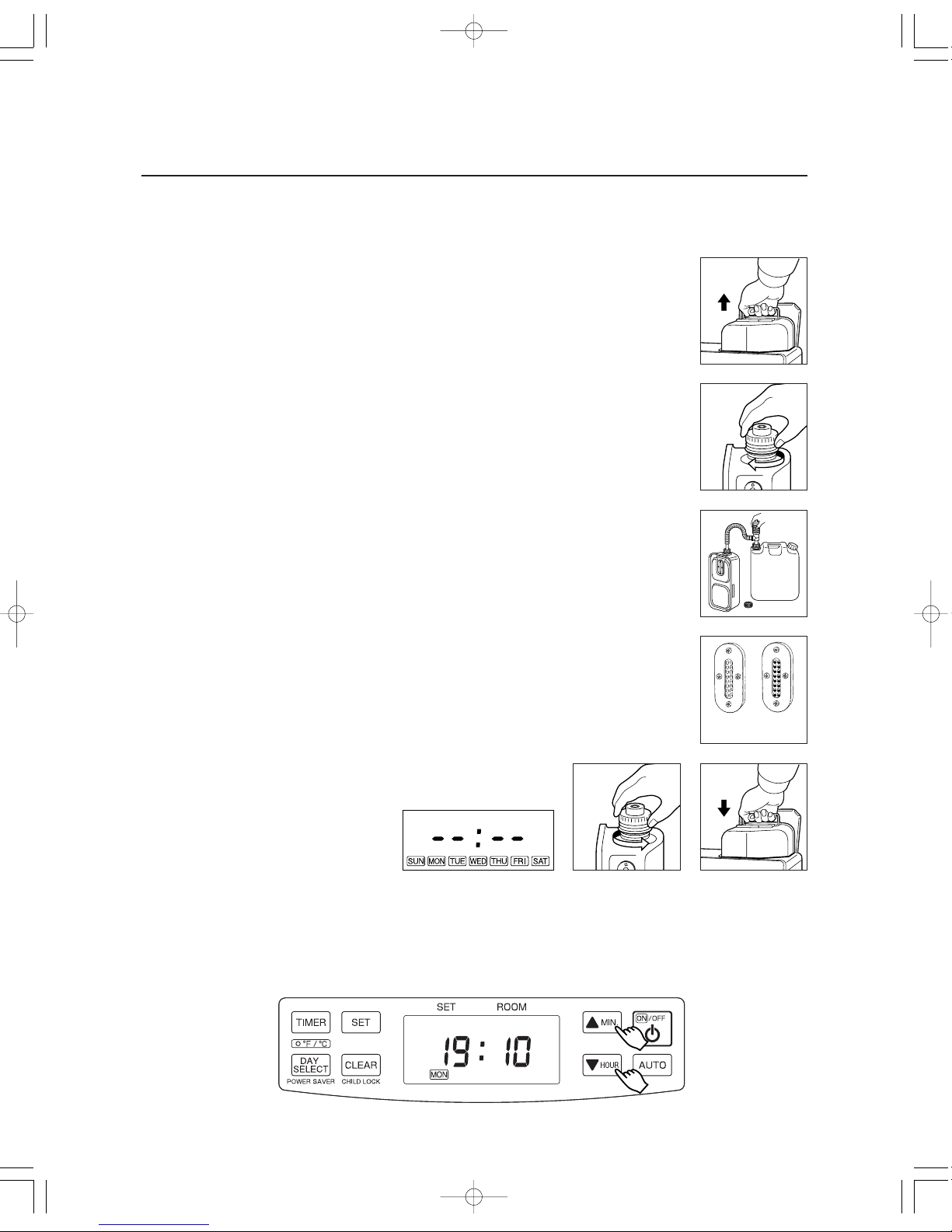

1: Filling Fuel
• Do not fill the removable tank in the living room, but in a more suitable place
(there can always be some spillage).
• Do not refuel the heater while in operation or still hot.
Follow the procedure below:
1) Make sure that the heater is switched off.
2) Open the tank lid and lift the removable tank out of the heater.
NOTE: Some drops may leak from the tank. Put down the removable tank (cap pointing
upwards) and screw off the fuel cap.
3) Take the manual fuel pump and insert the smooth, most rigid tube into the can. Make
sure that it is in a higher position than the removable tank. Insert the ribbed hose into the
opening of the removable tank.
4) Lock the switch button on top of the pump (turn clockwise).
5) Squeeze the pump a few times, until fuel starts flowing into the removable tank. As soon
as this happens, there is no need to press any longer.
6) Check the removable tank fuel gauge while filling the tank. Stop filling by loosening the
switch button on top of the pump (turn anti-clockwise), once the gauge indicates that the
tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands
when it heats up).
7) Let the remaining fuel in the pump flow back into the can and carefully remove the pump.
Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.
8) Check whether the fuel cap is straight an tightened properly. Reinstall the removable tank
in the heater (cap down). Close the tank lid.
2: Connect in the heater
Connect heater into a 220V AC, 50Hz electrical outlet. On digital
indicator pre-set “Two Dashes” will be showing.
NOTE: Do not connect to an outlet
shared with other appliances.

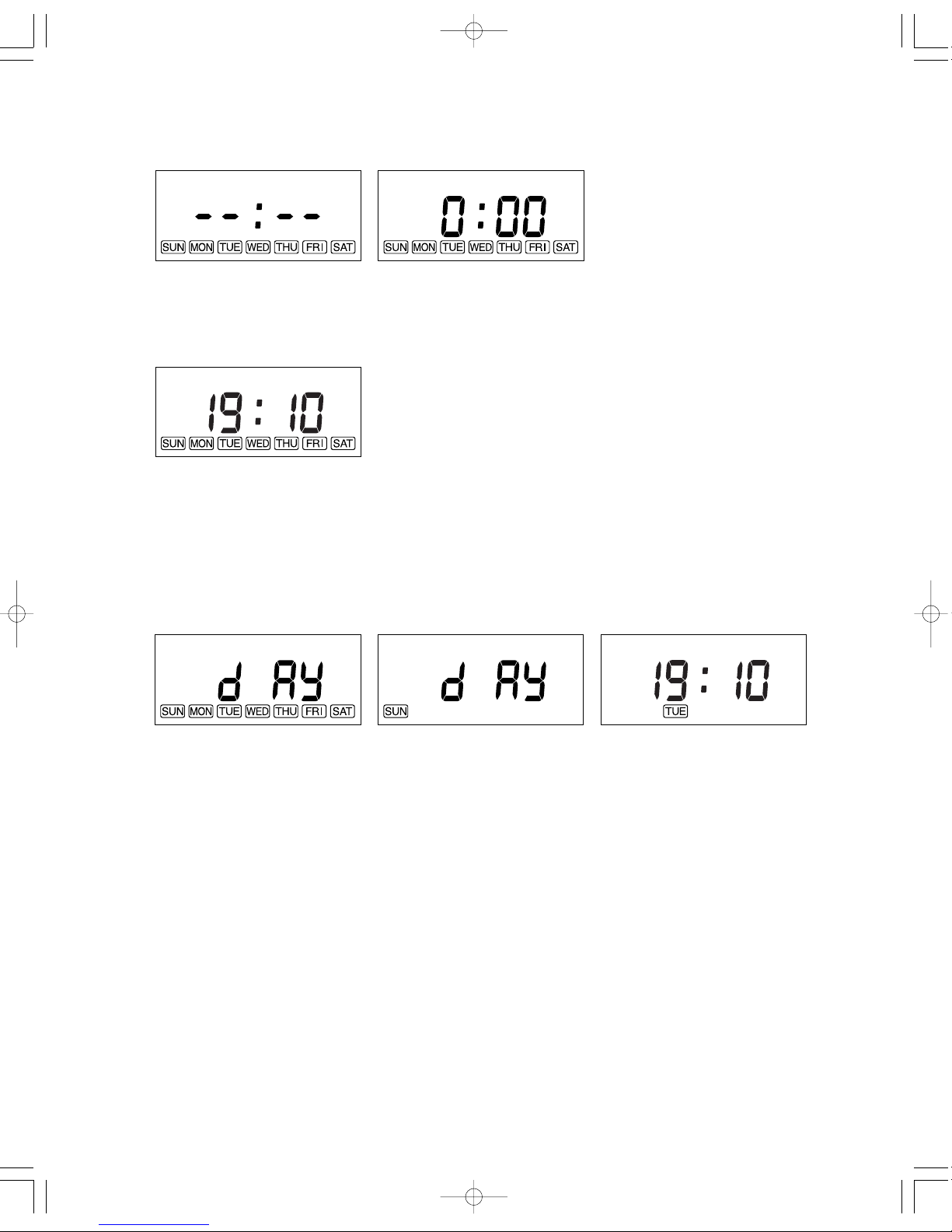

3. Set Clock
IMPORTANT: Clock on the heater must always be set to current time and day.
NOTE: The “▲MIN.” or “▼HOUR” button will change the time every one (1) unit. Holding the button continuously
will cause the time to change rapidly.
NOTE: In the event of a power failure (more than approx. 30 min.), all clock and day may be cancelled.
SECTION E:
OPERATION
empty full
7
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 7

8
4. Setting of the Time and a Day of the Week.
1) Current time is not set yet. (All signs light.)
Press the “▲MIN.” button or “▼HOUR” button while in not operation. (Power switch is off.)
0:00 (midnight) is indicated on the display. (All signs except the colon are blinking.)
2) Setting of the current time
Press the “▲MIN.” button to set minutes and press the “▼HOUR” button to set hours.
When pressing the “▼HOUR” button, the sign will change as follows.
“0:00” ➞“1:00” ➞··· ➞“11:00” ➞“12:00” ➞“13:00” ➞··· “23:00” ➞“0:00” ➞···
When pressing the “▲MIN.” button, the sign will change as follows.
“0:00” ➞“0:01” ➞··· ➞“0:59” ➞“0:00” ➞···
Press the “SET” button to complete the set of the current time.
3) Setting of a day of the week
“dAy” sign is shown on the display and all of a day of the week blink.
Press the “▲MIN.” button or the “▼HOUR” button to set a day of the week. A day of the week will blink. (Initial
setting is “SUN”.) The other days of the week will go off. Select a day of the week by using the “▲MIN.” or the
“▼HOUR” button. When pressing the “▲MIN.” button, the sign will change as follows.
“SUN” ➞“MON” ➞“TUE” ➞“WED” ➞“THU” ➞“FRI” ➞“SAT”
When pressing the “▲MIN.” button at the position of “SAT”, you can hear the beep sound and “SAT” is not
changed any more. When pressing the “▼HOUR” button, the sign will change as follows.
“SAT” ➞“FRI” ➞“THU” ➞“WED” ➞“TUE” ➞“MON” ➞“SUN”
When pressing the “▼HOUR” button at the position of “SUN”, you can hear the beep sound and “SUN” is not
changed any more.
Press the “SET” button to complete the set of a day of the week. The current time and a day of the week will
show on the display.
NOTE: If the ON/OFF switch is pressed during resetting of the current time and a day of the week after setting
the time and a day of the week, the set mode of the current time will terminate and the operation will start.
If a day of the week is set, the time is fixed at the resetting time. If a day of the week is not set, the
contents of the setting are deleted.
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 8

OPERATION
MANUAL OPERATION
Operation of the heater is under the direct control of the user. Heat output will, however, be automatically
adjusted in accordance with the room temperature registered by the temperature sensor.
1. Turning Heater ON
A. Press ON/OFF switch to “ON” position. The current room temperature and the set temperature will be
shown on the digital indicator. ON lamp will start to flash and then blower motor and ignition will start. This
lamp will continue to flash during the preheating time.
B. After approx. 1.5 – 4 minutes ignition will take place. (*) After ignition, ON lamp will change flashing to
continuous. Circulation fan will turn on after approx. 2 minutes.
NOTE: (*) Pre -heating depends on the room temperature.
Room temperature:
under 0˚C 4 minutes
0˚C - 15˚C 2 minutes
15˚C 1.5 minutes
2. Adjusting Room Temperature
A. Press the “▲MIN.” or “▼HOUR” button. ˚F or ˚C will start to flash.
NOTE: The“▲MIN.” or “▼HOUR” button will change the temperature in increment of 1˚C (2˚F).
B. Press the “▲MIN.” or “▼HOUR” button as required. Room temperature can be set from 10˚C (50˚F) to 32°C
(90˚F). (Initial setting : 13˚C (56˚F))
NOTE: Desired temperature setting will be displayed on the digital indicator when you set the room
temperature.
C. When room temperature reaches the selected setting, heater will automatically shift to “MED” or “LOW”
burning mode to maintain the desired temperature.
When room temperature exceeds the selected setting by approx. 2˚C (4˚F), the heater will automatically shut
off. As room temperature drops, the heater will automatically re-start to maintain the desired temperature.
Approx. +2˚C
Approx. +1˚C
SET
TEMP.
High Medium Low Off Re-lgnition
9
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 9

10

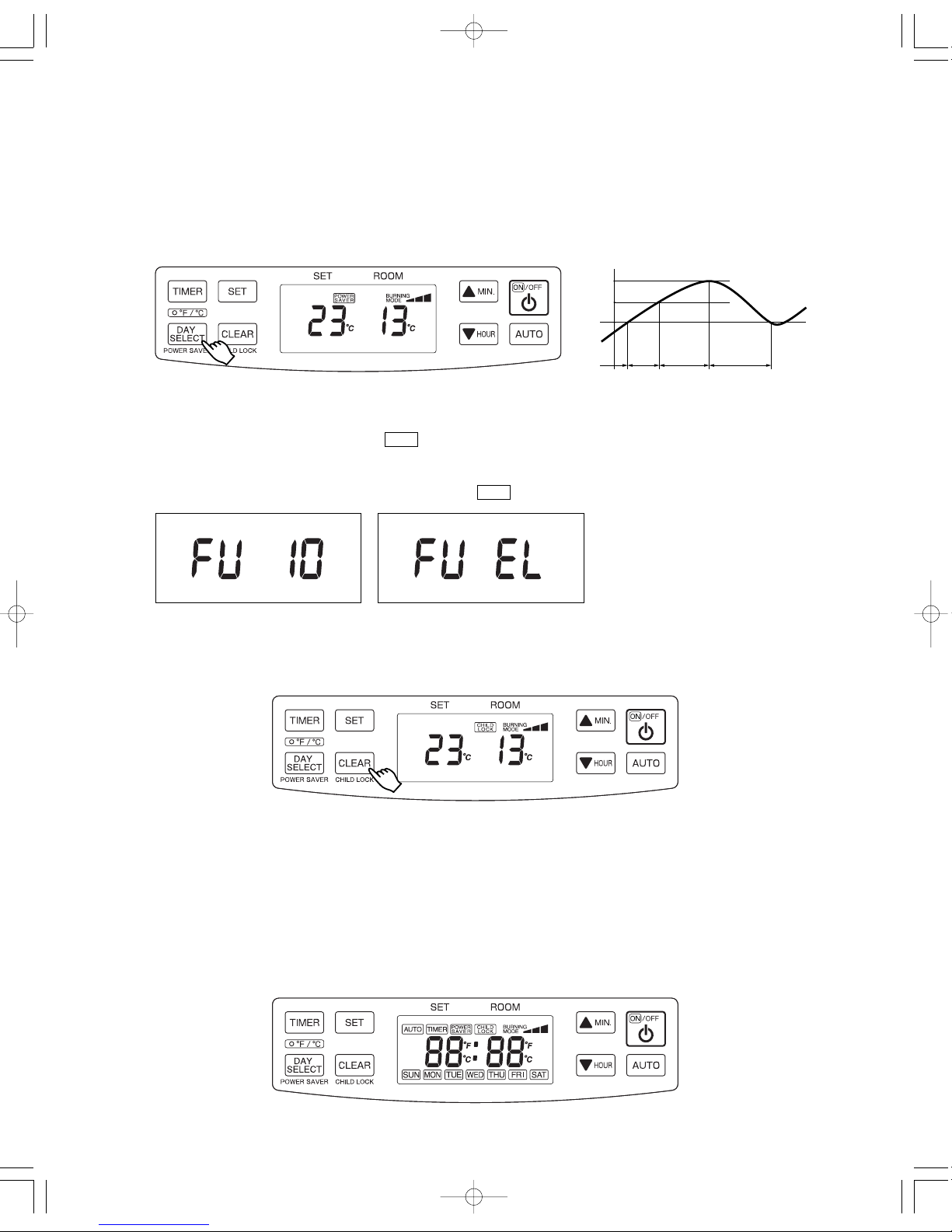

POWER SAVER OPERATION
The Power Saver mode reduces the frequency of ignition actions, to save electric consumption.
Press the POWER SAVER (DAY SELECT) button “ON” while in operation to start the operation of the “POWER
SAVER”. “POWER SAVER” sign will be shown on the digital indicator.
When the room temperature exceeds the selected setting by approximately 6˚C (10˚F), the heater will
automatically shut off. As the room temperature becomes lower than the selected setting, the heater will
automatically re-start to maintain the desired temperature.
FUEL INDICATOR LIGHT
When the information display lights up, fu 10 , it means that there is only fuel left for 10 more minutes. The count
down of the remaining heating time can be seen in the information display. You remove the fuel tank and refill it
outside the living room. If you don’t refill it,you will hear an alarm signal every two minutes, warning you to refill the
removable tank. After 10 minutes the information display, fu el , blinks and the heater will switch off automatically.
CHILD LOCK OPERATION
Press the CHILD LOCK (CLEAR) button for more than 3 seconds to set the childproof lock while in operation or
not operation. “CHILD LOCK” sign will be shown on the digital indicator.
The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is
burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If
the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater.
To release the child lock operation, press the CHILD LOCK (CLEAR) button for more than 3 seconds.
WEEKLY TIMER OPERATION
NOTE: If special notice does not state, when pressing button, you can hear the beep sound.
High Medium Low Off Re-
lgnition
Approx.
+6˚C
Approx.
+1˚C
SET
TEMP.
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 10

1. Set the Weekly Timer
NOTE: The following programs are set at the factory in advance.
After setting the current time and a day of the week, press the “TIMER” button to enter the weekly timer setting
mode. The “TIMER” is shown on the display. When the “TIMER” button is pressed during setting of the weekly
timer, the “TIMER” sign is disappeared and the current clock time and a day of the week are shown on the
display.
NOTE: You cannot enter the weekly timer setting mode, while in operation at AUTO operation mode.
1) Select the program number
Press the “▲MIN.” button or the “▼HOUR” button to select the program number.
The number of the program is 30. The unsetting program number is flashing on the display. In the case of the first
setting of the weekly timer, “P01” is shown on the display and will blink. When the unsetting program number is
shown on the display, all of a day of the week will also blink.
When pressing the “▲MIN.” button, the sign will change as follows.
“P01” ➞“P02” ➞··· ➞“P29” ➞“P30”
When pressing the “▲MIN.” button at the position of “P30”, you can hear the beep sound and “P30” is not
changed any more.
When pressing the “▼HOUR” button, the sign will change as follows.
“P30” ➞“P29” ➞··· ➞“P02” ➞“P01”
When pressig the “▼HOUR” button at the position of “P01”, you can hear the beep sound and “P01” is not
changed any more.
Basically, the only next program number of the biggest set program number is shown on the display and blinks.
All of 30 programs will not be shown on the display.
In case that the program is already set, the next number of the biggest setting program number is shown on the
display. If the program is set until “P30”, “P30” is shown on the display and will blink. Even though the program is
set until “P30”, if there is the unsetting program number, the smallest unsetting program number is shown on the
display.
Example:
In case that “P01” and “P02” programs are set and “P03” is not set, the display is indicated as follows.
“P01” – lighting ⇔“P02” – lighting ⇔“P03” – flashing 3
In case that “P01” and “P04” programs are set and “P02” and “P03” are not set, the display is indicated as
follows.
“P01” – lighting ⇔“P02” – flashing 3 ⇔“P03” – flashing 3 ⇔“P04” – lighting ⇔“P05” – flashing 3
Press the “SET” button to move to the next step (Set the timer).
The program number is eliminated by holding the “CLEAR” button continuously for 3 seconds.
Clock Time
6:00
8:30
17:00
23:00
7:00
10:00
16:00
23:00
Temp.
20˚C (68˚F)
16˚C (62˚F)
20˚C (68˚F)
16˚C (62˚F)
20˚C (68˚F)
16˚C (62˚F)
20˚C (68˚F)
16˚C (62˚F)
Day
“MON” “TUE” “WED” “THU” “FRI”
“MON” “TUE” “WED” “THU” “FRI”
“MON” “TUE” “WED” “THU” “FRI”
“MON” “TUE” “WED” “THU” “FRI”
“SUN” “SAT”
“SUN” “SAT”
“SUN” “SAT”
“SUN” “SAT”
Program #
P01
P02
P03
P04
P05
P06
P07
P08
11
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 11

12
2) Set the timer
The timer time is shown on the display. (In case that the timer time is not set, the bars are shown on the display.)
Press the “▲MIN.” button or the “▼HOUR” button to set timer time. “0:00” will be shown on the display. (The all
signs except the colon will blink.)
When pressing the “▼HOUR” button, the sign will change as follows.
“0:00” ➞“1:00” ➞··· ➞“11:00” ➞“12:00” ➞“13:00” ➞··· ➞“23:00” ➞0:00” ➞···
When pressing the “▲MIN.” button, the sign will change as follows.
“0:00” ➞“0:10” ➞“0:20” ➞“0:30” ➞“0:40” ➞“0:50” ➞“0:00” ➞···
Press the “SET” button to complete the set of the timer time and to move to the next step (Set the temperature of
the program).
In case that the “SET” button is pressed when showing the bars sign on the display, you can hear the beep
sound and cannot move to the next step.
3) Set the temperature of the program
The set temperature “21” will be shown on the display and it will blink.
Press the “▲MIN.” button or the “▼HOUR” button to set the temperature of the program. The “▲MIN.” button or
the “▼HOUR” button will change temperature every 1˚C (2˚F).
Press the “SET” button to complete the set the temperature of the program and move to the next step (Set a day
of the week of the program).
4) Set a day of the week of the program
The “dAy” sign will be shown on the display and the “SUN” will blink. Press the “▲MIN.” button or the “▼HOUR”
button to set a day of the week of the program. When pressing the “▲MIN.” button, the program is set at the day
of the week. The day of the week will light. When pressing the “▼HOUR” button, the set day of the week is reset.
The day of the week will go off. At this time, the sign is moved to the next day of the week automatically. When
pressing the “DAY SELECT” button, the display will be shown the next day of the week without setting. The sign
of a day of the week will change as follows.
“SUN” ➞“MON” ➞“TUE” ➞“WED” ➞“THU” ➞“FRI” ➞“SAT” ➞“SUN” ➞···
Press the “SET” button to complete the set of a day of the week of the program and it will go back to the select
of the program number. In case that a day of the week is not set, when pressing the “SET” button, yo can hear
the beep sound and cannot move to the next step.
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 12

2. Activate Weekly Timer Operation
During operation (in a SW/ON position), press the “AUTO” button to enter the weekly timer operation mode. The
“AUTO” sign will be shown on the display. However, if no program is set, you can hear the beep sound and
cannot enter the weekly timer operation mode. Press the “▲MIN.” button or the “▼HOUR” button to change the
set temperature. However, if the next program starts, the temperature will be changed to the temperature of the
next program.
During operation, press the “TIMER” button to enter the weekly timer set mode (Select of the program number). If
the “TIMER” button is pressed during the setting of the weekly timer set mode, the weekly timer set mode is
released. Change of setting is applied as soon as the AUTO operation starts.
MANUAL COMBUSTION
IMPORTANT: This feature is for testing purpose only!
This heater also can be kept burning at desired combustion mode (High, Medium or low) manually, regardless of
room temperature.
1. Press the “▲MIN.” button and “▼HOUR” button at the same time for more than three (3) seconds when ON /
OFF switch is “ON”.
2. P1, P2 or P3 will be displayed on the Digital indicator;
P1 = Low mode
P2 = Medium mode
P3 = High mode
Then select desired combustion mode by pressing “▲MIN.” or “▼HOUR” button. “▲MIN.” button changes
combustion mode to higher, “▼HOUR” button changes combustion mode to lower.
3. To clear, press the “▲MIN.” button and “▼HOUR” button at the same time for more than (3) seconds until
normal temperature display returns.
AUTOMATIC CLEANING MODE
When the heater has been burning continuously for two hours at its highest setting, the burner will automatically
start an auto clean procedure. The display will show the auto cleaning code cl:05 running back to cl:01. The
procedure takes 5 minutes to clean the burner automatically while the heater will burn at its lowest setting. When
the burner is clean again, the heater will automatically switch back to the highest setting again.
13
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 13

14
OUT OF BACKUP MEMORY
Start the combustion from the
beginning.
Set temperature will change to
13˚C (56˚F) for safety.
Set temperature and room
temperature will blank that at
least more than 30 min. power
failure has occurred.
To stop the blinking the set
temperature and room
temperature, press any button
once.
Keep the same condition before
the power failure.
The setting will be erased.
(See Page 13.)
The setting will be erased.
(See Page 10.)
LESS THAN 3
SECONDS
Restart the combustion
with the same condition
before the power failure.
Keep the same condition
before the power failure.
Keep the same condition
before the power failure.
Keep the same condition
before the power failure.
IN BACKUP MEMORY
Start the combustion from the
beginning.
Keep the same condition before
the power failure.
Keep the same condition before
the power failure.
The setting will be erased.
(See Page 10.)
IN BACKUP MEMORY
OUT OF BACKUP MEMORY
Child lock operation (See Page 10.)
Clock and Day setting (See Page 7.)
Auto operation (See Page 13.)
Child lock operation (See Page 10.)
TIME LENGTH OF
POWER FAILURE
OPERATION
POWER SAVER
OPERATION
AUTO OPERATION
CHILD LOCK
OPERATION

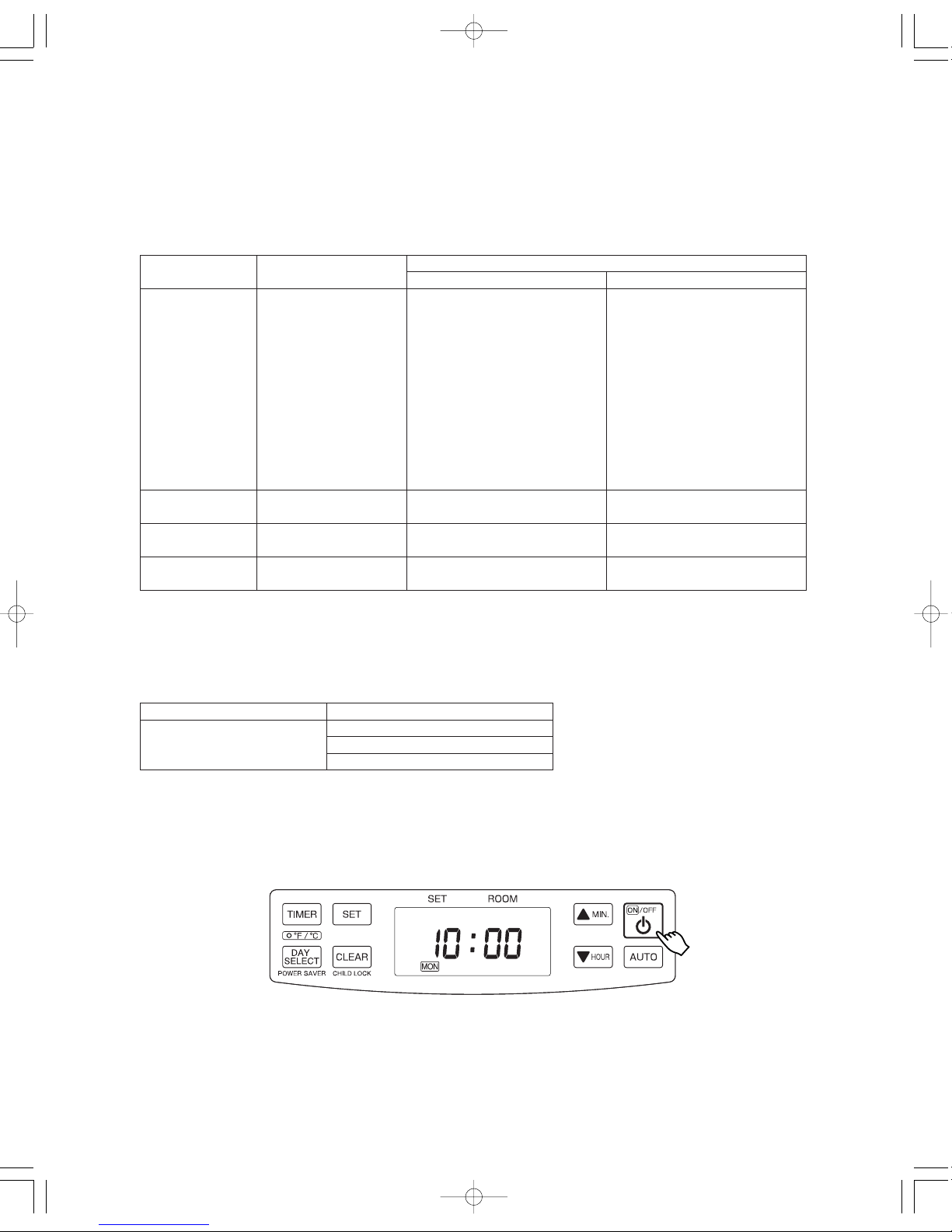

POWER FAILURE RECOVERY SYSTEM
If at any time a power failure occurs during operation, heater will turn off. When the power returns, the unit will
automatically restart with the following conditions. Please reset each setting when the settings are erased as
indicated below.
WHEN HEATER IS IN OPERATION
If at any time a power failure occurs when heater is not in operation, the unit will basically start the operation while
keeping the same condition before the power failure. However, when the power failure continued more than 3
seconds, the following settings will be erased. Please reset each setting.
WHEN HEATER IS NOT IN OPERATION
TURNING HEATER OFF
Press ON/OFF switch to “OFF” position. ON lamp will flash and will go out. Circulation fan and blower motor
continue to run for approx. three (3) minutes to cool down the heater. Make sure ON lamp goes out when the fan
stops.
MORE THAN 3 SECONDS
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 14

Louver
Ciraulation air filter Circulation fan
Check

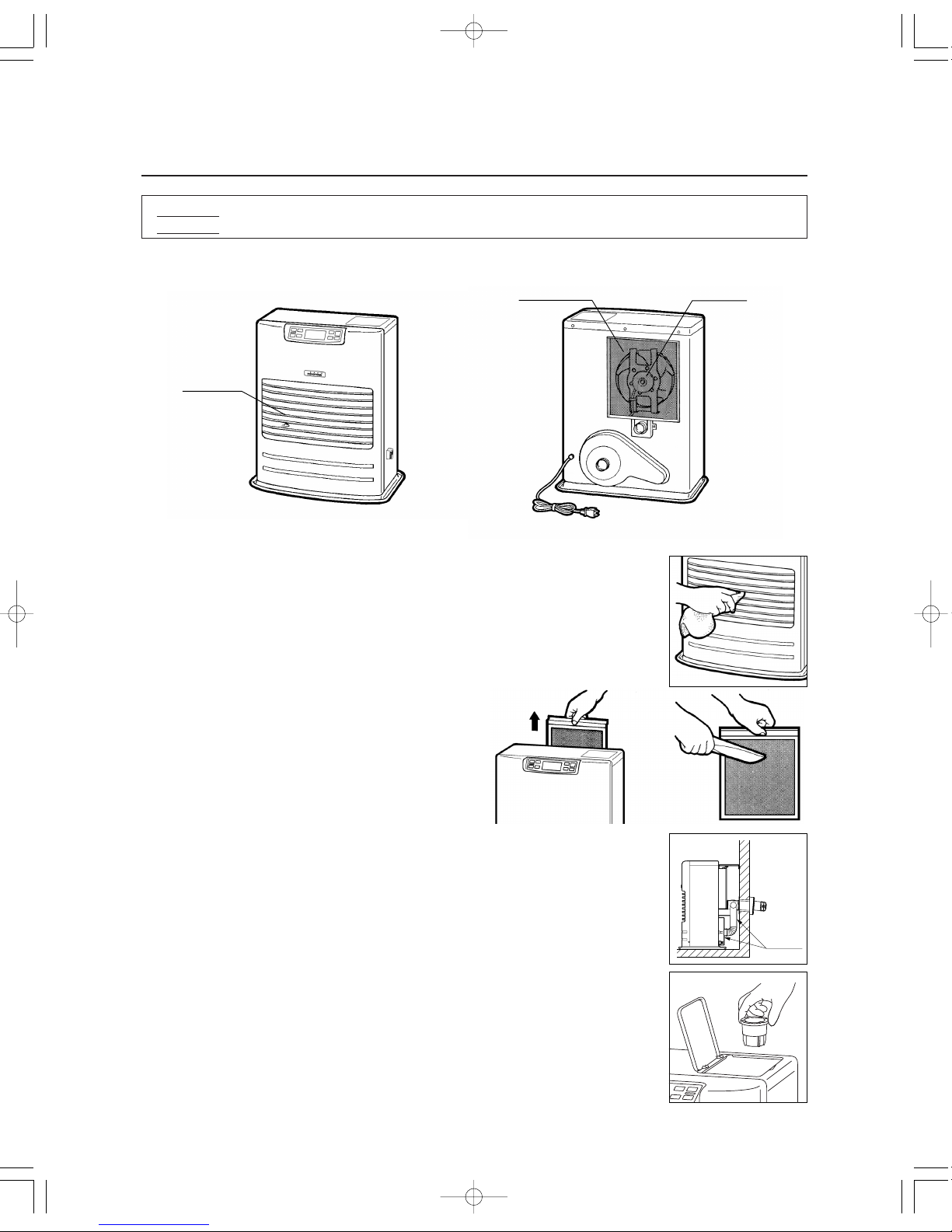

FOR OPTIMUM HEATER PERFORMANCE, THE PARTS SHOWN BELOW SHOULD BE CLEANED REGULARLY:
1. Clean Louvers (ONCE A WEEK)
Dust and stains should be wiped off louvers with a damp cloth.
2. Clean Circulation Air Filter (ONCE A WEEK)
A mesh filter is located on heater cabinet rear side.
Once a week slide the filter up to remove and it
should be vacuumed clean.
3. Check Flue Pipe Area (ONCE A WEEK)
Check the flue pipe joint to make sure connection is firm. Use a vacuum cleaner to
remove any dust or pet hair.
4. Clean Fuel Acceptance Fitting
When dirt or dust accumulates in the fuel acceptance fitting, it should be cleaned.
Check fuel acceptance fitting each time your refuel.
5. Check for fuel leaks
Make it a habit to check for signs of fuel leakage. Wipe off any spilled fuel on the sub
tank and removable fuel tank. Spilled fuel may cause odor or risk of fire.
CAUTION: Be sure to disconnect heater before performing any checks or cleaning.
CAUTION: Allow heater to cool completely before cleaning or maintenance.
SECTION F:
ROUTINE MAINTENANCE
15
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 15

16
6. Recommended Periodic Maintenance
As a state-of-the-art furnace, your heater requires periodic inspection and service by an authorized technician to
insure optimum, trouble free performance. This inspection should include: a combustion check; flue pipe check;
burner assembly check; cleaning all necessary parts and replacing gaskets as needed. Please ask your
authorized TOYOTOMI dealer for details and scheduling.
AUTOMATIC IGNITER CLEANING SYSTEM
The igniter cleaning mode prolongs the igniter life.
When the heater is on and clock is set (See “Set Clock” on page 7), it will automatically stop and clean the igniter
every day at 2:00 and will display “CL” on the digital indicator. After the cleaning mode is finished the heater will
automatically re-ignite and continue to burn again.
MANUAL IGNITER CLEANING SYSTEM
Heater will clean igniter for ten (10) minutes manually.
1. When ON/OFF switch is “OFF”, press the “SET” button and “CLEAR” button at the same time for more than
three (3) seconds.
2. Display will appear “CL:10” on Digital indicator. Cleaning will begin and end without any additional input.
NOTE: Cleaning igniter is important to prolong igniter life. It is recommended that the igniter be cleaned once a
week.
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 16

The following symptoms are normal during operation of the heater.
BEFORE REQUESTING A SERVICE CALL
When heater is started
or extinguished.
When heater is
in operation.
Odor
CONDITION
White smoke or smell inside home when the heater
is first used.
Flashing flames visible in viewing window for a few
minutes after ignition.
Irregular metallic “cracking” noises when when
heater is ignited or extinguished.
Warm air is not discharged as soon as ignited.
Regular pulse “Ticking” noise from heater.
Heat chamber or heat exchanger can be seen
through the air outlet louver’s glowing red hot.
Occasional yellow flickering in blue flame.
Spilled paraffin
Use of inferior paraffin
REASON
Machine oil used in factory assembly, or transit
dust burns off the surfaces of the burner or heat
exchanger.
The burner is cold and igniter is kept running for a
while after.
Expansion / contraction of hot metal components
within the heater warming and cooling.
Delay is to prevent nuisance cool air.
Sound of fuel pump in normal operation.
Normal
Normal
—Wipe off any paraffin spills from fuel sub tank,
removable fuel tank and drip tray.
—Remove fuel and refuel using fresh, water-clear
paraffin.
SECTION G:
TROUBLESHOOTING
ERROR CODE
E-0
E-2
E-6
E-8
E-12
E-13
E-22
E-23
FUEL
-- : --
Hi
Lo
INFORMATION
Power failure (low voltage, unstable frequency)
Ignition safety feature is activated.
Extinguished during operation.
Blower motor malfunction
Overheating safety feature is activated.
Burner thermistor malfunction
Excess fuel in the burner
Ignition failure three times
Primary flame rod (Flame sensor) is malfunction and/or dirty
No fuel
Timer is not setting.
Room temperature is higher than 35˚C (95˚F).
Position of room temperature sensor is not correct.
Room temperature is lower than -10˚C (14˚F).
Room thermistor malfunction or disconnected.
WHAT TO DO
Check power source.
Contact your dealer.
Contact your dealer.
Contact your dealer.
Clean the air filter and remove dust.
Contact your dealer.
Contact your dealer.
Contact your dealer.
Consult your dealer.
Refill fuel.
Set the timer.
Check the position of room temperature
sensor. / Contact your dealer.
Check the position of room temperature
sensor. / Contact your dealer.
17
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 17

18
At the close of each heating season, or when you do not plan to use your heater for an extended period, the
following procedures are recommended.
1. As the end of the season approaches, calculate your fuel purchases so that you can use up all the fuel you
have on hand. When fuel is stored for over six months, its quality may deteriorate. The use of such fuel will
have an unfavorable effect on heater operation.
2. If your heater needs any service or repair, now is the time to call your dealer and get it done before storage.
That way your heater will be ready for immediate use when the next heating season begins.
3. If you plan to store your heater in place,
(a) Disconnect power supply.
(b) Clean the fuel acceptance fitting and remove any paraffin, dust or water
remaining in the fuel sub tank and removable fuel tank to prevent rusting.
(See Page 15.)
(c) Wipe off any stains or dust on heater with a damp cloth, then wipe once
again using a dry cloth.
(d) Cover heater completely with a large plastic bag to protect from dust.
4. To store heater in another location,
(a) Disconnect heater.
(b) Remove all fuel from the fuel sub tank and clean the fuel acceptance fitting.
(c) Disconnect flue pipe from the heater.
(d) Remove any soot accumulated in the flue pipe using a brush and/or vacuum cleaner.
(e) Wipe off any stains or dust on heater with a damp cloth, then wipe once again using a dry cloth.
(f) Put the heater in the original shipping box, and store in a dry place. If original shipping box is not
available, cover the heater completely with a large plastic bag to protect from dust during storage.
(g) Cover exhaust and air intake openings of the flue pipe by using optional caps.
(Part #17212661 and #17212656)
TRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of the heater.
- ALWAYS move the heater in an upright position.
- ALWAYS drain fuel from the fuel sub tank cap (*optional) (Part #17217535) before transportation.
Dealer
SECTION H:
LONG TERM STORAGE
Fuel
acceptance fitting
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 18

GENERAL DESCRIPTION: The FF V55T is designed to be installed in an outside wall so the full advantage of in-
stallation simplicity can be made with the “Flue Pipe”, which eliminates the need for tall chimney type flues. No
hearth or fire surround is required. While some Flue pipe wall extentions are available, they complicate installation.
Read and understand the limitations of Flue pipe wall extension options. (See Page 20.)

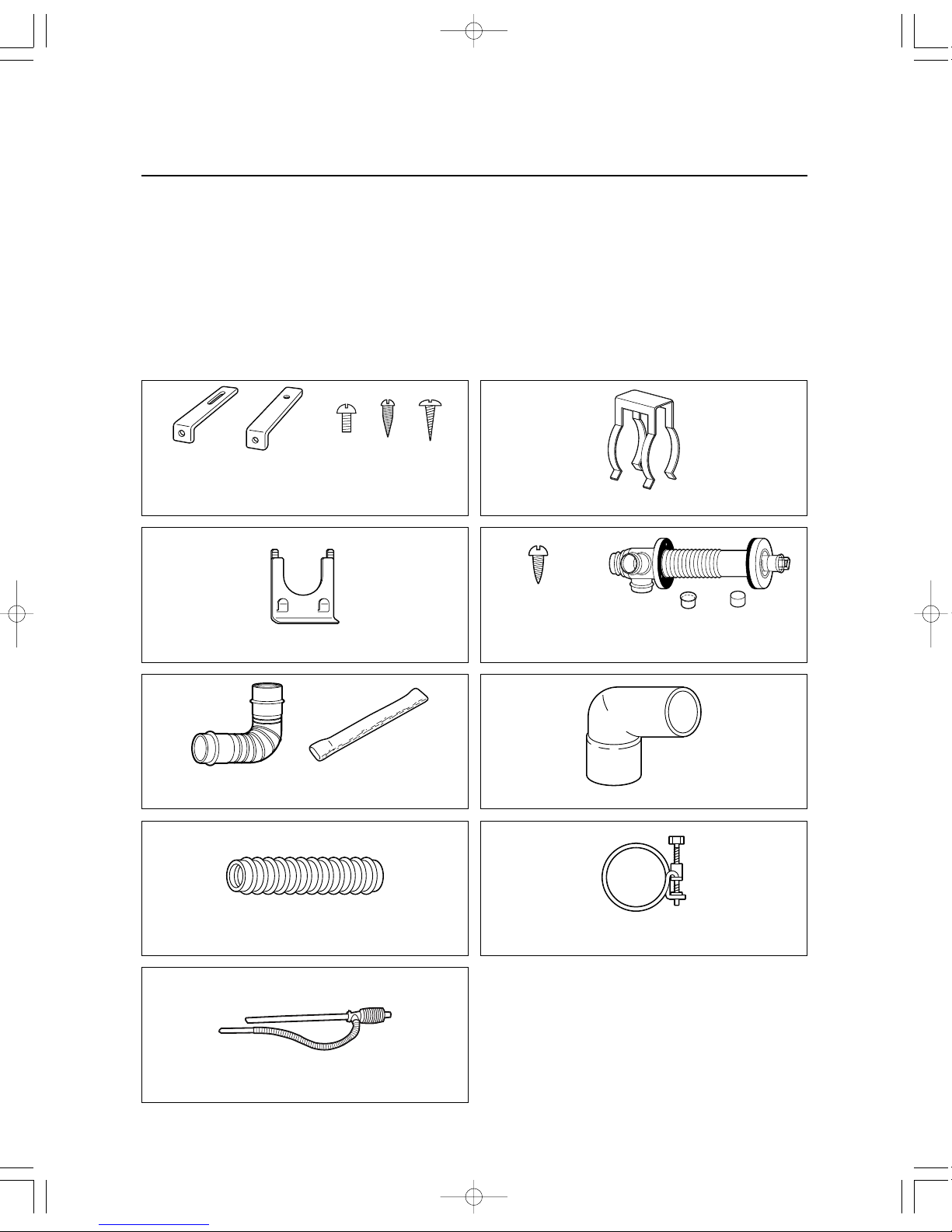

STANDARD INSTALLATION PARTS
The following standard installation parts are enclosed with heater. For alternate installation methods, you may need
to purchase additional accessories which are available from your TOYOTOMI dealer. See “Accessory Parts”.
SECTION I:
INSTALLATION
L-shaped Hose (2) (PART #17212692)
Pipe Holder (1) (PART #17212685)
Flue Pipe (1) (PART #17224296)
Exhaust Air Cap (1) (PART #17212661)
Intake Air Cap (1) (PART #17212656)
Wood Screw (3)
(PART #17206066)
Bent Joint (L) (1)
(PART #17212798)
Insulating Cover
(PART #17212787)
Wall Bracket (2 sets) (PART #17212589)
Tapping Screw (1) (PART #17208678)
Bind Tapping Screw (1) (PART #17187555)
Wood Screw (1) (PART #17206066)
Hose Band (2) (PART #17212677)
(Hose Clamp)Inlet Hose (1) (PART #17212791)
Manual Fuel Pump (1) (PART #17027727)
Pipe Stopper (1) (PART #17219378)
(3)
19
FF_55T_Type B_US.qxd 14.5.29 15:58 ページ 19
